Slotted waveguide antennas are crucial for enhancing WiFi communication systems. These antennas significantly improve signal strength, coverage, and reliability, making them indispensable for high-performance wireless networks. With their efficient design and ability to support both horizontal and vertical polarizations, slotted waveguide antennas are a key component in modern WiFi technology.

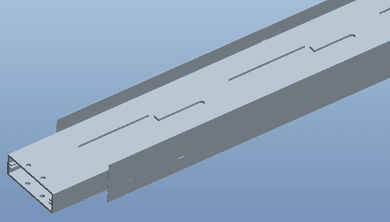

A slotted waveguide antenna is a specialized antenna used in WiFi communication systems to enhance signal strength and coverage. It features slots in a waveguide that emit radio waves, allowing for efficient signal transmission. This type of antenna supports dual polarization, meaning it can handle both horizontal and vertical polarizations simultaneously, improving the reliability and performance of WiFi networks.

Now, let’s delve deeper into the various aspects of slotted waveguide antennas to understand their functionality and benefits.

What is a slot antenna?

A slot antenna is a type of antenna used in wireless communications, characterized by a slot or a narrow rectangular cut in a metal surface. This design allows it to efficiently transmit and receive radio frequency signals. Slot antennas are known for their compact size, ease of integration into various devices, and ability to provide consistent performance across a wide range of frequencies. They are commonly employed in applications such as Wi-Fi, cellular networks, and other wireless communication systems.

What is the slotted waveguide antenna used for?

The slotted waveguide antenna is used in WiFi and MIMO (multiple-input, multiple-output) systems. These antennas provide high gain and low interference, making them ideal for communication applications. They are particularly useful in systems that require precise directional control and high efficiency.

How does the Slotted Waveguide Antenna work?

The Slotted Waveguide Antenna works by guiding radio waves through a waveguide and radiating them through slots, creating a directional beam. The waveguide is a hollow metallic tube that acts as a transmission line for the radio waves. The slots in the waveguide allow the radio waves to escape and radiate into free space.

The position and size of the slots are critical to the antenna’s performance. The slots act as radiating elements, and their position determines the direction in which the antenna radiates. By changing the position and size of the slots, the antenna can be designed to radiate in a specific direction or have a specific radiation pattern.

The size of the slots also affects the efficiency of the antenna. If the slots are too small, the radio waves will not be able to radiate effectively, resulting in poor performance. If the slots are too large, the antenna will be less efficient and may not radiate in the desired direction.

Overall, the Slotted Waveguide Antenna is a simple and efficient design that is commonly used for applications such as radar systems, satellite communications, and wireless networking. Its directional beam and high gain make it ideal for long-range communication.

What is the working principle of a slotted antenna?

The working principle of a slotted antenna is based on the concept of aperture coupling. In this antenna, slots are cut into the conducting surface of a waveguide. When a microwave signal is applied to the waveguide, it propagates through the waveguide and reaches the slots. As the signal passes through the slots, it radiates out into space.

The slots act as apertures, allowing the microwave signal to escape from the waveguide and radiate as electromagnetic waves. The size and shape of the slots determine the frequency at which the antenna operates.

The slotted antenna can radiate energy in a specific direction, depending on the size and shape of the slots. By changing the dimensions of the slots, the radiation pattern of the antenna can be controlled.

The slotted antenna is a popular choice for applications where a narrow beam of radiation is required, such as in radar systems. It is also used in satellite communication systems, where the antenna needs to be able to track a moving satellite.

What are the advantages of a slotted antenna?

Some advantages of a slotted antenna are:

1. High Efficiency: Slotted antennas have high radiation efficiency, meaning that a large portion of the input power is converted into radiated power. This makes them suitable for applications where maximum power transfer is desired.

2. Low Cross-Polarization: Slotted antennas exhibit low cross-polarization, which means that they radiate and receive signals primarily in one polarization (either horizontal or vertical). This is important in applications where cross-polarization can cause signal degradation.

3. Flexibility in Design: Slotted antennas can be designed to operate over a wide range of frequencies, making them versatile for different applications. They can also be designed to have different radiation patterns, such as omnidirectional or directional, depending on the specific requirements.

4. High Power Handling Capability: Slotted antennas are capable of handling high power levels without significant degradation in performance. This makes them suitable for applications that require high power transmission, such as radar systems.

5. Covert Applications: Slotted antennas can be designed to be low-profile and inconspicuous, making them suitable for covert applications where it is desirable to hide the presence of an antenna.

6. Easy Mass Production and Customization: Slotted antennas can be easily mass-produced using standard manufacturing techniques, such as printed circuit board (PCB) fabrication. They can also be easily customized to meet specific requirements in terms of size, shape, and frequency response.

What is the disadvantage of slot antennas?

Disadvantages can include complexity in design and manufacturing, and potential limitations in bandwidth compared to other antenna types. Ensuring the precise placement and size of slots can be challenging.

Another disadvantage of slot antennas is that they are highly directional. This means that they have a narrow beamwidth and are only effective in transmitting or receiving signals in a specific direction. This can limit their usefulness in certain applications where a more omnidirectional coverage is required.

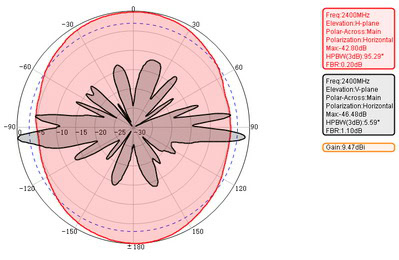

Slotted Waveguide Antenna Radiation Patterns

The arrangement of slots in these antennas allows for customization of the radiation pattern, enabling the creation of directional beams with different sizes and shapes. This adaptability makes them suitable for various environments and applications.

For example, a simple rectangular slot can produce a broadside radiation pattern, which is ideal for applications that require a wide coverage area. On the other hand, a narrower slot can produce a more focused radiation pattern, suitable for long-range communication or point-to-point links.

The shape of the slot can also affect the radiation pattern. For instance, a circular slot can produce a circularly polarized radiation pattern, which is useful for satellite communication and radar systems. Similarly, a slot with multiple arms can create a radiation pattern with multiple lobes, enabling the antenna to cover multiple directions simultaneously.

In addition to the slot arrangement, the size of the slot can also impact the radiation pattern. A larger slot will produce a wider beam, covering a larger area. Conversely, a smaller slot will create a narrower beam, providing more focused coverage.

In summary, slotted waveguide antennas offer flexibility in shaping the radiation pattern to meet specific requirements. By adjusting the slot arrangement, shape, and size, these antennas can provide directional beams with varying shapes and sizes, making them suitable for a wide range of applications.

Slotted Waveguide Antenna Frequency

Slotted waveguide antennas can be used for WiFi applications in both single-band and dual-band configurations, including those with multiple-input multiple-output (MIMO) technology.

For single-band WiFi, the slotted waveguide antenna can be designed to operate at the desired frequency, such as 2.4 GHz or 5 GHz. These antennas are typically used for applications that require a specific frequency band, such as 2.4 GHz for 802.11b/g/n or 5 GHz for 802.11a/n/ac.

In the case of dual-band WiFi, the slotted waveguide antenna can be designed to operate at both 2.4 GHz and 5 GHz. These antennas are commonly used in dual-band routers or access points that support both 2.4 GHz and 5 GHz WiFi networks. They allow devices to connect to either frequency band based on their capabilities and requirements.

When it comes to MIMO technology, slotted waveguide antennas can be designed with multiple slots to support multiple antennas. For example, a dual-band WiFi router with MIMO could have two slotted waveguide antennas, each with multiple slots, to support multiple streams of data transmission and reception. This enables higher data rates and improved wireless performance.

Overall, slotted waveguide antennas can be designed and used for WiFi applications in single-band, dual-band, and MIMO configurations, providing efficient and reliable wireless connectivity.

Slotted Waveguide Antenna Polarization

Dual polarization in the context of slotted waveguide antennas refers to the ability of the antenna to radiate and receive signals with both horizontal and vertical polarizations simultaneously. This means that the antenna is capable of transmitting and receiving signals in two different planes.

In a dual-polarized slotted waveguide antenna, the slots are oriented in such a way that they can radiate and receive signals in both the horizontal and vertical planes. This is achieved by having two sets of slots, one for each polarization. The slots for horizontal polarization are aligned in the vertical plane, while the slots for vertical polarization are aligned in the horizontal plane.

By having dual polarization, the antenna can transmit and receive signals in two different polarizations simultaneously. This is particularly useful in scenarios where the signal environment is complex and consists of signals with different polarizations. By being able to receive signals with both horizontal and vertical polarizations, the antenna can effectively capture more of the available signal power and enhance the overall performance.

Dual polarization can also be beneficial in applications where there is a need to transmit and receive signals with different polarizations simultaneously. For example, in wireless communication systems, different users may be assigned different polarizations to minimize interference between them. In such cases, a dual-polarized antenna can be used to transmit and receive signals with different polarizations simultaneously, allowing for efficient communication.

Overall, dual polarization in slotted waveguide antennas allows for enhanced performance in complex signal environments and enables the antenna to transmit and receive signals with different polarizations simultaneously.

Slotted Waveguide Antenna Theory

A slotted waveguide antenna is a type of antenna that operates by guiding electromagnetic waves along a metallic waveguide and then radiating them through slots cut into the waveguide walls. This design allows for efficient transmission and reception of electromagnetic waves, especially at high frequencies.

The basic principle behind a slotted waveguide antenna is the propagation of electromagnetic waves through a waveguide. A waveguide is a metallic structure that is designed to guide electromagnetic waves along its length with minimal signal loss. The waveguide is typically rectangular or circular in shape and is made of a conductive material such as metal.

When an electromagnetic wave enters a waveguide, it is confined within the waveguide by the reflective walls. The wave propagates along the length of the waveguide, bouncing off the walls until it reaches the desired destination.

In a slotted waveguide antenna, slots are cut into the walls of the waveguide at specific locations. These slots act as radiating elements, allowing the electromagnetic waves to escape the waveguide and radiate into free space. The size, shape, and placement of the slots determine the radiation pattern and the characteristics of the antenna.

The slots in a slotted waveguide antenna are typically small compared to the wavelength of the electromagnetic wave. This ensures that the slots do not significantly affect the propagation of the wave along the waveguide. Instead, the slots act as small apertures that allow the wave to radiate into free space.

The slots in a slotted waveguide antenna can be arranged in various configurations to achieve different radiation patterns. For example, a single row of slots along one side of the waveguide will produce a broadside radiation pattern, while multiple rows of slots on opposite sides of the waveguide will produce an endfire radiation pattern.

Slotted waveguide antennas are commonly used in high-frequency applications, such as radar systems and satellite communications. They offer high directivity, which means they can focus the radiated energy in a specific direction, allowing for long-range communication. Additionally, the metallic waveguide provides shielding, protecting the antenna from interference and improving its performance.

In summary, a slotted waveguide antenna operates by guiding electromagnetic waves along a metallic waveguide and then radiating them through slots cut into the waveguide walls. This design allows for efficient transmission and reception of electromagnetic waves, especially at high frequencies. Slotted waveguide antennas are widely used in high-frequency applications due to their high directivity and low signal loss.

Slotted Waveguide Antenna Design

There are several steps involved in designing a slotted waveguide antenna:

1. Determine the operating frequency: The first step is to determine the frequency at which the antenna will operate. This will dictate the dimensions of the waveguide and the slot.

2. Choose the waveguide dimensions: The dimensions of the waveguide, such as width and height, need to be chosen based on the desired operating frequency. This can be done using standard waveguide design equations or software tools.

3. Determine the slot dimensions: The dimensions of the slot, such as length and width, need to be chosen based on the desired operating frequency and the desired radiation pattern. The slot should be small enough to radiate at the desired frequency but large enough to achieve the desired radiation pattern.

4. Determine the slot position and orientation: The position and orientation of the slot within the waveguide need to be chosen to achieve the desired radiation pattern. This can be done using modeling and simulation tools or by trial and error.

5. Calculate the feed position: The position of the feed within the waveguide needs to be determined to achieve the desired radiation pattern. This can be done using modeling and simulation tools or by trial and error.

6. Model and simulate the design: Once the slot position, orientation, and feed position have been determined, the design can be modeled and simulated using electromagnetic simulation software. This will allow the designer to verify that the design meets the desired specifications.

7. Fabricate and test the antenna: After the design has been verified through simulation, the antenna can be fabricated and tested. This will involve machining the waveguide and slot, as well as fabricating the feed. The antenna can then be tested to ensure that it meets the desired specifications.

8. Optimize the design: If the antenna does not meet the desired specifications, the design can be optimized by adjusting the slot dimensions, position, orientation, or feed position. This can be done through a combination of modeling, simulation, and testing.

Phased Array Slotted Antenna vs. Slotted Waveguide Antenna

Phased array slotted antenna:

– Consists of a large number of individual radiating elements, each with its own phase shifter.

– The elements are arranged in a regular pattern, such as a grid or a circle.

– By adjusting the phase of each element, the antenna can steer the beam in different directions.

– Offers high flexibility in beam steering and can track multiple targets simultaneously.

– Can be used for applications such as radar, satellite communication, and wireless communication.

– More complex and expensive to design and build compared to slotted waveguide antennas.

Slotted waveguide antenna:

– Consists of a waveguide with a narrow slot cut into it.

– The slot radiates electromagnetic waves, and the shape and size of the slot determine the antenna’s radiation pattern.

– The antenna is designed to radiate most of its energy in a specific direction.

– Typically used for applications that require a fixed beam direction, such as point-to-point communication links or radar systems.

– Requires fewer elements compared to phased array antennas.

– Simpler and less expensive to design and build compared to phased array antennas.

Summary

Slotted waveguide antennas are important for improving WiFi and MIMO (Multiple Input Multiple Output) systems, which are critical for wireless communication today. These antennas are great at handling high frequencies and supporting different polarizations, which makes them perfect for increasing the strength and range of WiFi networks.

Moreover, their design makes it easy to use MIMO technology, which uses multiple antennas to send and receive signals, improving the speed and reliability of data. Knowing how slotted waveguide antennas work can help you make wireless communication systems work better and stay connected.
