Have you ever wondered how you can wirelessly connect to your favorite websites, make phone calls, and use GPS navigation without even thinking about it? The secret behind all of these technologies is the UHF antenna. This little device is the unsung hero of wireless communication, working quietly in the background to keep you connected to the world.

A UHF antenna is a device designed to receive and transmit signals in the Ultra High Frequency (UHF) range, typically between 300 MHz and 3 GHz. These antennas are integral to various technologies, including television broadcasting, wireless communications, mobile phones, and GPS.

Now that you know the quick answer, let’s dive deeper into the workings of UHF antennas, exploring how it works, their types, uses, and advantages.

What is UHF?

UHF stands for Ultra High Frequency. It is a range of electromagnetic waves with frequencies between 300 MHz (megahertz) and 3 GHz (gigahertz). UHF is commonly used for various applications, including television broadcasting, mobile communication, satellite communication, and radar systems.

What are UHF antennas used for?

UHF antennas are used for receiving and transmitting signals in the Ultra High Frequency (UHF) range of the electromagnetic spectrum. They are commonly used for various applications including:

1. Television: UHF antennas are used to receive over-the-air television signals, especially for channels in the UHF band.

2. Radio: UHF antennas are used for receiving and transmitting radio signals in the UHF frequency range. This includes two-way radios, walkie-talkies, and other wireless communication devices.

3. Wireless Communication: UHF antennas are used for wireless communication systems such as Wi-Fi, Bluetooth, and wireless routers. They help in transmitting and receiving data over short distances.

4. Mobile Communication: UHF antennas are used in mobile phones and cellular networks to ensure reliable communication and connectivity.

5. Satellite Communication: UHF antennas are used for satellite communication systems, including satellite TV and satellite internet services.

6. RFID (Radio Frequency Identification): UHF antennas are used in RFID systems to read and write data to RFID tags, commonly used for inventory tracking, access control, and asset management.

7. Public Safety and Emergency Services: UHF antennas are used in public safety and emergency services, including police, fire, and ambulance services, to maintain communication over a wide area.

8. Aviation and Aerospace: UHF antennas are used in aviation and aerospace applications for communication between aircraft, air traffic control, and ground stations.

Overall, UHF antennas are used in a wide range of applications that require wireless communication and signal transmission in the UHF frequency range.

How do UHF antennas work?

UHF antennas, also known as Ultra High Frequency antennas, work by receiving and transmitting electromagnetic waves in the UHF frequency range, which typically ranges from 300 MHz to 3 GHz. These antennas are designed to capture and radiate radio waves in this frequency range efficiently.

Here is a simplified explanation of how UHF antennas work:

1. Receiving Signal: When a UHF antenna is used to receive signals, it captures the radio waves that are transmitted by the UHF transmitter. These radio waves consist of an electric field and a magnetic field, which are perpendicular to each other and to the direction of wave propagation.

2. Capturing the Signal: The UHF antenna is designed to capture the electric and magnetic fields of the radio waves. This is achieved through the use of conductive elements, such as wires or metal rods, which are arranged in a specific pattern. These elements resonate at the desired UHF frequency, allowing them to efficiently capture the radio waves.

3. Converting the Signal: Once the UHF antenna captures the radio waves, it converts them into an electrical signal. This is done by inducing an electric current in the conductive elements of the antenna. The varying electric current represents the information carried by the radio waves.

4. Transmitting Signal: When a UHF antenna is used to transmit signals, the process is essentially reversed. An electrical signal is fed into the antenna, which causes the conductive elements to generate an electric and magnetic field. These fields radiate into space as radio waves, carrying the information encoded in the electrical signal.

5. Directivity: UHF antennas can be designed to have different radiation patterns, which determine their directivity. Some UHF antennas radiate and receive signals equally in all directions (omnidirectional), while others are designed to focus the radiation in a specific direction (directional). The specific design of the antenna elements and their arrangement determine the directivity of the antenna.

It is important to note that UHF antennas can come in various shapes and sizes, depending on the specific application and requirements. The design and construction of UHF antennas can be complex, involving factors such as impedance matching, polarization, and gain, which are optimized for efficient reception or transmission of UHF signals.

What are the advantages of UHF antennas?

There are several advantages of UHF antennas:

1. Wide coverage: UHF antennas have a longer wavelength compared to VHF antennas, allowing them to cover a larger area. This makes them suitable for long-range communication and broadcasting.

2. Less interference: UHF signals are less prone to interference from buildings, trees, and other obstacles compared to VHF signals. This makes UHF antennas more reliable in urban and densely populated areas.

3. Better signal quality: UHF antennas generally provide better signal quality and reception compared to VHF antennas. They can deliver clearer audio and video signals, resulting in a higher quality viewing or listening experience.

4. More channels: UHF frequency bands can accommodate a larger number of channels compared to VHF frequency bands. This allows for more options and variety in terms of available TV channels and radio stations.

5. Compact size: UHF antennas can be designed to be smaller and more compact compared to VHF antennas. This makes them easier to install and less obtrusive in residential or commercial settings.

6. Compatibility with digital signals: UHF antennas are well-suited for receiving digital TV signals, which are commonly broadcast in the UHF frequency range. They can capture and decode digital signals more effectively, ensuring a high-quality digital TV viewing experience.

UHF Antenna Types

There are several types of UHF antennas, including:

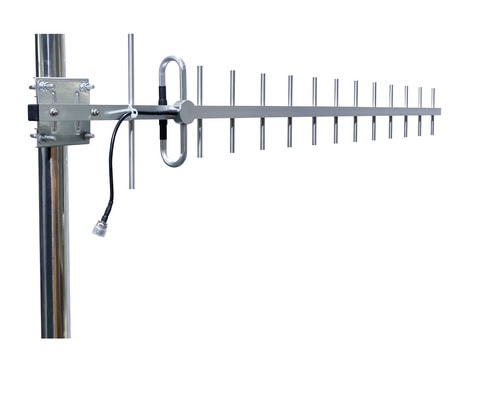

1. Yagi-Uda Antenna: This is a directional antenna consisting of multiple parallel elements arranged in a line. It is commonly used for TV reception.

2. Log-Periodic Antenna: This is a wideband antenna that consists of multiple dipole elements of varying lengths. It is used for a wide range of applications, including TV, radio, and wireless communication.

3. Panel Antenna: This is a flat, rectangular or square antenna that is often used in wireless communication systems, such as Wi-Fi routers, signal booster, RFID, IoT, etc.

4. Parabolic Reflector Antenna: This antenna consists of a parabolic reflector dish with a feedhorn at its focal point. It is used for long-range communication, such as backhauls , CCTV and point-to-point communications.

5. Quadrifilar Helical Antenna: A quadrifilar helix antenna (QHA) is a type of antenna that consists of four helical wires wound around a central axis. Each wire is wound in a helix shape and is spaced 90 degrees apart from the adjacent wires. The QHA is designed to radiate and receive circularly polarized electromagnetic waves.

These are just a few examples of UHF antenna types, and there are many other variations and designs available for different applications.

What is the difference between VHF and UHF antennas?

VHF (Very High Frequency) and UHF (Ultra High Frequency) antennas are used to receive different frequency bands of electromagnetic waves. The main differences between VHF and UHF antennas are as follows:

1. Frequency Range: VHF antennas are designed to receive signals in the frequency range of 30 to 300 MHz, while UHF antennas are designed to receive signals in the frequency range of 300 to 3000 MHz.

2. Signal Propagation: VHF signals have longer wavelengths and can travel longer distances compared to UHF signals. VHF signals can also penetrate obstacles like buildings and trees better than UHF signals, which tend to be more easily absorbed or reflected.

3. Antenna Size: Due to the longer wavelength of VHF signals, VHF antennas are generally larger in size compared to UHF antennas. The size of an antenna is directly related to the wavelength of the signal it is designed to receive.

4. Gain: VHF antennas typically have higher gain (ability to receive weak signals) compared to UHF antennas. This is because VHF signals are more susceptible to interference and require more gain to overcome it.

5. Applications: VHF antennas are commonly used for television broadcasting, FM radio, amateur radio, and marine VHF radio. UHF antennas are commonly used for cell phone signals, Wi-Fi, Bluetooth, satellite communication, and television broadcasting in urban areas.

It is important to note that some antennas are designed to receive both VHF and UHF signals, and these are called dual-band or multi-band antennas.

What are the best indoor and outdoor UHF antennas?

There are several highly rated indoor and outdoor UHF antennas available on the market. Here are some of the best options:

Best Indoor UHF Antennas:

1. Mohu Leaf Metro: This compact indoor antenna is highly rated for its performance and easy installation. It has a range of up to 25 miles and can be easily mounted on a wall or window.

2. Winegard FlatWave Amped FL5500A: This indoor antenna has a sleek design and comes with an amplifier for improved signal reception. It has a range of up to 50 miles and can be placed on a wall or window.

3. ClearStream Eclipse: This indoor antenna is known for its strong signal reception and 35-mile range. It has a unique design that allows it to be placed on a wall, window, or even behind a TV.

Best Outdoor UHF Antennas:

1. Channel Master CM-4228HD: This outdoor antenna has a long-range capability of up to 80 miles. It is designed to receive UHF signals and has a multi-directional reception pattern.

2. Antennas Direct DB8e: This outdoor antenna is highly rated for its performance and long-range reception. It has a range of up to 70 miles and features a bowtie design for enhanced signal capture.

3. RCA ANT751E: This compact outdoor antenna has a range of up to 70 miles and is designed for UHF reception. It is easy to install and can be mounted on a roof or attic.

It’s important to note that the best antenna for you will depend on various factors such as your location, the distance to the broadcasting towers, and the surrounding terrain. It is recommended to check the signal strength and availability in your area before purchasing an antenna.

How to design a UHF antenna?

Designing a UHF (Ultra High Frequency) antenna involves several steps. Here is a general guide to help you design a basic UHF antenna:

1. Determine the frequency range: UHF frequencies range from 300 MHz to 3 GHz. Identify the specific frequency or frequency range you want your antenna to operate in.

2. Choose the antenna type: There are various types of UHF antennas, such as dipole, Yagi, patch, and loop antennas. Select the type that best suits your requirements and available resources.

3. Calculate the dimensions: The dimensions of the antenna elements depend on the chosen antenna type and the desired frequency. You can use online calculators or antenna design software to calculate the dimensions accurately.

4. Gather materials: Depending on the antenna type and design, you will need materials such as copper wire, coaxial cable, connectors, insulators, and a supporting structure (e.g., PVC pipe or wooden boom).

5. Build the antenna: Follow the calculated dimensions and construct the antenna elements. For example, if building a dipole antenna, cut the copper wire to the required length and connect it to the coaxial cable using a balun or matching transformer.

6. Mount the antenna: Attach the antenna elements to the supporting structure or boom. Ensure the elements are properly aligned and spaced according to the calculated dimensions.

7. Connect the feedline: Connect the coaxial cable to the antenna elements using appropriate connectors. Use a balun or matching transformer if necessary.

8. Test the antenna: Connect the other end of the coaxial cable to a UHF receiver or transmitter. Place the antenna in an open area, away from obstructions, and away from other electronic devices. Test the antenna’s performance by measuring signal strength, reception quality, or transmission range.

9. Fine-tune the antenna: If the antenna does not perform optimally, you may need to make adjustments. You can try changing the dimensions, element spacing, or element positions to improve performance. Repeat the testing process until you achieve satisfactory results.

Remember that designing an antenna involves a certain level of technical knowledge and expertise. It is recommended to consult antenna design resources, books, or seek advice from experts in the field to ensure your UHF antenna design is accurate and effective.

How to install a UHF antenna?

Installing a UHF antenna for wireless communication involves the following steps:

1. Determine the type of UHF antenna: There are different types of UHF antennas available, such as Yagi, Omni-directional, and Panel antennas. Choose the one that suits your specific needs and requirements.

2. Identify the mounting location: Select a location that provides a clear line of sight to the target device or the communication point. Consider factors like height, obstructions, and distance.

3. Assemble the antenna: Follow the manufacturer’s instructions to assemble the UHF antenna. This typically involves attaching the elements or connectors to the main antenna body.

4. Mount the antenna: Depending on the type of UHF antenna, you may need to mount it on a pole, mast, or bracket. Ensure that the mounting structure is secure and stable.

5. Connect the antenna to the wireless device: Connect the antenna to the wireless device, such as a router, access point, or wireless adapter, using the appropriate cable or connector. Ensure that the connection is tight and secure.

6. Configure the wireless device: Access the configuration settings of the wireless device and specify the antenna type and any other necessary settings. Refer to the device’s user manual for detailed instructions on how to configure it.

7. Test the wireless connection: Once the antenna is installed and the device is configured, test the wireless connection to ensure it is working properly. Check the signal strength and quality, and make any necessary adjustments to the antenna position or configuration settings.

8. Fine-tune the antenna position: If the wireless connection is not satisfactory, you may need to fine-tune the antenna position. Make small adjustments to the antenna’s direction, elevation, or location, and test the connection again until you achieve the desired performance.

Note: It is important to comply with local regulations and obtain any necessary permits or licenses before installing a UHF antenna for wireless communication.

Summary

In short, understanding UHF antennas is crucial for optimizing your use of devices that depend on these frequencies. Whether you are setting up a home entertainment system, improving your mobile communication, or participating in amateur radio activities, the right UHF antenna can greatly enhance your experience and performance.
