In the evolving landscape of wireless communication, Television White Space (TVWS) technology emerges as a groundbreaking solution to connect underserved regions. But what anchors this technology? At the heart of it are TVWS antennas—key components that exploit underused broadcast frequencies to deliver robust and widespread internet coverage. Let’s explore how these antennas function and their pivotal role in bridging the digital divide.

A TVWS antenna is a device designed to operate within the unused TV White Space frequencies, primarily between 470 MHz and 698 MHz. These antennas are crucial for transmitting and receiving signals capable of penetrating various obstructions, offering a reliable communication link in rural and remote areas.

Armed with a basic understanding of what a TVWS antenna is and its importance, let’s delve deeper into how these antennas operate and the various applications they support.

What is TV white space?

TV white space refers to the unused or underutilized portions of the radio frequency spectrum that were originally allocated for television broadcasting. These are the frequencies between television channels, which were left vacant to prevent interference between TV stations. With the transition from analog to digital television, these white spaces have become available for other wireless communication applications. TV white space can be used for various purposes, such as wireless broadband internet access, machine-to-machine communication, and other wireless applications.

What are the benefits of TVWS?

There are several benefits of TVWS (Television White Space) technology:

1. Improved connectivity: TVWS can provide broadband connectivity to rural and remote areas where traditional wired or wireless technologies may not be available or economically viable. It can bridge the digital divide and bring internet access to underserved communities.

2. Extended coverage: TVWS signals can travel longer distances and penetrate obstacles like buildings and trees better than higher frequency signals. This allows for wider coverage areas, making it suitable for providing connectivity in challenging terrains or areas with sparse populations.

3. Increased bandwidth: TVWS technology utilizes unused or underutilized TV broadcast frequencies, which are typically in the lower frequency bands. These lower frequencies can offer larger bandwidths, resulting in faster and more reliable internet connections.

4. Cost-effective: Deploying TVWS networks can be more cost-effective than laying down new cables or building cellular towers. The existing TV broadcast infrastructure can be leveraged, reducing the need for additional infrastructure investment.

5. Dynamic spectrum access: TVWS devices use a spectrum database to identify and access available frequencies in a specific location. This dynamic spectrum access allows for efficient and interference-free utilization of the spectrum, maximizing the use of available resources.

6. Interference mitigation: TVWS devices are designed to operate without causing interference to existing TV broadcasts or other licensed services. They employ techniques like spectrum sensing and geo-location databases to ensure interference-free operation.

7. Versatility: TVWS technology can be used for various applications, such as providing internet access, supporting IoT (Internet of Things) devices, enabling smart agriculture, facilitating emergency communications, and extending Wi-Fi coverage in urban areas.

Overall, TVWS offers a cost-effective, efficient, and versatile solution to expand connectivity and provide internet access to underserved communities.

What are the disadvantages of TVWS?

While TVWS (TV White Space) technology has several advantages, it also has a few disadvantages. Here are some of them:

1. Larger Antennas: TVWS requires larger antennas compared to other wireless technologies. This can make it difficult to integrate into small devices or deploy in areas where space is limited.

2. Complex Technology: TVWS relies on sophisticated technology to identify and access available spectrum. This includes databases that provide information on available channels and geolocation capabilities to determine the user’s location. Implementing and maintaining this technology can be complex and costly.

3. Spectrum Availability: While TVWS utilizes unused TV channels, the availability of these channels can vary by location. In densely populated areas or areas with many active TV stations, the number of available channels may be limited.

4. Interference: There is a risk of interference between TVWS devices and existing TV broadcasters or other wireless systems operating in the same frequency band. This can result in degraded performance or disrupted services.

5. Regulatory Challenges: TVWS operates in a regulated spectrum, and navigating the regulatory environment can be challenging. Different countries have different regulations regarding TVWS usage, and obtaining the necessary licenses and permissions can be time-consuming and expensive.

6. Cost: The deployment and operation of TVWS networks can be more expensive compared to other wireless technologies. This is due to the need for larger antennas, complex technology, and the potential for interference mitigation measures.

7. Limited Bandwidth: TVWS has limited available bandwidth compared to other wireless technologies. This can restrict the data speeds and capacity that can be achieved with TVWS networks.

Despite these disadvantages, TVWS technology still holds great potential for expanding internet access, bridging the digital divide, and enabling connectivity in rural or underserved areas.

What Is A TVWS Antenna Used for?

A TVWS (TV White Space) antenna is used for accessing and utilizing the unused or unoccupied frequencies in the TV broadcast spectrum, also known as TV white spaces. These antennas are designed to receive and transmit signals in these white spaces, which can be used for various applications such as wireless broadband internet access, rural connectivity, IoT (Internet of Things) devices, and other wireless communication systems.

How does the TVWS antenna work?

The TVWS (TV White Space) antenna works by receiving and transmitting radio signals in the TV white space spectrum. TV white space refers to the unused or underutilized portions of the television frequency spectrum.

The antenna is designed to operate in the UHF (Ultra High Frequency) band, which is typically used for television broadcasting. It can receive and transmit signals in the frequency range of 470 MHz to 698 MHz, which is the range allocated for TV broadcasting.

The TVWS antenna utilizes a combination of hardware and software to access and utilize the available TV white space spectrum. It scans the local area to detect the available TV channels and identifies the unused or underutilized frequencies. It then selects the best available channel and configures itself to operate on that frequency.

The antenna has a built-in database that provides information about the available TV channels and the locations of television transmitters. It uses this information to ensure that it does not interfere with existing TV broadcasts. It also continuously monitors the spectrum to detect any changes in the channel availability and adjusts its operation accordingly.

Overall, the TVWS antenna uses advanced technology to access and utilize the unused TV white space spectrum, enabling the provision of broadband internet access in areas where it was previously not feasible.

What’s the range of TVWS antennas?

The range of TVWS (TV White Space) antennas can vary depending on various factors such as the transmit power of the antenna, the frequency being used, the terrain, and any obstacles in the environment.

 In general, TVWS antennas can have a range of several kilometers, but it is important to note that the range can be affected by factors such as interference, line-of-sight obstructions, and signal propagation characteristics at the specific frequency being utilized.

What does a TVWS Antenna consist of?

A TVWS (TV White Space) antenna consists of several key components:

1. Antenna Element: This is the main part of the antenna that receives and transmits radio frequency signals. It is designed to operate in the TVWS frequency range, typically between 470 MHz and 698 MHz.

2. Feedline: The feedline connects the antenna element to the radio equipment. It is a cable or transmission line that carries the radio signals to and from the antenna.

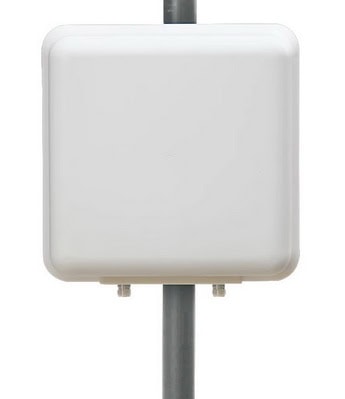

3. Mounting Hardware: The antenna is usually mounted on a mast, tower, or pole. The mounting hardware includes brackets, clamps, or other mechanisms to securely attach the antenna to the structure.

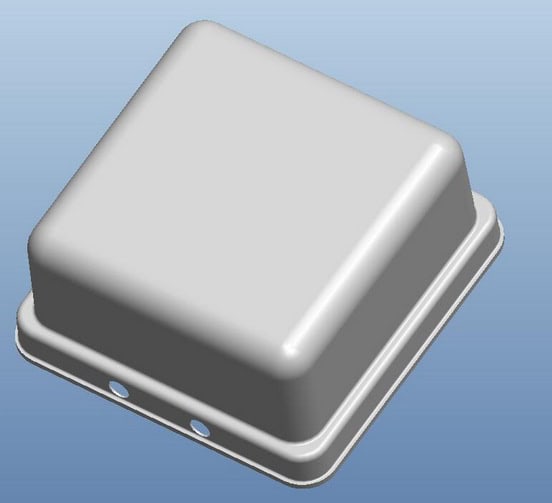

4. Radome: A radome is a protective cover that encloses the antenna. It is typically made of plastic or fiberglass and shields the antenna from environmental factors like rain, wind, and UV radiation.

5. Grounding System: TVWS antennas often require grounding to protect against lightning strikes and to ensure proper electrical safety. The grounding system consists of grounding rods, conductors, and other components that provide a safe path for electrical current.

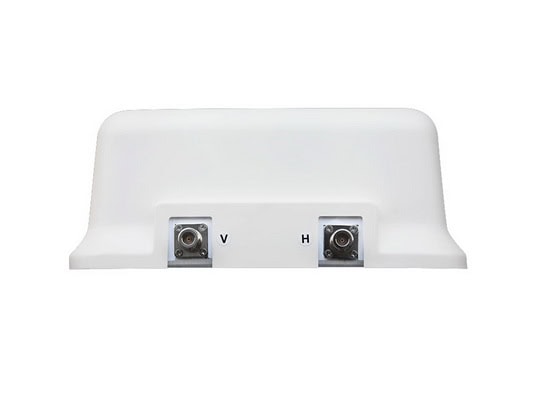

6. RF Connector: The antenna is connected to the radio equipment using an RF connector. It is a type of electrical connector that ensures a secure and reliable connection between the antenna and the radio.

These components work together to enable the TVWS antenna to send and receive radio signals in the TVWS frequency band, allowing for wireless communication over long distances.

TVWS Antenna Frequency

TVWS stands for Television White Space. It refers to the unused or underutilized frequencies between television channels. These frequencies were originally allocated to television broadcasters to transmit their signals. However, due to the transition from analog to digital television, some of these frequencies have become available for other uses.

TVWS antennas are designed to operate within the 470 MHz to 698 MHz range. This range includes the frequencies between UHF channels 14 and 51. The antennas are specifically designed to exploit the gaps between existing broadcast channels, allowing for the use of TVWS frequencies without interfering with television broadcasts.

TVWS antennas are commonly used for wireless communication applications, such as broadband internet access in rural areas, machine-to-machine communication, and Internet of Things (IoT) devices. These antennas can provide long-range coverage and can penetrate obstacles like walls and trees, making them suitable for various applications in both urban and rural environments.

TVWS Antenna Gain

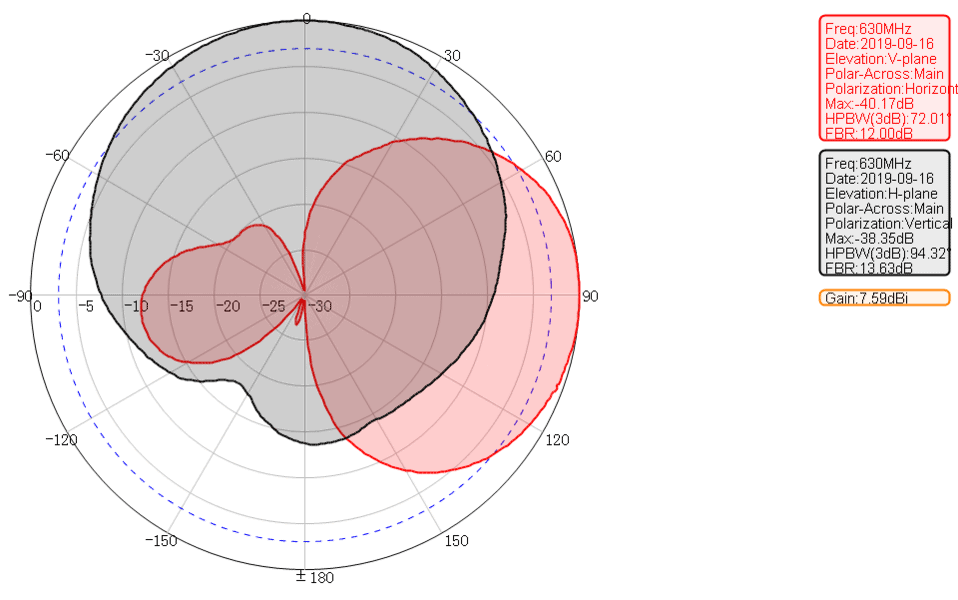

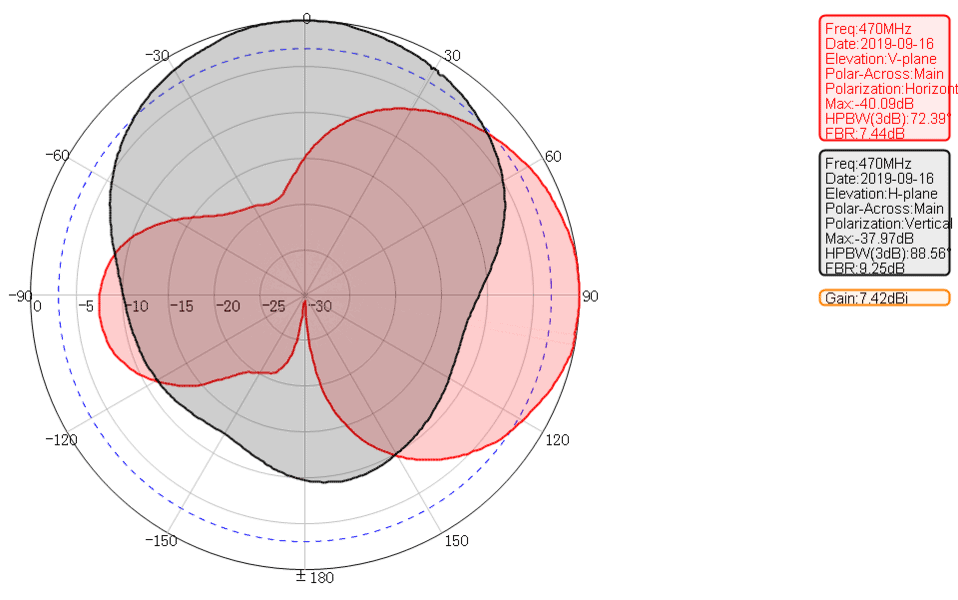

Antenna gain is a measure of how well an antenna focuses energy in a particular direction. It is usually measured in decibels (dB). A higher gain antenna will concentrate the energy in a narrower beam, resulting in a stronger signal in that direction.

In TVWS systems, where the available spectrum is limited, it is important to maximize the range and reliability of the wireless connection. This is especially true in rural and remote areas where the distances between users and base stations can be significant.

By using higher gain antennas, the signal strength can be increased, allowing for longer distances between the base station and the user. This can be particularly useful in providing broadband internet access to underserved areas.

Additionally, higher gain antennas can help to mitigate interference from other devices operating in the same frequency band. By focusing the energy in a specific direction, the antenna can reduce the impact of interference from neighboring devices.

However, it is important to note that higher gain antennas also have a narrower beamwidth. This means that the antenna needs to be properly aligned with the base station to achieve the best signal strength. If the antenna is misaligned, the signal strength can be significantly reduced.

In conclusion, antenna gain is crucial in TVWS systems to enhance signal strength and quality. Higher gain antennas can improve the range and reliability of the wireless connection, while also helping to mitigate interference. However, proper alignment of the antenna is necessary to achieve the best results.

TVWS Antenna Polarization

TVWS (TV White Space) antennas can be polarized in different ways, including vertical, horizontal, and slant polarization. Slant polarization refers to the orientation of the electric field of the radio waves, which can be at a 45-degree angle with respect to the ground. This polarization can be either positive (+45 degrees) or negative (-45 degrees) slant.

The +/- 45 slant polarization is often used in TVWS applications because it offers several advantages.

1. Reduced Multipath Interference: Multipath interference occurs when signals reflected off objects reach the receiver at different times, causing signal cancellation or degradation. Slant polarization helps reduce multipath interference because the reflected signals are less likely to be in the same polarization as the direct signal. This improves the overall signal quality and reliability.

2. Improved Signal Penetration: Slant polarization provides better signal penetration through obstacles such as buildings, trees, and foliage. It allows the signal to bypass some obstructions that would otherwise block or weaken a vertically or horizontally polarized signal.

3. Diversity Reception: Slant polarization can be used in diversity reception systems, where multiple antennas receive the same signal. By using antennas with different slant polarizations, the system can mitigate fading and improve signal reception in challenging environments.

4. Interference Mitigation: Slant polarization can help reduce interference from other nearby wireless systems. By using a different polarization than the interfering signals, the system can minimize the impact of co-channel interference.

In summary, the +/- 45 slant polarization is a popular choice for TVWS antennas due to its ability to reduce multipath interference, improve signal penetration, enable diversity reception, and mitigate interference from other wireless systems.

TVWS Antenna Type

Common types of TVWS antennas include Yagi, omnidirectional, and panel antennas, each suited to different use cases and deployment scenarios.

Yagi antennas are directional antennas that provide high gain and are ideal for point-to-point connections over long distances. They are commonly used in rural areas where the TVWS signal needs to be transmitted over a long distance.

Omni-directional antennas radiate the signal in all directions, providing 360-degree coverage. They are typically used in urban areas where there are multiple TVWS base stations and the signal needs to reach multiple devices in different directions.

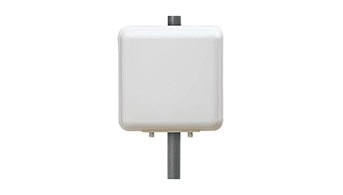

Panel antennas are also directional antennas but provide a wider beamwidth compared to Yagi antennas. They are used in scenarios where there is a need for both long-distance coverage and coverage in multiple directions. Panel antennas are commonly used in suburban areas where there are multiple TVWS base stations and the signal needs to reach devices in different directions over varying distances.

How to design a TVWS antenna?

Here are the steps to design a TVWS antenna:

1. Determine the antenna type: There are various types of antennas available for TVWS, such as dipole, Yagi, panel, and panel antennas. Choose the type that suits your specific requirements, considering factors like range, directionality, and form factor.

2. Select the frequency range: TVWS operates in the frequency range between 470 MHz and 698MHz. Determine the specific frequency or frequency band you want your antenna to operate in. This will depend on the available TV channels in your region and the regulatory requirements.

3. Calculate the gain: The gain of an antenna determines its ability to focus the transmitted or received signal in a specific direction. Calculate the gain required for your application based on the desired range and directionality. Higher gain antennas have a narrower beamwidth but offer longer range.

4. Design the antenna: Once you have determined the type, frequency, and gain, you can start designing the antenna. Use antenna design software or consult antenna design resources to create the antenna structure. Consider factors like size, shape, and materials to ensure optimal performance.

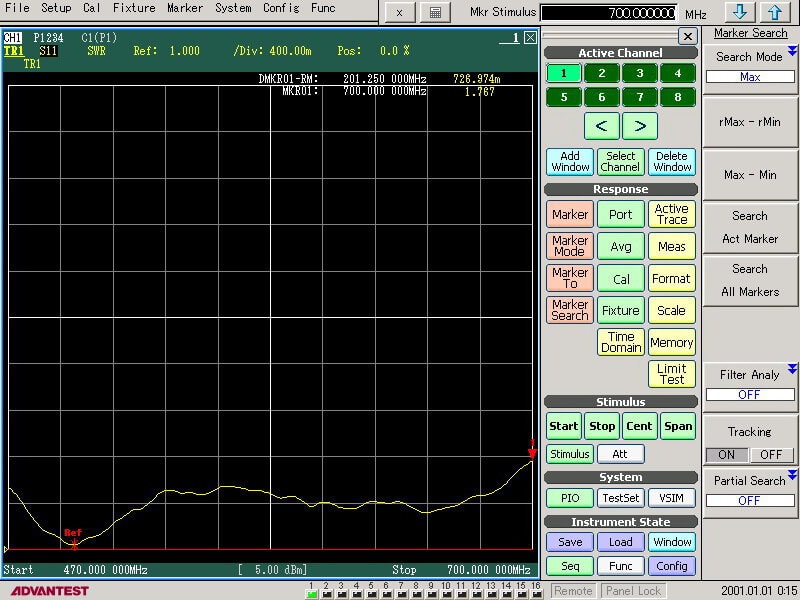

5. Test and optimize: Once you have designed the antenna, build a prototype and test it in real-world conditions. Measure its performance, including gain, impedance, and radiation pattern. Make any necessary adjustments or optimizations to improve its performance.

6. Consider environmental and regulatory requirements: Ensure that your antenna design meets specific environmental and regulatory requirements for TVWS operation. This may include compliance with regulations related to maximum transmit power, interference mitigation, and antenna placement.

7. Manufacture the antenna: Once you are satisfied with the antenna design and it meets all the necessary requirements, you can proceed with manufacturing it. This may involve outsourcing the manufacturing to a specialized antenna manufacturer or building it in-house if you have the necessary equipment and expertise.

8. Install and test the antenna: Install the antenna at the desired location and test its performance in the real-world environment. Measure its performance and make any necessary adjustments to ensure optimal operation.

By following these steps, you can design a TVWS antenna that meets your specific requirements and provides reliable and efficient operation in the TVWS frequency range.

How to install a TVWS antenna?

Here is a step-by-step guide on how to install a TVWS antenna:

1. Site Selection:

   – Choose a location that has a clear line of sight to the TV White Space (TVWS) transmitters.

   – Avoid obstructions such as trees, buildings, and hills that may block the signal.

   – Consider the height of the antenna to maximize coverage.

2. Mounting the Antenna:

   – Select a sturdy mast or pole to mount the antenna.

   – Attach the antenna to the mast using the provided mounting brackets or clamps.

   – Ensure that the antenna is securely fastened to prevent any movement or damage.

3. Connecting the Coaxial Cable:

   – Connect one end of the coaxial cable to the antenna’s connector.

   – Run the cable down the mast or pole, securing it with cable ties or clips.

   – If necessary, use a weatherproofing kit to protect the connection from moisture.

4. Grounding:

   – Ground the antenna to protect against lightning strikes and static electricity.

   – Connect a grounding wire from the antenna to a grounding rod or an existing grounding system.

   – Follow local electrical codes and regulations for proper grounding procedures.

5. Configuring the Equipment:

   – Install the TVWS radio or modem that will be connected to the antenna.

   – Connect the other end of the coaxial cable to the radio or modem.

   – Power on the equipment and follow the manufacturer’s instructions to configure the settings.

   – Set the correct frequencies and channels to tune into the available TVWS spectrum.

   – Optimize the equipment settings for maximum performance and signal quality.

6. Testing and Maintenance:

   – Once the installation is complete, test the TVWS antenna and equipment to ensure proper functionality.

   – Use a spectrum analyzer or TVWS database to verify that the device is using the correct frequencies and channels.

   – Regularly inspect the antenna and cables for any signs of damage or wear.

   – Perform maintenance tasks such as cleaning the antenna and tightening any loose connections.

It is recommended to consult the manufacturer’s instructions and seek professional assistance if needed, especially if you are not familiar with antenna installations or working at heights.

Summary

The role of TVWS antennas in modern communication is transformative, particularly in facilitating internet access where it is most needed. By understanding the mechanics and applications of these antennas, stakeholders can better harness the potential of TV White Space to meet growing connectivity demands effectively.
