Discover the innovative world of symmetrical horn antennas, pivotal game-changers in wireless communication technology. With their unique design and efficiency, these antennas revolutionize signal distribution and network performance, offering unparalleled benefits to techies, hackers, technicians, engineers, and product managers alike.

A symmetrical horn antenna is a specialized type of radio antenna characterized by its symmetrical beam radiation pattern, ensuring uniform signal distribution in both horizontal and vertical planes. This unique design feature makes symmetrical horn antennas highly efficient for directing radio waves precisely where needed, resulting in enhanced signal strength and coverage. With their balanced beam pattern, symmetrical horn antennas offer superior performance in minimizing interference and optimizing network connectivity, making them indispensable tools in modern wireless communication systems.

But what sets them apart from other antenna types? Let’s dive deeper.

What Does Symmetrical or Asymmetrical Mean?

Symmetrical antennas have a consistent and uniform beam pattern in both the horizontal and vertical planes. This means that the antenna distributes signals evenly, providing consistent coverage in all directions.

Asymmetrical antennas, on the other hand, have varied beam patterns. These antennas can be designed to provide specific coverage in certain directions or areas. However, the non-uniform beam pattern can make it more difficult to distribute signals evenly and consistently.

In summary, symmetrical antennas provide consistent coverage in all directions, while asymmetrical antennas can be designed to provide specific coverage but may have challenges in distributing signals uniformly.

How Do You Know if It’s Symmetrical or Asymmetrical?

Symmetrical antennas often have a circular or square waveguide opening, while asymmetrical antennas may have a rectangular or oval shape, indicative of their differing beam patterns.

 Additionally, symmetrical antennas tend to have a balanced feed, meaning that the electrical current is evenly distributed on both sides of the antenna. This can be seen in the presence of a balun or a center-fed dipole.

On the other hand, asymmetrical antennas usually have an unbalanced feed, where the electrical current is concentrated on one side of the antenna. This can be observed in the absence of a balun or the use of a coaxial cable for feeding the antenna.

In terms of performance, symmetrical antennas often produce a more uniform radiation pattern in all directions. This means that the signal strength is relatively equal in all directions around the antenna.

Asymmetrical antennas, on the other hand, may have a directional radiation pattern, where the signal is stronger in one direction and weaker in others. To determine if an antenna is symmetrical or asymmetrical, one can examine its physical characteristics, such as the shape of the waveguide opening and the presence or absence of a balun. Additionally, analyzing the radiation pattern of the antenna can provide insights into its symmetry.

What Is A Symmetrical Horn Antenna Used For?

A symmetrical horn antenna is commonly used in wireless local area network (WLAN) applications, particularly for point-to-multipoint communication in high-density coverage scenarios.

These antennas are designed to provide a symmetrical radiation pattern, meaning that the signal is distributed evenly in all directions. This makes them ideal for applications where coverage needs to be provided to multiple devices in a specific area, such as in crowded public spaces, stadiums, or large office buildings.

Symmetrical horn antennas offer high gain and low side lobe levels, which helps in reducing interference and improving signal quality. They are typically used in conjunction with access points or base stations to provide reliable and consistent wireless connectivity to a large number of users in a specific area.

How Does the Symmetrical Horn Antenna Work?

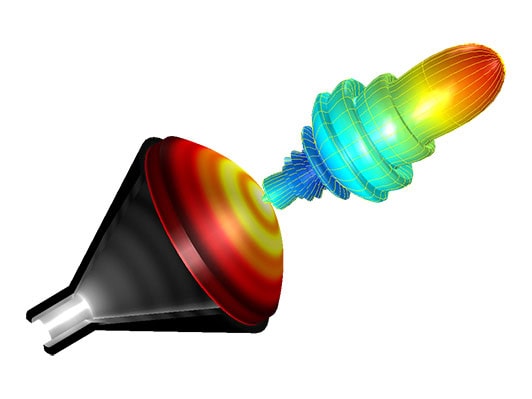

Symmetrical horn antennas achieve their symmetrical radiation pattern through their unique shape. They have a flared, conical structure that gradually expands from the feed point to the aperture. This shape allows the waves to propagate in a consistent manner, eliminating any distortion or unevenness in the signal.

When a radio signal is fed into the horn antenna through the feed point, it travels down a waveguide and enters the conical section. As the waves encounter the expanding walls of the horn, they spread out evenly in a circular pattern. This pattern is maintained as the waves exit the aperture and propagate into the surrounding space.

The symmetrical radiation pattern of the horn antenna ensures that the signal is evenly distributed in all directions. This is particularly useful in wireless communication systems where multiple devices need to connect to a central access point. The symmetrical pattern minimizes interference and allows devices to connect from any direction around the antenna.

Additionally, the symmetrical horn antenna provides a consistent signal strength across its coverage area. This helps to improve connectivity and reduce dead zones, where the signal is weak or non-existent. The uniform distribution of waves ensures that devices located at different distances or angles from the antenna receive a similar signal strength, enhancing the overall performance of the wireless network.

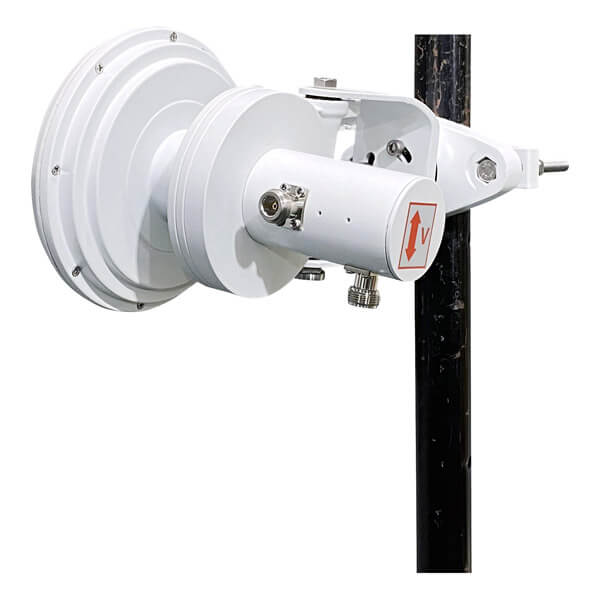

What Does A Symmetrical Horn Antenna Consist of?

A symmetrical horn antenna consists of the following components:

1. Horn Body: It is the main part of the antenna and is typically made of metal. The horn body is a hollow, tapered structure that helps in shaping and directing the electromagnetic waves.

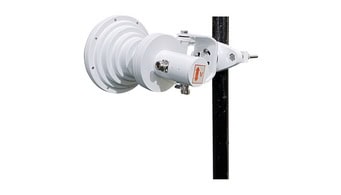

2. Plastic Protecting Cover: The horn body is covered with a plastic protecting cover to provide mechanical protection and insulation from external elements.

3. Flange: The horn body is attached to a flange, which is a flat, circular plate made of metal. The flange helps in mounting the antenna and connecting it to other components.

4. Circular Waveguide: The flange is connected to a circular waveguide, which is a cylindrical metal tube that guides the electromagnetic waves from the source to the horn body. The circular waveguide is responsible for maintaining the symmetry of the antenna.

5. Feed: The circular waveguide is connected to a feed, which is a component that feeds the electromagnetic waves into the waveguide. The feed is usually a coaxial cable or a waveguide probe.

6. Connector: The feed is connected to a connector, which is a device that allows the antenna to be connected to a transmitter or receiver. The connector provides a secure and reliable electrical connection between the antenna and the electronic equipment.

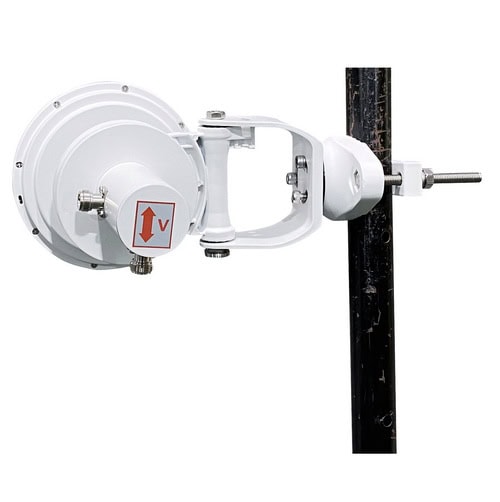

7. Mounting Bracket: The antenna is mounted on a bracket, which is a support structure that holds the antenna in place. The mounting bracket allows the antenna to be positioned and oriented in the desired direction.

What’s the Beamwidth of the Symmetrical Horn Antennas?

The beamwidth of symmetrical horn antennas typically ranges from 30 degrees to 90 degrees.This uniform beamwidth ensures consistent signal coverage, crucial for maintaining high-quality connectivity across various deployment scenarios.

What Are the Benefits of Symmetrical Horn Antennas?

Symmetrical horn antennas also have a narrower beamwidth compared to other types of antennas, which allows for more precise targeting of the signal. This can result in increased network capacity and improved signal quality.

Additionally, symmetrical horn antennas are less prone to interference from other signals. Their design helps to reduce sidelobes, which are unwanted radiation patterns that can cause interference with nearby antennas. This makes symmetrical horn antennas particularly useful in dense urban environments where multiple antennas are in close proximity.

Furthermore, symmetrical horn antennas can be used in both point-to-point and point-to-multipoint applications, providing flexibility in network design. They are also typically smaller and lighter than other types of antennas, making them easier to install and maintain.

Overall, the benefits of symmetrical horn antennas make them a popular choice for wireless network deployments where reliable, high-performance connectivity is required.

What Are the Advantages of Symmetrical Horn Antennas Over Others?

Some additional advantages of symmetrical horn antennas over others include:

1. Lower sidelobe levels: Symmetrical horn antennas have lower sidelobe levels, which means they radiate less energy in unwanted directions. This reduces the potential for interference with neighboring antennas and improves the overall signal quality.

2. Improved front-to-back ratio: Symmetrical horn antennas have a better front-to-back ratio, meaning they radiate more energy in the desired direction and less energy in the opposite direction. This helps to reduce interference from signals coming from behind the antenna.

3. Better polarization purity: Symmetrical horn antennas have excellent polarization purity, meaning they maintain a consistent polarization over a wide frequency range. This is important for maintaining signal integrity and reducing polarization mismatch losses in communication systems.

4. Enhanced RF shielding: Symmetrical horn antennas are designed with a metal enclosure, which provides better RF shielding compared to open antennas. This helps to reduce interference from external signals and improves the overall signal quality.

5. Easier integration: Symmetrical horn antennas are designed for easy integration with other components, such as radio equipment or other antennas. They often come with mounting brackets and connectors that simplify installation and deployment.

Overall, symmetrical horn antennas offer superior performance, improved signal quality, and better compatibility with other equipment, making them a preferred choice in many applications.

What is the Difference Between Symmetrical and Asymmetrical Horns?

Symmetrical horns have a beam pattern that provides equal coverage in all directions. This means that the signal is distributed evenly in a 360-degree pattern. As a result, symmetrical horns are commonly used for general applications, such as in public address systems or in large venues where uniform coverage is desired.

On the other hand, asymmetrical horns have a beam pattern that provides different coverage in different directions. This means that the signal is focused in a specific direction and provides less coverage in other directions. As a result, asymmetrical horns are commonly used in situations where targeted coverage is needed, such as in outdoor stadiums or arenas where the sound needs to be directed towards the seating areas and away from neighboring buildings or residential areas.

In summary, symmetrical horns offer uniform coverage in all directions and are used for general purposes, while asymmetrical horns offer targeted coverage and are used in scenarios where directional signal distribution is required.

Symmetrical Horn Antenna vs Sector Antenna

Symmetrical horn antennas offer a significant advantage over sector antennas in terms of beamwidth control and side lobe suppression. This makes symmetrical horns more effective in minimizing interference among network nodes, leading to clearer, more reliable communication channels.

Additionally, symmetrical horn antennas have a more uniform radiation pattern, which means that the signal strength is consistent across the coverage area. On the other hand, sector antennas have a wider beamwidth, which can result in signal degradation at the edges of the coverage area.

Furthermore, symmetrical horn antennas have a higher gain compared to sector antennas. This means that symmetrical horns can transmit and receive signals over longer distances with greater power and accuracy.

However, sector antennas have their own advantages. They are typically more cost-effective and easier to install compared to symmetrical horn antennas. Sector antennas also have a wider coverage area, making them suitable for providing coverage to a large number of users in a specific direction.

In summary, symmetrical horn antennas are more suitable for applications that require precise beamwidth control, side lobe suppression, and long-distance communication. On the other hand, sector antennas are more cost-effective and provide wider coverage, making them suitable for applications where cost and coverage area are more important factors.

Summary

In conclusion, the symmetrical horn antenna is a highly efficient and high-performing antenna that is ideal for modern wireless networks. Whether you are a technician, engineer, or product manager, understanding these antennas can greatly impact your projects and innovations, guiding you towards more effective and efficient network solutions.
