Radio Frequency (RF) technology is used in a wide range of applications in today’s world, from mobile communications to radar systems. RF couplers are an important but often overlooked component of these technologies. They play a crucial role in managing RF signals, so it is important for professionals in the field to have a good understanding of how they work.

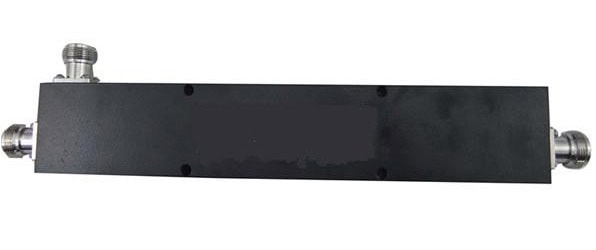

An RF coupler is a passive device crucial in radio frequency systems, designed to allow a small portion of a signal to be diverted or sampled from the main signal flow. This capability enables the monitoring and managing of RF signals without interrupting the primary transmission line, thereby playing a vital role in a variety of RF applications.

With a basic grasp of what RF couplers are and their role in RF systems, let’s delve deeper into how they function and their various applications within different technological environments.

What does a coupler do in RF?

In RF (radio frequency) systems, a coupler is a device used to split or combine RF power between different ports. It is commonly used in various applications such as power amplifiers, antennas, filters, and signal analyzers. The main functions of a coupler in RF systems include:

1. Power splitting: A coupler can divide the input power into two or more output ports with a specific power distribution ratio. This is useful for distributing power to multiple devices or for creating equal power signals for measurement or testing purposes.

2. Power combining: Conversely, a coupler can combine multiple input signals into a single output with a specific power combining ratio. This is often used in antenna systems or in power amplifier designs to combine signals from multiple sources.

3. Signal sampling: Some couplers are designed to sample a small portion of the input signal and provide it as an output. This is useful for monitoring or analyzing the signal without affecting the main signal path.

4. Signal isolation: Couplers can provide isolation between input and output ports, preventing reflected or undesired signals from affecting the main signal path. This is important for maintaining signal integrity and reducing interference in RF systems.

Overall, a coupler is a versatile component in RF systems that enables power splitting, power combining, signal sampling, and signal isolation, depending on its design and application.

What is a RF coupler used for?

A RF coupler is used to couple or connect two or more radio frequency (RF) circuits together while maintaining the integrity of the signal. It is commonly used in RF systems and devices such as amplifiers, transmitters, receivers, and antennas. The coupler allows the transfer of RF power between the connected circuits without significant loss or distortion. It can also be used for signal monitoring, power measurement, and impedance matching purposes.

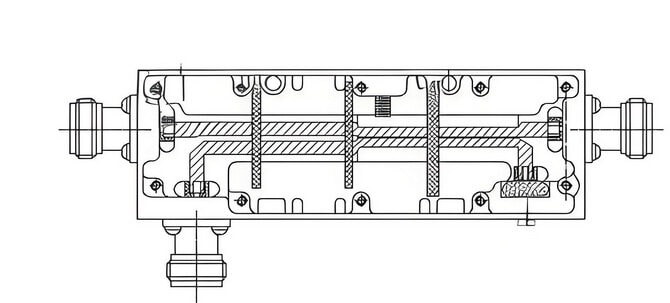

How does a RF coupler work?

A RF (Radio Frequency) coupler is a device used to split or combine radio frequency signals. It works based on the principle of electromagnetic induction.

A typical RF coupler consists of two or more transmission lines that are closely coupled to each other. These transmission lines can be in the form of coaxial cables, microstrip lines, or waveguides. The transmission lines are designed to carry the RF signals.

When an RF signal is applied to one of the transmission lines, it induces an electromagnetic field around it. This field then couples with the adjacent transmission lines, causing the RF signal to be transferred to the other lines. The amount of coupling between the lines can be adjusted by controlling the physical distance between them.

In a power splitter coupler, the RF signal is divided into two or more equal amplitude signals. This is achieved by using transmission lines with specific dimensions and coupling them together in a specific way. The RF energy is split between the output ports, allowing multiple devices or antennas to be connected to a single RF source.

In a power combiner coupler, two or more RF signals are combined into a single output. The RF energy from each input port is coupled together and combined into a single output port. This allows multiple RF sources to be combined and used to drive a single device or antenna.

RF couplers are widely used in various applications such as RF test and measurement, wireless communication systems, radar systems, and antenna systems. They provide a convenient and efficient way to split or combine RF signals without significant signal loss or distortion.

What are the benefits of a RF coupler?

RF couplers, also known as radio frequency couplers, are passive devices used in RF systems to split, combine, or sample RF power. They offer several benefits, including:

1. Power splitting: RF couplers can divide an incoming RF signal into two or more output signals with reduced power levels. This is useful in applications where multiple devices need to be driven by the same RF source.

2. Power combining: RF couplers can be used to combine two or more RF signals into a single output signal with increased power. This is beneficial in applications where multiple RF sources need to be combined for increased power output.

3. Signal sampling: RF couplers can extract a small portion of the RF power from the main signal path for monitoring or measurement purposes. This allows for signal analysis, power monitoring, or feedback control without interrupting the main RF signal flow.

4. Impedance matching: RF couplers can be designed to provide impedance matching between different devices or components in an RF system. This helps to minimize signal reflections and maximize power transfer between the connected devices.

5. Isolation: RF couplers can provide isolation between different RF components or devices, preventing unwanted interactions or interference. This is particularly important in systems where different RF signals need to coexist without interfering with each other.

6. Loss compensation: RF couplers can compensate for signal losses that occur due to cable, connector, or component losses in an RF system. By adjusting the power levels of the split or combined signals, RF couplers can help overcome these losses and maintain the desired signal strength.

7. Versatility: RF couplers are available in various configurations, such as directional couplers, hybrid couplers, and quadrature couplers, offering flexibility in terms of power splitting ratios, frequency ranges, and other specifications. This allows for customization and optimization of RF systems based on specific requirements.

Overall, RF couplers play a crucial role in the efficient operation and performance of RF systems by providing power division, combining, sampling, impedance matching, isolation, loss compensation, and versatility.

What is the frequency range of a coupler?

The frequency range of a coupler depends on its design and specifications. However, generally speaking, couplers can operate within a wide range of frequencies, from a few kilohertz (kHz) to several gigahertz (GHz). Some couplers are designed for specific frequency bands, such as the microwave range (1-40 GHz), while others can cover a broader range of frequencies.

What is the isolation of a RF coupler?

The isolation of a RF coupler refers to the ability of the coupler to separate the input and output ports, such that any signal entering the input port is not reflected back to the input port but rather is transmitted to the output port. In other words, isolation is a measure of how well the coupler can isolate the input and output ports from each other. It is typically expressed in decibels (dB) and the higher the isolation, the better the performance of the coupler in terms of isolating the ports.

What does a RF coupler consist of?

A RF coupler consists of two or more transmission lines that are designed to be coupled together to allow the transfer of radio frequency (RF) power from one line to another. It typically includes a main line, a coupled line, and a termination or load. The main line carries the majority of the RF power, while the coupled line allows a portion of the power to be transferred to the load. The termination or load absorbs the power that is not transferred, preventing reflections and ensuring proper impedance matching.

What are the types of RF coupler?

There are several types of RF couplers, including:

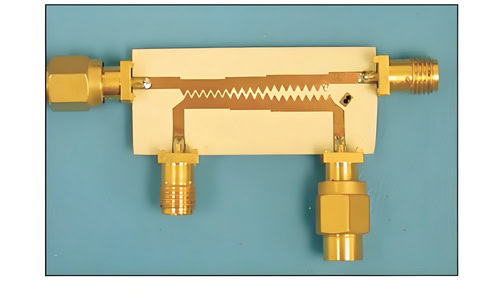

1. Directional coupler: This type of coupler is used to sample a portion of the power flowing through a transmission line without disturbing the main signal. It has multiple ports, including an input, an output, a coupled port, and a terminated port.

2. Hybrid coupler: A hybrid coupler is a four-port device that is used to divide or combine signals in a balanced and symmetrical manner. It is commonly used in power dividers, combiners, and mixers.

3. Wilkinson coupler: This is a type of power splitter/combiner that uses quarter-wavelength transmission lines to divide or combine signals. It is often used in balanced circuits and is known for its wide bandwidth and good isolation between ports.

4. Rat race coupler: This is a four-port coupler that is used to combine or divide signals in a 180-degree phase shift. It is commonly used in balanced mixers and phase shifters.

5. Quadrature hybrid coupler: This is a four-port coupler that is used to divide or combine signals in quadrature (90-degree phase shift). It is often used in quadrature modulators and demodulators.

6. T-junction coupler: This is a simple three-port coupler that is used to split or combine signals. It is commonly used in power dividers and combiners.

7. Loop coupler: This is a type of coupler that uses a loop of transmission line to couple signals. It is often used in narrowband applications and in circuits that require high directivity.

These are some of the common types of RF couplers, each with its own unique characteristics and applications.

What is the importance of a coupler?

A coupler is a device used in communication systems to transfer or split signals between different components or devices. It plays a crucial role in maintaining the performance and reliability of the system. Here are some reasons why couplers are important:

1. Signal Splitting: Couplers allow a single signal to be split into multiple paths or channels. This is useful in applications where the same signal needs to be sent to multiple devices or components simultaneously. For example, in a cable TV system, a coupler can split the incoming signal to be sent to multiple TVs in different rooms.

2. Signal Combining: Conversely, couplers can also combine multiple signals into a single path. This is commonly used in wireless communication systems where multiple antennas are used to improve signal strength and coverage. The signals from different antennas can be combined using a coupler before being transmitted or received by a device.

3. Signal Monitoring: Couplers can be used to monitor the strength or quality of a signal. By diverting a small portion of the signal to a monitoring device, technicians can analyze and measure the signal characteristics without disrupting the main signal path.

4. Signal Isolation: Couplers can provide isolation between different components or devices in a communication system. This prevents unwanted interference or distortion that may occur when signals from different sources interact with each other. Isolation is particularly important in high-frequency applications, such as in microwave or satellite communication systems.

5. Signal Direction Control: Couplers can be designed to allow signals to flow in a specific direction only. This is useful in systems where signals need to be transmitted or received in a particular direction while minimizing signal loss or interference from other directions.

Overall, couplers are essential components in communication systems as they enable the efficient transfer, splitting, combining, monitoring, and isolation of signals. They help maintain the integrity of the signals and ensure the smooth operation of the system.

What is the difference between RF splitter and coupler?

An RF splitter and an RF coupler are both used in RF (Radio Frequency) systems to split or combine RF signals, but they differ in their functionality and purpose.

1. RF Splitter:

An RF splitter is a device used to split an incoming RF signal into multiple output signals. It takes one input signal and divides it equally among the output ports. RF splitters are typically used in applications where the signal needs to be distributed to multiple devices or components, such as in cable TV systems, antenna systems, or in test and measurement setups. The main purpose of an RF splitter is to divide the signal power equally among the output ports.

2. RF Coupler:

An RF coupler, also known as a directional coupler, is a device used to sample or tap off a portion of the input RF signal to provide an output signal. It is designed to allow a certain amount of power to be coupled from the main signal path to a secondary path or port. RF couplers are commonly used in applications where signal monitoring, signal measurement, or signal injection is required. They are often used in RF test setups, power measurement systems, or in communication systems. The main purpose of an RF coupler is to provide a controlled amount of coupling between the input and output ports.

In summary, an RF splitter divides an incoming RF signal into multiple output signals, while an RF coupler samples or taps off a portion of the input RF signal to provide an output signal.

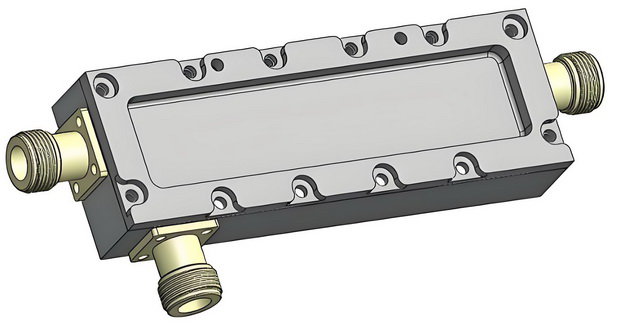

How to design a RF coupler?

Designing an RF coupler involves several steps and considerations. Here is a general outline of the design process:

1. Determine the specifications: Start by defining the requirements for the RF coupler. This includes the frequency range, power handling capability, coupling ratio, and impedance matching.

2. Choose the coupling mechanism: There are different types of RF couplers, such as directional couplers, hybrid couplers, and rat-race couplers. Select the appropriate type based on the application and specifications.

3. Determine the coupling ratio: The coupling ratio determines the amount of power transferred from the input port to the coupled port. Calculate the required coupling ratio based on the desired power division.

4. Select the transmission line structure: The transmission line structure determines the impedance and coupling properties of the coupler. Common structures include microstrip, stripline, and coaxial lines. Choose the appropriate structure based on the frequency range and fabrication constraints.

5. Design the transmission line dimensions: Calculate the dimensions of the transmission lines based on the desired impedance and coupling ratio. Use transmission line design equations or simulation tools to determine the dimensions accurately.

6. Simulate the design: Use RF simulation software to validate the performance of the coupler. Simulate the S-parameters, return loss, insertion loss, and coupling ratio. Adjust the dimensions if necessary to achieve the desired performance.

7. Fabricate the coupler: Once the design is finalized, fabricate the coupler using the chosen transmission line structure and fabrication techniques. This may involve printed circuit board (PCB) fabrication or other manufacturing processes.

8. Test and measure the coupler: Verify the performance of the fabricated coupler using appropriate RF test equipment. Measure the S-parameters, return loss, insertion loss, and coupling ratio. Compare the measured values with the simulated results to ensure the coupler meets the specifications.

9. Optimize the design: If the measured performance does not meet the requirements, make necessary adjustments to the design. This may involve modifying the transmission line dimensions or changing the transmission line structure.

10. Repeat the process if required: If the performance is still not satisfactory, iterate through the design process, making adjustments and refinements until the desired performance is achieved.

It is important to note that designing an RF coupler requires a good understanding of RF circuit theory, transmission line theory, and RF simulation tools. Additionally, practical considerations such as fabrication techniques and component tolerances must be taken into account for successful design.

Summary

In summary, RF couplers play a critical role in modern RF systems. They are not just components; they are essential to the functionality and reliability of these systems. By understanding and using RF couplers, professionals in many different fields can improve the performance and dependability of their projects. This article has provided an introduction to RF couplers and highlighted their importance in today’s technology. It is hoped that this introduction will encourage further study and application of RF couplers in the field of RF engineering.
