In the realm of WLAN and wireless backhaul, parabolic dish antennas stand out for their efficiency and range. Optimized for frequencies including 5GHz and 6.4GHz, they’re crucial for establishing stable, long-distance wireless connections. This technology underpins the seamless flow of data across our increasingly connected world.

A parabolic dish antenna is a high-precision device that utilizes a parabolic reflector to focus radio waves onto a specific focal point. This structure enables it to capture and emit signals with high efficiency, making it indispensable in telecommunications, broadcasting, and research. The dish’s parabolic shape ensures that signals are focused, resulting in enhanced signal strength and range.

Now that we’ve grasped the fundamental concept, let’s dive deeper into the workings and applications of this fascinating antenna.

How Does the Parabolic Dish Antenna Work?

A parabolic dish antenna works by reflecting and focusing radio waves onto a single point, known as the focal point. The shape of the parabolic dish allows the waves to be reflected in a specific direction, increasing the antenna’s gain and directing the signal towards a specific target.

When radio waves hit the parabolic dish, they are reflected towards the focal point. The shape of the dish is designed so that all the waves converge at this point, resulting in a stronger and more focused signal. This is similar to how a magnifying glass focuses sunlight onto a single point.

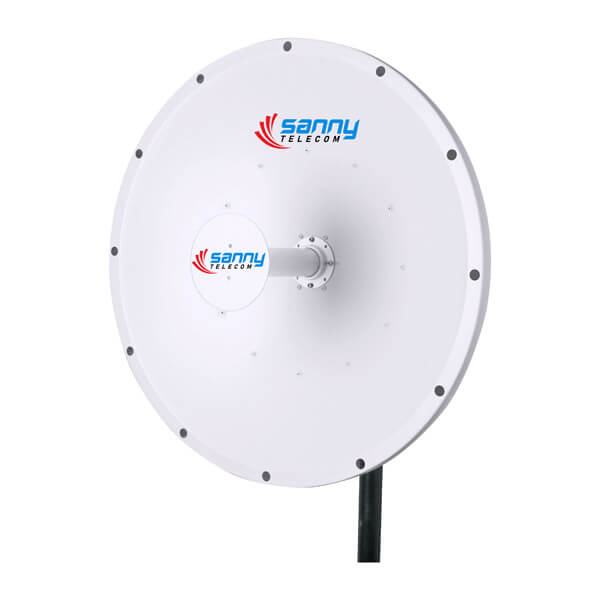

The parabolic dish antenna consists of three main components: the dish reflector, the feedhorn, and the mounting bracket. The dish is a large, curved metal surface that reflects the radio waves. The feedhorn is a small, horn-shaped device located at the focal point. It collects the radio waves and sends them to the receiver or transmitter. The focal point is the point where the waves converge and where the feedhorn is located.

The size of the parabolic dish antenna is directly related to its gain. A larger dish will have a higher gain because it can collect more radio waves and focus them more effectively. This is why parabolic dish antennas used for long-distance communication or satellite reception are often quite large.

Parabolic dish antennas are commonly used for wireless point-to-point communications, wireless internet, and microwave links. They are also used for radio astronomy, where the dish is used to collect and focus radio waves from space.

What is the Purpose of a Parabolic Antenna?

The purpose of a parabolic antenna is to focus and direct electromagnetic waves, such as radio waves, microwaves signals. The parabolic shape of the antenna allows it to reflect incoming waves towards a specific focal point, where a receiver or transmitter is located. This enables long-range communication and improves the signal strength and quality. Parabolic antennas are commonly used in satellite dishes, wireless communication systems, radar systems, and radio telescopes.

What’s the Operating Frequency of a Parabolic Dish Antenna?

The operating frequency of a parabolic dish antenna can vary depending on its design and purpose. However, parabolic dish antennas are commonly used for microwave communication and satellite reception, and their operating frequencies typically range from a few hundred megahertz (MHz) to several gigahertz (GHz).

These frequencies are in the microwave portion of the electromagnetic spectrum. For example, a parabolic dish antenna used for satellite TV reception typically operates in the frequency range of 10.7 to 12.75 GHz.

On the other hand, a parabolic dish antenna used for microwave communication might operate in the frequency range of 4.9 to 6.5 GHz or 5.85GHz to 7.125GHz. The specific frequency or frequency range used by a parabolic dish antenna will depend on the applications and the regulations of the country in which it is being used.

What’s the Gain of the Parabolic Dish Antenna?

The gain of a parabolic dish antenna is determined by its aperture, which is the area of the dish that collects the radio waves. The gain is given by the formula:

Gain = (π * Diameter^2) / (4 * λ^2)

Where:

– Gain is the antenna gain in decibels (dB)

– Diameter is the diameter of the dish in meters (m)

– λ is the wavelength of the radio waves in meters (m)

As the formula shows, the gain is directly proportional to the square of the diameter and inversely proportional to the square of the wavelength. Therefore, larger dishes and shorter wavelengths (higher frequencies) result in higher gains.

The gain of a parabolic dish antenna is expressed in decibels (dB), which is a logarithmic unit of measurement. A higher gain value indicates a stronger and more focused signal transmission and reception.

In summary, the gain of a parabolic dish antenna is directly related to its size and the frequency of operation. Larger dishes and higher frequencies typically result in higher gains, meaning stronger and more focused signal transmission and reception.

What is a Parabolic Dish Antenna Made Of?

Parabolic dish antennas are made of metal or other reflective materials, with aluminum being a common choice due to its lightweight and reflective properties. Other metals such as steel or copper can also be used, but they may be heavier and more expensive. The dish reflector is typically coated with a layer of paint to extend its service life. The reflector is then mounted on a support structure, such as a metal frame or a pole, to hold it in place and direct the signal.

In addition to the dish itself, parabolic dish antennas also consist of other components such as a feed horn, which is the device that captures the radio waves and sends them to the receiver, and a support structure to hold the dish in place. These components are typically made of aluminum, copper and ABS plastic as well.

Additionally, mounting kits or brackets are essential for installing a parabolic dish antenna. These kits allow you to securely attach the reflector with the feedhorn to a mast or tower. These accessories are usually made of steel with a powder coat finish. They are designed to withstand harsh weather conditions and provide stability for the antenna. The mounting kits typically include all the necessary hardware, such as clamps, bolts, and braces, for easy installation. Additionally, some kits may also include a level or bubble to ensure the dish is properly aligned during installation. It is important to choose a mounting kit that is compatible with the size and weight of your parabolic dish antenna to ensure a secure and stable installation.

Overall, the key material in a parabolic dish antenna is the metal used for the dish itself, which is typically aluminum due to its lightweight and reflective properties.

What is the Difference Between Parabolic Dish Antenna and Horn Antenna?

Parabolic dish antennas are characterized by their curved shape, which allows them to focus incoming signals onto a single point. This design results in high gain and narrow beamwidth, meaning that they can transmit and receive signals over long distances with high accuracy and precision. Parabolic dish antennas are commonly used for satellite communication, wireless internet, and long-distance point-to-point links.

Horn antennas, on the other hand, have a flared shape that resembles a horn. They are designed to provide a wider coverage area and have a broader beamwidth compared to parabolic dish antennas. Horn antennas are typically used for applications that require a broader coverage area, such as broadcasting, radar systems, and wireless communication in urban environments.

In summary, the main differences between parabolic dish antennas and horn antennas are:

1. Gain: Parabolic dish antennas offer higher gain due to their ability to focus signals onto a single point, while horn antennas provide lower gain.

2. Range: Parabolic dish antennas have a longer range because of their high gain and narrow beamwidth, whereas horn antennas have a shorter range due to their lower gain and wider beamwidth.

3. Beamwidth: Parabolic dish antennas have a narrow beamwidth, resulting in a more focused signal, while horn antennas have a wider beamwidth, providing a broader coverage area.

4. Applications: Parabolic dish antennas are commonly used for point-to-point links and long-range communication, while horn antennas are used for applications that require wider coverage, such as broadcasting and radar systems.

What are the Disadvantages of Parabolic Antennas?

1. Size and weight: Parabolic antennas can be quite large and heavy, especially for higher frequencies. This can make them difficult to install and transport.

2. Cost: Parabolic antennas can be expensive to manufacture and purchase, especially for larger sizes and higher frequencies.

3. Limited range: Parabolic antennas have a limited range of coverage. They are designed to focus the signal in a specific direction, which means they have a narrow beamwidth. This can make it difficult to cover a wide area with a single antenna.

4. Limited flexibility: Parabolic antennas have a fixed shape and direction. They cannot be easily adjusted or reconfigured to change the direction of the beam or coverage area.

5. Susceptibility to interference: Parabolic antennas are highly directional, which means they are more susceptible to interference from objects or other signals that are not in the direction of the beam.

6. Alignment and aiming: Parabolic antennas need to be precisely aligned and aimed at the desired signal source. This can be challenging, especially for larger antennas or when trying to establish a link over long distances.

7. Weather conditions: Parabolic antennas can be affected by weather conditions such as rain, snow, or fog. These conditions can cause signal degradation or loss.

8. Fragility: Parabolic antennas are delicate and can be easily damaged by strong winds, falling objects, or mishandling. They require careful installation and maintenance to ensure their proper functioning.

In summary, parabolic dish antennas are essential for long-distance communication, facilitating global TV broadcasts and deep space communication. Despite their complexities and limitations, their unmatched efficiency and versatility make them indispensable in our interconnected world.
