In today’s wireless world, understanding the various types of antennas can give you a significant advantage. A panel antenna, often overlooked, is a cornerstone in achieving optimal signal direction and strength. But what exactly is it, and why is it so crucial for modern communication?

A panel antenna is a type of directional antenna consisting of a dipole placed in front of a flat-panel reflector. This simple yet effective design is pivotal for enhancing signal strength and direction in various applications, from cellular networks to wireless broadband.

Now that you know the basics, let’s dive deeper into the world of panel antennas and uncover their unique characteristics and advantages.

What Type of Antenna is a Panel Antenna?

Panel antennas are typically flat and rectangular in shape, designed to provide a focused beam of radio waves in a specific direction. This narrow beamwidth helps to minimize interference from other signals and improve the overall performance and range of the wireless system.

The rectangular shape of panel antennas allows for a larger surface area, which helps to increase the gain of the antenna. Gain refers to the ability of an antenna to focus the signal in a particular direction. The higher the gain, the more focused and powerful the signal will be.

Panel antennas are commonly used in point-to-point communication systems, where a wireless signal needs to be transmitted between two specific points. For example, they are often used in wireless backhaul links, which connect two or more network nodes over long distances.

In addition, panel antennas are also used in point-to-multipoint systems, where a wireless signal needs to be transmitted from one point to multiple points. For instance, they are frequently used in wireless access points, which provide internet connectivity to multiple devices within a specific area.

Overall, panel antennas are an important component of many wireless communication systems, as they allow for precise targeting of the signal, increased range, and improved performance.

Is A Panel Antenna Directional?

Yes, a panel antenna is directional. Panel antennas are typically designed with a narrow beamwidth, meaning they radiate and receive signals in a specific direction. This directional characteristic allows panel antennas to focus their signal transmission and reception in a specific area, rather than spreading it out in all directions like an omni-directional antenna. This makes panel antennas ideal for point-to-point or point-to-multipoint wireless communication systems, where the signal needs to be concentrated in a specific direction to maximize range and signal quality.

What Is An Indoor Panel Antenna?

An indoor panel antenna is a type of antenna that is designed to be used indoors. It is usually mounted on a wall or placed on a flat surface, such as a desk or shelf. The panel antenna is typically rectangular in shape and has multiple internal antennas that are designed to receive and transmit signals in a specific direction. It is commonly used to boost the signal strength and coverage of a wireless network, such as a Wi-Fi or cellular network, within a building or specific area. The panel antenna is connected to a wireless router or access point and helps to improve the signal strength and quality for devices that are located indoors.

What Is An Outdoor Panel Antenna?

An outdoor panel antenna is a type of directional antenna designed to be mounted outdoors to enhance the signal strength and coverage of a wireless network. It typically has a narrow beamwidth, which allows it to focus on transmitting and receiving signals in a specific direction. Outdoor panel antennas are commonly used in outdoor environments such as rooftops, poles, and walls to improve the performance of wireless communication systems, such as Wi-Fi, cellular, RFID and other wireless networks.

What Does a Panel Antenna Do?

Panel antennas are designed to transmit and receive signals in a specific direction. They consist of multiple elements, or panels, which are arranged in a grid pattern. Each panel is responsible for transmitting or receiving signals in a specific direction.

The main purpose of a panel antenna is to focus the signal in a particular direction. This allows for better signal strength and coverage in that specific area. By focusing the signal, panel antennas can provide a stronger and more reliable connection compared to other types of antennas.

In cellular base stations, panel antennas are used to provide coverage to a specific area. They are often mounted on towers or buildings and are pointed in the direction where coverage is needed. This allows the base station to provide a strong and reliable signal to users within that area.

In broadband wireless networking, panel antennas are used to provide connectivity to a specific location. They are often used in point-to-point or point-to-multipoint connections to transmit and receive data over long distances. By using panel antennas, the signal can be focused in the desired direction, allowing for a more efficient and reliable connection.

In areas where signal direction and strength need precise control, such as in stadiums or large buildings, panel antennas are used to provide coverage to specific areas. By using multiple panel antennas, the signal can be directed and focused to ensure that users in those areas have a strong and reliable signal.

Overall, panel antennas are essential in various applications where signal direction and strength need to be controlled. They allow for efficient use of bandwidth, enhance connection reliability, and provide better coverage in the desired areas.

What is a Flat Panel Antenna Used For?

A flat panel antenna is used for receiving and transmitting radio waves. It is commonly used in wireless communication systems, such as Wi-Fi networks, cellular networks, and Closed-circuit television(CCTV).

They are also used in radio frequency identification (RFID) systems, where they can be integrated into access control systems, inventory management systems, and electronic toll collection systems.

The flat design of the antenna allows for a compact and low-profile form factor, making it suitable for various applications where space is limited or aesthetics are important.

What are the Different Types of Panel Antennas?

1. Sector Panel Antennas: These antennas have a narrower beamwidth, typically covering a specific sector or angle, such as 90 degrees or 120 degrees. They are commonly used in cellular networks to provide coverage to a specific area or sector.

2. Patch Panel Antennas: Also known as flat panel antennas, these antennas are thin and compact, with a flat shape. They are commonly used in wireless communication systems, such as Wi-Fi networks, to provide directional coverage over a specific area.

3. Microstrip Panel Antennas: Also known as patch antennas, these antennas are printed on a flat substrate, typically made of a dielectric material. They are compact, lightweight, and can be easily integrated into electronic devices. Microstrip antennas are commonly used in mobile phones, GPS devices, and wireless communication systems.

4. Phased Array Panel Antennas: These antennas consist of multiple individual radiating elements that can be electronically steered to change the direction of the beam. They are commonly used in radar systems, satellite communication, and wireless communication systems that require beamforming capabilities.

These are just a few examples of the different types of panel antennas available, each with its own unique characteristics and applications.

What is the Difference Between a Dome and Panel Antenna?

Dome antennas are designed to provide coverage in all directions, making them suitable for general coverage within a circular area. They typically have a low gain and a wide beamwidth, which means they distribute the signal over a wide area. This makes them ideal for providing coverage in open spaces or in areas where the signal needs to be evenly distributed in all directions.

Panel antennas, on the other hand, are designed to direct the signal in a specific direction. They typically have a higher gain and a narrow beamwidth, which means they concentrate the signal in a specific direction. This makes them ideal for providing coverage in a targeted area or for reducing interference from unwanted directions.

In summary, the main difference between a dome antenna and a panel antenna is the way they distribute the signal. Dome antennas distribute the signal in all directions, making them suitable for general coverage. Panel antennas direct the signal in a specific direction, making them suitable for targeted coverage and reducing interference.

What is the Difference Between a Panel Antenna and a Yagi Antenna?

Panel antennas and Yagi antennas are both types of directional antennas commonly used in wireless communication systems. However, there are several differences between them:

1. Design: Panel antennas, also known as patch antennas, are flat and rectangular in shape. They consist of a flat panel with a radiating element inside. On the other hand, Yagi antennas are composed of multiple elements, including a driven element, reflector, and one or more directors, arranged in a linear array.

2. Radiation Pattern: Panel antennas have a broad radiation pattern with a wide beamwidth, which means they can cover a larger area. Yagi antennas, on the other hand, have a narrow radiation pattern with a focused beamwidth, allowing for longer-range communication.

3. Gain: Panel antennas typically have lower gain compared to Yagi antennas. Gain is the measure of how much the antenna can amplify the signal in a particular direction. Yagi antennas are designed to have higher gain, enabling them to transmit and receive signals over longer distances.

4. Size: Panel antennas are generally larger and bulkier than Yagi antennas. The flat panel design of panel antennas requires a larger surface area to accommodate the radiating element. Yagi antennas, with their linear array of elements, are more compact and easier to install.

5. Application: Panel antennas are commonly used for indoor wireless communication systems, such as Wi-Fi networks in homes, offices, and public spaces. They are also used for point-to-multipoint communication, where the signal needs to be distributed to multiple devices in different directions. Yagi antennas are often used for outdoor applications, such as long-range point-to-point communication, cellular base stations, and television reception in areas with weak signals.

In summary, panel antennas have a broader radiation pattern, lower gain, and are more suitable for indoor and point-to-multipoint applications. Yagi antennas have a narrower radiation pattern, higher gain, and are commonly used for outdoor and long-range communication.

How To Design A Panel antenna?

Designing a panel antenna for 5G cellular, WiFi, and RFID applications involves considering several factors such as frequency range, gain, beamwidth, polarization, and impedance matching. Here is a step-by-step guide to designing a panel antenna:

1. Determine the operating frequency range: Start by identifying the frequency bands you want to cover for 5G cellular, WiFi, and RFID applications. This will help you choose the appropriate dimensions and elements for your panel antenna.

2. Select the antenna type: For panel antennas, you can choose from various types such as patch antennas, microstrip antennas, or slot antennas. Patch antennas are commonly used for WiFi and RFID, while microstrip antennas are suitable for 5G cellular applications.

3. Calculate the dimensions: Once you have chosen the antenna type, calculate the dimensions based on the desired frequency range. For example, for a patch antenna, the dimensions of the patch and ground plane are determined by the operating frequency.

4. Determine the substrate material: Select a substrate material that suits your requirements in terms of dielectric constant, thickness, and loss tangent. Commonly used materials include FR-4, Rogers, or Teflon.

5. Design the feed network: Decide on the type of feed network you want to use, such as a microstrip line or coaxial feed. Ensure that the feed network is properly matched to the antenna impedance to achieve maximum power transfer.

6. Simulate the antenna design: Use electromagnetic simulation software such as CST Studio Suite, HFSS, or FEKO to simulate the antenna design. This will help you analyze the performance, such as gain, radiation pattern, and impedance matching.

7. Fabricate the antenna: Once you are satisfied with the simulation results, fabricate the antenna using the chosen substrate material and appropriate manufacturing techniques. Common methods include etching the antenna pattern on the substrate or using printed circuit board (PCB) techniques.

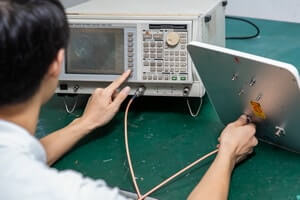

8. Test and optimize the antenna: After fabrication, test the antenna using a vector network analyzer (VNA) or other measurement equipment. Measure the return loss, gain, and radiation pattern to verify if the antenna meets the desired specifications. If necessary, make adjustments to optimize the performance.

9. Consider environmental factors: Finally, consider environmental factors such as mounting options, weatherproofing, and durability to ensure the antenna can withstand outdoor conditions.

It is important to note that designing a panel antenna requires expertise in antenna theory and electromagnetic simulation. If you are not familiar with these concepts, it is recommended to consult an antenna engineer or use commercially available panel antennas.

How To Install A Panel Antenna?

Here is a general guide on how to install a panel antenna:

1. Choose the location: Select a suitable location for the panel antenna. It should be in an elevated position where it can have a clear line of sight to the area you want to cover. Additionally, ensure that the location is secure and stable enough to hold the antenna.

2. Assemble the antenna: Unpack the antenna and assemble it according to the manufacturer’s instructions. This usually involves attaching the antenna elements to the mounting bracket using screws or other fasteners.

3. Mount the antenna: Use the mounting bracket and hardware provided with the antenna to securely attach it to the chosen location. Ensure that it is firmly fixed and stable.

4. Connect the antenna to the device: Use a coaxial cable to connect the antenna to the device you are using to receive or transmit the signal. This could be a router, access point, or other wireless device. Insert one end of the cable into the antenna’s connector and the other end into the appropriate port on the device.

5. Adjust the antenna: Once the antenna is connected, you may need to adjust its position and orientation to achieve the best signal strength and coverage. This can involve tilting or rotating the antenna to optimize its alignment with the desired area.

6. Secure the cables: Use cable clips or ties to secure the coaxial cable along its route to prevent it from being accidentally disconnected or damaged.

7. Test the antenna: After installation, test the antenna to ensure it is working correctly. Check the signal strength and coverage in the desired area to verify that the antenna is providing the desired performance.

Note: It is always recommended to consult the specific installation instructions provided by the manufacturer of the panel antenna, as the installation process may vary depending on the model and brand.

Summary

Overall, panel antennas are flat, rectangular antennas that are used to transmit and receive signals in a specific direction. They are highly directional, easy to install, customizable, and have high gain. These features make them ideal for a variety of applications, from improving home Wi-Fi to supporting large-scale telecommunications. Understanding panel antennas can help you unlock new levels of connectivity and performance.
