In the rapidly advancing world of wireless communication, millimeter wave (mmWave) technology emerges as a pivotal innovation. But what exactly is a mmWave antenna, and why is it critical for the future of connectivity? This article delves into the essence of mmWave antennas, shedding light on their operation, benefits, and applications.

A mmWave antenna is an antenna that operates in the millimeter wave spectrum, which ranges from 30 GHz to 300 GHz. These antennas have unique characteristics, including high data rates, short range, small form factors, and line-of-sight communication. They are a key technology for modern wireless communication systems that require high capacity, low latency, and reliable connections.

Now that we’ve outlined what mmWave antennas are, let’s dive deeper into their characteristics and why they’re essential for modern wireless communication.

What Spectrum is mmWave?

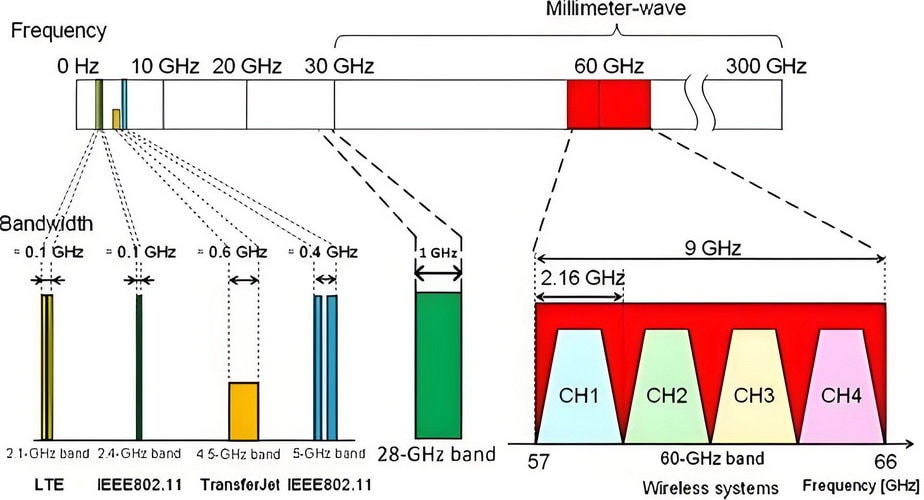

 The mmWave spectrum, which includes frequencies from 30 GHz to 300 GHz, is located between microwave and infrared waves in the electromagnetic spectrum. It is characterized by its short wavelengths, which range from 1 to 10 millimeters.

 While the mmWave spectrum is not widely used in commercial applications, it offers great potential for high-speed wireless communications. Unlike the lower frequencies currently used by most wireless systems, the mmWave spectrum can support higher data rates. This is a significant advantage.

However, the mmWave spectrum has unique propagation characteristics, such as higher attenuation and a greater susceptibility to absorption by rain and glass.

Therefore, innovative solutions like beamforming and MIMO (Multiple Input Multiple Output) technologies are required to effectively utilize the mmWave spectrum.

What is the Distance of the mmWave Antenna?

In addition to the limited range, mmWave signals are also more prone to blockage by obstacles such as buildings, trees, and even people. This means that even if the effective distance of mmWave communication is a few hundred meters, the actual distance a signal can travel may be significantly shorter if there are obstructions in the path.

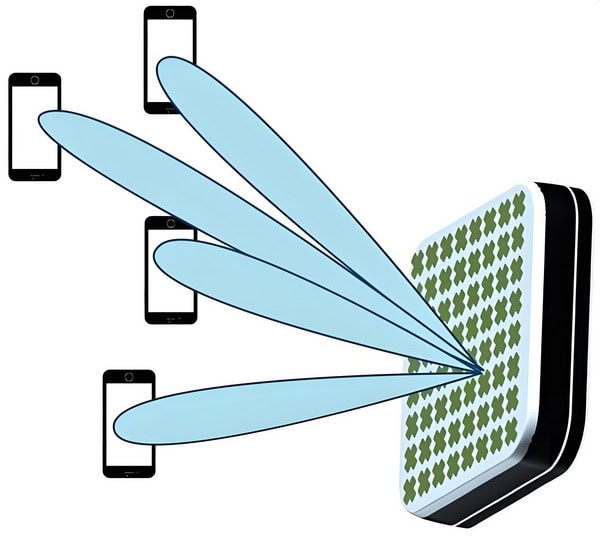

To address this issue, mmWave communication systems use beamforming and phased arrays to steer the signal towards the intended receiver. Beamforming involves using multiple antennas to create a focused beam of radio waves that can be directed towards a specific location. Phased arrays use multiple antenna elements that can individually adjust the phase and amplitude of the signals they transmit or receive. By carefully controlling the phase and amplitude of the signals from each antenna element, a phased array can create a beam that can be steered in a specific direction.

By using beamforming and phased arrays, mmWave communication systems can overcome the limitations of the shorter range and increased susceptibility to blockage. These technologies allow mmWave signals to be focused and directed towards the intended receiver, increasing the effective distance of communication and ensuring reliable connectivity even in the presence of obstacles.

Furthermore, the focused nature of mmWave transmission also helps reduce interference and increase network capacity. Since the signals are tightly focused, they are less likely to interfere with other nearby mmWave signals or signals operating in other frequency bands. This allows for more efficient use of the available spectrum and enables higher data rates and greater network capacity.

Overall, while mmWave signals have a shorter range compared to lower frequency signals, technologies such as beamforming and phased arrays enable mmWave communication systems to overcome these limitations. By precisely directing the signal towards the intended receiver, these technologies enhance the effective distance of mmWave communication, ensure reliable connectivity, reduce interference, and increase network capacity.

How Do mmWave Antennas Work?

mmWave antennas work by transmitting and receiving electromagnetic waves in the millimeter-wave frequency range, which typically falls between 30 GHz and 300 GHz. These antennas are designed to operate at high frequencies and have unique characteristics compared to antennas used for lower frequency bands.

The main principle behind mmWave antennas is the same as any other antenna, which is to convert electrical signals into electromagnetic waves and vice versa. However, due to the high frequency of mmWave signals, the design and operation of these antennas are more challenging.

mmWave antennas are typically designed as directive antennas, meaning they concentrate the energy in a specific direction rather than radiating it uniformly in all directions. This allows for longer range and higher gain, which is necessary for mmWave signals to overcome the high path loss and atmospheric absorption at these frequencies.

One common type of mmWave antenna is the patch antenna. It consists of a metallic patch placed on a dielectric substrate. The patch is typically square or rectangular in shape and is connected to the transmission line. When an electrical signal is applied to the patch, it generates an electromagnetic field, which radiates as a beam in a specific direction.

Another type of mmWave antenna is the horn antenna. It is a flared metallic structure that gradually expands from a narrow opening to a wider mouth. The horn antenna is designed to have a wide bandwidth and high gain. It is commonly used in applications where high directivity is required.

In addition to these types, there are various other designs of mmWave antennas, such as slot antennas, waveguide antennas, and microstrip antennas. Each design has its own advantages and disadvantages, depending on the specific application requirements.

Overall, mmWave antennas work by converting electrical signals into electromagnetic waves in the millimeter-wave frequency range. Their design and operation are optimized for high frequencies, allowing for longer range, higher gain, and improved performance in mmWave communication systems.

What are the Benefits of mmWave Antenna?

mmWave antennas offer several benefits that make them attractive for a wide range of applications.

Firstly, the higher frequencies of mmWave allow for the transmission of data at incredibly high speeds, which is essential for bandwidth-intensive applications such as streaming high-definition video, real-time gaming, and virtual reality.

Additionally, the vast availability of spectrum in the mmWave bands significantly reduces congestion, allowing for a higher density of users and devices to be connected simultaneously without degradation in performance.

The small wavelength of mmWave signals also enables the use of compact antenna arrays, allowing for the integration of mmWave technology into small devices such as smartphones and IoT devices.

These benefits collectively make mmWave antennas a cornerstone of next-generation wireless technologies, offering the promise of ultra-fast, high-capacity networks that can support the continued growth of connected devices and data demand.

In summary, mmWave antennas offer the following benefits:

1. High-speed data transmission for bandwidth-intensive applications.

2. Reduced congestion and higher user density.

3. Compact antenna arrays for integration into small devices.

4. Support for ultra-fast, high-capacity networks.

Is mmWave Antenna Better Than Sub-6 Antenna?

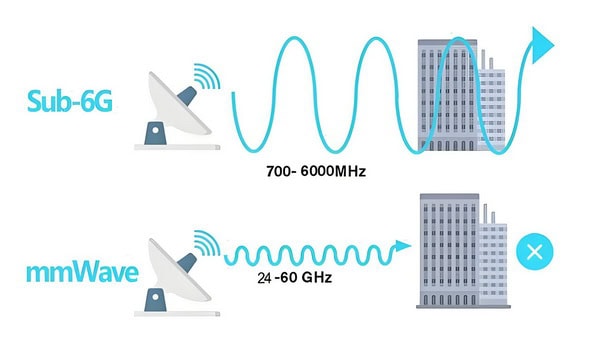

Comparing mmWave antennas to Sub-6 GHz antennas is like comparing apples to oranges; each has its strengths and is suited for different applications within the 5G network ecosystem. mmWave antennas offer significantly higher bandwidth and faster data rates, making them ideal for dense urban areas or applications requiring high throughput. On the other hand, Sub-6 GHz antennas provide broader coverage and better penetration through obstacles, making them suitable for wide-area networks and ensuring reliable service indoors and in rural areas. The choice between mmWave and Sub-6 GHz depends on the specific requirements of the network, including the desired balance between coverage, capacity, and speed. For instance, a network operator might deploy mmWave antennas in a crowded city center for high-speed access, while using Sub-6 GHz antennas to provide broader coverage in less densely populated areas.

In summary, mmWave antennas are best for high-capacity, high-speed applications in dense urban areas, while Sub-6 GHz antennas are better for broader coverage and reliable service in indoor and rural areas. The choice between the two depends on the specific requirements of the network.

What are the Advantages of mmWave Antenna?

Another advantage of mmWave antennas is their ability to operate in crowded environments. The high frequency of mmWave signals allows for more precise beamforming, which can be used to steer the signal towards the intended receiver and avoid interference from other devices. This makes mmWave antennas ideal for use in densely populated areas, such as urban environments, where there are many devices operating in close proximity.

Additionally, mmWave antennas offer improved energy efficiency compared to traditional antennas. The smaller size of mmWave antennas means that they require less power to operate, resulting in lower energy consumption. This is particularly important for battery-powered devices, such as smartphones and IoT devices, where energy efficiency is a key consideration.

Overall, the advantages of mmWave antennas, including high data rates, reduced latency, smaller size, improved privacy and security, and the ability to operate in crowded environments, make them a promising technology for a wide range of applications. As the demand for high-speed, low-latency communication continues to grow, mmWave antennas are likely to play a crucial role in enabling these advancements.

What are the Disadvantages of mmWave Antenna?

Despite their advantages, mmWave antennas also face several challenges below:

1. Signal Blockage: mmWave signals are easily blocked by objects such as buildings, trees, and even people. This can lead to a loss of signal and interruptions in communication.

2. Interference: mmWave signals are more susceptible to interference from other devices and signals operating in the same frequency range. This can degrade the quality of the communication and reduce the overall performance of the network.

3. Cost: The deployment of mmWave antennas requires a higher number of antennas compared to lower frequency bands. This can increase the cost of network infrastructure, especially in densely populated areas.

4. Power Consumption: Due to the higher frequency and shorter wavelength, mmWave antennas require more power to transmit and maintain signal strength. This can lead to increased power consumption and shorter battery life for devices using mmWave communication.

5. Weather Conditions: mmWave signals can be affected by weather conditions such as rain, fog, and snow. These conditions can cause signal degradation and reduce the range and reliability of mmWave communication.

Overall, while mmWave antennas offer high data rates and low latency, they also face challenges related to signal penetration, interference, cost, power consumption, and weather conditions. These challenges need to be addressed to ensure the successful deployment and operation of mmWave communication systems.

How to Design a mmWave Antenna?

Designing a mmWave antenna involves several steps and considerations. Here is a general guide to help you get started:

1. Determine the frequency range: mmWave refers to frequencies between 30 GHz and 300 GHz. Decide on the specific frequency or frequency range you want your antenna to operate at.

3. Choose the antenna type: There are various types of antennas suitable for mmWave applications, such as patch antennas, horn antennas, and slot antennas. Consider the requirements of your application and select the appropriate antenna type.

3. Determine the beamwidth and gain requirements: Decide on the desired beamwidth and gain for your antenna. This will depend on factors such as the distance over which you need to transmit or receive signals and the desired coverage area.

4. Select the substrate material: Choose a substrate material with low dielectric loss and high permittivity to achieve good performance at mmWave frequencies. Common substrate materials include Rogers, Duroid, and Taconic.

5. Determine the antenna dimensions: Calculate the dimensions of your antenna based on the desired operating frequency and the chosen antenna type. You can use various antenna design software or formulas to assist you with this step.

6. Design the antenna structure: Create the antenna structure on the chosen substrate material using a suitable fabrication technique such as etching or printing. Ensure that the dimensions and layout of the antenna match your design specifications.

7. Simulate and optimize the antenna design: Use electromagnetic simulation software to analyze and optimize the performance of your antenna. Adjust the dimensions and layout as necessary to achieve the desired performance characteristics.

8. Fabricate the antenna: Once you are satisfied with the simulation results, fabricate the antenna by transferring the design onto the substrate material using the chosen fabrication technique. This may involve processes such as photolithography, etching, or 3D printing.

9. Test the antenna: After fabrication, test the antenna to verify its performance. Measure parameters such as return loss, gain, and radiation pattern to ensure that the antenna meets your design requirements.

10. Iterate and refine: If the antenna does not meet your specifications, go back to the design and simulation stages to make adjustments and improvements. Repeat the fabrication and testing steps until you achieve the desired performance.

Remember that designing a mmWave antenna can be complex and may require specialized knowledge and tools. It is recommended to consult with experts in the field or use professional antenna design software to ensure accurate and efficient design.

Top 3 mmWave Antenna Types

Phased Array Antennas, Reflector Antennas, and Lens Antennas are the three types of mmWave antennas that are widely used and effective.

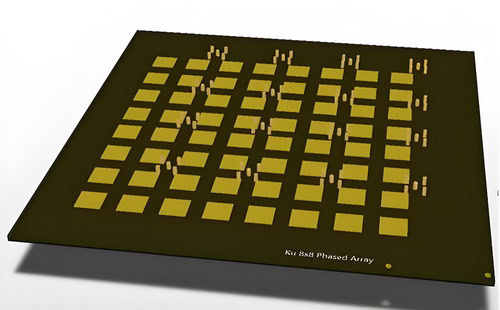

Phased Array Antennas use multiple antenna elements to electronically steer the beam direction. This allows for precise targeting of specific areas or devices.

Reflector Antennas have high gain and efficiency, making them ideal for long-distance communication. They focus the signal through a reflective surface, resulting in high directivity and signal strength.

Lens Antennas use dielectric lenses to focus and direct mmWave signals. They are valued for their ability to achieve high gain and directivity without the need for moving parts, making them suitable for compact and robust applications.

How mmWave Antennas Power 5G Networks

Additionally, mmWave antennas are crucial for enabling new technologies and applications that rely on the ultra-low latency provided by 5G networks. These include autonomous vehicles, remote surgery, virtual reality, and augmented reality, among others.

The use of mmWave antennas in urban areas is especially important due to their ability to overcome the challenges posed by the high population density and the presence of obstacles such as buildings and trees. The high frequency of mmWave signals allows for the use of small antennas, which can be easily deployed on street lamps, traffic lights, and other existing infrastructure. This enables the creation of a dense network of antennas, ensuring reliable coverage and capacity in densely populated areas.

However, the use of mmWave antennas also presents challenges. Due to their high frequency, mmWave signals have a shorter range and are more susceptible to blockage by obstacles. This requires the deployment of a large number of antennas to ensure continuous coverage. Additionally, mmWave signals are easily absorbed by rain, foliage, and even the human body, which can further limit their range and reliability.

To overcome these challenges, telecommunication operators are deploying massive MIMO (Multiple-Input, Multiple-Output) systems, which use a large number of antennas to transmit and receive signals simultaneously. This improves the coverage, capacity, and reliability of mmWave networks, allowing them to deliver the promised high speeds and low latency.

In conclusion, mmWave antennas are essential for the successful deployment of 5G networks, particularly in urban areas. They enable the delivery of high-speed, low-latency connections that are necessary to support the increasing demand for data-intensive applications and new technologies. While they present challenges, such as shorter range and susceptibility to blockage, these can be overcome through the use of massive MIMO systems.

Navigating the Challenges and Opportunities of mmWave Antennas

Some of the challenges associated with mmWave technology deployment include the need for a dense network of small cells, which can be expensive to install and maintain. Additionally, mmWave signals are easily blocked by obstacles such as buildings and trees, leading to signal attenuation and reduced coverage. Furthermore, mmWave signals have difficulty penetrating walls and other solid objects, making indoor coverage a challenge.

Despite these challenges, there are numerous opportunities that come with mmWave technology. The high-frequency bands used by mmWave enable significantly higher data rates compared to traditional wireless communication. This makes mmWave ideal for supporting the growing number of devices connected to the internet, such as smartphones, tablets, and the Internet of Things (IoT) devices.

Moreover, mmWave technology can enable new services that were previously impossible with lower-frequency bands. For example, it can support virtual and augmented reality applications, ultra-high-definition video streaming, and real-time gaming. These services require extremely low latency and high data rates, which can be achieved with mmWave technology.

To overcome the challenges associated with mmWave deployment, ongoing research and development efforts are focused on improving the accessibility and effectiveness of this technology. This includes developing new antenna designs, beamforming techniques, and signal processing algorithms to enhance signal quality and coverage. Additionally, efforts are being made to integrate mmWave technology with existing wireless networks to provide seamless connectivity.

In conclusion, while mmWave technology deployment comes with its set of challenges, the opportunities it presents for enhancing wireless communication are substantial. By overcoming these obstacles, mmWave can support a wide range of devices and enable services that were previously impossible. Ongoing research and development in this area are focused on making mmWave technology more accessible and effective, paving the way for a new era in telecommunications.

mmWave Antennas in Urban vs. Rural Deployment

The deployment strategies for mmWave antennas are different in urban and rural areas. In cities, the main goal is to overcome signal attenuation caused by dense infrastructure in order to provide high-speed internet access. On the other hand, in rural areas, the challenge is to cover large areas where the cost of infrastructure can be a barrier.

To address this issue, innovative solutions like mesh networks and satellite systems are being explored to bring the advantages of mmWave technology to rural communities. This shows the potential of mmWave technology to revolutionize connectivity in various settings.

Integration Challenges and Solutions for mmWave Antennas

Integrating mmWave antennas into existing telecommunications infrastructure is not easy. The high frequency and short wavelength of mmWave signals make them more prone to attenuation and require a clear line of sight to work well. This means that more base stations and antennas need to be deployed, making urban telecommunications infrastructure more complex and expensive.

To overcome these challenges, companies and researchers are looking at innovative solutions such as smart repeaters, materials that can reflect signals to extend their reach, and advanced network planning tools that can optimize antenna placement. These efforts are aimed at making sure that mmWave technology can be used to its full potential, with efficient signal propagation and coverage even in areas with a lot of buildings.

Future Trends in mmWave Antenna Technology

In the world of telecommunications, mmWave technology is making waves. These antennas operate in the millimeter wave frequency range, typically between 30 GHz and 300 GHz, and are capable of transmitting and receiving data at incredibly high speeds. With the demand for data increasing exponentially, mmWave antennas are becoming an essential tool for meeting the needs of consumers and businesses alike.

One of the key advantages of mmWave technology is its ability to transmit data at extremely high frequencies. This allows for much faster data transfer rates compared to traditional antennas. For example, while a typical 4G LTE antenna may be capable of speeds up to 100 Mbps, mmWave antennas can provide speeds of up to 10 Gbps or more. This increased speed and capacity is crucial for supporting the growing number of connected devices and the data-intensive applications they require.

In addition to their speed, mmWave antennas also offer improved connectivity. Traditional antennas operate at lower frequencies, which can be easily absorbed or reflected by objects in their path. This can lead to dropped calls or slow data speeds, especially in crowded areas. However, mmWave technology operates at higher frequencies, which are less likely to be obstructed. This means that even in crowded areas, such as stadiums or city centers, users can expect reliable and fast connections.

As we move into the era of 5G and beyond, mmWave technology will play an even more significant role. 5G networks are expected to offer speeds up to 100 times faster than 4G, and mmWave antennas will be a critical component in achieving these speeds. In fact, many 5G networks are already utilizing mmWave technology to provide faster and more reliable connections.

Looking forward, there are several potential breakthroughs that could further enhance the capabilities of mmWave technology. One area of research is in beamforming, which allows mmWave antennas to focus their signals in specific directions. This can improve the range and reliability of mmWave connections, making them more practical for widespread use.

Another potential breakthrough is in the development of smaller, more efficient mmWave antennas. Currently, mmWave antennas are relatively large and require line-of-sight to function properly. However, researchers are working on developing smaller, more compact antennas that can operate in non-line-of-sight conditions. This would make mmWave technology more practical for use in everyday devices, such as smartphones and laptops.

Overall, the future of mmWave technology looks bright. As the demand for data continues to grow, mmWave antennas will play a pivotal role in meeting these needs. With their high speeds, improved connectivity, and potential for breakthroughs, mmWave antennas are reshaping telecommunications and will continue to do so for years to come.

At last, here are some key points to understand about mmWave antennas:

1. Operation: mmWave antennas operate at frequencies above 30 GHz, typically in the range of 24-100 GHz. These high frequencies allow for increased data capacity and faster wireless communication.

2. Benefits: The use of mmWave antennas enables several benefits. Firstly, they provide significantly higher data rates compared to lower frequency bands. Secondly, they offer low latency, which is crucial for applications like autonomous vehicles and virtual reality. Lastly, mmWave antennas allow for massive device connectivity, supporting the Internet of Things (IoT) and smart cities.

3. Applications: mmWave antennas have numerous applications. They are the backbone of 5G networks, providing the high-speed, low-latency connections required for applications like video streaming, online gaming, and augmented reality. Additionally, they are essential for autonomous vehicles, wireless backhaul, and fixed wireless access.

4. Challenges: While mmWave antennas offer significant advantages, they also present challenges. Firstly, their high frequency signals have limited range and are easily blocked by obstacles like buildings and trees. Secondly, they require a large number of antennas due to their narrow beamwidth. Lastly, they are more sensitive to environmental conditions like rain and fog, which can impact their performance.

5. Antenna types: There are several types of mmWave antennas, including Phased Array Antennas, Reflector Antennas, and Lens Antennas. Each type has its own advantages and is suitable for different applications and form factors.

Summary

In summary, understanding mmWave antennas is crucial for those involved in technology, engineering, or product management in the 5G and 6G era. These antennas offer higher data rates, low latency, and massive device connectivity, enabling applications like video streaming, autonomous vehicles, and IoT. However, they also come with challenges, such as limited range and sensitivity to environmental conditions. Knowing the operation, benefits, and applications of mmWave antennas will be essential for leveraging their capabilities in the future of wireless communication.
