LoRa technology is revolutionizing wireless communication by providing long-range connectivity with low power consumption. The key to this technology is the LoRa antenna, which allows for seamless communication over large distances and enables innovative IoT solutions in various industries. In this guide, we will explain how LoRa antennas work, explore their applications, and discuss the advantages they offer to different users.

A LoRa antenna is a crucial device that enables long-range communications with minimal power consumption by utilizing a spread spectrum modulation technique. Primarily found in low-power wide-area networks (LPWANs), these antennas facilitate robust, extensive communication capabilities across various IoT applications, making them essential for environments where connectivity and energy efficiency are paramount.

To understand LoRa antennas, we need to know how they work, their benefits, and how to choose and design them. This will help us use them effectively in IoT systems.

What is a LoRa antenna used for?

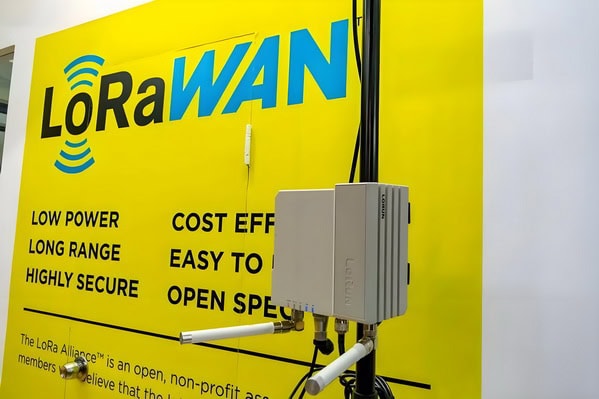

A LoRa antenna is used to transmit and receive signals in a LoRaWAN (Long Range Wide Area Network) system. LoRaWAN is a low-power, wide-area network protocol designed for long-range communication between Internet of Things (IoT) devices. The LoRa antenna is responsible for sending and receiving the LoRa signals, allowing the devices to communicate with each other and with the LoRaWAN gateway.

How does the LoRa antenna work?

The LoRa antenna works by transmitting and receiving radio waves in the LoRa frequency bands. It is designed to operate at specific frequencies, typically in the range of 868 MHz to 915 MHz, depending on the region.

When transmitting data, the LoRa antenna converts the electrical signals from the LoRa device into radio waves and radiates them into the air. These radio waves propagate through the environment and can travel over long distances, even in challenging conditions such as urban areas or remote locations.

When receiving data, the LoRa antenna captures the radio waves from the air and converts them back into electrical signals that can be processed by the LoRa device. The antenna is designed to be highly sensitive, allowing it to detect weak signals even when they are far away or obstructed by objects.

The LoRa antenna typically has a specific radiation pattern, which determines the direction and shape of the radio waves it transmits and receives. This pattern can be omni-directional, where the antenna radiates and receives signals in all directions equally, or directional, where the antenna focuses the signal in a specific direction.

Overall, the LoRa antenna plays a crucial role in enabling long-range, low-power communication for LoRa devices, allowing them to transmit and receive data over extended distances with minimal energy consumption.

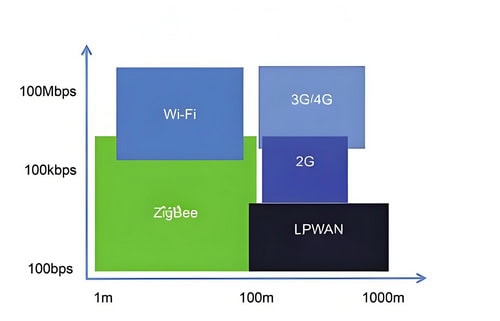

What are the benefits of a LoRa antenna?

There are several benefits of a LoRa antenna:

1. Long Range: LoRa (Long Range) technology provides a long-range communication capability, typically up to several kilometers in urban areas and even more in rural areas. This allows for the deployment of wireless networks over large areas with minimal infrastructure.

2. Low Power Consumption: LoRa antennas are designed to operate with low power consumption, allowing for battery-powered devices to have a long battery life. This is particularly useful for applications such as IoT devices, where long battery life is essential.

3. Low Cost: LoRa antennas are relatively inexpensive compared to other wireless communication technologies. This makes them an attractive choice for applications that require a large number of devices to be deployed.

4. Secure Communication: LoRa technology uses encryption to secure the communication between devices. This ensures that the data transmitted over the network is protected from unauthorized access.

5. Scalability: LoRa networks can be easily scaled up to accommodate a large number of devices. This makes them suitable for applications that require a large number of devices to be connected, such as smart cities or industrial IoT deployments.

6. Flexibility: LoRa antennas can be used in a variety of applications and environments. They can be deployed in urban areas, rural areas, and even in underground or indoor environments. This flexibility allows for a wide range of use cases and applications.

What is the frequency of LoRa antennas?

The frequency of LoRa antennas can vary depending on the region and the specific LoRa band being used. The most common frequency bands for LoRa are:

1. 868 MHz: This band is used in Europe, India, and some other countries. It is also known as the European ISM band.

2. 915 MHz: This band is used in North and South America, Australia, and some other countries. It is also known as the North American ISM band.

3. 433 MHz: This band is used in some countries in Europe and Asia.

It’s important to note that these frequencies are within the ISM (Industrial, Scientific, and Medical) bands, which are unlicensed and can be used for various wireless communication applications.

What is the range of LoRa antennas?

The range of LoRa (Long Range) antennas can vary depending on several factors, including the transmit power, receiver sensitivity, and the environment in which they are used. In general, LoRa antennas can provide a range of up to several kilometers in urban areas and up to tens of kilometers in rural or open areas. However, it is important to note that the range can be significantly affected by obstacles such as buildings, trees, and other physical obstructions.

What is the best LoRa antenna?

There is no definitive answer to what the best LoRa antenna is, as it depends on various factors such as the specific application, environment, and range requirements. However, some popular and highly regarded LoRa antennas include:

1. Dipole Antennas: These are simple and cost-effective antennas that offer omni-directional coverage. They are suitable for short-range applications and are commonly used for LoRa gateways.

2. Yagi Antennas: Yagi antennas provide higher gain and more focused directionality compared to dipole antennas. They are ideal for long-range applications and can be used for both LoRa gateways and LoRa devices.

3. Helical Antennas: Helical antennas are compact and offer circular polarization, making them suitable for applications where the orientation of the antenna may vary. They are often used for LoRa devices and mobile applications.

It is important to consider the specific requirements and constraints of your LoRa project before selecting an antenna. Additionally, factors like antenna placement, height, and cable quality can also significantly impact the performance of the LoRa network.

How to design a LoRa antenna?

Designing a LoRa antenna involves several steps, including determining the frequency of operation, selecting the antenna type, designing the antenna dimensions, and optimizing the performance. Here is a general guide on how to design a LoRa antenna:

1. Determine the frequency of operation: LoRa operates on different frequency bands, such as 433 MHz, 868 MHz, or 915 MHz. The first step is to determine the frequency band you want to design the antenna for.

2. Select the antenna type: There are various types of antennas suitable for LoRa, such as monopole antennas, dipole antennas, or patch antennas. The choice depends on factors like the desired gain, radiation pattern, and form factor.

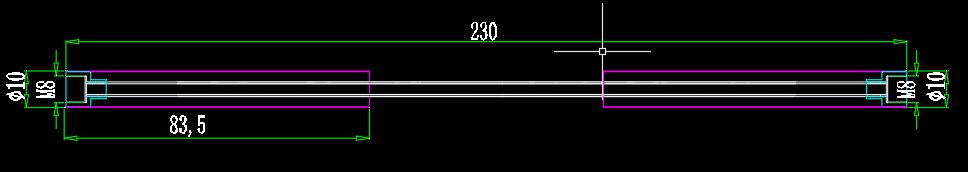

3. Design the antenna dimensions: Once you have selected the antenna type, you need to design the dimensions of the antenna elements. This involves calculating the length or size of the antenna elements based on the chosen frequency of operation. You can use online calculators or antenna design software (HFSS)to help with this step.

4. Optimize the performance: After designing the initial antenna dimensions, you need to optimize the performance by fine-tuning the design. This involves adjusting the dimensions, such as the length, width, or spacing between elements, to achieve the desired performance parameters like impedance matching, gain, and radiation pattern.

5. Fabricate the antenna: Once you have the final design, you can fabricate the antenna using suitable materials. For example, you can use copper wires or printed circuit boards for monopole or dipole antennas, or you can use substrates and conductive materials for patch antennas.

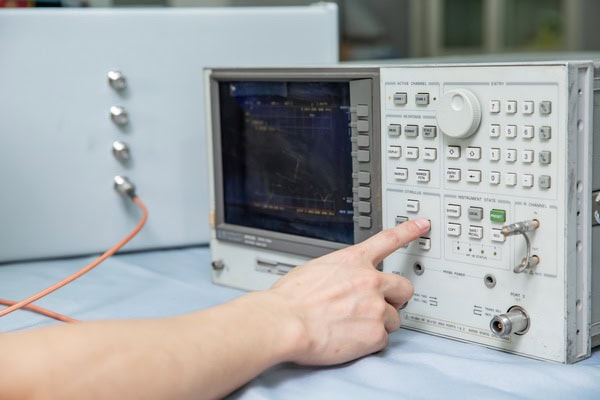

6. Test and validate the antenna: After fabrication, it is important to test and validate the antenna’s performance. This can be done using network analyzers or other RF testing equipment. Measure parameters like return loss, VSWR, radiation pattern, and gain to ensure the antenna is performing as expected.

7. Iterate and refine: If the antenna does not meet the desired performance criteria, you may need to iterate and refine the design by adjusting the dimensions or other parameters. This process may involve multiple iterations until the desired performance is achieved.

It is important to note that designing an antenna can be complex and may require expertise in antenna theory and RF design. If you are not familiar with antenna design, it may be helpful to consult with an expert or use commercially available antennas that are specifically designed for LoRa applications.

Summary

In summary, LoRa antennas are essential components of LoRa-based wireless communication systems that provide long-range, low-power connectivity for IoT and M2M applications. With their extensive coverage, reliable connectivity, and scalability, LoRa antennas enable various industries to implement efficient and dependable IoT solutions. Understanding the functionality, benefits, technical specifications, and design considerations of LoRa antennas is crucial for fully leveraging this transformative technology.
