In today’s rapidly advancing technological landscape, effective communication across various frequencies is paramount. One pivotal component in achieving this is the log-periodic antenna, a versatile and powerful tool in the arsenal of modern broadcasting and telecommunications. But what exactly is a log-periodic antenna, and how does it enhance our communication capabilities?

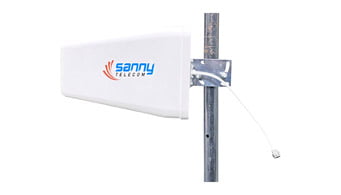

A log-periodic antenna is a directional, multi-element antenna designed to operate over a wide range of frequencies. Its unique geometric structure allows for consistent performance and gain across its bandwidth, making it ideal for applications that require robust, frequency-agile communication solutions.

As we delve into the specifics of how these antennas operate and their practical applications, it’s clear that log-periodic antennas play a crucial role in our connected world, addressing a wide array of communication needs with unparalleled efficiency.

How Does the Log-periodic Antenna Work?

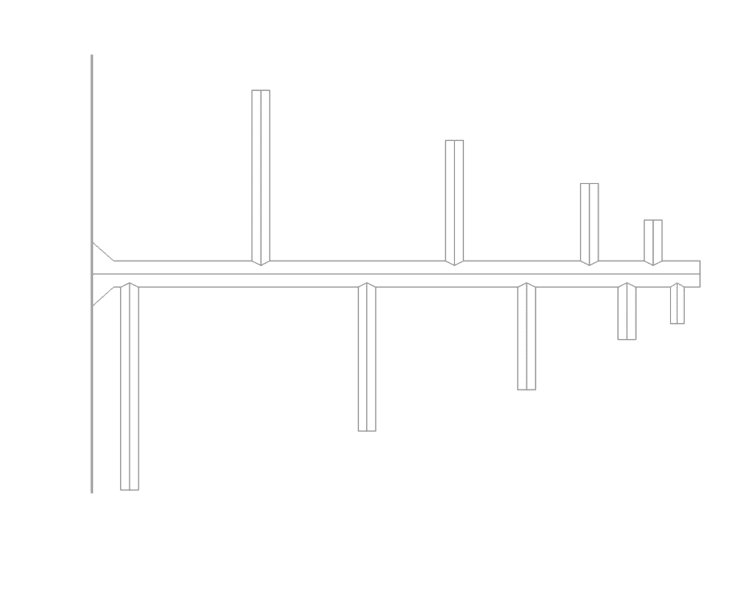

The log-periodic antenna is a type of antenna that is designed to operate over a wide range of frequencies. It consists of a series of dipole elements of varying lengths, arranged in a specific pattern.

The log-periodic antenna works by exploiting the principle of resonant frequencies. Each dipole element in the antenna is resonant at a specific frequency, and the lengths of the elements are carefully chosen so that the resonant frequencies overlap. This allows the antenna to operate over a wide frequency range.

When a signal is received by the log-periodic antenna, the dipole elements that are resonant at that frequency will resonate and generate an electrical current. This current is then fed to a transmission line, which carries the signal to a receiver or transmitter.

The log-periodic antenna is designed in such a way that the resonant frequency of each dipole element is a multiple of the resonant frequency of the previous element. This causes the antenna to have a logarithmic periodicity, which is where it gets its name.

By using a logarithmic periodicity, the log-periodic antenna is able to maintain a consistent radiation pattern over a wide range of frequencies. This makes it well-suited for applications where the frequency of the signal being transmitted or received can vary significantly.

What Is a Log Periodic Antenna Used For?

A log periodic antenna is used for various purposes, including:

1. Television and Radio Broadcasting: Log periodic antennas are commonly used for TV and radio broadcasting to receive and transmit signals over a wide range of frequencies.

2. Amateur Radio: Hams or amateur radio operators often use log periodic antennas to communicate over different frequency bands.

3. WiFi: Log periodic antennas are used for WiFi applications to provide a stable and strong wireless internet connection.

4. Cellular Networks: They are used in cellular networks to transmit and receive signals from cell towers, enabling mobile communication.

5. Signal Boosters: Log periodic antennas are also used in signal booster systems to enhance the strength and range of signals for better reception and transmission.

6. Distributed Antenna Systems (DAS): Log periodic antennas are a common choice for DAS installations, which are used to improve wireless coverage and capacity in large buildings, stadiums, airports, and other public areas.

Overall, log periodic antennas are versatile and widely used in various industries and applications that require reliable and efficient communication over a broad range of frequencies.

What Are the Advantages of Log-periodic Antennas?

There are several advantages of log-periodic antennas, including:

1. Wide frequency range: Log-periodic antennas can operate over a wide range of frequencies, making them versatile and suitable for various applications. They can cover multiple frequency bands without the need for tuning or adjustments.

2. Directional radiation pattern: Log-periodic antennas have a directional radiation pattern, which means they can focus their energy in a specific direction. This makes them ideal for long-distance communication and reduces interference from unwanted signals.

3. High gain: Log-periodic antennas typically have higher gain compared to other types of antennas, such as dipole or monopole antennas. This means they can transmit and receive signals over longer distances and with greater power.

4. Low side lobes: Log-periodic antennas have low side lobes, which means they radiate most of their energy in the desired direction and minimize energy in other directions. This helps in reducing interference and improving the signal-to-noise ratio.

5. Broadband performance: Log-periodic antennas have a wide bandwidth, which means they can operate over a large range of frequencies while maintaining good performance. This makes them suitable for applications where the frequency of the signal may change or where multiple frequencies need to be received or transmitted.

6. Compact size: Log-periodic antennas can be designed to be relatively compact compared to other types of antennas. This makes them suitable for applications where space is limited, such as on vehicles or in portable devices.

Overall, log-periodic antennas offer a combination of wide frequency range, high gain, directional radiation pattern, and compact size, making them a popular choice for various communication and broadcasting applications.

What’s the gain and range of a log-periodic antenna?

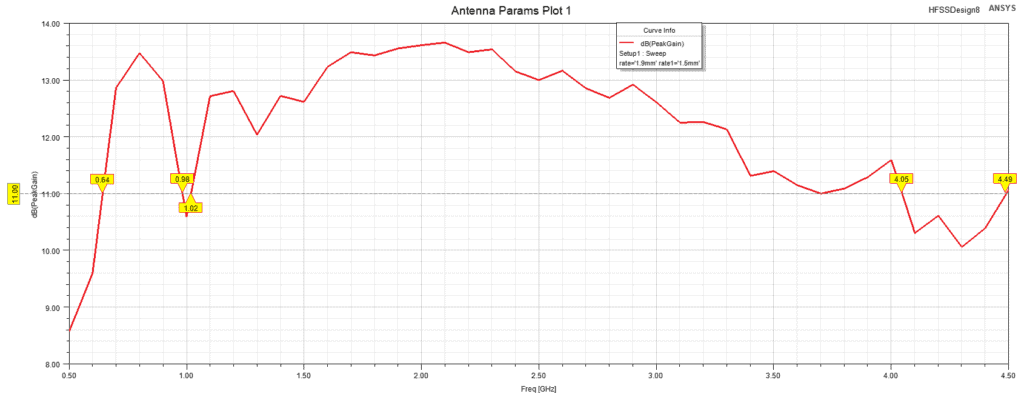

The gain of a log-periodic antenna typically ranges from 5 to 15 dBi (decibels isotropic). The range of a log-periodic antenna can vary depending on various factors such as the frequency range it is designed for, the power of the transmitter, and any obstacles or interference in the environment. However, log-periodic antennas are commonly used for long-range communication and can provide coverage over distances of several miles.

Log-periodic Antenna Polarization

The polarization of a log-periodic antenna is determined by the orientation of the elements of the antenna. The elements of a log-periodic antenna are typically arranged in a periodic pattern, with the size of the elements decreasing as the frequency increases. This allows the antenna to operate over a wide range of frequencies.

The polarization of an antenna refers to the orientation of the electric field generated by the antenna. The electric field can be oriented in different directions, including vertical, horizontal, or any angle in between.

For a log-periodic antenna, the polarization is typically determined by the orientation of the elements. If the elements are oriented vertically, the antenna will have a vertical polarization. If the elements are oriented horizontally, the antenna will have a horizontal polarization.

However, it is important to note that the polarization of a log-periodic antenna can vary depending on the frequency of operation. At lower frequencies, the elements may be oriented vertically, while at higher frequencies, the elements may be oriented horizontally.

In general, the polarization of a log-periodic antenna is determined by the orientation of the elements, which can vary depending on the frequency of operation.

Log Periodic Antenna vs Panel Antenna

Panel antennas are often used for point-to-point communication, such as in wireless backhaul links and CCTV, where a narrow beamwidth is desirable to minimize interference and maximize signal strength. Panel antennas are also commonly used in Wi-Fi networks to provide coverage in specific areas or to direct signals to specific devices.

On the other hand, log-periodic antennas are used in a wide range of applications including television and radio broadcasting, cellular networks, and even amateur radio. They are designed to cover a wide frequency range with relatively consistent performance, making them ideal for situations where multiple frequencies need to be transmitted or received.

In summary, panel antennas are typically used for more focused applications with narrower frequency requirements, while log-periodic antennas are used when a broader frequency range is needed.

Which Is Better: Log Periodic Antenna or Omni Antenna?

Log-periodic antennas are designed to have a wide frequency range and a directional pattern, making them suitable for applications such as television broadcasting or long-range communication. They are also commonly used in radio astronomy.

On the other hand, omni antennas are designed to have a 360-degree radiation pattern, allowing them to receive signals from all directions. They are commonly used for wireless communication systems, such as Wi-Fi or cellular networks, where the signal can come from any direction.

In summary, if you need a wide frequency range and a directional signal, a log-periodic antenna is the better choice. If you need to receive signals from all directions without moving the antenna, an omni antenna is the better choice.

Summary

In summary, the log-periodic antenna is a crucial component of modern antenna technology, serving a wide range of applications from powerful broadcasting to intricate telecommunications systems. Its ability to operate across a broad frequency range, its directional capacity, and its adaptability make it an indispensable tool for individuals seeking to enhance their communication setup.
