Discover the critical role of GPS timing antennas in the world of precision timing and synchronization. These specialized antennas are the unsung heroes behind the scenes, ensuring that global navigation satellite systems (GNSS) like GPS, GLONASS, Galileo, and BeiDou maintain the exact timing necessary for a myriad of applications, from telecommunications to navigation.

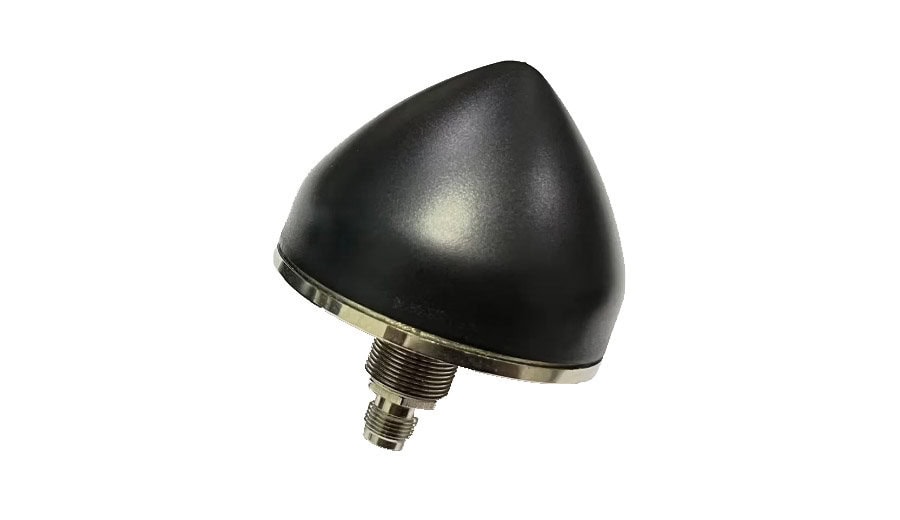

A GPS timing antenna is a sophisticated device designed to receive precise timing signals from satellites. Unlike standard antennas, it focuses on the accuracy of time data, which is essential for applications requiring stringent time synchronization.

Let’s delve deeper into how these antennas function and their significance in modern technology.

How Does the GPS Timing Antenna Work?

The GPS timing antenna consists of a receiving element, such as a patch antenna, that is tuned to the frequency of the GPS satellite signals. The antenna captures the signals and converts them into electrical signals.

These electrical signals are then sent to a GPS receiver, which processes the signals and calculates the precise timing information. The receiver determines the time it took for the signals to travel from the satellites to the antenna, and uses this information to calculate the precise time.

Once the timing information is calculated, it is sent to the device or system that requires accurate timing. This could be a computer network, telecommunications system, power grid, or any other application that relies on precise timing.

The GPS timing antenna must have a clear view of the sky to receive signals from multiple GPS satellites. This is because the receiver needs signals from at least four satellites to accurately calculate the timing information.

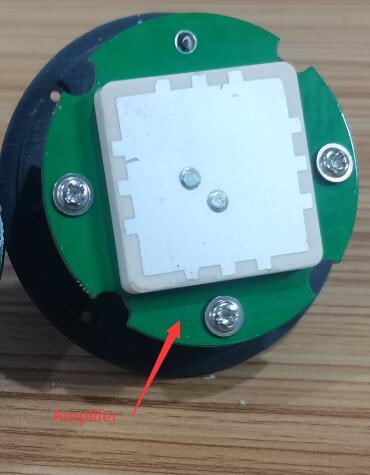

In some cases, the GPS timing antenna may also include a built-in amplifier to boost the weak signals received from the satellites. This can help improve the signal quality and ensure accurate timing information.

Overall, GPS timing antennas work by receiving signals from GPS satellites, processing these signals to calculate precise timing information, and providing this information to systems and networks that require accurate synchronization.

What’s the Operating Frequency for a GPS Timing Antenna?

The operating frequency of GPS timing antennas typically falls within the L1 band, which is 1575.42 MHz. This frequency is key for receiving GPS signals, though some antennas are designed to accommodate multiple GNSS (Global Navigation Satellite System) frequencies, enhancing compatibility with systems like GLONASS, Galileo, or BeiDou for improved reliability and accuracy.

In addition to the L1 band, some GPS timing antennas may also operate in the L2 band (1227.60 MHz) or L5 band (1176.45 MHz) for more precise positioning and timing applications.

What’s the Gain of a GPS Timing Antenna?

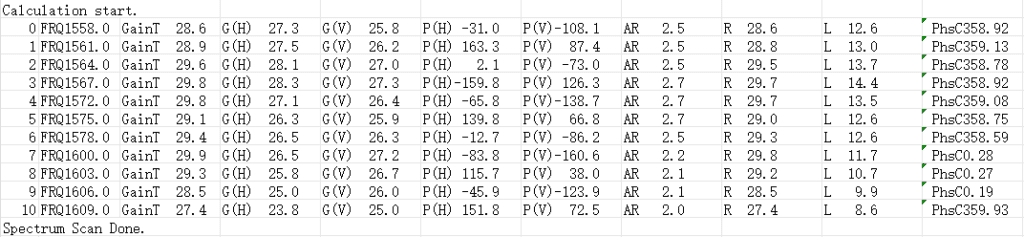

The gain of a GPS timing antenna refers to its ability to amplify the GPS signal it receives. It is measured in decibels (dB) and typically ranges from 26dB to 40dB for GPS timing antennas.

A higher gain antenna is important for maintaining a strong and clear GPS signal in various environments. It allows the antenna to overcome signal obstructions and interference, ensuring accurate and precise timing synchronization.

In summary, the gain of a GPS timing antenna is crucial for its performance in challenging environments and its ability to receive and amplify weak GPS signals.

What are the Advantages of a GPS Timing Antenna?

GPS timing antennas offer several advantages, including high precision and reliability, which are paramount for applications requiring synchronized time across multiple locations. They also support a wide range of frequencies, ensuring compatibility with various global navigation satellite systems. Moreover, their robust design allows for operation in diverse environmental conditions, from urban areas with high signal interference to remote locations.

What is a GPS Timing Antenna Used For?

A GPS timing antenna is used to receive signals from GPS (Global Positioning System) satellites in order to accurately measure and synchronize time. It is commonly used in various applications that require precise timekeeping, such as telecommunications, power grid synchronization, financial transactions, scientific research, and military operations. The GPS timing antenna helps ensure that devices and systems are synchronized to a common time reference, which is crucial for their proper functioning and coordination.

How to Choose the Right GPS Timing Antenna?

Here are some steps to help you choose the right GPS timing antenna:

1. Determine the operating frequencies: GPS timing antennas typically operate in the L1 and L2 bands. Make sure the antenna you choose supports the frequencies you need for your application.

2. Consider the gain: The gain of an antenna determines how well it can receive signals. Higher gain antennas can provide better signal reception, especially in areas with poor signal strength. However, higher gain antennas can also be larger and more expensive. Consider the signal strength in your area and choose an antenna with an appropriate gain.

3. Evaluate the size: GPS timing antennas come in various sizes, ranging from small patch antennas to larger, more powerful models. Consider the available space in your application and choose an antenna that fits your requirements.

4. Assess the environmental resilience: Depending on your application, you may need an antenna that can withstand harsh environmental conditions such as extreme temperatures, moisture, or high winds. Look for antennas with IP ratings or other certifications that indicate their level of protection against environmental factors.

5. Consult with manufacturers and experts: Reach out to GPS timing antenna manufacturers or experts in the field to get their recommendations. They can help you understand the specifications and features that are most important for your specific application.

By considering these factors and seeking expert advice, you can select the right GPS timing antenna for your needs, ensuring reliable and accurate timing synchronization.

What’s the Difference Between a Normal GPS Antenna and GPS Timing Antenna?

A normal GPS antenna is designed to receive signals from GPS satellites and provide accurate location information. It is primarily used for navigation and mapping purposes.

On the other hand, a GPS timing antenna is specifically designed to receive signals from GPS satellites and provide accurate timing information. It is used in applications where precise timing is critical, such as in telecommunications, power grid synchronization, financial transactions, and scientific research.

While both antennas receive signals from GPS satellites, the main difference lies in their intended purpose. A normal GPS antenna focuses on location information, while a GPS timing antenna focuses on accurate timing information.

Overall, GPS timing antennas are essential tools in modern technology, serving as the foundation for accurate timing and synchronization across various applications. Having a grasp of how they work, their advantages, and the factors to consider when choosing one can enable professionals to use these devices efficiently, guaranteeing the precision and dependability of vital systems on a global scale.
