In the world of wireless communication, it is important for everyone to understand the ins and outs of antenna technology. This guide is here to help you understand dual polarization antennas, a crucial piece that plays a big role in how well modern communication systems work.

In today’s fast-moving tech world, it’s important to know how dual polarization antennas work and why they matter. These antennas are leading the charge in improving communication systems, promising better signal quality and more efficient use of bandwidth.

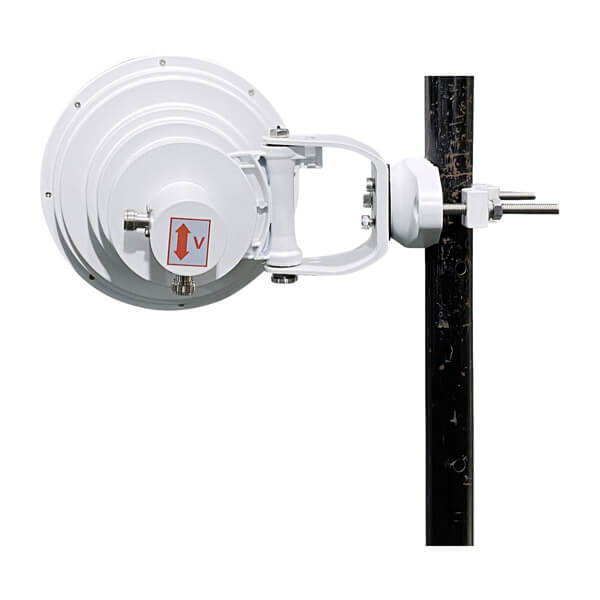

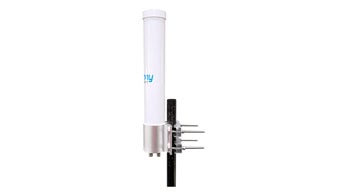

A dual polarization antenna is a device that excels in transmitting and receiving signals in two distinct polarization planes—typically horizontal and vertical. This dual capability allows for doubling the capacity of a communication system without the need for additional bandwidth or increased transmitting power, making it a cornerstone of efficient communication.

But what sets this technology apart, and why is it increasingly adopted across various sectors?

What is Dual Polarity?

In simple terms, dual polarity means that an antenna can transmit and receive signals in two different directions simultaneously. This is achieved by using two sets of elements or antennas that are positioned at right angles to each other. The two sets of elements are designed to transmit and receive signals in two orthogonal planes, typically horizontal and vertical.

The use of dual polarity antennas offers several advantages. Firstly, it improves the system’s resistance to interference. By transmitting and receiving signals in two different planes, the antenna can better reject signals coming from unwanted directions. This helps to reduce the impact of interference and improves the overall signal quality.

Secondly, dual polarity antennas enhance signal diversity. By transmitting and receiving signals in two different directions, the antenna can capture and utilize signals that may arrive at different angles or paths. This is particularly useful in environments where there are obstructions or multipath propagation, where signals can take multiple paths and arrive at the receiver with different delays and phases. By utilizing the signals from both polarities, the antenna can improve the overall signal strength and reliability.

In summary, dual polarity antennas provide improved interference rejection and signal diversity, which are crucial for maintaining reliable communications in diverse environments.

How Do Dual-Polarized Antennas Work?

Dual-polarized antennas work by transmitting and receiving signals in two different polarizations simultaneously. Polarization refers to the orientation of the electromagnetic waves as they are propagated through space.

In a single-polarized antenna, the electromagnetic waves are propagated in only one polarization, either horizontal or vertical. However, in a dual-polarized antenna, the waves are propagated in two orthogonal polarizations, typically horizontal and vertical.

To achieve this, dual-polarized antennas have two sets of radiating elements, each oriented in a different polarization. These radiating elements are typically arranged in a cross-polarized configuration, with one set of elements aligned horizontally and the other set aligned vertically.

When transmitting, the dual-polarized antenna can simultaneously emit signals in both horizontal and vertical polarizations. This allows for the transmission of two independent data streams over the same frequency band. Similarly, when receiving, the antenna can receive signals in both polarizations simultaneously, effectively doubling the received data.

The advantage of dual-polarized antennas is that they can transmit and receive more data over the same frequency band, effectively doubling the throughput of a communication channel. This makes them highly efficient in crowded spectrums where maximizing data transmission is critical.

Dual-polarized antennas are commonly used in various wireless communication systems such as point-to-point microwave links, cellular base stations, Wi-Fi networks, and satellite communication systems. They are particularly useful in scenarios where high data rates and efficient spectrum utilization are required.

What is a dual polarization antenna used for?

A dual polarization antenna is used for transmitting and receiving signals with two different polarizations simultaneously. It allows for the transmission and reception of two separate signals or two separate data streams on the same frequency band. This type of antenna is commonly used in wireless communication systems to increase the capacity and efficiency of the system by allowing the simultaneous transmission and reception of multiple signals. It is also used in radar systems to separate the reflected signals from different objects based on their polarization.

What are the Benefits of Dual-Polarization?

Dual-polarization offers several benefits in various applications. Some of the key benefits include:

1. Improved data quality: Dual-polarization provides more information about the target or scene being observed. By transmitting and receiving signals in both horizontal and vertical polarizations, it is possible to gather more detailed data about the target, resulting in higher-quality images and measurements.

2. Enhanced target discrimination: Dual-polarization allows for better discrimination between different types of targets. For example, in weather radar applications, it can help distinguish between rain, snow, hail, and other precipitation types. In remote sensing, it can aid in differentiating between various land cover types, such as forests, crops, and urban areas.

3. Increased sensitivity: Dual-polarization can enhance the sensitivity of radar systems. By transmitting and receiving signals in two polarizations, the radar can capture more of the backscattered energy from the target, leading to improved detection and measurement capabilities.

4. Reduced interference and clutter: Dual-polarization can help mitigate interference and clutter in radar systems. By using both polarizations, it is possible to separate the desired signal from unwanted signals and background noise, resulting in cleaner and more accurate measurements.

5. Improved performance in adverse weather conditions: Dual-polarization provides better performance in adverse weather conditions, such as heavy rain or snow. By utilizing both polarizations, it is possible to minimize the impact of signal attenuation and improve the accuracy of measurements.

6. Enhanced target recognition and classification: Dual-polarization can aid in target recognition and classification tasks. By analyzing the polarization properties of the backscattered signals, it is possible to identify and classify different types of targets based on their scattering characteristics.

Overall, dual-polarization offers significant advantages in terms of data quality, target discrimination, sensitivity, interference reduction, performance in adverse weather, and target recognition, making it a valuable tool in various applications such as weather radar, remote sensing, and military surveillance.

Why Use Dual-Polarized Antennas?

Dual-polarized antennas have the ability to transmit and receive data simultaneously on two different polarizations (horizontal and vertical). This allows for twice the amount of data to be transmitted at the same time, effectively doubling the capacity of the network.

Here are some reasons why dual-polarized antennas are beneficial:

1. Increased capacity: Dual-polarized antennas allow for more data to be transmitted at the same time, increasing the overall capacity of the network. This is especially important in high-density areas where multiple users are accessing the network simultaneously.

2. Improved signal quality: By transmitting and receiving data on two different polarizations, dual-polarized antennas can mitigate the effects of interference and multipath fading. This leads to improved signal quality and less packet loss, resulting in a more reliable and stable connection.

3. Better spectrum utilization: With the ability to transmit and receive data on two different polarizations, dual-polarized antennas can effectively utilize the available spectrum more efficiently. This is particularly useful in crowded frequency bands where there is limited spectrum available.

4. Simplified installation: Dual-polarized antennas can be installed in a single unit, reducing the complexity and cost of installation. This is especially advantageous in situations where space is limited or when deploying a large number of antennas.

5. Future-proofing: As data demand continues to grow, dual-polarized antennas provide a future-proof solution by increasing the capacity of the network without the need for additional infrastructure or equipment upgrades.

Overall, dual-polarized antennas are essential for networks that require high capacity, reliable connections, and efficient spectrum utilization. They are a cost-effective and practical solution to meet the ever-increasing demand for data transmission.

What is the Difference Between Single and Dual Polarized Antennas?

Single-polarized antennas are designed to transmit and receive signals in only one polarization, either horizontal or vertical. This means that they can only transmit or receive signals that are polarized in the same direction. If the polarization of the signal does not match that of the antenna, there will be a significant loss of signal strength.

On the other hand, dual-polarized antennas are capable of transmitting and receiving signals in two polarizations, both horizontal and vertical. This allows them to communicate with devices that have different polarization orientations. Dual-polarized antennas provide a more reliable and efficient communication channel because they can adapt to the polarization of the incoming signal, resulting in stronger and clearer signals.

In summary, the main difference between single and dual-polarized antennas is that single-polarized antennas operate on one polarization, while dual-polarized antennas operate on both horizontal and vertical polarizations, providing a more versatile and effective means of signal transmission.

What are the Different Types of Polarity?

1. Horizontal Polarity: In horizontal polarization, the electric field is aligned parallel to the ground. This type of polarization is commonly used in television broadcasting and satellite communication.

2. Vertical Polarity: In vertical polarization, the electric field is aligned perpendicular to the ground. This type of polarization is also commonly used in wireless communication, television broadcasting and satellite communication.

3. Circular Polarity: In circular polarization, the electric field rotates in a circular pattern as the wave propagates. Circular polarization can be further divided into two subtypes: right-hand circular polarization (RHCP) and left-hand circular polarization (LHCP). Circular polarization is commonly used in satellite communication, GPS systems, RFID and wireless communication.

4. Slant Polarity: Slant 45 polarization is a type of polarization used in mobile communication. It refers to the orientation of the electric field of a radio wave in relation to the Earth’s surface. In slant 45 polarization, the electric field is oriented at a 45-degree angle to the Earth’s surface. This type of polarization is commonly used in cellular networks to minimize signal interference and improve signal quality.

It is important to note that the choice of polarization depends on various factors such as the type of communication system, the distance between the transmitter and receiver, the presence of obstacles, and the desired signal quality.

H+V Dual Polarity Antenna vs +/- 45 Dual Slant Polarized Antenna

The H+V Dual Polarity Antenna and the +/- 45 Dual Slant Polarized Antenna are two different types of antennas used in wireless communication systems.

1. H+V Dual Polarity Antenna:

• This type of antenna has two separate radiating elements, one for horizontal polarization (H) and one for vertical polarization (V).
• It can transmit and receive signals in both horizontal and vertical polarizations simultaneously.
• It is typically used in applications where the polarization of the incoming signals can vary or is unknown.
• It provides better diversity in signal reception, which can help improve the overall performance and reliability of the wireless system.
• It requires two separate feedlines or connectors to connect to the radio equipment.

2. +/- 45 Dual Slant Polarized Antenna:

• This type of antenna has two radiating elements that are oriented at +/- 45 degrees with respect to the horizontal plane.
• It transmits and receives signals with two different slant polarizations, typically referred to as +45 and -45 degrees.
• It is used in applications where the polarization of the incoming signals is known and fixed, such as point-to-point microwave links.
• It provides better isolation between adjacent antennas and reduces the interference caused by cross-polarization.
• It requires only one feedline or connector to connect to the radio equipment.

In summary, the H+V Dual Polarity Antenna is suitable for applications where the polarization of the signals is unknown or can vary, while the +/- 45 Dual Slant Polarized Antenna is used in applications where the polarization of the signals is known and fixed.

Which Type of Polarity is Commonly Used?

For example, horizontal polarization is often used in broadcast television because it provides a good balance between coverage and interference rejection. It is also commonly used for satellite communication because it minimizes the effects of rain fade.

Vertical polarization, on the other hand, is often used in mobile communication because it provides better coverage in urban environments where buildings can cause signal blockage. It is also commonly used for radar systems because it provides better detection of targets at low altitudes.

In some cases, circular polarization may be used instead of horizontal or vertical polarization. Circular polarization is often used in RFID communication and IoT system because it allows for better signal reception regardless of the orientation. It is also commonly used in wireless communication systems because it provides better resistance to multipath fading.

In summary, the choice of polarization depends on various factors including the application, environment, and specific system needs. Horizontal and vertical polarizations are commonly used due to their simplicity and effectiveness, but circular polarization may be used in certain cases.

Which Polarization is Best for an Antenna?

The best polarization for an antenna is determined by the intended use case. Factors to consider include the operating environment, the type of data being transmitted, and the presence of obstacles that might affect signal propagation.

For example, in a line-of-sight communication scenario, where the transmitting and receiving antennas have a clear, unobstructed view of each other, vertical polarization is often used. This is because the majority of man-made and natural obstacles, such as buildings and trees, have horizontal polarization characteristics. By using vertical polarization, the antenna can minimize the interference caused by these obstacles.

On the other hand, if the communication is happening in an environment with a lot of reflections, such as in a city with tall buildings, horizontal polarization may be more suitable. This is because horizontal polarization tends to have better penetration through walls and other obstacles, while vertical polarization may suffer from signal cancellation due to reflections.

In some cases, circular polarization may be used to achieve a combination of both vertical and horizontal polarization characteristics. Circular polarization is less affected by the orientation of the receiving antenna, making it suitable for situations where the antenna may be moving or where the relative orientation between the transmitting and receiving antennas is not fixed.

In summary, the best polarization for an antenna depends on the specific use case and the factors mentioned above. It is important to consider the operating environment, the type of data being transmitted, and the presence of obstacles in order to determine the most appropriate polarization.

Does Antenna Polarization Matter?

Yes, antenna polarization does matter. The polarization of an antenna refers to the orientation of the electromagnetic waves it emits or receives. There are two main types of antenna polarization: vertical and horizontal.

The polarization of an antenna must match the polarization of the signal being transmitted or received for optimal performance. When the polarizations are aligned, the signal can be efficiently transmitted or received, resulting in better signal strength and quality.

If the polarizations are misaligned, the signal can be weakened or even completely blocked. This is because when the polarizations are perpendicular to each other, the signal experiences a phenomenon called polarization loss. This loss occurs because the electric field of the signal cannot effectively couple with the antenna, leading to reduced signal strength and potentially poor communication performance.

In addition to alignment, antenna polarization also affects signal penetration and system efficiency. For example, vertical polarization is often used for ground-to-air communication because it provides better signal penetration through obstacles such as buildings or trees. On the other hand, horizontal polarization is often used for point-to-point communication because it minimizes interference from other signals with different polarizations.

Overall, antenna polarization is a critical consideration in system design to ensure optimal performance, signal clarity, penetration, and system efficiency.

Summary

Dual polarization antennas are a significant advancement in communication technology, providing improved performance, reliability, and efficiency. It is crucial for professionals in the tech industry to grasp the impact of antenna polarization to navigate the complexities of modern communication systems.

As we navigate the complexities of wireless communication, the role of dual polarization antennas becomes increasingly crucial. Their ability to double communication capacity without additional resources marks a significant leap forward, promising a future where data transmission is faster, more reliable, and more efficient than ever before.
