Discover the essence of cable assemblies: the backbone of electronic and electrical systems that power our modern world. From computers to cars, learn what makes these components critical for functionality and reliability.

Cable assemblies are integral components in various industries, bundling multiple cables into a single, streamlined unit for efficient signal and power transmission. Designed for specific applications, these assemblies enhance installation speed and system organization.

Let’s delve deeper into the world of cable assemblies, uncovering their functions, types, and importance in today’s technology-driven landscape.

What Does a Cable Assembly Do?

A cable assembly is a group of cables or wires that are organized and bound together into a single unit. It is used to transmit electrical signals or power from one device to another. The assembly can include various components such as connectors, terminals, and protective jackets to ensure the proper functioning and durability of the cables. Cable assemblies are commonly used in industries such as telecommunications, automotive, aerospace, and electronics.

The main purpose of a cable assembly is to provide a reliable and efficient connection between various devices or components. This connection allows for the transfer of information or power, enabling the electronic system to function properly.

Cable assemblies are used in a wide range of industries and applications. For example, in the medical field, cable assemblies are used in devices such as ultrasound machines or patient monitoring systems. In the automotive industry, they are used in vehicles to connect various electrical components such as sensors, lights, or control modules.

One of the key advantages of cable assemblies is their ability to withstand specific environmental conditions. Different types of cable assemblies are designed to operate in specific temperature ranges, resist moisture or chemicals, or withstand mechanical stress. This makes them suitable for use in harsh environments such as industrial settings or outdoor applications.

Overall, cable assemblies are essential components in electronic systems. They provide the necessary connections between different devices or components, ensuring a reliable transmission of signals or power. Without cable assemblies, electronic systems would not be able to function properly.

How Does the Cable Assembly Work?

The cable assembly consists of several components that work together to achieve this goal. These components include:

1. Cable: The cable is the main component of the assembly and consists of multiple wires or cables bundled together. The type of cable used depends on the application and can include coaxial cables, ribbon cables, or individual wires.

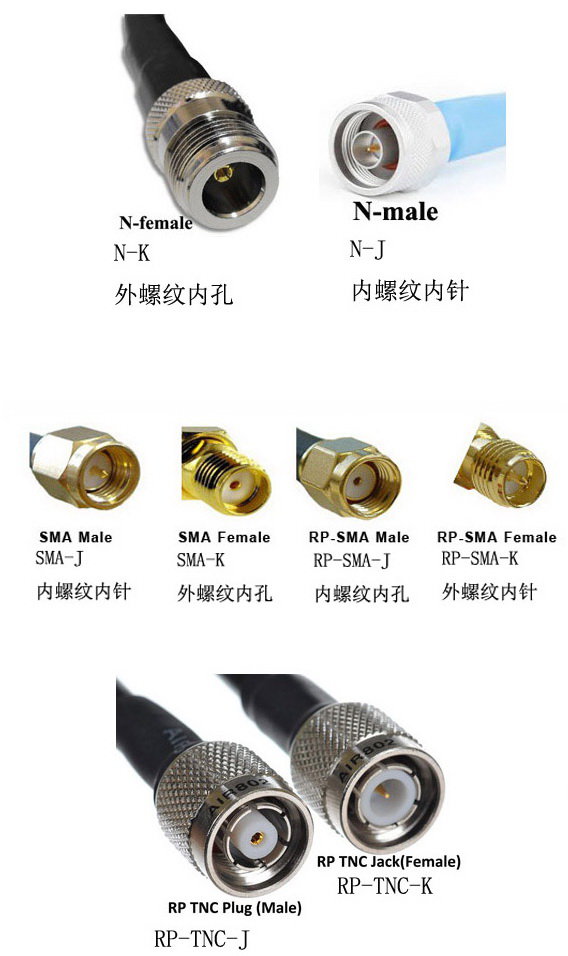

2. Connectors: Connectors are used to join the cable assembly to other devices or systems. They provide a secure electrical and mechanical connection between the cable and the device. Connectors can be male or female and come in various types, such as USB, HDMI, or D-sub.

3. Backshells: Backshells are metallic or plastic covers that protect the cable and connector from strain, bending, and environmental hazards. They provide additional mechanical support and prevent the cable from being pulled out of the connector.

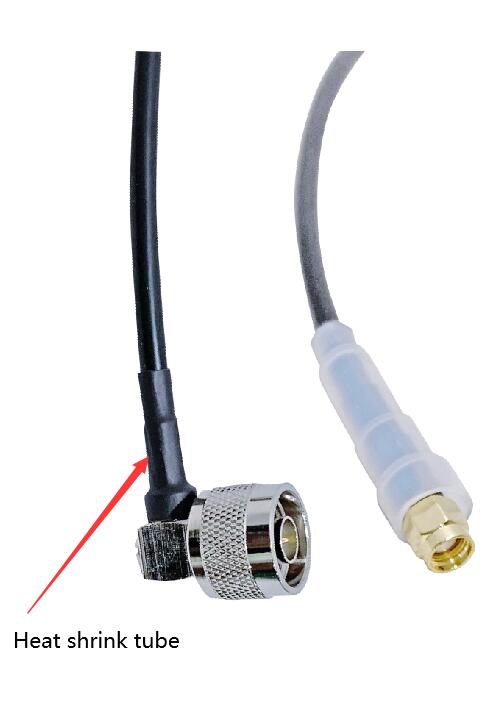

4. Overmolding: Overmolding is the process of encapsulating the cable and connector with a protective material, typically a heat shrink tubing. This provides strain relief and additional protection against moisture, chemicals, and physical damage.

5. Cable ties and clips: Cable ties and clips are used to secure and route the cable assembly, keeping it organized and preventing damage from excessive movement or vibration. They also help to maintain the desired shape and length of the cable.

Overall, the cable assembly works by combining these components to create a robust and reliable electrical connection. The cables are organized and protected, ensuring optimal performance and longevity in various applications and environments.

What Is Another Name for Cable Assembly?

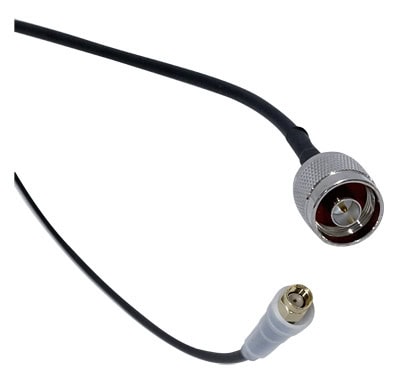

Some other names for cable assembly include pigtail and  jumper wire, etc.

What Is a Cable Assembly Used For?

Cable assemblies are used to connect various electrical components and devices together. They are used to transmit power, signals, and data between different parts of a system. Cable assemblies can be found in applications such as:

1. Aerospace and Defense: Cable assemblies are used in aircraft, satellites, and military equipment for communication, navigation, and power transmission.

2. Automotive: Cable assemblies are used in vehicles for connecting various electrical components such as sensors, lights, and control systems.

3. Telecommunications: Cable assemblies are used in networking and telecommunications systems for transmitting data and signals between devices.

4. Medical: Cable assemblies are used in medical devices and equipment for transmitting power and signals between different components.

5. Industrial: Cable assemblies are used in industrial machinery and equipment for power transmission, control systems, and data communication.

6. Consumer Electronics: Cable assemblies are used in devices such as computers, smartphones, audio/video equipment, and gaming consoles for power supply and data transfer.

7. Robotics: Cable assemblies are used in robotic systems for power transmission, control signals, and communication between different parts of the robot.

8. Renewable Energy: Cable assemblies are used in solar panels, wind turbines, and other renewable energy systems for power transmission and control.

Overall, cable assemblies provide a reliable and organized solution for connecting various electrical components and devices in a wide range of industries.

What’s the Cable Assembly Process?

The cable assembly process involves the manufacturing of cables and connectors to create a complete cable assembly. The process typically includes the following steps:

1. Planning and design: This step involves understanding the requirements and specifications of the cable assembly, including the type of cable, connectors, and any additional components. The design is created based on these specifications.

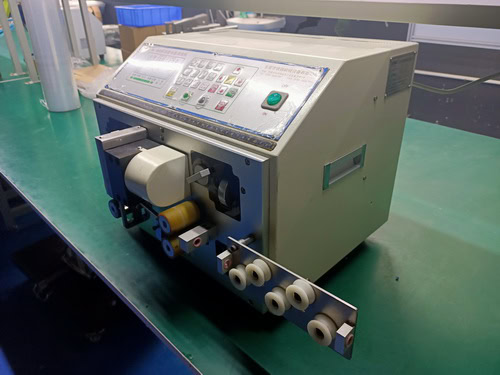

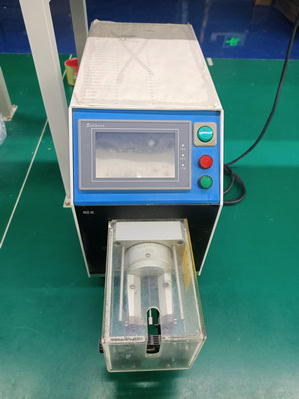

2. Cable cutting and stripping: The cable is cut to the desired length and the outer jacket is stripped off to expose the inner conductors.

3. Connector termination: The connectors are attached to the cable by soldering, crimping, or other methods depending on the type of connectors used.

4. Assembly and routing: The connectors and cables are assembled together according to the design. The cables are routed and organized to ensure proper fit and functionality.

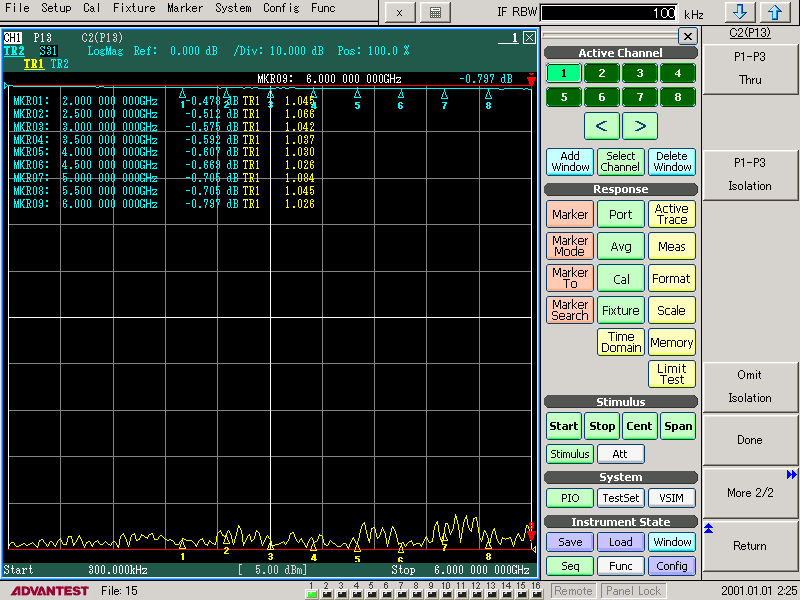

5. Testing and quality control: The assembled cable is tested for continuity, insulation resistance, and other electrical properties to ensure it meets the required specifications. Visual inspections are also performed to check for any physical defects or errors.

6. Labeling and packaging: The cable assembly is labeled with relevant information such as part number, serial number, and date of manufacture. It is then packaged and prepared for shipping or further processing.

Throughout the process, quality control measures are implemented to ensure that the cable assembly meets the required standards and specifications.

How to Custom Cable Assembly?

Here are the steps to custom cable assembly:

1. Determine the specifications: Identify the requirements of the cable assembly, such as the type of connectors, wire gauge, length, and any special features or functions needed. Consider factors like voltage, temperature, and environmental conditions that the cable will be exposed to.

2. Select the materials: Choose the appropriate materials for the cable assembly based on the specifications and application requirements. This includes selecting the right type of wire, insulation, jacketing, and connectors. Consider factors like flexibility, durability, and resistance to chemicals or extreme conditions.

3. Design the cable assembly: Create a detailed design or drawing of the cable assembly, specifying the dimensions, configuration, and any special features or requirements. This can be done using computer-aided design (CAD) software or by working with a cable assembly manufacturer who can assist with the design.

4. Prototype and test: Before proceeding with full-scale production, it is advisable to create a prototype of the custom cable assembly to ensure it meets the desired specifications and functions correctly. Test the prototype for performance, durability, and any other specific requirements to ensure it meets the application needs.

5. Manufacture the cable assembly: Once the design and prototype have been approved, the cable assembly can be manufactured in larger quantities. This involves cutting and stripping the wires to the specified lengths, crimping or soldering the connectors, and assembling the components according to the design. The manufacturing process may also include testing the cable assembly for quality assurance.

6. Quality control: Perform thorough quality control checks on the finished cable assemblies to ensure they meet all the required specifications and standards. This may involve visual inspection, electrical testing, continuity testing, or other quality control measures.

7. Packaging and delivery: Once the cable assemblies have passed quality control, they can be packaged and prepared for delivery to the customer. This may involve labeling, barcoding, or other packaging requirements specified by the customer.

By following these steps, you can create custom cable assemblies that are tailored to your specific needs and ensure they meet the required specifications and quality standards.

What Is the Difference Between a Cable Assembly and a Wire Harness?

Cable assemblies are made up of multiple cables or wires that are bundled together and covered with a protective outer jacket. They are often used in applications where there is a need for additional protection against factors such as moisture, temperature, abrasion, or chemicals. Cable assemblies can also include additional components such as connectors, terminals, or shielding.

Wire harnesses, on the other hand, are simpler and typically consist of a group of wires that are bundled together but do not have a protective outer jacket. They are commonly used in interior applications where there is less exposure to environmental factors and protection is not as critical. Wire harnesses are often used in automotive, aerospace, and industrial applications to connect various electrical components.

In summary, cable assemblies are more complex and provide additional protection, while wire harnesses are simpler and used in applications where less protection is needed.

Coax Cable vs Cable Assembly

Cable assemblies, on the other hand, are a more general term that refers to any type of cable that has connectors attached to it. This can include coax cables, as well as other types of cables such as HDMI cables, USB cables, and Ethernet cables.

The main difference between coax cables and cable assemblies is their purpose and design. Coax cables are designed specifically for transmitting radio frequency signals, while cable assemblies can be used for a variety of purposes depending on the type of cable and connectors used.

Coax cables have a central conductor surrounded by an insulating layer, a metallic shield, and an outer insulating layer. This design helps to minimize signal loss and interference, making coax cables ideal for applications that require high-quality signal transmission, such as in telecommunications and networking.

Cable assemblies, on the other hand, can have different designs depending on their intended use. For example, HDMI cables are designed to transmit high-definition audio and video signals, while USB cables are used to connect devices such as computers and printers. Cable assemblies can have different types of connectors attached to them, such as BNC connectors for coax cables or RJ45 connectors for Ethernet cables.

In conclusion, cable assemblies are a vital part of modern technology. Understanding their design and application is essential for innovation and efficiency in electronics and other industries. Whether you are designing a new product or troubleshooting an existing one, having a good understanding of cable assemblies will help you succeed.
