In the rapidly evolving world of wireless communication, understanding the components that make 5G networks possible is crucial. One such component is the 5G parabolic dish antenna, a powerful tool that enhances connectivity and ensures robust signal transmission.

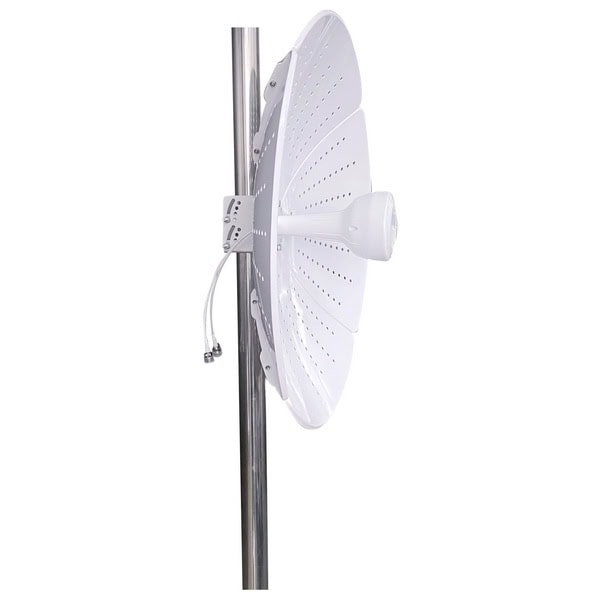

A 5G parabolic dish antenna is a specialized device that utilizes a parabolic reflector to precisely focus radio waves onto a single focal point. This focused approach enhances signal strength and efficiency, making it an essential component for high-speed 5G networks. Whether in urban environments or remote locations, these antennas ensure robust and reliable communication by minimizing interference and maximizing signal clarity.

Let’s delve deeper into the specifics of 5G parabolic dish antennas and understand their purpose, functionality, and benefits.

What is the purpose of a 5G parabolic dish antenna?

A 5G parabolic dish antenna is designed to enhance the reception and transmission of 5G signals, particularly in scenarios requiring high data rates and improved connectivity. Here are some key purposes of a 5G parabolic dish antenna:

1. Signal Focus and Gain: The parabolic shape of the antenna allows it to focus incoming signals onto a single point, which increases the gain and improves the overall signal quality. This is particularly useful for long-range communication.

2. Directional Communication: Parabolic dish antennas are highly directional, meaning they can transmit and receive signals from a specific direction. This reduces interference from other signals and enhances performance in crowded frequency environments.

3. Extended Range: By focusing the signal, these antennas can achieve longer communication distances compared to omnidirectional antennas. This is beneficial for rural or remote areas where 5G coverage may be limited.

4. High Throughput: The improved signal quality and reduced interference allow for higher data throughput, making it suitable for applications that require fast internet speeds, such as streaming, gaming, and real-time data transmission.

5. Backhaul Connectivity: In network infrastructure, parabolic dish antennas can be used for backhaul connections, linking remote base stations to the main network. This is essential for expanding 5G coverage and capacity.

6. Resilience Against Environmental Factors: These antennas are often designed to withstand harsh weather conditions, making them reliable for outdoor installations.

In summary, a 5G parabolic dish antenna is used to optimize signal reception and transmission for high-speed, reliable 5G communication, particularly in challenging environments or for specific applications that demand enhanced performance.

What is a 5G parabolic dish antenna used for?

A 5G parabolic dish antenna is primarily used to enhance the reception and transmission of 5G signals. Here are some key applications:

1. Rural Connectivity: Provides high-speed internet access in areas where traditional wired connections are not feasible.

2. Point-to-Point Communication: They are often used in point-to-point communication links, where a direct line of sight between two locations is necessary for optimal signal quality.

3. Backhaul Connections: In network infrastructure, these antennas can be used for backhaul connections, linking cell towers to the core network, especially in areas where fiber optic cables are not feasible.

4. Fixed Wireless Access: In urban and suburban environments, parabolic dish antennas can provide fixed wireless access to homes and businesses, delivering high-speed internet without the need for physical cabling.

5. IoT Applications: They can support Internet of Things (IoT) applications by providing reliable connectivity for devices that require consistent and high-speed data transmission.

6. Research and Development: Used in experimental setups for testing new technologies and protocols in telecommunications.

Overall, 5G parabolic dish antennas play a crucial role in expanding the capabilities and reach of 5G networks, enhancing both consumer and enterprise connectivity.

How does the 5G parabolic dish antenna work?

A 5G parabolic dish antenna is designed to focus and direct radio frequency signals, making it especially effective for high-frequency communication such as that used in 5G networks. Here’s how it works:

Design and Structure

1. Parabolic Shape: The antenna has a parabolic reflector, which is a curved surface that reflects signals. This shape allows the antenna to focus incoming signals to a single point (the focal point) and also to emit signals in a concentrated beam.

2. Feedhorn: At the focal point of the parabolic dish, there is a feedhorn that receives signals from the dish or transmits signals into it. This feedhorn can be a dipole or a horn antenna, depending on the design.

Working Principle

1. Signal Reception: When a signal (like a 5G radio wave) hits the parabolic reflector, it reflects off the surface and converges at the focal point where the feedhorn is located. The feedhorn captures the concentrated signal, which results in a stronger reception compared to other antenna types.

2. Signal Transmission: When transmitting signals, the feedhorn sends out radio waves that are reflected by the parabolic dish. The dish focuses these waves into a narrow beam, allowing for long-range communication with minimal signal loss and interference.

Key Features

– Directional Nature: Parabolic dish antennas are highly directional, meaning they can focus on a specific point or area. This is particularly important for 5G networks, which require precise targeting to achieve high data rates and low latency.

– High Gain: The design provides a high gain, which translates to better signal quality and longer transmission distances. This is crucial for 5G applications that demand high bandwidth.

– Reduced Interference: The focused beam minimizes interference from other signals, making it ideal for urban environments where many signals might overlap.

In summary, a 5G parabolic dish antenna operates by utilizing its parabolic reflector to focus signals, enhancing both reception and transmission capabilities, which is essential for effective 5G communication.

What are the benefits of a 5G parabolic dish antenna?

A 5G parabolic dish antenna offers several benefits, particularly in enhancing wireless communication capabilities. Here are some of the key advantages:

1. High Gain: Parabolic dish antennas are designed to focus signals into a narrow beam, which allows for high gain. This results in improved signal strength and extended range, making them ideal for long-distance communication.

2. Directional Transmission: These antennas are highly directional, meaning they can transmit and receive signals from a specific direction. This reduces interference from other signals and enhances the quality of the connection.

3. Improved Signal Quality: The focused nature of the parabolic design minimizes noise and enhances the quality of the received signal, which is crucial for high-speed 5G applications.

4. Increased Capacity: By directing signals more efficiently, 5G parabolic dish antennas can support a larger number of simultaneous connections, which is essential for densely populated areas and high-demand environments.

5. Reduced Latency: The efficient transmission and reception capabilities of a parabolic dish can contribute to lower latency in communications, which is vital for applications like real-time gaming, autonomous vehicles, and remote surgeries.

6. Flexibility in Deployment: Parabolic dish antennas can be used in various scenarios, including fixed wireless access, backhaul connections, and point-to-point communications, making them versatile for different applications.

7. Enhanced Coverage: These antennas can help extend coverage in rural or underserved areas, enabling better access to high-speed internet services.

8. Scalability: As demand for 5G services grows, the use of parabolic dish antennas can be scaled up to meet increasing user needs without significant infrastructure changes.

9. Reduced Interference: By focusing the signal in a specific direction, parabolic dish antennas can mitigate the effects of multipath interference, which is particularly beneficial in urban environments.

10. Support for Advanced Technologies: The capabilities of 5G parabolic dish antennas can support advanced technologies such as IoT (Internet of Things), augmented reality, and smart city applications.

Overall, 5G parabolic dish antennas play a crucial role in enhancing the performance and reliability of 5G networks, making them an important component in the evolution of telecommunications.

Is a 5G parabolic dish antenna worth it?

Whether a 5G parabolic dish antenna is worth it depends on several factors, including your specific needs, location, and the availability of 5G service in your area. Here are some considerations to help you decide:

1. Signal Strength and Quality: If you live in an area with weak 5G signals, a parabolic dish antenna can help improve reception and provide a more stable connection. This is particularly beneficial for activities that require high bandwidth, like streaming or gaming.

2. Cost: Consider the cost of the antenna versus the potential benefits. If the antenna is expensive and you don’t experience significant improvements in your internet speed or reliability, it may not be worth the investment.

3. Installation: Parabolic dish antennas can require professional installation and alignment to ensure they are properly aimed at the nearest 5G tower. This can add to the overall cost and complexity.

4. Usage Needs: If you rely heavily on mobile data for work or personal use, and you frequently face connectivity issues, investing in a parabolic dish antenna could enhance your experience.

5. Alternatives: Evaluate other options for improving 5G connectivity, such as mobile signal boosters or different internet service providers. Sometimes these alternatives might be more cost-effective.

6. Future-Proofing: As 5G technology continues to evolve, having a dedicated antenna might be a good long-term investment, especially if you plan to use data-intensive applications.

7. Local Regulations: Check local regulations regarding the installation of antennas, as there may be restrictions or permits required.

Ultimately, if you have a strong need for reliable 5G connectivity and the antenna can significantly improve your situation, it may be worth the investment. However, if you rarely use mobile data or have adequate service, it might not be necessary.

What are the disadvantages of 5G parabolic dish antennas?

5G parabolic dish antennas have several advantages, such as high gain and directivity, which make them suitable for specific applications. However, they also come with several disadvantages:

1. Cost: Parabolic dish antennas can be more expensive to manufacture and install compared to other types of antennas, which may limit their use in some applications.

2. Size and Weight: These antennas tend to be larger and heavier than other options, making them less suitable for mobile applications or installations in confined spaces.

3. Installation Complexity: Installing parabolic dish antennas can be more complex and may require professional installation, which can increase costs and time.

4. Limited Coverage Area: Due to their directional nature, parabolic dish antennas have a limited coverage area and may require multiple units to provide comprehensive coverage in a larger area.

5. Alignment Sensitivity: These antennas require precise alignment to achieve optimal performance. Any misalignment can result in significant signal loss, making maintenance and adjustments necessary.

6. Obstruction Issues: Parabolic dish antennas can be significantly affected by physical obstructions (like buildings and trees) in the line of sight, which can degrade performance or completely block the signal.

7. Weather Sensitivity: Adverse weather conditions, such as heavy rain or snow, can impact the performance of parabolic dish antennas, leading to signal attenuation.

8. Limited Mobility: Once installed, parabolic dish antennas are not easily movable, which can be a disadvantage in dynamic environments where relocation is necessary.

9. Interference: In densely populated areas, the potential for interference from other signals can affect performance, especially if multiple antennas are in close proximity.

10. Aesthetic Concerns: The large size and distinct shape of parabolic dish antennas may not be visually appealing, leading to potential objections from property owners or local communities.

These disadvantages must be considered when deciding whether to use 5G parabolic dish antennas for specific applications or environments.

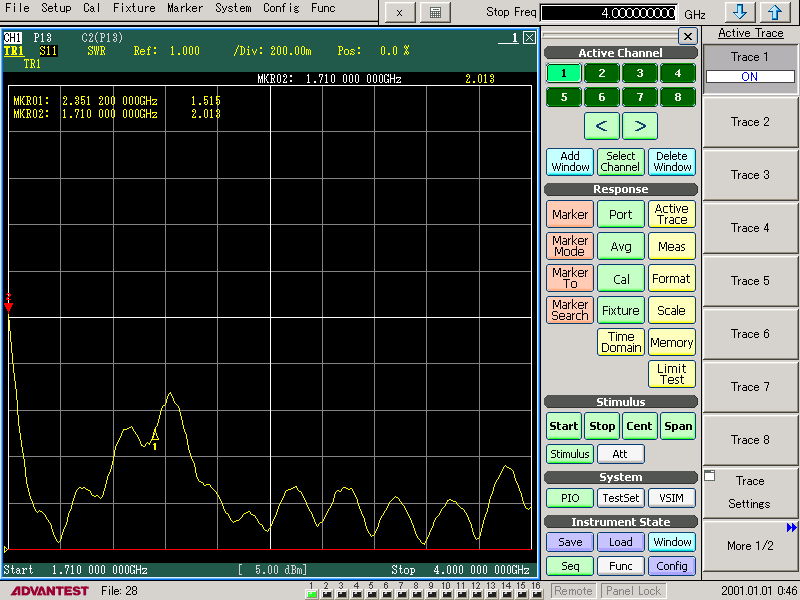

5G Parabolic dish antenna frequency range

5G parabolic dish antennas typically operate within the frequency ranges of “ 1710 MHz to 2700MHz”  and “3.3 GHz to 4.2 GHz” . These ranges cater to various 5G applications and ensure compatibility with different network requirements.

– 1710 MHz to 2700 MHz: This range includes frequencies commonly used for LTE and early 5G deployments, supporting enhanced mobile broadband and other services.

– 3.3 GHz to 4.2 GHz: This range is used for various 5G applications, providing reliable connectivity and better penetration in urban and rural environments.

These frequency bands are essential for delivering diverse 5G services and meeting the demands of modern communication networks. Always refer to local regulations and standards for precise frequency allocations and usage.

5G Parabolic dish antenna polarization

In the context of 5G and other wireless communication systems, antenna polarization is a crucial aspect that affects signal quality and performance.

1. Dual Polarization (Horizontal and Vertical):

– Horizontal Polarization: The electric field of the radiated signal is oriented horizontally. This type of polarization is commonly used in many wireless communication systems, including some 5G implementations.

– Vertical Polarization: In this case, the electric field is oriented vertically. Vertical polarization can be beneficial in reducing interference from other signals that might be polarized differently.

Using dual polarization allows for more efficient use of the available spectrum and can help mitigate interference. It also enables the use of techniques like MIMO (Multiple Input Multiple Output), which can significantly enhance data throughput and reliability.

2. Dual Slant Polarization (+45° and -45°):

– +45° Polarization: The electric field is rotated 45 degrees from the horizontal axis. This is often used in environments where multipath propagation is a concern, as it can help reduce the likelihood of destructive interference.

– -45° Polarization: This is the opposite of +45° polarization, with the electric field rotated -45 degrees.

Dual slant polarization is particularly useful in scenarios where antennas are closely spaced or where there is a high density of users. It allows for better spatial multiplexing and can improve overall system capacity.

Both types of polarization can be employed in 5G networks, depending on the specific application and environment. The choice between horizontal/vertical and slant polarization will depend on factors such as the layout of the network, the type of services being provided, and the specific propagation conditions in the area.

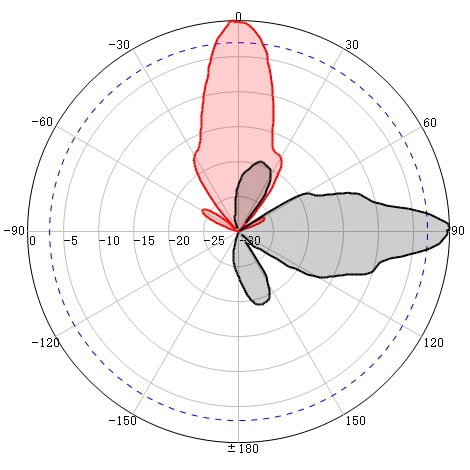

5G Parabolic dish antenna gain and size

1. Gain:

– Typical Range: 5G parabolic dish antennas usually have a gain ranging from 18 dBi to 26 dBi. Higher gain values indicate a more focused beam, which can enhance signal quality and extend communication range.

– Higher Gains: Antennas with gains above 26 dBi are also available but are typically used in specialized applications, such as long-distance point-to-point communication.

2. Size:

– Correlation with Gain: The size of the parabolic dish is directly related to its gain. Larger dishes collect more signal energy, which translates to higher gain. For instance, a dish with a diameter of 0.6 meter may provide around 18 dBi of gain, while a dish with a diameter of 1.2 meters could achieve gains of 26 dBi or more.

– Common Sizes: Dishes used for 5G applications can range from small (around 0.6 meters) to large (up to 1.2 meters or more), depending on the specific requirements of the deployment.

3. Design Considerations:

– Frequency: The operating frequency can also influence the design and size of the antenna. Higher frequency bands (like those used in 5G) may require smaller dishes to achieve the same gain compared to lower frequency bands.

– Application: Different applications, such as backhaul, base stations, or user terminals, may dictate specific gain and size requirements.

In summary, when selecting a 5G parabolic dish antenna, it’s essential to consider both gain and size in relation to the intended use case to ensure optimal performance.

Summary

5G parabolic dish antennas are essential for contemporary wireless communication, providing high gain, focused directionality, and dependable performance. They are suitable for both urban environments and remote locations. Gaining insight into these antennas is crucial for making informed choices to improve connectivity and enhance network efficiency.
