In today’s world, having a strong and reliable internet connection is more important than ever. Whether you’re streaming TV shows, working from home, or using smart devices in your house, the quality of your WiFi signal can greatly affect what you can do. However, getting good WiFi coverage can be hard, especially in larger houses or offices with lots of walls and other things that can block the signal. That’s where WiFi panel antennas come in.
WiFi panel antennas are designed to make your WiFi network work better and send the signal where you need it most. But with so many options to choose from, picking the right WiFi panel antenna can be hard. This guide will help you choose the right WiFi panel antenna by explaining the important things you need to think about. You’ll learn about the different types of antennas and how to use them, what the different numbers mean, and how to put them up. By the time you’re done, you’ll know what you need to know to get great WiFi in your house or office.
Introduction
Brief Overview of WiFi Technology
WiFi (Wireless Fidelity) is a technology that enables electronic devices to connect to the internet and communicate wirelessly within a local area network (LAN). It operates based on the IEEE 802.11 standards, which define the protocols for implementing wireless local area network (WLAN) communication in various frequency bands. Key components of a WiFi network include:
1. Access Points (APs): Devices that broadcast WiFi signals and manage connections between the network and user devices.
2. Client Devices: Devices such as smartphones, laptops, tablets, and IoT gadgets that connect to the network via WiFi.
3. Router: A device that routes data between the local network and the internet.
4. Customer Premises Equipment (CPE): Equipment located at the customer’s premises, such as modems, routers, and set-top boxes, that provides access to the network services.
5. Frequency Bands: WiFi typically operates in the 2.4 GHz and 5 GHz frequency bands, with newer standards also utilizing the 6 GHz band.
WiFi technology has evolved through multiple generations, each offering improvements in speed, range, and reliability. The latest standards, such as WiFi 6 (802.11ax), promise higher data rates, increased capacity, and better performance in dense environments.
Brief Overview of WiFi Panel Antenna
Panel antennas are a type of directional antenna commonly used in wireless communication systems to enhance signal strength and coverage. They are particularly useful for extending the range of WiFi networks, improving signal quality, and focusing the signal in specific directions. Here is a detailed overview of WiFi panel antennas:
1. Definition and Importance
– Definition: A WiFi panel antenna is a flat, rectangular antenna designed to transmit and receive radio frequency signals in a specific direction. These antennas are typically enclosed in a plastic or metal casing to protect the internal components.
– Importance: Panel antennas are crucial for applications requiring focused signal transmission and reception, such as point-to-point communication, long-distance WiFi links, and situations where signal interference needs to be minimized.
2. Key Characteristics
– Directional Beam: Panel antennas emit a focused beam of radio waves, which helps in directing the signal towards a specific area or device. This directional focus helps in reducing interference from other sources.
– Gain: The gain of a panel antenna is a measure of its ability to direct radio waves in a specific direction. Higher gain values indicate a more focused and stronger signal. Panel antennas typically have gains ranging from 8 dBi to 20 dBi or higher.
– Frequency Range: WiFi panel antennas are designed to operate within specific frequency ranges, commonly 2.4 GHz (802.11b/g/n) , 5 GHz (802.11a/n/ac/ax) and 6 GHz (802.11be) . Some models support dual-band and triple-band operation, allowing them to work efficiently across both frequency bands.
– Polarization: Polarization refers to the orientation of the radio waves emitted by the antenna. Panel antennas can be vertically or horizontally polarized, or in some cases, circularly polarized to match the polarization of the receiving antenna.
– VSWR (Voltage Standing Wave Ratio): VSWR is a measure of how efficiently the antenna transmits power from the transmitter to the air. A lower VSWR indicates better performance and less signal reflection.
3. Installation and Mounting
– Mounting Options: Panel antennas come with various mounting options, including wall mounts, pole mounts, and adjustable brackets, allowing for flexible installation in different environments.
– Alignment: Proper alignment is crucial for maximizing the performance of a panel antenna. Tools like signal strength meters or software applications can assist in aligning the antenna accurately towards the desired direction.
– Weatherproofing: Many panel antennas are designed to be weatherproof, making them suitable for outdoor use in various weather conditions.
4. Advantages and Disadvantages
– Advantages:
– Improved signal strength and range in the desired direction.
– Reduced interference from unwanted sources.
– Suitable for long-distance communication.
– Disadvantages:
– Limited coverage area compared to omnidirectional antennas and sector antennas.
– Requires precise alignment for optimal performance.
– Generally more expensive than omnidirectional antennas.
Role of Panel Antennas in Enhancing WiFi Performance
Panel antennas are a type of directional antenna used in WiFi networks to enhance signal strength and coverage. Unlike omnidirectional antennas, which radiate signals in all directions, panel antennas focus the signal in a specific direction. This focused approach offers several advantages:
1. Increased Range: By concentrating the signal in a particular direction, panel antennas can extend the effective range of a WiFi network. This is particularly useful in large spaces or outdoor environments.
2. Improved Signal Strength: The focused signal results in stronger and more reliable connections, reducing the chances of dropped connections and improving overall network performance.
3. Reduced Interference: Directional antennas can help minimize interference from other WiFi networks and electronic devices by limiting the signal spread to a specific area. This is especially beneficial in densely populated areas with multiple overlapping networks.
4. Enhanced Security: By directing the signal towards a specific area, panel antennas can help contain the WiFi coverage within a desired location, reducing the likelihood of unauthorized access from outside the coverage zone.
5. Optimized Coverage: Panel antennas can be strategically placed to cover specific areas, such as long hallways, large rooms, or outdoor spaces, ensuring consistent and reliable WiFi coverage throughout the desired area.
Applications of Panel Antennas
Panel antennas are used in various scenarios to enhance WiFi performance:
– Enterprise Environments: In offices and commercial buildings, panel antennas can be used to provide robust WiFi coverage in conference rooms, open workspaces, and other critical areas.
– Outdoor Areas: For outdoor WiFi networks, such as in parks, stadiums, or campus environments, panel antennas can extend coverage and ensure strong signal strength over large distances.
– Point-to-Point Links: Panel antennas are often used in point-to-point or point-to-multipoint setups to establish high-speed wireless links between buildings or other fixed locations.
– Closed-circuit television (CCTV): Panel antennas can be utilized in CCTV systems to enhance the wireless transmission of video signals, ensuring reliable and high-quality video feeds for surveillance purposes over extended distances.
In summary, panel antennas play a crucial role in enhancing WiFi performance by increasing range, improving signal strength, reducing interference, and optimizing coverage. Their directional nature makes them an invaluable tool in both indoor and outdoor WiFi network deployments.
Chapter 1: Understanding WiFi Panel Antennas
What are WiFi Panel Antennas?
WiFi panel antennas are flat, rectangular antennas designed to transmit and receive wireless signals. They are typically used in WiFi networks to provide directional coverage, meaning they focus the signal in a specific direction rather than broadcasting it in all directions. This focused approach enhances signal strength and range in the targeted area, making panel antennas ideal for point-to-point communication, extending WiFi coverage to specific areas, or improving signal quality in environments with high interference.
Comparison with Other Antennas
– Coverage Pattern: Omni antennas provide a 360-degree horizontal coverage pattern, broadcasting the signal equally in all directions.
– Use Case: Ideal for general-purpose coverage in areas where devices are scattered in all directions, such as in small offices or homes.
– Range and Signal Strength: Typically, omni antennas have a shorter range and lower signal strength in any given direction compared to panel antennas.
– Interference: More susceptible to interference since they receive signals from all directions.
2. Sector Antennas
– Coverage Pattern: Sector antennas provide a fan-shaped coverage pattern, often covering a 60 to 120-degree horizontal arc.
– Use Case: Commonly used in cellular networks and large WiFi deployments to cover specific sectors of an area, such as different sections of a stadium or a large open space.
– Range and Signal Strength: Offer a good balance between coverage area and signal strength, with better range than omni antennas but typically less focused than panel antennas.
– Interference: Moderate susceptibility to interference, as they cover a broader area than panel antennas but less than omni antennas.
– Coverage Pattern: Parabolic dish antennas provide a highly focused, narrow beam of coverage.
– Use Case: Ideal for long-distance point-to-point communication, such as connecting two remote buildings or establishing a backhaul link.
– Range and Signal Strength: Offer the highest range and signal strength, with a very narrow beamwidth that minimizes interference.
– Interference: Least susceptible to interference due to their highly directional nature, but require precise alignment for optimal performance.
Summary
– Panel Antennas: Directional coverage, moderate range, and signal strength, suitable for targeted areas.
– Omni Antennas: 360-degree coverage, shorter range, and lower signal strength, suitable for general-purpose coverage.
– Sector Antennas: Fan-shaped coverage, moderate range, and signal strength, suitable for sector-specific coverage in large areas.
– Parabolic Dish Antennas: Highly directional coverage, longest range, and highest signal strength, suitable for long-distance point-to-point links.
Each type of antenna has its specific use cases and advantages, making them suitable for different scenarios and network requirements.
How WiFi Panel Antennas Work
WiFi panel antennas are specialized antennas used to enhance wireless communication by focusing the signal in a specific direction, which increases the effective range and signal strength in that direction. Here is a detailed explanation of how they work:
1. Basic Concept
A WiFi panel antenna is a type of directional antenna, meaning it radiates and receives signals more efficiently in a particular direction compared to omnidirectional antennas, which radiate signals uniformly in all directions. This focused approach allows for better performance over longer distances and in environments where signal interference is an issue.
2. Design and Structure
WiFi panel antennas typically have a flat, rectangular shape, resembling a panel. The design includes several key components:
– Radiating Elements: These are usually metal strips or patches that emit and receive electromagnetic waves. The design and arrangement of these elements determine the antenna’s frequency range and radiation pattern.
– Reflector: A metallic surface behind the radiating elements that reflects signals, helping to focus the transmission and reception in one direction.
– Dielectric Material: This is an insulating material placed between the radiating elements and the reflector to improve efficiency and bandwidth.
– Enclosure: The entire assembly is enclosed in a protective casing that shields it from environmental factors like weather and physical damage.
3. Operation
The operation of a WiFi panel antenna involves several steps:
Signal Transmission
1. Generation of RF Signal: The process begins with the generation of a Radio Frequency (RF) signal by a WiFi transmitter, such as a router or an access point. The RF signal is typically in the 2.4 GHz , 5 GHz or 6 GHz frequency bands for WiFi applications.
2. Transmission Line: The RF signal is fed into a transmission line, usually a coaxial cable or a microstrip line, which guides the signal to the panel antenna.
3. Antenna Elements: The panel antenna consists of multiple radiating elements, often arranged in an array. These elements convert the guided RF signal into electromagnetic waves.
4. Electromagnetic Radiation: As the RF current oscillates within the antenna elements, it generates alternating electric and magnetic fields. These fields propagate away from the antenna as electromagnetic waves.
5. Beamforming: Panel antennas often employ beamforming techniques to direct the electromagnetic waves in a specific direction. This is achieved by adjusting the phase and amplitude of the signal fed to each radiating element, thereby creating constructive and destructive interference patterns that shape the radiation beam.
Signal Reception
1. Electromagnetic Wave Reception: When an incoming electromagnetic wave, such as a WiFi signal from a device, reaches the panel antenna, it induces an alternating current in the antenna elements.
2. Antenna Elements: The induced current in the antenna elements is then collected and combined. The array configuration helps in enhancing the signal strength and directivity.
3. Transmission Line: The collected RF signal is guided back through the transmission line to the receiver circuitry.
4. Signal Processing: The receiver circuitry processes the RF signal, converting it back into a digital signal that can be understood by the WiFi device, such as a computer or smartphone.
Key Components of a Panel Antenna
1. Radiating Elements: These are the individual components that emit and receive electromagnetic waves. They can be dipoles, patches, or other types of radiators.
2. Parasitic Directors: These are passive elements placed in front of the radiating elements to direct the electromagnetic waves, improving the antenna’s gain and directivity.
3. Reflector/Backplate: A conductive metal placed behind the radiating elements to reflect the electromagnetic waves forward, enhancing the antenna’s gain and directivity.

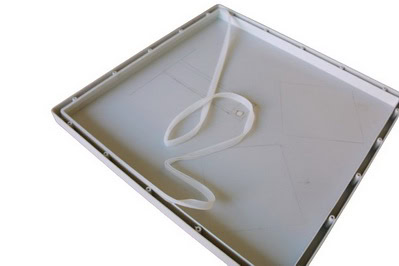

4. Gasket: A sealing material placed between the reflector/backplate and the radome/enclosure to prevent moisture, dust, and other environmental contaminants from entering the antenna assembly. It ensures a tight seal and protects the internal components.
5. Radome/Enclosure: A protective casing that shields the antenna components from environmental factors like moisture, dust, and physical damage. It is usually made from a material that minimally affects the electromagnetic performance.
6. Connector: The interface through which the RF signal is fed into and out of the antenna. Common types include SMA, N-type, and RP-SMA connectors.
7. Mounting Bracket: A structural component used to securely attach the antenna to a mast, pole, or other surfaces. It ensures the antenna is properly oriented and stable.
By understanding these components and their roles, one can appreciate how panel antennas are designed to efficiently transmit and receive WiFi signals, providing reliable wireless communication.
WiFi Panel Antennas Applications
WiFi panel antennas are specialized antennas designed to improve the performance and range of wireless networks. They are typically flat and rectangular, which allows them to be mounted on walls or other flat surfaces. Here are some key applications for WiFi panel antennas:
1. Point-to-Point Links:
– Long-Distance Connectivity: Panel antennas can be used to establish long-distance wireless links between two locations, such as between buildings on a campus or across a city.
– Bridging Networks: They are ideal for creating a bridge between two separate networks, allowing for the sharing of resources and internet connections.
2. Point-to-Multipoint Networks:
– Centralized Access Points: In scenarios where a central access point needs to communicate with multiple clients, panel antennas can be used to direct the signal to a specific area or group of users.
– Sector Coverage: By using multiple panel antennas, a wireless network can cover different sectors or regions, improving overall coverage and performance.
3. Indoor Applications:
– Office Buildings: Panel antennas can be used to provide focused coverage in specific areas of an office, such as conference rooms, open office spaces, or lobbies.
– Warehouses and Factories: In large indoor spaces with obstacles, panel antennas can help direct the signal to areas where it is most needed, improving connectivity for mobile devices and industrial equipment.
4. Outdoor Applications:
– Public WiFi: Panel antennas can be used to provide WiFi coverage in public spaces such as parks, stadiums, and outdoor event venues.
– Surveillance Systems: For wireless security cameras and surveillance systems, panel antennas can help ensure a strong and reliable connection to the central monitoring system.
5. Residential Use:
– Improving Home WiFi: Homeowners can use panel antennas to improve WiFi coverage in specific areas of their home, such as basements, garages, or outdoor patios.
– Reducing Dead Zones: By strategically placing panel antennas, users can eliminate WiFi dead zones and ensure consistent coverage throughout their property.
6. Rural and Remote Areas:
– Internet Access: In rural or remote areas where traditional wired internet infrastructure is lacking, panel antennas can be used to connect to distant WiFi hotspots or cellular networks.
– Community Networks: They can help establish community networks, providing internet access to multiple households within a rural area.
7. Specialized Industrial Applications:
– Mining and Oil Fields: In remote industrial sites, panel antennas can provide reliable communication links for monitoring and control systems.
– Transportation Hubs: Airports, train stations, and seaports can use panel antennas to ensure robust WiFi coverage for both operational needs and passenger use.
8. IoT (Internet of Things) Applications:
– Smart Cities: Panel antennas can be part of the infrastructure that supports IoT devices in smart cities, providing connectivity for sensors, cameras, and other smart devices.
– Agricultural Monitoring: In smart agriculture, panel antennas can help connect various IoT devices used for monitoring crop health, soil conditions, and weather data.
Overall, WiFi panel antennas are versatile tools that can enhance wireless network performance in a variety of settings, from urban environments to remote rural areas. Their ability to focus the signal in a specific direction makes them particularly useful for targeted coverage and long-distance communication.
Chapter 2: Types of WiFi Panel Antennas
Single-band vs. Dual-band vs Triple-band Panel Antennas
Frequency Bands:
– Single-band Antennas: Operate on one frequency band, typically either 2.4 GHz or 5 GHz.
– Dual-band Antennas: Operate on both 2.4 GHz and 5 GHz frequency bands.
– Tri-band Antennas: Operate on three frequency bands: 2.4 GHz, 5 GHz, and the newer 6 GHz band.
Performance:
– Single-band Antennas: Limited to the characteristics of one frequency band. For example, 2.4 GHz offers longer range but lower speeds, while 5 GHz offers higher speeds but shorter range.
– Dual-band Antennas: Provide the benefits of both 2.4 GHz and 5 GHz, allowing devices to switch between these bands for optimal performance.
– Tri-band Antennas: Offer the advantages of 2.4 GHz, 5 GHz, and 6 GHz bands. The 6 GHz band provides even higher speeds and lower latency, but with a shorter range compared to 5 GHz.
Interference:
– Single-band Antennas: More prone to interference if operating in the crowded 2.4 GHz spectrum.
– Dual-band Antennas: Can switch to the less crowded 5 GHz band to avoid interference.
– Tri-band Antennas: Can switch among 2.4 GHz, 5 GHz, and 6 GHz bands, significantly reducing interference and congestion.
Complexity and Cost:
– Single-band Antennas: Generally simpler and less expensive.
– Dual-band Antennas: More complex and typically more expensive due to the need to support two frequency bands.
– Tri-band Antennas: The most complex and expensive, as they need to support three frequency bands.
Applications
Single-band WiFi Panel Antennas
– Residential Use: Suitable for homes where the network requirements are basic and interference is minimal.
– Small Offices: Adequate for small office environments with fewer devices and lower bandwidth requirements.
– Specific Use Cases: Ideal for applications where only one frequency band is needed, such as long-range outdoor setups using the 2.4 GHz band.
Dual-band WiFi Panel Antennas
– Residential Use: Ideal for modern homes with multiple devices that require both range and high-speed connectivity.
– Large Offices: Suitable for larger office environments where multiple devices need to connect simultaneously, and bandwidth requirements are higher.
– Public Spaces: Useful in public areas like cafes, libraries, and airports where a large number of users and devices are present.
– High-Performance Applications: Beneficial for applications that require high data rates and low latency, such as video conferencing, online gaming, and streaming.
Tri-band WiFi Panel Antennas
– High-Density Residential Use: Perfect for smart homes with numerous connected devices, where the 6 GHz band can be utilized for high-speed applications.
– Enterprise Environments: Ideal for large offices and enterprise settings where high bandwidth and low latency are critical.
– Public and Commercial Spaces: Suitable for places like stadiums, conference centers, and shopping malls where a large number of users and devices are present.
– Advanced Applications: Essential for bandwidth-intensive and latency-sensitive applications such as augmented reality (AR), virtual reality (VR), and ultra-high-definition (UHD) streaming.
Summary
– Single-band Antennas are simpler, less expensive, and suitable for environments with fewer devices and lower bandwidth needs.
– Dual-band Antennas offer greater flexibility and better performance, making them ideal for environments with multiple devices and higher bandwidth demands.
– Tri-band Antennas provide the highest performance, supporting the latest 6 GHz band for ultra-fast speeds and low latency, suitable for high-density and advanced application environments.
SISO vs MIMO Panel Antennas
WiFi SISO (Single Input Single Output) and MIMO (Multiple Input Multiple Output) panel antennas are two different technologies used in wireless communication systems. Here are the key differences and their applications:
Differences
1. Signal Paths:
– SISO: Utilizes a single antenna for both transmission and reception. It has one signal path.
– MIMO: Uses multiple antennas for transmission and reception, creating multiple signal paths.
2. Performance:
– SISO: Limited by the single path, which can be affected by interference, multipath fading, and other signal degradation factors.
– MIMO: Can significantly improve performance by leveraging multiple paths to enhance signal strength, reliability, and data throughput.
3. Data Rates:
– SISO: Typically offers lower data rates compared to MIMO because it can only send and receive one data stream at a time.
– MIMO: Can achieve higher data rates by transmitting multiple data streams simultaneously.
4. Range and Coverage:
– SISO: Generally has a shorter range and less coverage area.
– MIMO: Can provide better range and coverage due to the diversity and spatial multiplexing gains.
5. Complexity and Cost:
– SISO: Simpler and generally less expensive to implement.
– MIMO: More complex and costly due to the need for multiple antennas and more sophisticated signal processing.
Applications:
1. SISO Panel Antennas:
– Home WiFi Networks: Suitable for small home networks where the demand for high data rates and coverage is limited.
– IoT Devices: Many IoT devices use SISO due to lower power consumption and simpler design.
– Basic Wireless Communication: Ideal for basic communication needs where high throughput and extensive coverage are not critical.
– Enterprise WiFi Networks: Used in enterprise environments to provide robust, high-speed wireless connectivity across large areas.
– Public WiFi Hotspots: Deployed in public areas like airports, stadiums, and shopping malls to handle high user density and demand.
– Advanced IoT Applications: Employed in advanced IoT applications requiring high data rates and reliable connections.
– Fixed Wireless Access: Used to provide broadband internet in rural or underserved areas where wired connections are not feasible.
Summary
– SISO Panel Antennas: Simpler, cost-effective, and suitable for basic, low-demand applications.
– MIMO Panel Antennas: More complex, higher performance, and ideal for high-demand environments requiring robust, high-speed wireless connectivity.
Choosing between SISO and MIMO panel antennas depends on the specific requirements of the application, including data rate needs, coverage area, user density, and budget considerations.
Indoor vs. Outdoor Panel Antennas
Differences Between Indoor and Outdoor Panel Antennas
1. Design and Build Quality:
– Indoor Panel Antennas: Typically designed to be more aesthetically pleasing and compact. They are made from materials that are suitable for indoor environments and are less rugged.
– Outdoor Panel Antennas: Built to withstand harsh environmental conditions such as rain, wind, snow, and extreme temperatures. They are often encased in weatherproof, UV-resistant materials.
2. Range and Coverage:
– Indoor Panel Antennas: Generally have a shorter range compared to outdoor antennas. They are designed to cover specific areas within a building, such as a single room or a small office space.
– Outdoor Panel Antennas: Offer a longer range and are designed to cover larger outdoor areas. They can also be used to establish point-to-point connections over several kilometers.
3. Directional Properties:
– Indoor Panel Antennas: Typically have a wider beamwidth to provide coverage over a broad area inside a building. This makes them suitable for covering multiple rooms or open office spaces.
– Outdoor Panel Antennas: Often have a more focused, directional beam to cover specific outdoor areas or to establish long-distance point-to-point links.
4. Installation:
– Indoor Panel Antennas: Easier to install and usually require minimal mounting hardware. They can be placed on a desk, mounted on a wall, or ceiling.
– Outdoor Panel Antennas: Require more robust mounting solutions to ensure they remain stable in outdoor conditions. Installation might involve mounting on poles, rooftops, or exterior walls.
5. Power and Amplification:
– Indoor Panel Antennas: Generally have lower power requirements and may not need additional amplification.
– Outdoor Panel Antennas: Often designed to work with higher power levels and may include or require additional amplifiers to achieve long-range communication.
Usage Scenarios
1. Indoor Panel Antennas:
– Home Networks: Enhancing WiFi coverage in specific rooms or floors.
– Office Buildings: Providing coverage in open office spaces, meeting rooms, and common areas.
– Retail Stores: Ensuring strong WiFi signals throughout the store for both customers and staff.
– Hospitals and Schools: Offering reliable coverage in various rooms, classrooms, or departments.
2. Outdoor Panel Antennas:
– Campus Networks: Providing coverage across large outdoor areas such as university campuses, parks, or corporate campuses.
– Point-to-Point Links: Establishing long-distance connections between two buildings or locations.
– Public WiFi: Offering WiFi access in public spaces like parks, stadiums, and city squares.
– Rural Internet Access: Providing internet access to remote or rural areas where traditional wired connections are not feasible.
Conclusion
Choosing between indoor and outdoor panel antennas depends largely on the specific requirements of your environment and usage scenarios. Indoor antennas are ideal for enhancing coverage within buildings, while outdoor antennas are suited for covering larger outdoor areas and establishing long-range connections. Understanding these differences will help you select the right type of antenna for your needs.
Chapter 3: Key Features to Consider
Frequency Range
The frequency range of a WiFi panel antenna is a crucial specification that determines its compatibility with different WiFi standards and its effectiveness in various environments. WiFi operates across three main frequency bands:
1. 2.4 GHz Band: 2.4 GHz to 2.5 GHz
2. 5 GHz Band: 5.15 GHz to 5.825 GHz
3. 6 GHz Band: 5.925 GHz to 7.125 GHz (introduced with WiFi 6E)
WiFi panel antennas can be designed to operate in one or more of these bands:
– 2.4 GHz Only: 2.4 GHz to 2.5 GHz
– 5 GHz Only: 5.15 GHz to 5.825 GHz
– 6 GHz Only: 5.925 GHz to 7.125 GHz
– Dual-Band (2.4 GHz and 5 GHz): 2.4 GHz to 2.5 GHz and 5.15 GHz to 5.825 GHz
– Tri-Band (2.4 GHz, 5 GHz, and 6 GHz): 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.825 GHz, and 5.925 GHz to 7.125 GHz
When selecting a WiFi panel antenna, it is essential to consider the frequency range to ensure it matches your WiFi router or access point and meets your specific coverage and performance needs. The introduction of the 6 GHz band with WiFi 6E provides additional channels and bandwidth, which can significantly enhance network performance and reduce congestion, especially in high-density areas. Ensure your WiFi equipment supports WiFi 6E to fully benefit from the 6 GHz band.
Gain
The gain of a WiFi panel antenna is a critical parameter that indicates how well the antenna can direct the radio waves in a particular direction compared to an isotropic radiator (a theoretical antenna that radiates equally in all directions).
Key Points About Antenna Gain
1. Definition: Antenna gain is usually measured in decibels (dB). It is a measure of the antenna’s ability to direct or concentrate radio frequency energy in a particular direction.
2. Types of Gain Measurements:
– dBi (decibels relative to isotropic radiator): This is the most common measurement for antenna gain. It compares the antenna’s performance to an isotropic radiator.
– dBd (decibels relative to a dipole antenna): This measurement compares the antenna’s performance to a standard dipole antenna, which has a gain of 2.15 dBi.
3. Typical Gain Values: WiFi panel antennas can have a wide range of gain values, typically from around 8 dBi to 23 dBi or even higher, depending on the design and application.
4. Impact on Performance:
– Higher Gain: A higher gain antenna will have a more focused beam, which can cover longer distances and provide better signal strength in the targeted direction. However, it will have a narrower beamwidth, meaning it covers less area in other directions.
– Lower Gain: A lower gain antenna will have a wider beamwidth, covering a broader area but with less focus and shorter range.
5. Applications:
– Point-to-Point Links: High-gain panel antennas are often used in point-to-point wireless links where a strong, focused signal is needed over a long distance.
– Point-to-Multipoint: In scenarios where the signal needs to cover multiple locations from a central point, a moderate gain panel antenna might be used to balance range and coverage area.
6. Installation Considerations:
– Alignment: Proper alignment is crucial for directional antennas like panel antennas. Misalignment can lead to poor signal strength and reduced performance.
– Height and Obstructions: The installation height and presence of physical obstructions (like buildings or trees) can significantly affect the antenna’s performance.
Example
A WiFi panel antenna with a gain of 14 dBi will focus the signal more than an antenna with a gain of 8 dBi. This means the 14 dBi antenna can transmit and receive signals over a longer distance in its focused direction, but it will cover a narrower area compared to the 8 dBi antenna.
Conclusion
The gain of a WiFi panel antenna is a crucial factor that determines its performance in terms of range and coverage. Higher gain antennas are suitable for long-distance, focused communication, while lower gain antennas provide broader coverage but over shorter distances. When selecting an antenna, it’s important to consider the specific requirements of the application to choose the appropriate gain.
Polarization
1. Introduction to Polarization:
Polarization refers to the orientation of the electric field of an electromagnetic wave. For WiFi antennas, this is crucial as it affects how the signal propagates and interacts with the environment.
2. Types of Polarization:
– Linear Polarization:
– Vertical Polarization: The electric field oscillates vertically.
– Horizontal Polarization: The electric field oscillates horizontally.
– Usage: Common in many WiFi applications where the orientation of devices is fixed or predictable.
– Slant Polarization:
– +45° Slant Polarization: The electric field oscillates at a 45-degree angle to the horizontal plane.
– -45° Slant Polarization: The electric field oscillates at a -45-degree angle to the horizontal plane.
– Usage: Often used in scenarios where traditional vertical or horizontal polarization might not be optimal, providing better performance in certain environments.
– Dual Polarization:
– Vertical and Horizontal Polarization: Combines both vertical and horizontal polarizations in one antenna.
– +45° and -45° Slant Polarization: Combines both +45° and -45° slant polarizations in one antenna.
– Usage: Improves signal reliability and performance by providing two distinct polarization paths, often used in MIMO (Multiple Input Multiple Output) systems to enhance data throughput and reduce interference.
3. Importance of Matching Polarization:
– Signal Strength and Quality: Matching the polarization of the transmitter and receiver antennas maximizes signal strength and quality.
– Cross-Polarization Loss: If the polarizations do not match, significant signal loss can occur, known as cross-polarization loss.
– Interference Reduction: Proper polarization can help reduce interference from other signals with different polarizations.
4. Polarization in WiFi Panel Antennas:
– Design Considerations: WiFi panel antennas are designed with specific polarization to optimize performance for the intended application.
– Installation: Proper installation alignment is crucial to ensure the polarization of the panel antenna matches the receiving devices.
– Multi-Polarized Antennas: Some advanced WiFi panel antennas use dual or multi-polarization to improve performance in various environments, providing better signal reliability and coverage.
5. Practical Applications:
– Indoor WiFi Networks: Typically use linear polarization, with vertical polarization being common for access points mounted on ceilings or walls. Slant polarization can also be used to improve performance in complex indoor environments.
– Outdoor WiFi Networks: May use either linear or slant polarization depending on the deployment scenario and environmental factors. Dual polarization is particularly useful in outdoor settings to combat multipath interference.
– Mobile Devices: Often benefit from slant or dual polarization due to the varying orientations of the devices.
6. Conclusion:
Understanding and utilizing the correct polarization for WiFi panel antennas is essential for optimizing network performance. By ensuring proper alignment and considering environmental factors, one can achieve better signal strength, quality, and overall network reliability. Dual polarization, in particular, offers significant advantages in modern WiFi systems by enhancing data throughput and reducing interference.
Beamwidth
The beamwidth of a WiFi panel antenna refers to the angular width of the main lobe of the radiation pattern, both in the horizontal and vertical planes. Essentially, it defines the spread of the signal emitted by the antenna. The beamwidth is typically measured at the points where the signal strength falls to half its maximum value, also known as the -3 dB points.
Horizontal Beamwidth
– Definition: The angular width of the radiation pattern in the horizontal plane.
– Importance: Determines how wide the signal spreads horizontally. A narrower horizontal beamwidth can provide a more focused signal, which can be useful for targeting specific areas or reducing interference from other sources.
– Example: A panel antenna with a horizontal beamwidth of 60 degrees will cover a 60-degree arc in the horizontal plane.
Vertical Beamwidth
– Definition: The angular width of the radiation pattern in the vertical plane.
– Importance: Determines how wide the signal spreads vertically. A narrower vertical beamwidth can help in focusing the signal to a specific height, which is useful in multi-story buildings or to avoid interference with other floors.
– Example: A panel antenna with a vertical beamwidth of 30 degrees will cover a 30-degree arc in the vertical plane.
Typical Beamwidth Values
– Horizontal Beamwidth: Commonly ranges from 8 to 60 degrees for panel antennas.
– Vertical Beamwidth: Typically ranges from 8 to 60 degrees.
Practical Considerations
– Application: The choice of beamwidth depends on the specific application. For instance, in a long corridor, a narrow horizontal beamwidth might be more effective, while in a large open area, a broader beamwidth might be preferable.
– Installation: Proper alignment is crucial. Misalignment can lead to poor coverage and increased interference.
– Interference: A narrower beamwidth can help reduce interference from other WiFi networks or devices operating on the same frequency.
Conclusion
Understanding the beamwidth of a WiFi panel antenna is essential for optimizing signal coverage and performance. By selecting an antenna with the appropriate horizontal and vertical beamwidth, you can ensure that your WiFi network provides reliable coverage where it’s needed most.
VSWR (Voltage Standing Wave Ratio)
VSWR (Voltage Standing Wave Ratio) is a critical parameter in assessing the performance of WiFi panel antennas. It measures the efficiency of power transmission from the transmitter through the antenna. Here’s a detailed breakdown:
Significance of VSWR in Antenna Performance
1. Definition: VSWR is the ratio of the maximum voltage to the minimum voltage in a standing wave pattern along a transmission line. It indicates how well the antenna is matched to the transmission line and the transmitter.
2. Ideal VSWR:
– A VSWR of 1:1 is ideal, meaning all the power is transmitted and none is reflected back.
– Practically, a VSWR below 1.8:1 is generally considered acceptable for most WiFi applications.
3. Impact on Performance:
– Low VSWR: Indicates minimal power reflection and efficient transmission. This leads to better signal strength and coverage.
– High VSWR: Indicates significant power reflection, leading to loss of signal strength, potential damage to the transmitter, and reduced coverage.
Matching Antenna Impedance with the System
1. Impedance Matching:
– WiFi systems typically operate at a characteristic impedance of 50 ohms.
– The antenna should have an impedance close to this value to minimize reflections and ensure efficient power transfer.
2. Impedance Mismatch:
– If the antenna impedance differs significantly from 50 ohms, it can cause a high VSWR, leading to inefficiencies.
– Impedance matching techniques, such as using matching networks or tuning the antenna, can help achieve a better match.
3. Measurement and Adjustment:
– VSWR can be measured using a VSWR meter or a network analyzer.
– Adjustments can be made to the antenna design or placement to achieve a lower VSWR.
Practical Considerations for WiFi Panel Antennas
1. Design:
– WiFi panel antennas are designed to have a broad frequency range, typically covering 2.4 GHz and 5 GHz bands.
– The design should ensure a low VSWR across these bands to maintain consistent performance.
2. Installation:
– Proper installation and positioning of the antenna can influence VSWR.
– Avoiding obstructions and ensuring a clear line of sight can help maintain a low VSWR.
3. Testing:
– Regular testing of VSWR during installation and maintenance can help identify and rectify issues early.
– Ensuring connectors and cables are in good condition is also crucial for maintaining a low VSWR.
In summary, VSWR is a key parameter in the performance of WiFi panel antennas. Ensuring a low VSWR through proper design, impedance matching, and installation practices can significantly enhance the efficiency and reliability of WiFi communications.
Isolation
Isolating ports in a WiFi panel antenna is crucial to ensure optimal performance and minimize interference. Here are steps and considerations for effectively isolating ports:
1. Understand the Antenna Design:
– Panel Antenna: Typically consists of multiple elements arranged in a flat panel. Each element may have its own port.
– Ports: Each port represents a connection point for the RF signal. Isolation between these ports is essential to prevent signal leakage and interference.
2. Use High-Quality Components:
– Connectors: Use connectors with good shielding and minimal leakage.
– Cables: Use high-quality, low-loss cables to ensure signal integrity.
3. Physical Separation:
– Distance: Maintain adequate physical distance between ports to reduce coupling.
– Shielding: Use metal enclosures or partitions to shield ports from each other.
4. Electrical Isolation:
– Filters: Use band-pass or band-stop filters to isolate frequencies.
– Decoupling Capacitors:** These can help to block DC and low-frequency AC signals between ports.
5. Antenna Design Techniques:
– Directional Elements: Design elements to be directional, minimizing radiation towards other ports.
– Reflectors: Use reflectors to direct the signal away from other ports.
6. Grounding:
– Common Ground Plane: Ensure a common ground plane to reduce potential differences that can cause interference.
– Ground Isolation: In some cases, isolating the ground planes of different ports can help.
7. Testing and Measurement:
– Network Analyzer: Use a network analyzer to measure isolation between ports. Look for parameters like S21 (insertion loss) and S11 (return loss).
– Isolation Metrics: Aim for at least 20-30 dB isolation between ports for effective performance.
8. Simulation and Modeling:
– EM Simulation Software: Use electromagnetic simulation software (e.g., CST, HFSS) to model and optimize port isolation.
– Iterative Design: Refine the design iteratively based on simulation results.
9. Environmental Considerations:
– Temperature: Ensure components are rated for the operating temperature range.
– Humidity: Use waterproofing techniques if the antenna is to be used outdoors.
10. Compliance and Standards:
– Regulatory Standards: Ensure the design complies with relevant regulatory standards (e.g., FCC, CE).
– Industry Best Practices: Follow industry best practices for RF design and isolation.
Summary
Isolating ports in a WiFi panel antenna involves a combination of physical separation, electrical isolation, high-quality components, and thorough testing. By considering these factors, you can achieve optimal performance and minimize interference between ports.
Chapter 4: Mechanical Specifications and Installation
Size and Form Factor
When designing or selecting a WiFi panel antenna, the size and form factor are crucial considerations to ensure optimal performance and compatibility with the intended environment. Here are some key points to consider:
Size
1. Dimensions: The physical dimensions of the antenna should fit within the allocated space without obstructing other components or pathways. Typical panel antennas range from a few inches to about a foot in width and height.
2. Thickness: The thickness of the panel should be considered, especially if it needs to be mounted on a wall or within a tight enclosure.
3. Weight: The weight of the antenna can impact the mounting options and the overall stability of the installation.
Form Factor
1. Shape: Panel antennas are generally rectangular or square, which allows for a broad and flat radiation pattern.
2. Mounting Options: The form factor should accommodate various mounting options such as wall mounting, pole mounting, or ceiling mounting. Mounting brackets or kits are often included.
3. Orientation: The antenna should be designed to be mounted in the correct orientation (vertical or horizontal) to achieve the desired coverage pattern.
4. Enclosure: The casing or enclosure of the antenna should be durable and possibly weatherproof if intended for outdoor use. Materials like UV-resistant plastic or metal are common.
Performance Considerations
1. Gain: Higher gain antennas are typically larger in size. Ensure the size does not compromise the required gain for your application.
2. Frequency Range: The size of the antenna is also influenced by the frequency range it is designed to cover. WiFi typically operates in the 2.4 GHz and 5 GHz bands.
3. Beamwidth: The panel antenna should have an appropriate beamwidth to cover the desired area. A narrower beamwidth provides more focused coverage, while a wider beamwidth covers a larger area.
Examples
1. Indoor Panel Antennas: These are usually smaller, lighter, and designed to blend with indoor environments. Dimensions might be around 6×6 inches with a thickness of about 1 inch.
2. Outdoor Panel Antennas: These tend to be larger and more robust to withstand environmental conditions. Dimensions might be around 12×12 inches with a thickness of 2-3 inches.
Conclusion
Selecting the right size and form factor for a WiFi panel antenna involves balancing physical constraints with performance requirements. Ensure that the antenna fits the intended space, can be mounted securely, and meets the necessary gain and coverage specifications for your application.
Enclosure (CPE)
The enclosure for the radio, equipped with a WiFi panel antenna, plays a crucial role in the overall performance of Customer Premises Equipment (CPE). This setup is essential for ensuring reliable and efficient wireless communication.
Material and Design
The enclosure is typically made from die-casting aluminum, known for its durability, lightweight properties, and excellent heat dissipation. The design is both functional and aesthetic, providing robust protection while maintaining a sleek appearance.
Function and Advantages
The primary function of the enclosure is to protect the radio components from environmental factors such as dust, moisture, and physical damage. The WiFi panel antenna, integrated into the enclosure, enhances signal strength and coverage, ensuring a stable and high-quality connection.
Key Advantages
1. Improved Signal Quality: The panel antenna provides better signal reception and transmission, leading to faster and more reliable internet connectivity.
2. Enhanced Durability: Made from die-casting aluminum, the enclosure offers superior protection against external elements, extending the lifespan of the equipment.
3. Excellent Heat Dissipation: The aluminum material helps in dissipating heat efficiently, preventing overheating and ensuring optimal performance.
4. Aesthetic Integration: The compact and sleek design of the enclosure allows for seamless integration into various environments, whether residential or commercial.
5. Ease of Installation: The combined unit simplifies the installation process, reducing the need for multiple components and minimizing setup time.
6. Cost Efficiency: By protecting the radio and improving signal performance, the enclosure with a WiFi panel antenna reduces maintenance costs and enhances overall user satisfaction.
Conclusion
In summary, the die-casting aluminum enclosure with a WiFi panel antenna is an essential component for CPE. It offers numerous benefits, including improved signal quality, enhanced durability, excellent heat dissipation, and ease of installation, all contributing to a robust and efficient wireless communication system.
Connector Type
The connector type of a WiFi panel antenna can vary, but some of the most common types include:
1. SMA (SubMiniature version A): This is a very common connector type used in many WiFi antennas, including panel antennas. It comes in both male and female versions, with the male version having a pin in the center and the female version having a corresponding receptacle.
2. RP-SMA (Reverse Polarity SMA): This is similar to the SMA connector but with the gender of the center pin reversed. RP-SMA connectors are also widely used in WiFi applications.
3. N-Type: This is a larger connector often used for outdoor antennas or higher-power applications. It is known for being very robust and weather-resistant.
4. TNC (Threaded Neill–Concelman): This is a threaded version of the BNC connector and is sometimes used in WiFi applications for its secure connection.
5. U.FL (Ultra Miniature Coaxial): This is a very small connector often used on internal WiFi modules and can be found in some compact panel antennas.
6. MMCX (Micro-Miniature Coaxial): Another small connector type that can be used for internal WiFi modules and some panel antennas.
The specific connector type will depend on the design and intended use of the WiFi panel antenna. Always check the specifications of the antenna to ensure compatibility with your equipment.
Coax Cable Types and Lengths
When selecting a coaxial cable for a WiFi panel antenna, it’s crucial to consider compatibility, types, and lengths to ensure optimal performance. Here’s a detailed guide:
Compatibility
1. Connector Type: Ensure the connectors on the cable match the connectors on both your WiFi panel antenna and your WiFi device (e.g., router, access point). Common connector types include:
– N-Type
– RP-SMA
– SMA
– TNC
2. Impedance: For WiFi applications, the standard impedance is 50 ohms. Make sure the cable you choose matches this impedance to avoid signal loss.
Types of Coaxial Cable
1. LMR-195:
– Suitable for short to medium runs (up to 20-30 feet).
– Flexible and easy to work with.
– Lower signal loss compared to RG58, making it a better choice for maintaining signal strength over short distances.
2. LMR-400:
– Lower signal loss, suitable for longer runs (up to 100 feet).
– Less flexible but more efficient for maintaining signal strength.
– Ideal for outdoor or long-distance installations.
3. LMR-240:
– A compromise between LMR-195 and LMR-400.
– Moderate signal loss and flexibility.
– Suitable for medium-length runs (up to 50 feet).
4. RG174:
– Very thin and flexible.
– Higher signal loss, suitable for very short runs (up to 6 feet).
– Often used for internal connections within devices.
Lengths
– Short Runs (1-10 feet):
– LMR-195 or RG174 cables may be sufficient.
– Minimal signal loss over short distances.
– Medium Runs (10-50 feet):
– LMR-240 is a good choice for balancing flexibility and signal integrity.
– LMR-195 can be used for shorter medium runs but may experience some loss at the higher end of this range.
– Long Runs (50-100 feet or more):
– LMR-400 is recommended due to its low signal loss characteristics.
– Ensure proper weatherproofing if used outdoors.
Additional Considerations
1. Weatherproofing: If the cable will be used outdoors, ensure it is rated for outdoor use and has proper weatherproofing to protect against the elements.
2. Signal Boosters: For very long runs, consider using a signal booster to maintain signal strength.
3. Cable Quality: Invest in high-quality cables from reputable manufacturers to ensure durability and performance.
Popular Brands and Manufacturers
– Times Microwave Systems (LMR series) or similar
Installation Tips
– Avoid Sharp Bends: Coaxial cables should not be bent sharply as it can damage the internal structure and degrade performance.
– Secure Connections: Ensure connectors are securely fastened to avoid signal loss.
– Minimize Interference: Keep the cable away from potential sources of electromagnetic interference, such as power lines and large metal objects.
By carefully selecting the appropriate type and length of coaxial cable, you can ensure that your WiFi panel antenna performs optimally, providing strong and reliable signal coverage.
Mounting Options and Brackets
Here are the revised mounting options for WiFi panel antennas based on the environment:
Mounting Options
1. Wall Mounting:
– Indoor: Suitable for placing the antenna on walls inside buildings to cover specific rooms or areas.
– Outdoor: Ideal for mounting on the exterior walls of buildings to cover outdoor areas or to extend the signal to other buildings.
2. Pole Mounting:
– Commonly used for outdoor installations where the antenna needs to be elevated above obstacles.
– Can be mounted on existing poles, masts, or specially installed poles.
3. Roof Mounting:
– Ideal for maximizing coverage and avoiding obstacles like buildings and trees.
– Provides an elevated position, which can enhance signal range and quality.
– Suitable for both residential and commercial installations.
1. Wall Mount Brackets:
– Fixed Brackets:*Simple brackets that hold the antenna flush against the wall.
– Adjustable Brackets: Allow for tilting and rotating the antenna to achieve the best signal direction.
2. Pole Mount Brackets:
– U-Bolt Brackets: Secure the antenna to the pole using U-bolts, providing a stable and adjustable mount.
– Clamp Brackets: Use clamps to attach the antenna to the pole, often allowing for easier adjustments.
3. Roof Mount Brackets:
– Tripod Mounts: Three-legged stands that provide a stable base for the antenna on flat or slightly sloped roofs.
– J-Mounts: J-shaped brackets that attach to the roof surface, providing a sturdy and elevated mounting point.
– Non-Penetrating Roof Mounts: Heavy base mounts that do not require drilling into the roof, ideal for leased properties or where roof integrity must be maintained.
– Gable Mounts: Attach to the gable end of a roof, suitable for directional antennas that need to be pointed in a specific direction.
Installation Tips
– Height and Line of Sight: Mount the antenna as high as possible and ensure a clear line of sight to the area you want to cover.
– Orientation: Align the antenna according to the manufacturer’s recommendations, typically facing the area where the signal is needed most.
– Weatherproofing: For outdoor installations, ensure that the antenna and mounting hardware are weatherproof to withstand the elements.
– Cable Management: Use appropriate cable lengths and secure them to prevent damage and maintain a neat installation.
– Safety: When installing on a roof, ensure you follow all safety guidelines, including using proper fall protection and securing ladders.
By selecting the right mounting option and bracket, you can optimize the performance of your WiFi panel antenna and ensure a stable and reliable connection.
Weatherproofing and Maintenance
Weatherproofing and maintaining a WiFi panel antenna is crucial to ensure its longevity and optimal performance, especially in outdoor installations. Here are some detailed steps and tips for weatherproofing and maintaining your WiFi panel antenna:
Weatherproofing
1. Antenna Housing:
– Material: Ensure the antenna housing is made of weather-resistant materials such as UV-stabilized plastic or fiberglass.
– Sealing: Check all seams and joints for proper sealing. Use silicone sealant or weatherproof tape to seal any gaps.
2. Connectors and Cables:
– Waterproof Connectors: Use waterproof connectors to prevent water ingress. These connectors often come with rubber gaskets or O-rings.
– Coaxial Cable: Use high-quality, UV-resistant coaxial cables. Ensure that the cable is rated for outdoor use.
– Weatherproof Boots: Install weatherproof boots or heat shrink tubing over the connectors to provide an additional layer of protection.
3. Mounting Hardware:
– Rust-Resistant Materials: Use stainless steel or galvanized mounting hardware to prevent rust and corrosion.
– Secure Mounting: Ensure the antenna is securely mounted to withstand high winds. Use appropriate brackets and mounts.
4. Enclosures:
– Weatherproof Enclosures: If your antenna comes with an enclosure, ensure it is rated for outdoor use (IP65 with gasket or o-ring ).
– Drainage Holes: Some enclosures have drainage holes to prevent water accumulation. Ensure these are clear and not blocked.
Maintenance
1. Regular Inspections:
– Visual Check: Perform regular visual inspections of the antenna, connectors, and cables. Look for signs of wear, corrosion, or damage.
– Tightness Check: Ensure all connectors and mounting hardware are tight and secure.
2. Cleaning:
– Dirt and Debris: Clean the antenna and surrounding area to remove dirt, leaves, and other debris that may accumulate.
– Mild Detergent: Use a mild detergent and water to clean the antenna surface. Avoid using harsh chemicals that could damage the material.
3. Cable Management:
– Inspect Cables: Check for any signs of wear or damage to the cables. Replace any damaged cables immediately.
– Secure Cables: Use cable ties or clips to secure cables and prevent them from flapping in the wind.
4. Firmware and Software Updates:
– Check for Updates: Regularly check for firmware and software updates for your WiFi panel antenna. Manufacturers often release updates to improve performance and security.
5. Environmental Considerations:
– Extreme Weather: In areas prone to extreme weather (e.g., heavy snow, hurricanes), consider additional protective measures such as weather shields or relocating the antenna to a more sheltered location.
6. Professional Maintenance:
– Annual Check-Up: Consider having a professional technician perform an annual check-up to ensure everything is in optimal condition.
By following these weatherproofing and maintenance tips, you can help ensure that your WiFi panel antenna remains operational and efficient for an extended period, even in challenging outdoor environments.
Environmental Considerations
1. Durability and Weather Resistance
– Material Selection: Use materials that are resistant to corrosion, UV radiation, and extreme temperatures. Common materials include UV-resistant plastics, stainless steel, and aluminum.
– Sealing and Enclosures: Ensure that the antenna housing is properly sealed to prevent water ingress. Use IP-rated enclosures to protect against dust and moisture.
2. Temperature Range
– Operating Temperatures: Design the antenna to function efficiently within a wide temperature range, typically from -40°C to +85°C, to accommodate various environmental conditions.
– Thermal Management: Incorporate materials and designs that can dissipate heat effectively to prevent overheating in high-temperature environments.
3. Wind Load and Physical Stability
– Structural Integrity: Ensure the antenna can withstand high wind speeds and mechanical stress. Use robust mounting systems that can secure the antenna firmly in place.
– Aerodynamic Design: Consider designing the antenna with an aerodynamic profile to reduce wind resistance and potential damage.
4. Environmental Impact
– Eco-friendly Materials: Opt for recyclable and non-toxic materials in the antenna’s construction to minimize environmental impact.
– Energy Efficiency: Design the antenna to operate efficiently with minimal power consumption to reduce the overall carbon footprint.
5. Electromagnetic Interference (EMI)
– Shielding: Implement proper shielding techniques to minimize EMI from external sources, ensuring reliable performance in various environments.
– Compliance: Ensure the antenna complies with relevant standards and regulations regarding electromagnetic emissions.
6. Installation Environment
– Urban vs. Rural: Consider the specific environmental challenges of urban (e.g., multipath interference, high density of devices) versus rural (e.g., long-distance transmission, fewer obstructions) settings.
– Mounting Location: Choose appropriate mounting locations that offer optimal signal propagation while being protected from environmental hazards.
7. Maintenance and Longevity
– Ease of Access: Design the antenna and its mounting system to allow for easy maintenance and inspection.
– Long-term Reliability: Use high-quality components and materials to ensure long-term reliability and reduce the need for frequent replacements.
8. Environmental Regulations and Standards
– Compliance: Ensure the antenna meets all relevant environmental regulations and standards, such as RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives.
By taking these environmental considerations into account, the WiFi panel antenna can be designed to offer reliable performance, durability, and minimal environmental impact across various operating conditions.
Chapter 5: Compatibility and Integration
Compatibility with Existing Equipment
When considering the compatibility of a WiFi panel antenna with existing equipment, several factors need to be taken into account to ensure optimal performance and seamless integration. Here are the key aspects to consider:
1. Frequency Range
– 2.4 GHz vs. 5 GHz: Determine whether your existing equipment operates on the 2.4 GHz band, the 5 GHz band, or both. Ensure the antenna supports the same frequency bands.
– Dual-Band or Tri-Band: If your equipment supports dual-band (both 2.4 GHz and 5 GHz) or tri-band (6 GHz), the antenna should also support these bands.
2. Antenna Connector Type
– Common Connectors: Identify the type of connector your existing equipment uses (e.g., SMA, RP-SMA, TNC, N-type). The WiFi panel antenna should have a matching connector or an appropriate adapter.
– Adapter Availability: If the connectors do not match, check if adapters are available and whether they might affect signal quality.
3. Gain and Coverage
– Antenna Gain: Ensure the gain of the WiFi panel antenna (measured in dBi) is appropriate for your needs. Higher gain antennas provide longer range but narrower coverage.
– Coverage Area: Consider the coverage area of the antenna and whether it matches the layout and size of the area you need to cover.
4. Impedance Matching
– 50 Ohm Standard: Most WiFi equipment operates with a 50-ohm impedance. Ensure the antenna’s impedance matches this standard to avoid signal loss.
5. Power Handling
– Maximum Power: Verify that the antenna can handle the maximum output power of your WiFi router or access point without damage.
6. Mounting and Installation
– Mounting Options: Check if the antenna’s mounting options (e.g., wall mount, pole mount) are compatible with your installation environment.
– Cable Length: Ensure the antenna comes with an appropriate length of cable or that you can source the necessary length without significant signal loss.
7. Environmental Considerations
– Indoor vs. Outdoor: Determine whether the antenna is designed for indoor or outdoor use based on your deployment requirements.
– Weatherproofing: For outdoor installations, ensure the antenna is weatherproof and can withstand the environmental conditions of your location.
8. Regulatory Compliance
– FCC/CE Certification: Ensure the antenna complies with relevant regulatory standards (e.g., FCC in the USA, CE in Europe) to avoid legal issues and ensure safe operation.
9. Compatibility with Router/Access Point Firmware
– Firmware Support: Some advanced routers and access points may have specific firmware requirements for external antennas. Verify compatibility with the device’s firmware.
10. Manufacturer Recommendations
– Vendor Documentation: Check the documentation and recommendations from both the antenna and router/access point manufacturers for compatibility guidance.
Conclusion
By carefully considering these factors, you can ensure that the WiFi panel antenna you choose will be compatible with your existing equipment, providing optimal performance and coverage for your wireless network.
Integration with Network Systems
Integrating a WiFi panel antenna into existing network systems requires careful planning and consideration of various technical aspects to ensure seamless performance and optimal network coverage. Below are detailed steps and best practices to guide the integration process:
1. Site Survey and Planning
1.1. Conduct a Site Survey
– Identify Coverage Areas: Determine the areas that need WiFi coverage.
– Assess Interference Sources: Identify potential sources of interference such as other wireless devices, physical obstructions, and electronic appliances.
– Signal Strength Measurement: Use tools like WiFi analyzers to measure existing signal strength and identify dead zones.
1.2. Planning the Antenna Placement
– Optimal Location: Choose locations that are central to the coverage area and free from obstructions.
– Height and Angle: Ensure the antenna is mounted at an appropriate height and angle to maximize coverage.
2. Hardware Integration
2.1. Selecting the Right Antenna
– Frequency Band: Ensure the antenna supports the required frequency bands (2.4 GHz, 5 GHz, or dual-band).
– Gain and Coverage Pattern: Choose an antenna with the appropriate gain and coverage pattern for your needs.
2.2. Connecting the Antenna
– Antenna Connectors: Use compatible connectors (e.g., SMA, N-type) to connect the antenna to the WiFi access point.
– Cabling: Use high-quality coaxial cables to minimize signal loss.
2.3. Mounting the Antenna
– Mounting Brackets: Use sturdy mounting brackets to secure the antenna.
– Weatherproofing: Ensure the antenna and connections are weatherproof if mounted outdoors.
3. Network Configuration
3.1. Access Point Configuration
– SSID and Security: Configure the SSID and security settings on the access point.
– Channel Selection: Select the appropriate WiFi channel to minimize interference.
– Power Settings: Adjust the transmission power to balance coverage and avoid interference with other access points.
3.2. Network Integration
– IP Addressing: Ensure the access point is assigned a static IP address or configure DHCP settings.
– VLANs: If using VLANs, configure the access point to support the necessary VLAN tags.
– QoS Settings: Configure Quality of Service (QoS) settings to prioritize critical traffic.
4. Testing and Optimization
4.1. Initial Testing
– Signal Strength: Measure the signal strength in different areas to ensure adequate coverage.
– Speed Tests: Conduct speed tests to verify network performance.
4.2. Optimization
– Fine-Tuning Placement: Adjust the placement and angle of the antenna if necessary.
– Channel Reassessment: Periodically reassess and adjust the WiFi channels to avoid new sources of interference.
4.3. Monitoring and Maintenance
– Regular Monitoring: Use network monitoring tools to continuously monitor the performance of the WiFi network.
– Firmware Updates: Keep the firmware of the access points and other network devices up to date.
5. Documentation and Training
5.1. Documentation
– Network Map: Create a detailed map of the network showing the placement of antennas and access points.
– Configuration Settings: Document the configuration settings of each access point.
5.2. Training
– Staff Training: Train IT staff on the operation and maintenance of the WiFi network.
– End-User Support: Provide end-users with guidelines for connecting to the WiFi network and troubleshooting common issues.
By following these steps, you can ensure a smooth integration of the WiFi panel antenna into your network system, resulting in improved coverage and performance.
Software and Firmware Considerations
The performance and functionality of a WiFi panel antenna are not solely dependent on its physical design and hardware components. Software and firmware play a crucial role in optimizing and managing the antenna’s performance, ensuring efficient operation, and providing flexibility for various applications.
Here are some key considerations regarding software and firmware for WiFi panel antennas:
1. Antenna Control and Management Software:
– Configuration and Tuning:
– Beamforming: Software can adjust the antenna’s beam pattern to focus the signal in a specific direction, enhancing signal strength and reducing interference.
– Frequency Selection: Automatic or manual selection of operating frequencies to avoid congestion and interference.
– Monitoring and Diagnostics:
– Real-time monitoring of signal strength, quality, and interference levels.
– Diagnostic tools for identifying and troubleshooting issues.
– Firmware Updates:
– Regular updates to improve performance, add new features, and fix bugs.
– Over-the-air (OTA) updates for remote and convenient firmware upgrades.
2. Network Management:
– Integration with Network Management Systems (NMS):
– Compatibility with NMS for centralized control and monitoring.
– Support for protocols like SNMP (Simple Network Management Protocol) for network management.
– Quality of Service (QoS):
– Prioritization of traffic to ensure optimal performance for critical applications.
– Bandwidth management to allocate resources efficiently.
– Security:
– Implementation of security protocols (WPA3, WPA2) to protect the network.
– Regular updates to address security vulnerabilities.
3. User Interface:
– Web-Based Interface:
– User-friendly web interface for configuration and management.
– Remote access capabilities for managing the antenna from different locations.
– Mobile Applications:
– Mobile apps for convenient access and control via smartphones and tablets.
– API Integration:
– APIs for integration with other software and systems, enabling automation and custom solutions.
4. Performance Optimization:
– Adaptive Algorithms:
– Algorithms that dynamically adjust settings based on environmental conditions and usage patterns.
– Load Balancing:
– Distributing traffic evenly across multiple antennas or channels to avoid overload and maintain performance.
– Interference Mitigation:
– Techniques like Dynamic Frequency Selection (DFS) and Transmit Power Control (TPC) to minimize interference.
5. Compatibility and Standards:
– Compliance with WiFi Standards:
– Ensuring compatibility with the latest WiFi standards (e.g. IEEE 802.11ac, 802.11ax, 802.11be) for improved performance and interoperability.
– Interoperability:
– Ensuring the antenna works seamlessly with various devices and network components.
6. Energy Efficiency:
– Power Management:
– Software controls to manage power consumption, extending the life of battery-powered devices.
– Sleep Modes:
– Implementing sleep modes and wake-on-demand features to reduce energy usage when the antenna is not actively transmitting.
Conclusion
The integration of advanced software and firmware is essential for maximizing the performance, reliability, and functionality of WiFi panel antennas. By leveraging these technologies, users can achieve better signal quality, enhanced security, efficient network management, and overall improved user experience. Regular updates and maintenance are also crucial to keep the system secure and up-to-date with the latest advancements.
Chapter 6: Case Studies and Applications
Residential Use
Enhancing home WiFi networks with a WiFi panel antenna can significantly improve signal strength, coverage, and overall network performance. Here are some case studies and applications illustrating the benefits and practical uses of WiFi panel antennas in residential settings:
Case Study 1: Multi-Story Home Coverage
Problem: A family living in a three-story house experienced weak WiFi signals on the upper floors, leading to slow internet speeds and frequent disconnections.
Solution: The family installed a WiFi panel antenna on the main floor, oriented towards the upper floors. The panel antenna’s directional signal helped focus the WiFi coverage upwards, significantly improving the signal strength on the second and third floors.
Outcome: The family reported a noticeable improvement in internet speed and reliability on the upper floors. Streaming video, online gaming, and video conferencing all became smoother and more consistent.
Case Study 2: Large Property Coverage
Problem: A homeowner with a large property, including a backyard and detached garage, struggled with WiFi coverage in outdoor areas and the garage.
Solution: The homeowner installed a high-gain WiFi panel antenna on an exterior wall of the house, directed towards the backyard and garage. This setup extended the WiFi coverage to these areas without the need for additional access points.
Outcome: The homeowner now enjoys strong WiFi signals throughout the backyard and garage, enabling outdoor streaming, smart home device connectivity, and seamless internet access while working in the garage.
Case Study 3: Reducing Dead Zones
Problem: A townhouse with thick walls and multiple rooms had several WiFi dead zones where devices could not connect to the network.
Solution: A WiFi panel antenna was installed in a central location, aimed at the most problematic areas. The directional nature of the panel antenna helped penetrate the thick walls and extended coverage to previously unreachable areas.
Outcome: The townhouse now has comprehensive WiFi coverage, eliminating dead zones and ensuring reliable connectivity in all rooms. This has improved the overall user experience, especially for activities like video calls and online gaming.
Applications
1. Home Offices: With the rise of remote work, a strong and reliable WiFi connection is crucial for home offices. A WiFi panel antenna can ensure a stable connection, even if the office is located in a part of the house that traditionally has poor coverage.
2. Smart Home Devices: Smart home devices, such as security cameras, smart thermostats, and smart lighting, often require a strong WiFi signal to function properly. A WiFi panel antenna can help ensure these devices remain connected and operational.
3.Streaming and Gaming: For households with multiple devices streaming video or engaging in online gaming, a WiFi panel antenna can help maintain high-speed connections and reduce buffering or lag.
4. Outdoor Activities: Extending WiFi coverage to outdoor areas can enhance the usability of devices like tablets, laptops, and smart speakers in gardens, patios, and backyards.
Installation Tips
– Placement: Position the panel antenna in a central location, ideally elevated, and directed towards areas with weak signals.
– Orientation: Adjust the antenna’s angle and direction to maximize coverage in the desired areas.
– Interference: Minimize interference by keeping the antenna away from large metal objects, microwaves, and other electronic devices.
Conclusion
WiFi panel antennas offer a practical and effective solution for enhancing residential WiFi networks. By focusing the signal in specific directions, they can overcome common issues like dead zones, weak signals, and limited coverage, providing a more reliable and robust home network experience.
Commercial and Enterprise Solutions
WiFi panel antennas are designed to provide robust and reliable wireless connectivity in various commercial and enterprise environments. These antennas are particularly effective in scenarios where high-density coverage and long-range signal transmission are required. Here are some detailed case studies and applications of WiFi panel antennas in commercial and enterprise solutions:
1. Office Buildings
Case Study: Multi-Floor Office Complex
Scenario: A multi-floor office complex requires seamless WiFi coverage to support hundreds of employees, IoT devices, and guest users. Traditional omnidirectional antennas struggle to provide consistent coverage across all floors and corners of the building.
Solution: WiFi panel antennas are strategically installed on each floor, focusing the signal in specific directions to ensure even coverage. By using directional antennas, the network can avoid interference from other floors and provide stronger signals to areas with higher user density.
Outcome:
– Improved signal strength and coverage throughout the building.
– Reduced interference and better network performance.
– Enhanced user experience with faster and more reliable WiFi connections.
2. Educational Institutions
Case Study: University Campus
Scenario: A large university campus needs to provide WiFi access across multiple buildings, outdoor areas, and student residences. The challenge is to offer consistent and high-speed connectivity to thousands of students and faculty members.
Solution: WiFi panel antennas are deployed in key locations such as lecture halls, libraries, dormitories, and outdoor common areas. These antennas are chosen for their ability to direct the signal towards high-traffic areas and penetrate through walls and other obstacles.
Outcome:
– Comprehensive WiFi coverage across the entire campus.
– High-speed internet access for academic and personal use.
– Increased satisfaction among students and staff due to reliable connectivity.
3. Large Venues
Case Study: Convention Center
Scenario: A convention center hosts various events, including trade shows, conferences, and concerts. Each event requires robust WiFi coverage to support thousands of attendees, exhibitors, and event staff.
Solution: WiFi panel antennas are installed in strategic locations such as exhibition halls, conference rooms, and common areas. The directional nature of these antennas helps focus the signal where it is needed most, ensuring strong and reliable connectivity even in high-density environments.
Outcome:
– Reliable WiFi coverage for large numbers of concurrent users.
– Enhanced experience for event attendees and exhibitors.
– Ability to support high-bandwidth applications such as live streaming and interactive displays.
4. Retail Environments
Case Study: Shopping Mall
Scenario: A shopping mall requires extensive WiFi coverage to support shoppers, store owners, and mall operations. The goal is to provide seamless connectivity throughout the mall, including stores, food courts, and common areas.
Solution: WiFi panel antennas are placed in key locations to direct the signal towards high-traffic areas and minimize interference from adjacent stores. The antennas are configured to provide overlapping coverage, ensuring that users experience a seamless connection as they move throughout the mall.
Outcome:
– Consistent and high-quality WiFi coverage throughout the mall.
– Improved shopper experience with access to online services and apps.
– Enhanced operational efficiency for store owners and mall management.
Conclusion
WiFi panel antennas play a crucial role in providing reliable and high-performance wireless connectivity in various commercial and enterprise environments. By using directional antennas, organizations can achieve targeted coverage, reduce interference, and enhance the overall user experience. Whether in office buildings, educational institutions, large venues, or retail environments, WiFi panel antennas offer a versatile and effective solution for modern connectivity challenges.
Industrial and Outdoor Applications
Most industrial applications require specialized communication equipment to ensure reliable performance under challenging conditions. WiFi panel antennas are a prime example of such equipment, offering robust and efficient wireless connectivity for a wide array of applications. Below, we explore several case studies and applications of WiFi panel antennas in industrial and outdoor settings.
Case Study 1: Mining Industry
Problem: A mining company needed a reliable communication network to connect various points within an expansive and rugged mining site. The environment was challenging due to dust, debris, and the need for long-range connectivity.
Solution: WiFi panel antennas were installed at strategic points around the mining site. These antennas provided a stable and robust wireless network that connected machinery, monitoring equipment, and personnel.
Outcome:
– Improved operational efficiency through real-time data transmission.
– Enhanced safety by enabling constant communication between workers and control centers.
– Reduced downtime due to the reliability of the wireless network.
Case Study 2: Agricultural Sector
Problem: A large-scale farm required a wireless network to support precision agriculture technologies, such as automated irrigation systems, soil moisture sensors, and drone operations.
Solution: WiFi panel antennas were deployed across the farm to create a comprehensive wireless network. These antennas were chosen for their ability to provide long-range coverage and withstand outdoor conditions.
Outcome:
– Increased crop yields through optimized irrigation and monitoring.
– Reduced water usage by enabling precise control of irrigation systems.
– Enhanced data collection and analysis, leading to better decision-making.
Case Study 3: Outdoor Event Management
Problem: An event management company needed to provide reliable WiFi coverage for a large outdoor festival. The area was vast, and the network needed to support thousands of attendees simultaneously.
Solution: High-gain WiFi panel antennas were installed around the event venue to ensure widespread coverage and high-capacity connectivity. The antennas were strategically placed to minimize interference and maximize performance.
Outcome:
– Seamless internet access for attendees, enhancing their experience.
– Efficient management of event operations through reliable communication.
– Positive feedback from attendees and organizers, leading to increased future business opportunities.
Case Study 4: Smart City Infrastructure
Problem: A city government aimed to implement a smart city initiative that included public WiFi, smart lighting, and traffic management systems. The challenge was to provide consistent and reliable connectivity across various urban environments.
Solution: WiFi panel antennas were integrated into the city’s infrastructure, including streetlights, traffic signals, and public buildings. These antennas provided the necessary connectivity for various smart city applications.
Outcome:
– Improved public services, such as free WiFi in public areas.
– Enhanced traffic management through real-time data collection and analysis.
– Increased energy efficiency with smart lighting systems.
Application 1: Industrial Automation
WiFi panel antennas play a crucial role in industrial automation by providing reliable wireless communication for automated machinery, sensors, and control systems. These antennas ensure that data is transmitted quickly and accurately, which is essential for maintaining efficient and safe operations.
Application 2: Outdoor Surveillance
In security and surveillance applications, WiFi panel antennas enable the deployment of wireless cameras in outdoor environments. These antennas provide the necessary range and reliability to transmit high-definition video feeds to monitoring stations, ensuring comprehensive coverage of large areas.
Application 3: Transportation and Logistics
WiFi panel antennas are used in transportation and logistics to create wireless networks for tracking and managing vehicles, cargo, and personnel. These networks improve operational efficiency, reduce costs, and enhance safety by providing real-time location and status updates.
Conclusion
WiFi panel antennas are indispensable in industrial and outdoor applications due to their robustness, reliability, and ability to provide long-range wireless connectivity. As demonstrated in the case studies and applications above, these antennas are essential for improving operational efficiency, safety, and overall performance in various challenging environments.
Chapter 7: Future Trends and Innovations
Emerging Technologies
Emerging technologies in WiFi panel antennas are driving significant improvements in wireless communication, expanding the capabilities and performance of WiFi networks. Here are some key developments:
1. Beamforming Technology:
– Multi-User MIMO (MU-MIMO): Allows multiple devices to receive data simultaneously, increasing the efficiency and speed of the network.
– Adaptive Beamforming: Dynamically adjusts the direction of the signal to improve coverage and reduce interference.
2. Higher Frequency Bands:
– 5 GHz and Beyond: Utilization of higher frequency bands such as 6 GHz (WiFi 6E) and the upcoming WiFi 7 to provide more channels and higher data rates.
– Millimeter Wave (mmWave): Exploring frequencies above 24 GHz for ultra-high-speed data transmission over short distances.
3. Advanced Materials:
– Metamaterials: Engineered materials that can manipulate electromagnetic waves in novel ways, leading to more efficient and compact antennas.
– Graphene-based Antennas: Offering potential for ultra-thin, flexible, and highly conductive antennas.
4. Integration with IoT and Smart Devices:
– Smart Antennas: Incorporating AI and machine learning to optimize signal strength and adapt to changing environments.
– IoT Compatibility: Designing antennas that can efficiently communicate with a wide range of IoT devices, enhancing connectivity and energy efficiency.
5. Enhanced Security Features:
– Secure Boot and Firmware: Ensuring that the antenna and associated hardware are protected from unauthorized access and tampering.
– Encrypted Communication: Implementing advanced encryption standards to safeguard data transmitted over WiFi networks.
6. Energy Efficiency:
– Low-Power Designs: Creating antennas that consume less power, crucial for battery-operated devices and sustainable technology.
– Energy Harvesting: Exploring technologies that can capture ambient energy (e.g., solar, RF energy) to power the antennas.
7. Compact and Aesthetic Designs:
– Integrated Antennas: Embedding antennas into devices in a way that maintains aesthetics without compromising performance.
– Flexible and Wearable Antennas: Developing antennas that can be integrated into clothing or other wearable items for seamless connectivity.
8. Enhanced Range and Coverage:
– Mesh Networking: Utilizing multiple nodes to create a robust network that provides extensive coverage and eliminates dead zones.
– High-Gain Antennas: Designing antennas with higher gain to extend the range and improve signal quality.
9. Software-Defined Radios (SDR):
– Programmable Antennas: Allowing for real-time adjustments and optimizations through software, enabling more versatile and adaptive network configurations.
10. Environmental Adaptability:
– Weather-Resistant Designs: Ensuring that antennas can operate efficiently in various environmental conditions, including extreme weather.
– Smart Environmental Sensing: Incorporating sensors to detect environmental changes and adjust performance accordingly.
These emerging technologies are shaping the future of WiFi panel antennas, making them more powerful, efficient, and adaptable to the ever-increasing demands of modern wireless communication.
Market Trends
Current and future market trends for WiFi panel antennas are influenced by several factors, including technological advancements, increasing demand for high-speed internet, and the proliferation of smart devices. Here are some key trends shaping the market:
1. Growing Demand for High-Speed Internet: The increasing need for high-speed internet in both residential and commercial sectors is driving the demand for WiFi panel antennas. As more devices connect to networks, the need for reliable and fast internet connections grows.
2. Expansion of IoT Devices: The Internet of Things (IoT) market is expanding rapidly, leading to a higher number of connected devices. WiFi panel antennas are critical in providing the necessary connectivity and bandwidth to support these devices.
3. 5G Integration: The rollout of 5G technology is expected to complement existing WiFi networks, leading to the development of hybrid solutions that integrate both 5G and WiFi. This will likely drive innovation in WiFi panel antennas to support higher frequencies and more robust connections.
4. Smart Homes and Smart Cities: The adoption of smart home technologies and the development of smart cities are increasing the demand for advanced WiFi solutions, including panel antennas. These environments require reliable and widespread internet coverage, which panel antennas can provide.
5. Enterprise and Industrial Applications: Enterprises and industrial sectors are increasingly adopting WiFi panel antennas to improve network performance and coverage in large facilities, warehouses, and manufacturing plants. This trend is driven by the need for seamless connectivity and real-time data transfer.
6. Advancements in Antenna Technology: Technological advancements in antenna design and materials are leading to more efficient and compact WiFi panel antennas. Innovations such as beamforming and MIMO (Multiple Input Multiple Output) technology are enhancing the performance and reliability of WiFi networks.
7. Increased Focus on Security: As cybersecurity becomes a critical concern, WiFi panel antennas are being designed with enhanced security features to protect against unauthorized access and data breaches. This trend is particularly important in enterprise and industrial applications.
8. Environmental Considerations: There is a growing emphasis on sustainable and eco-friendly technologies. Manufacturers are focusing on developing WiFi panel antennas with lower power consumption and environmentally friendly materials.
9. Regional Growth Variations: The demand for WiFi panel antennas varies by region, with significant growth expected in emerging markets such as Asia-Pacific and Latin America. These regions are experiencing rapid urbanization and increasing internet penetration rates.
10. Customization and Flexibility: Customers are seeking more customized and flexible WiFi solutions to meet specific needs. This trend is driving manufacturers to offer a wider range of products with varying specifications and capabilities.
Overall, the market for WiFi panel antennas is poised for growth, driven by the increasing reliance on wireless connectivity and the continuous evolution of wireless technologies. Companies that can innovate and adapt to these trends are likely to thrive in this dynamic market.
Impact of 5G and Beyond
The advent of 5G and subsequent advancements in wireless technology have profound implications for WiFi panel antennas. These antennas, integral to WiFi systems, must evolve to meet the demands of higher data rates, increased device density, and lower latency. Here’s an in-depth look at the impact of 5G and beyond on WiFi panel antennas:
1. Higher Frequency Bands and Spectrum Utilization
5G networks utilize higher frequency bands, including millimeter waves (mmWave), which range from 24 GHz to 100 GHz. This shift necessitates WiFi panel antennas that can operate efficiently at these higher frequencies.
– Design Considerations: Antennas need to be smaller in size due to the shorter wavelengths at higher frequencies. This can lead to more compact and integrated designs.
– Material and Manufacturing: Advanced materials and manufacturing techniques are required to maintain performance at these frequencies, ensuring minimal signal loss and high efficiency.
2. Beamforming and MIMO Technology
5G heavily relies on beamforming and Multiple Input Multiple Output (MIMO) technology to enhance signal strength and data throughput.
– Beamforming: WiFi panel antennas must incorporate active or passive beamforming capabilities to direct signals towards user devices, improving coverage and reducing interference.
– Massive MIMO: Antennas need to support massive MIMO configurations, involving dozens or even hundreds of antenna elements, to handle the increased data traffic and device connections.
3. Increased Bandwidth and Data Rates
The higher data rates and bandwidths offered by 5G require WiFi panel antennas to support wider frequency bands.
– Broadband Antennas: Antennas must be designed to operate over a broad range of frequencies, ensuring compatibility with both existing WiFi standards (e.g., WiFi 6/6E) and future iterations.
– High Data Throughput: Enhanced antenna designs are needed to handle the high data throughput, minimizing latency and maximizing user experience.
4. Integration with IoT and Smart Devices
The proliferation of Internet of Things (IoT) devices and smart applications in a 5G ecosystem demands robust and versatile WiFi panel antennas.
– Scalability: Antennas must be scalable to support a large number of connected devices simultaneously, without compromising performance.
– Energy Efficiency: With many IoT devices being battery-powered, antennas need to be energy-efficient to prolong device lifespans.
5. Network Densification and Small Cells
5G networks involve the deployment of numerous small cells to enhance coverage and capacity, especially in urban areas.
– Compact and Aesthetic Designs: WiFi panel antennas for small cells must be compact and aesthetically pleasing to facilitate deployment in various environments, including indoors and outdoors.
– High Capacity: These antennas should be capable of handling high user densities and providing reliable connections in crowded areas.
6. Advanced Antenna Technologies
Emerging technologies are shaping the future of WiFi panel antennas in the context of 5G and beyond.
– Reconfigurable Antennas: Antennas that can dynamically adjust their frequency, polarization, and radiation patterns to adapt to changing network conditions.
– Metamaterials: Utilization of metamaterials to create antennas with superior performance characteristics, such as higher gain and better beam steering capabilities.
7. Interference Management
With the dense deployment of 5G infrastructure, managing interference between different wireless systems becomes crucial.
– Directional Antennas: WiFi panel antennas with highly directional beams can minimize interference by focusing energy in specific directions.
– Smart Antenna Systems: Integration of smart antenna systems that can dynamically adjust their parameters to mitigate interference and optimize performance.
Conclusion
The transition to 5G and beyond presents both challenges and opportunities for WiFi panel antennas. To meet the demands of higher frequencies, increased data rates, and a more connected world, antenna designs must incorporate advanced technologies and materials. By doing so, they will play a crucial role in realizing the full potential of next-generation wireless networks, ensuring robust, high-speed, and reliable connectivity for a multitude of applications.
Conclusion
Summary of Key Points
Here are the revised key considerations when choosing WiFi panel antennas:
1. Frequency Band: Ensure the antenna supports the frequency band your WiFi operates on (2.4 GHz, 5 GHz, or dual-band).
2. Gain: Higher gain antennas (measured in dBi) provide more focused signals, which can improve range and signal strength but may reduce coverage area.
3. Beamwidth: The angle of coverage; a narrower beamwidth focuses the signal more, while a wider beamwidth covers a broader area.
4. Polarization: Determines how the antenna emits and receives signals. Matching polarization with your devices can improve performance.
5. Installation Location: Consider where the antenna will be installed (indoor vs. outdoor) and ensure it has appropriate weatherproofing if needed.
6. Connector Type: Ensure the antenna has a compatible connector type for your router or access point.
7. Mounting Options: Look for antennas that come with flexible mounting options to suit your installation needs.
8. Cable Type and Length: Choose the appropriate cable type and length for your setup to minimize signal loss and ensure easy installation.
9. Regulatory Compliance: Ensure the antenna complies with local regulations and standards for wireless communication.
10. Price and Brand: Consider reputable brands and balance cost with the features and performance you need.
These factors will help you select the appropriate WiFi panel antenna for your specific requirements.
Final Recommendations
Here are expert recommendations for selecting WiFi panel antennas based on various scenarios:
Scenario 1: Residential Use
Objective: Enhance WiFi coverage in a home, especially in multi-story buildings or large properties.
Recommendations
1. Antenna Type: Dual-band (2.4 GHz and 5 GHz) panel antennas.
2. Gain: 8-12 dBi for good coverage without overwhelming the router’s capabilities.
3. Placement: Central location, ideally on a wall facing the area with the most significant coverage issues.
4. Features: Look for antennas with a wide beamwidth to cover more area horizontally and vertically.
Scenario 2: Small Office/Home Office (SOHO)
Objective: Improve WiFi coverage and performance for multiple devices in a small office setting.
Recommendations
1. Antenna Type: Dual-band panel antennas with MIMO (Multiple Input Multiple Output) capabilities.
2. Gain: 10-14 dBi to ensure strong signal strength and better performance.
3. Placement: Mount on a wall or ceiling, aiming at the primary workspace.
4. Features: Ensure compatibility with WiFi 6 (802.11ax) and WiFi 7(802.11be) for future-proofing and better throughput.
Scenario 3: Large Office/Enterprise
Objective: Provide robust WiFi coverage across a large office floor or multiple floors.
Recommendations
1. Antenna Type: High-gain directional panel antennas or sector antennas.
2. Gain: 14-18 dBi for extended reach and strong signal penetration through walls and floors.
3. Placement: Strategically place antennas in high-traffic areas and ensure overlapping coverage zones to avoid dead spots.
4. Features: Consider antennas with beamforming technology to direct signals more efficiently to connected devices.
Scenario 4: Outdoor/Public Spaces
Objective: Extend WiFi coverage to outdoor areas such as parks, campuses, or public venues.
Recommendations
1. Antenna Type: Weatherproof outdoor panel antennas.
2. Gain: 12-18 dBi for long-range coverage.
3. Placement: Mount on poles or building exteriors, with a clear line of sight to the coverage area.
4. Features: Ensure the antenna has a robust weatherproof rating (e.g., IP65 or higher) and supports PoE (Power over Ethernet) for easy installation.
Scenario 5: Point-to-Point (P2P) or Point-to-Multipoint (P2MP) Links
Objective: Establish a reliable wireless link between two locations or multiple points.
Recommendations
1. Antenna Type: High-gain directional panel antennas for P2P, sector antennas for P2MP.
2. Gain: 19-25 dBi for long-distance links.
3. Placement: Align antennas with a clear line of sight between the locations, minimizing obstacles.
4. Features: Look for antennas with polarization options (vertical/horizontal) to reduce interference and enhance link stability.
General Tips for All Scenarios
– Compatibility: Ensure the antenna is compatible with your existing router or access point.
– Cable Quality: Use high-quality, low-loss coaxial cables to minimize signal degradation.
– Regulations: Check local regulations regarding antenna gain and installation to ensure compliance with legal standards.
– Professional Installation: For complex setups, consider professional installation to optimize performance and ensure safety.
By considering these recommendations, you can select the most suitable WiFi panel antenna for your specific needs, ensuring improved coverage and performance.
Further Reading and Resources
Here are some suggested readings and resources to help you choose the right WiFi panel antenna:
Books
1. “Wireless Communications: Principles and Practice” by Theodore S. Rappaport
– This book provides a comprehensive overview of wireless communication technologies, including antenna theory and design principles.
2. “Antenna Theory: Analysis and Design” by Constantine A. Balanis
– A detailed textbook that covers various types of antennas, including panel antennas, and provides the theoretical background needed to understand their operation and design.
3. “RF and Microwave Wireless Systems” by Kai Chang
– This book covers the fundamental principles of RF and microwave systems, including antennas, which are essential for understanding WiFi systems.
Articles and Papers
1. “A Review on WiFi Antenna Design and Performance”
– This paper reviews various WiFi antenna designs and their performance metrics, providing insights into the advantages and disadvantages of different types of antennas.
2. “Design and Development of a High Gain WiFi Panel Antenna”
– This article discusses the design process and performance evaluation of a high-gain WiFi panel antenna, offering practical insights.
Online Resources
1. Antenna Theory (www.antenna-theory.com)
– A comprehensive online resource that covers all aspects of antenna theory, including different types of antennas and their applications.
2. RF Wireless World (www.rfwireless-world.com)
– This website offers a range of articles, tutorials, and resources on RF and wireless communication, including antenna design and selection.
3. YouTube Channels
– Channels like “Antenna Man” and “RF Basics” provide practical videos on antenna installation, reviews, and comparisons.
Manufacturer Resources
1. Datasheets and Application Notes
– Manufacturers like TP-Link, Ubiquiti, and Cisco provide detailed datasheets and application notes for their WiFi panel antennas, which can be very useful for understanding the specifications and capabilities of different models.
2. Online Forums and Communities
– Forums like Reddit‘s r/WiFi and the SmallNetBuilder forums are great places to ask questions and get recommendations from experienced users and professionals.
Software Tools
1. Antenna Simulation Software
– Tools like HFSS (High-Frequency Structure Simulator) and CST Microwave Studio can be used to design and simulate antenna performance before making a purchase.
2. Coverage Mapping Tools
– Software like Ekahau and NetSpot can help you visualize WiFi coverage and determine the best placement for your panel antennas.
These resources should provide a solid foundation for understanding WiFi panel antennas and help you make an informed decision.
Appendices & References
FAQs
1. What is a WiFi panel antenna?
A WiFi panel antenna is a type of directional antenna designed to focus the WiFi signal in a specific direction, providing better range and performance in that direction.
2. How does a WiFi panel antenna work?
It works by concentrating the radio frequency (RF) energy into a narrow beam, which enhances the signal strength and range in the targeted direction.
3. What are the benefits of using a WiFi panel antenna?
Improved signal strength, extended range, reduced interference, and better performance in the desired direction.
4. What is the typical range of a WiFi panel antenna?
The range can vary, but it typically ranges from a few hundred meters to several kilometers, depending on the power and environmental conditions.
5. Can a WiFi panel antenna be used indoors?
Yes, it can be used indoors, but it’s most effective in open spaces or where there are fewer obstacles.
6. What frequency bands do WiFi panel antennas support?
They commonly support 2.4 GHz, 5 GHz and 6 GHz frequency bands.
7. How do I install a WiFi panel antenna?
Installation typically involves mounting the antenna in the desired location, connecting it to your WiFi device, and ensuring it is aimed in the correct direction.
8. Do I need any special tools to install a WiFi panel antenna?
Basic tools like a screwdriver, drill, and mounting hardware are usually sufficient.
9. Can I use a WiFi panel antenna with any router?
Most WiFi panel antennas are compatible with routers that have detachable antennas or external antenna connectors.
10. How do I aim a WiFi panel antenna?
Aim it towards the area where you need the strongest signal, using a WiFi analyzer app or software to fine-tune the direction.
11. What is the difference between a directional and an omni-directional antenna?
A directional antenna, like a panel antenna, focuses the signal in one direction, while an omni-directional antenna radiates the signal in all directions.
12. Can I use multiple WiFi panel antennas together?
Yes, using multiple panel antennas can help cover different areas or improve overall network performance.
13. What is the gain of a WiFi panel antenna?
Gain is a measure of how much the antenna amplifies the signal, typically expressed in dBi. Higher gain means a stronger, more focused signal.
14. How do I choose the right WiFi panel antenna for my needs?
Consider factors like frequency band, gain, polarization, and the specific environment where it will be used.
15. Are there any safety concerns with using a WiFi panel antenna?
Generally, there are no significant safety concerns, but it’s important to follow installation guidelines and avoid pointing the antenna directly at people.
16. Can a WiFi panel antenna improve my internet speed?
It can improve signal strength and stability, which can lead to better internet speeds, especially in areas with weak signals.
17. Do weather conditions affect the performance of a WiFi panel antenna?
Yes, factors like rain, snow, and extreme temperatures can impact performance, especially for outdoor installations.
18. Can I use a WiFi panel antenna for long-distance connections?
Yes, panel antennas are often used for long-distance point-to-point connections.
19. What is the typical beamwidth of a WiFi panel antenna?
Beamwidth varies, but it is usually between 30 to 90 degrees.
20. How do I connect a WiFi panel antenna to my router?
Connect it to the router’s external antenna port using the appropriate coaxial cable and connectors.
21. Can I use a WiFi panel antenna with a WiFi extender?
Yes, it can be used with a WiFi extender to improve coverage and signal strength.
22. What is the difference between a panel antenna and a Yagi antenna?
A panel antenna has a flat, rectangular design and a wider beamwidth, while a Yagi antenna has a more focused, narrow beam and is typically used for longer distances.
23. Do I need an amplifier with my WiFi panel antenna?
An amplifier can help boost the signal further, but it’s not always necessary.
24. Can a WiFi panel antenna penetrate walls?
It can penetrate walls to some extent, but signal strength will be reduced compared to an open space.
25. How do I maintain my WiFi panel antenna?
Regularly check for physical damage, ensure connections are secure, and clean any dirt or debris from the antenna.
26. Can I use a WiFi panel antenna for both transmitting and receiving signals?
Yes, it can be used for both purposes.
27. What type of cable should I use with a WiFi panel antenna?
Use high-quality coaxial cables like LMR195 or LMR-240 for minimal signal loss.
28. Can a WiFi panel antenna interfere with other electronic devices?
Properly installed, it should not cause interference, but it’s important to follow guidelines to avoid potential issues.
29. How do I troubleshoot signal issues with my WiFi panel antenna?
Check connections, ensure proper aiming, use a WiFi analyzer to identify signal strengths, and consider environmental factors.
30. Where can I buy a WiFi panel antenna?
They are available from electronics retailers, online marketplaces, and specialized antenna manufacturers.
Contact Information
If you need further assistance, you can contact Andrew Chen, an antenna expert with 15 years’ experience and know-how from Sanny Telecom. His contact information is as follows:
– Website: www.sannytelecom.com
– Email: andrew@sannytelecom.com
– WhatsApp: +86 189 3430 8461
