In today’s world, having a strong and reliable WiFi connection is crucial. Whether you’re setting up a network at home, improving the wireless infrastructure of a business, or extending coverage in large outdoor areas, choosing the right WiFi omni-directional antenna can make all the difference. This guide will cover everything you need to know about selecting the perfect omni-directional antenna, helping you navigate through the many options available and ensuring that your network performs at its best, no matter where you are.

Introduction

Overview of WiFi Omni-directional Antennas

Definition and Purpose

WiFi Omni-directional Antennas are types of antennas designed to radiate or receive signals in a 360-degree horizontal plane. Unlike directional antennas, which focus the signal in a specific direction, omni-directional antennas distribute the signal evenly in all directions around the antenna. This makes them ideal for environments where the signal needs to cover a broad area.

Purpose:

1. Uniform Coverage: To provide consistent wireless coverage over a wide area.

2. Ease of Installation: Simplifies the setup process as there is no need to aim the antenna in a specific direction.

3. Versatility: Suitable for various applications, including home networks, public WiFi hotspots, and office environments.

Importance in Modern Networking

1. Broad Coverage:

– Home Networks: Ensures that devices throughout a home can connect to the WiFi network without significant signal loss.

– Public Hotspots: Facilitates connectivity in public spaces like cafes, parks, and shopping malls.

– Enterprise Environments: Supports numerous devices across large office spaces, enhancing productivity and connectivity.

2. Scalability:

– Network Expansion: Easily integrates into existing networks to extend coverage without extensive reconfiguration.

– IoT Devices: Supports the growing number of Internet of Things (IoT) devices that require reliable and consistent WiFi connectivity.

3. Mobility and Flexibility:

– Mobile Devices: Accommodates the movement of smartphones, tablets, and laptops within the coverage area without requiring reconfiguration.

– Flexible Deployment: Can be used in various scenarios, from indoor environments to outdoor installations, ensuring reliable connectivity across different settings.

4. Cost-Effectiveness:

– Reduced Infrastructure Costs: By providing wide coverage, fewer access points may be needed, reducing the overall cost of network infrastructure.

– Lower Maintenance: Simplifies network management and maintenance due to its non-directional nature.

5. Enhanced User Experience:

– Consistent Connectivity: Users experience fewer dead zones and more stable connections, leading to higher satisfaction.

– Support for High-Density Environments: Can handle multiple users and devices simultaneously, making it ideal for high-traffic areas.

6. Technological Advancements:

– Integration with Modern Standards: Supports the latest WiFi standards (e.g., WiFi 7) for improved speed, efficiency, and performance.

– Smart Antenna Technology: Some omni-directional antennas incorporate smart technology to optimize signal distribution and reduce interference.

Conclusion

WiFi omni-directional antennas play a crucial role in modern networking by providing broad, uniform coverage and supporting a wide range of applications. Their versatility, ease of installation, and ability to handle high-density environments make them indispensable in both residential and commercial settings. As technology continues to evolve, these antennas will remain a cornerstone of efficient and effective wireless communication.

Chapter 1: Understanding WiFi Omni-directional Antennas

What is a WiFi Omni-directional Antenna?

An WiFi omni-directional antenna is a type of antenna designed to radiate or receive signals uniformly in all directions in a single plane, typically the horizontal plane. This means it can send and receive wireless signals 360 degrees around its axis, making it ideal for providing broad coverage in environments where the signal needs to reach multiple directions, such as in homes, offices, or public spaces. Unlike directional antennas, which focus the signal in a specific direction, omni-directional antennas are used when widespread coverage is more important than range or signal strength in a particular direction.

How Does the WiFi Omni-directional Antennas Work?

WiFi omni-directional antennas are designed to radiate signals in all directions horizontally, providing broad coverage in a 360-degree pattern. Here’s an explanation of how they work:

Basic Principles

1. Radiation Pattern: Unlike directional antennas that focus the signal in a specific direction, omni-directional antennas emit signals in a doughnut-shaped pattern. This means they have a wide horizontal coverage area but limited vertical reach.

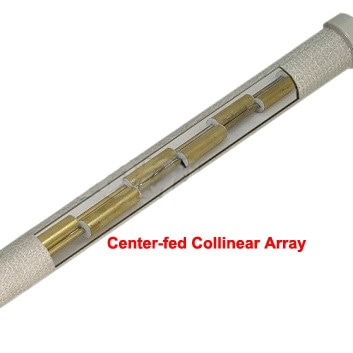

2. Design: Common designs include dipoles and collinear arrays. The most basic form, the dipole antenna, consists of two conductive elements that radiate the signal. Collinear arrays stack multiple dipole elements vertically to increase gain.

3. Gain: Omni-directional antennas typically have lower gain compared to directional antennas. Gain is a measure of how well the antenna focuses energy in a particular direction. While omni-directional antennas spread the signal more evenly, they don’t concentrate it, resulting in lower gain.

How They Work

1. Signal Transmission: When an electrical signal is fed into the antenna, it generates an electromagnetic field. This field radiates outwards from the antenna elements in all horizontal directions.

2. Polarization: The orientation of the antenna elements determines the polarization, which is the orientation of the electric field. Most WiFi antennas are vertically polarized, meaning the electric field oscillates vertically.

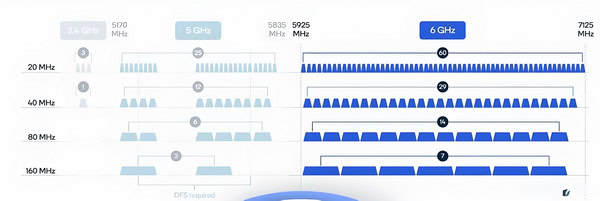

3. Frequency: WiFi operates in the 2.4 GHz, 5 GHz and 6 GHz frequency bands. The antenna is designed to efficiently transmit and receive signals within these frequencies.

4. Impedance Matching: For efficient transmission, the impedance of the antenna must match the impedance of the transmitter and receiver. Mismatched impedance can result in signal reflection and power loss.

Applications

1. Home and Office WiFi: Omni-directional antennas are commonly used in home and office routers to provide uniform coverage throughout the area.

2. Public WiFi Hotspots: In public spaces like cafes, libraries, and parks, omni-directional antennas ensure broad coverage, allowing multiple users to connect from different directions.

3. Mobile Devices: Devices like smartphones and laptops often use built-in omni-directional antennas to maintain connectivity while moving.

Advantages

1. Broad Coverage: Ideal for environments where users are spread out in different directions.

2. Ease of Installation: No need to aim the antenna, simplifying setup.

Disadvantages

1. Lower Gain: Less effective at long-range communication compared to directional antennas.

2. Interference: More susceptible to interference from all directions.

Conclusion

WiFi omni-directional antennas are versatile and essential for providing widespread wireless coverage in various settings. Their ability to radiate signals in all horizontal directions makes them ideal for environments where users are dispersed, although they trade off gain and range for broad coverage.

Key Components of WiFi Omni Antennas

WiFi omni antennas are designed to broadcast signals in all directions within a horizontal plane, providing 360-degree coverage. They are commonly used in environments where the goal is to cover a wide area from a central point, such as in homes, offices, and public spaces. Here are the key components and materials typically involved in WiFi omni antennas:

Key Components

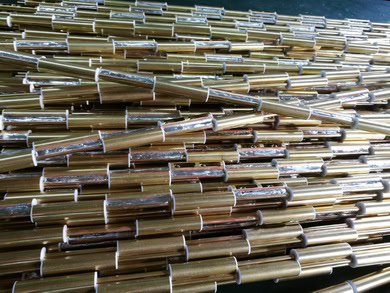

1. Radiating Element:

– Function: The radiating element is the core part of the antenna that emits and receives electromagnetic waves.

– Material: Commonly made from conductive materials like copper or aluminum, which are chosen for their excellent electrical conductivity.

2. Ground Plane:

– Function: Provides a reference point for the radiating element and helps in shaping the radiation pattern.

– Material: Often made from metal, such as aluminum or copper, to provide a stable and conductive surface.

3. Feed Line:

– Function: Connects the antenna to the WiFi transmitter or receiver, carrying the signal to and from the radiating element.

– Material: Typically coaxial cable, with an inner conductor made of copper, an insulating layer, a metallic shield, and an outer insulating layer.

4. Connector:

– Function: Provides a detachable interface between the antenna feed line and the WiFi transmitter/receiver, allowing for easy connection and disconnection.

– Material: Typically made from metal, such as brass or stainless steel, with gold or silver plating to ensure good electrical contact and minimize signal loss. Common types include SMA, N-type, and RP-SMA connectors.

5. Antenna Housing:

– Function: Protects the internal components from environmental factors like moisture, dust, and physical damage.

– Material: Usually made from durable plastic or fiberglass, which are chosen for their weather-resistant properties and minimal impact on signal transmission.

6. Mounting Hardware:

– Function: Provides a means to securely attach the antenna to a structure, such as a pole, wall, or ceiling.

– Material: Often made from steel, aluminum alloy or even 304 stainless steel, depending on the application and environmental conditions.

Materials

1. Copper:

– Usage: Radiating elements, feed lines, connectors, and internal wiring

– Properties: High electrical conductivity, corrosion resistance, and durability.

2. Aluminum:

– Usage: Ground planes and some radiating elements.

– Properties: Lightweight, good conductivity, and corrosion resistance.

3. Plastic:

– Usage: Antenna housing, cap and some mounting bracket accessories.

– Properties: Lightweight, weather-resistant, and non-conductive.

4. Fiberglass:

– Usage: Antenna housing, especially for outdoor applications.

– Properties: High strength, weather resistance, and minimal impact on signal transmission.

5. Stainless Steel:

– Usage: Mounting hardware.

– Properties: High strength, corrosion resistance, and durability.

By understanding these components and materials, one can appreciate the design considerations that go into making WiFi omni antennas effective and reliable for various applications.

Applications and Use Cases of WiFi Omni Antennas

Home Networks

1. Whole-Home Coverage:

– Application: Ensuring consistent WiFi coverage throughout the entire home.

– Use Case: Placing an omni antenna in a central location to minimize dead spots and maintain strong signals in all rooms.

2. Smart Home Devices:

– Application: Connecting multiple smart home devices like security cameras, smart lights, and thermostats.

– Use Case: Using an omni antenna to provide reliable connectivity to devices spread throughout the house and even in the yard.

3. Multi-Story Homes:

– Application: Providing WiFi coverage across multiple floors.

– Use Case: Installing an omni antenna on a central floor to ensure that WiFi signals reach both upper and lower levels effectively.

Business and Enterprise

1. Open Office Layouts:

– Application: Providing WiFi coverage in large, open office spaces.

– Use Case: Deploying omni antennas to ensure that employees, regardless of their location within the office, have access to a strong WiFi signal.

2. Conference Rooms and Meeting Areas:

– Application: Ensuring reliable WiFi for presentations, video conferencing, and collaborative work.

– Use Case: Placing omni antennas in or near conference rooms to support high-bandwidth activities and multiple connected devices.

3. Guest WiFi Networks:

– Application: Offering WiFi access to visitors and clients.

– Use Case: Using omni antennas in reception areas and common spaces to provide seamless and accessible guest WiFi.

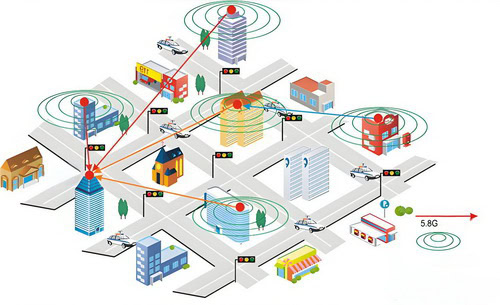

Outdoor and Public Spaces

1. Public Parks and Recreational Areas:

– Application: Providing WiFi access to visitors in large outdoor spaces.

– Use Case: Installing weather-resistant omni antennas on light poles or buildings to cover extensive areas like parks, playgrounds, and picnic areas.

2. Stadiums and Arenas:

– Application: Ensuring WiFi connectivity for large crowds during events.

– Use Case: Deploying multiple omni antennas strategically to handle high-density usage and provide consistent coverage throughout the venue.

3. Transportation Hubs:

– Application: Offering WiFi to travelers in airports, train stations, and bus terminals.

– Use Case: Placing omni antennas in waiting areas, lounges, and platforms to ensure that all travelers have access to WiFi while they wait.

4. Campus and Educational Institutions:

– Application: Providing WiFi coverage across school or university campuses.

– Use Case: Using omni antennas to cover outdoor areas like courtyards, sports fields, and walkways, ensuring that students and staff remain connected even when moving between buildings.

General Benefits of WiFi Omni Antennas

– Ease of Installation: Typically easier to install than directional antennas because they don’t require precise aiming.

– Broad Coverage: Effective in environments where users are spread out in multiple directions.

– Cost-Effectiveness: Often more economical for providing general coverage compared to deploying multiple directional antennas.

By leveraging the 360-degree coverage of omni antennas, various environments can ensure robust and consistent WiFi connectivity, enhancing user experience and supporting a wide range of applications.

Chapter 2: Types of WiFi Omni-directional Antennas

Indoor vs. Outdoor Omni Antennas

When choosing between indoor and outdoor WiFi omni antennas, several key differences and considerations can impact performance, installation, and overall effectiveness. Below are the primary factors to consider:

1. Environmental Resistance

– Indoor Antennas:

– Designed for controlled environments.

– Typically lack weatherproofing.

– More susceptible to damage from moisture, dust, and temperature fluctuations.

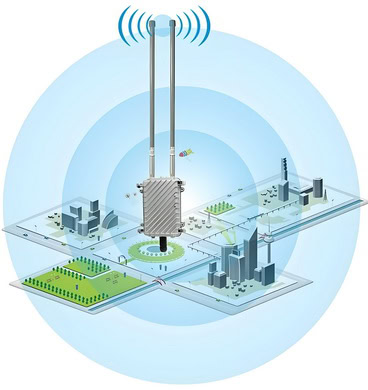

– Outdoor Antennas:

– Built to withstand harsh weather conditions (rain, snow, wind, UV radiation).

– Often feature rugged, waterproof, and UV-resistant enclosures.

– Can operate in a wider range of temperatures and environmental conditions.

2. Range and Coverage

– Indoor Antennas:

– Optimized for shorter ranges and confined spaces.

– Coverage is designed to penetrate walls and floors within buildings.

– Typically have lower gain compared to outdoor antennas.

– Outdoor Antennas:

– Designed for long-range coverage.

– Can cover larger areas, such as open fields, parks, or large outdoor venues.

– Generally have higher gain, improving signal strength over longer distances.

3. Antenna Gain

– Indoor Antennas:

– Lower gain (usually between 2dBi and 5dBi).

– Suitable for providing uniform coverage in smaller, enclosed spaces.

– Outdoor Antennas:

– Higher gain (ranging from 6dBi to 15dBi or more).

– Focuses the signal to cover larger areas and reduce interference.

4. Installation and Mounting

– Indoor Antennas:

– Easier to install, often requiring minimal tools.

– Can be mounted on walls, ceilings, or placed on desks.

– Typically lightweight and compact.

– Outdoor Antennas:

– Installation can be more complex, often requiring mounting on poles, rooftops, or exterior walls.

– May need additional hardware for secure mounting.

– Consideration for optimal placement to avoid physical obstructions and interference.

5. Frequency Bands

– Indoor Antennas:

May support broader frequency ranges and additional bands (e.g. 2.4 GHz, 5 GHz, 6 GHz) for specialized applications.

– Outdoor Antennas:

– Often designed to work within common indoor WiFi frequency bands (2.4 GHz, 5 GHz and 6 GHz).

6. Regulatory Compliance

– Indoor Antennas:

– Must comply with indoor-specific regulations and standards.

– Outdoor Antennas:

– Must meet stricter regulatory requirements for outdoor use, including safety and interference regulations.

7. Cost

– Indoor Antennas:

– Generally less expensive due to simpler design and construction.

– Outdoor Antennas:

– Typically more expensive due to robust build quality and environmental protections.

8. Applications

– Indoor Antennas:

– Ideal for homes, offices, cafes, and other indoor spaces.

– Useful for extending WiFi coverage within buildings.

– Outdoor Antennas:

– Suitable for extending WiFi coverage in outdoor areas such as campuses, parks, warehouses, and industrial sites.

– Can be used for point-to-multipoint connections in outdoor settings.

Conclusion

Choosing between indoor and outdoor WiFi omni antennas depends on the specific requirements of your environment and application. Indoor antennas are best for controlled, enclosed spaces with shorter range needs, while outdoor antennas are essential for robust, long-range coverage in challenging environmental conditions. Consider factors such as environmental resistance, range, gain, installation complexity, frequency bands, regulatory compliance, and cost to make the best decision for your WiFi network.

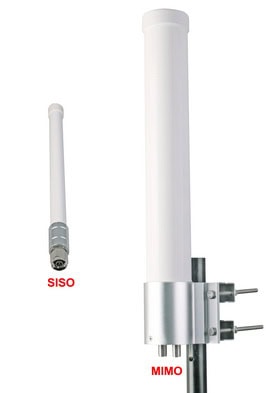

SISO vs. MIMO Omni Antennas

SISO (Single Input Single Output) WiFi Omni Antennas

Pros

1. Simplicity: SISO systems are simpler to design, implement, and maintain. They have fewer components, which generally leads to lower costs.

2. Cost-Effective: Because they require only one antenna and one RF chain, they are less expensive in terms of both initial investment and ongoing maintenance.

3. Power Efficiency: With only one transmitter and receiver, power consumption is generally lower compared to more complex systems.

4. Compatibility: SISO systems are widely compatible with older devices and networks that do not support MIMO.

Cons

1. Limited Data Rates: SISO systems have lower data rates compared to MIMO systems because they can only send and receive one data stream at a time.

2. Reduced Range and Reliability: They are more susceptible to signal degradation and interference, which can affect performance in environments with many obstacles or other sources of interference.

3. Lower Spectral Efficiency: SISO systems make less efficient use of available spectrum, which can be a limitation in crowded frequency bands.

Applications

1. Home WiFi Networks: Suitable for basic internet browsing, email, and streaming in smaller homes or apartments.

2. IoT Devices: Ideal for Internet of Things (IoT) applications where data rates are low and power efficiency is crucial.

3. Legacy Systems: Useful in environments where older WiFi standards are still in use.

MIMO (Multiple Input Multiple Output) WiFi Omni Antennas

Pros

1. Higher Data Rates: MIMO systems can transmit multiple data streams simultaneously, leading to significantly higher data rates.

2. Improved Range and Reliability: MIMO technology uses multiple antennas to improve signal quality and reduce the impact of interference and obstacles.

3. Better Spectral Efficiency: MIMO systems make more efficient use of available spectrum, which is beneficial in crowded environments.

4. Enhanced Performance: Higher throughput and more stable connections make MIMO ideal for demanding applications like HD video streaming and online gaming.

Cons

1. Complexity: MIMO systems are more complex to design, implement, and maintain. They require multiple antennas and RF chains, which can complicate installation and troubleshooting.

2. Higher Cost: The additional hardware and complexity generally result in higher costs for both initial setup and ongoing maintenance.

3. Power Consumption: More antennas and RF chains mean higher power consumption, which can be a drawback for battery-operated devices.

Applications

1. Enterprise WiFi Networks: Ideal for large office environments where high data rates and reliable connections are essential.

2. Public WiFi Hotspots: Suitable for places like airports, cafes, and stadiums where many users need to connect simultaneously.

3. Smart Homes: Useful in smart home setups with multiple devices streaming high-definition content or requiring low-latency connections.

4. Industrial IoT: Beneficial in industrial settings where reliable, high-speed data transmission is crucial for automation and monitoring systems.

Summary

– SISO is simpler, more cost-effective, and power-efficient but offers lower data rates and is more susceptible to interference.

– MIMO provides higher data rates, better range, and improved reliability but is more complex and costly.

Choosing between SISO and MIMO depends on the specific requirements of the application, including budget, data rate needs, and environmental conditions.

Single-band vs. Dual-band Omni Antennas

Single-band WiFi Omni Antennas

Pros

1. Cost-Effective: Typically less expensive due to simpler design.

2. Simplicity: Easier to set up and configure, as they operate on a single frequency band.

3. Performance: Can offer better performance on the specific frequency band they are designed for, as they are optimized for that band.

Cons

1. Limited Flexibility: Only operates on one frequency band, typically either 2.4 GHz or 5 GHz, limiting the adaptability to different environments.

2. Interference: More susceptible to interference, especially in the crowded 2.4 GHz band.

3. Future-Proofing: As WiFi technology evolves, single-band antennas may become obsolete faster than dual-band options.

Applications

– Home Networks: Suitable for homes with basic internet usage, where high-speed performance and advanced features are not critical.

– Small Offices: Can be used in small office environments where the network demand is not very high.

– IoT Devices: Often used in Internet of Things (IoT) devices that require minimal data transfer and operate on a single band.

Dual-band WiFi Omni Antennas

Pros

1. Flexibility: Can operate on both 2.4 GHz and 5 GHz bands, providing more options for connectivity.

2. Reduced Interference: Allows devices to switch to the less crowded 5 GHz band, reducing interference and improving performance.

3. Better Performance: Can offer higher speeds and better performance, especially in environments with many competing WiFi networks.

4. Future-Proofing: More adaptable to new technologies and future changes in WiFi standards.

Cons

1. Cost: Generally more expensive than single-band antennas due to more complex design.

2. Complexity: Slightly more complex to set up and configure, as they need to manage two frequency bands.

3. Power Consumption: May consume more power compared to single-band antennas, which could be a consideration for battery-operated devices.

Applications

– Modern Home Networks: Ideal for homes with multiple devices and high-speed internet requirements, such as streaming, gaming, and smart home devices.

– Business Environments: Suitable for offices, commercial buildings, and enterprise environments where robust and reliable WiFi is critical.

– Public WiFi: Used in public spaces like cafes, libraries, and airports to provide flexible and high-speed internet access to a large number of users.

– High-Density Areas: Effective in high-density residential or urban areas where interference is a significant concern.

Summary

Single-band WiFi Omni Antennas are cost-effective and simpler but offer limited flexibility and are more prone to interference. They are suitable for basic home networks, small offices, and IoT devices.

Dual-band WiFi Omni Antennas provide greater flexibility, reduced interference, and better performance but come at a higher cost and complexity. They are ideal for modern home networks, business environments, public WiFi, and high-density areas.

Dual-band vs. Triple-band Omni Antennas

When choosing between dual-band and triple-band WiFi omni antennas, it’s important to understand their respective advantages and limitations. Here’s a breakdown of the pros and cons for each:

Dual-Band WiFi Omni Antennas

Pros

1. Simpler Design: Dual-band antennas are generally less complex than triple-band antennas, making them easier to manufacture and often more reliable.

2. Cost-Effective: Typically, dual-band antennas are less expensive than their triple-band counterparts.

3. Sufficient for Most Applications: Many consumer and business applications only require dual-band (2.4 GHz and 5 GHz) capabilities, making dual-band antennas a practical choice.

4. Compatibility: Widely compatible with most modern WiFi devices, which commonly operate on 2.4 GHz and 5 GHz bands.

5. Lower Interference: With fewer bands to manage, there is potentially less interference and signal degradation.

Cons:

1. Limited Frequency Range: Dual-band antennas cannot support the newer 6 GHz band, which may be necessary for future-proofing and accessing less congested frequencies.

2. Bandwidth Limitations: May not offer the same level of performance and bandwidth as triple-band antennas, especially in high-density environments.

3. Potential for Congestion: The 2.4 GHz and 5 GHz bands are already crowded, which can lead to interference and reduced performance.

Applications:

1. Home Networks: Ideal for typical home WiFi setups, providing sufficient coverage and speed for most household needs.

2. Small to Medium Businesses: Suitable for small to medium-sized business environments where high-density traffic is not a major concern.

3. Consumer Devices: Commonly used in consumer-grade routers, access points, and WiFi extenders.

Triple-band WiFi Omni Antennas

Pros

1. Extended Frequency Range: Supports 2.4 GHz, 5 GHz, and the newer 6 GHz bands, providing more options for connectivity.

2. Future-Proofing: Better suited for upcoming WiFi 6E standards and beyond, ensuring compatibility with future devices and technologies.

3. Higher Performance: Can handle more devices and higher data rates, making them ideal for high-density environments.

4. Reduced Congestion: The 6 GHz band is less congested, offering cleaner and potentially faster connections.

Cons

1. Higher Cost: Generally more expensive due to the complexity and additional components required.

2. Complexity: More complex design can lead to potential reliability issues and increased difficulty in installation and maintenance.

3. Device Compatibility: Not all devices currently support the 6 GHz band, which may limit the immediate benefits.

Applications

1. High-Density Environments: Ideal for places like stadiums, conference centers, and large office buildings where multiple devices need to connect simultaneously.

2. Future-Proof Networks: Businesses and tech enthusiasts looking to future-proof their networks for upcoming standards and devices.

3. Advanced Home Networks: Suitable for smart homes with a high number of connected devices and advanced networking needs.

4. Enterprise Solutions: Used in enterprise-grade routers, access points, and mesh networks to provide robust and scalable connectivity solutions.

Conclusion

Choosing between dual-band and triple-band WiFi omni antennas depends on your specific needs and future-proofing considerations. Dual-band antennas are cost-effective and sufficient for most current applications, while triple-band antennas offer higher performance and future compatibility at a higher cost.

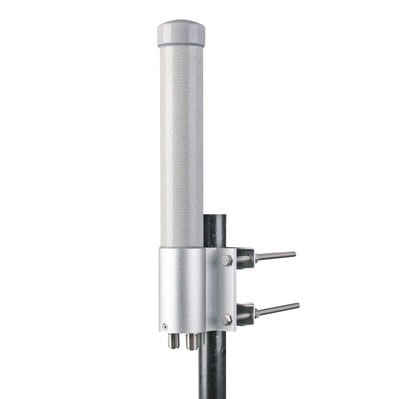

Omni Fiberglass Antennas

WiFi Omni Fiberglass Antennas are antennas designed to enhance the signal strength and coverage of WiFi networks. These antennas are constructed using durable fiberglass material, making them weatherproof and suitable for outdoor use. They come in various gain levels, including low gain, middle gain, and high gain, allowing users to choose the antenna that best fits their needs.

WiFi Omni Fiberglass Antennas are omni-directional, meaning they can transmit and receive signals in all directions, making them suitable for providing WiFi coverage in large areas or outdoor environments. They are easy to install and can be mounted on poles or other structures. These antennas are compatible with most WiFi routers and access points, providing an affordable solution for extending the range of a WiFi network.

Pros

1. Durability: Fiberglass antennas are known for their robustness and can withstand harsh environmental conditions, including extreme temperatures, UV exposure, and moisture.

2. Omnidirectional Coverage: These antennas provide 360-degree coverage, making them suitable for environments where the signal needs to be broadcasted in all directions.

3. Ease of Installation: Typically, these antennas are straightforward to install and can be mounted on various surfaces, including rooftops, poles, and walls.

4. Low Maintenance: Due to their sturdy construction, fiberglass antennas require minimal maintenance compared to other types of antennas.

5. Improved Signal Strength: They can significantly enhance signal strength and range, especially in outdoor settings.

6. Aesthetic Appeal: Fiberglass antennas often have a sleek and professional appearance, making them less obtrusive in various settings.

Cons

1. Cost: Fiberglass antennas can be more expensive than other types of antennas, such as plastic ones.

2. Size and Weight: These antennas can be bulkier and heavier, which might pose challenges for installation in certain settings.

3. Limited Range: While they provide omnidirectional coverage, the range might be limited compared to directional antennas.

4. Potential Interference: Omnidirectional antennas can pick up interference from all directions, which might affect signal quality in congested areas.

5. Installation Complexity: In some cases, the installation might require professional assistance, especially for high or hard-to-reach locations.

6. Vulnerability to Physical Damage: Despite their durability, they can still be damaged by severe physical impacts or vandalism.

Applications

1. Outdoor WiFi Networks: Ideal for providing WiFi coverage in outdoor areas such as parks, campuses, and public spaces.

2. Marine Environments: Used on boats and ships to maintain reliable WiFi connectivity in marine settings.

3. Industrial Sites: Suitable for industrial environments where robust and reliable WiFi coverage is necessary.

4. Rural and Remote Areas: Can be used to extend WiFi coverage in rural or remote locations where traditional infrastructure might be lacking.

5. Event Venues: Useful in large event spaces, stadiums, and convention centers to provide comprehensive WiFi coverage to attendees.

6. Residential Use: Can be used in larger residential properties to ensure uniform WiFi coverage across the entire property.

7. Municipal Networks: Employed in city-wide WiFi networks to provide internet access to the public in urban areas.

8. Warehouses and Distribution Centers: Ensures reliable connectivity for inventory management systems and other operational needs.

9. Agricultural Settings: Used to provide connectivity for smart farming equipment and monitoring systems in agricultural fields.

In summary, WiFi Omni Fiberglass Antennas offer a durable and effective solution for providing omnidirectional WiFi coverage in a variety of settings, though they come with some trade-offs in terms of cost, size, and potential for interference.

Rubber Duck Antennas

The WiFi Rubber Duck antenna is a type of omnidirectional antenna that is commonly used for WiFi communication. It is named after its appearance, which resembles a rubber duck. The antenna is designed to radiate and receive signals in all directions, providing a 360-degree coverage area. This makes it ideal for use in environments where a WiFi signal needs to be distributed evenly in all directions, such as in a home or small office. The WiFi Rubber Duck antenna is typically attached to a WiFi router or access point using a standard SMA or RP-SMA connector. It is a popular choice among DIY enthusiasts and hobbyists due to its simplicity and effectiveness.

Pros

1. Omnidirectional Coverage:

– Rubber duck antennas provide omnidirectional coverage, meaning they can transmit and receive signals in all directions. This makes them suitable for general-purpose WiFi applications where coverage in multiple directions is needed.

2. Compact and Flexible:

– These antennas are typically small and flexible, making them easy to install and position. They can be bent or adjusted to fit into tight spaces without impacting performance significantly.

3. Durability:

– The rubber exterior provides protection against physical damage, making them more durable than some other types of antennas. They can withstand rough handling and are less likely to break if accidentally bumped or dropped.

4. Cost-Effective:

– Rubber duck antennas are generally inexpensive, making them a cost-effective option for many applications, from home WiFi routers to IoT devices.

5. Ease of Installation:

– They usually come with standard connectors (like SMA or RP-SMA), making them easy to attach to most WiFi devices without the need for special tools or adapters.

Cons

1. Limited Range:

– While they provide omnidirectional coverage, their range is typically shorter compared to high-gain directional antennas. This can be a limitation in larger areas or environments with many obstructions.

2. Lower Gain:

– Rubber duck antennas typically have lower gain (around 2-5 dBi) compared to other types of antennas. Lower gain means less signal strength and potentially lower data rates, especially at the edges of the coverage area.

3. Interference:

– Because they broadcast in all directions, they can be more susceptible to interference from other devices operating on the same frequency. This can lead to reduced performance in crowded environments.

4. Not Ideal for Long-Distance Communication:

– For applications requiring long-distance communication or point-to-point links, rubber duck antennas are not the best choice. Directional antennas with higher gain are more suitable for such scenarios.

5. Aesthetic and Space Considerations:

– While compact, the rubber duck design may not be aesthetically pleasing in all settings, and in some cases, the protruding antenna can be a nuisance or take up valuable space.

Applications

1. Home WiFi Routers:

– Rubber duck antennas are commonly used in home WiFi routers to provide coverage throughout the house. Their omnidirectional nature ensures that multiple rooms receive a signal.

2. IoT Devices:

– Many Internet of Things (IoT) devices, such as smart home gadgets, use rubber duck antennas for wireless connectivity due to their compact size and ease of installation.

3. Office Environments:

– In small to medium-sized office environments, rubber duck antennas can be used in WiFi access points to provide coverage for employees’ devices.

4. Mobile and Portable WiFi Devices:

– Portable WiFi devices, such as mobile hotspots and WiFi adapters, often use rubber duck antennas for their flexibility and durability.

5. Industrial Applications:

– In industrial settings, rubber duck antennas can be used in wireless sensors and monitoring equipment where ruggedness and reliability are important.

6. Educational Institutions:

– Schools and universities may use rubber duck antennas in classroom and campus WiFi access points to ensure widespread coverage for students and staff.

7. Public WiFi Hotspots:

– Public WiFi hotspots in cafes, libraries, and other public spaces can use rubber duck antennas to provide reliable connectivity to visitors.

In summary, WiFi rubber duck antennas are a versatile and cost-effective option for many general-purpose WiFi applications. However, their limited range and susceptibility to interference may make them less suitable for specific uses requiring long-distance communication or high performance in crowded environments.

Magnetic Antennas

WiFi magnetic antennas are small, portable antennas that can be easily attached to a metallic surface, such as a car roof or a window, to enhance the WiFi signal reception. These antennas are designed to work with WiFi routers or access points and can improve the range and coverage of the WiFi network. They are typically used in situations where the WiFi signal is weak or there are obstacles, such as walls or trees, that block the signal. The magnetic base allows for easy installation and repositioning of the antenna for optimal signal strength.

Pros

1. Ease of Installation: Magnetic antennas can be easily attached to metal surfaces without the need for drilling or permanent fixtures.

2. Portability: They can be moved and repositioned effortlessly, making them ideal for temporary setups or situations where the optimal position needs to be found.

3. Improved Signal Quality: By positioning the antenna in an optimal location (e.g., higher up or away from obstructions), users can often achieve better signal strength and quality.

4. Versatility: Suitable for both indoor and outdoor use, provided the magnetic base is strong enough to withstand environmental conditions.

5. Cost-Effective: Generally, they are affordable and can be an economical solution for improving WiFi coverage.

Cons

1. Limited to Metal Surfaces: Magnetic antennas require a metal surface to attach to, which might limit their placement options.

2. Potential for Damage: If not secured properly, the antenna might fall and get damaged, especially in high-wind conditions outdoors.

3. Interference: The presence of other electronic devices or metal objects nearby can sometimes interfere with the signal.

4. Durability: The magnet might weaken over time, especially if frequently moved, reducing its effectiveness.

5. Aesthetic Concerns: The antenna and its cable might not blend well with the surroundings, which could be a concern in residential or aesthetically sensitive environments.

Applications

1. Home WiFi Networks: To improve signal strength in specific areas of a house or apartment, especially in multi-story buildings.

2. Office Environments: To enhance WiFi coverage in specific areas of an office, such as meeting rooms or remote corners.

3. Vehicles: For providing WiFi connectivity in cars, trucks, RVs, or boats where a stable and strong signal is required.

4. Temporary Setups: Ideal for events, trade shows, or temporary workspaces where a quick and efficient WiFi setup is needed.

5. Remote Locations: Useful in remote or rural areas where WiFi signal strength might be weak and an external antenna can help.

6. Industrial Applications: In warehouses, factories, or other industrial settings where robust and flexible WiFi connectivity is needed.

7. Outdoor Events: For outdoor gatherings, concerts, or sports events where a temporary but strong WiFi network is required.

8. Research and Development: In labs or research facilities where WiFi coverage needs to be adjusted frequently based on experimental setups.

Overall, magnetic WiFi antennas offer a flexible and efficient solution for enhancing wireless connectivity in a variety of settings, though they come with certain limitations that need to be considered.

Chapter 3: Key Factors to Consider

Frequency Bands

WiFi omni-directional antennas are designed to radiate signals uniformly in all directions, which makes them ideal for broad coverage areas. These antennas can operate across different frequency bands, commonly including the 2.4 GHz, 5 GHz, and the newer 6 GHz bands. Here’s a brief overview of these frequency bands:

2.4 GHz Band

– Frequency Range: 2.4 GHz to 2.5 GHz

– Channels: Typically 11 channels in the United States, 13 in Europe, and up to 14 in Japan.

– Pros:

– Better range and penetration through obstacles like walls.

– More compatible with older devices.

– Cons:

– More susceptible to interference from other devices like microwaves, Bluetooth devices, and cordless phones.

– Usually more crowded due to the limited number of channels and widespread use.

5 GHz Band

– Frequency Range: 5.15 GHz to 5.85 GHz (varies by region)

– Channels: More channels available compared to 2.4 GHz, typically 23 non-overlapping channels in the U.S.

– Pros:

– Higher data rates and less interference compared to 2.4 GHz.

– More channels available, reducing congestion.

– Cons:

– Shorter range and less effective at penetrating obstacles.

– Not all older devices support this band.

6 GHz Band

– Frequency Range: 5.925 GHz to 7.125 GHz (varies by region)

– Channels: Significantly more channels available, providing a much larger spectrum.

– Pros:

– Even higher data rates and reduced latency.

– More spectrum and less congestion, ideal for dense environments.

– Designed to support the latest WiFi 6E standard, which offers improved performance.

– Cons:

– Limited range and penetration capabilities similar to the 5 GHz band.

– Requires devices that support WiFi 6E.

Applications

– 2.4 GHz: Suitable for general use, including web browsing, email, and IoT devices.

– 5 GHz: Better for high-bandwidth applications like HD video streaming, online gaming, and video conferencing.

– 6 GHz: Ideal for ultra-high-bandwidth applications, future-proofing networks, and environments with many connected devices.

When choosing an omni-directional antenna, it’s essential to consider the specific frequency bands it supports, the environment in which it will be used, and the types of devices that will connect to the network.

Gain (dBi)

Definition

The gain of a WiFi omni antenna, often measured in decibels relative to an isotropic radiator (dBi), indicates how effectively the antenna can direct radio frequency energy in a particular direction compared to an ideal isotropic antenna, which radiates equally in all directions. For an omni-directional antenna, this gain is typically achieved by compressing the radiation pattern vertically, which extends the horizontal coverage area.

Impact on Coverage

– Higher Gain (e.g., 12 dBi): A higher gain omni antenna will have a flatter, more compressed radiation pattern. This means it can cover a larger horizontal distance but with reduced vertical coverage. This is ideal for large, flat areas like warehouses, open office spaces, or outdoor environments where you need to cover a broad area horizontally.

– Lower Gain (e.g., 2 dBi): A lower gain antenna has a more spherical radiation pattern, providing more vertical coverage but less horizontal reach. This is suitable for multi-story buildings or environments where coverage in all directions (including vertically) is necessary.

How to Choose the Appropriate Gain Level

Selecting the right gain level for your WiFi omni antenna depends on several factors:

1. Environment:

– Indoor Multi-Story Building: Opt for a lower gain antenna (3-5 dBi) to ensure coverage across different floors.

– Large Open Spaces: Choose a higher gain antenna (9-12 dBi) to maximize horizontal reach.

2. Coverage Area:

– Small Area: A lower gain antenna is sufficient and will provide more uniform coverage.

– Large Area: A higher gain antenna will extend the coverage area, but ensure it’s installed at an optimal height to avoid dead zones.

3. Antenna Placement:

– Central Location: If the antenna is centrally located, a lower gain antenna might be more appropriate to provide even coverage.

– Perimeter Location: A higher gain antenna can be beneficial to project the signal across the area more effectively.

4. Interference and Obstacles:

– High Interference: In environments with significant interference, a lower gain antenna might provide a more stable connection as it avoids focusing too much energy in one direction.

– Few Obstacles: Higher gain antennas work well in open areas with minimal obstacles.

5. Application:

– General Use: For most home or small office environments, a medium gain antenna (4-6 dBi) is typically sufficient.

– Specialized Use: For specific applications like long-range point-to-multipoint setups, higher gain antennas are more suitable.

Practical Examples

– Home Use: A 2-4 dBi antenna is usually adequate, providing good coverage across multiple rooms and floors.

– Office Use: A 5-8 dBi antenna can offer better coverage in an office environment, balancing between horizontal and vertical reach.

– Outdoor Use: A 9-15 dBi antenna is ideal for outdoor areas, such as parks or large campuses, where horizontal coverage is more critical.

Conclusion

Choosing the appropriate gain level for a WiFi omni antenna requires a careful assessment of the environment, coverage needs, and specific application. By understanding the trade-offs between horizontal and vertical coverage, you can select an antenna that provides optimal performance for your particular scenario.

Polarization

WiFi omni-directional antennas can have various types of polarization, each with its own characteristics and applications. Here’s a brief overview of the common polarization types:

1. Vertical Polarization:

– Description: The electric field of the radio wave is oriented vertically.

– Applications: Common in many WiFi applications, especially for general-purpose use in environments where devices are typically oriented vertically (e.g., smartphones, laptops).

– Advantages: Good for urban and suburban areas due to the typical orientation of devices.

2. Horizontal Polarization:

– Description: The electric field of the radio wave is oriented horizontally.

– Applications: Used in specific scenarios where horizontal orientation is beneficial, such as certain point-to-point links.

– Advantages: Can reduce interference in environments where most signals are vertically polarized.

3. Slant -45°/+45° Polarization:

– Description: The electric field is oriented at a 45-degree angle, either positive (+45°) or negative (-45°).

– Applications: Often used in MIMO (Multiple Input Multiple Output) systems to improve signal diversity and reduce interference.

– Advantages: Provides better performance in multipath environments by offering two distinct polarization angles, improving signal reliability and throughput.

4. Dual Polarization:

– Description: Combines two orthogonal polarizations, typically vertical and horizontal, or +45° and -45°.

– Applications: Widely used in modern WiFi systems, particularly in MIMO and beamforming technologies to enhance data rates and reliability.

– Advantages: Maximizes the use of available spectrum and improves signal robustness by effectively doubling the communication channels.

Choosing the Right Polarization

– Environment: Consider the physical environment and typical orientation of devices. Vertical polarization is often a safe default for general use.

– Interference: Horizontal or slant polarizations can help mitigate interference in crowded RF environments.

– Performance: For high-performance applications, such as high-speed data transfer or long-range communication, dual polarization is often the best choice due to its ability to support advanced technologies like MIMO.

Conclusion

The choice of polarization for a WiFi omni antenna depends on the specific application and environment. Vertical and horizontal polarizations are straightforward and commonly used, while slant and dual polarizations offer enhanced performance in complex or high-demand scenarios.

VSWR (Voltage Standing Wave Ratio)

The Voltage Standing Wave Ratio (VSWR) is a critical parameter in the performance of WiFi antennas, including omni-directional antennas. It measures the efficiency of power transfer from the transmission line to the antenna. A lower VSWR indicates better impedance matching and, consequently, more efficient power transfer, which is crucial for optimal antenna performance.

Importance of VSWR

1. Efficiency: A low VSWR indicates that most of the power is being radiated by the antenna rather than being reflected back to the transmitter. This improves the overall efficiency of the system.

2. Signal Quality: Better impedance matching (low VSWR) ensures that the signal quality is maintained, reducing the chances of signal loss and degradation.

3. Transmitter Protection: High VSWR can result in significant power being reflected back to the transmitter, potentially causing damage to the transmitter’s output stage.

4. Range and Coverage: Efficient power transfer (low VSWR) ensures that the antenna can cover the intended range and area effectively.

Acceptable VSWR Ranges

– Ideal VSWR: 1:1 (This indicates perfect impedance matching with no reflected power. However, achieving a perfect 1:1 VSWR in practical scenarios is challenging.)

– Good VSWR: ≤ 1.5:1 (This is typically considered very good and indicates minimal power reflection.)

– Acceptable VSWR: ≤ 2:1 (This is generally acceptable for most WiFi applications, indicating that the antenna is performing adequately with some minor reflection.)

– Marginal VSWR: ≤ 3:1 (This may be acceptable in some less critical applications, but performance could be noticeably degraded.)

– Poor VSWR: > 3:1 (This indicates significant power reflection and poor impedance matching, which could lead to inefficient performance and potential damage to the transmitter.)

Practical Considerations

– Antenna Design: Omni-directional WiFi antennas are designed to have a low VSWR over their operating frequency range (typically 2.4 GHz and/or 5 GHz bands).

– Installation: Proper installation and positioning of the antenna can help maintain a low VSWR. Factors such as the length and quality of the coaxial cable, connectors, and environmental conditions can affect VSWR.

– Testing and Tuning: Regular testing using VSWR meters or network analyzers can help in maintaining optimal performance. In some cases, tuning the antenna or the matching network can help achieve a better VSWR.

In summary, maintaining a low VSWR is essential for the efficient performance of WiFi omni-directional antennas. An acceptable VSWR range for most WiFi applications is typically ≤ 2:1, with values closer to 1:1 being ideal. Regular testing and proper installation practices can help achieve and maintain good VSWR levels.

Unroundness

Impact on Performance

1. Radiation Pattern Distortion:

– Ideal Case: An ideal omni-directional antenna radiates uniformly in all horizontal directions, creating a perfect 360-degree horizontal radiation pattern.

– Unroundness Impact: Any deviation from this ideal shape can cause the radiation pattern to become uneven, leading to areas with weaker signal strength and others with stronger signals. This can result in inconsistent coverage and potential dead zones.

2. Signal Strength Variability:

– Ideal Case: Consistent signal strength in all directions at a given distance from the antenna.

– Unroundness Impact: Variations in signal strength can occur, causing fluctuations in data rates and potential connectivity issues for devices located in areas affected by the weaker signal.

3. Interference and Noise:

– Ideal Case: Uniform radiation minimizes interference and noise issues.

– Unroundness Impact: Uneven radiation can lead to increased interference and noise in certain directions, potentially degrading overall network performance.

4. Network Planning Challenges:

– Ideal Case: Easier to design and implement a network with predictable coverage areas.

– Unroundness Impact: More complex network planning and potential need for additional antennas or adjustments to ensure adequate coverage.

How to Measure Unroundness

1. Antenna Pattern Measurement:

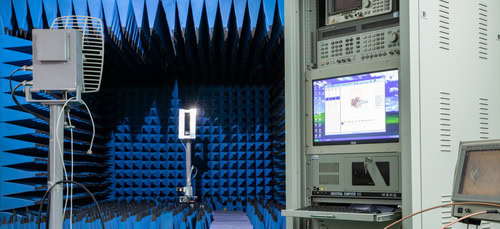

– Anechoic Chamber: Use an anechoic chamber to measure the antenna’s radiation pattern. This controlled environment helps to eliminate external interference and provides accurate measurements.

– Network Analyzer: Connect the antenna to a network analyzer to measure its radiation pattern. Rotate the antenna 360 degrees and record the signal strength at various angles to create a polar plot of the radiation pattern.

– Software Tools: Utilize specialized software to analyze the data and identify deviations from the ideal omni-directional pattern.

2. Field Strength Measurements:

– Field Test: Perform field strength measurements in an open area. Place the antenna at a fixed position and measure the signal strength at various points around the antenna at a consistent distance.

– Mapping: Use a spectrum analyzer or a WiFi signal strength meter to map the signal strength in different directions and create a coverage map.

3. Geometric Measurement:

– Physical Inspection: Inspect the physical structure of the antenna for any visible deformities or irregularities.

– Precision Tools: Use calipers or other precision measurement tools to measure the dimensions of the antenna and check for any deviations from the specified design.

4. Simulation and Modeling:

– Simulation Software: Use electromagnetic simulation software to model the antenna’s design and predict its radiation pattern. Compare the simulated results with the actual measurements to identify any discrepancies.

– Finite Element Analysis (FEA): Utilize FEA to analyze the antenna’s structure and predict its performance based on its geometric properties.

By combining these measurement techniques, you can accurately assess the unroundness of a WiFi omni antenna and its impact on performance, allowing for necessary adjustments or redesigns to optimize network coverage and reliability.

Bandwidth and Efficiency

Bandwidth

1. Data Throughput:

– Wider Bandwidth: Allows for higher data rates as more information can be transmitted over a broader range of frequencies.

– Narrow Bandwidth: Limits the data throughput, reducing the overall performance of the WiFi network.

2. Interference Handling:

– Wider Bandwidth: Can be more susceptible to interference from other devices operating in the same frequency range.

– Narrow Bandwidth: May experience less interference but at the cost of lower data rates.

3. Channel Availability:

– Wider Bandwidth: Provides more channels for communication, which can reduce congestion and improve performance in dense environments.

– Narrow Bandwidth: Fewer channels available, which can lead to congestion and reduced performance.

Efficiency

1. Signal Strength:

– High Efficiency: Results in better signal strength and coverage, leading to more reliable connections and higher data rates.

– Low Efficiency: Poor signal strength, reduced coverage, and potential for dropped connections and lower data rates.

2. Power Consumption:

– High Efficiency: More effective use of power, leading to longer battery life for portable devices.

– Low Efficiency: Higher power consumption, which can reduce battery life and increase operational costs for powered devices.

3. Range and Coverage:

– High Efficiency: Greater range and coverage area, reducing the need for additional access points.

– Low Efficiency: Limited range and coverage, potentially requiring more access points to cover the same area.

How to Measure

Bandwidth

1. Network Analyzer:

– Use a network analyzer to measure the frequency response of the antenna. This will show the range of frequencies over which the antenna can operate effectively.

2. Spectrum Analyzer:

– A spectrum analyzer can help observe the bandwidth by displaying the frequencies over which the antenna radiates or receives signals.

3. Data Throughput Tests:

– Perform data throughput tests using tools like iPerf or speed test applications to measure the actual data rates achievable over the network.

Efficiency

1. Antenna Analyzer:

– Use an antenna analyzer to measure parameters such as Voltage Standing Wave Ratio (VSWR) and Return Loss, which can indicate the efficiency of the antenna.

2. Radiation Pattern Measurement:

– Measure the radiation pattern of the antenna in an anechoic chamber to determine how efficiently it radiates energy in different directions.

3. Link Budget Analysis:

– Perform a link budget analysis to calculate the expected performance of the antenna in terms of signal strength and coverage area.

4. Field Tests:

– Conduct field tests to measure signal strength (RSSI) and quality (SNR) at various distances and locations to assess real-world efficiency.

By understanding and measuring these parameters, you can optimize the performance of WiFi networks using omni-directional antennas.

Isolation

1. Impact on Performance

Isolation between antennas in a Multiple Input Multiple Output (MIMO) system is crucial for optimal performance. Here’s how isolation impacts various performance metrics:

– Signal Interference: Poor isolation leads to mutual coupling between antennas, causing interference. This degrades signal quality and can lead to higher error rates.

– Channel Capacity: MIMO systems rely on multiple independent signal paths. Poor isolation reduces the independence of these paths, thereby reducing the system’s capacity to handle multiple data streams.

– Signal-to-Noise Ratio (SNR): Good isolation helps maintain a high SNR by minimizing the noise and interference from adjacent antennas.

– Throughput: Reduced interference and higher channel capacity directly translate to higher data throughput.

– Radiation Pattern: Poor isolation can distort the radiation pattern of the antennas, affecting coverage and performance.

– Bit Error Rate (BER): Better isolation typically results in a lower BER, contributing to more reliable data transmission.

2. How to Measure Isolation

Isolation is typically measured in terms of S-parameters, specifically S_21 or S_12, which represent the transmission coefficient between two antennas. Here’s a step-by-step guide to measure isolation:

a. Equipment Needed:

– Vector Network Analyzer (VNA)

– Coaxial cables

– Calibration kit for VNA

b. Measurement Steps:

1. Calibration:

– Calibrate the VNA using the calibration kit to ensure accurate measurements. This usually involves performing an open, short, and load calibration.

2. Setup:

– Connect the first antenna to port 1 of the VNA.

– Connect the second antenna to port 2 of the VNA.

3. Measurement:

– Measure the S_21 parameter, which indicates how much power is transmitted from antenna 1 to antenna 2.

– Alternatively, measure S_12 to see the power transmitted from antenna 2 to antenna 1. For reciprocal systems, S_21 = S_12.

4. Interpretation:

– The isolation is typically expressed in dB. Higher negative values indicate better isolation. For instance, -30 dB of isolation is better than -20 dB.

c. Practical Tips:

– Antenna Placement: Ensure that the antennas are placed in their intended positions during the measurement to simulate real-world conditions.

– Environment: Conduct measurements in an environment that mimics the intended operational setting, as reflections and other environmental factors can affect isolation.

– Frequency Range: Measure isolation across the entire frequency range of interest to ensure consistent performance.

d. Additional Considerations:

– Isolation Improvement Techniques:

– Physical Separation: Increasing the distance between antennas.

– Shielding: Using materials to physically shield antennas from each other.

– Antenna Design: Using designs that inherently provide better isolation.

– Decoupling Networks: Employing circuits that help reduce mutual coupling.

By paying careful attention to antenna isolation, you can significantly enhance the performance of a WiFi MIMO system, leading to more reliable and higher-speed wireless communication.

Impedance Matching

Impedance matching is a crucial aspect of ensuring the efficient operation of WiFi omni antennas and their compatibility with other network components. Here’s a step-by-step guide to help you achieve proper impedance matching and maintain compatibility across your network:

1. Identify the Impedance of Your Components

– WiFi Omni Antenna: Typically, WiFi antennas are designed with a standard impedance of 50 ohms.

– Cables: Use coaxial cables with a 50-ohm impedance to match the antenna.

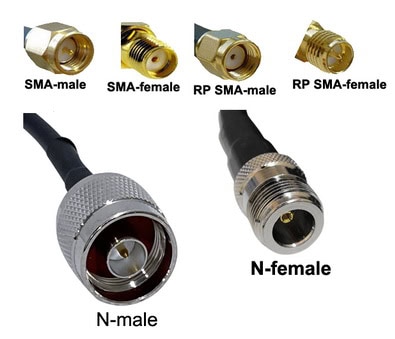

– Connectors and Adapters: Ensure that all connectors (e.g., SMA, N-type) and adapters used in the network also have a 50-ohm impedance.

– Network Devices: Verify that the network devices (e.g., routers, access points) are designed to operate with a 50-ohm impedance.

2. Use Quality Cables and Connectors

– Coaxial Cables: RG-58, LMR195, LMR240 or LMR-400 are common types that have a 50-ohm impedance. Choose cables with low loss for better performance.

– Connectors: Use high-quality connectors to minimize signal loss and reflections. Poor quality connectors can introduce impedance mismatches.

3. Minimize Cable Lengths

– Shorter Cables: Use the shortest possible cable length to reduce signal loss and potential impedance mismatches.

– Cable Management: Properly manage and secure cables to avoid kinks and bends that can affect impedance.

4. Check for Impedance Matching Components

– Impedance Matching Transformers: If there is a need to connect components with different impedances (e.g., 75-ohm to 50-ohm), use impedance matching transformers or baluns.

– Matching Networks: Design or use matching networks (combinations of inductors and capacitors) to match impedances at specific frequencies.

5. Measure and Verify Impedance Matching

– Network Analyzer: Use a network analyzer to measure the impedance of your antenna system. This device can help you identify mismatches and losses.

– SWR Meter: Measure the Standing Wave Ratio (SWR). A SWR close to 1:1 indicates good impedance matching. An SWR higher than 2:1 suggests significant impedance mismatch.

6. Adjust and Fine-Tune

– Antenna Tuning: If your antenna has adjustable elements, fine-tune them to achieve the best impedance match.

– Component Replacement: Replace any mismatched or poor-quality components identified during measurement.

7. Testing and Validation

– Signal Strength Testing: Use WiFi signal strength analysis tools to ensure that the antenna is performing well and that there are no significant losses.

– Network Performance: Monitor the overall network performance to ensure that data rates and connectivity are optimal.

8. Documentation and Maintenance

– Keep Records: Document the specifications of all components used, including their impedance ratings.

– Regular Maintenance: Periodically check and maintain the antenna system to ensure continued impedance matching and optimal performance.

By following these steps, you can ensure that your WiFi omni antenna is properly impedance-matched with other network components, leading to better performance and reliability of your wireless network.

Power Handling Capacity

The maximum power input of a WiFi omni antennas refers to the highest amount of power the antenna can handle without damage or performance degradation. This specification is crucial for several reasons:

1. Performance Optimization: Ensuring the transmitter operates within the antenna’s power handling capacity helps maintain optimal performance. Exceeding this limit can cause signal distortion or loss, reducing the effectiveness of the WiFi network.

2. Safety: Operating an antenna above its maximum power input can lead to overheating and potential damage, posing safety risks such as fire hazards.

3. Regulatory Compliance: Different regions have regulations governing the maximum allowable transmission power for WiFi devices. Adhering to these limits helps avoid legal issues and interference with other wireless services.

4. Equipment Longevity: Staying within the recommended power input range helps extend the life of the antenna and associated equipment, reducing the need for frequent replacements or repairs.

Typical Power Handling Capacities

– Consumer-Grade Antennas: Often designed for lower power levels, typically around 1 to 2 watts.

– Commercial/Industrial Antennas: These can handle higher power levels, sometimes up to 80 watts or more, depending on the specific model and application.

Practical Considerations

– Matching Components: Ensure that the transmitter and antenna are compatible in terms of power handling capacity to avoid mismatches that could lead to inefficiencies or damage.

– Environmental Factors: Consider environmental conditions such as temperature and humidity, which can affect the antenna’s performance and power handling capacity.

– Antenna Gain: Higher gain antennas focus energy more effectively, but they do not necessarily handle more power. The gain and power handling capacity are separate specifications that both need attention.

In summary, the maximum power input of a WiFi omni antenna is a critical specification that impacts performance, safety, regulatory compliance, and equipment longevity. Always refer to the manufacturer’s guidelines to ensure proper usage.

Coverage Area

To determine the coverage area of a WiFi omni antenna and ensure it meets your needs, you can follow these steps:

Determining Your Needs

1. Purpose: Identify the primary purpose of the WiFi network (e.g., home use, office, outdoor event).

2. Area Size: Measure the physical dimensions of the area you want to cover (square footage or square meters).

3. Obstacles: Consider obstacles such as walls, floors, and furniture that can affect signal strength.

4. Devices: Estimate the number and type of devices that will connect to the network.

5. Bandwidth Requirements: Determine the bandwidth needs of your applications (e.g., streaming, gaming, browsing).

6. Interference: Assess potential sources of interference (e.g., other WiFi networks, electronic devices).

Calculating Coverage

1. Antenna Specifications: Obtain the specifications of the WiFi omni antenna, including gain (measured in dBi), frequency band (2.4 GHz, 5 GHz, etc.), and power output.

2. Propagation Characteristics:

– 2.4 GHz Band: Generally provides better range but can be more susceptible to interference.

– 5 GHz Band: Offers higher speeds and less interference but has a shorter range.

3. Free Space Path Loss (FSPL): Calculate the theoretical signal loss over a distance using the FSPL formula:

Where:

d is the distance between the transmitter and receiver (in meters).

f is the frequency of the signal (in Hertz).

c is the speed of light in a vacuum, approximately 3×10^8 meters per second.

This can be simplified to:

The constant 147.55 is derived from the logarithmic conversion and the speed of light.

To use the formula, ensure the distance d is in meters and the frequency f is in Hertz. The result will be in decibels (dB), representing the path loss of the signal as it travels through free space.

4. Link Budget: Calculate the link budget to determine the maximum distance the signal can travel while maintaining a usable signal strength. The link budget is calculated as:

Formula

Link Budget (dB)=Transmit Power (dBm)+Antenna Gain (dBi)−Receiver Sensitivity (dBm)−FSPL (dB)

Transmit Power (Pt​): _dBm

Antenna Gain (Gt​): _ dBi

Receiver Sensitivity (Sr​):_ dBm

Frequency (f): _Hz

5. Practical Considerations:

– Indoor Range: Typically, an omni antenna in the 2.4 GHz band might cover 50-100 meters indoors, while the 5 GHz band might cover 20-50 meters.

– Outdoor Range: Outdoors, the 2.4 GHz band might cover up to 200-300 meters, and the 5 GHz band might cover up to 100-200 meters, depending on environmental factors.

6. Coverage Map: Create a coverage map using the calculated ranges and consider areas of weak signal. Tools like heat mapping software can help visualize coverage.

Example Calculation

Let’s say you have a WiFi omni antenna with the following specs:

– Gain (Gt​) : 10 dBi

– Frequency (f) : 2.4 GHz

– Transmit Power (Pt​) : 30 dBm

– Receiver Sensitivity (Sr​) : -90 dBm

Step-by-Step Solution

1. Calculate Link Budget

Link Budget (dB)=30+10−(−90)=130 dB

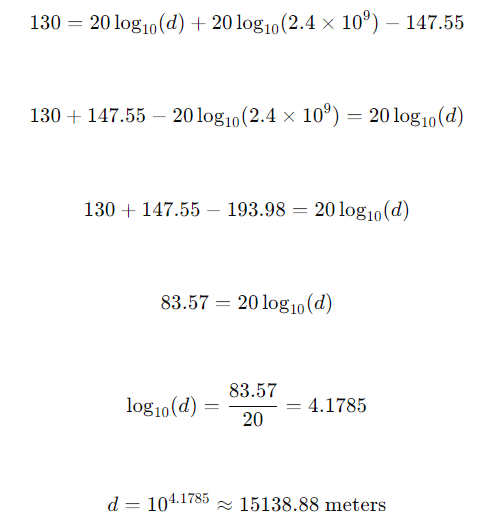

2. Calculate FSPL (dB) in terms of d:

FSPL (dB)=130 dB

3. Rearrange FSPL formula to solve for d :

Conclusion

Maximum Distance (d): ≈ (approx)15138.88 meters

This format provides a structured way to calculate the link budget and determine the maximum distance for signal transmission.

Final Steps

– Deploy and Test: Place the antenna and test the actual coverage area with devices to adjust for real-world conditions.

– Adjustments: If coverage is insufficient, consider additional antennas, range extenders, or higher-gain antennas.

By following these steps, you can estimate and optimize the coverage area of your WiFi omni antenna to meet your specific needs.

Compatibility

When considering WiFi omni antennas, it’s important to understand both router and device compatibility as well as compliance with WiFi standards (IEEE 802.11). Here’s a breakdown of these aspects:

Router and Device Compatibility

1. Connector Type:

– Ensure that the antenna’s connector matches the connector on your router or device. Common types include RP-SMA, SMA, N-type, and TNC connectors.

2. Frequency Band:

– WiFi operates primarily in the 2.4 GHz and 5 GHz bands, with newer standards also utilizing the 6 GHz band. Make sure the omni antenna supports the frequency bands your router uses.

3. Antenna Gain:

– The gain of the antenna, measured in dBi, affects its range and coverage. Higher gain antennas provide longer range but a narrower coverage area. Make sure the gain is appropriate for your needs and compatible with your router’s power output.

4. Router Antenna Ports:

– Check the number of antenna ports on your router. Some routers have multiple ports for multiple-input multiple-output (MIMO) technology. Ensure you have enough compatible antennas if your router supports MIMO.

Compliance with Standards (IEEE 802.11)

WiFi standards are defined by IEEE 802.11 specifications. Here’s a brief overview of common standards:

1. IEEE 802.11a/b/g/n/ac/ax:

– 802.11a: Operates in the 5 GHz band, up to 54 Mbps.

– 802.11b: Operates in the 2.4 GHz band, up to 11 Mbps.

– 802.11g: Operates in the 2.4 GHz band, up to 54 Mbps.

– 802.11n: Operates in both 2.4 GHz and 5 GHz bands (dual-band), up to 600 Mbps with MIMO.

– 802.11ac: Operates in the 5 GHz band, up to several Gbps with MIMO and wider channels.

– 802.11ax (Wi-Fi 6): Operates in 2.4 GHz, 5 GHz, and 6 GHz bands, higher throughput and efficiency, supports OFDMA, MU-MIMO.

– 802.11ax (Wi-Fi 6E): Extends Wi-Fi 6 capabilities to the 6 GHz band, providing additional spectrum for less interference, higher throughput, and lower latency.

– 802.11be (Wi-Fi 7): Expected to operate in 2.4 GHz, 5 GHz, and 6 GHz bands, aims to provide extremely high throughput (up to 30 Gbps), improved efficiency, and lower latency with features like 320 MHz channels, multi-link operation, and enhanced MU-MIMO.

2. Backward Compatibility:

– Newer WiFi standards are generally backward compatible with older ones. For instance, a WiFi 6 (802.11ax) router will work with 802.11n/ac devices, but the performance will be limited to the capabilities of the older standard.

3. Antenna Design and Standards Compliance:

– Ensure the antenna is designed to support the specific WiFi standards your devices use. For example, an antenna designed for 802.11ac should support the 5 GHz band and MIMO technology.

Summary

To ensure compatibility and optimal performance:

– Match the connector type between the antenna and your router/device.

– Verify frequency band support (2.4 GHz, 5 GHz, 6 GHz) of the antenna.

– Check the antenna gain to ensure it meets your range and coverage needs.

– Ensure the antenna supports the WiFi standards (IEEE 802.11a/b/g/n/ac/ax) your devices use.

– Confirm the number of antenna ports on your router and whether you need multiple antennas for MIMO.

By considering these aspects, you can select a WiFi omni antenna that is compatible with your router and devices and adheres to the necessary WiFi standards.

Chapter 4: Mechanical Specifications

Physical Design and Size

When selecting a WiFi omni antenna, the physical design and size play crucial roles in performance, aesthetics, and practical application. Here’s a detailed breakdown:

1. Gain and Length

– Gain: The gain of a WiFi omni-directional antenna is typically measured in dBi (decibels relative to an isotropic radiator). Common gain values for WiFi omni antennas are 2 dBi, 5 dBi, 8 dBi, 10dBi and 12 dBi. Higher gain antennas focus the signal more horizontally, providing longer range but less vertical coverage.

– Size (Length) based on 2.4 GHz SISO:

– 5 dBi: These antennas are generally quite short, often around 30-35 cm (11.8-13.8 inches) for omni fiberglass antennas.

– 8 dBi: These are medium-sized, typically around 60 cm (24 inches) for both rubber duck antennas and omni fiberglass antennas .

– 12 dBi: High-gain antennas can be quite long, often exceeding 100 cm (39 inches) in length for the omni fiberglass antennas.

– 15 dBi: High-gain antennas can be extremely long, often exceeding 140 cm (55 inches) in length for the omni fiberglass antennas with center-fed arrays.

– Size (Length) based on 5 GHz SISO :

– 2 dBi: These antennas are generally quite short, often around 5-10 cm (2-4 inches) for rubber duck antennas.

– 5 dBi: These are medium-sized, typically around 15-20 cm (6-8 inches) for both rubber duck antennas and omni fiberglass antennas .

– 8 dBi: These antennas are longer, usually around 40-50 cm (16-20 inches) for omni fiberglass antennas.

– 12 dBi: High-gain antennas can be quite long, often exceeding 70 cm (28 inches) in length for the omni fiberglass antennas.

The length of the omni antenna can vary significantly depending on whether it is designed for 2.4 GHz, 5 GHz or 6 GHz frequencies. Generally, 5 GHz antennas are much shorter than their 2.4 GHz counterparts for the same gain value because higher frequencies have shorter wavelengths.

2. Coverage Area

– Coverage Pattern: Omni-directional antennas radiate signals in a 360-degree horizontal pattern, providing coverage in all directions around the antenna. However, the vertical coverage can be limited depending on the gain.

– Coverage Range:

– 2 dBi: Suitable for short-range applications, typically covering up to 100 meters (328 feet) in open environments at 2.4 GHz. The range might be slightly less at 5 GHz due to higher frequency attenuation.

– 5 dBi: Offers moderate range, covering approximately 200-300 meters (656-984 feet) in open environments at 2.4 GHz. The range might be around 150-250 meters (492-820 feet) at 5 GHz.

– 8 dBi: Provides a longer range, covering up to 500 meters (1640 feet) or more in open environments at 2.4 GHz. The range might be around 400 meters (1312 feet) at 5 GHz.

– 12 dBi: Designed for maximum range, these can cover distances of 1 km (0.62 miles) or more in open environments at 2.4 GHz. The range might be around 800 meters (2625 feet) at 5 GHz.

Note: The actual coverage area can be significantly affected by environmental factors such as physical obstructions (walls, trees, buildings), interference from other electronic devices, and the specific characteristics of the environment in which the antenna is deployed.

Summary

– Gain: Typically ranges from 2 dBi to 12 dBi.

– Size (Length): Can range from 5 cm (2 inches) for low-gain antennas to over 70 cm (28 inches) for high-gain antennas for 5GHz version. The size may vary  significantly depending on whether the antenna is for 2.4 GHz or 5 GHz or higher frequencies.

– Coverage Area: Varies from around 100 meters (328 feet) for low-gain antennas to over 1 km (0.62 miles) for high-gain antennas in open environments at 2.4 GHz. Coverage is generally slightly less at 5 GHz.

When selecting an omni-directional WiFi antenna, it’s essential to consider the specific requirements of the deployment environment to ensure optimal performance and coverage.

Aesthetic and Practical Considerations

Aesthetic Considerations

– Color and Finish: Choose antennas that match the surroundings. White or neutral colors are often preferred for indoor settings.

– Design: Sleek and modern designs can make antennas less noticeable and more acceptable in visible locations.

– Mounting Options: Wall or ceiling mounts can help integrate the antenna into the environment more seamlessly.

Practical Considerations

– Coverage Area: Assess the size of the area that needs coverage. Larger areas or those with many obstacles may require larger, higher-gain antennas.

– Installation Location: Consider where the antenna will be installed. Indoor antennas can be smaller and more aesthetically pleasing, while outdoor antennas need to be weather-resistant and robust.

– Frequency Band: Ensure the antenna supports the required frequency bands (e.g., 2.4 GHz, 5 GHz) for your WiFi network.

– Durability: For outdoor installations, look for antennas with waterproofing and UV resistance.

– Regulatory Compliance: Ensure the antenna complies with local regulations and standards for wireless communication.

Summary

– Compact Antennas: Best for environments where aesthetics and space are critical, but may compromise on range and performance.

– Larger Antennas: Ideal for scenarios requiring extended range and better performance, but may be less visually appealing and more challenging to install.

Balancing these factors will help you choose the right WiFi omni antenna for your specific needs, ensuring optimal performance while meeting aesthetic and practical requirements.

Radiating Elements

WiFi Omni antennas are designed to provide 360-degree coverage, making them ideal for environments where a broad and even distribution of the signal is required. Here, we’ll discuss the key aspects of radiating elements for these antennas, including frequency, design, materials, and their respective pros and cons.

Frequency

WiFi operates primarily in two frequency bands:

– 2.4 GHz Band: Covers 2.4 GHz to 2.5 GHz.

– 5 GHz Band: Covers 5.150 GHz to 5.825 GHz.

Some modern WiFi systems also operate in the 6 GHz band, known as WiFi 6E and WiFi 7:

– 6 GHz Band: Covers 5.925 GHz to 7.125 GHz.

Design

The design of the radiating elements in an omni antenna can vary, but common types include:

1. Dipole Antennas:

– Structure: Consists of two conductive elements (rods) extending in opposite directions.

– Pros: Simple design, easy to manufacture, and cost-effective.

– Cons: Limited gain, generally around 2.15 dBi.

2. Collinear Antennas:

– Structure: Multiple dipole elements stacked vertically to increase gain, typically using Center-fed or Series-fed symmetrical brass elements for a higher gain. It’s widely used for base stations with high input power.

– Pros: Higher gain compared to a single dipole, typically between 5 dBi to 15 dBi. Higher input power, typically between 10 watts to 50 watts, sometimes even up to 100 watts or more, depending on the specific model and application.

– Cons: More complex design and construction, larger physical size (the length can reach 1.5m) with high cost and more expensive to manufacture.

3. Monopole Antennas:

– Structure: A single rod or wire mounted perpendicularly on a conductive surface.

– Pros: Simple and compact design, easy to integrate.

– Cons: Requires a ground plane, which can limit placement options.

4. PCB Antennas:

– Structure: Antennas etched onto a printed circuit board (PCB).

– Pros: Compact, can be integrated into devices, and is cost-effective for mass production.

– Cons: Limited gain, typically around 2 dBi to 5 dBi.

5. Slotted Waveguide Array Antennas:

– Structure: Comprises a waveguide with slots cut at specific intervals to allow radiation.

– Pros: High gain, dual polarization(horizontal and vertical) , improved signal quality and reliability, better performance in multipath environments, and increased data throughput.

– Cons: More complex design, larger in size , higher cost and expensive to manufacture compared to single polarization antennas.

– Widely Used For: WiFi MIMO 2×2 omni antennas, including WiFi 2.4GHz, 5 GHz, and dual band 2.4/5GHz dual polarization omni antennas. This makes them suitable for improving signal quality and throughput in modern wireless communication systems.

Materials

The choice of materials impacts the performance, cost, and durability of the antenna. Common materials include:

1. Copper:

– Pros: Excellent conductivity, widely available, and relatively inexpensive.

– Cons: Can tarnish over time, requiring protective coatings.

2. Aluminum:

– Pros: Good conductivity, lightweight, and corrosion-resistant.

– Cons: Slightly less conductive than copper, can be more difficult to work with.

3. Brass:

– Pros: Good conductivity, corrosion-resistant, and easy to machine.

– Cons: More expensive than copper and aluminum.

4. PCB Materials (FR4):

– Pros: Cost-effective for mass production, allows for compact designs.

– Cons: Lower conductivity compared to metals, which can affect performance.

Pros and Cons

Pros

– 360-Degree Coverage: Ideal for environments requiring uniform signal distribution.

– Versatility: Suitable for various applications, including indoor and outdoor use.

– Ease of Installation: Generally straightforward to mount and deploy.

Cons

– Limited Range: Typically lower gain compared to directional antennas, which can limit range.

– Interference: Omni-directional patterns can pick up more interference from surrounding signals.

– Size and Aesthetics: Higher-gain designs can be bulky and less visually appealing.

Conclusion

Choosing the right radiating element for a WiFi omni antenna involves balancing factors such as frequency requirements, design complexity, material costs, and performance needs. Each type of radiating element and material offers its own set of advantages and disadvantages, making it crucial to select the one that best fits the specific application and environment.

Radome Material

Choosing the right radome material for a WiFi omni antenna is crucial for ensuring optimal performance and durability. Below are some common materials used for radomes, along with their pros and cons.

1. Fiberglass

Pros:

– Durability: Highly resistant to environmental factors such as UV radiation, moisture, and temperature fluctuations.

– Strength: Offers excellent mechanical strength, making it suitable for harsh conditions.

– Transparency: Minimal signal loss, allowing effective transmission and reception of WiFi signals.

Cons:

– Weight: Heavier compared to other materials like plastic.

– Cost: Generally more expensive than plastic alternatives.

2. Polycarbonate

Pros:

– Impact Resistance: Highly resistant to impacts, making it ideal for environments where physical damage is a concern.

– Clarity: Excellent signal transparency, ensuring minimal signal loss.

– UV Resistance: Good resistance to UV radiation, preventing degradation over time.

Cons:

– Cost: More expensive than some other plastic materials.

– Chemical Resistance: Less resistant to certain chemicals compared to fiberglass.

3. ABS Plastic

Pros:

– Cost-effective: Generally cheaper than fiberglass and polycarbonate.

– Lightweight: Easier to handle and install due to its low weight.

– Moldability: Can be easily molded into various shapes, offering design flexibility.

Cons:

– Durability: Less durable compared to fiberglass and polycarbonate, especially in harsh environmental conditions.

– UV Resistance: Prone to degradation when exposed to prolonged UV radiation.

4. PTFE (Teflon)

Pros:

– Low Signal Loss: Excellent electrical properties, resulting in minimal signal attenuation.

– Chemical Resistance: Highly resistant to chemicals, making it suitable for industrial environments.

– Temperature Range: Can withstand extreme temperatures without degrading.

Cons:

– Cost: Significantly more expensive than other materials.

– Flexibility: Less flexible, making it harder to mold into complex shapes.

5. PVC (Polyvinyl Chloride)

Pros:

– Cost-effective: One of the cheapest options available.

– Ease of Manufacturing: Easy to mold and manufacture in various shapes and sizes.

– Chemical Resistance: Good resistance to many chemicals.

Cons:

– Durability: Less durable compared to fiberglass and polycarbonate.

– Signal Loss: Higher signal attenuation compared to other materials like PTFE.

Conclusion

The choice of radome material for a WiFi omni antenna depends on various factors including cost, environmental conditions, and performance requirements. Fiberglass and polycarbonate offer excellent durability and signal transparency but come at a higher cost. ABS plastic and PVC are more cost-effective but may not provide the same level of durability and performance. PTFE offers the best electrical properties but is the most expensive option.

Connector Type

There are several different types of connectors that can be used with a WiFi omni antenna. Some of the most common connector types include:

Certainly! Here is the updated list with the right-angle version for the N-type connector and without the asterisks:

1. SMA (SubMiniature version A): A common type of coaxial RF connector used for antennas.

2. RP-SMA (Reverse Polarity SMA): Similar to SMA but with reversed gender of the connector’s contact pin.

3. N-Type: A larger connector often used for outdoor antennas due to its durability and weather resistance.

– N-Type Right Angle: A version of the N-Type connector that allows for connections in tighter spaces by angling the connector.

4. TNC (Threaded Neill–Concelman): Similar to BNC connectors but with threading for a more secure connection.

5. BNC (Bayonet Neill–Concelman): Less common for WiFi antennas, but still used in some applications.

When selecting an antenna, ensure that the connector type matches the connector on your WiFi device or access point. If they don’t match, adapters are available to convert between different types of connectors.

Mounting Options and Brackets

There are several mounting options and mounting brackets available for WiFi omni antennas.

Mounting Options

1. Wall Mount: This is a simple and common mounting option where the antenna is attached to a wall using screws or bolts. The antenna is usually mounted vertically to ensure optimal signal coverage.

2. Pole Mount: A pole mount is used when you want to mount the omni antenna on a pole or mast. The antenna is attached to the pole using a mounting bracket specifically designed for pole mounting. This option is often used for outdoor installations.

3. Ceiling Mount: If you want to mount the omni antenna on the ceiling, you can use a ceiling mount. The antenna is attached to the mount and then secured to the ceiling using screws or bolts. This option is commonly used in indoor installations such as offices or warehouses.

4. Magnetic Mount: A magnetic mount is used when you want to temporarily mount the omni antenna on a metal surface such as a vehicle roof or a metal pole. The antenna has a magnetic base that sticks to the metal surface, providing a secure and temporary mounting option.

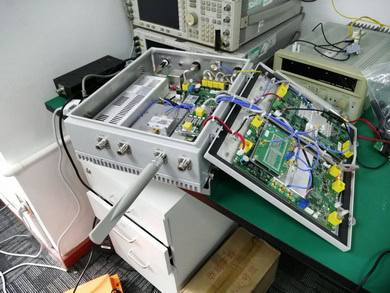

5. Direct Mount: In this option, the omni antenna is directly connected to the radio or wireless device without the need for additional mounting hardware. This is often done using a connector that attaches the antenna directly to the device’s antenna port. This option is ideal for portable or compact setups where space is limited and a direct connection is feasible.

Mounting Brackets

1. L-Bracket

– A simple L-shaped bracket that allows for wall or pole mounting.

– Provides a stable and secure hold for the antenna.

2. Adjustable Tilt Bracket

– Allows for angle adjustments to optimize the antenna’s position.

– Useful for fine-tuning signal direction and coverage.

3. Universal Mounting Bracket

– Compatible with various mounting surfaces including walls, poles, and ceilings.

– Versatile and easy to install.

4. Pole Mounting Kit

– Includes U-bolts, clamps, and brackets specifically designed for pole mounting.

– Ensures a secure fit and stability in outdoor environments.

5. Magnetic Base

– Features a strong magnet for easy attachment to metal surfaces.

– Ideal for temporary setups or mobile applications.

6. Suction Cup Mount

– Uses suction cups to attach the antenna to smooth surfaces like windows.

– Provides flexibility in positioning and easy removal.

By selecting the appropriate mounting option and bracket, you can ensure optimal performance and coverage for your WiFi Omni Antenna.

Chapter 5: Installation and Deployment Strategies

Pre-installation Planning

Conducting Site Surveys

A thorough site survey is essential for the successful deployment of WiFi omni antennas. The survey helps in understanding the environment, identifying potential obstacles, and determining the best locations for antennas to ensure optimal coverage and performance.

1. Understand the Environment:

– Indoor: Consider walls, floors, furniture, and other obstructions that can affect signal propagation.

– Outdoor: Take into account trees, buildings, weather conditions, and other physical barriers.

2. Identify Coverage Areas:

– Define the specific areas where WiFi coverage is required.

– Map out high-density areas where more bandwidth might be needed.

3. Measure Signal Strength:

– Use tools like WiFi analyzers to measure the existing signal strength in different areas.

– Identify dead zones and areas with weak signals.

4. Evaluate Interference:

– Identify sources of interference such as other wireless devices, microwave ovens, and Bluetooth devices.

– Use spectrum analyzers to detect and measure interference levels.

5. Document Findings:

– Create detailed maps and notes of the site, indicating signal strengths, interference sources, and physical obstacles.

– Use software tools to create a visual representation of the site survey data.

Identifying Optimal Antenna Locations

Choosing the right locations for WiFi omni antennas is crucial for maximizing coverage and performance. Consider the following factors when identifying optimal locations:

1. Centralized Placement:

– Position antennas centrally within the coverage area to ensure even distribution of the signal.

– Avoid placing antennas at the edges or corners of the coverage area.

2. Height and Elevation:

– Place antennas at a height that allows for unobstructed signal propagation.

– For indoor environments, ceiling-mounted antennas can provide better coverage.

– In outdoor environments, consider mounting antennas on rooftops or poles.

3. Minimize Obstructions:

– Avoid placing antennas near large metal objects, thick walls, or other materials that can block or reflect signals.

– Ensure a clear line of sight between the antenna and the coverage area.

4. Consider Antenna Gain:

– Higher-gain antennas provide longer range but narrower coverage areas, while lower-gain antennas offer wider coverage but shorter range.

– Choose the appropriate antenna gain based on the size and shape of the coverage area.

5. Power and Cabling:

– Ensure that power sources and network cabling are accessible at the chosen antenna locations.

– Plan for any necessary power over Ethernet (PoE) requirements.

6. Redundancy and Overlap:

– Plan for overlapping coverage areas to ensure seamless connectivity and redundancy.

– Avoid excessive overlap, which can lead to interference and reduced performance.

7. Future Expansion:

– Consider potential future expansion and scalability when selecting antenna locations.

– Ensure that the network can be easily expanded or reconfigured if needed.

8. Compliance and Regulations:

– Ensure that the installation complies with local regulations and guidelines.

– Obtain any necessary permits or approvals before installation.

Final Steps

1. Simulation and Validation:

– Use simulation tools to validate the planned antenna locations and coverage.

– Adjust the plan based on simulation results to optimize performance.

2.Pilot Testing:

– Conduct a pilot test with a small number of antennas to validate the site survey and placement plan.

– Make any necessary adjustments based on the pilot test results.

3. Documentation:

– Document the final antenna placement plan, including maps, configurations, and any special considerations.

– Keep records for future reference and maintenance.

By following these steps, you can ensure that your WiFi omni antenna installation provides optimal coverage, performance, and reliability.

Installation Process

1. Preparation

– Tools Required

– Screwdrivers (Phillips and flathead)

– Adjustable wrench

– Drill (if mounting on a wall or pole)

– Coaxial cable

– Cable ties

– Ladder (if required)

– Materials

– WiFi Omni Antenna

– Mounting brackets (usually provided with the antenna)

– Screws and anchors (for wall mounting)

– Weatherproofing materials (if installing outdoors)

2. Location Selection

– Choose a central location to maximize coverage.

– Ensure the area is free from large metal objects and other obstructions.

– If installing outdoors, select a high and clear spot, like the roof or a tall pole.

3. Mount the Antenna

– Wall Mounting:

1. Mark the mounting holes on the wall using the bracket as a template.

2. Drill holes at the marked spots and insert anchors.

3. Attach the bracket to the wall using screws.

4. Secure the antenna to the bracket.

– Pole Mounting:

1. Attach the mounting bracket to the pole using U-bolts or hose clamps.

2. Secure the antenna to the bracket.

– Ceiling Mounting (Indoor):

1. Mark the mounting points on the ceiling.

2. Drill holes and insert anchors.

3. Attach the bracket to the ceiling and secure the antenna.

4. Connect the Coaxial Cable

– Connect one end of the coaxial cable to the antenna.

– Route the cable to the WiFi router or access point.

– Secure the cable along the route using cable ties to prevent it from hanging loosely.

5. Weatherproofing (Outdoor Installation)

– Apply weatherproofing tape or sealant to the coaxial cable connections to prevent water ingress.

– Ensure the antenna is mounted securely to withstand wind and other weather conditions.

6. Testing and Adjustment

– Power on your WiFi router or access point.

– Use a WiFi analyzer tool to check the signal strength and coverage.

– Adjust the antenna orientation if necessary to optimize the signal.

Common Pitfalls and How to Avoid Them

1. Poor Location Choice

– Pitfall: Installing the antenna in a location with many obstructions or interference.

– Solution: Choose a central, high, and clear location. Avoid areas with thick walls, metal objects, and electronic devices that can cause interference.

2. Improper Mounting

– Pitfall: Using the wrong mounting hardware or not securing the antenna properly.

– Solution: Use the provided mounting brackets and follow the manufacturer’s instructions. Ensure all screws and bolts are tightened securely.

3. Cable Issues

– Pitfall: Using low-quality coaxial cables or not securing them properly.

– Solution: Use high-quality, low-loss coaxial cables designed for WiFi antennas. Secure the cables with cable ties and avoid sharp bends.

4. Weatherproofing Neglect

– Pitfall: Failing to weatherproof outdoor installations, leading to water damage.

– Solution: Always weatherproof all external connections and ensure the antenna is mounted securely to withstand weather conditions.

5. Ignoring Manufacturer’s Instructions

– Pitfall: Not following the specific instructions provided by the antenna manufacturer.

– Solution: Read and follow the manufacturer’s installation guide carefully. Each antenna may have unique requirements.

6. Signal Overlap and Interference

– Pitfall: Installing multiple antennas too close to each other, causing signal overlap and interference.

– Solution: Maintain adequate distance between multiple antennas and ensure they are on non-overlapping channels.

By following this guide and being mindful of common pitfalls, you can effectively install your WiFi Omni antenna and ensure optimal performance.

Post-installation Optimization

Optimizing WiFi omni antennas post-installation involves several steps to ensure optimal signal strength and even coverage. Here’s a comprehensive guide to signal testing and adjustments:

1. Initial Assessment

– Survey the Area: Conduct a thorough survey of the area where WiFi coverage is required. Note any potential obstacles or sources of interference (e.g., walls, metal objects, electronic devices).

– Determine Coverage Zones: Identify key areas that need strong signal coverage and areas with less critical needs.

2. Signal Testing

– Use Signal Testing Tools: Employ tools such as WiFi analyzers (e.g., NetSpot, Ekahau, or inSSIDer) to measure signal strength (RSSI), noise levels, and interference.

– Test at Different Locations: Take readings at various points within the coverage area, including corners, edges, and areas with known obstacles.

– Identify Dead Zones: Mark areas with weak or no signal to address them later.

3. Adjusting Antenna Placement

– Optimal Height: Place antennas at an optimal height, usually above head level, to minimize obstructions and maximize coverage.

– Central Positioning: Position antennas centrally within the coverage area to ensure even distribution of the signal.

– Avoid Obstructions: Ensure antennas are not blocked by large objects or walls.

4. Fine-Tuning Antenna Orientation

– Vertical Alignment: Ensure omni antennas are vertically aligned for consistent 360-degree horizontal coverage.

– Angle Adjustments: If antennas are adjustable, experiment with slight angle changes to improve coverage in specific areas.

5. Channel Selection

– Avoid Overlapping Channels: Use a WiFi analyzer to identify the least congested channels. Avoid channels used by neighboring networks to reduce interference.

– Channel Width: Set appropriate channel width (20 MHz for 2.4 GHz, 40 MHz or 80 MHz for 5 GHz) based on the environment and interference levels.

6. Power Settings

– Adjust Transmit Power: Modify the transmit power settings on your WiFi router or access point. Higher power levels increase range but may cause interference, while lower power levels can reduce interference but may create dead zones.

– Balance Coverage and Interference: Aim for a balance between adequate coverage and minimal interference.

7. Band Steering

– Enable Band Steering: If supported, enable band steering to encourage dual-band devices to use the 5 GHz band, which is less crowded and offers higher speeds.

8. Additional Access Points

– Add More Access Points: In larger or more complex environments, additional access points may be necessary to ensure even coverage.

– Mesh Network: Consider a mesh WiFi system for seamless coverage over a larger area.

9. Post-Adjustment Testing

– Re-test Signal Strength: After making adjustments, re-test the signal strength and coverage to ensure improvements.

– User Feedback: Gather feedback from users within the coverage area to identify any lingering issues.

10. Documentation

– Document Changes: Keep a record of all adjustments made, including antenna positions, power settings, and channel selections.

– Create a Coverage Map: Use the data collected to create a coverage map, highlighting strong and weak signal areas.

11. Ongoing Monitoring

– Regular Monitoring: Periodically re-test the network to ensure consistent performance, especially after any changes to the environment (e.g., new walls, furniture).

– Firmware Updates: Keep your WiFi equipment firmware up to date to benefit from performance improvements and security patches.

By following these steps, you can optimize the performance of your WiFi omni antennas, ensuring even coverage and reliable connectivity throughout the desired area.

Chapter 6: Troubleshooting Common Issues

Weak Signal

1. Interference:

– Cause: Other electronic devices, such as microwaves, cordless phones, and Bluetooth devices, can interfere with WiFi signals.

– Solution: Change the WiFi channel on your router to one that is less congested. Use dual-band routers to switch between 2.4 GHz and 5 GHz frequencies.

2. Physical Obstructions:

– Cause: Walls, floors, and furniture can block or weaken WiFi signals.

– Solution: Place the router in a central, elevated location with minimal obstructions. Use WiFi extenders or mesh networks to cover larger areas.

3. Distance:

– Cause: The farther you are from the router, the weaker the signal will be.

– Solution: Move closer to the router or use a WiFi extender to boost the signal in distant areas.

4. Router Placement:

– Cause: Placing the router in a corner, near metal objects, or in a closed cabinet can weaken the signal.

– Solution: Position the router in an open, central location away from metal objects and other electronic devices.

5. Antenna Orientation:

– Cause: Incorrect orientation of the router’s antennas can affect signal strength.

– Solution: Adjust the antennas to different angles to find the optimal orientation. For example, if the router has two antennas, one can be vertical and the other horizontal.

6. Outdated Equipment:

– Cause: Older routers and devices may not support the latest WiFi standards, leading to weaker signals.

– Solution: Upgrade to a newer router that supports the latest WiFi standards (e.g., WiFi 6).

7. Firmware Issues:

– Cause: Outdated firmware can cause performance issues.

– Solution: Regularly update the router’s firmware to ensure it is running optimally.

8. Network Congestion:

– Cause: Multiple devices connected to the same network can cause congestion and weaken the signal.

– Solution: Limit the number of devices connected to the network or use Quality of Service (QoS) settings to prioritize critical devices.

9. Environmental Factors:

– Cause: Weather conditions and electromagnetic interference from nearby power lines or transformers can affect signal strength.

– Solution: While you can’t control the weather, you can minimize other sources of electromagnetic interference by moving the router away from such sources.

10. ISP Issues:

– Cause: Problems with your Internet Service Provider (ISP) can also result in weak WiFi signals.

– Solution: Contact your ISP to check for any issues on their end and consider upgrading your internet plan if necessary.

Summary

By identifying the root cause of weak WiFi signals and applying the appropriate solutions, you can significantly improve your WiFi performance. Whether it involves repositioning your router, updating firmware, or reducing interference, these steps can help ensure a stronger and more reliable WiFi connection.

Interference

Identifying Sources of Interference

1. Other WiFi Networks: Nearby WiFi networks operating on the same or overlapping channels can cause interference.

2. Bluetooth Devices: Bluetooth operates in the same 2.4 GHz band as WiFi, leading to potential interference.

3. Microwave Ovens: These also operate around the 2.4 GHz frequency and can cause significant interference when in use.

4. Cordless Phones: Some older models operate in the 2.4 GHz or 5 GHz bands, causing interference.

5. Baby Monitors: Similar to cordless phones, they can operate in the same frequency bands as WiFi.

6. Wireless Video Cameras: These can also operate in the 2.4 GHz or 5 GHz bands.

7. Physical Obstructions: Walls, floors, and other physical barriers can attenuate WiFi signals, leading to weaker and more interference-prone connections.

8. Electronic Devices: Devices like wireless speakers, some gaming controllers, and even certain lighting systems can cause interference.

9. Neighboring Non-WiFi Devices: Devices like Zigbee-based smart home devices can also operate in the 2.4 GHz band.

10. Environmental Factors: Weather conditions and large bodies of water can sometimes impact WiFi signal strength and stability.

Mitigation Strategies

1. Channel Selection: Use a WiFi analyzer tool to identify the least congested channel and manually set your WiFi to use that channel.

2. Dual-Band Routers: Use dual-band routers to switch between 2.4 GHz and 5 GHz bands, depending on which is less congested.

3. Channel Width Adjustment: Narrowing the channel width (e.g., from 40 MHz to 20 MHz) can reduce interference and improve performance.

4. Positioning of Router: Place your router in a central location, elevated, and away from potential sources of interference.

5. Firmware Updates: Ensure that your router’s firmware is up to date to benefit from the latest performance improvements and bug fixes.

6. Use of Wired Connections: Where possible, use wired Ethernet connections to reduce wireless congestion.

7. Quality of Service (QoS): Configure QoS settings to prioritize important traffic, such as video streaming or VoIP.

8. Power Settings: Adjust the transmit power of your WiFi router to optimize coverage without causing unnecessary interference.

9. Interference Mitigation Features: Some modern routers come with built-in interference mitigation features; ensure these are enabled.

10. Shielding: Use shielding materials or enclosures for devices known to cause interference.

11. Frequency Planning: For environments with multiple access points, plan frequencies to minimize overlap and interference.

12. Upgrade Equipment: Consider upgrading to WiFi 6 (802.11ax) routers and devices, which are designed to handle interference better and provide more efficient spectrum usage.

13. Use Mesh Networks: Deploy a mesh network to ensure better coverage and reduce dead zones, which can help mitigate interference-related issues.

By understanding and addressing these sources of interference, you can significantly improve the performance and reliability of your WiFi network.

Hardware Issues

Diagnosing and replacing faulty components in WiFi omni antennas involves a systematic approach to identify and rectify issues. Here’s a step-by-step guide to help you through the process:

Diagnosing Faulty Components

1. Initial Assessment

– Visual Inspection: Check for obvious signs of physical damage, corrosion, or wear on the antenna and its connectors.

– Connection Check: Ensure that all cables and connectors are securely attached and in good condition.

2. Signal Testing

– Signal Strength: Use a WiFi analyzer tool or app to measure the signal strength and identify any weak spots.

– Interference Check: Determine if there is any interference from other electronic devices or networks.

– Range Testing: Test the range of the antenna to see if it matches the expected performance.

3. Hardware Testing

– Multimeter Test: Use a multimeter to check for continuity and proper voltage levels in the antenna circuitry.

– SWR Meter: Use a Standing Wave Ratio (SWR) meter to test the efficiency of the antenna. A high SWR indicates a problem with the antenna or its connections.

4. Component Isolation

– Swap Components: If possible, swap out components like cables, connectors, and even the antenna itself with known good ones to isolate the faulty part.

– Check for Firmware/Software Issues: Ensure that the router or access point firmware is up to date and properly configured.

Replacing Faulty Components

1. Identify the Faulty Component

– Based on the diagnostic tests, identify which component (antenna, cable, connector, etc.) is faulty.

2. Procure Replacement Parts

– Ensure you get the correct replacement parts that match the specifications of the faulty components.

3. Replacement Process

– Disconnect Power: Always disconnect the power before replacing any hardware components.

– Remove Faulty Component: Carefully remove the faulty component, taking note of how it is connected and secured.

– Install New Component: Install the new component, ensuring all connections are secure and properly aligned.

4. Post-Replacement Testing

– Reconnect Power: Reconnect the power and turn on the device.

– Signal Testing: Repeat the signal strength and range tests to ensure the issue is resolved.

– Performance Verification: Verify that the WiFi performance has returned to expected levels.

Common Issues and Solutions

1. Antenna Damage

– Issue: Physical damage or wear.

– Solution: Replace the antenna with a new one of the same type and specifications.

2. Connector Problems

– Issue: Loose, corroded, or damaged connectors.

– Solution: Clean or replace connectors, ensuring a secure and corrosion-free connection.

3. Cable Issues

– Issue: Damaged or degraded cables.

– Solution: Replace with high-quality, low-loss coaxial cables suitable for WiFi frequencies.

4. Interference

– Issue: Signal interference from other devices.

– Solution: Change the WiFi channel, relocate the antenna, or use shielding techniques to minimize interference.

5. Improper Installation

– Issue: Incorrect placement or orientation of the antenna.

– Solution: Follow manufacturer guidelines for optimal placement and orientation.

By following these steps, you can systematically diagnose and replace faulty components in WiFi omni antennas, ensuring reliable and efficient network performance.

Chapter 7: Case Studies and Real-world Examples

Home Network Improvement

Background

Client: Jane Doe

Location: Suburban two-story house with a basement

Initial Setup: ISP-provided modem/router combo located in the living room on the first floor.

Primary Issues:

1. Weak WiFi signal in the basement and second-floor bedrooms.

2. Frequent disconnections and slow internet speed in areas far from the router.

3. Need for stable connection for work-from-home setup and multiple streaming devices.

Objectives

1. Achieve strong and consistent WiFi coverage throughout the house, including the basement.

2. Improve overall internet speed and reduce disconnections.

3. Ensure a stable connection for multiple devices simultaneously.

Solution: WiFi Omni Antennas

Why WiFi Omni Antennas?

Omni-directional antennas are designed to provide 360-degree signal coverage, making them ideal for environments where the WiFi signal needs to be distributed evenly in all directions. This makes them a perfect fit for a multi-story home like Jane’s.

Implementation Plan

Step 1: Site Survey and Analysis

1. Signal Strength Mapping: Use a WiFi analyzer tool to map the current signal strength throughout the house.

2. Identify Dead Zones: Pinpoint areas with weak or no signal.

3. Determine Interference Sources: Identify any potential sources of interference (e.g., thick walls, electronic devices).

Step 2: Equipment Selection

1. Router Upgrade: Replace the ISP-provided modem/router combo with a high-performance router that supports external antennas.

2. Omni Antennas: Select high-gain omni-directional antennas compatible with the new router. For this case, 9dBi antennas were chosen for their balance between range and signal strength.

3. Additional Access Points: Consider adding WiFi extenders or mesh nodes if necessary.

Step 3: Installation

1. Router Placement: Relocate the new router to a more central location on the first floor to maximize coverage.

2. Antenna Installation Attach the omni-directional antennas to the new router, ensuring they are positioned vertically for optimal coverage.

3. Access Points: Install additional access points or mesh nodes in the basement and second-floor bedrooms if required.

Step 4: Configuration

1. Router Settings: Configure the router settings for optimal performance, including channel selection and signal power adjustment.

2. Network Security: Set up WPA3 encryption for enhanced security.

3. Device Prioritization: Use Quality of Service (QoS) settings to prioritize bandwidth for critical devices.

Results

Pre-Implementation

– Living Room (Router Location): -35 dBm (Excellent)

– Basement: -80 dBm (Poor)

– Second-Floor Bedrooms: -75 dBm (Poor)

– Average Speed: 20 Mbps (in weak signal areas)

ost-Implementation

– Living Room (Router Location): -30 dBm (Excellent)

– Basement: -60 dBm (Good)

– Second-Floor Bedrooms: -55 dBm (Good)

– Average Speed: 75 Mbps (throughout the house)

Benefits

1. Improved Coverage: Strong and consistent WiFi signal throughout the house, including previously weak areas.

2. Increased Speed: Significant improvement in internet speed, providing a better experience for streaming, gaming, and work-from-home activities.

3. Stable Connection: Reduced disconnections and latency, ensuring a reliable connection for all devices.

Conclusion

By upgrading to a high-performance router with high-gain omni-directional antennas and strategically placing additional access points, Jane was able to achieve comprehensive WiFi coverage throughout her home. This case study demonstrates how the right equipment and proper implementation can significantly enhance home network performance.

Recommendations

1. Regular Updates: Ensure the router firmware is regularly updated to maintain security and performance.

2. Periodic Assessments: Conduct periodic network assessments to identify any new dead zones or interference sources.

3. Future-Proofing: Consider future-proofing the network by investing in WiFi 6 technology for even better performance and capacity.

Final Thoughts

Investing in the right WiFi equipment and optimizing its placement can transform a struggling home network into a robust and reliable system. Omni-directional antennas, in particular, offer a simple yet effective solution for achieving widespread coverage in multi-story homes.

Enterprise Network Deployment

Background

A multinational corporation, XYZ Corp, with headquarters spanning multiple floors in a high-rise building, faced challenges with its existing WiFi network. The existing setup used directional antennas, which resulted in inconsistent coverage, dead zones, and frequent connectivity issues. The IT department decided to revamp the wireless network by deploying WiFi omni antennas to achieve better coverage and reliability.

Objectives

1. Improve WiFi Coverage: Ensure consistent WiFi signal strength across all floors and corners of the building.

2. Enhance Connectivity: Reduce dead zones and improve connectivity for mobile and stationary devices.

3. Scalability: Implement a solution that can easily scale with the company’s growth.

4. Cost-Effectiveness: Optimize the cost of deployment and maintenance.

Solution: WiFi Omni Antennas

Omni antennas radiate signals in all directions, making them ideal for environments where coverage in multiple directions is necessary. The IT team chose high-gain WiFi omni antennas to replace the existing directional antennas.

Deployment Plan

1. Site Survey and Analysis:

– Conducted a comprehensive site survey to map out the existing network’s coverage and identify dead zones.

– Used WiFi analysis tools to measure signal strength, interference, and channel utilization.

– Analyzed the building’s layout, including walls, floors, and other potential obstacles that could affect signal propagation.

2. Antenna Selection:

– Selected high-gain omni antennas with a 360-degree horizontal radiation pattern.

– Choose antennas with dual-band (2.4 GHz and 5 GHz) capabilities to support a wide range of devices.

– Ensured the antennas were compatible with the existing WiFi access points (APs).

3. Strategic Placement:

– Placed omni antennas in central locations on each floor to maximize coverage.

– Installed antennas at optimal heights to reduce signal obstructions from furniture and partitions.

– Ensured overlapping coverage areas to provide seamless connectivity and reduce dead zones.

4. Network Configuration:

– Configure the WiFi network to optimize channel selection and minimize interference.

– Implemented load balancing to ensure even distribution of devices across access points.

– Enabled advanced security protocols (WPA3) to protect the network from unauthorized access.

5. Testing and Optimization:

– Conducted post-deployment testing to measure signal strength, coverage, and connectivity.

– Collected feedback from employees regarding their WiFi experience.

– Made adjustments to antenna placement and network settings based on test results and feedback.

Results

1. Improved Coverage:

– Achieved consistent WiFi coverage across all floors, eliminating previous dead zones.

– Employees reported a significant improvement in signal strength and reliability.

2. Enhanced Connectivity:

– Reduced connectivity issues, leading to fewer complaints and support tickets.

– Mobile devices experienced seamless transitions between access points without drops in connection.

3. Scalability:

– The new setup allowed for easy addition of more access points and antennas as the company grew.

– The modular nature of the solution ensured future scalability without significant overhauls.

4. Cost-Effectiveness:

– Reduced the need for additional hardware by optimizing the placement and configuration of omni antennas.

– Lowered maintenance costs due to the stability and reliability of the new network.

Conclusion

The deployment of WiFi omni antennas at XYZ Corp successfully addressed the challenges of inconsistent coverage and connectivity issues. The strategic use of high-gain omni antennas provided robust, scalable, and cost-effective wireless network coverage across the enterprise. This case study demonstrates the effectiveness of omni antennas in enhancing enterprise WiFi networks, ensuring reliable and seamless connectivity for all users.

Outdoor and Public WiFi Solutions

In today’s connected world, providing robust and reliable WiFi coverage in outdoor and public areas is critical. This case study explores the deployment of WiFi omni antennas to enhance outdoor and public WiFi solutions, focusing on a mid-sized city park that aimed to offer free, high-speed internet access to its visitors.

Background

The city park, a popular destination for both locals and tourists, spans over 50 acres and includes recreational areas, picnic spots, walking trails, and event spaces. The city council decided to implement a free public WiFi network to improve visitor experience, support local events, and promote digital inclusion.

Objectives

1. Provide comprehensive WiFi coverage across the entire park.

2. Ensure high-speed internet access even during peak usage times.

3. Implement a solution that is weather-resistant and durable.

4. Maintain aesthetic appeal and minimize visual impact.

Challenges

1. Large Area Coverage: The park’s vast area required a solution that could cover long distances without significant signal degradation.

2. High User Density: During events, the park could host thousands of visitors, leading to high network demand.

3. Environmental Factors: The outdoor environment posed challenges such as weather conditions, foliage, and varying terrain.

4. Aesthetic Considerations: The solution needed to blend seamlessly with the park’s natural landscape.

Solution: WiFi Omni Antennas

Omni-directional antennas were chosen for their ability to radiate signals in all directions, providing 360-degree coverage. This made them ideal for covering large, open areas like the city park.

Key Features of the Selected WiFi Omni Antennas

1. 360-Degree Coverage: Ensures broad and uniform signal distribution.

2. High Gain: Enhances signal strength and range, crucial for large areas.

3. Weatherproof Design: Resistant to rain, heat, and other harsh weather conditions.

4. Durability: Built to withstand outdoor elements, ensuring long-term reliability.

5. Low Visual Impact: Sleek design that blends into the environment without being obtrusive.

Deployment Strategy

1. Site Survey and Planning: Conducted a comprehensive site survey to identify optimal locations for antenna placement, considering factors such as user density, terrain, and existing structures.

2. Antenna Placement:

– Central Locations: Placed high-gain omni antennas at central locations to maximize coverage.

– Strategic Points: Additional antennas were installed at strategic points like entrances, picnic areas, and event spaces to ensure consistent coverage.

3. Network Infrastructure: High-capacity access points were connected to the omni antennas, and a robust backhaul network was established to handle high data traffic.

4. Power Supply: Solar-powered units were used in remote areas to ensure uninterrupted power supply without extensive cabling.

5. Aesthetic Integration: Antennas were mounted on existing structures like light poles and disguised as part of the park’s infrastructure to maintain visual appeal.

Results

1. Enhanced Coverage: The omni antennas provided seamless WiFi coverage across the entire park, with strong signal strength even in previously hard-to-reach areas.

2. High-Speed Access: The network supported high-speed internet access, even during peak times, with minimal latency and downtime.

3. User Satisfaction: Visitor feedback was overwhelmingly positive, with many praising the reliability and speed of the WiFi network.

4. Event Support: The park successfully hosted several large events with thousands of attendees, all of whom had access to stable internet connectivity.

5. Durability: The weatherproof and durable design of the antennas ensured continuous operation without maintenance issues, even during adverse weather conditions.

Conclusion

The deployment of WiFi omni antennas in the city park proved to be a successful solution for providing comprehensive and reliable outdoor WiFi coverage. The project met all its objectives, enhancing visitor experience and supporting the city’s digital inclusion goals. This case study highlights the effectiveness of omni-directional antennas in addressing the unique challenges of outdoor and public WiFi deployments.

Conclusion

Summary of Key Points

1. Understanding Omni-directional Antennas

– Definition: Omni-directional antennas radiate signals uniformly in all directions, making them ideal for broad coverage areas.

– Common Uses: Suitable for environments requiring 360-degree coverage, such as homes, offices, and public spaces.

2. Frequency Bands

– 2.4 GHz vs. 5 GHz:

– 2.4 GHz: Longer range, better penetration through walls, but more susceptible to interference.

– 5 GHz: Higher speeds, less interference, but shorter range and poorer penetration through obstacles.

– Dual-band Antennas: Support both 2.4 GHz and 5 GHz, offering flexibility and better performance.

3. Gain and Coverage Area

– Antenna Gain (dBi): Higher gain antennas (e.g., 8-12 dBi) provide longer range but narrower vertical coverage. Lower gain antennas (e.g., 2-5 dBi) offer wider vertical coverage but shorter range.

– Application: Choose higher gain for outdoor or large open spaces and lower gain for indoor environments with multiple floors.

4. Antenna Type and Size

– Form Factor: Includes compact, wall-mounted, ceiling-mounted, and mast-mounted antennas.

– Installation Environment: Consider physical space, aesthetic preferences, and mounting options.

5. Connector Types

– Common Connectors: SMA, RP-SMA, N-type, and others.

– Compatibility: Ensure the antenna connector matches your router or access point.

6. Build Quality and Durability

– Indoor vs. Outdoor Use: Outdoor antennas need to be weatherproof and durable to withstand elements.

– Material: UV-resistant materials and robust construction for longevity.

7. Regulatory Compliance

– Certifications: Check for compliance with local regulations and standards (e.g., FCC, CE).

– Legal Restrictions: Be aware of any legal restrictions on antenna gain and installation height.

8. Price and Brand Reputation

– Budget Considerations: Balance between cost and performance.

– Brand Reliability: Opt for reputable brands known for quality and customer support.

Recap of Important Considerations

– Frequency Band: Choose based on your need for range vs. speed and interference levels.

– Gain: Match the gain to your specific coverage needs.

– Form Factor and Size: Ensure it fits your installation environment and aesthetic preferences.

– Connector Compatibility: Verify the antenna’s connector matches your device.

– Durability: Select antennas built for the intended environment (indoor or outdoor).

– Regulatory Compliance: Make sure the antenna meets local regulations.

– Cost vs. Quality: Find a balance that meets your budget while ensuring reliability.

By considering these factors, you can select the right WiFi omni-directional antenna to optimize your wireless network performance.

Final Recommendations

Choosing the right WiFi omni antenna can significantly enhance your wireless network’s performance. Here are some key factors and recommendations to help you make the best choice for your needs:

1. Frequency Band

– 2.4 GHz: Offers better range but lower data rates and more interference from common household devices like microwaves and cordless phones.

– 5 GHz: Provides higher data rates and less interference but has a shorter range compared to 2.4 GHz.

– 6 GHz: Offers even higher data rates and significantly less interference due to less congestion but has the shortest range among the three bands.

– Dual-band: Supports both 2.4 GHz and 5 GHz, offering flexibility and improved performance by allowing devices to switch between bands based on their needs.

– Triple-band: Supports 2.4 GHz, 5 GHz, and 6 GHz, providing the highest flexibility, improved performance, and the ability to handle more devices with less interference.

2. Gain

– Low Gain (2-4 dBi): Suitable for short-range, wide coverage areas, like small homes or offices.

– Medium Gain (5-8 dBi): Ideal for medium-range applications, balancing range and coverage.

– High Gain (9-12 dBi): Best for long-range, narrow coverage areas, like large open spaces.

3. Environment

– Indoor: Look for antennas with aesthetic designs and easy installation.

– Outdoor: Ensure the antenna is weatherproof and durable, with a mounting bracket.

4. Connector Type

– SMA, RP-SMA, N-Type: Match the connector type with your router or access point. Adapters can be used if necessary.

5. Mounting Options

– Ceiling/Wall Mount: For indoor use, providing better coverage and aesthetic appeal.

– Pole/Surface Mount: For outdoor use, ensuring stability and optimal positioning.

6. Brand and Quality

– Reputable Brands: Consider brands like TP-Link, Netgear, Cisco, and Ubiquiti for reliable performance.

– Reviews and Ratings: Check user reviews and expert ratings for real-world performance insights.

7. Budget

– Cost vs. Performance: Higher-priced antennas often offer better performance and durability, but there are budget-friendly options that provide good value.

Recommendations

For Small Homes or Offices:

– TP-Link TL-ANT2408CL: 2.4 GHz, 8 dBi, indoor use, RP-SMA connector.

– Netgear ANT24501B: Dual-band, 5 dBi, indoor use, SMA connector

– Sanny Telecom STO24G5NF: 2.4 GHz, 5 dBi, indoor use, Copper element, N-type connector.

For Medium to Large Homes or Offices:

– Ubiquiti Networks AMO-2G10: 2.4 GHz, 10 dBi, outdoor use, N-Type connector.

Sanny Telecom STO24G5NF: 2.4 GHz, 5 dBi, indoor use, Copper element, N-type connector.

For Large Open Spaces or Outdoor Areas:

– TP-Link TL-ANT2415D: 2.4 GHz, 15 dBi, outdoor use, N-Type connector.

– Ubiquiti Networks AMO-5G10: 5 GHz, 10 dBi, outdoor use, N-Type connector.

– Sanny Telecom, STO24G15-PRO: 2.4 GHz, 15 dBi, SISO, outdoor use, N-Type connector.

– Sanny Telecom, STO24G15M2: 2.4 GHz, 15 dBi, MIMO, outdoor use, N-Type connector.

-Sanny Telecom, STO24G15M2: 2.4 GHz, 15 dBi, MIMO, outdoor use, N-Type connector.

– Sanny Telecom, STO5G13M2-PRO: 5 GHz, 13 dBi, MIMO, outdoor use, N-Type connector.

– Sanny Telecom, STO6G17HVM4: 5 GHz, 13 dBi, MIMO, outdoor use, N-Type connector.

Conclusion

Selecting the right WiFi omni antenna involves balancing your specific needs with the antenna’s features and performance. By considering factors like frequency band, gain, environment, connector type, mounting options, brand, and budget, you can make an informed decision that enhances your wireless network’s coverage and reliability.

Future Trends

Emerging technologies and trends in WiFi antennas, particularly WiFi omni antennas, are driven by the increasing demand for faster, more reliable, and more extensive wireless connectivity. Here are some of the key trends and emerging technologies in this field:

1. WiFi 6E and WiFi 7

WiFi 6E (802.11ax) and WiFi 7(802.11be) are the latest standards in wireless networking, offering significant improvements over previous generations. These standards provide higher data rates, increased capacity, improved performance in dense environments, and reduced latency. WiFi 6E and WiFi 7 extends these benefits into the 6 GHz band, providing additional spectrum and reducing congestion.

2. Beamforming

Beamforming is a technology that focuses the WiFi signal towards a specific device rather than broadcasting it in all directions. This can significantly improve the range and performance of WiFi networks. Modern omni antennas are increasingly incorporating beamforming capabilities to enhance signal strength and coverage.

3. Mesh Networking

Mesh networking involves multiple WiFi nodes working together to provide seamless coverage over a larger area. Omni antennas are integral to mesh systems, as they help distribute the signal evenly across the network. This trend is particularly relevant for smart homes and large commercial spaces.

4. MIMO (Multiple Input, Multiple Output)

MIMO technology uses multiple antennas to send and receive more data simultaneously. This increases throughput and reliability. Advanced MIMO configurations, such as MU-MIMO (Multi-User MIMO), allow multiple devices to be served simultaneously, improving network efficiency.

5. Smart Antennas

Smart antennas can dynamically adjust their radiation patterns based on the environment and user location. This adaptability helps in optimizing performance and reducing interference. Machine learning and AI are being integrated into smart antennas to make real-time adjustments more effective.

6. Integration with IoT

The Internet of Things (IoT) is driving the need for more robust and versatile WiFi networks. Omni antennas are being designed to support a wide range of IoT devices, ensuring reliable connectivity for smart home devices, industrial sensors, and more.

7. 5G and WiFi Convergence

The convergence of 5G and WiFi networks is a growing trend. Hybrid networks that leverage the strengths of both technologies can provide superior coverage and performance. Omni antennas that can operate across both WiFi and 5G frequencies are becoming more common.

8. Higher Frequency Bands

The use of higher frequency bands, such as millimeter waves (mmWave), is being explored to provide ultra-fast WiFi connections. These higher frequencies can offer greater bandwidth but typically have shorter range and higher susceptibility to obstacles. Advanced omni antenna designs are being developed to address these challenges.

9. Sustainability and Energy Efficiency

There is a growing emphasis on making WiFi technology more energy-efficient and sustainable. This includes designing antennas that consume less power and use environmentally friendly materials.

10. Advanced Materials and Manufacturing Techniques

The development of new materials and manufacturing techniques is enabling the production of more efficient and compact antennas. This includes the use of metamaterials, which can manipulate electromagnetic waves in novel ways, and 3D printing for custom antenna designs.

11. Security Enhancements

As WiFi networks become more critical to daily life and business operations, security is a paramount concern. Antenna technology is evolving to support advanced security features, such as WPA3 encryption and secure boot processes.

12. Integration with Augmented Reality (AR) and Virtual Reality (VR)

AR and VR applications require high-bandwidth, low-latency connections. Omni antennas are being optimized to handle the demanding requirements of these applications, ensuring smooth and immersive experiences.

Conclusion

The future of WiFi omni antennas is bright, with numerous technological advancements and trends shaping their evolution. As the demand for better wireless connectivity continues to grow, these innovations will play a crucial role in meeting the needs of consumers and businesses alike.

Appendices

Glossary of Terms

1. Antenna Gain: A measure of how much power is transmitted in the direction of peak radiation to that of an isotropic source. It is usually measured in dBi (decibels relative to an isotropic antenna).

2. dBi (Decibels relative to isotropic): A unit of measurement that describes the gain of an antenna relative to an isotropic antenna, which radiates power uniformly in all directions.

3. Frequency Band: The range of frequencies over which an antenna can effectively operate. Common WiFi frequency bands are 2.4 GHz and 5 GHz.

4. Omni-directional Antenna: An antenna that radiates signal uniformly in all directions in one plane, typically horizontal.

5. Polarization: The orientation of the electric field of the radio wave with respect to the Earth’s surface. Common types include vertical, horizontal, and circular polarization.

6. VSWR (Voltage Standing Wave Ratio): A measure of how efficiently radio-frequency power is transmitted from a power source, through a transmission line, into a load (e.g., an antenna). A lower VSWR indicates better efficiency.

7. Beamwidth: The angular width of the main lobe of the antenna radiation pattern, usually measured between the half-power (-3 dB) points. It indicates the coverage area of the antenna.

8. Impedance: The resistance of the antenna to the flow of electrical current, typically measured in Ohms (Ω). Standard impedance for WiFi antennas is 50 Ohms.

9. Radiation Pattern: A graphical representation of the radiation properties of an antenna as a function of space coordinates. It shows how the antenna radiates power in different directions.

10. Connector Type: The type of connector used to attach the antenna to the device. Common types include SMA, RP-SMA, N-Type, and BNC.

11. Bandwidth: The range of frequencies over which the antenna can operate effectively. It is often measured in MHz or GHz.

12. SWR (Standing Wave Ratio): Similar to VSWR, it is a measure of impedance matching of the antenna to the transmission line. A lower SWR means better matching and less signal reflection.

13. Front-to-Back Ratio: The ratio of the power radiated in the desired direction to the power radiated in the opposite direction. Higher ratios indicate better directionality and less interference from behind.

14. Effective Isotropic Radiated Power (EIRP): The total power radiated by the antenna, taking into account the gain and the input power. It is often regulated to avoid interference with other devices.

15. MIMO (Multiple Input Multiple Output): A technology that uses multiple antennas at both the transmitter and receiver to improve communication performance.

16. Elevation Plane: The vertical plane that is perpendicular to the ground, often used to describe the vertical radiation pattern of an antenna.

17. Azimuth Plane: The horizontal plane parallel to the ground, used to describe the horizontal radiation pattern of an antenna.

18. Line of Sight (LoS): A clear path between the transmitting and receiving antennas without any obstructions that could cause signal degradation.

19. Propagation: The behavior of radio waves as they travel through the atmosphere. Different factors such as reflection, refraction, and diffraction can affect propagation.

20. Fresnel Zone: An elliptical area around the line of sight between the transmitter and receiver that must be clear of obstacles to avoid signal degradation.

21. Decibel (dB): A logarithmic unit used to express the ratio of two values, often power or intensity. It is commonly used to describe gains and losses in signal strength.

22. Link Budget: The calculation of all gains and losses from the transmitter, through the medium (free space, cables, etc.), to the receiver in a communication system.

23. Noise Figure: A measure of the degradation of the signal-to-noise ratio caused by components in the signal chain, such as amplifiers or antennas.

24. SNR (Signal-to-Noise Ratio): The ratio of the power of the signal to the power of background noise, usually measured in decibels (dB).

25. Path Loss: The reduction in power density of a signal as it propagates through space. It is influenced by distance, obstacles, and frequency.

This glossary should help you understand the technical terms used in the guide to choosing the right WiFi omni-directional antennas.

FAQ

1. What is a WiFi Omni Antenna?

– A WiFi Omni Antenna is a type of antenna that radiates signal equally in all directions, providing 360-degree coverage.

2. How does an Omni Antenna differ from a Directional Antenna?

– Unlike directional antennas, which focus signal in a specific direction, omni antennas distribute the signal uniformly in all directions.

3. What are the typical applications for WiFi Omni Antennas?

– They are commonly used in environments where wide-area coverage is needed, such as homes, offices, outdoor public spaces, and warehouses.

4. What frequency bands do WiFi Omni Antennas support?

– Most WiFi Omni Antennas support the 2.4 GHz and 5 GHz frequency bands.

5. What is the range of a typical WiFi Omni Antenna?

– The range can vary, but typically it can cover anywhere from 100 to 300 meters, depending on the environment and antenna specifications.

6. Do WiFi Omni Antennas work with all routers?

– They generally work with most routers, but it’s important to check compatibility with your specific router model.

7. Can I use a WiFi Omni Antenna indoors and outdoors?

– Yes, there are models designed for both indoor and outdoor use. Outdoor models are typically weatherproof.

8. How do I install a WiFi Omni Antenna?

– Installation involves connecting the antenna to your router or access point and mounting it in a location that maximizes coverage.

9. What is the gain of an Omni Antenna and why is it important?

– Gain, measured in dBi, indicates the antenna’s ability to focus signal. Higher gain can mean better performance but may also result in a more focused beam pattern.

10. Does a higher gain always mean better performance?

– Not necessarily; higher gain can provide longer range but may also reduce coverage in vertical directions, which could be less ideal for multi-story buildings.

11. Can I use multiple Omni Antennas to improve coverage?

– Yes, using multiple antennas can help to cover larger areas more effectively.

12. Do WiFi Omni Antennas require power?

– No, they do not require a separate power source as they are passive devices.

13. What materials are WiFi Omni Antennas made of?

– They are typically made of durable materials like fiberglass, plastic, and metal to withstand various environmental conditions.

14. How do environmental factors affect WiFi Omni Antenna performance?

– Factors such as walls, metal objects, and other obstructions can reduce signal strength and coverage area.

15. Can I use a WiFi Omni Antenna for both sending and receiving signals?

– Yes, omni antennas are designed to both transmit and receive WiFi signals.

16. What is the difference between indoor and outdoor WiFi Omni Antennas?

– Outdoor antennas are built to withstand weather conditions, while indoor antennas are typically smaller and less rugged.

17. Are there any health risks associated with WiFi Omni Antennas?

– WiFi signals are generally considered safe and are regulated by health and safety standards.

18. How do I choose the right WiFi Omni Antenna for my needs?

– Consider factors like coverage area, frequency band, gain, and whether you need indoor or outdoor installation.

19. Can WiFi Omni Antennas be used with other wireless devices?

– Yes, they can be used with any device that operates on the same frequency bands, such as access points and wireless cameras.

20. What maintenance is required for WiFi Omni Antennas?

– Minimal maintenance is needed, but it’s good practice to periodically check for physical damage and ensure connections are secure.

Additional Resources

Choosing the right WiFi omni-directional antenna can be a complex task, but there are numerous resources available to help you make an informed decision. Here are some links to further reading and tools that can assist you:

Articles and Guides

1. Understanding Antenna Basics

– [Antenna Theory: A Beginner’s Guide](https://www.antenna-theory.com/basics/main.php)

2. WiFi Antenna Types and Uses

– [Choosing the Right WiFi Antenna for your Application](https://www.l-com.com/images/downloadables/white-papers/Selecting-the-Right-Wifi-Antenna-for-your-application.pdf)

3. Technical Specifications and Performance

– [Antenna Gain](https://www.antenna-theory.com/basics/gain.php)

– [Antenna Polarization Explained](https://www.antenna-theory.com/basics/polarization.php)

Online Tools

1. Antenna Calculators

– [Antenna Gain Calculator](https://www.ahsystems.com/EMC-formulas-equations/Antenna-Factor-Gain-calculation.php)

– [WiFi Coverage Calculator](https://www.l-com.com/resources/wireless-calculators)

2. Signal Strength and Coverage Mapping

– [Ekahau HeatMapper](https://www.ekahau.com/products/heatmapper/overview/)

– [NetSpot WiFi Site Survey](https://www.netspotapp.com/)

Forums and Communities

1. Reddit: Home Networking

– [r/HomeNetworking](https://www.reddit.com/r/HomeNetworking/)

2. Wireless Forums

– [Wireless Joint](https://wirelessjoint.com/)

– [Broadband Reports: Wireless Networking](https://www.dslreports.com/forum/wlan)

3. Professional Networking Communities

– [Cisco Community](https://community.cisco.com/)

– [Aruba Networks Community](https://community.arubanetworks.com/)

Manufacturer Resources

Ubiquiti Networks

– [Ubiquiti Community](https://community.ui.com/)

Books

1. “Antenna Theory: Analysis and Design” by Constantine A. Balanis

– [Amazon Link](https://www.amazon.com/Antenna-Theory-Analysis-Design-Balanis/dp/1118642066/)

2. “Wireless Communications: Principles and Practice” by Theodore S. Rappaport

– [Amazon Link](https://www.amazon.com/Wireless-Communications-Principles-Practice-Rappaport/dp/0133755363/)

3. “The ARRL Antenna Book for Radio Communications” by ARRL Inc.

– [Amazon Link](https://www.amazon.com/ARRL-Antenna-Book-Radio-Communications/dp/1625950829/)

These resources should provide you with a comprehensive understanding and the necessary tools to choose the right WiFi omni-directional antenna for your needs. Happy researching!

Contact Information

If you need further assistance, you can contact Andrew Chen, an antenna expert with 15 years’ experience and know-how from Sanny Telecom. His contact information is as follows:

– Website: www.sannytelecom.com

– Email: andrew@sannytelecom.com

– WhatsApp: +86 189 3430 8461
