In today’s hyper-connected world, a robust and reliable WiFi connection is no longer a luxury—it’s a necessity. Whether you’re a small business owner striving to provide seamless internet access for your customers, a tech enthusiast looking to optimize your home network, or an IT professional tasked with ensuring uninterrupted connectivity across a sprawling campus, the right WiFi antenna can make all the difference.

However, with a myriad of options available, each boasting unique features and specifications, choosing the perfect WiFi antenna can be a daunting task. This ultimate guide aims to demystify the complexities of WiFi antennas, offering you comprehensive insights and practical advice to help you make an informed decision. From understanding the basics of antenna types and frequencies to evaluating key performance metrics and installation tips, we’ve got you covered. Dive in and discover how to elevate your WiFi experience by selecting the right antenna tailored to your specific needs.

Purpose of the Guide

The purpose of this article is to provide readers with comprehensive and practical information to help them make informed decisions when selecting WiFi antennas. The guide aims to:

1. Educate on Basics: Explain the fundamental concepts of WiFi antennas, including types, frequencies, and how they work.

2. Identify Needs: Help readers assess their specific requirements based on factors such as range, environment, and usage.

3. Compare Options: Present a detailed comparison of different WiFi antennas, including their advantages and disadvantages.

4. Technical Insights: Offer technical insights into specifications like gain, polarization, and radiation patterns.

5. Installation Tips: Provide practical advice on the installation and positioning of WiFi antennas for optimal performance.

6. Troubleshooting: Address common issues and troubleshooting tips to ensure readers can maintain a strong and reliable WiFi connection.

7. Future-Proofing: Discuss considerations for future-proofing their WiFi setup to accommodate evolving technology and increased demand.

By the end of the article, readers should feel confident in their ability to choose the right WiFi antenna for their specific needs, ensuring better connectivity and performance in their wireless networks.

Importance of choosing the right WiFi antenna

Choosing the right WiFi antenna is crucial for several reasons, and it can significantly impact the performance and reliability of your wireless network. Here are some key points highlighting the importance:

1. Coverage Area

Directional vs. Omni-directional: Directional antennas focus the signal in a specific direction, which can extend the range in that direction, making them ideal for point-to-point connections or covering long distances. Omni-directional antennas, on the other hand, distribute the signal evenly in all directions, suitable for covering a broad area around the antenna.

Building Layout: The physical layout of your space (e.g., walls, floors, and obstacles) can affect signal propagation. Choosing the right antenna type can help mitigate these issues and ensure better coverage.

2. Signal Strength and Quality

Gain: Antenna gain, measured in dBi, indicates how well the antenna can amplify the signal. Higher gain antennas can transmit and receive signals over longer distances, but they may also be more directional.

Interference: The right antenna can help minimize interference from other electronic devices, neighboring networks, and physical obstructions, leading to a clearer and more reliable connection.

3. Application Requirements

Indoor vs. Outdoor: Indoor antennas are designed to work within buildings, while outdoor antennas are built to withstand weather conditions. Using the appropriate type ensures durability and optimal performance.

Specific Use Cases: Different applications (e.g., home networking, enterprise environments, remote monitoring) have unique requirements for bandwidth, range, and reliability. The right antenna can meet these specific needs effectively.

4. Network Performance

Throughput: A well-chosen antenna can improve data throughput by providing a stronger and more stable connection, which is essential for high-bandwidth activities like streaming, gaming, and video conferencing.

Latency: Reduced signal degradation and interference lead to lower latency, enhancing the overall user experience, especially for real-time applications.

5. Cost Efficiency

Optimal Investment: Investing in the right antenna can eliminate the need for additional equipment like signal boosters or extra access points, saving money in the long run.

Energy Efficiency: Efficient antennas can reduce the power demand on your WiFi equipment, potentially lowering energy costs.

6. Future-Proofing

Scalability: Choosing an antenna that can handle higher data rates and larger coverage areas can help future-proof your network against growing demands and technological advancements.

7. Regulatory Compliance

Legal Requirements: Different regions have regulations regarding the use of WiFi equipment and antennas. The right antenna ensures compliance with these regulations, avoiding legal issues and potential fines.

8. Ease of Installation and Maintenance

Compatibility: Ensuring that the antenna is compatible with your existing WiFi equipment simplifies installation and reduces the likelihood of technical issues.

Durability: High-quality antennas designed for specific environments (e.g., weather-resistant for outdoor use) require less maintenance and have a longer lifespan.

Conclusion

Selecting the appropriate WiFi antenna is a critical decision that affects the efficiency, reliability, and overall performance of your wireless network. By considering factors such as coverage area, signal strength, application requirements, and regulatory compliance, you can ensure that your network meets current demands and is prepared for future growth.

Overview of what will be covered

Choosing the right WiFi antenna can significantly impact the performance and range of your wireless network. Here’s a comprehensive overview of the key factors and considerations to help you make an informed decision:

1. Types of WiFi Antennas:

Omnidirectional Antennas: Radiate signal in all directions, ideal for general coverage in homes or offices.

Directional Antennas: Focus signal in a specific direction, suitable for long-distance communication or point-to-point links.

2. Frequency Bands:

2.4 GHz: Longer range but more prone to interference from other devices (e.g., microwaves, Bluetooth).

5 GHz: Shorter range but less interference and higher data rates, suitable for high-density environments.

6 GHz: Offers even higher data rates and lower latency compared to 5 GHz, with more available channels and less interference, but has an even shorter range and is more affected by obstacles like walls. Suitable for ultra-high-density environments and applications requiring very high throughput.

3. Gain and Coverage:

Antenna Gain: Measured in dBi, higher gain antennas can transmit and receive signals over longer distances but have a narrower beamwidth.

Coverage Area: Consider the shape and size of the area you need to cover. Omnidirectional antennas are good for circular coverage, while directional antennas are better for specific areas.

4. Polarization:

Vertical Polarization: Common for most WiFi devices; signal propagates vertically.

Horizontal Polarization: Less common but can be used to reduce interference.

Dual Polarization: Combines both vertical and horizontal, improving performance and reducing multipath interference.

5. Physical and Environmental Considerations:

Indoor vs. Outdoor Use: Ensure the antenna is suitable for the environment, with outdoor antennas being weatherproof.

Mounting Options: Consider how and where you will mount the antenna (e.g., wall, pole, ceiling).

Antenna Size: Larger antennas may offer better performance but can be more challenging to install.

6. Compatibility:

Connector Types: Ensure the antenna connector type (e.g., SMA, RP-SMA, N-type) matches your router or access point.

Device Compatibility: Check if your WiFi device supports external antennas and the specific frequency bands.

7. Regulatory Compliance:

Local Regulations: Be aware of the regulations regarding antenna use and power limits in your country or region.

8. Use Cases:

Home/Office Coverage: Omnidirectional antennas for general coverage.

Point-to-Point Links: Directional antennas for connecting two locations.

Outdoor Coverage: Sector or directional antennas for targeted outdoor areas.

9. Budget:

Cost vs. Performance: Higher gain and specialized antennas may be more expensive but provide better performance for specific applications.

By considering these factors, you can select the right WiFi antenna to meet your specific needs and optimize your wireless network’s performance.

Understanding WiFi Antennas

Basic concepts of WiFi technology

WiFi, short for Wireless Fidelity, is a technology that allows electronic devices to connect to a wireless local area network (WLAN), typically using the 2.4 GHz and 5 GHz radio frequency bands. Here are some basic concepts related to WiFi technology:

1. SSID (Service Set Identifier)

Definition: The SSID is the name of a WiFi network that devices use to identify and connect to it.

Usage: When you search for available networks on your device, the list of names you see represents the SSIDs of nearby WiFi networks.

2. Access Point (AP)

Definition: A device that allows wireless devices to connect to a wired network using WiFi.

Function: It acts as a bridge between the wireless devices and the wired network, often integrated into routers.

3. Router

Definition: A device that forwards data packets between computer networks.

Function: In a WiFi network, a router typically includes an access point to provide wireless connectivity and routing capabilities to connect to the internet.

4. Frequency Bands

2.4 GHz Band: Offers wider coverage but is more prone to interference and congestion.

5 GHz Band: Provides faster speeds and less interference but has a shorter range compared to the 2.4 GHz band.

6 GHz Band: The latest addition, offering even faster speeds and lower latency than the 5 GHz band, with less interference due to fewer devices currently operating in this spectrum. However, it has an even shorter range compared to the 5 GHz band.

5. Channels

Definition: Subdivisions of the frequency bands that help reduce interference by separating different networks.

Usage: In the 2.4 GHz band, common channels are 1, 6, and 11 to avoid overlap. In the 5 GHz band, there are more channels available, reducing the likelihood of interference.

6. WiFi Standards

802.11a: Operates in the 5 GHz band. It was one of the earlier standards and provided faster speeds compared to 802.11b but had a shorter range.

802.11b: Operates in the 2.4 GHz band. It was widely adopted due to its longer range and compatibility but offered lower speeds.

802.11g: Also operates in the 2.4 GHz band. It provided higher speeds than 802.11b while maintaining compatibility with it.

802.11n: Operates in both 2.4 GHz and 5 GHz bands (dual-band). It significantly improved speed and range using multiple-input multiple-output (MIMO) technology.

802.11ac: Operates in the 5 GHz band and offers even higher speeds than 802.11n by utilizing wider channels, more spatial streams, and advanced modulation techniques.

802.11ax (Wi-Fi 6): Operates in both 2.4 GHz and 5 GHz bands (dual-band) and is designed to improve efficiency and performance in high-density environments. It introduces technologies like Orthogonal Frequency Division Multiple Access (OFDMA) and Target Wake Time (TWT) for better power efficiency.

Wi-Fi 6E: An extension of Wi-Fi 6 (802.11ax) that operates in the 6 GHz band, in addition to the 2.4 GHz and 5 GHz bands. Wi-Fi 6E provides additional spectrum for less congestion and higher performance, especially in areas with many devices.

802.11be (Wi-Fi 7): Expected to operate in 2.4 GHz, 5 GHz, and 6 GHz bands (tri-band). It aims to provide even higher speeds, lower latency, and improved reliability. Key features include 320 MHz channel width, 16 spatial streams, and multi-link operation.

Each new standard builds on the previous ones, addressing the growing demand for faster, more reliable, and more efficient wireless communication. Wi-Fi 6E and WiFi 7, in particular, takes advantage of the newly available 6 GHz spectrum to offer even greater performance and capacity.

7. Encryption and Security

WEP (Wired Equivalent Privacy): An older, less secure encryption method.

WPA (WiFi Protected Access): Improved security over WEP, with WPA2 being the most commonly used secure method.

WPA3: The latest security protocol, offering enhanced security features.

8. MAC Address

Definition: A unique identifier assigned to network interfaces for communications on the physical network segment.

Usage: Used to control access to the network, often through MAC address filtering.

9. Signal Strength and Range

Factors Affecting Signal: Physical obstructions (walls, floors), interference from other electronic devices, and distance from the access point.

Range Extenders: Devices that amplify the WiFi signal to cover larger areas.

10. Bandwidth and Throughput

Bandwidth: The maximum rate of data transfer across a given path.

Throughput: The actual rate of successful data transfer, which can be affected by network congestion, signal strength, and interference.

11. Latency

Definition: The time it takes for data to travel from the source to the destination.

Impact: Lower latency is crucial for real-time applications like video conferencing and online gaming.

12. MIMO (Multiple Input Multiple Output)

Definition: A technology that uses multiple antennas to transmit and receive more data simultaneously.

Benefit: Increases the capacity and performance of the WiFi network.

13. Beamforming

Definition: A technique that focuses the WiFi signal directly at a device rather than broadcasting it in all directions.

Benefit: Improves signal strength and quality for the targeted device.

Understanding these basic concepts will help you make informed decisions about setting up, using, and troubleshooting WiFi networks.

Role of antennas in WiFi networks

Antennas play a crucial role in WiFi networks by enabling the transmission and reception of wireless signals between devices. Here are some key roles and functions of antennas in WiFi networks:

1. Signal Transmission and Reception: Antennas convert electrical signals from the WiFi router or access point into electromagnetic waves and vice versa. This allows wireless communication between devices such as laptops, smartphones, tablets, and other WiFi-enabled gadgets.

2. Coverage Area: The design and placement of antennas significantly impact the coverage area of a WiFi network. Different types of antennas (e.g., omni-directional, directional) can be used to optimize coverage in various environments. Omni-directional antennas provide 360-degree coverage, making them suitable for general use, while directional antennas focus the signal in a specific direction, which can be useful for long-range communication or overcoming obstacles.

3. Signal Strength and Quality: Antennas influence the strength and quality of the WiFi signal. High-gain antennas can amplify the signal, potentially extending the range and improving connectivity. Proper antenna placement can also help minimize interference and signal degradation, leading to more stable and faster connections.

4. Frequency Bands: WiFi networks operate on different frequency bands, primarily 2.4 GHz,  GHz and 6 GHz. Some antennas are designed to work specifically with one of these bands, while others are dual-band or tri-band, capable of handling multiple frequencies. This flexibility helps in managing network traffic and reducing congestion.

5. MIMO Technology: Modern WiFi standards (such as WiFi 5 and WiFi 6) use Multiple Input Multiple Output (MIMO) technology, which involves multiple antennas to transmit and receive more data simultaneously. This increases the network’s capacity and improves overall performance, especially in environments with many connected devices.

6. Beamforming: Beamforming is a technique that directs the WiFi signal towards specific devices rather than broadcasting it in all directions. This targeted approach enhances signal strength and quality for the intended device, leading to faster and more reliable connections. Beamforming relies on advanced antenna arrays to dynamically adjust the signal direction.

7. Interference Mitigation: Antennas can help mitigate interference from other wireless devices and networks. By carefully designing and positioning antennas, it’s possible to reduce the impact of interference, resulting in a cleaner and more stable WiFi signal.

8. Aesthetic and Practical Considerations: The physical design of antennas can affect their performance and integration into various environments. For example, internal antennas are often used in consumer-grade routers to maintain a sleek appearance, while external antennas may be used in enterprise environments for better performance and flexibility in positioning.

In summary, antennas are a fundamental component of WiFi networks, impacting everything from signal transmission and coverage to network performance and reliability. Proper selection, placement, and configuration of antennas are essential for optimizing the performance of a WiFi network.

Chapter 1: Fundamentals of WiFi Technology

History and Evolution of WiFi

WiFi, short for Wireless Fidelity, has revolutionized the way we connect to the internet and communicate wirelessly. Here is an overview of its history and evolution:

Early Developments and Foundations

1. 1971 – ALOHAnet: The foundation for WiFi can be traced back to the ALOHAnet, developed at the University of Hawaii. ALOHAnet was the first wireless packet-switched network and laid the groundwork for wireless communication.

2. 1985 – FCC Opens ISM Bands: The Federal Communications Commission (FCC) in the United States opened the Industrial, Scientific, and Medical (ISM) radio bands for unlicensed use. This decision was crucial as it provided the frequency spectrum necessary for developing wireless communication technologies.

Birth of WiFi

3. 1991 – Invention by NCR and AT&T: The precursor to modern WiFi was invented by NCR Corporation and AT&T in Nieuwegein, the Netherlands. They created a wireless protocol called WaveLAN, which operated in the ISM bands and could transmit data at speeds up to 2 Mbps.

4. 1997 – IEEE 802.11 Standard: The Institute of Electrical and Electronics Engineers (IEEE) introduced the 802.11 standard, which provided the specifications for wireless local area networks (WLANs). The original standard supported speeds up to 2 Mbps.

Evolution of WiFi Standards

5. 1999 – 802.11b and WiFi Alliance: The 802.11b standard was released, offering speeds up to 11 Mbps. This was a significant improvement and marked the beginning of WiFi’s popularity. The WiFi Alliance was also formed to promote and certify WiFi products, ensuring interoperability between different manufacturers’ devices.

6. 2003 – 802.11g: The 802.11g standard was introduced, offering speeds up to 54 Mbps. It was backward compatible with 802.11b, which helped in the widespread adoption of WiFi.

7. 2009 – 802.11n: The 802.11n standard improved data rates significantly, offering speeds up to 600 Mbps. It introduced MIMO (Multiple Input Multiple Output) technology, which allowed multiple antennas to be used for transmitting and receiving data, enhancing performance and reliability.

8. 2013 – 802.11ac: The 802.11ac standard, also known as WiFi 5, provided even higher speeds, up to 1 Gbps and beyond. It operated primarily in the 5 GHz band and introduced advanced features like beamforming and wider channel bandwidths.

9. 2019 – 802.11ax (WiFi 6): The 802.11ax standard, known as WiFi 6, brought significant improvements in efficiency, capacity, and performance, especially in crowded environments. It introduced technologies like OFDMA (Orthogonal Frequency Division Multiple Access) and improved MIMO.

10. 2020 – WiFi 6E: WiFi 6E extended the capabilities of WiFi 6 into the 6 GHz band, providing additional spectrum and reducing congestion in the traditional 2.4 GHz and 5 GHz bands.

11. 2021 – 802.11ad/ay (60GHz WiFi): These standards, often referred to as WiGig, operate in the 60 GHz band and are designed for extremely high data rates, up to 7 Gbps for 802.11ad and even higher for 802.11ay. They are ideal for short-range, high-bandwidth applications like wireless docking and VR/AR.

12. 2024 (anticipated) – 802.11be (WiFi 7)**: The upcoming 802.11be standard, known as WiFi 7, aims to deliver even greater speeds and lower latency. It will support up to 30 Gbps by utilizing technologies like 320 MHz channel bandwidth, 4096-QAM, and multi-link operation. WiFi 7 is expected to further enhance performance in dense environments and support emerging applications like ultra-high-definition video streaming and augmented reality.

Impact and Applications

WiFi has had a profound impact on various aspects of modern life, including:

Home and Office Connectivity: WiFi has become the standard for internet connectivity in homes and offices, enabling wireless access to the internet and local networks.

Mobile Devices: The proliferation of smartphones, tablets, and other mobile devices has been fueled by the availability of WiFi, allowing users to stay connected on the go.

Public Hotspots: WiFi hotspots in public places like cafes, airports, and hotels have made it easier for people to access the internet while traveling or in public spaces.

IoT (Internet of Things): WiFi plays a crucial role in connecting IoT devices, enabling smart homes, smart cities, and various industrial applications.

Conclusion

The history and evolution of WiFi demonstrate its transformative impact on communication and connectivity. From its early beginnings to the latest advancements, WiFi continues to evolve, offering faster speeds, greater efficiency, and improved performance, shaping the future of wireless communication.

WiFi Standards and Protocols

Overview of 802.11 standards (a/b/g/n/ac/ax/be)

1. IEEE 802.11: This is the set of standards developed by the Institute of Electrical and Electronics Engineers (IEEE) for wireless local area networks (WLANs).

2. 802.11a:

Frequency: 5 GHz

Maximum Speed: 54 Mbps

Range: Shorter range compared to 2.4 GHz due to higher frequency

Notes: Less interference but not compatible with 2.4 GHz devices

3. 802.11b:

Frequency: 2.4 GHz

Maximum Speed: 11 Mbps

Range: Better range compared to 5 GHz but more prone to interference

Notes: One of the earliest standards, widely adopted

4. 802.11g:

Frequency: 2.4 GHz

Maximum Speed: 54 Mbps

Range: Similar to 802.11b but faster

Notes: Backward compatible with 802.11b

5. 802.11n:

Frequency: 2.4 GHz and 5 GHz (dual-band)

Maximum Speed: 600 Mbps (theoretical)

Range: Improved range due to MIMO (Multiple Input Multiple Output) technology

Notes: Introduced MIMO and channel bonding

6. 802.11ac:

Frequency: 5 GHz

Maximum Speed: Up to 3.46 Gbps (theoretical, using 160 MHz channels)

Range: Similar to 802.11n on 5 GHz but faster

Notes: Uses wider channels, more MIMO streams, and beamforming

7. 802.11ax (WiFi 6):

Frequency: 2.4 GHz and 5 GHz (dual-band, with future support for 6 GHz)

Maximum Speed: Up to 9.6 Gbps (theoretical)

Range: Improved efficiency and range

Notes: Better performance in dense environments, improved battery life for devices, OFDMA (Orthogonal Frequency Division Multiple Access)

8. 802.11ad:

Frequency: 60 GHz

Maximum Speed: Up to 7 Gbps

Range: Very short range

Notes: High-speed, short-range communication, often used for specific applications like wireless docking stations

9. 802.11ay:

Frequency: 60 GHz

Maximum Speed: Up to 20-40 Gbps

Range: Short range

Notes: Successor to 802.11ad, aims to improve performance and range

10. WiFi 6E:

Frequency: 6 GHz

Maximum Speed: Similar to WiFi 6 (up to 9.6 Gbps theoretical)

Range: Similar to WiFi 6 but with less interference

Notes: Extends WiFi 6 into the 6 GHz band, providing more channels and less congestion, allowing for higher performance and lower latency.

11. 802.11be (WiFi 7):

Frequency: 2.4 GHz, 5 GHz, and 6 GHz (tri-band)

Maximum Speed: Up to 30 Gbps (theoretical)

Range: Improved range and efficiency

Notes: Expected to include features like 320 MHz channels, higher-order 4096-QAM (Quadrature Amplitude Modulation), Multi-Link Operation (MLO), and enhanced MU-MIMO, aiming to significantly improve throughput, efficiency, and latency.

WiFi Protocols

1. WEP (Wired Equivalent Privacy):

Security Level: Low

Notes: Early security protocol, now considered insecure and deprecated

2. WPA (WiFi Protected Access):

Security Level: Medium

Notes: Improvement over WEP, introduced TKIP (Temporal Key Integrity Protocol)

3. WPA2:

Security Level: High

Notes: Uses AES (Advanced Encryption Standard), widely adopted and considered secure

4. WPA3:

Security Level: Very High

Notes: Latest security protocol, introduces Simultaneous Authentication of Equals (SAE) for better security, especially on public networks

Other Relevant Technologies

1. MU-MIMO (Multi-User MIMO):

 Allows multiple devices to receive data simultaneously, improving efficiency and speed in multi-device environments.

2. Beamforming

 Focuses the WiFi signal in the direction of the receiving device, improving range and performance.

3. OFDMA (Orthogonal Frequency Division Multiple Access):

Divides a channel into smaller sub-channels, allowing multiple devices to be served simultaneously, improving efficiency.

4. WiFi 6E:

An extension of WiFi 6 that operates in the 6 GHz band, providing more channels and less interference.

Understanding these standards and protocols can help you choose the right WiFi equipment and configure your network for optimal performance and security, especially as newer technologies like WiFi 6E and WiFi 7 become more widely available.

Future trends: WiFi 7 and beyond

WiFi technology has evolved significantly over the years, with each new generation bringing substantial improvements in speed, capacity, and overall performance. WiFi 7, also known as IEEE 802.11be, is the upcoming standard that promises to push these boundaries even further. Here are some of the expected trends and features for WiFi 7 and beyond:

WiFi 7 (IEEE 802.11be)

1. Higher Data Rates: WiFi 7 aims to achieve data rates up to 30 Gbps, which is significantly higher than the 9.6 Gbps offered by WiFi 6 (802.11ax). This will be made possible through wider channel bandwidths, advanced modulation techniques, and improved spatial multiplexing.

2. 320 MHz Channel Bandwidth: WiFi 7 will support channel bandwidths up to 320 MHz, compared to the 160 MHz in WiFi 6. This wider bandwidth will allow for more data to be transmitted simultaneously, enhancing overall throughput.

3. 4K-QAM (Quadrature Amplitude Modulation): WiFi 7 will introduce 4096-QAM, an improvement over the 1024-QAM used in WiFi 6. This higher-order modulation will enable more bits to be transmitted per symbol, increasing data rates.

4. Multi-Link Operation (MLO): WiFi 7 will support Multi-Link Operation, allowing devices to simultaneously connect to multiple bands (2.4 GHz, 5 GHz, and 6 GHz). This will improve reliability, reduce latency, and increase aggregate throughput.

5. Improved MU-MIMO and OFDMA: WiFi 7 will enhance Multi-User Multiple Input Multiple Output (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA) technologies, allowing for more efficient use of the spectrum and better performance in dense environments.

6. Low Latency: WiFi 7 aims to significantly reduce latency, making it ideal for applications such as virtual reality (VR), augmented reality (AR), online gaming, and real-time communications.

7. Enhanced Security: Continued improvements in security protocols will be a focus, building on the WPA3 standard to ensure robust protection against emerging threats.

Trends Beyond WiFi 7

1. Terahertz (THz) Communication: Future WiFi generations might explore the use of terahertz frequencies (0.1-10 THz) to achieve even higher data rates and lower latency. THz communication could enable ultra-high-speed wireless links for applications like holographic displays and real-time 8K video streaming.

2. AI and Machine Learning Integration: The integration of AI and machine learning algorithms could optimize network performance by dynamically adjusting parameters such as channel selection, power levels, and beamforming patterns based on real-time conditions.

3. Mesh Networking Evolution: Future WiFi systems will likely see advancements in mesh networking, providing seamless coverage and improved performance in large or complex environments. Self-healing and self-optimizing networks will become more common.

4. IoT and Edge Computing: As the Internet of Things (IoT) continues to grow, future WiFi standards will need to support a massive number of connected devices with varying requirements. Edge computing will play a crucial role in processing data closer to the source, reducing latency and bandwidth usage.

5. Energy Efficiency: Future WiFi technologies will focus on improving energy efficiency, both for battery-powered devices and for overall network infrastructure. This will be essential for supporting a growing number of IoT devices and reducing the environmental impact of wireless networks.

6. Integration with 5G and Beyond: WiFi and cellular technologies will continue to converge, offering seamless connectivity and handoff between different networks. This integration will enable ubiquitous high-speed internet access, whether indoors or outdoors.

7. Advanced Security Features: As cyber threats evolve, future WiFi standards will incorporate more sophisticated security measures, including quantum-resistant encryption and advanced authentication methods.

8. Augmented Reality (AR) and Virtual Reality (VR): Future WiFi standards will be optimized for AR and VR applications, providing the low latency and high bandwidth required for immersive experiences.

Conclusion

WiFi 7 represents a significant leap forward in wireless technology, promising unprecedented speeds, lower latency, and improved efficiency. As we look beyond WiFi 7, the focus will likely shift towards even higher frequencies, smarter networks, and tighter integration with other communication technologies. These advancements will pave the way for new applications and services, transforming how we connect and interact with the digital world.

Chapter 2: Factors to Consider When Choosing a WiFi Antenna

1. Coverage Area and Range

Indoor vs. outdoor usage and range considerations

When selecting WiFi antennas for indoor and outdoor use, several factors must be considered to ensure optimal performance and coverage. Here’s a breakdown of the key considerations:

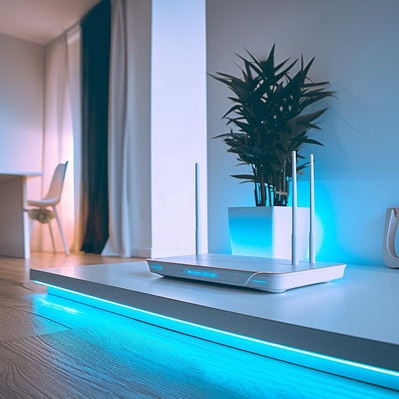

Indoor Usage

Types of Antennas

Omni-directional Antennas: These antennas radiate signal uniformly in all directions. They are ideal for general indoor use where coverage in all directions is needed, such as in homes, offices, or cafes.

Directional Antennas: These antennas focus the signal in a specific direction, providing a stronger signal over a longer distance in that direction. They are useful for targeting specific areas within a building, such as a long hallway or a particular room.

Range Considerations

Obstructions: Walls, furniture, and other obstacles can significantly reduce signal strength and range. Materials like concrete, metal, and thick walls are particularly problematic.

Interference: Other electronic devices, such as microwaves, cordless phones, and other WiFi networks, can cause interference and reduce signal quality.

Antenna Placement: Positioning the antenna in a central location and at an elevated position can help maximize coverage. Avoid placing the antenna near large metal objects or in enclosed spaces.

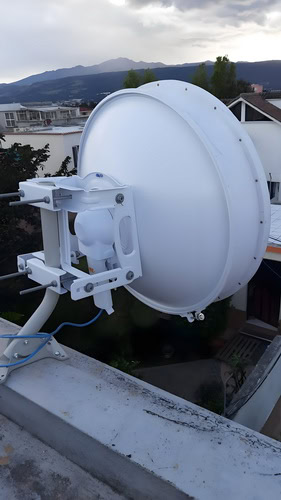

Outdoor Usage

Types of Antennas

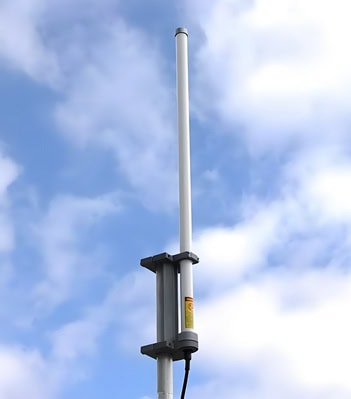

Omni-directional Antennas: Suitable for covering a broad area, such as a backyard, parking lot, or outdoor event space. They provide 360-degree coverage but generally have a shorter range compared to directional antennas.

Directional Antennas: Ideal for point-to-point connections or covering specific outdoor areas. They can provide long-range connectivity between buildings or to specific outdoor zones.

Range Considerations

Line of Sight: Outdoor environments often allow for clearer line-of-sight paths, which can significantly extend the range of directional antennas. However, trees, buildings, and other structures can still obstruct the signal.

Weather Conditions: Rain, snow, and other weather conditions can affect signal strength. Outdoor antennas should be weatherproof and designed to withstand environmental conditions.

Mounting and Elevation: Mounting antennas on poles, rooftops, or other elevated structures can help improve range and reduce obstructions. Ensure the mounting hardware is secure and designed for outdoor use.

General Considerations

Frequency Bands: WiFi typically operates on 2.4 GHz and 5 GHz bands. The 2.4 GHz band offers better range but is more prone to interference, while the 5 GHz band provides higher speeds but shorter range. Dual-band antennas can provide flexibility by supporting both frequencies.

Antenna Gain: Measured in dBi, antenna gain indicates how well the antenna can direct or receive signals. Higher gain antennas can provide longer range but may have narrower coverage areas.

Regulatory Compliance: Ensure that the antennas comply with local regulations and standards for wireless communications, especially for outdoor installations.

Summary

Indoor Antennas: Typically omnidirectional for broad coverage; consider placement and interference from walls and other devices.

Outdoor Antennas: Can be omnidirectional or directional depending on the coverage area; consider line of sight and weather conditions.

Range: Influenced by antenna type, gain, placement, and environmental factors. Proper selection and installation can maximize performance and coverage.

By carefully considering these factors, you can choose the right WiFi antennas for your specific indoor or outdoor needs, ensuring reliable and efficient wireless connectivity.

Factors affecting coverage area and range (obstacles, interference)

The coverage area and range of WiFi antennas are influenced by various factors, including physical obstacles, interference, and environmental conditions. Here are some key factors to consider:

1. Antenna Characteristics

Gain: Higher gain antennas can transmit signals further, but they often have a narrower beamwidth.

Half-Power Beamwidth (HPBW): This is the angular width where the signal strength falls to half its maximum value. A narrower HPBW focuses the signal more, which can extend range but reduce coverage area.

Type of Antenna: Different types of antennas (e.g., omnidirectional, directional) have different coverage patterns.

Omni-directional Antennas: Radiate signal in all directions, providing wide coverage but shorter range.

Directional Antennas: Focus signal in a specific direction, increasing range but reducing coverage area.

2. Obstacles

Physical Barriers: Walls, floors, and furniture can obstruct WiFi signals. Materials like concrete, metal, and brick are particularly effective at blocking signals.

Human Presence: People can also absorb WiFi signals, affecting coverage in crowded areas.

Foliage: Trees and plants can attenuate WiFi signals, especially in outdoor environments.

3. Interference

Co-Channel Interference: Occurs when multiple devices operate on the same WiFi channel, leading to congestion and reduced performance.

Adjacent Channel Interference: Interference from devices on nearby channels can also degrade signal quality.

Other Wireless Devices: Devices like cordless phones, microwave ovens, and Bluetooth devices can cause interference, particularly in the 2.4 GHz band.

Electrical Noise: Electrical equipment and power lines can introduce noise that interferes with WiFi signals.

4. Environment

Indoor Environment: WiFi signals face more obstacles indoors, such as walls and furniture, which can significantly reduce range and coverage.

Outdoor Environment: Generally offers fewer obstacles, allowing for greater range. However, weather conditions (rain, fog) and terrain (hills, buildings) can still impact performance.

Building Layout: Open floor plans allow for better signal propagation, while complex layouts with many rooms and walls hinder signal spread.

5. Frequency Band

2.4 GHz Band: Offers longer range and better penetration through obstacles but is more prone to interference due to its common use.

5 GHz Band: Provides higher data rates and less interference but has a shorter range and poorer penetration through obstacles.

6 GHz Band: Offers even higher data rates and lower latency compared to the 5 GHz band, with less interference due to its newer adoption. However, it has the shortest range and the poorest penetration through obstacles among the three bands.

6. Transmission Power

Higher Power: Increases range but can cause more interference with other devices.

Regulatory Limits: Different regions have regulations on the maximum allowable transmission power.

7. Signal Reflection and Refraction

Multipath Propagation: Signals can reflect off surfaces, causing multiple signal paths that can interfere with each other, leading to signal degradation.

Refraction: Changes in the medium (e.g., air to glass) can bend the signal, affecting its path and strength.

8. Network Configuration

Channel Selection: Choosing the least congested channel can improve performance.

Access Point Placement: Strategically placing access points to minimize obstacles and maximize coverage.

Mesh Networks: Using multiple access points to create a mesh network can improve coverage and reduce dead zones.

9. User Density

High Density: Areas with many users (e.g., stadiums, conference halls) require more access points and careful planning to ensure adequate coverage and performance.

10. Weather Conditions (Outdoor)

Rain and Humidity: Can attenuate signals, especially at higher frequencies.

Temperature: Extreme temperatures can affect the performance of the equipment.

By considering these factors, you can optimize the placement and configuration of WiFi antennas to achieve the best possible coverage and range for your specific environment.

2. Frequency Bands

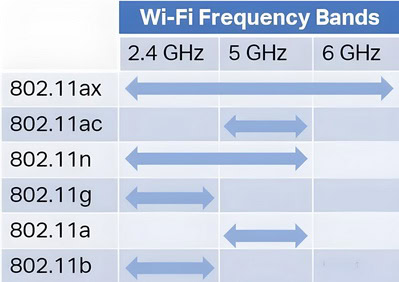

2.4 GHz vs. 5 GHz vs. 6 GHz

When discussing WiFi antennas and the different frequency bands they support, it’s important to understand the key differences between 2.4 GHz, 5 GHz, and 6 GHz bands. Each frequency band has its own set of characteristics that impact range, speed, and interference. Here’s a breakdown of each:

2.4 GHz Band

Pros:

1. Range: The 2.4 GHz band has a longer range compared to higher frequencies. This is because lower frequencies can penetrate walls and other obstacles more effectively.

2. Compatibility: It is widely supported by many devices, including older ones.

3. Interference: Although it has better penetration, it is more susceptible to interference from other devices like microwaves, cordless phones, and Bluetooth devices, which also operate in the 2.4 GHz range.

Cons:

1. Speed: Generally offers lower data rates compared to the 5 GHz and 6 GHz bands.

2. Congestion: More prone to network congestion due to the limited number of channels and the high number of devices using this band.

5 GHz Band

Pros:

1. Speed: Typically offers higher data rates compared to the 2.4 GHz band, making it suitable for high-bandwidth activities like streaming HD videos and online gaming.

2. Less Interference: There are more channels available, which helps in reducing congestion and interference from other devices.

Cons:

1. Range: Shorter range compared to the 2.4 GHz band. Higher frequencies have more difficulty penetrating walls and other obstacles.

2. Compatibility: Not all older devices support the 5 GHz band.

6 GHz Band

Pros:

1. Speed: Provides even higher data rates and lower latency compared to both 2.4 GHz and 5 GHz bands. Ideal for future-proofing your network for high-bandwidth applications.

2. Less Congestion: The 6 GHz band is relatively new and less crowded, offering more channels and less interference.

3. Future-Ready: Designed to support the latest WiFi 6E standard, which offers enhanced performance and efficiency.

Cons:

1. Range: Similar to the 5 GHz band, it has a shorter range and is less effective at penetrating obstacles.

2. Compatibility: Limited device support as of now, but this will improve as more 6E-capable devices become available.

Summary

2.4 GHz: Best for range and compatibility but suffers from lower speeds and higher interference.

5 GHz: Offers higher speeds and less interference but has a shorter range and less compatibility with older devices.

6 GHz: Provides the highest speeds and least interference but is limited by range and current device compatibility.

When choosing a WiFi antenna or router, it’s often beneficial to select a dual-band or tri-band device that supports multiple frequencies. This allows you to balance range and speed based on your specific needs and the layout of your environment.

Dual-band and tri-band considerations

When choosing between dual-band and tri-band WiFi antennas, there are several important considerations to keep in mind. Here’s a breakdown of the key points for each type:

Dual-Band WiFi Antennas (2.4GHz and 5GHz)

Pros:

1. Compatibility: Dual-band routers and antennas are widely compatible with most devices, as 2.4GHz and 5GHz bands are standard in many WiFi-enabled devices.

2. Coverage: The 2.4GHz band offers better range and penetration through walls and obstacles, making it suitable for larger areas or homes with many barriers.

3. Speed: The 5GHz band provides faster speeds and less interference, which is ideal for high-bandwidth activities like streaming and gaming.

Cons:

1. Congestion: The 2.4GHz band is often crowded due to the number of devices (like microwaves, cordless phones, and Bluetooth devices) that also use this frequency, leading to potential interference and slower speeds.

2. Range: The 5GHz band has a shorter range compared to 2.4GHz and is less effective at penetrating walls and obstacles.

Tri-Band WiFi Antennas (2.4GHz, 5GHz, and 6GHz)

Pros:

1. Future-Proofing: Tri-band antennas support the latest WiFi 6E standard, which includes the 6GHz band. This makes them more future-proof as more devices start to support this new band.

2. Less Congestion: The 6GHz band is currently less congested, offering cleaner and faster connections with less interference.

3. High Capacity: Tri-band systems can handle more devices simultaneously without a significant drop in performance, which is beneficial for households with many connected devices.

Cons:

1. Cost: Tri-band routers and antennas are generally more expensive than dual-band ones.

2. Device Compatibility: Not all devices currently support the 6GHz band, so the benefits may not be fully realized until more 6GHz-compatible devices become available.

3. Range:Similar to the 5GHz band, the 6GHz band has a shorter range and is less effective at penetrating obstacles.

Key Considerations

1. Current and Future Needs: If you have a lot of devices and plan to add more in the future, a tri-band system may be more beneficial. However, if your current setup is sufficient and you don’t anticipate a significant increase in connected devices, a dual-band system might be adequate.

2. Environment: Consider the physical environment where the WiFi will be used. If you need to cover a large area with many walls, the 2.4GHz band of a dual-band system might be more effective. For smaller, open areas, the higher bands of a tri-band system can provide better performance.

3. Budget:Weigh the cost against the benefits. Tri-band systems are more expensive but offer better performance and future-proofing. Dual-band systems are more affordable and provide sufficient performance for many users.

4. Interference: If you live in a densely populated area with many WiFi networks, the additional 6GHz band in a tri-band system can help avoid congestion and interference.

By considering these factors, you can make an informed decision on whether a dual-band or tri-band WiFi antenna is best suited for your needs.

3. Gain

Explanation of antenna gain (dBi)

Antenna gain, often expressed in decibels relative to an isotropic radiator (dBi), is a measure of how effectively an antenna directs radio frequency energy in a particular direction compared to an ideal isotropic antenna. An isotropic antenna is a theoretical point source that radiates power uniformly in all directions.

Here’s a detailed explanation of antenna gain (dBi):

1. Isotropic Antenna (0 dBi):

An isotropic antenna is a hypothetical antenna that radiates equal power in all directions, forming a perfect sphere of radiation. It is used as a reference point for measuring antenna gain.

The gain of an isotropic antenna is defined as 0 dBi.

2. Decibels (dB):

Decibels are a logarithmic unit used to express the ratio of two values, commonly power or intensity. In the context of antenna gain, it quantifies how much stronger the signal is in a particular direction compared to the isotropic reference.
The formula for Gain is: Ga (dBi) = 10 log10 η [4π Αa / λ2 ]
where Ga is the antenna gain, η is the antenna efficiency, typically 0.55 corresponding to 55 percent
Αa is the antenna aperture area = .25 x π x dia2,
λ is the operating wavelength, and π is 3.1415926

3. Directional Gain:

Real antennas do not radiate uniformly in all directions. They focus energy in specific directions to achieve higher gain.

For example, a high-gain directional antenna might focus energy into a narrow beam, increasing the signal strength in that direction but reducing it in others.

4. Practical Implications:

Higher gain (more positive dBi value) means the antenna is more effective at concentrating energy in a specific direction, which can extend the range and improve signal quality in that direction.

Conversely, lower gain (closer to 0 dBi) means the antenna radiates more uniformly, which can be beneficial for applications requiring omnidirectional coverage.

5. Typical Values:

Omni-directional antennas, like those used in Wi-Fi routers, typically have gains ranging from 2 dBi to 12 dBi.

Directional antennas, such as Yagi or parabolic dish antennas, can have much higher gains, often exceeding 20 dBi.

6. Applications:

 High-gain antennas are used in applications where long-distance communication is needed, such as satellite communication, radar, and point-to-point wireless links.

Low-gain antennas are used in applications where wide coverage is more important than range, such as in mobile phones and Wi-Fi access points.

Understanding antenna gain in dBi helps in selecting the right antenna for a specific application, ensuring optimal performance by balancing coverage area and signal strength.

How gain affects range and signal strength

Gain is a critical parameter in the context of antennas and amplifiers, affecting both the range and signal strength of a communication system. Here’s a detailed look at how gain impacts these factors:

1. Definition of Gain

Antenna Gain: It is a measure of how well an antenna can direct or concentrate radio frequency energy in a particular direction compared to an isotropic radiator (an idealized antenna that radiates equally in all directions). It is usually expressed in dBi (decibels relative to an isotropic antenna) or dBd (decibels relative to a dipole antenna).

Amplifier Gain: This is the increase in power of the signal provided by an amplifier, measured in decibels (dB). It indicates how much the amplifier boosts the signal.

2. Impact on Range

Antenna Gain: Higher antenna gain means that the antenna can send or receive signals over a greater distance. This is because the antenna focuses the energy more narrowly in a specific direction, reducing the spread and loss of signal strength. For example, a high-gain directional antenna can significantly extend the range of a wireless communication system compared to a low-gain omnidirectional antenna.

Amplifier Gain: Increased amplifier gain boosts the signal power, which can help overcome losses due to distance, obstacles, and other attenuating factors. This can extend the effective range of the communication system.

3. Impact on Signal Strength

Antenna Gain: Higher gain antennas can improve signal strength at a given distance by focusing the radiated power in a specific direction, thus increasing the received signal strength at the target location. Conversely, it also means that the antenna will be less effective in directions where it does not focus its energy.

Amplifier Gain: Amplifiers increase the signal strength by boosting the power of the transmitted or received signal. This can improve the quality and reliability of the communication, especially in environments with significant signal attenuation or interference.

4. Trade-offs and Considerations

Directionality: High-gain antennas are usually more directional. While this can increase range and signal strength in the desired direction, it can also mean reduced performance in other directions. This makes them suitable for point-to-point communications but less ideal for omnidirectional coverage.

Interference and Noise: Amplifying a signal also amplifies any noise present. Care must be taken to ensure that the signal-to-noise ratio (SNR) remains favorable. High-gain amplifiers might require additional filtering and noise reduction techniques.

Power Consumption: Higher gain amplifiers typically consume more power, which can be a concern in battery-operated or power-sensitive applications.

5. Applications

Long-Range Communications: High-gain antennas and amplifiers are often used in applications requiring long-range communication, such as satellite links, microwave relays, and long-distance Wi-Fi.

Targeted Coverage: In scenarios where specific areas need strong signal coverage (e.g., cellular base stations, point-to-point wireless links), high-gain antennas are beneficial.

Summary

In summary, gain directly affects both the range and signal strength of a communication system. Higher gain can extend the range and improve the signal strength in the desired direction but often at the cost of increased directionality and potential power consumption. The choice of gain should be balanced with the specific requirements of the communication application, considering factors such as coverage area, interference, and power availability.

Matching gain to your needs

Gain, in general, refers to the increase in power or amplitude of a signal. The context in which you need to match gain can vary widely, including audio systems, radio frequency (RF) systems, or even financial investments. Here are some guidelines for different scenarios:

Audio Systems

1. Microphones and Preamps:

Dynamic Microphones: Typically require more gain because they produce lower output levels.

Condenser Microphones: Generally need less gain but require phantom power.

Ribbon Microphones: Often need a lot of gain and careful handling.

2. Mixing Consoles:

Gain Staging: Ensure each stage of your audio signal path (microphone, preamp, mixer, etc.) has the appropriate gain to avoid noise and distortion.

Unity Gain: Aim to set levels so that the output is the same as the input, preventing unnecessary noise amplification.

3. Amplifiers and Speakers:

Power Matching: Match the amplifier’s power output to the speaker’s power handling capacity to avoid damage and ensure optimal performance.

Impedance Matching: Ensure the amplifier and speakers have compatible impedance ratings.

 Radio Frequency (RF) Systems

1. Antennas and Receivers:

Antenna Gain: Higher gain antennas can focus the signal more effectively but may have a narrower beamwidth.

Receiver Sensitivity: Match the gain to ensure the receiver can detect weak signals without introducing too much noise.

2. Transmitters:

Power Amplifiers: Ensure the gain is sufficient to transmit the signal over the desired distance without causing interference.

Financial Investments

1. Risk Tolerance:

High Gain Investments: Typically come with higher risk (e.g., stocks, real estate).

Low Gain Investments: Generally safer but offer lower returns (e.g., bonds, savings accounts).

2. Investment Goals:

Short-Term Goals: May require safer, lower gain investments to ensure capital preservation.

Long-Term Goals: Can afford higher gain investments to maximize growth over time.

General Tips for Matching Gain

1. Understand Your System: Know the specifications and requirements of each component in your system.

2. Avoid Clipping and Distortion: Ensure the gain is set to avoid signal clipping and distortion, which can damage equipment and degrade signal quality.

3. Use Appropriate Tools: Employ tools like gain meters, oscilloscopes, or financial calculators to measure and adjust gain accurately.

4. Consult Manuals and Experts: Refer to equipment manuals or consult with experts to ensure proper gain settings.

Matching gain to your needs involves understanding the specific requirements and characteristics of your system or investment strategy and making adjustments accordingly to optimize performance and achieve your goals.

4. Polarization

Vertical polarization vs. horizontal polarization

When it comes to WiFi antennas, polarization is an important factor that affects the performance and reliability of wireless communication. Polarization refers to the orientation of the electric field of the radio wave. The two most common types of polarization for WiFi antennas are vertical and horizontal. Here’s a comparison of the two:

Vertical Polarization

Orientation: The electric field is oriented vertically.

Common Uses: Often used in mobile communications, including WiFi routers and access points, because many client devices (like smartphones and laptops) are used in a vertical orientation.

Advantages:

Better Penetration: Vertical polarization tends to penetrate walls and obstacles better, which can be beneficial in indoor environments.

Omni-directional Coverage: Many vertically polarized antennas are designed to provide omni-directional coverage, making them suitable for broad area coverage.

Disadvantages:

Interference: Vertical polarization can be more susceptible to interference from other vertically polarized signals, which are common in urban environments.

Horizontal Polarization

Orientation: The electric field is oriented horizontally.

Common Uses: Often used in point-to-point communication links, such as between buildings or for specific directional applications.

Advantages:

Reduced Interference: Horizontal polarization can experience less interference in environments where vertical polarization is predominant, leading to potentially cleaner signals.

Directional Antennas: Many horizontally polarized antennas are directional, which can focus the signal and increase range and performance in a specific direction.

Disadvantages:

Limited Penetration: Horizontal polarization may not penetrate obstacles as well as vertical polarization, which can be a drawback in indoor environments with many walls.

Alignment Sensitivity: For optimal performance, horizontally polarized antennas need to be properly aligned with each other, which can be more challenging in some installations.

Considerations for WiFi Antennas

1. Environment: In indoor environments with many obstacles, vertical polarization may offer better coverage. In outdoor or point-to-point scenarios, horizontal polarization might be more effective.

2. Interference: Consider the existing sources of interference. If the area is saturated with vertically polarized signals, a horizontally polarized antenna might offer better performance.

3. Antenna Type: Omnidirectional antennas are often vertically polarized, while directional antennas can be either, depending on the specific application.

4. Device Orientation: Since many WiFi client devices are used in a vertical orientation, vertically polarized antennas may offer better connectivity for these devices.

Conclusion

The choice between vertical and horizontal polarization for WiFi antennas depends on the specific application and environment. Vertical polarization is generally better for broad, omnidirectional coverage and indoor environments, while horizontal polarization can be advantageous for point-to-point links and reducing interference. Understanding the characteristics and requirements of your specific scenario will help you make the best choice.

 +45° Polarization vs. -45° Polarization

Polarization is a critical factor in the design and performance of WiFi antennas. It refers to the orientation of the electric field of the radio wave. The two common types of linear polarization are vertical and horizontal, but antennas can also be polarized at angles, such as +45° and -45°. Here’s a detailed look at the implications and applications of +45° vs. -45° polarization for WiFi antennas, with a focus on polarity:

Polarization Angles and Their Significance

1. +45° Polarization:

– The electric field of the radio wave is oriented at a 45-degree angle from the horizontal axis.

– Often used in environments where there is a need to reduce interference and improve signal clarity, as it can help differentiate signals from those that are vertically or horizontally polarized.

2. -45° Polarization:

 The electric field of the radio wave is oriented at a -45-degree angle from the horizontal axis.

 Similarly, it helps in reducing interference and can be used in conjunction with +45° polarization to create a more robust communication link.

Benefits of Using +45° and -45° Polarization

1. Improved Signal Isolation:

Using different polarization angles can help in isolating signals from one another, reducing the likelihood of interference. This is particularly useful in environments with multiple WiFi networks or other RF sources.

2. Enhanced Diversity:

By employing antennas with +45° and -45° polarization, a technique known as polarization diversity can be used. This helps in mitigating multipath fading, where signals take multiple paths to reach the receiver, causing phase shifts and signal degradation.

Polarization diversity can improve the reliability and throughput of the WiFi connection.

3. Better MIMO Performance:

– Multiple Input Multiple Output (MIMO) technology benefits from using antennas with different polarizations. Antennas with +45° and -45° polarization can be part of a MIMO setup, enhancing data rates and overall performance by exploiting spatial diversity.

Practical Considerations

1. Antenna Placement:

The physical placement and orientation of antennas are crucial. For optimal performance, antennas with +45° and -45° polarization should be positioned to maximize coverage and minimize interference.

2. Compatibility:

Ensure that both the transmitting and receiving antennas are compatible in terms of polarization. Mismatched polarization can lead to significant signal loss. For instance, a +45° polarized antenna will not effectively communicate with a vertically polarized antenna.

3. Environment

The environment in which the antennas are deployed can affect the choice of polarization. Urban environments with many reflective surfaces may benefit more from polarization diversity.

Applications

1. Enterprise WiFi Networks:

In enterprise settings with high-density deployments, using +45° and -45° polarized antennas can help manage interference and improve network performance.

2. Outdoor Point-to-Point Links:

For long-range point-to-point WiFi links, using different polarizations can enhance link reliability and reduce the impact of environmental factors.

3. Public WiFi Hotspots:

 In public WiFi deployments, where multiple users and devices are present, polarization diversity can help in maintaining a stable and high-quality connection.

Conclusion

The choice between +45° and -45° polarization for WiFi antennas is not about one being superior to the other, but about how they can be effectively used together to improve performance. By leveraging these polarization angles, WiFi networks can achieve better signal isolation, enhanced diversity, and improved overall performance, especially in complex and interference-prone environments.

Dual polarization

Dual polarization in WiFi antennas refers to the use of two distinct polarization planes to transmit and receive signals. This technique can significantly improve the performance and reliability of wireless communication systems. Here’s a focus on the polarity aspect:

1. Vertical and Horizontal Polarization:

Vertical Polarization: The electric field of the wave oscillates vertically. This is common in many standard WiFi antennas.

Horizontal Polarization: The electric field of the wave oscillates horizontally. This is often used alongside vertical polarization in dual-polarized systems.

2. Slant Polarization:

+45° and -45° Polarization: Instead of strictly vertical and horizontal, some antennas use slant polarizations. One element is polarized at +45° and the other at -45°, which can help reduce interference and improve signal reception.

Benefits of Dual Polarization

1. Increased Capacity:

By using two polarization planes, the antenna can transmit and receive two separate data streams simultaneously, effectively doubling the capacity.

2. Improved Signal Quality:

Dual polarization helps mitigate multipath interference, where signals take multiple paths to reach the receiver, causing distortion and degradation.

3. Enhanced Reliability:

Different polarizations maintain a stable connection even when the orientation of the device changes, ensuring consistent performance.

Applications in MIMO Systems

MIMO (Multiple Input Multiple Output):

Dual polarization is integral to MIMO technology, where multiple antennas are used at both the transmitter and receiver ends. Each polarized element acts as an independent channel, enhancing data throughput and connection reliability.

Practical Considerations

Antenna Design:

Dual-polarized antennas are designed to handle the orthogonal polarizations efficiently, ensuring minimal cross-polarization interference.

Deployment Scenarios:

Dual polarization is particularly beneficial in environments with high levels of interference or where devices frequently change orientation, such as urban areas or mobile applications.

Summary

Dual polarization in WiFi antennas leverages two orthogonal polarization planes, such as vertical/horizontal or +45°/-45°, to enhance wireless communication performance. This approach increases capacity, improves signal quality, and ensures reliable connections, making it a crucial technology in modern wireless communication systems.

Importance of matching polarization

Matching the polarization of WiFi antennas is crucial for optimizing the performance of wireless communication systems. Polarization refers to the orientation of the electric field of the radio wave. Here are some key reasons why matching polarization is important:

1. Maximized Signal Strength: When the transmitting and receiving antennas have the same polarization, the signal strength is maximized. This is because the electric fields are aligned, allowing the maximum amount of energy to be transferred from the transmitter to the receiver.

2. Reduced Signal Loss: Mismatched polarization can lead to significant signal loss. For instance, if a vertically polarized antenna is trying to communicate with a horizontally polarized antenna, the signal loss can be as much as 20 dB, which drastically reduces the effective range and quality of the communication.

3. Improved Data Rates: Stronger and clearer signals, resulting from matched polarization, can support higher data rates. This is particularly important for applications requiring high-bandwidth connections, such as video streaming, online gaming, and large file transfers.

4. Better Signal-to-Noise Ratio (SNR): Matching polarization helps in maintaining a higher signal-to-noise ratio. A higher SNR means that the signal can be more easily distinguished from background noise, leading to more reliable and accurate data transmission.

5. Reduced Interference: In environments with multiple WiFi networks or devices, matched polarization can help in reducing interference. Since many WiFi devices use the same frequency bands, having aligned polarization can help in distinguishing between different signals.

6. Energy Efficiency: Devices with matched polarization require less power to maintain a stable connection. This is particularly beneficial for battery-operated devices, as it can extend their operational life.

7. Consistent Performance: Consistent polarization matching ensures stable and predictable performance of the WiFi network. This is important for applications that rely on continuous and reliable connectivity, such as VoIP calls or real-time data monitoring.

In summary, matching polarization between WiFi antennas is essential for achieving optimal performance, including stronger signal strength, higher data rates, better SNR, reduced interference, and improved energy efficiency. It ensures that the wireless communication system operates efficiently and reliably.

5. Compatibility

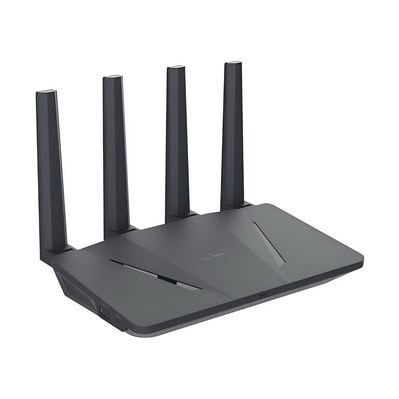

Ensuring compatibility with your router or access point

Ensuring compatibility between your WiFi antennas and your router or access point is crucial for optimal performance. Here are some key steps and considerations to ensure compatibility:

1. Connector Type:

SMA Connectors: Many WiFi routers and access points use RP-SMA (Reverse Polarity SMA) connectors. Ensure that the antenna you purchase has the appropriate RP-SMA connector.

Other Connectors: Some devices may use different connectors such as N-type, TNC, or proprietary connectors. Check your device’s specifications to confirm the connector type.

2. Frequency Band:

2.4 GHz and 5 GHz: Ensure the antenna supports the frequency bands your router uses. Most modern routers are dual-band, operating on both 2.4 GHz and 5 GHz. Some newer routers also support the 6 GHz band (Wi-Fi 6E and WiFi 7).

Single vs. Dual-Band: If your router is dual-band, it’s best to use dual-band antennas to ensure compatibility and performance across both frequency ranges.

3. Antenna Type:

Omnidirectional Antennas: These antennas radiate signal in all directions and are suitable for general coverage in homes and offices.

Directional Antennas: These antennas focus the signal in a specific direction, which can be useful for long-distance connections or covering specific areas.

4. Gain:

The gain of an antenna, measured in dBi, indicates how much it can amplify the signal. Higher gain antennas can transmit signals further but may have a narrower coverage area. Ensure the gain is appropriate for your needs and environment.

5. Compatibility with Router’s Antenna Ports:

Some routers have multiple antenna ports for MIMO (Multiple Input Multiple Output) technology. Ensure you have the correct number of antennas and that they are compatible with MIMO if your router supports it.

6. Physical Compatibility:

Ensure that the antenna’s physical size and mounting options are compatible with your router. Some antennas may be too large or may require specific mounting hardware.

7. Regulatory Compliance:

Ensure the antenna complies with local regulations regarding wireless transmissions. Using non-compliant antennas can lead to legal issues and interference with other devices.

8. Manufacturer Recommendations:

Check the router or access point manufacturer’s recommendations for compatible antennas. Sometimes, manufacturers provide a list of tested and approved antennas.

9. Firmware and Software Compatibility:

Ensure that your router’s firmware supports the use of external antennas if it originally comes with internal antennas.

10. Testing and Adjustment:

After installing the new antenna, test the signal strength and quality in various locations. You may need to adjust the antenna’s position or orientation for optimal performance.

By following these steps and considerations, you can ensure that your WiFi antennas are compatible with your router or access point, leading to improved wireless performance and coverage.

Connector types and cable considerations

When setting up WiFi antennas, selecting the appropriate connector types and cables is crucial to ensure optimal performance and signal integrity. Here are the key connector types and cable considerations for WiFi antennas:

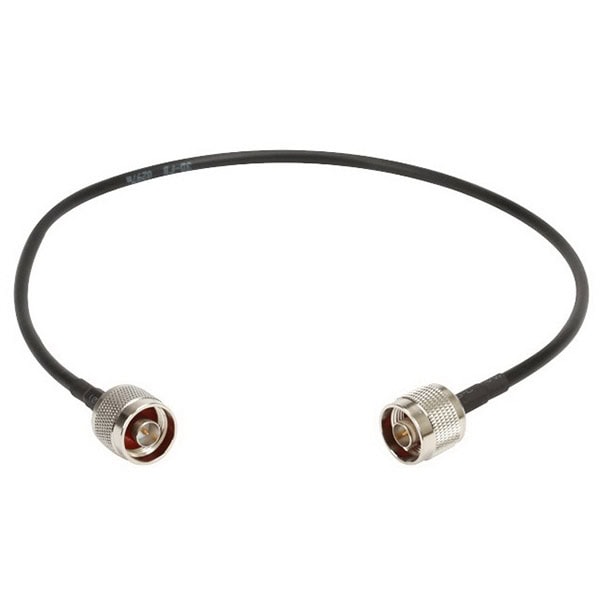

Connector Types

1. RP-SMA (Reverse Polarity SMA)

Usage: Commonly used in consumer WiFi equipment (routers, access points, and WiFi cards).

Characteristics: The RP-SMA connector has a reverse polarity configuration where the male connector has a pin and the female connector has a socket, opposite to the standard SMA connectors.

2. SMA (SubMiniature version A)

Usage: Used in professional and industrial applications.

Characteristics: Standard polarity where the male connector has a pin and the female connector has a socket.

3. N-Type

Usage: Commonly used in outdoor WiFi installations and high-power applications.

Characteristics: Larger and more robust than SMA connectors, N-Type connectors provide better performance over longer distances and in harsh environments.

4. U.FL (Ultra Miniature Coaxial)

Usage: Typically used in internal connections within devices, such as connecting a WiFi card to an internal antenna.

Characteristics: Very small and delicate, suitable for tight spaces inside devices.

5. TNC (Threaded Neill–Concelman)

Usage: Used in some industrial and commercial WiFi applications.

Characteristics: Similar to BNC connectors but with a threaded coupling, providing better performance in environments with vibration.

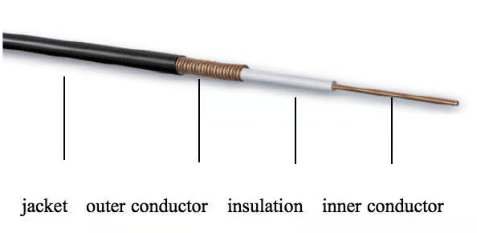

Cable Considerations

1. Cable Type

RG-58: Commonly used for short runs in indoor applications. It has higher loss compared to other types.

LMR-195, LMR-240, LMR-400: These are low-loss coaxial cables suitable for longer runs. LMR-400, in particular, is preferred for its low attenuation over long distances.

RG-6: Often used for TV and satellite, but can be used for WiFi with appropriate connectors.

2. Cable Length

Signal Loss: The longer the cable, the greater the signal loss. It’s important to keep cable runs as short as possible to minimize attenuation.

Placement: Position antennas as close to the WiFi device as possible to reduce the need for long cables.

3. Cable Quality

Shielding: Good quality cables have better shielding to protect against electromagnetic interference (EMI).

Flexibility: Depending on the installation environment, you may need flexible cables that can be routed easily without damaging the internal conductors.

4. Environmental Considerations

Indoor vs. Outdoor: Use weather-resistant cables for outdoor installations to protect against UV radiation, moisture, and temperature variations.

Temperature Range: Ensure the cable can operate within the temperature range of the installation environment.

Additional Tips

Connector Adapters: Sometimes, you may need adapters to connect different types of connectors. For example, an RP-SMA to N-Type adapter.

Cable Management: Proper cable management can help maintain signal integrity and prolong the life of the cables.

Testing: After installation, use a signal analyzer or WiFi analyzer tool to test the signal strength and quality to ensure optimal performance.

By carefully selecting the right connectors and cables, you can significantly improve the performance and reliability of your WiFi antenna setup.

6. Design and Form Factor

Indoor vs. outdoor design

When designing WiFi antennas for indoor versus outdoor use, several key factors must be considered to ensure optimal performance and reliability. Here are the primary considerations for each environment:

Indoor WiFi Antenna Design

1. Range and Coverage:

Challenges: Indoor environments often have multiple walls, floors, and other obstacles that can attenuate and reflect WiFi signals.

Design Considerations: Use antennas with omnidirectional patterns to provide broad coverage. Multiple antennas (MIMO – Multiple Input Multiple Output) can help improve signal strength and coverage.

2. Interference:

Challenges: Indoor environments may have numerous electronic devices that can cause interference (e.g., microwaves, cordless phones, Bluetooth devices).

Design Considerations: Choose antennas that operate on both 2.4 GHz and 5 GHz bands to mitigate interference and provide better performance.

3. Aesthetic and Space Constraints:

Challenges: Indoor antennas often need to be unobtrusive and fit within limited spaces.

Design Considerations: Compact, low-profile antennas that can be easily mounted on walls, ceilings, or integrated into devices are preferred.

4. Signal Penetration:

Challenges: Different building materials (concrete, metal, glass) can affect signal strength.

Design Considerations: Placement of antennas in central locations and the use of repeaters or mesh networks can help improve penetration and coverage.

Outdoor WiFi Antenna Design

1. Range and Coverage:

Challenges: Outdoor environments require longer range and wider coverage areas.

Design Considerations: Use high-gain directional or sector antennas to cover larger areas and focus the signal where needed.

2. Weather and Environmental Conditions:

Challenges: Outdoor antennas must withstand various weather conditions (rain, snow, wind, temperature extremes) and potential physical impacts.

Design Considerations: Use weatherproof, ruggedized antennas with appropriate IP ratings (e.g., IP67) to ensure durability and reliability.

3. Interference:

Challenges: Outdoor environments can have interference from other wireless networks, industrial equipment, and even natural obstacles like trees and buildings.

Design Considerations: Use antennas that can operate on multiple channels and frequencies to avoid crowded bands. Directional antennas can help minimize interference by focusing the signal.

4. Mounting and Installation:

Challenges: Outdoor antennas need secure mounting solutions to withstand wind and other environmental factors.

Design Considerations: Use robust mounting hardware and ensure proper grounding to protect against lightning and electrical surges.

5. Regulatory Compliance:

Challenges: Outdoor antennas may need to comply with local regulations regarding signal strength, frequency use, and installation requirements.

Design Considerations: Ensure that the design and deployment of outdoor antennas meet all relevant regulatory standards.

Summary

Indoor Antennas: Focus on omnidirectional coverage, compact design, and dual-band operation to handle obstacles and interference within buildings.

Outdoor Antennas: Emphasize durability, weatherproofing, high-gain directional coverage, and compliance with regulatory standards to provide reliable long-range connectivity in varied environmental conditions.

By addressing these considerations, you can design WiFi antennas that are well-suited to their respective environments, ensuring optimal performance and user satisfaction.

Aesthetic considerations for home or office environments

When incorporating WiFi antennas into home or office environments, aesthetic considerations can significantly enhance the overall look and feel of the space. Here are some strategies to ensure that WiFi antennas blend seamlessly into your environment:

1. Concealment and Integration

Furniture Integration: Incorporate WiFi antennas into furniture pieces such as bookshelves, desks, or entertainment centers. Custom-built furniture with hidden compartments can house the antennas without compromising on signal strength.

Wall and Ceiling Mounts: Use wall or ceiling mounts that can be painted or covered with decorative elements to match the surrounding decor. In-ceiling antennas can be particularly unobtrusive.

Cabinetry and Enclosures: Design custom cabinetry or enclosures that can hide the antennas while allowing for proper ventilation and signal transmission.

2. Design and Color Coordination

Color Matching: Choose antennas that come in colors that match your walls, furniture, or decor. Many manufacturers offer antennas in various colors or with customizable skins.

Minimalist Designs: Opt for sleek, minimalist designs that blend into modern interiors. Antennas with clean lines and simple shapes can be less obtrusive.

3. Functional Decor

Multi-Functional Items: Use items that serve a dual purpose, such as lamps or picture frames with built-in WiFi antennas. This can help disguise the technology as part of everyday decor.

Decorative Covers: Use decorative covers or cases that can camouflage the antennas as part of the room’s aesthetic. These covers should be made of materials that do not interfere with the signal.

4. Strategic Placement

High Placement: Place antennas high on walls or on top of tall furniture to keep them out of direct sight lines. This not only improves signal distribution but also keeps the antennas less noticeable.

Behind Decor: Position antennas behind decorative items such as plants, sculptures, or artwork. Ensure these items do not block the signal significantly.

5. Cable Management

Concealed Wiring: Use cable management solutions to hide the wires associated with WiFi antennas. This can include running cables through walls, using cord covers, or integrating them into baseboards.

Wireless Solutions: Whenever possible, opt for wireless solutions to reduce the number of visible cables and enhance the clean look of the space.

6. Smart Home Integration

Smart Home Devices: Integrate WiFi antennas with other smart home devices that are already part of your decor, such as smart speakers, thermostats, or security cameras. This can create a cohesive tech environment.

Unified Design: Choose devices from the same manufacturer or product line to ensure a consistent design language across all your tech devices.

By carefully considering these aesthetic strategies, you can ensure that WiFi antennas contribute to the overall design of your home or office rather than detract from it.

7. Installation and Mounting

When installing and mounting a WiFi antenna, there are several factors to consider to ensure optimal performance and coverage. Here’s a detailed guide covering ease of installation and various mounting options:

Ease of Installation

1. Preparation:

Site Survey: Conduct a site survey to determine the best location for the antenna. Consider factors like signal interference, physical obstructions, and coverage area.

Tools and Equipment: Gather necessary tools such as a drill, screws, anchors, a ladder, and any specific mounting hardware provided with the antenna.

2. Antenna Type:

Indoor vs. Outdoor: Indoor antennas are generally easier to install as they don’t require weatherproofing. Outdoor antennas need to be weather-resistant and may require additional sealing and grounding.

Directional vs. Omni-directional:  Directional antennas need to be aimed precisely at the target area, which can be more complex than installing omni-directional antennas that broadcast signals in all directions.

3.Installation Steps:

Mounting Bracket: Secure the mounting bracket firmly to the chosen surface. Ensure it’s level and stable.

Connect Cables: Attach the coaxial cable to the antenna before mounting it. This can be easier than trying to connect it after the antenna is in place.

Secure Antenna: Attach the antenna to the mounting bracket. Use a wrench to tighten any bolts and ensure the antenna is securely fastened.

Test Signal: Once installed, test the signal strength and make any necessary adjustments to the antenna’s position.

Mounting Options

1. Wall Mounting:

Pros: Easy access for maintenance, good for indoor environments, can be positioned at various heights.

Cons: Limited to the coverage area directly in front of the wall, may be obstructed by furniture or other objects.

Installation: Use wall anchors and screws to secure the mounting bracket. Ensure the wall can support the weight of the antenna.

2. Ceiling Mounting:

Pros: Ideal for large indoor spaces like offices and warehouses, provides wide coverage, less likely to be obstructed.

Cons: More challenging to install, requires a ladder or lift, may need longer cables.

Installation: Use ceiling anchors and screws. Ensure the ceiling structure can support the antenna. Consider using a drop ceiling mount if applicable.

3. Pole Mounting:

Pros: Excellent for outdoor use, can be elevated for better line-of-sight, avoids many physical obstructions.

Cons: Requires a sturdy pole, more complex installation, may need weatherproofing.

Installation: Secure the pole firmly in the ground or to a building structure. Use mounting brackets designed for poles. Ensure the antenna is at the correct height and angle.

4. Ground Mounting:

Pros: Suitable for outdoor use, can be positioned for optimal line-of-sight, avoids roof or wall drilling.

Cons: Vulnerable to physical damage from people, animals, or machinery, may require waterproofing, potentially limited elevation.

Installation: Use a ground mount kit with a sturdy base. Secure the mount firmly into the ground using concrete or ground stakes. Ensure the antenna is at the correct height and angle, and consider additional weatherproofing measures to protect the antenna from the elements.

Additional Tips

Weatherproofing: For outdoor installations, use weatherproof tape and sealant to protect connections from moisture.

Grounding: Ground outdoor antennas to prevent damage from lightning.

Cable Management: Use cable ties and conduits to manage cables neatly and protect them from damage.

Signal Testing: Use a WiFi analyzer tool to test signal strength and adjust the antenna as needed for optimal performance.

By considering these factors and following the appropriate steps, you can ensure a successful WiFi antenna installation that provides robust and reliable coverage.

Chapter 3: Popular Types of WiFi Antennas

1. Omni-directional Antennas

Characteristics:

1. Radiation Pattern: Omni-directional antennas emit radio waves in all horizontal directions, creating a 360-degree coverage area. They typically have a doughnut-shaped radiation pattern.

2. Gain: They usually have lower gain compared to directional antennas, generally ranging from 2 dBi to 12 dBi. Higher gain omni-directional antennas can cover larger areas but have a more flattened vertical beamwidth.

3. Polarization: These antennas can be vertically or horizontally polarized, but vertical polarization is more common.

4. Frequency Bands: They can operate on various frequency bands, including 2.4 GHz, 5 GHz, and sometimes dual-band for WiFi applications.

5. Physical Form: They often come in the form of rods or tubes, making them easy to mount on routers, access points, or outdoor fixtures.

Use Cases:

1. Home and Office WiFi Networks: Ideal for providing uniform coverage in homes and small to medium-sized offices where users are spread out across multiple rooms or floors.

2. Public WiFi Hotspots: Commonly used in cafes, parks, and other public spaces to offer broad coverage to multiple users.

3. Warehouses and Large Open Spaces: Useful in environments where devices are scattered over a large area, such as warehouses, factories, or large retail spaces.

4. Outdoor Applications: Suitable for outdoor WiFi coverage in areas like campuses, stadiums, and outdoor event venues.

5. Mobile Applications: Often used in vehicles, such as buses, trains, and boats, to provide WiFi connectivity to passengers.

Pros:

1. Wide Coverage Area: Provides broad, uniform coverage, reducing dead spots in the coverage area.

2. Ease of Installation: Simple to install without the need for precise alignment, unlike directional antennas.

3. Cost-Effective: Generally less expensive compared to high-gain directional antennas.

4. Versatility: Can be used in various environments, both indoors and outdoors.

5. Multiple Device Support: Can support multiple devices simultaneously, making them ideal for areas with high user density.

Cons:

1. Lower Gain: Typically offers lower signal strength compared to directional antennas, which can be a limitation in long-range applications.

2. Interference: More susceptible to interference from other devices due to their wide coverage area.

3. Limited Range: Not suitable for long-distance point-to-point communication.

4. Signal Wastage: In scenarios where coverage is only needed in a specific direction, omni-directional antennas can waste signal power in unnecessary directions.

5. Potential for Overlapping Channels: In dense environments with multiple WiFi networks, the broad coverage can lead to overlapping channels and increased interference.

Conclusion:

WiFi omni-directional antennas are versatile and effective for providing broad, uniform coverage in various environments. They are particularly useful in scenarios where users are dispersed over a wide area and ease of installation is essential. However, their lower gain and susceptibility to interference can be limitations in specific applications, making it crucial to choose the right type of antenna based on the specific needs of the network.

2. Dome Antennas

WiFi dome antennas are specialized antennas designed to provide wireless coverage in various environments. They are typically used in scenarios where uniform coverage is required over a wide area, such as in large indoor spaces. Here’s a detailed look at their characteristics, use cases, and the pros and cons:

Characteristics

1. Omni-Directional Coverage: Dome antennas are often omni-directional, meaning they radiate signal uniformly in all directions, providing 360-degree coverage.

2. Frequency Bands: They support multiple frequency bands, commonly including the 2.4 GHz, 5 GHz and 6 GHz bands used in WiFi networks.

3. Gain: They typically have lower gain compared to directional antennas, which means they are designed for broader coverage rather than long-distance communication.

4. Design: Dome antennas are usually compact and aesthetically pleasing, making them suitable for indoor installations where appearance is a consideration.

5. Mounting: They can be mounted on ceilings or walls, making them versatile for different installation scenarios.

Use Cases

1. Large Indoor Spaces: Ideal for areas like shopping malls, airports, conference centers, and large office spaces where uniform coverage is needed.

2. Public Transport: Used in buses, trains, and other public transport systems to provide consistent WiFi coverage throughout the vehicle.

3. Warehouses: Effective in warehouses where goods and equipment can obstruct signals, as the omni-directional nature helps in covering all areas.

Pros

1. Uniform Coverage: Provides consistent signal strength in all directions, reducing dead spots in the coverage area.

2. Aesthetic Design: The sleek, unobtrusive design makes them suitable for environments where appearance is important.

3. Versatility: Can be used in various settings, both indoor and outdoor, making them a flexible solution for different coverage needs.

4. Ease of Installation: Typically easy to install on ceilings or walls, simplifying deployment in large areas.

Cons

1. Lower Gain: The lower gain compared to directional antennas means they are not suitable for long-distance communication or focused coverage areas.

2. Interference: In environments with many other WiFi networks or electronic devices, the omni-directional nature can lead to more interference and reduced performance.

3. Coverage Limitations: While they provide broad coverage, the signal strength may not penetrate through multiple walls or obstructions effectively, potentially requiring additional antennas to cover larger or more complex areas.

Conclusion

WiFi dome antennas are a valuable tool for providing broad, uniform wireless coverage in a variety of settings. They are particularly useful in large indoor spaces where aesthetics and ease of installation are important. However, their lower gain and potential for interference in crowded environments are important considerations when planning a WiFi network. Balancing these factors will help determine if a dome antenna is the right choice for a specific application.

3. Panel Antennas

WiFi panel antennas are a type of directional antenna used to improve wireless communication by focusing the signal in a specific direction. They are commonly used in various applications to enhance the range, reliability, and performance of WiFi networks. Here are the key characteristics, use cases, pros, and cons of WiFi panel antennas:

Characteristics

1. Directional Pattern: Panel antennas have a directional radiation pattern, meaning they focus the signal in one direction rather than broadcasting it in all directions.

2. Gain: Typically, panel antennas have higher gain (measured in dBi) compared to omnidirectional antennas. This higher gain helps in extending the range and improving the signal strength in the desired direction.

3. Size and Shape: They are usually flat and rectangular, making them easy to mount on walls or poles.

4. Frequency Range: WiFi panel antennas are designed to operate in the 2.4 GHz , 5 GHz and or 6GHz frequency bands, which are common for WiFi networks.

5. Beamwidth: The beamwidth of a panel antenna is narrower compared to omnidirectional antennas, allowing for more focused coverage.

Use Cases

1. Point-to-Point Links: Ideal for creating a wireless bridge between two locations, such as connecting two buildings.

2. Outdoor Coverage: Suitable for extending WiFi coverage in outdoor environments, such as parks, campuses, or large outdoor events.

3. Indoor Coverage: Can be used to focus the signal in large indoor spaces like warehouses, auditoriums, or long corridors.

4. Reducing Interference**: By focusing the signal, panel antennas can help reduce interference from other wireless networks or devices in crowded environments.

Pros

1. Improved Range and Signal Strength: The directional nature and higher gain of panel antennas can significantly extend the range and improve the signal quality in the targeted direction.

2. Focused Coverage: Ideal for applications where coverage is needed in a specific direction or area, reducing wasted signal and interference.

3. Versatility: Can be used in both indoor and outdoor applications, making them versatile for various deployment scenarios.

4. Interference Mitigation: By focusing the signal, panel antennas can help mitigate interference from other WiFi networks or devices.

Cons

1. Limited Coverage Area: The directional nature means that coverage is limited to the area in the direction the antenna is pointed, which may not be suitable for all applications.

2. Installation Complexity: Proper alignment and mounting are crucial for optimal performance, which can make installation more complex compared to omnidirectional antennas.

3. Cost: Panel antennas can be more expensive than omnidirectional antennas, especially those with higher gain and advanced features.

4. Physical Size: While generally compact, some high-gain panel antennas can be relatively large and may require sturdy mounting solutions.

Conclusion

WiFi panel antennas are a powerful tool for enhancing wireless communication in specific directions, making them ideal for targeted coverage scenarios such as point-to-point links, focused indoor coverage, and outdoor deployments. However, their directional nature and installation complexity mean they are not suitable for all applications. Careful consideration of the use case, environment, and installation requirements is essential to maximize the benefits of using a WiFi panel antenna.

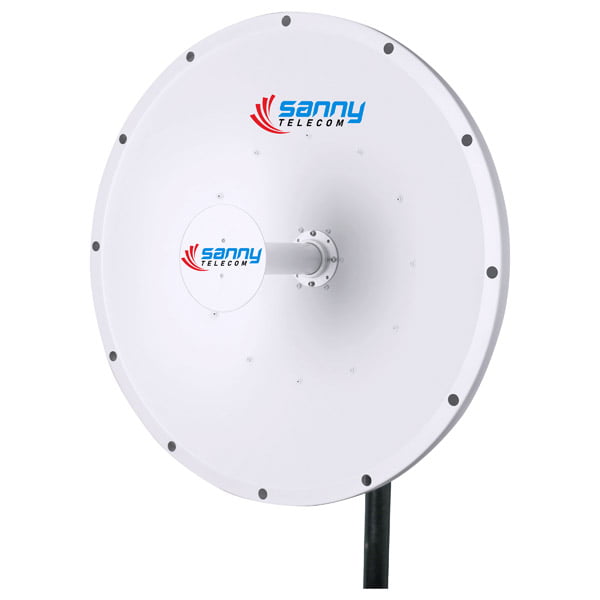

4. Parabolic Dish Antennas

Characteristics:

1. High Gain: Parabolic dish antennas offer high gain, typically ranging from 15 dBi to 30 dBi or more. This high gain results from the parabolic shape, which focuses the radio waves into a narrow beam, increasing signal strength.

2. Directional: These antennas are highly directional, meaning they focus the signal in a specific direction. This characteristic is beneficial for point-to-point communication over long distances.

3. Frequency Range: Parabolic dish antennas are designed to operate in specific frequency ranges, commonly within the 2.4 GHz , 5 GHz and 6GHz bands used by WiFi networks.

4. Size and Shape: They are usually larger and more cumbersome compared to other types of WiFi antennas. The dish shape is essential for focusing the signal.

5. Polarization: These antennas can support different types of polarization (horizontal, vertical, or dual polarization), which can be selected based on the specific application and environment.

Use Cases:

1. Long-Distance Communication: Ideal for establishing long-distance point-to-point links, such as connecting two buildings or remote locations where wired connections are impractical.

2. Backhaul Connections: Used in telecommunications to connect base stations to the core network, often over several kilometers.

3. Rural Internet Access: Providing internet access to remote or rural areas where traditional broadband services are unavailable.

4. Wireless Internet Service Providers (WISPs): Used by WISPs to deliver internet services over wide areas.

Pros:

1. High Gain: Provides strong signal strength and improved performance over long distances.

2. Focused Signal: Reduces interference from other sources by concentrating the signal in a specific direction.

3. Reliable: Suitable for stable, long-range communication links.

4. Scalability: Can be used to scale networks by connecting multiple nodes over large distances.

Cons:

1. Size and Weight: Typically larger and heavier than other types of antennas, making them less portable and more challenging to install.

2. Alignment: Requires precise alignment to ensure optimal performance, which can be time-consuming and technically demanding.

3. Cost: Generally more expensive than other types of WiFi antennas due to their complexity and materials.

4. Wind Load: The large surface area can be affected by wind, requiring sturdy mounting solutions.

5. Narrow Beamwidth: While beneficial for focusing the signal, it also means the antenna has a limited coverage area, requiring precise aiming.

Conclusion:

WiFi parabolic dish antennas are powerful tools for long-distance, point-to-point communication. They offer high gain and focused signals, making them ideal for specific applications like rural internet access and backhaul connections. However, their size, cost, and need for precise alignment can be drawbacks. Proper consideration of these factors is essential when deciding whether a parabolic dish antenna is the right choice for a particular use case.

5. Parabolic Grid Antennas

Characteristics

1. Design:

Parabolic grid antennas typically feature a parabolic reflector made from a grid or mesh material. This design helps focus the radio waves into a narrow, high-gain beam.

2. Gain:

These antennas offer high gain, often ranging from 18 dBi to 24 dBi or more. High gain means they can transmit and receive signals over long distances.

3. Directional:

They are highly directional, meaning they focus energy in a specific direction, which helps in achieving long-range communication.

4. Frequency Range:

 Commonly used in the 2.4 GHz and 5 GHz bands, which are standard for WiFi communication.

5. Polarization:

They can be designed for either vertical or horizontal polarization, or even dual-polarization in some cases.

6. Construction Material:

Typically made from aluminum or other lightweight, durable materials that can withstand outdoor conditions.

7. Mounting:

 Usually come with mounting hardware that allows for precise alignment and adjustment.

Use Cases

1. Point-to-Point Links:

Ideal for establishing point-to-point links between two locations, such as connecting two buildings in a campus or industrial setting.

2. Rural Internet:

Useful for providing internet access in rural or remote areas where wired infrastructure is not available.

3. Backhaul Networks:

Employed in wireless backhaul networks to connect different network nodes over long distances.

4. Surveillance Systems:

Can be used to transmit video feeds from remote surveillance cameras to a central monitoring station.

5. Amateur Radio:

Often used by amateur radio enthusiasts for long-distance communication.

Pros

1. High Gain:

Provides high gain, which allows for long-distance communication and better signal quality.

2. Directional Focus:

Highly directional, reducing interference from other sources and focusing the signal where it is needed.

3. Durability:

Generally built to withstand outdoor conditions, including wind, rain, and UV exposure.

4. Cost-Effective:

Often more affordable than other high-gain antenna types like dish antennas.

5. Scalability:

Can be used in both small-scale and large-scale deployments.

Cons

1. Alignment Sensitivity:

Requires precise alignment to achieve optimal performance, which can be challenging and time-consuming.

2. Size and Weight:

Can be bulky and heavy, making installation more difficult and requiring sturdy mounting solutions.

3. Narrow Beamwidth:

The narrow beamwidth means that any movement or misalignment can significantly affect performance.

4. Aesthetic and Space Concerns:

May not be aesthetically pleasing and can take up significant space, making them less suitable for residential areas.

Conclusion

WiFi parabolic grid antennas are powerful tools for long-distance, high-gain communication. They are particularly useful in point-to-point links, rural internet setups, and backhaul networks. However, they require careful alignment and sturdy installation to perform optimally. Their high gain and directional focus make them excellent for targeted communication, but their size and sensitivity to alignment can be drawbacks in some scenarios.

6. Rubber Duck Antennas

Characteristics:

1. Design:

Typically, rubber duck antennas are cylindrical and encased in a rubber or plastic material, providing durability and flexibility.

They are often articulated, allowing for adjustment in orientation to optimize signal reception and transmission.

2. Frequency Range:

Most commonly designed for the 2.4 GHz,5 GHz and 6GHz frequency bands used in WiFi networks.

Some models may cover other frequency ranges depending on their specific application.

3. Gain:

The gain of rubber duck antennas usually ranges from 2 dBi to 5 dBi.

Higher gain antennas are available but may come with trade-offs in terms of size and radiation pattern.

4. Radiation Pattern:

Typically omnidirectional, meaning they radiate signal uniformly in all horizontal directions.

This makes them suitable for general-purpose use where the signal needs to be distributed evenly around the antenna.

5. Connector Types:

Common connectors include SMA, RP-SMA, and N-type, allowing compatibility with a wide range of WiFi devices such as routers, access points, and USB WiFi adapters.

Use Cases:

1. Home and Office WiFi:

 Ideal for boosting WiFi signals in small to medium-sized areas.

Commonly used with home routers and office access points to improve coverage and reduce dead zones.

2. Portable WiFi Devices:

Used in USB WiFi adapters and portable WiFi hotspots to improve signal reception and transmission.

Convenient for travelers and mobile workers who need reliable internet connectivity.

3. IoT Devices:

Suitable for IoT devices requiring stable WiFi connectivity.

Often used in smart home devices, security cameras, and industrial IoT applications.

4. Public WiFi Networks:

Deployed in cafes, libraries, and other public spaces to provide consistent WiFi coverage.

Can be used in conjunction with other types of antennas to create a comprehensive network.

Pros:

1. Durability:

 The rubberized or plastic casing makes these antennas resistant to physical damage and environmental factors.

2. Flexibility:

The articulated design allows for easy adjustment to optimize signal direction.

3. Ease of Use:

Simple to install and replace, often requiring no technical expertise.

4. Cost-Effective:

 Generally affordable, making them a popular choice for a wide range of applications.

5. Omnidirectional Coverage:

Provides broad coverage, ideal for environments where the signal needs to reach multiple directions.

Cons:

1. Limited Gain:

The gain is typically lower compared to directional antennas, which may limit their effectiveness in long-range applications.

2. Interference:

 Being omnidirectional, they may pick up more interference from surrounding devices, potentially affecting signal quality.

3. Aesthetic:

While functional, their appearance may not be suitable for all environments, particularly in more design-conscious settings.

4. Performance in Complex Environments:

In areas with many obstacles (e.g., walls, furniture), the performance may degrade due to signal reflection and absorption.

5. Limited Customization:

While they are adjustable, they offer less customization in terms of signal direction compared to directional antennas.

In summary, WiFi rubber duck antennas are a versatile and durable option for a variety of WiFi applications, particularly in environments requiring broad, omnidirectional coverage. However, they may not be the best choice for long-range or highly specific directional needs.

7. Sector Antennas

WiFi sector antennas are specialized antennas designed to cover a specific sector or angle, typically ranging from 60 to 120 degrees. They are commonly used in wireless communication systems to provide focused coverage in a particular direction, which can be advantageous in various scenarios. Below, I’ll outline their characteristics, use cases, pros, and cons.

Characteristics

1. Beamwidth:

Horizontal Beamwidth: Typically between 60° and 120°, allowing for focused coverage in a specific direction.

Vertical Beamwidth: Usually narrower, around 5° to 15°, to reduce interference and focus the signal.

2. Gain:

Sector antennas usually have moderate to high gain, ranging from 15 dBi to 20 dBi, which helps in extending the coverage area.

3. Polarization:

 They can be either single-polarized or dual-polarized, supporting both horizontal and vertical polarizations to improve signal quality and reduce interference.

4. Frequency Bands:

Designed to operate in specific frequency bands, commonly 2.4 GHz and 5 GHz for WiFi applications.

5. Physical Design:

Typically rectangular or sector-shaped, with a robust and weatherproof design for outdoor installations.

Use Cases

1. Outdoor WiFi Hotspots:

Ideal for providing WiFi coverage in outdoor areas such as parks, campuses, and stadiums. Multiple sector antennas can be used to cover different directions.

2. Point-to-Multipoint (PtMP) Networks:

Used in wireless Internet Service Provider (WISP) networks to connect multiple clients from a central access point.

3. Urban and Rural Areas:

 Effective in both urban and rural settings to provide targeted coverage without excessive signal spillover, which can cause interference.

4. Event Venues:

Suitable for temporary installations at events, festivals, and concerts where focused and reliable WiFi coverage is needed.

5. Industrial and Enterprise Environments:

Used in large warehouses, factories, and enterprise campuses to cover specific areas with high-density WiFi needs.

Pros

1. Focused Coverage:

Provides targeted coverage, reducing interference and improving signal quality in the desired direction.

2. Scalability:

Multiple sector antennas can be used together to cover large areas, offering flexibility in network design.

3. High Gain:

The high gain of sector antennas extends the coverage area and improves signal strength.

4. Reduced Interference:

 Narrow beamwidth helps in minimizing interference from other WiFi networks or devices.

5. Cost-Effective:

Often more cost-effective than omnidirectional antennas for covering large areas with focused coverage.

Cons

1. Limited Coverage Angle:

The focused beamwidth means that multiple antennas are needed to cover 360 degrees, increasing complexity and cost.

2. Installation Complexity:

Requires precise alignment and mounting, which can be more challenging compared to omnidirectional antennas.

3. Interference Management:

While sector antennas reduce interference, careful planning is needed to avoid overlap and interference between adjacent sectors.

4. Physical Size:

Sector antennas are generally larger and more conspicuous than omnidirectional antennas, which can be a concern in some installations.

5. Environmental Factors:

 Outdoor installations must consider weatherproofing and environmental durability, which can increase maintenance requirements.

Conclusion

WiFi sector antennas are a powerful tool for providing focused, high-quality WiFi coverage in various scenarios. Their ability to reduce interference and extend coverage makes them ideal for outdoor hotspots, PtMP networks, and large venues. However, their limited coverage angle and installation complexity require careful planning and management. Understanding these characteristics, use cases, pros, and cons will help in making informed decisions when deploying WiFi sector antennas in a wireless network.

8. Symmetrical Horn Antennas

Characteristics:

1. Symmetrical Radiation Pattern: These antennas emit signals in a symmetrical, circular pattern, providing consistent coverage in all directions within the beamwidth.

2. Beamwidth: They come in various beamwidths, typically ranging from 30 to 90 degrees, allowing for precise control over the coverage area.

3. Frequency Range: Designed for WiFi frequencies, usually covering 5 GHz and 6 GHz bands.

4. Gain: Typically, symmetrical horn antennas offer moderate gain, often between 10 to 20 dBi.

5. Polarization: They can support different types of polarization, including horizontal, vertical, and dual-polarity.

6. Front-to-Back Ratio: High front-to-back ratio minimizes interference from signals coming from the opposite direction.

7. Construction: Often made from durable materials like aluminum or UV-resistant plastic, ensuring longevity and resistance to environmental factors.

Use Cases:

1. Point-to-Multipoint (PtMP) Networks: Ideal for base stations in PtMP setups, providing consistent coverage to multiple clients within the beamwidth.

2. Urban Environments: Effective in dense urban areas where precise coverage is needed to avoid interference with other networks.

3. Wireless Internet Service Providers (WISPs): Used by WISPs to deliver internet service over large areas, particularly in rural or suburban settings.

4. Event Coverage: Useful for providing temporary WiFi coverage at events, ensuring even distribution of signal.

5. Sector Coverage: Employed in sector-based WiFi deployments, offering targeted coverage to specific areas.

Pros:

1. Consistent Coverage: The symmetrical radiation pattern ensures even signal distribution within the beamwidth, reducing dead zones.

2. Reduced Interference: High front-to-back ratio helps in minimizing interference from unwanted directions, enhancing overall network performance.

3. Scalability: Easily scalable for expanding networks; additional antennas can be added to cover more sectors without significant overlap.

4. Durability: Robust construction makes them suitable for outdoor installations, withstanding various weather conditions.

5. Flexibility: Available in various beamwidths, allowing for tailored coverage based on specific deployment needs.

6. Improved Throughput: Consistent signal strength across the coverage area can lead to better data throughput and user experience.

Cons:

1. Cost: Generally more expensive than standard omnidirectional antennas, which might be a consideration for budget-sensitive projects.

2. Installation Complexity**: Requires precise alignment and mounting, which can be more complex and time-consuming compared to simpler antennas.

3. Size and Weight: Some models can be bulky and heavy, necessitating sturdy mounting solutions and potentially more robust infrastructure.

4. Limited Coverage Area: While offering precise coverage, the area covered by a single symmetrical horn antenna is smaller compared to some other types of antennas, necessitating more units for large areas.

5. Specialized Use: Not always suitable for all types of deployments, particularly where broader, less focused coverage is needed.

Conclusion

WiFi symmetrical horn antennas are a powerful tool for specific applications requiring precise, consistent coverage with minimal interference. While they come with higher costs and installation complexities, their benefits in terms of performance and scalability make them a valuable asset in many wireless networking scenarios, particularly for professional and commercial deployments.

9. Yagi Antennas

Characteristics:

1. Design: Yagi antennas, also known as Yagi-Uda antennas, consist of multiple parallel elements in a line, usually made of metal rods. The elements include a single driven element (connected to the transmitter or receiver), one or more passive elements (directors and reflectors).

2. Directional: Yagi antennas are highly directional, meaning they focus the signal in a specific direction. This makes them ideal for point-to-point communication.

3. Gain: They typically offer high gain, which means they can transmit and receive signals over longer distances compared to omnidirectional antennas.

4. Frequency Range: WiFi Yagi antennas are designed to operate in the 2.4 GHz or 5 GHz frequency bands, which are common for WiFi networks.

5. Polarization: They can be designed for either vertical or horizontal polarization, depending on the orientation of the elements.

Use Cases:

1. Long-Distance WiFi Links: Ideal for establishing long-distance WiFi connections between two fixed points, such as between buildings or across large open areas.

2. Rural Internet Access: Useful in rural areas where internet service is sparse, allowing users to connect to distant WiFi hotspots.

3. Wireless Bridges: Often used in setting up wireless bridges to connect two or more networks over a significant distance.

4. Amateur Radio: Sometimes used by amateur radio enthusiasts for WiFi-based communication projects.

5. Surveillance Systems: Can be used in surveillance systems to connect cameras to the network over long distances.

Pros:

1. High Gain: Provides stronger signal strength and longer range compared to omnidirectional antennas.

2. Directional Focus: Reduces interference from other signals, as it focuses on a specific direction.

3. Improved Performance: Enhances the quality and reliability of the wireless connection.

4. Cost-Effective: Generally more affordable than some other high-gain directional antennas like parabolic dishes.

Cons:

1. Directional Limitation: The highly directional nature means it must be precisely aimed, which can be a disadvantage if the target moves or if a wider coverage area is needed.

2. Size and Installation: Can be larger and more cumbersome to install compared to omnidirectional antennas.

3. Narrow Beamwidth: The narrow beamwidth can be a drawback in environments where the signal needs to cover a broader area or multiple directions.

Conclusion

WiFi Yagi antennas are powerful tools for specialized applications requiring long-range, point-to-point communication. Their high gain and directional focus make them ideal for specific use cases, but they come with limitations that need to be considered, such as precise aiming and installation challenges.

Chapter 4: Placement and Installation

Indoor vs. Outdoor Antennas

When it comes to WiFi antennas, there are significant differences between indoor and outdoor models, each designed to cater to specific needs and environments. Understanding these differences can help you choose the right antenna for your situation. Here are some key points to consider:

Indoor WiFi Antennas

1. Design and Durability:

Design: Typically smaller, more compact, and designed to blend in with home or office decor.

Durability: Built to withstand indoor conditions and are generally less rugged compared to outdoor antennas.

2. Range and Coverage:

Range: Usually have a shorter range compared to outdoor antennas, sufficient for covering rooms or small office spaces.

Coverage: Designed to provide coverage within buildings, taking into account walls and other obstacles that can attenuate signals.

3. Installation:

Ease of Installation: Generally easier to install, often requiring minimal setup. They can be placed on desks, mounted on walls, or attached to routers.

Positioning: Can be moved easily to optimize signal strength within the indoor environment.

4. Types:

Omni-directional Antennas: Emit signals in all directions, suitable for general indoor use.

Directional Antennas: Focus the signal in a specific direction, useful for targeting specific areas within a building.

Outdoor WiFi Antennas

1. Design and Durability:

Design: Larger and more robust, designed to withstand harsh weather conditions such as rain, wind, and extreme temperatures.

Durability: Made from materials that resist corrosion and are often weatherproof or waterproof.

2. Range and Coverage:

Range: Typically have a longer range, capable of covering large outdoor areas such as parks, campuses, or industrial sites.

Coverage: Designed to provide coverage over wide open spaces without the interference of walls and other indoor obstacles.

3. Installation:

Complexity: Installation can be more complex, often requiring mounting on poles, rooftops, or other elevated structures to maximize coverage.

Positioning: Requires careful alignment, especially for directional antennas, to ensure optimal signal distribution.

4. Types:

Omni-directional Antennas: Suitable for providing coverage in all directions over a wide area.

Directional Antennas: Focus the signal in a specific direction, ideal for point-to-point links or covering specific outdoor areas.

Key Considerations

Environment: Choose an indoor antenna for confined spaces like homes and offices, and an outdoor antenna for open areas or when you need to extend WiFi coverage outside.

Range Requirements: Consider the range you need. Indoor antennas are suitable for shorter distances, while outdoor antennas are designed for longer ranges.

Durability Needs: Outdoor antennas are built to withstand environmental elements, making them necessary for any outdoor deployment.

Installation: Indoor antennas are generally easier to install, while outdoor antennas may require more effort and expertise.

By understanding these differences, you can make an informed decision about which type of WiFi antenna best suits your needs.

Optimal Placement for Maximum Coverage

Optimizing the placement of WiFi antennas is crucial for ensuring maximum coverage and performance. Here are some guidelines and considerations to help you achieve the best possible WiFi coverage:

1. Central Location

Center of the Area: Place the WiFi router or access point (AP) in a central location relative to the area you want to cover. This helps ensure that the signal reaches all corners of the space.

2. Elevation

Height: Position the router or AP at a higher elevation, such as on a shelf or mounted on a wall. WiFi signals tend to spread out and downwards, so placing the device higher can help the signal travel further.

3. Minimize Obstructions

Clear Line of Sight: Avoid placing the router or AP near large metal objects, thick walls, or other obstructions that can block or weaken the signal. Materials like concrete, brick, and metal are particularly problematic.

Open Spaces: Position the device in open areas rather than closed cabinets or behind furniture.

4. Avoid Interference

Other Electronics: Keep the router or AP away from other electronic devices that can cause interference, such as microwaves, cordless phones, and baby monitors.

Channel Selection: Choose a less congested WiFi channel. Modern routers often have an automatic channel selection feature, but you can manually select a channel using a WiFi analyzer app.

5. Multiple Access Points

Large Areas: For larger areas or multi-story buildings, use multiple access points or a mesh network to ensure comprehensive coverage. Place additional APs strategically to cover dead zones.

Overlap Coverage: Ensure that the coverage areas of multiple APs overlap slightly to provide seamless connectivity as you move around.

6. Antenna Orientation

Directional Antennas: If using directional antennas, point them towards the areas where you need the strongest signal.

Omni-Directional Antennas: For omni-directional antennas, which radiate signal in all directions, ensure they are placed in a central location and oriented vertically.

7. Use of Extenders and Repeaters

WiFi Extenders: If you have specific dead zones, consider using WiFi extenders or repeaters to boost the signal in those areas.

Placement of Extenders: Place extenders halfway between the router and the area with poor signal to ensure they receive a strong enough signal to rebroadcast.

8. Regular Updates and Maintenance

Firmware Updates: Keep your router’s firmware updated to benefit from performance improvements and security patches.

Rebooting: Occasionally reboot your router to clear any temporary issues and improve performance.

9. Advanced Configurations

Beamforming: If your router supports beamforming, enable it to direct the WiFi signal towards connected devices.

Quality of Service (QoS): Use QoS settings to prioritize important traffic, such as video calls or gaming, to ensure a stable connection.

10. Testing and Adjustment

WiFi Analyzer Tools: Use WiFi analyzer tools to test signal strength and coverage throughout your space. Adjust the placement of your router or APs based on the results.

Iterative Process: Be prepared to move your devices and retest several times to find the optimal placement.

By following these guidelines and considering the specific characteristics of your environment, you can significantly improve your WiFi coverage and performance.

Installation Tips and Best Practices

Installing WiFi antennas can significantly enhance your wireless network’s performance. However, proper installation is crucial to achieve optimal results and ensure safety. Below are some comprehensive tips and best practices for installing WiFi antennas, along with the necessary tools, equipment, and safety precautions.

Tools and Equipment Needed

1. WiFi Antenna: Choose the appropriate type (e.g., omni-directional, directional) based on your needs.

2. Mounting Bracket: For securing the antenna.

3. Coaxial Cable assembly: To connect the antenna to the router or access point.

4. Cable Ties: For organizing and securing cables.

5. Drill and Drill Bits: For making holes to mount the antenna.

6. Screwdrivers: For securing screws and mounting brackets.

7. Wrench/Spanner: For tightening bolts.

8. Ladder: If installation is at a height.

9. Multimeter: For checking electrical connections.

10. Compass and Map: For aligning directional antennas.

11. Waterproofing Materials: Such as silicone sealant and electrical tape, especially for outdoor installations.

12. Personal Protective Equipment (PPE): Such as gloves, safety glasses, and a hard hat.

Safety Precautions

1. Electrical Safety: Ensure the power to the router or access point is turned off before connecting or disconnecting the antenna.

2. Height Safety: When working at heights, use a stable ladder and consider using a safety harness.

3. Weather Conditions: Avoid installing antennas during adverse weather conditions like rain or thunderstorms.

4. Grounding: Properly ground outdoor antennas to prevent damage from lightning strikes.

5. Radiation Exposure: Maintain a safe distance from the antenna when it is transmitting to avoid exposure to high levels of RF radiation.

6. Tool Safety: Use tools correctly and wear appropriate PPE to prevent injuries.

Installation Steps

1. Site Survey:

Assess the area where the antenna will be installed.

Identify potential obstructions like walls, trees, or other buildings.

Determine the optimal location for signal coverage.

2. Select the Right Antenna:

Omni-directional Antennas: Suitable for broad coverage in all directions.

Directional Antennas: Ideal for long-range, focused coverage.

3. Mount the Antenna:

Indoor Installation: Mount the antenna on a wall or ceiling using the mounting bracket. Ensure it is at a central location for even coverage.

Outdoor Installation: Mount the antenna on a mast or pole. Ensure it is high enough to avoid obstructions and potential interference.

4. Align the Antenna:

For directional antennas, use a compass and map to point the antenna towards the target area.

Adjust the tilt and rotation for optimal signal strength.

5. Connect the Coaxial Cable:

 Run the coaxial cable from the antenna to the router or access point.

Use cable ties to secure the cable and prevent it from sagging.

Ensure all connections are tight and secure.

6. Weatherproofing:

Use silicone sealant to seal any gaps where the cable enters the building.

Wrap outdoor connections with electrical tape to protect against moisture.

7. Testing and Optimization:

Power on the router or access point and check the signal strength.

Use a WiFi analyzer tool to measure signal strength and coverage.

Adjust the antenna position if necessary to achieve the best performance.

8. Regular Maintenance:

 Periodically check the antenna and connections for any signs of wear or damage.

Ensure the antenna remains securely mounted and aligned.

By following these tips and best practices, you can ensure a successful and safe installation of your WiFi antenna, leading to improved wireless network performance.

Chapter 5: Enhancing WiFi Performance with Antennas

1. Improving Range and Signal Strength

Improving the range and signal strength of WiFi antennas can significantly enhance network performance, especially in environments where coverage is critical. Below are practical tips and techniques, along with case studies and real-world examples to illustrate their effectiveness.

Practical Tips and Techniques

1. Optimal Placement of WiFi Router/Access Point:

Central Location: Place your router in a central location to ensure even distribution of the signal.

Elevated Position: Position the router on a shelf or mount it on a wall to minimize obstructions.

Minimize Interference: Keep the router away from electronic devices and metal objects that can cause interference.

2. Upgrading Antennas:

High-Gain Antennas: Replace the router’s standard antennas with high-gain directional or omni-directional antennas to extend the range.

External Antennas: Use external antennas with better specifications for improved performance.

3. Using WiFi Extenders/Repeaters:

Placement: Place extenders halfway between the router and the area with weak signal to boost coverage.

Mesh Networks: Consider a mesh network system for seamless coverage across larger areas.

4. Adjusting Router Settings:

Channel Selection: Use a less congested WiFi channel to reduce interference from neighboring networks.

Transmit Power: Increase the transmit power settings in the router’s configuration if possible.

5. Firmware Updates:

Regular Updates: Ensure the router’s firmware is up to date to benefit from performance improvements and security patches.

6. Using Reflectors and Boosters:

DIY Reflectors: Create simple reflectors using aluminum foil or purchase commercial reflectors to direct the signal.

Signal Boosters: Use signal boosters to increase the strength of the WiFi signal.

7. Wired Backhaul:

Ethernet Cables: Use Ethernet cables to connect access points directly to the router, reducing wireless congestion.

Case Studies and Real-World Examples

Case Study 1: Improving WiFi in a Large Home

Problem: A large home with multiple floors and thick walls had poor WiFi coverage in certain areas.

Solution:

Mesh Network: The homeowner installed a mesh network system with multiple nodes placed strategically around the house.

High-Gain Antennas: High-gain antennas were added to the main router to improve signal strength.

Firmware Update: The router firmware was updated to the latest version for optimal performance.

Result: The mesh network provided seamless coverage throughout the home, eliminating dead zones and ensuring consistent internet speeds on all floors.

Case Study 2: Enhancing WiFi in an Office Building

Problem: An office building experienced WiFi dead zones and slow speeds due to interference from other office equipment and neighboring networks.

Solution:

Channel Selection: The IT team conducted a site survey to identify the least congested WiFi channels and adjusted the router settings accordingly.

External Antennas: External high-gain antennas were installed on the access points to boost signal strength.

WiFi Extenders: WiFi extenders were placed in strategic locations to cover dead zones.

Result: The office building saw a significant improvement in WiFi coverage and speed, reducing downtime and increasing productivity.

Case Study 3: Outdoor WiFi Coverage for a Campus

Problem: A university campus needed reliable outdoor WiFi coverage for students and staff.

Solution:

Directional Antennas: Directional antennas were used to focus the signal towards high-traffic outdoor areas.

Weatherproof Access Points: Outdoor, weatherproof access points were installed in key locations.

Wired Backhaul: Ethernet cables were used to connect outdoor access points to the main network, ensuring stable connectivity.

Result: The campus achieved robust outdoor WiFi coverage, allowing students and staff to stay connected while moving around the campus.

Conclusion

Improving WiFi range and signal strength involves a combination of proper placement, hardware upgrades, configuration adjustments, and sometimes additional equipment. By implementing the practical tips and techniques outlined above, and learning from real-world case studies, you can significantly enhance your WiFi network’s performance to meet your specific needs.

2. Reducing Interference

Reducing interference for WiFi antennas is crucial to ensure optimal performance and connectivity. Interference can come from various sources, and identifying these sources is the first step towards mitigating their impact. Here’s a detailed guide on identifying sources of interference and potential solutions to minimize their impact:

Identifying Sources of Interference

1. Electronic Devices:

Microwave Ovens: Operate around the 2.4 GHz frequency, which can interfere with WiFi signals.

Cordless Phones: Some models use the 2.4 GHz or 5 GHz bands.

Bluetooth Devices: These also operate in the 2.4 GHz band.

Baby Monitors:Often use the 2.4 GHz frequency.

Wireless Video Cameras: Can operate on the same frequencies as WiFi.

2. Physical Obstructions:

Walls and Floors: Especially those made of concrete, brick, or metal can significantly attenuate WiFi signals.

Furniture and Appliances: Large objects can block or reflect signals.

3. Other WiFi Networks:

Neighboring Networks: Nearby WiFi networks can cause congestion, especially in densely populated areas.

4. Environmental Factors:

Weather Conditions: Heavy rain or thick fog can sometimes affect WiFi signals.

Radio Frequency Interference (RFI): From other wireless devices or industrial equipment.

Solutions to Minimize Impact

1. Optimal Placement of WiFi Router:

Place the router in a central location, elevated from the floor.

Avoid placing the router near walls, metal objects, or large furniture.

Keep the router away from other electronic devices that can cause interference.

2. Changing WiFi Channels:

 Use a WiFi analyzer tool to identify the least congested channel.

For 2.4 GHz, channels 1, 6, and 11 are typically the best options to avoid overlap.

For 5 GHz, there are more channels available, so select the one with the least interference.

3. Using Dual-Band or Tri-Band Routers:

 Utilize the 5 GHz band, which has more channels and is less crowded than the 2.4 GHz band.

 Consider tri-band routers for more bandwidth and less interference.

4. Upgrading Router Firmware:

Ensure your router’s firmware is up-to-date to benefit from the latest performance and security enhancements.

5. WiFi Range Extenders or Mesh Networks:

 Use range extenders to cover larger areas or dead zones.

Consider a mesh network system for seamless coverage across larger homes or offices.

6. Shielding and Insulating:

Use RF shielding paint or materials to block external interference.

Insulate your WiFi router from nearby electronic devices.

7. Advanced Settings:

 Enable Quality of Service (QoS) to prioritize certain types of traffic.

Adjust the router’s transmission power settings if interference is suspected from nearby networks.

8. Wired Connections:

Use Ethernet cables for devices that require stable and high-speed connections, reducing the load on the WiFi network.

9. Interference from Other Devices:

Replace older cordless phones and baby monitors with DECT 6.0 models that operate on a different frequency.

Keep Bluetooth devices away from the WiFi router or use Bluetooth 5.0, which is designed to coexist better with WiFi.

Conclusion

By systematically identifying and addressing sources of interference, you can significantly improve your WiFi network’s performance. Combining optimal placement, channel management, and modern hardware solutions will help minimize interference and ensure a stable and fast wireless connection.

3. Advanced Technologies and Configurations

WiFi technology has evolved significantly over the years, incorporating various advanced technologies and configurations to enhance performance, coverage, and user experience. Here are some of the key advancements:

1. Using Multiple Antennas

Multiple antennas in WiFi devices can significantly improve signal strength, reliability, and data rates. This technology is often referred to as MIMO (Multiple Input Multiple Output). There are different configurations like 2×2, 3×3, and 4×4 MIMO, which indicate the number of transmit and receive antennas.

Benefits:

Improved Throughput: Multiple data streams can be sent and received simultaneously.

Enhanced Reliability: Reduces the impact of signal fading and interference.

Better Coverage: Signals can be directed more effectively, improving range.

Mesh Networks and Extenders

Mesh networks and WiFi extenders are solutions to extend the coverage area of WiFi networks, ensuring consistent connectivity throughout larger spaces.

Mesh Networks:

Seamless Roaming: Devices can move from one node to another without losing connection.

Self-Healing: If one node fails, the network can reroute traffic through other nodes.

Easy Expansion: Additional nodes can be added to extend coverage.

WiFi Extenders:

Coverage Boost: Extends the WiFi signal to areas with weak or no signal.

Simple Setup: Generally easier to set up than mesh networks, though they may not offer the same seamless experience.

3. MU-MIMO (Multi-User MIMO)

MU-MIMO allows a WiFi router to communicate with multiple devices simultaneously, rather than sequentially. This is particularly useful in environments with many connected devices.

Benefits:

Increased Efficiency: Reduces the time each device has to wait for a signal.

Higher Throughput: Multiple devices can receive data at the same time.

Better Performance: Enhances overall network performance in busy environments.

4. OFDMA (Orthogonal Frequency Division Multiple Access)

OFDMA is a key feature in WiFi 6 (802.11ax) that improves efficiency by dividing channels into smaller sub-channels, allowing multiple devices to share the same channel simultaneously.

Benefits:

Reduced Latency: More efficient use of available spectrum reduces the time devices wait for access.

Improved Capacity: Supports more devices with better performance.

Enhanced Efficiency: Particularly beneficial for IoT devices with low bandwidth requirements.

5. Beamforming

Beamforming is a technique that focuses the WiFi signal in the direction of the receiving device, rather than broadcasting it in all directions. This can be done using both hardware and software techniques.

Benefits:

Stronger Signal: Focuses the signal where it is needed, improving strength.

Better Range: Extends the effective range of the WiFi network.

Increased Speed: Improves data rates by reducing interference and focusing the signal.

Conclusion

These advanced technologies and configurations have collectively transformed WiFi networks, providing better coverage, higher data rates, and improved reliability. As WiFi continues to evolve, we can expect even more sophisticated techniques to enhance wireless communication further.

Chapter 6: WiFi Antenna Maintenance and Troubleshooting

1. Regular Maintenance Tips

Regular maintenance of your WiFi antennas is crucial to ensure optimal performance and longevity. Here are some detailed tips for cleaning, inspecting, and updating your WiFi antennas:

Cleaning and Inspecting Your Antenna

1. Turn Off Power: Before performing any maintenance, ensure that your WiFi router or access point is turned off and unplugged to avoid any electrical hazards.

2. Physical Inspection:

Visual Check: Look for any visible signs of damage such as cracks, bends, or corrosion on the antenna and its connectors.

Connection Points: Ensure that the antenna is securely connected to the router or access point. Loose connections can cause signal loss or interference.

3. Cleaning:

Dust Removal: Use a soft, dry cloth or a can of compressed air to remove dust and debris from the antenna and its surroundings. Avoid using water or any liquid cleaners as these can damage the components.

Contact Cleaning: If you notice any corrosion or dirt on the connectors, use a contact cleaner spray designed for electronics. Apply it sparingly and wipe with a clean, dry cloth.

4. Environmental Check:

Location: Ensure that the antenna is placed in a location free from obstructions and interference sources such as thick walls, metal objects, or other electronic devices.

Temperature and Humidity: Ensure the environment is within the recommended temperature and humidity range specified by the manufacturer. Extreme conditions can affect performance and longevity.

Software Updates and Firmware

1. Check for Updates:

Manufacturer’s Website: Regularly visit the router or access point manufacturer’s website to check for firmware updates. These updates often include performance improvements, security patches, and bug fixes.

Automatic Updates: Enable automatic updates if your device supports it. This ensures that you always have the latest firmware without needing to manually check.

2. Update Process:

Backup Settings: Before updating the firmware, backup your current settings. This ensures you can restore your configuration if something goes wrong during the update process.

Follow Instructions: Carefully follow the manufacturer’s instructions for updating the firmware. This typically involves downloading the update file, accessing the router’s web interface, and uploading the file.

3. Post-Update Checks:

Reboot: After updating the firmware, reboot your router or access point to ensure the new firmware is properly loaded.

Verify Settings: Check your settings to ensure they are still configured correctly. Some updates may reset settings to default values.

4. Security Enhancements:

Password Management: Regularly change the administrator password for your router or access point to enhance security.

Network Security: Ensure your WiFi network is secured with strong encryption (WPA3 if available, or WPA2) and a strong password.

Additional Tips

Documentation: Keep a log of maintenance activities, including dates of cleaning, inspections, and firmware updates. This helps in tracking the maintenance history and identifying any recurring issues.

Professional Help: If you encounter persistent issues or are unsure about performing maintenance tasks, consider seeking help from a professional technician.

By following these regular maintenance tips, you can help ensure that your WiFi antennas perform optimally and provide reliable connectivity.

2. Troubleshooting Common Issues

Troubleshooting issues with WiFi antennas can be complex, but understanding common problems can help you identify and resolve them. Here are some common issues and potential solutions:

1. Signal Interference and Noise

Problem:

Signal interference and noise can degrade WiFi performance, causing slow speeds and connection drops. Interference can come from various sources, including other electronic devices, neighboring WiFi networks, and physical obstructions.

Solutions:

Change WiFi Channel: Use a WiFi analyzer tool to identify less congested channels and switch your router to one of those channels.

Dual-Band Router: Use a dual-band router that supports both 2.4 GHz and 5 GHz frequencies. The 5 GHz band is generally less crowded and offers higher speeds.

Reduce Interference: Keep your router away from other electronic devices like microwaves, cordless phones, and Bluetooth devices. These can interfere with the WiFi signal.

Firmware Update: Ensure your router’s firmware is up to date. Manufacturers often release updates to improve performance and reduce interference.

Use Wired Connections: For devices that require a stable connection, consider using Ethernet cables instead of WiFi.

2. Weak Signal and Dead Zones

Problem:

Weak signals and dead zones are areas in your home or office where the WiFi signal is too weak to maintain a stable connection. This can be due to distance from the router, physical obstructions, or the router’s placement.

Solutions:

Optimal Placement: Place your router in a central location, elevated, and free from obstructions. Avoid placing it near thick walls, metal objects, or large appliances.

WiFi Extenders or Mesh Systems: Use WiFi extenders or a mesh WiFi system to expand coverage to dead zones. These devices can help distribute the signal more evenly throughout your space.

High-Gain Antennas: Replace the router’s standard antennas with high-gain antennas to increase the signal strength and range.

Adjust Antennas: If your router has adjustable antennas, position them for optimal coverage. Generally, one antenna should be vertical and the other horizontal.

Power Settings: Check your router’s settings to ensure it’s operating at full power. Some routers allow you to adjust the transmission power.

3. Connectivity Problems

Problem:

Connectivity problems can manifest as frequent disconnects, difficulty connecting to the network, or inability to find the network.

Solutions:

Reboot Router: Sometimes, simply rebooting the router can resolve connectivity issues.

Check Cables: Ensure all cables are securely connected and in good condition.

Network Settings: Verify that your device’s network settings are configured correctly. Ensure you’re connecting to the correct SSID and using the correct password.

IP Conflicts: Make sure there are no IP address conflicts on your network. You can do this by assigning static IP addresses or ensuring your router’s DHCP settings are properly configured.

Device Compatibility: Ensure your device supports the WiFi standards used by your router (e.g., 802.11ac, 802.11n).

Security Settings: Check your router’s security settings. Ensure you’re using WPA2 or WPA3 encryption and not outdated protocols like WAP.

Factory Reset: As a last resort, perform a factory reset on your router. This will erase all settings and return the router to its default state. You will need to reconfigure your network settings afterward.

Additional Tips

Regular Maintenance: Periodically check and update your router’s firmware and settings.

Professional Help: If you continue to experience issues, consider consulting a professional technician who can diagnose and resolve more complex problems.

By systematically addressing these common issues, you can significantly improve your WiFi performance and reliability.

3. When to Replace Your WiFi Antenna

Replacing your WiFi antenna can significantly improve your network’s performance and reliability. Here are some key indicators and scenarios when you should consider replacing your WiFi antenna:

Signs of Wear and Tear

1. Physical Damage: Look for visible signs of damage such as cracks, bends, or breaks in the antenna. Physical damage can severely impact the antenna’s ability to transmit and receive signals.

2. Corrosion: If your antenna is exposed to the elements, check for any signs of rust or corrosion. This is particularly important for outdoor antennas.

3. Loose Connections: Over time, the connections between the antenna and the router or access point can become loose. If you notice that the connection is not as secure as it used to be, it may be time for a replacement.

4. Decreased Performance: If you notice a significant drop in signal strength or an increase in connectivity issues, it could be due to a failing antenna.

Upgrading to Newer Technology

1. Improved Performance: Newer antennas often come with advanced technology that can provide better range, speed, and reliability. Upgrading can help you take full advantage of the latest WiFi standards like WiFi 6.

2. Compatibility with New Devices: If you have upgraded other network components (e.g., router, access points) or devices (e.g., smartphones, laptops) to support newer WiFi standards, an older antenna may not be able to provide optimal performance.

3. Better Coverage: Modern antennas are designed to offer better coverage, reducing dead zones and providing a more stable connection throughout your home or office.

4. Specific Needs: If your network needs have changed (e.g., you need better outdoor coverage, or you have more devices connected), upgrading to a specialized antenna can help meet those specific requirements.

Other Considerations

1. Interference: If you are experiencing interference from other electronic devices, upgrading to an antenna with better shielding or different frequency capabilities can help mitigate these issues.

2. Aesthetics and Placement: Sometimes, newer antennas are more aesthetically pleasing or easier to place in optimal locations compared to older models.

Conclusion

Regularly assessing the condition of your WiFi antenna and staying updated with the latest technology can ensure that you maintain a robust and efficient network. If you notice any signs of wear and tear or if you’re looking to upgrade your network’s capabilities, it might be time to replace your WiFi antenna.

Chapter 7: Case Studies and Real-World Applications

Residential WiFi Networks

Residential WiFi networks are essential in modern homes, supporting everything from work and education to entertainment and smart home devices. However, they come with their own set of challenges. Below are some common challenges and real-world solutions:

1. Signal Coverage and Dead Zones

Challenge:

In larger homes or homes with multiple floors, WiFi signals often fail to reach certain areas, creating dead zones.

Solution:

Mesh WiFi Systems: These systems use multiple nodes to create a seamless network, covering larger areas and eliminating dead zones.

WiFi Extenders/Boosters: These devices amplify the existing WiFi signal to reach further areas.

Optimal Router Placement**: Placing the router in a central location and elevating it can help improve signal distribution.

2. Interference

Challenge:

WiFi signals can be disrupted by physical obstacles (walls, floors, furniture) and other electronic devices (microwaves, cordless phones).

Solution:

Dual-Band Routers: Using both 2.4 GHz and 5 GHz bands can minimize interference, as 5 GHz is less crowded.

Channel Selection: Manually selecting less crowded channels can reduce interference from neighboring networks.

Quality of Service (QoS): Prioritizing certain types of traffic can help manage interference and improve performance.

3. Network Congestion

Challenge:

Multiple devices connected to the network can cause congestion, leading to slow speeds and buffering.

Solution:

Upgrading Bandwidth: Increasing the internet plan to a higher bandwidth can accommodate more devices.

Network Management Tools: Tools like QoS can prioritize critical devices and applications.

Smart Routers: These can automatically manage bandwidth distribution among devices.

4. Security

Challenge:

Residential networks are vulnerable to unauthorized access and cyber threats.

Solution:

Strong Passwords: Using complex, unique passwords for WiFi networks.

Encryption: Enabling WPA3 encryption for better security.

Firmware Updates: Regularly updating router firmware to patch vulnerabilities.

Guest Networks: Creating a separate guest network for visitors to keep the primary network secure.

5. Compatibility Issues

Challenge:

Older devices may not be compatible with newer WiFi standards, leading to connectivity issues.

Solution:

Backward Compatibility: Ensuring that the router supports older WiFi standards (e.g., 802.11n, 802.11g).

Device Upgrades: Upgrading older devices to newer models that support current WiFi standards.

Dual-Band Routers: These can support both older and newer devices by operating on multiple frequencies.

6. Bandwidth Hogging

Challenge:

Certain applications (e.g., streaming, gaming) can consume a large amount of bandwidth, affecting other devices.

Solution:

Bandwidth Management: Using QoS to allocate bandwidth based on the priority of applications.

Parental Controls: Limiting the bandwidth usage of certain devices or applications.

Monitoring Tools: Using apps or router interfaces to monitor and manage bandwidth usage.

Real-World Applications

Case Study 1: Smart Home Integration

Challenge: A family with multiple smart home devices (thermostats, cameras, lights) experienced frequent disconnections and slow performance.

Solution: Implementing a mesh WiFi system improved coverage and stability. The family also upgraded to a dual-band router and used QoS to prioritize smart home device traffic.

Case Study 2: Work-from-Home Setup

Challenge: A remote worker faced frequent video call drops and slow internet speeds due to multiple family members using the network simultaneously.

Solution: Upgrading to a higher bandwidth plan and using a smart router with QoS to prioritize work-related traffic ensured stable and fast connections for video calls and file transfers.

Case Study 3: Gaming and Streaming Household

Challenge: A household with multiple gamers and streamers faced lag and buffering issues during peak usage times.

Solution: Installing a dual-band router and using QoS to allocate sufficient bandwidth for gaming and streaming activities. Additionally, upgrading to a fiber-optic internet plan provided higher speeds and lower latency.

By addressing these common challenges with targeted solutions, residential WiFi networks can be optimized to meet the diverse needs of modern households.

Enterprise WiFi Networks

Designing Enterprise WiFi Networks for High-Density Environments: Case Studies and Real-World Applications

High-density environments such as corporate offices, stadiums, conference centers, and educational institutions present unique challenges for WiFi network design. These environments require robust solutions to handle numerous simultaneous connections, high data throughput, and seamless roaming. Here, we explore several case studies and real-world applications to illustrate effective strategies for designing WiFi networks in high-density settings.

1. Corporate Office: XYZ Corporation

Background:

XYZ Corporation, a multinational company, has a headquarters with 2,000 employees spread across 10 floors. Each floor has open office spaces, meeting rooms, and collaboration areas. The company required a WiFi solution that could support high user density, seamless roaming, and high-speed internet access.

Solution:

Access Point (AP) Placement: APs were strategically placed to ensure optimal coverage and capacity. A combination of ceiling-mounted and wall-mounted APs was used to address different areas.

Frequency Planning: Dual-band APs (2.4 GHz and 5 GHz) were deployed to balance the load and minimize interference. Channel planning ensured minimal overlap and reduced co-channel interference.

Capacity Planning: High-capacity APs with MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology were used to handle multiple simultaneous connections.

Seamless Roaming: Fast roaming protocols (802.11k, 802.11r, and 802.11v) were implemented to ensure seamless connectivity as employees moved throughout the building.

Network Management: A centralized WiFi management system was employed to monitor network performance, manage bandwidth, and troubleshoot issues in real-time.

Outcome:

The new WiFi network provided reliable, high-speed connectivity across all floors, enabling employees to work efficiently without connectivity issues. The centralized management system allowed IT staff to maintain optimal network performance and quickly address any problems.

2. Stadium: ABC Sports Arena

Background:

ABC Sports Arena, with a seating capacity of 50,000, hosts various sporting events and concerts. The management wanted to provide fans with high-speed WiFi for live streaming, social media sharing, and accessing event-related content.

Solution:

High-Density AP Deployment: High-density APs were installed throughout the stadium, focusing on areas with the highest user concentration such as seating areas, concourses, and concession stands.

Beamforming Technology: APs with beamforming technology were used to direct WiFi signals towards users, improving signal strength and reducing interference.

Load Balancing: Advanced load balancing techniques were implemented to distribute users evenly across available APs, preventing any single AP from becoming overloaded.

Guest Access Management: A guest WiFi portal was created to manage user access, ensuring a secure and user-friendly experience. Bandwidth limits were set to prevent any single user from consuming excessive resources.

Network Analytics: Real-time analytics were used to monitor network usage patterns and adjust configurations dynamically to maintain optimal performance.

Outcome:

Fans enjoyed a seamless and high-speed WiFi experience, enhancing their overall event experience. The stadium management was able to use network analytics to optimize future events and improve service quality continuously.

3. Educational Institution: DEF University

Background:

DEF University has a campus with 15,000 students and faculty members. The university required a WiFi network that could support high-density usage in lecture halls, libraries, dormitories, and outdoor areas.

Solution:

Comprehensive Coverage: APs were deployed in all high-traffic areas, including lecture halls, libraries, dormitories, and outdoor spaces. Outdoor APs with weatherproof enclosures were used for campus-wide coverage.

High-Capacity APs: APs with high user capacity and advanced features like OFDMA (Orthogonal Frequency-Division Multiple Access) were selected to handle the high number of simultaneous connections.

Seamless Roaming: Fast roaming protocols were implemented to ensure uninterrupted connectivity as students and faculty moved across the campus.

Security Measures: WPA3 encryption and secure authentication methods (802.1X) were used to protect the network from unauthorized access.

Network Management: A cloud-based network management platform was used to monitor and manage the WiFi network, allowing for easy scalability and remote troubleshooting.

Outcome:

The university’s WiFi network provided reliable and high-speed internet access across the entire campus, supporting academic activities, research, and student life. The cloud-based management platform allowed the IT department to efficiently manage and scale the network as needed.

Conclusion

Designing WiFi networks for high-density environments requires careful planning, the right technology, and ongoing management. By studying real-world applications and case studies, we can identify best practices and innovative solutions that address the unique challenges of these environments. Whether it’s a corporate office, a stadium, or an educational institution, the key to success lies in strategic AP placement, advanced technologies, and robust network management.

Industrial and Outdoor WiFi Networks

In today’s interconnected world, reliable WiFi networks are crucial not just for homes and offices but also for industrial and outdoor environments. These settings pose unique challenges such as harsh weather conditions, large physical areas, and interference from machinery. This document explores various case studies and real-world applications that demonstrate robust WiFi solutions designed to thrive in challenging conditions.

Case Study 1: Mining Operations

Background

A large mining company required a reliable WiFi network to support its operations, including real-time monitoring of equipment, communication between workers, and data transfer from remote sensors.

Challenges

Harsh environmental conditions including dust, extreme temperatures, and moisture.

Large coverage area with uneven terrain.

High levels of electromagnetic interference from heavy machinery.

Solution

Ruggedized Access Points: Deployed weatherproof and dust-resistant access points capable of operating in extreme temperatures.

Mesh Network: Implemented a mesh network to ensure seamless connectivity across the sprawling site.

Frequency Management: Utilized advanced frequency management to minimize interference from machinery.

Results

Improved operational efficiency through real-time data collection and communication.

Enhanced worker safety with reliable communication channels.

Reduced downtime due to robust and resilient network infrastructure.

Case Study 2: Agricultural Farms

Background

A large-scale agricultural farm needed a WiFi network to support IoT devices for monitoring soil moisture, weather conditions, and crop health.

Challenges

Vast open areas requiring extensive coverage.

Variable weather conditions including rain, wind, and extreme temperatures.

Limited power sources in remote areas.

Solution

Solar-Powered Access Points: Installed solar-powered access points to ensure uninterrupted connectivity in remote areas.

Directional Antennas: Used directional antennas to extend WiFi coverage over long distances.

Weatherproof Enclosures: Deployed access points in weatherproof enclosures to protect against environmental factors.

Results

Enhanced crop management through real-time data from IoT sensors.

Increased yield and reduced resource usage by optimizing irrigation and fertilization.

Reliable network performance regardless of weather conditions.

Case Study 3: Smart City Initiatives

Background

A city government aimed to implement a smart city initiative that included public WiFi, smart lighting, and surveillance systems.

Challenges

Dense urban environment with high interference from buildings and other wireless networks.

Need for high bandwidth to support multiple applications.

 Security concerns for public WiFi and surveillance data.

Solution

High-Density Access Points: Deployed high-density access points capable of handling numerous simultaneous connections.

Advanced Security Protocols: Implemented WPA3 and other advanced security measures to protect data integrity.

Centralized Management: Used a centralized management system to monitor and optimize network performance.

Results

Improved quality of life for residents with free public WiFi and enhanced safety through smart surveillance.

Efficient city management with smart lighting and other IoT applications.

Secure and reliable network supporting various smart city initiatives.

Case Study 4: Outdoor Events and Festivals

Background

Organizers of a large outdoor music festival required a temporary WiFi network to support ticketing, vendor transactions, and attendee connectivity.

Challenges

 Temporary setup with a need for rapid deployment and teardown.

 High user density leading to potential network congestion.

 Variable weather conditions and limited power sources.

Solution

Portable Access Points: Used portable, battery-powered access points for rapid deployment.

Load Balancing: Implemented load balancing techniques to manage high user density.

Weatherproof Equipment: Deployed weatherproof equipment to ensure reliability in varying weather conditions.

Results

Seamless ticketing and vendor transactions enhancing attendee experience.

Reliable connectivity for attendees to share their experiences on social media.

Successful event execution with minimal network issues.

Conclusion

These case studies illustrate the importance of robust WiFi solutions tailored to the unique challenges of industrial and outdoor environments. By leveraging advanced technologies such as ruggedized access points, mesh networks, and solar power, organizations can achieve reliable and efficient connectivity even in the most demanding conditions.

Chapter 8: Future Trends and Innovations

1. Technological Advancements

The field of WiFi antenna technology has seen significant advancements in recent years, particularly with the advent of 5G and WiFi 7, as well as the development of smart antennas and beamforming techniques. Here’s a detailed overview of these advancements:

1. 5G and WiFi 7

5G:

Higher Frequencies: 5G technology operates at higher frequencies (up to 100 GHz), which allows for greater bandwidth and faster data rates. This necessitates advanced antenna designs that can handle these frequencies efficiently.

Massive MIMO: Multiple Input Multiple Output (MIMO) technology is a cornerstone of 5G. Massive MIMO involves using a large number of antennas at the base station to improve capacity and coverage. This requires sophisticated antenna arrays and signal processing techniques.

Beamforming: 5G heavily relies on beamforming to direct signals to specific users, improving signal strength and reducing interference. This is achieved through advanced antenna arrays that can dynamically adjust the direction of the signal.

WiFi 7:

Higher Data Rates: WiFi 7, also known as IEEE 802.11be, aims to deliver extremely high data rates, potentially exceeding 30 Gbps. This requires antennas that can support wider channels and higher modulation schemes.

Improved Efficiency: WiFi 7 introduces features like Multi-Link Operation (MLO) and Enhanced Distributed Channel Access (EDCA) to improve efficiency and reduce latency. Antennas must be capable of handling these advanced features.

Advanced MIMO and OFDM: WiFi 7 builds on previous MIMO and Orthogonal Frequency-Division Multiple Access (OFDMA) technologies to enhance performance. This involves using more complex antenna arrays and signal processing.

2. Smart Antennas and Beamforming

Smart Antennas:

Adaptive Arrays: Smart antennas use adaptive array processing to dynamically adjust the radiation pattern based on the environment and user location. This improves signal quality and reduces interference.

Direction of Arrival (DoA): Smart antennas can estimate the direction of incoming signals using techniques like MUSIC (Multiple Signal Classification) and ESPRIT (Estimation of Signal Parameters via Rotational Invariance Techniques). This information is used to optimize the antenna pattern.

Interference Mitigation: By dynamically adjusting the radiation pattern, smart antennas can mitigate interference from other devices, improving overall network performance.

Beamforming:

Phased Array Antennas: Beamforming is often implemented using phased array antennas, which can electronically steer the beam without moving the antenna physically. This allows for rapid and precise beam adjustments.

Digital Beamforming: Modern beamforming techniques use digital signal processing to control the phase and amplitude of the signal at each antenna element. This provides greater flexibility and accuracy compared to analog beamforming.

Hybrid Beamforming: A combination of analog and digital beamforming, hybrid beamforming is used in systems where fully digital beamforming is too complex or costly. It offers a balance between performance and complexity.

Applications and Benefits

Enhanced Coverage and Capacity: Advanced antenna technologies improve coverage and capacity, making it possible to support more users and devices with higher data rates.

Reduced Latency: By optimizing signal paths and reducing interference, these technologies can significantly reduce latency, which is critical for applications like online gaming, virtual reality, and autonomous vehicles.

Energy Efficiency: Smart antennas and beamforming can improve energy efficiency by focusing the signal where it’s needed, reducing power consumption and extending battery life for mobile devices.

Robustness and Reliability: Improved interference mitigation and adaptive capabilities make networks more robust and reliable, even in challenging environments with many competing signals.

Conclusion

The advancements in WiFi antenna technology, driven by 5G and WiFi 7, along with the development of smart antennas and beamforming, are revolutionizing wireless communication. These technologies are not only enhancing performance and capacity but also paving the way for new applications and services that require reliable, high-speed wireless connectivity.

2. Market Trends

Emerging Brands and Products

1. New Entrants and Innovations:

Ubiquiti Networks: Known for its high-performance antennas and networking technology.

TP-Link: Continues to innovate with a range of WiFi antennas designed for both consumer and enterprise markets.

Netgear: Offers advanced WiFi antennas integrated into their routers and extenders.

Huawei: Expanding its presence with innovative WiFi solutions, particularly in the 5G space.

Linksys: Continues to be a strong player with new products focusing on mesh networking.

2. Product Trends:

Mesh WiFi Systems: These systems use multiple antennas to provide seamless coverage across larger areas.

High-Gain Antennas: Increasing demand for high-gain antennas to improve range and signal strength.

5G Integration: Emerging products that integrate 5G capabilities to enhance speed and connectivity.

Consumer Preferences and Industry Forecasts

1. Consumer Preferences:

Seamless Connectivity: Consumers prefer solutions that offer uninterrupted connectivity, especially in smart homes.

Ease of Installation: Products that are easy to set up and use are highly favored.

Aesthetic Design: Antennas that blend well with home decor are gaining popularity.

Performance and Speed: High-speed and reliable performance remain top priorities for consumers.

2. Industry Forecasts:

Market Growth: The WiFi antenna market is expected to grow significantly, driven by increasing demand for high-speed internet and expanding smart home ecosystems.

Technological Advancements: Advancements in antenna technology, such as beamforming and MIMO (Multiple Input Multiple Output), are expected to drive market growth.

Regional Trends: North America and Asia-Pacific are expected to be the leading markets due to high adoption rates of advanced technologies.

Smart Homes and IoT

1. Integration with Smart Devices:

Smart Home Hubs: WiFi antennas are crucial for connecting smart home hubs with various IoT devices.

Smart Appliances: Enhanced WiFi connectivity is essential for the operation of smart appliances like refrigerators, washing machines, and thermostats.

Security Systems: WiFi antennas play a key role in ensuring reliable connectivity for smart security cameras and alarm systems.

2. IoT Ecosystem:

Device Interoperability: WiFi antennas facilitate seamless communication between different IoT devices, enhancing the overall smart home experience.

Data Transmission: Efficient WiFi antennas are necessary for the high-speed transmission of data between connected devices.

Sustainability and Energy Efficiency

1. Energy-Efficient Designs:

Low Power Consumption**: Development of WiFi antennas that consume less power, contributing to overall energy efficiency.

Eco-Friendly Materials: Use of sustainable materials in the manufacturing of WiFi antennas.

2. Green Technologies:

Solar-Powered WiFi: Emerging trend of solar-powered WiFi systems, particularly in remote areas.

Energy Harvesting: Technologies that enable WiFi antennas to harvest ambient energy to power themselves, reducing the need for external power sources.

3. Regulatory Compliance:

Adherence to Environmental Standards: Manufacturers are increasingly focusing on meeting environmental regulations and standards to promote sustainability.

In summary, the WiFi antenna market is experiencing significant growth and innovation, driven by consumer demand for seamless connectivity, advancements in smart home and IoT technologies, and a strong focus on sustainability and energy efficiency. Emerging brands and products continue to shape the market, with a clear trend towards integrating green technologies and improving overall performance.

Conclusion

1. Recap of Key Points

The “Ultimate Guide to Choosing the Right WiFi Antennas” provides comprehensive insights into selecting the most suitable WiFi antennas for various applications. Here are the key points:

1. Types of WiFi Antennas:

Omni-directional Antennas: Radiate signals in all directions, ideal for general coverage in homes and offices.

Directional Antennas: Focus signals in a specific direction, suitable for long-distance point-to-point communication.

2. Frequency Bands:

2.4 GHz: Offers broader coverage but lower speeds and more interference.

5 GHz: Provides higher speeds and less interference, but with a shorter range.

Dual-Band and Tri-Band Antennas**: Support multiple frequency bands for flexibility and better performance.

3. Gain:

Measured in dBi, it indicates the antenna’s ability to focus energy in a specific direction. Higher gain means a more focused and longer-range signal.

4. Polarization:

Refers to the orientation of the radio waves. Matching the polarization of antennas can improve signal quality and reduce interference.

5. MIMO (Multiple Input, Multiple Output):

Utilizes multiple antennas to improve communication performance and reliability, crucial for modern high-speed WiFi standards.

6. Antenna Placement:

Proper placement is critical for optimal performance. Factors include height, obstacles, and the environment.

7. Use Cases:

Home and Small Office: Omni-directional antennas for general coverage.

Large Buildings and Campuses: Combination of omni-directional and directional antennas for comprehensive coverage.

Outdoor and Long-Distance: Directional and sector antennas for targeted and extensive reach.

8. Regulatory Compliance:

Ensure antennas comply with local regulations and standards to avoid legal issues and interference problems.

2. Final Tips for Choosing the Right WiFi Antenna

Choosing the right WiFi antenna can significantly improve your wireless network’s performance, range, and reliability. Here are some practical tips and recommendations to help you make an informed decision:

1. Understand Your Needs

Coverage Area: Determine the size and layout of the area you need to cover. Larger areas or those with multiple obstructions (walls, floors) may require different antenna types.

Usage: Consider the number of devices and the type of activities (e.g., streaming, gaming, browsing) that will be using the network.

2. Types of Antennas

Omni-Directional Antennas: These provide 360-degree coverage and are ideal for general use in homes or offices where you need coverage in all directions.

Directional Antennas: These focus the signal in one direction, which is useful for long-distance connections or when you need to target a specific area. Examples include Yagi and parabolic antennas.

3. Frequency Bands

2.4 GHz vs. 5 GHz:

2.4 GHz: Offers longer range but is more prone to interference and has lower speeds.

5 GHz: Provides higher speeds and less interference but has a shorter range. Dual-band antennas support both frequencies and offer the best of both worlds.

4. Gain (dBi)

Higher gain antennas (measured in dBi) provide a stronger signal but have a narrower focus. Choose a higher gain antenna for long-distance point-to-point connections and a lower gain for broader coverage.

5. Antenna Placement

Height and Location: Place the antenna as high as possible and in a central location to maximize coverage. Avoid placing it near metal objects or other electronic devices that can cause interference.

Orientation: For directional antennas, ensure they are properly aligned with the target area.

6. Compatibility

Ensure that the antenna is compatible with your router or access point. Check the connector type (e.g., SMA, RP-SMA) and any specific requirements of your device.

7. Weatherproofing (for Outdoor Use)

If you plan to use the antenna outdoors, make sure it is weatherproof and can withstand the elements.

8. Budget

While it might be tempting to go for the cheapest option, investing in a quality antenna can save you from future headaches and provide better performance.

9. Brand and Reviews

Stick with reputable brands and read user reviews to get an idea of the antenna’s performance and reliability.

10. Professional Help

 If you’re unsure about the technical details, consider consulting with a professional who can assess your needs and recommend the best solution.

Recommendations

For Home Use: An omni-directional antenna with moderate gain (5-8 dBi) is usually sufficient.

For Office Use: Consider a combination of omni-directional and directional antennas to cover different areas effectively.

For Long-Distance Connections: A high-gain directional antenna like a Yagi or parabolic antenna is ideal.

For Outdoor Coverage: Use weatherproof sector antennas to cover large outdoor areas.

By considering these factors and recommendations, you can choose the right WiFi antenna that best suits your specific needs and environment.

3. Additional Resources

Books

1. “Wireless Communications: Principles and Practice” by Theodore S. Rappaport

 A comprehensive guide to the principles of wireless communication, including antenna theory and design.

2. “Antenna Theory: Analysis and Design” by Constantine A. Balanis

This book provides a detailed exploration of antenna theory and practical design considerations.

3. “Modern Antenna Design” by Thomas A. Milligan

Focuses on the design and application of modern antennas, including WiFi antennas.

4. “Wireless Networking: Understanding Internetworking Challenges” by Jack L. Burbank, William T. Kasch, and Jon Ward

A practical guide to setting up and optimizing wireless networks, including antenna selection.

Websites

1. Antenna-Theory.com

A comprehensive resource for understanding different types of antennas, their characteristics, and applications.

2. RF Wireless World (rfwireless-world.com)

Offers tutorials on various wireless technologies, including WiFi and antenna design.

3. Wi-Fi Alliance (wi-fi.org)

Provides information on WiFi standards, certifications, and best practices for network setup.

4. IEEE Xplore Digital Library (ieeexplore.ieee.org)

Access to numerous research papers and articles on wireless communication and antenna technology.

Forums

1. Reddit (r/WirelessNetworking)

A community where you can ask questions and share knowledge about wireless networking, including antenna selection and setup.

2. Wireless Joint (wirelessjoint.com)

A forum dedicated to wireless communication topics, including antennas, modems, and network optimization.

3. Ham Radio Stack Exchange (ham.stackexchange.com)

A Q&A site for amateur radio enthusiasts, with valuable insights on antenna theory and practical setups.

4. NetStumbler Forums (netstumbler.org)

Discussions on WiFi networking tools, antenna setups, and troubleshooting.

Tools for WiFi Antenna Selection

1. WiFi Analyzer (Android/iOS)

A mobile app that helps analyze WiFi networks and signal strength, aiding in antenna placement and selection.

2. Ekahau HeatMapper

A free tool for creating heatmaps of WiFi coverage areas, useful for optimizing antenna placement.

3. Acrylic WiFi Professional

A powerful WiFi scanner and analyzer for Windows, providing detailed network information and signal visualization.

4. NetSpot

A WiFi survey and analysis tool for both Mac and Windows, helping to visualize WiFi coverage and identify the best antenna locations.

5. WiFi Explorer (Mac)

A WiFi network scanner for macOS, offering detailed information on nearby networks and signal strength.

By leveraging these resources, you can gain a deeper understanding of WiFi antennas and make informed decisions for optimizing your wireless network.

Appendices

FAQs

1. What is a WiFi antenna?

A WiFi antenna is a device that transmits and receives radio waves to and from a wireless router or access point, enabling wireless communication between devices.

2. How does a WiFi antenna work?

A WiFi antenna converts electrical signals into radio waves and vice versa, allowing data to be transmitted wirelessly over a network.

3. What are the types of WiFi antennas?

Common types include omnidirectional antennas, which radiate signals in all directions, and directional antennas, which focus the signal in a specific direction.

4. What is the difference between 2.4 GHz and 5 GHz antennas?

2.4 GHz antennas have longer range but lower data rates and more interference, while 5 GHz antennas offer higher data rates and less interference but shorter range.

5. Can I use any antenna with my WiFi router?

Not all antennas are compatible with all routers. Ensure the antenna’s connector type matches the router’s and that the antenna supports the same frequency bands.

6. How can I improve my WiFi signal with an antenna?

Position the antenna correctly, use a higher-gain antenna, or switch to a directional antenna to focus the signal where it’s needed most.

7. What is antenna gain?

Antenna gain measures how well an antenna can direct or concentrate radio waves in a specific direction, usually measured in decibels (dBi).

8. What is the range of a typical WiFi antenna?

The range can vary, but typical indoor ranges are about 100-150 feet for 2.4 GHz and 50-100 feet for 5 GHz, depending on obstacles and interference.

9. Can I replace the antenna on my WiFi router?

If your router has detachable antennas, you can replace them. Check the router’s manual for compatibility and instructions.

10. What is a MIMO antenna?

MIMO (Multiple Input Multiple Output) antennas use multiple antennas to send and receive more data simultaneously, improving speed and reliability.

11. How do I position my WiFi antenna for the best signal?

For omnidirectional antennas, position them vertically. For directional antennas, point them toward the area where you need the strongest signal.

12. What is a high-gain antenna?

A high-gain antenna has a higher dBi rating, meaning it can transmit and receive signals over longer distances or more focused areas.

13. Can WiFi antennas be used outdoors?

Yes, but ensure the antenna is weatherproof and designed for outdoor use to withstand environmental conditions.

14. What is a dual-band antenna?

A dual-band antenna can operate on both 2.4 GHz and 5 GHz frequencies, providing flexibility and better performance for different devices.

15. Do WiFi antennas interfere with each other?

They can if placed too close together or if operating on the same frequency. Proper placement and frequency management can help minimize interference.

16. Can I use a WiFi antenna to extend my network range?

Yes, a higher-gain or directional antenna can extend the range, but you may also need additional access points or repeaters for optimal coverage.

17. What is the best antenna for long-range WiFi?

A high-gain directional antenna is typically best for long-range WiFi, as it focuses the signal in a specific direction, reducing interference.

18. Do WiFi antennas need power?

The antennas themselves do not need power, but the devices they connect to (like routers or access points) do.

19.*Can I use multiple antennas on one router?

Yes, many modern routers support multiple antennas (MIMO technology) to improve performance and reliability.

20. What is an antenna connector type?

The connector type is the interface between the antenna and the device. Common types include SMA, RP-SMA, and N-type connectors. Ensure compatibility between the antenna and your device.

Contact Information

If you need further assistance, you can contact Andrew Chen, an antenna expert with 15 years’ experience and know-how from Sanny Telecom. His contact information is as follows:

– Website: www.sannytelecom.com

– Email: andrew@sannytelecom.com

– WhatsApp: +86 189 3430 8461
