When it comes to implementing an RFID system, one of the most crucial components is the RFID antenna. The antenna is responsible for transmitting and receiving radio waves to communicate with RFID tags. Choosing the right UHF RFID antenna is essential to ensure the success and efficiency of your RFID system.

The “Ultimate Guide to Choose the Right UHF RFID Antennas” aims to provide comprehensive information and practical advice for selecting the most suitable Ultra-High Frequency (UHF) Radio-Frequency Identification (RFID) antennas for various applications. The guide is designed to cater to a diverse audience, including business owners, supply chain managers, IT professionals, and anyone involved in implementing RFID technology. Here’s an outline of the purpose and scope of the guide:

Purpose of this Guide

1. Educate Readers: To inform readers about the fundamental concepts of UHF RFID technology, including how RFID antennas work and their role in an RFID system.

2. Selection Criteria: To provide detailed criteria and considerations for choosing the right UHF RFID antennas based on specific needs and use cases.

3. Application Scenarios: To offer insights into different application scenarios and how the choice of antenna can impact the performance and efficiency of an RFID system.

4. Enhance Decision-Making: To assist readers in making informed decisions by comparing different types of UHF RFID antennas, understanding their specifications, and evaluating their pros and cons.

5. Best Practices: To share best practices and tips for optimizing the performance of UHF RFID antennas in various environments.

Scope of this Guide

1. Introduction to UHF RFID Technology:

– Basic principles of RFID technology.

– Overview of UHF RFID frequency ranges and standards.

– Importance of antennas in an RFID system.

2. Types of UHF RFID Antennas:

– Description of different types of UHF RFID antennas (e.g., linear polarized, circular polarized, near-field, far-field).

– Comparative analysis of each type, including advantages and disadvantages.

3. Key Factors in Antenna Selection:

– Frequency compatibility.

– Polarization (linear vs. circular).

– Gain and read range.

– Antenna size and form factor.

– Environmental considerations (e.g., indoor vs. outdoor use, temperature, humidity).

4. Application-Specific Recommendations:

– Retail and inventory management.

– Supply chain and logistics.

– Asset tracking.

– Access control and security.

– Industrial automation and manufacturing.

5. Installation and Deployment Tips:

– Best practices for antenna placement and orientation.

– Avoiding common pitfalls and troubleshooting issues.

– Maintenance and performance optimization.

6. Case Studies and Real-World Examples:

– Success stories and lessons learned from various industries.

– Practical examples of how the right antenna choice improved system performance.

7. Future Trends and Innovations:

– Emerging technologies and advancements in UHF RFID antennas.

– Predictions for future developments and their potential impact on RFID applications.

By covering these areas, the guide aims to be a valuable resource for anyone looking to implement or upgrade their UHF RFID systems, ensuring they choose the right antennas to meet their specific needs and achieve optimal performance.

Chapter 1: Introduction to UHF RFID Technology

What is UHF RFID?

UHF RFID (Ultra-High Frequency Radio Frequency Identification) is a type of RFID technology that operates in the frequency range of 300 MHz to 3 GHz, with the most common frequencies being around 860-960 MHz. This technology is used for wireless identification and tracking of objects, animals, or people by using radio waves to communicate between an RFID reader and RFID tags.

Here are some key features and benefits of UHF RFID:

1. Longer Read Range: UHF RFID systems typically have a longer read range compared to low-frequency (LF) and high-frequency (HF) RFID systems. They can read tags from several meters away, making them suitable for applications like inventory management, asset tracking, and supply chain logistics.

2. Fast Data Transfer: UHF RFID can transfer data quickly, which allows for the rapid scanning of multiple tags simultaneously. This capability is known as “bulk reading” or “dense reading.”

3. Cost-Effective: UHF RFID tags are generally less expensive to produce than LF and HF tags, making them a cost-effective solution for many applications.

4. Variety of Applications: UHF RFID is used in various industries, including retail (for inventory management and loss prevention), logistics (for tracking shipments and containers), manufacturing (for work-in-progress tracking), and healthcare (for tracking medical equipment and supplies).

5. Global Standards: UHF RFID technology adheres to global standards such as EPCglobal Gen 2 and ISO 18000-6C, ensuring compatibility and interoperability between different systems and vendors.

6. Environmental Considerations: While UHF RFID is highly effective, it can be affected by environmental factors such as metal and liquids, which can interfere with signal transmission. Specialized tags and readers are often used to mitigate these issues.

Overall, UHF RFID is a powerful and versatile technology that enhances the efficiency and accuracy of tracking and identification processes across various sectors.

Basic components of a UHF RFID system

1. Tags (Transponders):

Passive Tags: These tags do not have their own power source. They rely on the energy transmitted by the RFID reader to power up and communicate.

Active Tags: These tags have their own power source (usually a battery) and can initiate communication with the reader.

Semi-Passive Tags: These tags have a battery but rely on the reader for communication initiation.

2. Reader (Interrogator):

The reader sends out radio waves to communicate with the RFID tags. It also receives the data transmitted by the tags.

3. Antenna:

Both the reader and the tags have antennas. The reader’s antenna emits radio waves, and the tag’s antenna captures these waves to power the tag and send back data.

4. Middleware and Software:

This includes the software systems that process the data collected by the reader, integrate it with databases, and provide user interfaces for managing and analyzing the information.

Working Principle of UHF RFID

UHF RFID (Ultra-High Frequency Radio Frequency Identification) technology is a wireless communication technology that uses radio waves to identify and track objects. It operates in the frequency range of 860 to 960 MHz, which allows for longer read ranges and faster data transfer rates compared to other RFID frequencies.

The working principle of UHF RFID involves three main components: the RFID tag, the RFID reader, and the RFID antenna.

1. RFID Tag: The RFID tag is a small electronic device that contains a microchip and an antenna. The microchip stores data and the antenna allows the tag to communicate with the RFID reader. UHF RFID tags can be either passive or active. Passive tags do not have a power source and rely on the energy from the RFID reader to power the tag and transmit data. Active tags have their own power source and can transmit data without relying on the RFID reader for power.

2. RFID Reader: The RFID reader is a device that sends and receives radio signals to communicate with RFID tags. It consists of a radio frequency module, a control unit, and an interface to connect with a computer or other system. The reader emits radio waves through its antenna to energize the RFID tag and receive the data stored on it.

3. RFID Antenna: The RFID antenna is responsible for transmitting and receiving radio signals between the RFID reader and the RFID tag. It converts electrical signals from the reader into radio waves that can be transmitted wirelessly and vice versa.

The working process of UHF RFID involves the following steps:

1. Tag Activation: When an RFID tag enters the read range of an RFID reader, the reader emits a radio signal through its antenna. This signal powers the passive RFID tag and activates it.

2. Data Transmission: Once activated, the RFID tag sends back a signal to the RFID reader. This signal contains the unique identification number (UID) or other data stored on the tag’s microchip.

3. Data Processing: The RFID reader receives the signal from the RFID tag through its antenna. It processes the received data and sends it to a computer or other system for further processing or storage.

4. Read Range: The read range of UHF RFID depends on various factors such as the power output of the RFID reader, the sensitivity of the RFID antenna, and the environment in which the RFID system is deployed. Generally, UHF RFID can achieve read ranges of several meters or more, allowing for fast and efficient identification and tracking of objects.

Overall, UHF RFID technology provides a reliable and efficient way to identify and track objects in a wide range of applications, including inventory management, supply chain logistics, asset tracking, and access control.

Overview of UHF RFID frequency ranges and standards

Ultra High Frequency (UHF) RFID (Radio Frequency Identification) operates in the frequency range of approximately 300 MHz to 3 GHz. However, in practical applications, UHF RFID systems commonly operate within specific sub-ranges due to regional regulations and standards. Here’s an overview of the key frequency ranges and standards for UHF RFID:

Frequency Ranges

1. North America (US, Canada, Mexico):

– Frequency Range: 902-928 MHz

– Regulatory Body: Federal Communications Commission (FCC)

– Standard: EPCglobal Gen 2 (ISO/IEC 18000-63)

2. Europe:

– Frequency Range: 865-868 MHz

– Regulatory Body: European Telecommunications Standards Institute (ETSI)

– Standard: EPCglobal Gen 2 (ISO/IEC 18000-63)

3. Japan:

– Frequency Range: 916.8-923.4 MHz

– Regulatory Body: Ministry of Internal Affairs and Communications (MIC)

– Standard: EPCglobal Gen 2 (ISO/IEC 18000-63)

4. China:

– Frequency Range: 920.5-924.5 MHz

– Regulatory Body: Ministry of Industry and Information Technology (MIIT)

– Standard: EPCglobal Gen 2 (ISO/IEC 18000-63)

5. Australia and New Zealand:

– Frequency Range: 920-926 MHz

– Regulatory Body: Australian Communications and Media Authority (ACMA), Radio Spectrum Management (RSM) in New Zealand

– Standard: EPCglobal Gen 2 (ISO/IEC 18000-63)

6. India:

– Frequency Range: 865-867 MHz

– Regulatory Body: Telecom Regulatory Authority of India (TRAI)

– Standard: EPCglobal Gen 2 (ISO/IEC 18000-63)

Key Standards

1. EPCglobal Gen 2 (ISO/IEC 18000-63):

– This is the most widely adopted standard for UHF RFID, specifying the air interface protocol for the RFID tags and readers.

– It ensures interoperability between different manufacturers’ equipment and tags.

– The standard includes specifications for tag identification, data transmission, and anti-collision protocols.

2. ISO/IEC 18000-6:

– This is a broader standard that includes several parts, with Part C (ISO/IEC 18000-6C) being synonymous with EPCglobal Gen 2.

– Part A and Part B of this standard cover other types of UHF RFID systems, but they are less commonly used compared to Part C.

Regional Variations

Power Limits: Different regions have different regulations on the maximum allowable transmission power, which can affect the read range and performance of UHF RFID systems.

Channel Spacing and Bandwidth: Regulatory bodies may also specify different channel spacings and bandwidth allocations within the UHF spectrum, impacting how devices communicate and coexist with other wireless services.

Conclusion

Understanding the frequency ranges and standards for UHF RFID is crucial for designing and deploying RFID systems that are compliant with regional regulations and optimized for specific applications. The EPCglobal Gen 2 (ISO/IEC 18000-63) standard is the most prevalent, ensuring interoperability and reliable performance across different regions.

Importance of antennas in an UHF RFID system

Antennas play a crucial role in Ultra High Frequency (UHF) Radio Frequency Identification (RFID) systems. Their importance can be outlined as follows:

1. Signal Transmission and Reception:

Reader Antennas: These are responsible for transmitting interrogation signals from the RFID reader to the RFID tags and receiving the backscattered signals from the tags.

Tag Antennas: These capture the interrogation signals from the reader and reflect back a modulated signal containing the tag’s data.

2. Range and Coverage:

Antenna design and placement significantly affect the read range and coverage area of an RFID system. Properly designed antennas can maximize the distance over which tags can be read, which is crucial for applications like inventory management and asset tracking.

3. Frequency and Bandwidth:

UHF RFID systems typically operate in the 860-960 MHz range. Antennas must be designed to efficiently operate within this frequency band to ensure optimal performance.

4. Polarization:

The polarization of the antennas (linear, circular, or dual) affects the orientation sensitivity of the system. Circularly polarized antennas, for example, can read tags regardless of their orientation, which is beneficial in dynamic environments.

5. Impedance Matching:

Proper impedance matching between the antenna and the RFID reader or tag circuitry is essential to minimize signal reflection and maximize power transfer, thereby enhancing system efficiency.

6. Environmental Adaptability:

Antennas need to be designed to withstand environmental factors such as temperature, humidity, and physical obstructions that can affect signal propagation and system reliability.

7. Application-Specific Design:

Different applications may require different antenna characteristics. For instance, a retail environment might need wide-beam antennas for broad coverage, whereas a conveyor belt system might require narrow-beam antennas for focused reads.

8. Interference and Multipath Mitigation:

 Antenna design and placement can help mitigate interference from other electronic devices and reduce multipath effects (where signals reflect off surfaces and cause reading errors).

9. Regulatory Compliance:

Antennas must comply with regional regulations regarding power output and frequency usage to avoid interference with other communication systems and ensure legal operation.

10. Efficiency and Power Consumption:

Efficient antennas ensure that the maximum amount of transmitted power is used for communication with tags, which is particularly important for battery-powered or passive RFID tags.

In summary, antennas are integral to the performance, reliability, and efficiency of UHF RFID systems. Their design, placement, and characteristics directly influence the system’s ability to accurately and efficiently read and communicate with RFID tags.

Chapter 2: Types of UHF RFID Antennas

What is a UHF RFID Antenna

A UHF RFID antenna is a device that is used to send and receive radio frequency signals in the ultra-high frequency (UHF) range. It is specifically designed to work with UHF RFID systems, which use radio waves to communicate between RFID tags and readers. The antenna is responsible for transmitting the RFID signal to the tag and receiving the signal back from the tag. It is typically made of a conductive material, such as copper or aluminum, and is designed to have a specific shape and size to optimize its performance in reading RFID tags. UHF RFID antennas can be used in a variety of applications, such as inventory management, asset tracking, and access control.

Overview Of Different UHF RFID Antenna Types

Ultra High Frequency (UHF) RFID systems operate in the frequency range of 300 MHz to 3 GHz, typically around 860-960 MHz for most commercial applications. The performance of an RFID system heavily depends on the type of antenna used. Here’s an overview of different UHF RFID antenna types:

1. Linear Polarized Antennas

Linear polarized UHF RFID antennas are a crucial component in RFID systems, particularly in the Ultra High Frequency (UHF) range, which typically spans from 860 MHz to 960 MHz. These antennas are designed to emit and receive radio waves in a specific linear orientation, either horizontally or vertically. This linear polarization can be advantageous in certain applications and environments.

Key Characteristics

1. Polarization: Linear polarization means that the electric field of the radio wave is oriented in a single plane. This can be either horizontal or vertical. The orientation should match the polarization of the RFID tags for optimal performance.

2. Frequency Range: UHF RFID systems operate in the 860-960 MHz range, which allows for longer read ranges and faster data transfer compared to lower frequency systems.

3. Read Range: Linear polarized antennas typically have a longer read range compared to circularly polarized antennas, given that the tag orientation aligns with the antenna’s polarization.

4. Applications: These antennas are ideal for environments where the orientation of the RFID tags is known and controlled, such as conveyor belts, portals, and certain industrial applications.

Advantages

Longer Read Range: When the tag orientation is consistent with the antenna polarization, linear polarized antennas can achieve a longer read range.

Cost: Generally, linear polarized antennas can be less expensive to manufacture than circularly polarized antennas.

Efficiency: They can be more efficient in environments where tag orientation is predictable.

Disadvantages

Orientation Sensitivity: The primary drawback is their sensitivity to the orientation of the RFID tags. If the tag is not aligned with the antenna’s polarization, the read range can be significantly reduced.

Limited Use Cases: They are less effective in environments where the orientation of the tags is unpredictable, such as in retail or general asset tracking.

Use Cases

1. Conveyor Systems: In automated conveyor systems where the orientation of items (and hence the tags) is consistent, linear polarized antennas can provide reliable reads.

2. Industrial Applications: In manufacturing environments where items are placed in a known orientation, these antennas can be very effective.

3. Access Control: In scenarios where RFID tags are presented in a consistent manner, such as access control points, linear polarized antennas can be used effectively.

Installation Considerations

Alignment: Ensuring that the antenna is aligned with the expected orientation of the tags is crucial for optimal performance.

Environment: Consider the environment and potential obstacles that might affect the signal. Linear polarized antennas are more sensitive to reflections and multipath issues.

Mounting: Proper mounting and positioning are essential to maximize the read range and reliability.

Conclusion

Linear polarized UHF RFID antennas are a powerful tool in specific applications where tag orientation is controlled and predictable. They offer advantages in terms of read range and cost but require careful consideration of the environment and tag placement. Understanding these factors will help in selecting the right antenna for your RFID system.

2. Circular Polarized Antennas

Circular polarized UHF RFID antennas are specialized antennas designed to read RFID tags that operate in the Ultra High Frequency (UHF) range, typically between 860 MHz and 960 MHz. These antennas are particularly useful in RFID systems because they can effectively read tags regardless of their orientation, which is a common challenge in RFID applications.

Key Features

1. Polarization:

Circular polarization allows the antenna to emit electromagnetic waves that rotate in a circular manner. This means the antenna can read tags that are oriented in various directions, whether they are horizontal, vertical, or tilted.

There are two types of circular polarization: right-hand circular polarization (RHCP) and left-hand circular polarization (LHCP). The choice between RHCP and LHCP depends on the specific application and the design of the RFID system.

2. Frequency Range:

UHF RFID antennas operate in the frequency range of 860-960 MHz, which is divided into different regions:

North America: 902-928 MHz

Europe: 865-868 MHz

Other regions may have different specific bands within the UHF range.

3. Gain:

The gain of an RFID antenna is a measure of its ability to focus energy in a particular direction. Higher gain antennas can read tags from a greater distance but may have a narrower beamwidth.

Typical gain values for circular polarized UHF RFID antennas range from 6 dBi to 9 dBi.

4. Beamwidth:

Beamwidth refers to the angle over which the antenna can effectively read tags. Circular polarized antennas often have a wider beamwidth compared to linear polarized antennas, making them suitable for applications where tags are scattered over a larger area.

5. Form Factor:

These antennas come in various shapes and sizes, including panel, patch, and omni-directional designs. The choice of form factor depends on the specific application and installation requirements.

Applications

1. Retail and Inventory Management:

– Circular polarized UHF RFID antennas are commonly used in retail environments for inventory tracking and management. They can read tags on items regardless of how they are placed on shelves or in storage bins.

2. Supply Chain and Logistics:

– In warehouses and distribution centers, these antennas help in tracking goods as they move through the supply chain, ensuring accurate and efficient inventory management.

3. Access Control:

– Circular polarized antennas are used in access control systems to read RFID tags on employee badges or visitor passes, ensuring secure entry and exit.

4. Asset Tracking:

They are used to track high-value assets in various industries, including healthcare, manufacturing, and IT, providing real-time visibility of asset location and status.

5. Industrial Automation:

 In industrial settings, these antennas are used for tracking parts and components in automated production lines, improving process efficiency and reducing errors.

Advantages

1. Orientation Independence:

The primary advantage of circular polarized antennas is their ability to read tags regardless of orientation, which is crucial in dynamic environments where tag orientation cannot be controlled.

2. Improved Read Rates:

By mitigating the effects of tag orientation, circular polarized antennas can achieve higher read rates and more reliable tag detection.

3. Versatility:

These antennas are versatile and can be used in a wide range of applications, from retail to industrial automation.

Considerations

1. Cost:

Circular polarized antennas can be more expensive than linear polarized antennas due to their complex design.

2. Installation:

Proper installation and positioning are essential to maximize the performance of circular polarized antennas.

In summary, circular polarized UHF RFID antennas are a critical component in modern RFID systems, offering reliable and efficient tag reading capabilities across various applications. Their ability to read tags irrespective of orientation makes them a preferred choice for many industries looking to enhance their tracking and inventory management processes.

3. Near-Field Antennas

Near-field Ultra High Frequency (UHF) Radio Frequency Identification (RFID) antennas are specialized components used in RFID systems to read and write data to RFID tags that are in close proximity to the antenna. Unlike far-field UHF RFID systems, which can read tags from several meters away, near-field UHF systems are designed for short-range applications, typically within a few centimeters to a meter. This makes them ideal for specific use cases where precise tag detection and reading are required.

Key Characteristics

1. Operating Frequency: Near-field UHF RFID systems typically operate in the UHF band, which ranges from 300 MHz to 3 GHz. However, the most common frequencies used are around 860-960 MHz, depending on regional regulations.

2. Magnetic Coupling: Near-field UHF RFID antennas rely on magnetic coupling (inductive coupling) rather than electromagnetic waves for communication with RFID tags. This is achieved through the use of magnetic fields generated by the antenna.

3. Short Range: The read range of near-field UHF RFID antennas is typically very short, usually less than 1 meter. This is beneficial for applications requiring high precision and minimal interference from other tags.

4. Antenna Design: Near-field UHF RFID antennas are often designed with specific geometries to create a strong magnetic field. Common designs include loop antennas and coil antennas.

Applications

Near-field UHF RFID antennas are used in various applications where close-range reading is essential:

1. Retail: For item-level tagging and inventory management, where precise detection of individual items on shelves or in bins is required.

2. Pharmaceuticals: To track and manage medications and medical supplies, ensuring that the correct items are dispensed and preventing counterfeiting.

3. Access Control: For secure entry systems where the RFID tag must be very close to the reader to gain access.

4. Manufacturing: For tracking parts and components on assembly lines, ensuring that each part is correctly identified and processed.

5. Libraries: For managing books and other media, enabling quick and accurate check-in and check-out processes.

Advantages

Precision: Near-field UHF RFID antennas can read tags with high accuracy and minimal interference from surrounding tags.

Security: The short read range enhances security by ensuring that only tags in close proximity are read.

Reduced Interference: The magnetic coupling method reduces the likelihood of interference from other RFID systems or electronic devices.

Challenges

Limited Range: The short read range may not be suitable for applications requiring longer-distance tag reading.

Antenna Size: Near-field UHF RFID antennas can be larger and more complex than their far-field counterparts, potentially impacting the design and aesthetics of the system.

Conclusion

Near-field UHF RFID antennas are a crucial component for applications requiring precise, short-range RFID tag reading. Their unique characteristics and advantages make them suitable for various industries, from retail to pharmaceuticals, where accuracy and security are paramount. Understanding the specific needs of your application will help determine whether a near-field UHF RFID system is the right choice.

4. Far-field Antennas

Far-field UHF RFID antennas are designed to communicate with RFID tags over longer distances, typically ranging from a few meters up to several tens of meters. These antennas operate within the UHF frequency band, which is generally between 300 MHz and 3 GHz, with the most common range for RFID applications being 860-960 MHz.

Key Characteristics and Features

1. Frequency Range:

UHF RFID systems typically operate in the 860-960 MHz range, with specific frequency allocations varying by region (e.g., 902-928 MHz in North America, 865-868 MHz in Europe).

2. Polarization:

Linear Polarization: Suitable for environments where the orientation of the tags is known and consistent. Linear polarized antennas emit waves in a single plane.

Circular Polarization: Ideal for environments where the orientation of the tags is unpredictable. Circular polarized antennas emit waves in a spiral pattern, ensuring better tag readability regardless of orientation.

3. Gain:

Far-field antennas usually have higher gain compared to near-field antennas, which allows them to focus energy more effectively and increase the read range. Typical gains range from 6 dBi to 12 dBi.

4. Beamwidth:

The beamwidth of an antenna describes the angular width of the main lobe of the radiation pattern. Narrow beamwidth can provide longer range and more focused coverage, while wider beamwidth can cover broader areas but with shorter range.

5. Form Factor:

Far-field UHF RFID antennas come in various shapes and sizes, including patch antennas, yagi antennas, and panel antennas. The choice depends on the specific application and installation requirements.

Applications

1. Inventory Management:

Used in warehouses and retail environments to track and manage inventory. Antennas are often installed at dock doors, on conveyor belts, or in fixed positions to read tags on items as they move past.

2. Asset Tracking:

Employed in various industries to track high-value assets, equipment, or tools. Antennas can be placed at strategic locations to monitor the movement and location of tagged items.

3. Access Control:

Used in security systems to control and monitor access to restricted areas. Antennas placed at entry and exit points can read tags on personnel or vehicles.

4. Supply Chain Management:

Facilitates the tracking of goods throughout the supply chain, from production to distribution to retail.

5. Vehicle Identification:

Used in toll collection, parking management, and fleet tracking systems. Antennas are typically installed at toll booths or entry/exit points to read tags on vehicles.

Considerations for Selection

1. Read Range Requirements:

Determine the required read range to select an antenna with appropriate gain and beamwidth.

2. Environment:

Consider environmental factors such as potential interference, physical obstructions, and weather conditions. Some antennas are designed to be more robust and weather-resistant.

3. Tag Orientation:

Choose between linear and circular polarization based on the expected orientation of the tags.

4. Mounting and Installation:

Evaluate the available space and mounting options to ensure the antenna can be properly installed and oriented.

5. Regulatory Compliance:

Ensure the antenna complies with regional regulations regarding frequency use and power output.

Conclusion

Far-field UHF RFID antennas are critical components in systems designed for long-range tag reading and are used across various industries for efficient tracking and management of assets. Selecting the appropriate antenna involves considering factors such as frequency, polarization, gain, beamwidth, and environmental conditions to ensure optimal performance in the intended application.

5. Omni-directional Antennas

Characteristics: Radiate radio waves uniformly in all directions within a plane.

Applications: Useful for applications requiring 360-degree coverage, such as in-store inventory tracking.

Advantages: Provides uniform coverage in all directions.

Disadvantages: Typically have shorter read ranges compared to directional antennas.

6. Custom/Embedded Antennas

Characteristics: Designed for specific applications or integrated into devices.

Applications: Used in handheld readers, mobile devices, or other specialized equipment.

Advantages: Tailored to specific application requirements, often compact and integrated.

Disadvantages: May require custom design and development, potentially higher cost.

Considerations for Choosing an Antenna

Application Requirements: Consider the environment, read range, and tag orientation.

Antenna Gain: Higher gain antennas provide longer read ranges but are more directional.

Polarization: Match the polarization of the antenna with the expected tag orientation.

Environmental Factors: Consider potential interference from metal objects, liquids, and other materials.

Selecting the right UHF RFID antenna is crucial for optimizing the performance of your RFID system. It’s important to evaluate the specific needs of your application and choose an antenna that meets those requirements.

Chapter 3: Key Factors in Antenna Selection

Regional Frequency Regulations

Ultra High Frequency (UHF) RFID systems operate in different frequency bands depending on the region, and these bands are regulated by regional authorities to avoid interference with other communication systems. Below is an overview of the frequency regulations for UHF RFID antennas in various regions:

North America

Frequency Band: 902-928 MHz

Regulatory Body: Federal Communications Commission (FCC)

Maximum Effective Radiated Power (ERP): 4 W

Europe

Frequency Band: 865-868 MHz

Regulatory Body: European Telecommunications Standards Institute (ETSI)

Maximum Effective Radiated Power (ERP): 2 W

Japan

Frequency Band: 916.7-920.9 MHz

Regulatory Body: Ministry of Internal Affairs and Communications (MIC)

Maximum Effective Radiated Power (ERP): 4 W

China

Frequency Band: 920-925 MHz

Regulatory Body: Ministry of Industry and Information Technology (MIIT)

Maximum Effective Radiated Power (ERP): 2 W

Australia and New Zealand

Frequency Band: 920-926 MHz

Regulatory Body: Australian Communications and Media Authority (ACMA) / Radio Spectrum Management (RSM) in New Zealand

Maximum Effective Radiated Power (ERP): 4 W

South Korea

Frequency Band: 917-923.5 MHz

Regulatory Body: Ministry of Science and ICT (MSIT)

Maximum Effective Radiated Power (ERP): 4 W

India

Frequency Band: 865-867 MHz

Regulatory Body: Wireless Planning & Coordination (WPC) Wing

Maximum Effective Radiated Power (ERP): 4 W

Brazil

Frequency Band: 902-907.5 MHz and 915-928 MHz

Regulatory Body: National Telecommunications Agency (ANATEL)

Maximum Effective Radiated Power (ERP): 4 W

Middle East

Frequency Band: Varies by country, commonly 865-868 MHz or 902-928 MHz

Regulatory Body: Varies by country

Maximum Effective Radiated Power (ERP): Varies by country

Russia

Frequency Band: 866-868 MHz

Regulatory Body: Ministry of Digital Development, Communications and Mass Media

Maximum Effective Radiated Power (ERP): 2 W

South Africa

Frequency Band: 915-921 MHz

Regulatory Body: Independent Communications Authority of South Africa (ICASA)

Maximum Effective Radiated Power (ERP): 4 W

Southeast Asia

Frequency Band: Varies by country, commonly 920-925 MHz or 866-869 MHz

Regulatory Body: Varies by country

Maximum Effective Radiated Power (ERP): Varies by country

These frequency bands and power limits are established to ensure that RFID systems can operate efficiently without causing or experiencing interference from other wireless systems. It is essential for businesses and individuals deploying RFID systems to adhere to these regional regulations to ensure compliance and optimal performance.

For the most accurate and up-to-date information, it is recommended to consult the regulatory bodies or official publications in each region.

Compliance standards

Ultra-High Frequency (UHF) Radio Frequency Identification (RFID) antennas must comply with various standards and regulations to ensure they operate effectively and do not interfere with other electronic devices. These standards cover aspects such as frequency range, power output, and electromagnetic compatibility. Below are some key compliance standards and regulations for UHF RFID antennas:

International Standards

1. ISO/IEC 18000-6: This standard specifies the air interface for UHF RFID systems. It includes different parts, such as:

ISO/IEC 18000-6C: Commonly known as EPC Gen 2, it is widely used in supply chain management and logistics.

Regional Standards

1. FCC (Federal Communications Commission) – United States:

FCC Part 15: Governs unlicensed radio frequency devices, including UHF RFID systems operating in the 902-928 MHz band.

Power Output: Maximum Effective Radiated Power (ERP) of 4 Watts.

2. ETSI (European Telecommunications Standards Institute) – Europe:

EN 302 208: Regulates RFID systems in the 865-868 MHz band.

Power Output: Maximum Effective Radiated Power (ERP) of 2 Watts.

3. MIC (Ministry of Internal Affairs and Communications) – Japan:

ARIB STD-T89: Specifies the technical requirements for UHF RFID systems operating in the 915-930 MHz band.

Power Output: Typically up to 4 Watts ERP.

Electromagnetic Compatibility (EMC)

EN 301 489-3: This standard specifies the EMC requirements for short-range devices, including UHF RFID systems, to ensure they do not cause harmful interference with other electronic equipment.

Safety Standards

EN 62311: Addresses the safety of RF exposure for human health, ensuring that RFID systems operate within safe limits.

Additional Considerations

1. Antenna Gain: The gain of the antenna must be considered in compliance calculations, as it affects the Effective Isotropic Radiated Power (EIRP) or ERP.

2. Frequency Hopping: In some regions, RFID systems must employ frequency hopping techniques to minimize interference.

3. Duty Cycle: Some regulations impose limits on the duty cycle of the RFID system to control the amount of time the transmitter is active.

Industry-Specific Standards

GS1 EPCglobal: Provides guidelines and specifications for implementing UHF RFID systems in supply chain applications, including tag data standards and reader protocols.

Compliance Testing and Certification

1. Certification Bodies: Products must often be tested and certified by recognized bodies to ensure compliance with regional standards (e.g., FCC in the U.S., CE marking in Europe).

2. Testing Labs: Accredited testing laboratories perform the necessary tests to verify that RFID systems meet the required standards.

Conclusion

Compliance with these standards is essential for the legal operation of UHF RFID antennas and systems. Manufacturers and operators must ensure that their devices meet the relevant requirements to avoid penalties and ensure reliable and interference-free operation.

Polarization

Ultra-High Frequency (UHF) Radio Frequency Identification (RFID) systems use antennas to communicate between the RFID reader and the tags. The polarization of these antennas is a critical factor that affects the performance and reliability of the RFID system. There are three main types of polarization used in UHF RFID antennas:

1. Linear Polarization:

Description: Linear polarization means that the electromagnetic waves oscillate in a single plane. This can be either horizontal or vertical.

Advantages: Linear polarized antennas are simpler and can be more efficient in environments where the orientation of the tags is controlled and consistent.

Disadvantages: If the orientation of the tags varies, the performance can degrade significantly because the tag and reader antennas need to be aligned for optimal signal transfer.

2. Circular Polarization:

Description: Circular polarization means that the electromagnetic wave rotates in a circular motion as it propagates. This can be either right-hand circular polarization (RHCP) or left-hand circular polarization (LHCP).

Advantages: Circularly polarized antennas are more effective in environments where the orientation of the tags is not consistent or predictable. They can read tags in various orientations with less sensitivity to alignment issues.

Disadvantages: Circularly polarized antennas can be less efficient compared to linearly polarized antennas due to the way the energy is distributed.

Choosing the Right Polarization

The choice between linear and circular polarization depends on the specific application requirements:

Controlled Environments: If you can control the orientation of the tags, linear polarized antennas might be the better choice due to their higher gain and cost-effectiveness.

Dynamic Environments: If the tags can be in various orientations, circular polarized antennas offer more reliable performance and ease of deployment.

By understanding these differences, you can select the appropriate UHF RFID antenna to optimize the performance and efficiency of your RFID system.

Practical Considerations

1. Cost and Complexity: Circularly polarized antennas tend to be more complex and expensive than linearly polarized ones. This is an important consideration when designing or choosing an RFID system.

2. Range and Coverage: The choice of polarization can also affect the read range and coverage area. Circularly polarized antennas might offer better coverage in some scenarios, but at the cost of a slightly reduced range compared to linearly polarized antennas.

In summary, the choice of antenna polarization in UHF RFID systems depends on the specific requirements of the application, including the environment, tag orientation, and cost considerations.

Antenna Gain

Definition of Gain for UHF RFID Antennas

Gain is a critical parameter in the context of Ultra-High Frequency (UHF) Radio-Frequency Identification (RFID) antennas. It represents the ability of the antenna to direct or concentrate radio frequency energy in a particular direction when transmitting or to receive energy more effectively from a specific direction when receiving. Gain is typically measured in decibels (dB), often referenced to an isotropic radiator (dBi), which is a theoretical antenna that radiates equally in all directions.

Importance of Gain for UHF RFID Antennas

1. Range and Coverage:

Higher gain antennas can transmit and receive signals over longer distances, which is crucial for applications requiring extensive coverage areas, such as large warehouses, logistics yards, or retail environments.

2. Directional Control:

Gain influences the directionality of the antenna. High-gain antennas are more directional, focusing energy in a specific direction, which can be beneficial for targeted reading zones or reducing interference from other RFID systems.

3. Signal Strength:

A higher gain translates to stronger signal strength, improving the reliability and accuracy of tag reads. This is particularly important in environments with many obstacles or high levels of interference.

4. Efficiency:

Antennas with higher gain are generally more efficient in terms of energy use, as they can achieve the desired coverage with less power. This can be advantageous for battery-operated RFID systems or in scenarios where power consumption needs to be minimized.

5. Application Specificity:

Different applications may require different types of gain. For example:

High-Gain Antennas: Useful for long-range applications or when precise control over the reading area is needed.

Low-Gain Antennas: Suitable for short-range applications or when a broad, omnidirectional coverage is required.

6. Interference Mitigation:

By focusing the energy in a particular direction, high-gain antennas can help mitigate interference from other RF sources, leading to cleaner, more reliable tag reads.

Practical Considerations

Antenna Placement: The placement of high-gain antennas is crucial, as their directional nature means they must be aimed correctly to maximize effectiveness.

Environmental Factors: Physical obstructions and materials in the environment can affect the performance of high-gain antennas. It’s important to consider these factors during the design and deployment phases.

Regulatory Compliance: Different regions have regulations governing the maximum allowable gain and power output for RFID systems. Ensuring compliance with these regulations is essential to avoid legal issues and interference with other communication systems.

Conclusion

The gain of UHF RFID antennas is a fundamental characteristic that significantly impacts the performance and efficiency of RFID systems. Understanding and appropriately leveraging antenna gain can lead to more effective and reliable RFID deployments, tailored to the specific needs of various applications.

How to choose the right gain

Choosing the right gain for UHF RFID antennas is crucial to ensure optimal performance for your specific application. Here are some steps and considerations to help you select the appropriate gain:

1. Understand Gain and Its Impact

Antenna Gain: Measured in dBi, gain indicates how well the antenna directs radio frequency energy in a particular direction compared to an isotropic radiator (a theoretical antenna that radiates equally in all directions).

High Gain: Focuses energy in a narrower beam, providing longer read ranges but narrower coverage areas.

Low Gain: Provides a wider coverage area but shorter read ranges.

2. Determine Your Application Requirements

Read Range: If you need to read tags over a long distance, a high-gain antenna (8-12 dBi) may be appropriate.

Coverage Area: For applications requiring broad coverage (e.g., portals, conveyor belts), a lower gain antenna (3-6 dBi) might be better.

Environment: Consider whether the environment is open or has many obstructions. High-gain antennas can be more affected by obstacles due to their narrower beam.

3. Consider the Regulatory Limits

Power Limits: Regulatory bodies (like FCC in the US, ETSI in Europe) impose limits on the effective radiated power (ERP) or equivalent isotropically radiated power (EIRP). Ensure your antenna gain, combined with the reader’s output power, complies with these limits.

4. Evaluate Antenna Placement and Orientation

Fixed vs. Mobile: Fixed installations can benefit from higher gain antennas pointed in a specific direction, while mobile applications might require lower gain for broader coverage.

Mounting Height and Angle: Higher gain antennas need precise alignment to target the area of interest effectively.

5. Assess the Tag Population and Density

Tag Density: In high tag density environments, a lower gain antenna might help avoid multiple reads of the same tag and reduce interference.

Tag Orientation: High-gain antennas may struggle with tags not aligned with the antenna’s main lobe. Lower gain antennas can provide more consistent reads in such cases.

6. Test and Optimize

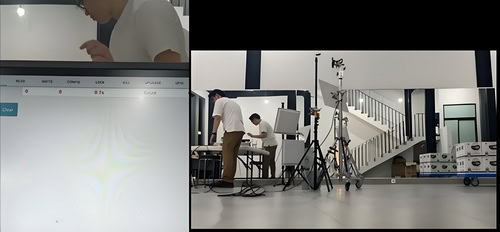

Field Testing: Conduct real-world testing in the actual environment to see how different gain antennas perform. Adjust based on observed read ranges, coverage, and reliability.

Adjust Reader Settings: Sometimes, tweaking the reader’s power output in conjunction with the antenna gain can achieve the desired performance.

7. Consult with Experts

Manufacturer Recommendations: Antenna manufacturers often provide guidelines on which gain to use for different applications.

RFID Integrators: Professional integrators can offer valuable insights based on experience with similar deployments.

Example Scenarios

Warehouse Inventory Management: A high-gain antenna might be used to cover long aisles.

Retail Point of Sale: Lower gain antennas are suitable for broad, close-range coverage.

Asset Tracking in a Yard: Higher gain antennas can help achieve longer read ranges in open spaces.

By carefully considering these factors, you can select the right gain for your UHF RFID antennas to ensure efficient and reliable tag reading for your specific application.

Read Range

Factors affecting read range

The read range of UHF (Ultra-High Frequency) RFID antennas is influenced by a variety of factors. Understanding these factors is critical for optimizing the performance of an RFID system. Here are some of the key factors:

1. Antenna Gain and Design:

Gain: Higher gain antennas can transmit and receive signals over longer distances.

Design: Antenna design, including its shape and size, affects the radiation pattern and polarization, impacting the read range.

2. RFID Reader Power Output:

 The power output of the RFID reader can significantly impact the read range. Higher power output generally increases the read range but must comply with regulatory limits.

3. Tag Sensitivity and Quality:

The sensitivity of the RFID tag’s chip and the quality of its antenna play crucial roles. More sensitive tags can be read from greater distances.

Tag orientation and placement also affect readability.

4. Environmental Conditions:

Interference: Electromagnetic interference (EMI) from other devices can reduce read range.

Physical Obstructions: Materials like metals and liquids can absorb or reflect UHF signals, reducing read range.

Multipath Effects: Reflections from surfaces can cause signal phase cancellation, affecting read performance.

5. Regulatory Constraints:

 Different regions have different regulations regarding maximum allowable power levels and frequency bands for UHF RFID systems, which can affect read range.

6. Frequency:

UHF RFID systems typically operate in the 860-960 MHz range. The exact frequency used can affect the propagation characteristics and read range.

7. Reader Sensitivity:

The ability of the RFID reader to detect weak signals from the tags influences the read range. More sensitive readers can detect tags from greater distances.

8. Tag Population and Density:

The number of tags in the read field can impact performance. High tag density can lead to collisions and reduced read range.

9. Antenna Placement and Orientation:

Proper placement and orientation of both the reader and tag antennas are crucial. Misalignment can drastically reduce read range.

10. Tag Environmental Adaptability:

Tags designed for specific environments (e.g., rugged, high-temperature, or moisture-resistant tags) may perform better in those conditions, affecting the overall read range.

11. Power Supply and Cabling:

The quality and length of the cabling between the reader and the antenna, as well as the power supply to the reader, can influence the read range.

12. Tag and Reader Protocols:

The protocols used for communication between the reader and tags (e.g., EPC Gen 2) can impact the efficiency and read range of the system.

By carefully considering and optimizing these factors, the performance of a UHF RFID system can be significantly improved, ensuring reliable and extended read ranges.

Matching antenna read range with application requirements

Matching the read range of UHF RFID antennas with application requirements involves several key considerations to ensure optimal performance and reliability. Here’s a comprehensive guide to help you align antenna read range with your specific application needs:

1. Understand the Application Requirements

Read Range: Determine the maximum and minimum read distances required for your application.

Environment: Assess the environment where the RFID system will be deployed (e.g., indoor, outdoor, presence of metal or liquids).

Tag Density: Consider the number of tags that need to be read simultaneously.

Tag Orientation: Evaluate how tags will be oriented relative to the antenna.

2. Choose the Right Antenna Type

Linear vs. Circular Polarization:

Linear Polarized Antennas: Suitable for applications where the tag orientation is known and consistent.

Circular Polarized Antennas: Ideal for environments where tag orientation is variable.

Near-Field vs. Far-Field Antennas:

Near-Field Antennas: Best for short-range applications (a few centimeters to about 1 meter), such as item-level tracking.

Far-Field Antennas: Suitable for longer read ranges (several meters), such as warehouse management or asset tracking.

3. Evaluate Antenna Gain

Low-Gain Antennas: Typically have a broader beamwidth, providing a wider coverage area but shorter read range. Suitable for close-range applications.

High-Gain Antennas: Offer a narrower beamwidth with longer read ranges. Ideal for applications requiring focused read areas, such as portal or conveyor systems.

4. Consider Power Settings

Reader Power Output: Adjust the RFID reader’s power output to match the desired read range. Higher power can increase read range but may also cause interference.

Regulatory Compliance: Ensure the power settings comply with local regulations (e.g., FCC in the US, ETSI in Europe).

5. Optimize Antenna Placement

Height and Angle: Position antennas at optimal heights and angles to maximize coverage and read accuracy.

Spacing: Ensure adequate spacing between multiple antennas to avoid interference and ensure full coverage of the target area.

6. Test and Calibrate

Field Testing: Perform real-world testing in the actual deployment environment to validate read range and performance.

Adjustments: Fine-tune antenna positions, orientations, and power settings based on test results.

7. Environmental Considerations

Interference: Be aware of potential sources of interference such as metal surfaces, liquids, and electronic devices.

Weather Conditions: For outdoor deployments, consider weatherproof antennas and enclosures.

8. Use Case Examples

Retail Inventory Management: Typically requires circular polarized antennas with moderate gain to handle varying tag orientations and moderate read ranges (1-3 meters).

Warehouse Management: Often uses high-gain, linear polarized antennas for long read ranges (up to 10 meters) and focused read zones.

Access Control: May use near-field antennas for short-range, high-precision reads.

9. Consult with Experts

Vendor Support: Work with RFID vendors and experts to select the best antennas and configurations for your specific needs.

Custom Solutions: Consider custom antenna solutions if standard products do not meet your requirements.

By carefully considering these factors, you can effectively match the read range of UHF RFID antennas with your application requirements, ensuring reliable and efficient RFID system performance.

Environmental Considerations

Indoor vs. outdoor use

UHF RFID (Ultra-High Frequency Radio Frequency Identification) antennas are critical components in RFID systems, and their design and usage can vary depending on whether they are intended for indoor or outdoor environments. Here are some key considerations for both indoor and outdoor use:

Indoor Use

1. Environment:

Indoor environments are typically more controlled in terms of temperature, humidity, and exposure to elements like rain or dust.

Common indoor applications include inventory management, asset tracking, access control, and point-of-sale systems.

2. Antenna Design:

Indoor antennas are usually designed to be compact and aesthetically pleasing, as they are often installed in visible areas.

They may have lower IP (Ingress Protection) ratings since they are not exposed to harsh environmental conditions.

3. Mounting:

Antennas can be mounted on walls, ceilings, or shelves.

The mounting hardware is generally simpler and may not require weatherproofing.

4. Performance:

Indoor antennas can be optimized for shorter read ranges and more precise read zones, given the confined spaces.

Multipath interference (signal reflections from walls and other objects) can be a concern, so antenna placement and orientation are crucial.

Outdoor Use

1. Environment:

Outdoor environments are subject to varying weather conditions, including rain, snow, wind, and extreme temperatures.

Common outdoor applications include vehicle tracking, livestock management, toll collection, and container tracking in logistics.

2. Antenna Design:

Outdoor antennas are designed to withstand harsh environmental conditions and typically have higher IP ratings (e.g., IP65 or higher).

They are often larger and more robust to provide longer read ranges and durability.

3. Mounting:

Outdoor antennas require more sturdy and weatherproof mounting solutions.

They may need to be installed on poles, fences, or other outdoor structures.

4. Performance:

Outdoor antennas are often designed for longer read ranges and broader coverage areas.

They must be able to handle a wider range of environmental factors that can affect signal propagation, such as rain fade or physical obstructions like trees and buildings.

Key Differences

Durability: Outdoor antennas are built to be more rugged and durable compared to indoor antennas.

IP Rating: Outdoor antennas have higher IP ratings to protect against water and dust ingress.

Size and Design: Indoor antennas are generally smaller and more aesthetically designed, while outdoor antennas are larger and more robust.

Mounting Solutions: Outdoor antennas require more secure and weatherproof mounting solutions.

Environmental Adaptability: Outdoor antennas are designed to perform reliably in a wider range of environmental conditions.

Conclusion

When selecting UHF RFID antennas, it is crucial to consider the specific requirements of the environment in which they will be used. Indoor antennas prioritize aesthetics and controlled environment performance, while outdoor antennas focus on durability and long-range performance in varying weather conditions. Always consult with the manufacturer or a specialist to ensure the chosen antenna meets the specific needs of your application.

Environmental factors (temperature, humidity, interference)

Ultra High Frequency (UHF) Radio Frequency Identification (RFID) systems are widely used for various applications, including inventory tracking, access control, and asset management. The performance of UHF RFID antennas can be significantly affected by environmental factors such as temperature, humidity, and interference. Here’s a detailed look at how each of these factors impacts UHF RFID antennas:

Temperature

1. Operational Range: UHF RFID systems typically operate within a specific temperature range, often between -20°C to 70°C (-4°F to 158°F). Extreme temperatures outside this range can affect the performance of the RFID tags and readers.

2. Material Properties: High temperatures can cause materials used in the antenna to expand, potentially detuning the antenna and reducing its efficiency. Conversely, low temperatures can make materials brittle and more prone to damage.

3. Thermal Noise: Higher temperatures can increase the thermal noise in electronic components, potentially reducing the signal-to-noise ratio and the overall reliability of the RFID system.

Humidity

1. Moisture Absorption: High humidity levels can lead to moisture absorption in the antenna and other RFID components, which can affect their electrical properties and performance. For instance, moisture can change the dielectric properties of the substrate material, altering the antenna’s impedance and resonance frequency.

2. Corrosion: Prolonged exposure to high humidity can cause corrosion of metallic components, including the antenna and connectors, leading to degraded performance or failure.

3. Condensation: Rapid changes in humidity can cause condensation on the RFID tags and readers. This can create short circuits or other issues that affect the system’s reliability.

Interference

1. Electromagnetic Interference (EMI): UHF RFID systems operate in the 860-960 MHz range, which can be affected by other electronic devices operating in nearby frequencies, such as Wi-Fi routers, cell phones, and other wireless communication devices. EMI can cause signal degradation and reduce the read range and accuracy of the RFID system.

2. Metallic Objects: Metal surfaces can reflect and scatter UHF signals, causing multipath interference and signal attenuation. This can result in reduced read ranges and increased read errors.

3. Environmental Noise: Background noise from industrial machinery, motors, and other electronic equipment can interfere with RFID signals, affecting the system’s performance.

4. RFID System Density: In environments where multiple RFID systems are operating in close proximity, mutual interference can occur, leading to reduced performance. Proper frequency planning and the use of anti-collision protocols are essential to mitigate this issue.

Mitigation Strategies

1. Environmental Enclosures: Use protective enclosures to shield RFID components from extreme temperatures and humidity.

2. Material Selection: Choose materials that are less sensitive to temperature and humidity changes for the construction of RFID antennas and tags.

3. Signal Filtering: Implement filters to reduce the impact of electromagnetic interference from other devices.

4. Antenna Design: Design antennas with appropriate impedance matching and tuning to minimize the effects of environmental changes.

5. Environmental Testing: Conduct thorough testing of RFID systems under various environmental conditions to ensure reliable performance.

By understanding and mitigating the effects of temperature, humidity, and interference, the performance and reliability of UHF RFID systems can be significantly improved.

Physical Size and Form Factor

Space constraints

When designing or installing UHF RFID (Ultra-High Frequency Radio Frequency Identification) antennas, space constraints can significantly impact the performance and effectiveness of the system. Here are some key considerations and strategies to manage space constraints:

1. Antenna Size and Form Factor:

Compact Antennas: Choose compact antennas that are specifically designed for space-constrained environments. These antennas are smaller in size but may have a reduced read range compared to larger antennas.

Low-Profile Antennas: Use low-profile antennas that can be mounted flush against surfaces to save space.

2. Antenna Placement:

Optimized Placement: Carefully plan the placement of antennas to ensure optimal coverage without requiring excessive space. This may involve placing antennas at angles or using multiple smaller antennas to cover the desired area.

Overhead Mounting: Mount antennas overhead to save floor space. This is particularly useful in environments like retail stores or warehouses.

Embedded Antennas: Integrate antennas into existing structures, such as shelving, walls, or equipment, to minimize additional space requirements.

3. Mounting Options:

Flexible Mounting Solutions: Utilize flexible mounting options such as adjustable brackets or mounts that allow antennas to be positioned in tight spaces or at various angles.

Ceiling or Wall Mounts: Consider mounting antennas on ceilings or walls to free up floor space and avoid obstacles.

4. Read Range and Power:

Adjustable Power Levels:Adjust the power levels of the RFID reader to optimize the read range within the constrained space. Higher power levels can increase the read range but may cause interference, so balance is key.

Directional Antennas: Use directional antennas to focus the RFID signal in a specific direction, which can help achieve the desired read range without requiring large antennas.

5. Interference and Multipath Effects:

Minimize Interference: Be mindful of potential sources of interference, such as metal objects or electronic devices, which can affect the performance of UHF RFID systems in confined spaces.

Mitigate Multipath Effects: In tight spaces, multipath effects (where signals reflect off surfaces and create interference) can be more pronounced. Use antennas designed to minimize these effects or employ signal processing techniques to mitigate them.

6. Environmental Considerations:

Temperature and Humidity: Ensure that the chosen antennas can operate effectively within the temperature and humidity ranges of the constrained space.

Durability: Select antennas that are durable and can withstand the environmental conditions of the installation area, especially if the space is exposed to harsh conditions.

7. System Integration:

Integrated Systems:Consider using integrated RFID systems that combine readers and antennas into a single unit to save space and simplify installation.

By carefully considering these factors, you can effectively manage space constraints while maintaining the performance and reliability of your UHF RFID system.

Mounting options

Mounting options for UHF RFID antennas are crucial for optimizing their performance and ensuring they are positioned correctly for the specific application. Here are several common mounting options:

1. Wall Mounting:

Direct Wall Mounting: Antennas can be directly mounted on walls using brackets or mounting plates.

Adjustable Wall Mounting: Adjustable brackets allow for tilting and angling the antenna to optimize read zones.

2. Ceiling Mounting:

Fixed Ceiling Mount: Antennas can be mounted flat against the ceiling for overhead reading, commonly used in retail or warehouse settings.

Adjustable Ceiling Mount: Allows for angling the antenna to cover a specific area below.

3. Pole Mounting:

Fixed Pole Mount: Useful for outdoor or large indoor areas where antennas need to be elevated.

Adjustable Pole Mount: Allows for height and angle adjustments to better target the read zone.

4. Shelf/Rack Mounting:

Fixed Shelf/Rack Mount: Antennas can be mounted on shelves or racks to read tags on items stored there.

Adjustable Shelf/Rack Mount: Provides flexibility to adjust the angle and position of the antenna for optimal coverage.

5. Floor Mounting:

Fixed Floor Mount: Antennas are mounted on the floor to read tags on passing items, often used in conveyor systems.

Embedded Floor Mount: Antennas are embedded into the floor for a flush surface, useful in areas with heavy traffic.

6. Vehicle Mounting:

Fixed Vehicle Mount: Antennas are mounted on vehicles (e.g., forklifts) for mobile reading.

Adjustable Vehicle Mount: Allows for adjusting the antenna position based on the vehicle’s movement and load.

7. Portal/Gate Mounting:

Fixed Portal/Gate Mount: Used in entry/exit points to read tags on items or people passing through.

Adjustable Portal/Gate Mount: Allows for fine-tuning the read zone at access points.

8. Custom Mounting Solutions:

Custom Brackets: Tailored brackets can be designed for unique mounting requirements.

Enclosures: Custom enclosures can be used to protect antennas in harsh environments.

Considerations for Mounting UHF RFID Antennas

Read Zone: Ensure the antenna is positioned to cover the desired read zone effectively.

Interference: Avoid mounting near metal objects or electronic devices that can cause interference.

Orientation: Proper orientation (horizontal or vertical) based on the type of tags being read.

Environment: Consider environmental factors like temperature, humidity, and exposure to elements.

Accessibility: Ensure antennas are accessible for maintenance and adjustments.

By carefully selecting and implementing the appropriate mounting option, you can significantly enhance the performance and reliability of your UHF RFID system.

Chapter 4: Application-Specific Recommendations

Retail and inventory management

Ultra-High Frequency (UHF) Radio Frequency Identification (RFID) technology is widely used in retail and inventory management due to its ability to quickly and accurately track large volumes of items. Here’s an overview of how UHF RFID can be implemented in retail and inventory management, along with its benefits and considerations:

Implementation in Retail and Inventory Management

1. Tagging Items:

RFID Tags: Attach UHF RFID tags to individual items, cases, or pallets. Tags contain a microchip and an antenna that can store and transmit data.

Encoding Information: Encode each tag with a unique identifier (EPC – Electronic Product Code) and other relevant data (such as product type, size, and expiration date).

2. Readers and Antennas:

Fixed Readers: Install fixed RFID readers at strategic locations such as entry/exit points, shelves, and checkout counters.

Handheld Readers:  Use handheld RFID readers for inventory checks, locating items, and verifying shipments.

Antennas:  Deploy antennas to extend the reading range and ensure complete coverage in the store or warehouse.

3. Software Systems:

Inventory Management Software: Integrate RFID data with existing inventory management systems to track stock levels, monitor item movement, and manage replenishment.

Point of Sale (POS) Integration: Connect RFID data to POS systems for faster checkouts and real-time inventory updates.

Analytics and Reporting: Utilize software to analyze inventory data, generate reports, and gain insights into sales trends and stock performance.

Benefits of UHF RFID in Retail and Inventory Management

1. Improved Inventory Accuracy:

Real-Time Tracking: Provides real-time visibility into inventory levels, reducing discrepancies and stockouts.

Automated Counting:  Automates inventory counts, significantly reducing time and labor costs.

2. Enhanced Operational Efficiency:

Faster Checkouts: Speeds up the checkout process by allowing multiple items to be scanned simultaneously.

Quick Item Location: Helps staff quickly locate items on the sales floor or in the warehouse.

3. Loss Prevention:

Theft Reduction: Enhances security by tracking item movements and detecting unauthorized removal of items.

Shrinkage Control:  Reduces shrinkage due to theft, misplacement, or administrative errors.

4. Better Customer Experience:

Stock Availability:  Ensures that popular items are always in stock, improving customer satisfaction.

Personalized Service:  Enables personalized shopping experiences through targeted promotions and recommendations.

Considerations for Implementing UHF RFID

1. Cost:

Initial Investment: The initial cost of RFID tags, readers, antennas, and software can be significant.

Ongoing Expenses:  Consider ongoing costs for tag replenishment, maintenance, and software updates.

2. Integration:

Compatibility:  Ensure that RFID systems are compatible with existing IT infrastructure and inventory management systems.

Data Integration:  Seamlessly integrate RFID data with other business systems for a unified view of operations.

3. Environmental Factors:

Interference: UHF RFID can be affected by metal objects and liquids, which may require special tags or reader configurations.

Read Range:  Optimize the placement of readers and antennas to ensure adequate coverage and minimize blind spots.

4. Privacy and Security:

Data Protection: Implement measures to protect sensitive data stored on RFID tags and transmitted through the system.

Compliance: Ensure compliance with relevant regulations and standards for RFID use in retail.

Conclusion

UHF RFID technology offers significant advantages for retail and inventory management, including improved accuracy, operational efficiency, and customer satisfaction. However, careful planning and consideration of costs, integration, environmental factors, and security are essential for successful implementation. By leveraging UHF RFID, retailers can streamline their operations, reduce losses, and enhance the overall shopping experience.

Supply chain and logistics

Ultra-High Frequency (UHF) Radio Frequency Identification (RFID) technology has become increasingly integral to supply chain and logistics operations. This technology utilizes electromagnetic fields to automatically identify and track tags attached to objects. UHF RFID operates in the frequency range of 300 MHz to 3 GHz, typically around 860-960 MHz, offering several advantages for supply chain and logistics applications. Here are some key aspects of UHF RFID in this context:

Benefits of UHF RFID in Supply Chain and Logistics

1. Improved Inventory Management:

Real-time Tracking: UHF RFID enables real-time visibility of inventory, reducing the need for manual counts and minimizing errors.

Automated Processes: Automation of inventory checks and updates improves accuracy and efficiency.

2. Enhanced Traceability:

Item-Level Tracking: Each item can be tagged, allowing for detailed tracking from the point of manufacture to the final destination.

History and Condition Monitoring: Tags can store data about the item’s history, and sensors can monitor environmental conditions.

3. Increased Efficiency:

Faster Processing: UHF RFID can read multiple tags simultaneously, speeding up processes like receiving, shipping, and sorting.

Reduced Labor Costs: Automation reduces the need for manual labor in tracking and inventory management.

4. Security and Authenticity:

Anti-Counterfeiting: Unique identifiers on RFID tags help in verifying the authenticity of products.

Loss Prevention: Enhanced tracking helps in reducing theft and loss of goods.

5. Data Integration:

Seamless Integration: UHF RFID systems can be integrated with existing ERP and warehouse management systems (WMS), providing a unified view of operations.

Data Analytics: The data collected can be analyzed to optimize supply chain processes, forecast demand, and improve decision-making.

Applications of UHF RFID in Supply Chain and Logistics

1. Warehouse Management:

Automated Inventory Counting: RFID readers can scan tags on items, pallets, or containers to provide real-time inventory counts.

Location Tracking: Tags can help in locating items within a warehouse, improving picking and packing efficiency.

2. Transportation and Logistics:

Shipment Tracking: RFID tags on shipments allow for tracking throughout the transportation process.

Load Optimization: Data from RFID tags can help in optimizing load plans for transportation vehicles.

3. Retail and Distribution:

Stock Replenishment: Real-time inventory data helps in maintaining optimal stock levels, reducing out-of-stock situations.

Customer Experience: Faster and more accurate inventory management leads to better fulfillment of customer orders.

4. Manufacturing:

Work-in-Progress Tracking: UHF RFID can track items through various stages of the manufacturing process.

Quality Control: Tags can store information about production batches, helping in quality control and recall management.

Challenges and Considerations

1. Cost:

Initial Investment: The initial cost of implementing RFID technology, including tags, readers, and software, can be high.

Tag Cost: While the cost of tags has decreased, it can still be significant for low-value items.

2. Interference and Readability:

Environmental Factors: Metal and liquid can interfere with UHF RFID signals, affecting readability.

Tag Placement: Proper placement of tags is crucial for reliable reading.

3. Data Management:

Data Volume: The large volume of data generated by RFID systems requires robust data management and analytics capabilities.

Integration: Ensuring seamless integration with existing systems can be complex.

4. Privacy and Security:

Data Security: Protecting the data transmitted by RFID tags from unauthorized access is essential.

Privacy Concerns: There may be concerns about tracking and data collection, particularly in consumer applications.

Future Trends

1. IoT Integration: Combining RFID with IoT (Internet of Things) technologies for enhanced data collection and analytics.

2. Advanced Analytics and AI: Using advanced analytics and artificial intelligence to derive insights from RFID data.

3. Sustainability: Developing more sustainable and eco-friendly RFID tags and systems.

4. Enhanced Read Range and Accuracy: Ongoing improvements in RFID technology to increase read range and accuracy.

In conclusion, UHF RFID technology offers numerous benefits for supply chain and logistics operations, including improved inventory management, enhanced traceability, increased efficiency, and better security. However, challenges such as cost, interference, data management, and privacy concerns need to be addressed to fully realize its potential. As technology advances, the integration of RFID with IoT and AI is likely to further transform supply chain and logistics operations.

 Asset tracking

Ultra-High Frequency (UHF) Radio Frequency Identification (RFID) technology is widely used for asset tracking due to its ability to read tags from a distance and at high speeds. Here are some key points about using UHF RFID for asset tracking:

Benefits of UHF RFID for Asset Tracking

1. Longer Read Range: UHF RFID systems can read tags from several meters away, making it suitable for tracking assets across larger areas.

2. High-Speed Reading: UHF RFID can read multiple tags simultaneously, which is useful in environments where many assets need to be tracked quickly, such as in warehouses or manufacturing plants.

3. Improved Inventory Accuracy: With automated tracking, UHF RFID can significantly reduce human error and improve the accuracy of inventory records.

4. Real-Time Tracking: UHF RFID enables real-time visibility of asset locations, which is beneficial for logistics, supply chain management, and security.

5. Durability: RFID tags are generally durable and can withstand harsh environments, making them suitable for tracking assets in various conditions.

Applications of UHF RFID in Asset Tracking

1. Warehouse Management: UHF RFID can track inventory levels, manage stock locations, and streamline the picking and packing process.

2. Healthcare: Hospitals use UHF RFID to track medical equipment, manage patient records, and ensure the availability of critical supplies.

3. Manufacturing: UHF RFID helps in tracking raw materials, work-in-progress items, and finished goods, improving production efficiency.

4. Transportation and Logistics: UHF RFID is used to monitor the movement of goods, ensuring timely deliveries and reducing losses.

5. Retail: Retailers use UHF RFID for inventory management, theft prevention, and enhancing the shopping experience through better stock availability.

Challenges and Considerations

1. Interference: UHF RFID signals can be affected by interference from metal objects and liquids, which may require special tags or readers.

2. Cost: While the cost of RFID tags has decreased, the initial investment in RFID infrastructure can still be significant.

3. Privacy and Security: Ensuring the privacy and security of the data collected by RFID systems is crucial, especially in sensitive environments like healthcare.

4. Integration: Integrating RFID systems with existing enterprise resource planning (ERP) or warehouse management systems (WMS) can be complex and may require customization.

Best Practices for Implementation

1. Pilot Testing: Conduct pilot tests to understand the performance of the RFID system in your specific environment and make necessary adjustments.

2. Tag Selection: Choose the appropriate type of RFID tags for your assets, considering factors like read range, durability, and environmental conditions.

3. Reader Placement: Optimize the placement of RFID readers and antennae to ensure comprehensive coverage and minimize dead zones.

4. Data Management: Implement robust data management practices to handle the large volumes of data generated by RFID systems and derive actionable insights.

5. Training: Train staff on how to use the RFID system effectively to maximize its benefits.

By leveraging UHF RFID technology, organizations can improve their asset tracking processes, enhance operational efficiency, and gain better visibility into their inventory and assets.

Access control and security

Ultra High Frequency (UHF) Radio Frequency Identification (RFID) technology is increasingly being utilized in access control and security systems due to its numerous advantages, such as long read ranges, high data transfer rates, and the ability to handle multiple tags simultaneously. Here’s a detailed look at how UHF RFID can be applied in these domains:

Applications in Access Control and Security

1. Building Access Control:

Employee and Visitor Management: UHF RFID cards or badges can be issued to employees and visitors. These cards can be read from a distance, allowing for seamless and quick entry and exit through secured doors or gates.

Hands-Free Access: UHF RFID readers can be installed at entrances to allow for hands-free access, which is particularly useful in high-traffic areas or for individuals carrying items.

2. Vehicle Access Control:

Parking Management: UHF RFID tags can be affixed to vehicles, allowing automated entry and exit from parking facilities. This system can also track parking duration and manage billing.

Fleet Management: Companies can use UHF RFID to monitor and control access to company vehicles, ensuring that only authorized personnel can use them.

3. Asset Tracking and Management:

Inventory Control: UHF RFID can be used to secure and track high-value assets within a facility. This ensures that assets are only accessed by authorized personnel and can be quickly located if needed.

Theft Prevention: By integrating UHF RFID with security systems, unauthorized removal of items can trigger alarms and notifications.

4. Event Management:

Ticketing and Admission: UHF RFID can be used for ticketing at events, allowing for quick and secure entry. It can also help in crowd management by tracking the number of attendees in real-time.

Credential Verification: For events requiring different levels of access (e.g., VIP areas), UHF RFID can ensure that only individuals with the appropriate credentials can enter specific zones.

Advantages of UHF RFID in Access Control and Security

1. Long Read Range: UHF RFID systems typically offer read ranges from a few meters up to 12 meters or more, allowing for greater flexibility in system design and user convenience.

2. High-Speed Data Transfer: UHF RFID technology supports fast data communication, which is essential for applications needing quick and reliable access control.

3. Multi-Tag Reading: UHF RFID readers can read multiple tags simultaneously, which is beneficial in high-traffic areas or where multiple items need to be tracked at once.

4. Scalability: UHF RFID systems can be easily scaled to cover large facilities or multiple locations, making them suitable for various organizational needs.

5. Integration with Other Systems: UHF RFID can be integrated with existing security and management systems, such as surveillance cameras, alarms, and databases, to provide a comprehensive security solution.

Considerations for Implementation

1. Environmental Factors: UHF RFID performance can be affected by environmental factors such as metal and liquids, which can interfere with signal transmission. Proper planning and testing are essential to mitigate these issues.

2. Privacy and Security: Ensuring the security of the RFID system itself is crucial. Encryption and secure communication protocols should be used to protect against unauthorized access and data breaches.

3. Cost: While UHF RFID systems can be more expensive to implement than other technologies, the long-term benefits in terms of efficiency, security, and scalability often justify the investment.

4. Regulatory Compliance: UHF RFID operates in specific frequency bands that are subject to regulatory controls. Compliance with local regulations is essential to avoid interference and legal issues.

In conclusion, UHF RFID technology offers significant benefits for access control and security applications. Its ability to provide long-range, high-speed, and multi-tag reading capabilities makes it an ideal choice for a wide range of uses, from building and vehicle access control to asset management and event security. Proper planning, implementation, and consideration of environmental and security factors are key to maximizing the effectiveness of UHF RFID systems.

Industrial automation and manufacturing

Ultra-High Frequency (UHF) Radio Frequency Identification (RFID) technology has become an integral part of industrial automation and manufacturing processes. UHF RFID systems operate in the frequency range of 300 MHz to 3 GHz, typically between 860 MHz and 960 MHz, and offer several advantages that make them suitable for various applications in these sectors. Here are some key aspects and benefits of using UHF RFID in industrial automation and manufacturing:

Key Aspects

1. Longer Read Range: UHF RFID systems can read tags from several meters away, which is beneficial for tracking items on production lines, in warehouses, or across large facilities.

2. Fast Data Transfer: UHF RFID tags can be read quickly, enabling real-time tracking and monitoring of items as they move through different stages of production or logistics.

3. Bulk Reading Capability: UHF RFID readers can read multiple tags simultaneously, which is useful for inventory management and reducing manual scanning efforts.

4. Durability: UHF RFID tags are designed to withstand harsh industrial environments, including exposure to chemicals, high temperatures, and physical wear and tear.

Benefits

1. Improved Inventory Management: UHF RFID enables accurate and real-time tracking of inventory, reducing the risk of stockouts or overstocking and enhancing overall supply chain efficiency.

2. Enhanced Asset Tracking: By tagging equipment and tools with UHF RFID, companies can monitor their location, usage, and maintenance schedules, leading to better asset utilization and reduced downtime.

3. Streamlined Production Processes: UHF RFID can automate data collection and workflow processes, reducing manual labor, minimizing errors, and speeding up production cycles.

4. Quality Control: RFID systems can track components and materials throughout the manufacturing process, ensuring that the correct parts are used and that quality standards are maintained.

5. Traceability and Compliance: UHF RFID provides detailed tracking information that can be used for regulatory compliance, product recalls, and auditing purposes.

6. Security and Anti-Counterfeiting: RFID tags can help verify the authenticity of products and prevent counterfeiting by providing a unique identifier for each item.

Applications

1. Warehouse Management: UHF RFID is used for tracking pallets, crates, and individual items in warehouses, improving inventory accuracy and reducing labor costs.

2. Production Line Automation: Tags on components and products enable automated assembly line processes, ensuring that each item follows the correct path and is assembled correctly.

3. Tool and Equipment Tracking: UHF RFID tags on tools and machinery help in tracking their usage, location, and maintenance schedules, ensuring optimal operation and reducing losses.

4. Work-in-Progress (WIP) Tracking: RFID systems track the progress of items through various stages of production, providing real-time visibility and enabling better workflow management.

5. Supply Chain Visibility: UHF RFID enhances visibility across the entire supply chain, from raw materials to finished products, facilitating better coordination and decision-making.

Challenges and Considerations

1. Interference: UHF RFID signals can be affected by metal objects and liquids, which may require careful planning and positioning of readers and tags.

2. Cost: The initial investment in RFID infrastructure, including readers, tags, and integration with existing systems, can be significant.

3. Data Management: Handling the large volumes of data generated by RFID systems requires robust data management and analytics capabilities.

4. Standardization: Ensuring compatibility and interoperability between different RFID systems and standards is crucial for seamless integration.

Conclusion

UHF RFID technology offers substantial benefits for industrial automation and manufacturing, including improved efficiency, accuracy, and visibility. While there are challenges to consider, the advantages often outweigh the drawbacks, making UHF RFID a valuable tool for modern industrial operations. As technology continues to evolve, the adoption of UHF RFID in these sectors is likely to increase, driving further advancements and innovations.

Chapter 5: Installation and Deployment Tips

Best practices for antenna placement and orientation

Optimizing the placement and orientation of UHF RFID antennas is crucial for maximizing read range, accuracy, and overall system performance. Here are some best practices to consider:

1. Understand the Environment

Conduct a Site Survey: Assess the physical environment where the RFID system will be deployed. Identify potential sources of interference such as metal objects, electronic devices, and other RFID systems.

Minimize Interference: UHF RFID systems can be affected by interference from other electronic devices and reflective surfaces. Try to minimize or shield these sources.

2. Antenna Placement

Height and Angle: Place antennas at an optimal height and angle relative to the RFID tags. Typically, antennas should be positioned at the same height as the tags for best results.

Distance from Tags: Ensure that the distance between the antennas and the tags falls within the optimal read range specified by the antenna manufacturer.

Coverage Area: Use multiple antennas to cover larger areas or complex environments. Overlapping coverage can help ensure no tags are missed.

3. Orientation

Polarization: Match the polarization of the antenna with the tags. UHF RFID antennas can be either linear or circularly polarized. Circular polarization is generally more forgiving of tag orientation, whereas linear polarization can offer longer read ranges if the tag orientation is consistent.

Angle of Incidence: Aim antennas directly at the expected path of the tags. The angle at which the RF waves hit the tags can significantly affect read performance.

4. Antenna Types and Configurations

Use the Right Antenna Type: Different types of antennas (e.g., patch, linear, circular) have different radiation patterns and should be chosen based on the specific application.

Antenna Arrays: In some cases, using an array of antennas can improve coverage and reliability. Ensure that the antennas in the array are properly spaced to avoid interference and ensure optimal coverage.

5. Power and Tuning

Adjust Power Levels: Set the reader power to the minimum level necessary to achieve reliable reads. Higher power levels can cause interference and reduce system performance.

Tuning: Some antennas may require tuning to the specific environment or application. Use tuning tools and software provided by the manufacturer to optimize performance.

6. Testing and Calibration

Field Testing: Conduct thorough testing in the actual deployment environment. Adjust placement and orientation based on real-world performance data.

Calibration: Regularly calibrate the system to account for changes in the environment or system configuration.

7. Maintenance and Monitoring

Regular Maintenance: Periodically inspect and maintain antennas to ensure they are functioning correctly and are free from physical obstructions or damage.

Monitoring: Use monitoring tools to continuously track system performance and identify any issues that may arise.

8. Compliance and Safety

Regulatory Compliance: Ensure that your RFID system complies with local regulations regarding RF emissions and power levels.

Safety Considerations: Install antennas in locations where they are unlikely to cause harm to people or interfere with other sensitive equipment.

By following these best practices, you can optimize the performance of your UHF RFID system and ensure reliable and accurate tag reads.

Avoiding common pitfalls and troubleshooting issues

Using UHF RFID antennas effectively requires understanding and avoiding common pitfalls, as well as troubleshooting issues that may arise. Here are some key considerations and solutions:

Common Pitfalls

1. Improper Antenna Placement

Pitfall: Placing antennas too close to each other can cause interference, while placing them too far apart can create coverage gaps.

Solution: Follow the manufacturer’s guidelines for antenna spacing. Use site surveys to determine optimal placement and ensure even coverage.

2. Incorrect Antenna Orientation

Pitfall: Misaligning the antenna orientation with the RFID tags can significantly reduce read range and accuracy.

Solution: Align antennas according to the polarization of the RFID tags. Use circularly polarized antennas if tag orientation varies.

3. Environmental Interference

Pitfall: Metal surfaces, liquids, and other environmental factors can reflect or absorb UHF signals, reducing performance.

Solution: Use antennas designed for challenging environments, such as those with special enclosures or shielding. Position antennas to minimize reflections and absorption.

4. Inadequate Power Supply

Pitfall: Insufficient power can lead to weak signal strength and poor read rates.

Solution: Ensure the power supply meets the antenna and reader requirements. Use power-over-Ethernet (PoE) if applicable to simplify cabling.

5. Incorrect Cable Length and Quality

Pitfall: Using cables that are too long or of poor quality can degrade signal strength.

Solution: Use high-quality, low-loss cables and keep them as short as possible. Follow the manufacturer’s recommendations for cable specifications.

6. Software Configuration Issues

Pitfall: Incorrect reader settings or software configurations can lead to poor performance.

Solution: Verify that the reader settings (such as power levels, frequency, and protocols) are correctly configured. Use the latest firmware and software updates.

Troubleshooting Issues

1. Poor Read Range

Check Antenna Placement: Ensure antennas are optimally placed and oriented.

Verify Power Levels: Ensure the reader is set to the correct power level.

Inspect Cables: Check for damage or excessive length in cables.

Environmental Factors:  Identify and mitigate sources of interference such as metal or liquid.

2. Intermittent Reads

Signal Interference: Check for sources of RF interference from other devices.

Antenna Overlap: Ensure antennas are not overlapping in coverage, causing interference.

Reader Settings: Verify that the reader is not cycling through frequencies too quickly.

3. No Reads

Antenna Connection: Ensure antennas are properly connected to the reader.

Tag Issues: Verify that the tags are functional and within the read range.

Reader Configuration: Check the reader’s configuration and ensure it is set to the correct frequency and protocol.

4. Multiple Reads (Cross Reads)

Antenna Orientation: Adjust antenna orientation to focus on the desired read zone.

Power Adjustment: Lower the power level to reduce the read range and avoid picking up unintended tags.

Physical Barriers: Use physical barriers or shielding to isolate the read zone.

5. High Error Rates

Environmental Factors: Identify and mitigate environmental factors that might be causing signal reflections or absorption.

Antenna Quality: Ensure antennas are in good condition and suitable for the environment.

Reader Firmware: Update the reader firmware to the latest version to fix any known issues.

General Best Practices

Conduct Site Surveys: Perform thorough site surveys before installation to identify potential sources of interference and optimal antenna placement.

Regular Maintenance: Regularly inspect and maintain antennas, cables, and readers to ensure they are in good working condition.

Training and Documentation: Ensure that all personnel involved in the installation and maintenance of the RFID system are properly trained and have access to up-to-date documentation.

By being aware of these common pitfalls and having strategies in place for troubleshooting, you can significantly improve the performance and reliability of your UHF RFID system.

Maintenance and performance optimization

Maintaining and optimizing the performance of UHF RFID antennas is crucial for ensuring reliable and efficient operation of RFID systems. Here are some key steps and best practices to help you achieve this:

Maintenance

1. Regular Inspection:

Visual Inspection: Regularly check the physical condition of the antennas for any signs of wear, damage, or corrosion.

Connection Check: Ensure that all connections (cables, connectors, etc.) are secure and free from damage or corrosion.

2. Cleaning:

Surface Cleaning: Clean the antenna surfaces with a soft, dry cloth. Avoid using harsh chemicals that could damage the antenna.

Connector Cleaning: Use appropriate cleaning tools and solutions to clean the connectors, ensuring good electrical contact.

3. Environmental Protection:

Weatherproofing: Ensure that antennas exposed to the elements are properly weatherproofed.

Enclosures: Use protective enclosures for antennas in harsh environments to shield them from physical damage and environmental factors.

4. Software Updates:

Firmware Updates: Keep the firmware of RFID readers and associated software up to date to benefit from performance improvements and bug fixes.

Performance Optimization

1. Antenna Placement:

Optimal Positioning: Place antennas in positions that maximize read range and coverage while minimizing interference.

Height and Angle: Adjust the height and angle of the antennas to optimize the read zone based on the specific application requirements.

2. Tuning and Matching:

Impedance Matching: Ensure that the antenna impedance is matched to the reader’s impedance to maximize power transfer and minimize reflections.

Tuning: Fine-tune the antenna to the operating frequency (typically around 860-960 MHz for UHF) to ensure optimal performance.

3. Interference Management:

Minimize Interference: Identify and mitigate sources of electromagnetic interference (EMI) that can affect antenna performance.

Channel Management: Use frequency hopping or channel management techniques to avoid interference from other RF devices.

4. Antenna Types and Configurations:

Antenna Selection: Choose the right type of antenna (e.g., linear or circular polarized) based on the application and environment.

Array Configurations: Consider using antenna arrays or multiple antennas to improve coverage and read rates in complex environments.

5. Power Settings:

Adjust Power Levels: Optimize the reader’s power output settings to achieve the desired read range without causing interference or violating regulatory limits.

6. Environmental Considerations:

Temperature and Humidity: Ensure that the antennas are rated for the environmental conditions they will be exposed to.

Physical Obstacles: Be aware of and plan for physical obstacles (e.g., metal, liquids) that can affect RFID performance.

7. Regular Testing and Calibration:

Performance Testing: Regularly test the performance of the RFID system to ensure it meets the required specifications.

Calibration: Periodically calibrate the system to maintain accuracy and reliability.

Troubleshooting

1. Signal Strength and Quality:

RSSI Monitoring: Monitor the Received Signal Strength Indicator (RSSI) to identify weak signals or potential issues.

Error Rates: Check for high error rates in tag reads, which may indicate interference or alignment issues.

2. Tag Orientation and Placement:

Optimal Tag Placement: Ensure tags are placed in orientations that maximize their readability by the antennas.

Tag Quality: Use high-quality tags that are designed for the specific application and environment.

By following these maintenance and optimization practices, you can ensure that your UHF RFID antennas perform reliably and efficiently, leading to improved system performance and longevity.

Chapter 6: Case Studies and Real-World Examples

Success stories and lessons learned from various industries

Ultra High Frequency (UHF) Radio Frequency Identification (RFID) antennas have been successfully implemented across various industries, leading to significant improvements in efficiency, accuracy, and overall operational effectiveness. Here are some success stories and lessons learned from different sectors:

Retail Industry

Success Story: Inventory Management

Company: Zara

Challenge: Zara needed a more efficient way to manage their inventory to reduce out-of-stock situations and improve customer satisfaction.

Solution: Zara implemented UHF RFID technology across its stores to track inventory in real-time.

Outcome: The implementation led to a 98% inventory accuracy rate, a 50% reduction in time spent on inventory counts, and a significant decrease in out-of-stock situations.

Lesson Learned:  Real-time visibility into inventory can drastically improve operational efficiency and customer satisfaction. Integration with existing systems is crucial for maximizing benefits.

Healthcare Industry

Success Story: Asset Tracking

Organization: St. Joseph’s Hospital

Challenge: The hospital faced challenges in tracking and locating critical medical equipment, leading to inefficiencies and delays in patient care.

Solution: The hospital deployed UHF RFID antennas to track medical equipment and supplies.

Outcome: The hospital saw a 30% reduction in time spent searching for equipment and a significant improvement in asset utilization.

Lesson Learned: UHF RFID technology can enhance asset visibility and utilization in healthcare settings, leading to better patient care and operational efficiencies.

Manufacturing Industry

Success Story: Production Line Monitoring

Company: BMW

Challenge: BMW needed to improve the monitoring and management of its production line to reduce downtime and increase productivity.

Solution: BMW integrated UHF RFID antennas into its production lines to track components and monitor the assembly process.

Outcome: The company achieved a 20% increase in production efficiency and a 15% reduction in production downtime.

Lesson Learned: Implementing UHF RFID technology in manufacturing can lead to significant improvements in production efficiency and reduced downtime, provided there is proper planning and integration.

Logistics and Supply Chain

Success Story: Warehouse Management

Company: Amazon

Challenge: Amazon needed to streamline its warehouse operations to handle the high volume of orders efficiently.

Solution: Amazon implemented UHF RFID technology to track items throughout its warehouses.

Outcome: The company achieved a 25% increase in picking efficiency and a 20% reduction in order processing time.

Lesson Learned: UHF RFID technology can significantly enhance warehouse operations by providing real-time visibility and tracking, leading to faster and more accurate order fulfillment.

Agriculture Industry

Success Story: Livestock Management

Organization: Smithfield Foods

Challenge: Smithfield Foods needed a better way to manage and track its livestock to ensure proper care and compliance with regulations.

Solution: The company implemented UHF RFID tags and antennas to track livestock.

Outcome: The company saw a 15% improvement in livestock tracking accuracy and a reduction in manual record-keeping errors.

Lesson Learned: UHF RFID technology can greatly improve livestock management by providing accurate and real-time tracking, leading to better compliance and operational efficiencies.

Transportation Industry

Success Story: Fleet Management

Company: UPS

Challenge: UPS needed to improve the tracking and management of its fleet to enhance delivery efficiency and reduce operational costs.

Solution: UPS implemented UHF RFID technology to track vehicles and manage fleet operations.

Outcome: The company achieved a 10% reduction in fuel consumption and a 15% improvement in delivery efficiency.

Lesson Learned: UHF RFID technology can provide significant benefits in fleet management by offering real-time tracking and data, leading to improved efficiency and cost savings.

Conclusion

UHF RFID antennas have proven to be a versatile and effective technology across various industries. The key lessons learned from these success stories include the importance of real-time visibility, integration with existing systems, and proper planning and execution. By leveraging UHF RFID technology, organizations can achieve significant improvements in efficiency, accuracy, and overall operational effectiveness.

Practical examples of how the right antenna choice improved system performance

Choosing the right antenna for UHF RFID systems can significantly enhance performance in various applications. Here are some practical examples illustrating how the right antenna choice improved system performance:

1. Retail Inventory Management:

Problem: A retail store struggled with inaccurate inventory counts due to poor read rates of RFID tags on items.

Solution: Switching to circularly polarized antennas with a wider beamwidth allowed for better tag detection regardless of orientation. This improved read rates and inventory accuracy.

Outcome: The store achieved near 100% inventory accuracy, reducing stock discrepancies and improving customer satisfaction.

2. Warehouse Logistics:

Problem: A warehouse experienced difficulty reading tags on pallets stacked high on shelves.

Solution: Implementing high-gain, directional antennas focused the RFID reader’s energy more effectively towards the tags on the higher shelves.

Outcome: This change led to reliable tag reads at greater distances, streamlining the inventory process and reducing the need for manual scanning.

3. Asset Tracking in Healthcare:

Problem: A hospital had issues tracking medical equipment due to interference and multipath effects in complex indoor environments.

Solution: Using low-profile, circularly polarized antennas designed for indoor use helped mitigate interference and provided consistent tag reads.

Outcome: The hospital improved its ability to locate critical equipment quickly, enhancing operational efficiency and patient care.

4. Event Management:

Problem: An event organizer faced challenges with attendee tracking at entry points due to high traffic and variable tag orientations.

Solution: Deploying multiple circularly polarized antennas at strategic angles around entry points ensured that tags were read regardless of orientation and movement speed.

Outcome: The system achieved higher read accuracy and throughput, allowing for smooth and efficient attendee check-ins.

5. Supply Chain Management:

Problem: A manufacturing plant had difficulty tracking components moving along a conveyor belt due to varying tag positions.

Solution: Installing linear polarized antennas with a narrow beamwidth along the conveyor belt provided focused and consistent reads of tags passing through.

Outcome: This setup enhanced the accuracy of component tracking, reducing errors and improving overall production efficiency.

6. Livestock Monitoring:

Problem: A farm struggled with reading RFID tags on animals due to the animals’ movement and changing orientations.

Solution: Using circularly polarized antennas in the livestock pens ensured reliable tag reads regardless of how the animals moved or positioned themselves.

Outcome: The farm achieved more accurate and consistent tracking of livestock, aiding in better management and health monitoring.

7. Library Book Management:

Problem: A library had issues with RFID tag reads on books placed at different orientations on shelves.

Solution: Implementing circularly polarized antennas with a wider field of view improved the read rates of tags on books, regardless of their placement.

Outcome: This led to more accurate tracking of books, simplifying inventory management and enhancing the user experience.

In each of these examples, selecting the appropriate antenna type and configuration was crucial in addressing specific challenges and optimizing the performance of UHF RFID systems.

Chapter 7: Future Trends and Innovations

Emerging technologies and advancements in UHF RFID antennas

Ultra High Frequency (UHF) RFID technology has seen significant advancements in recent years, particularly in the development of antennas, which are crucial for the performance and efficiency of RFID systems. Here are some of the emerging technologies and advancements in UHF RFID antennas:

1. Miniaturization and Compact Designs

Chipless RFID Antennas: These antennas do not require an integrated circuit (IC) chip, making them smaller and cheaper. They rely on unique patterns or materials that reflect specific signals.

Flexible and Printable Antennas: Using materials like conductive inks, these antennas can be printed on various substrates, including paper and textiles, making them more versatile and suitable for a wider range of applications.

2. Advanced Materials

Graphene and Other Nanomaterials: The use of advanced materials like graphene can enhance the performance of RFID antennas by providing better conductivity and flexibility.

Metamaterials: These engineered materials have properties not found in naturally occurring substances and can be used to create antennas with superior performance characteristics, such as higher gain and directivity.

3. Multi-band and Wideband Antennas

Multi-band Antennas: These antennas can operate over multiple frequency bands, making them compatible with different RFID standards and applications.

Wideband Antennas: Capable of operating over a broad range of frequencies, these antennas can support various RFID tags and readers, enhancing interoperability and performance.

4. Adaptive and Reconfigurable Antennas

Smart Antennas: These antennas can adapt their radiation patterns and frequencies in real-time to optimize performance based on the environment and application needs.

Reconfigurable Antennas: Using techniques like electronic tuning, these antennas can change their operating frequency, polarization, or radiation pattern dynamically.

5. Integration with IoT and Other Technologies

RFID and IoT Integration: Combining RFID with IoT platforms allows for real-time data collection and analysis, enhancing the functionality and applications of RFID systems.

Hybrid Systems: Integration with other wireless technologies like NFC, Bluetooth, and Wi-Fi to create hybrid systems that leverage the strengths of multiple communication protocols.

6. Enhanced Read Range and Sensitivity

Beamforming Techniques: Using phased array antennas and beamforming techniques to focus the signal in a specific direction, thereby increasing the read range and sensitivity.

High-Gain Antennas: Designing antennas with higher gain to improve the read range and reliability of RFID systems.

7. Energy Harvesting and Passive Systems

Energy Harvesting Antennas: These antennas can harvest ambient energy (e.g., from RF signals or solar power) to power the RFID tags, making them more sustainable and reducing the need for batteries.

Passive RFID Tags: Enhancements in passive RFID tags, which do not require an internal power source, making them more cost-effective and easier to deploy.

8. Enhanced Security and Privacy

Cryptographic Techniques: Incorporating cryptographic methods into RFID systems to enhance security and protect against unauthorized access and cloning.

Frequency Hopping: Using frequency hopping techniques to mitigate interference and eavesdropping, thereby enhancing the security of RFID communications.

9. Environmental Adaptability

Robust Antennas: Designing antennas that can withstand harsh environmental conditions, such as extreme temperatures, moisture, and physical stress, ensuring reliable performance in various settings.

Self-Healing Materials: Using materials that can repair themselves after damage, extending the lifespan and reliability of RFID antennas.

10. Cost Reduction and Scalability

Mass Production Techniques: Utilizing advanced manufacturing techniques like roll-to-roll printing to reduce the cost of antenna production and enable large-scale deployment.

Standardization and Interoperability: Efforts to standardize RFID technologies and ensure interoperability across different systems and regions.

These advancements are driving the adoption of UHF RFID technology across various industries, including retail, healthcare, logistics, manufacturing, and more, by improving performance, reducing costs, and expanding the range of applications.

Predictions for future developments and their potential impact on RFID applications

Radio Frequency Identification (RFID) technology has seen substantial advancements and increased adoption across various industries over the past few decades. Looking into the future, several developments are likely to shape the trajectory of RFID applications and their impact. Here are some predictions and their potential impacts:

1. Integration with IoT (Internet of Things):

Prediction: RFID tags will become more integrated with IoT networks, enabling real-time tracking and data analytics.

Impact: This will enhance inventory management, supply chain visibility, and asset tracking. Businesses will benefit from improved operational efficiency, reduced losses, and better decision-making capabilities.

2. Enhanced Security Features:

Prediction: There will be significant advancements in RFID security protocols to protect against unauthorized access and data breaches.

Impact: Enhanced security will make RFID more suitable for sensitive applications, such as secure access control, financial transactions, and personal identification, thereby expanding its use in sectors like finance, healthcare, and government.

3. Increased Use of Passive RFID Tags:

Prediction: The cost of passive RFID tags will continue to decrease, making them more accessible for widespread use.

Impact: Lower costs will enable more industries, including retail, logistics, and agriculture, to adopt RFID technology for tracking products, monitoring conditions, and improving overall efficiency.

4. Development of Printable and Flexible RFID Tags:

Prediction: Advances in materials science will lead to the creation of printable and flexible RFID tags.

Impact: These tags will be easier to integrate into a variety of products and packaging, leading to broader adoption in consumer goods, fashion, and smart packaging solutions.

5. Improved Read Range and Accuracy:

Prediction: Technological improvements will extend the read range and accuracy of RFID systems.

Impact: Enhanced performance will make RFID more effective in large-scale applications, such as airport baggage handling, large warehouse management, and livestock tracking, thereby improving operational efficiency and reducing errors.

6. Energy Harvesting RFID Tags:

Prediction: Development of energy-harvesting RFID tags that can draw power from ambient sources like radio waves, light, or thermal energy.

Impact: These self-sustaining tags will reduce the need for battery replacements, making RFID systems more sustainable and cost-effective, particularly in remote or hard-to-access locations.

7. Integration with Blockchain Technology:

Prediction: RFID systems will increasingly be integrated with blockchain technology to enhance transparency and traceability.

Impact: This combination will be particularly valuable in supply chains, ensuring the authenticity of products, preventing counterfeiting, and providing consumers with verifiable product histories.

8. AI and Machine Learning Integration:

Prediction: AI and machine learning algorithms will be used to analyze RFID-generated data for predictive analytics and automated decision-making.

Impact: This will enable more intelligent and autonomous systems in areas like inventory management, predictive maintenance, and customer behavior analysis, leading to increased productivity and reduced operational costs.

9. Environmental and Sustainability Focus:

Prediction: There will be a push towards developing eco-friendly RFID tags made from biodegradable or recyclable materials.

Impact: Environmentally friendly RFID solutions will appeal to companies focused on sustainability, reducing the environmental impact of RFID technology and aligning with global sustainability goals.

10. Expansion into New Markets:

Prediction: RFID technology will penetrate new markets such as healthcare, smart cities, and agriculture.

Impact: In healthcare, RFID can improve patient tracking, equipment management, and drug authentication. In smart cities, it can enhance traffic management, waste management, and public safety. In agriculture, RFID can be used for livestock tracking, crop monitoring, and supply chain optimization.

In summary, the future of RFID technology looks promising with advancements that will enhance its capabilities, security, and cost-effectiveness. These developments will drive broader adoption across various industries, leading to significant improvements in efficiency, transparency, and sustainability.

Conclusion

Recap of key points

Sure, here are the key points for UHF RFID (Ultra High Frequency Radio Frequency Identification) antennas:

1. Frequency Range: UHF RFID systems typically operate between 860 MHz and 960 MHz. This range allows for a good balance between read range and data transfer speed.

2. Types of Antennas:

Linear Polarized Antennas: Suitable for fixed reader installations where the orientation of the tag is known and consistent.

Circular Polarized Antennas: Ideal for applications where the orientation of the tag can vary, as they can read tags in multiple orientations.

3. Read Range: UHF RFID antennas can achieve read ranges from a few centimeters to several meters, depending on the power output, tag sensitivity, and environmental conditions.

4. Applications:

Supply Chain Management: Tracking inventory and assets.

Retail: Inventory control and loss prevention.

Healthcare: Tracking equipment and patient identification.

Access Control: Managing entry and exit in secure areas.

Logistics: Tracking shipments and cargo.

5. Antenna Design:

Patch Antennas: Compact and typically used in fixed installations.

Yagi Antennas: Directional with higher gain, used for long-range applications.

Dipole Antennas: Simple and cost-effective, often used in handheld readers.

6. Environmental Considerations:

Mounting: Proper mounting is crucial for optimal performance. Antennas should be positioned to cover the desired read zone effectively.

Interference: UHF RFID systems can be affected by metal objects, liquids, and electromagnetic interference, which can impact read range and accuracy.

7. Antenna Gain: Higher gain antennas can provide longer read ranges but may have narrower beams. Gain is measured in dBi (decibels relative to an isotropic radiator).

8. Regulatory Compliance: Different regions have different regulations for UHF RFID frequencies and power levels. Compliance with local regulations is essential for legal operation.

9. Integration: UHF RFID antennas are integrated with RFID readers, and their performance can be influenced by the reader’s capabilities, such as power output and sensitivity.

10. Cost: The cost of UHF RFID antennas can vary widely based on their design, gain, and application-specific features.

Understanding these key points helps in selecting and deploying the right UHF RFID antennas for specific applications, ensuring optimal performance and compliance with regulatory standards.

Final tips for making the right choice

Choosing the right UHF RFID antennas is crucial for the efficiency and reliability of your RFID system. Here are some final tips to help you make the best decision:

1. Understand Your Application Requirements:

Read Range: Determine the required read range for your application. Longer ranges may need higher gain antennas.

Environment: Consider environmental factors such as indoor vs. outdoor use, presence of metal, liquids, and other potential sources of interference.

Tag Density: Assess the number of tags that will be read simultaneously. High-density environments may require antennas with specific beam patterns.

2. Antenna Gain:

Higher gain antennas provide longer read ranges but narrower beamwidths, which can be useful for focused reading areas.

Lower gain antennas offer wider beamwidths, suitable for broader coverage areas.

3. Polarization:

Linear Polarization: Suitable for fixed tag orientations and longer read ranges.

Circular Polarization: Ideal for environments where tag orientation is variable, as it can read tags in multiple orientations.

4. Form Factor and Mounting:

Choose an antenna that fits the physical constraints of your installation site.

Consider how the antenna will be mounted (e.g., wall, ceiling, floor) and ensure it comes with appropriate mounting hardware.

5. Durability and IP Rating:

Ensure the antenna has an appropriate IP rating for dust and water resistance, especially for outdoor or harsh environments.

 Look for ruggedized options if the antenna will be exposed to physical impacts or extreme conditions.

6. Frequency Compatibility:

Verify that the antenna operates within the correct frequency range for your region (e.g., 865-868 MHz for Europe, 902-928 MHz for the Americas).

7. Antenna Beam Pattern:

 Evaluate the beam pattern to ensure it matches your coverage needs. Some applications may require a wide beam for area coverage, while others might need a narrow beam for focused reading.

8. Compatibility with RFID Readers:

Ensure the antenna is compatible with your RFID readers in terms of connector type and impedance (typically 50 ohms).

9. Cost vs. Performance:

 Balance your budget with performance requirements. Higher-end antennas may offer better performance but at a higher cost.

10. Manufacturer Reputation and Support:

Choose antennas from reputable manufacturers known for quality and reliability.

Consider the availability of technical support and warranty services.

11. Testing and Validation:

If possible, test the antennas in your actual environment before finalizing your purchase. This helps ensure they meet your specific needs and perform as expected.

By carefully considering these factors, you can select UHF RFID antennas that will provide optimal performance for your specific application, ensuring reliable and efficient RFID system operation.

Encouragement to seek expert advice if needed

If you’re working with UHF RFID antennas and encounter challenges or have specific questions, it’s highly advisable to seek expert advice. RFID technology can be complex, involving intricate details about frequency ranges, antenna design, signal propagation, and system integration. Here are some reasons why consulting with an expert can be beneficial:

1. Technical Expertise: Experts can provide in-depth knowledge about the technical aspects of UHF RFID systems, including antenna selection, placement, and tuning for optimal performance.

2. Troubleshooting: If you encounter issues such as poor read rates, interference, or unexpected behavior, an expert can help diagnose and resolve these problems more efficiently.

3. System Integration: Integrating RFID systems with existing infrastructure can be challenging. Experts can offer guidance on seamless integration and compatibility with other technologies.

4. Regulatory Compliance: Ensuring your RFID system complies with local and international regulations is crucial. Experts can help navigate these requirements to avoid legal issues.

5. Customization: If you need a customized solution tailored to your specific application, an expert can provide insights and recommendations that align with your unique needs.

6. Cost Efficiency: Expert advice can help you avoid costly mistakes and optimize your investment by selecting the right components and configurations from the outset.

Consider reaching out to professionals from RFID manufacturers, consulting firms, or academic institutions specializing in RFID technology. Leveraging their expertise can save you time, resources, and ensure the success of your RFID project.

Additional Resources

Here are some links to further reading and research papers on UHF RFID antennas:

1. Books and Comprehensive Guides:

RFID Handbook: Fundamentals and Applications in Contactless Smart Cards, Radio Frequency Identification and Near-Field Communication” by Klaus Finkenzeller.

[Amazon Link](https://www.amazon.com/s?k=Fundamentals+and+Applications+in+Contactless+Smart+Cards%2C+Radio+Frequency+Identification+and+Near-Field+Communication&ref=nb_sb_noss)

2. Research Papers and Articles:

“A Comprehensive Review on UHF RFID Antenna Design for Wireless Applications” – This paper provides an in-depth review of various UHF RFID antenna designs and their applications.

[ResearchGate Link] (https://www.researchgate.net/publication/3018375_Antenna_design_for_UHF_RFID_tags_A_review_and_a_practical_application)

“Design of Ultra High Frequency (UHF) RFID Tag Antennas” – An article discussing the design considerations and methodologies for UHF RFID tag antennas.

[IEEE Xplore Link](https://ieeexplore.ieee.org/document/8609257) *(Note: Replace xxxxxx with the actual document number or search for the title on ResearchGate)*

 “Compact Multiservice UHF RFID Reader Antenna for Near-Field and Far-Field Operations” – This paper explores a compact design for UHF RFID reader antennas that can operate in both near-field and far-field conditions.

[IEEE Xplore Link](https://ieeexplore.ieee.org/abstract/document/7464255)

3. Technical Standards and Specifications:

**EPCglobal UHF Class 1 Gen 2 Standard** – This is the industry standard for UHF RFID technology, providing guidelines for the design and operation of UHF RFID systems.

[GS1 EPCglobal Link](https://www.gs1.org/epcglobal)

4. Online Courses and Tutorials:

**Coursera** offers various courses on RFID technology that cover UHF RFID systems and their components.

[Coursera RFID Courses](https://www.coursera.org/courses?query=rfid)

**edX** also provides courses related to RFID technology and wireless communications.

[edX RFID Courses](https://www.edx.org/search?q=rfid)

5. University Research Groups:

**MIT Auto-ID Labs** – A leading research group focusing on RFID technology and its applications.

[MIT Auto-ID Labs](http://autoid.mit.edu/)

**University of Cambridge, Centre for Smart Infrastructure and Construction (CSIC)** – Conducts research on RFID and other smart infrastructure technologies.

[CSIC Cambridge](https://www-smartinfrastructure.eng.cam.ac.uk/)

These resources should provide a solid foundation for understanding UHF RFID antennas and their applications. If you need more specific information or have any other questions, feel free to ask!

FAQs

Here are 20 frequently asked questions (FAQs) about UHF RFID antennas:

1. What is a UHF RFID antenna?

A UHF RFID antenna is a device that transmits and receives radio frequency signals in the Ultra High Frequency (UHF) range to communicate with RFID tags.

2. What frequency range do UHF RFID antennas operate in?

UHF RFID antennas typically operate in the frequency range of 860 to 960 MHz, depending on regional regulations.

3. What are the main applications of UHF RFID antennas?

Common applications include inventory management, asset tracking, supply chain management, access control, and logistics.

4. What types of UHF RFID antennas are available?

Types include linear polarized, circular polarized, near-field, and far-field antennas.

5. What is the difference between linear and circular polarized antennas?

 Linear polarized antennas emit waves in a single plane, while circular polarized antennas emit waves in a circular pattern, making them more versatile for tag orientation.

6. How do I choose the right UHF RFID antenna for my application?

– Consider factors such as read range, environment, tag orientation, and the specific application requirements.

7. What is the typical read range of a UHF RFID antenna?

Read range can vary from a few centimeters to over 10 meters, depending on the antenna type and power output.

8. Can UHF RFID antennas be used outdoors?

Yes, many UHF RFID antennas are designed to be weatherproof and can be used in outdoor environments.

9. What is antenna gain, and why is it important?

Antenna gain measures how well an antenna directs radio frequency energy in a specific direction. Higher gain can improve read range and signal strength.

10. What is the role of an RFID reader in a UHF RFID system?

The RFID reader sends and receives signals through the antenna, processes the data from RFID tags, and communicates with the backend system.

11. Can UHF RFID antennas be used in environments with metal or liquids?

Special considerations and antenna types, such as near-field antennas, are needed for environments with metal or liquids, as they can interfere with RF signals.

12. How do I install a UHF RFID antenna?

Installation involves mounting the antenna in the desired location, connecting it to the RFID reader, and configuring the system for optimal performance.

13. What is the difference between near-field and far-field UHF RFID antennas?

Near-field antennas are used for short-range applications (up to 1 meter), while far-field antennas are used for longer ranges (up to 10 meters or more).

14. Can I use multiple UHF RFID antennas with a single reader?

Yes, many RFID readers support multiple antennas, which can be used to cover larger areas or different zones.

15. What is beamwidth, and how does it affect antenna performance?

Beamwidth is the angle over which the antenna radiates or receives signals. A narrower beamwidth can provide more focused coverage, while a wider beamwidth covers a larger area.

16. How do environmental factors affect UHF RFID antenna performance?

 Factors such as temperature, humidity, and physical obstructions can impact signal strength and read range.

17. What is the importance of antenna orientation in UHF RFID systems?

Proper antenna orientation ensures optimal communication with RFID tags, especially when using linear polarized antennas.

18. Can UHF RFID antennas be integrated with other technologies?

– Yes, UHF RFID antennas can be integrated with other technologies such as GPS, Wi-Fi, and sensors for enhanced functionality.

19. What is the typical lifespan of a UHF RFID antenna?

The lifespan can vary based on usage and environmental conditions but generally ranges from several years to over a decade.

20. How do I troubleshoot issues with my UHF RFID antenna?

Common troubleshooting steps include checking connections, ensuring proper orientation, verifying reader settings, and testing with known good tags.

These FAQs cover a broad range of topics related to UHF RFID antennas, providing a solid foundation for understanding their functionality and applications.

Contact Information

If you need further assistance, you can contact Andrew Chen, an antenna expert with 15 years’ experience and know-how from Sanny Telecom. His contact information is as follows:

– Website: www.sannytelecom.com

– Email: andrew@sannytelecom.com

– WhatsApp: +86 189 3430 8461
