As the world rapidly transitions into the era of 5G, the demand for high-speed, reliable, and expansive wireless coverage has never been greater. At the heart of this technological revolution are Distributed Antenna Systems (DAS), which play a crucial role in enhancing network performance and ensuring seamless connectivity in diverse environments. Whether you’re a network engineer, a facility manager, or a business owner exploring the best options to boost your 5G infrastructure, understanding how to choose the right DAS antennas is essential.

Introduction

In this ultimate guide, we delve into the critical factors that influence the selection of 5G DAS antennas. From understanding the basics of DAS technology and the unique challenges posed by different environments, to evaluating key specifications and performance metrics, this comprehensive resource aims to equip you with the knowledge needed to make informed decisions. Join us as we explore the intricacies of 5G DAS antennas and unlock the potential to transform your wireless network into a powerhouse of connectivity and efficiency.

Overview of 5G Technology and Its Impact

5G technology is the next generation of wireless communication that promises to bring faster speeds, lower latency, and greater capacity compared to previous generations. It is expected to have a significant impact on various industries and sectors, including telecommunications, healthcare, transportation, and manufacturing.

One of the main advantages of 5G technology is its increased speed. It is estimated to be up to 100 times faster than 4G, allowing for quicker download and upload speeds. This will enable users to stream high-definition videos, play online games, and download large files in a matter of seconds.

Another key feature of 5G is its lower latency. Latency refers to the time it takes for data to travel between devices. With 5G, latency is expected to be as low as one millisecond, which is significantly faster than the 20 milliseconds of 4G. This will enable real-time communication and faster response times, making it ideal for applications such as autonomous vehicles and remote surgeries.

5G technology also offers greater capacity, meaning it can support more devices simultaneously. This is crucial as the number of connected devices continues to grow with the rise of the Internet of Things (IoT). With 5G, networks will be able to handle a massive number of devices, allowing for seamless connectivity and data transfer.

The impact of 5G technology will be felt across various industries. In healthcare, for example, it can enable remote patient monitoring, telemedicine, and the use of medical robots for surgeries. In transportation, 5G can support connected and autonomous vehicles, improving road safety and reducing traffic congestion. In manufacturing, it can enable the use of smart factories and industrial automation, leading to increased efficiency and productivity.

However, the deployment of 5G technology also comes with challenges. One of the main challenges is the need for a dense network of small cells to support the high-frequency bands used by 5G. This requires significant infrastructure investments and may face opposition due to concerns about health effects and aesthetics.

Overall, 5G technology has the potential to transform industries and enable new applications that were previously not possible. Its faster speeds, lower latency, and greater capacity will revolutionize the way we communicate, work, and live.

Importance of DAS in 5G Networks

Distributed Antenna Systems (DAS) play a crucial role in the deployment and performance of 5G networks. Here are some key reasons why DAS is important for 5G:

1. Enhanced Coverage: DAS helps in extending the coverage of 5G signals, especially in areas where traditional cell towers may not reach effectively, such as inside buildings, underground facilities, and densely populated urban areas. This ensures that the 5G network can provide consistent service across a wider area, including challenging environments.

2. Improved Capacity: 5G networks aim to handle significantly higher data volumes compared to previous generations. DAS can help distribute the load more evenly across the network by using multiple antennas, thus improving the overall capacity and reducing congestion in high-traffic areas.

3. Better Signal Quality: By bringing antennas closer to end-users, DAS can reduce signal degradation caused by obstacles and distance. This results in better signal strength and quality, leading to faster data speeds, lower latency, and a more reliable connection.

4. Support for High-Frequency Bands: 5G networks utilize a range of frequency bands, including high-frequency millimeter waves (mmWave) that have limited range and poor penetration through obstacles. DAS can help mitigate these limitations by strategically placing antennas to ensure adequate coverage and performance for high-frequency bands.

5. Scalability and Flexibility: DAS is highly scalable and can be customized to meet the specific needs of different environments, whether it’s a small office building or a large stadium. This flexibility makes it easier to deploy and expand 5G networks as demand grows.

6. Energy Efficiency: By reducing the need for high-power transmissions from a central location, DAS can help lower the overall energy consumption of the network. This is particularly important for 5G, which aims to be more energy-efficient despite its higher performance capabilities.

7. Cost-Effectiveness: While the initial deployment of DAS can be costly, it can lead to long-term savings by reducing the need for new cell towers and infrastructure. Moreover, the improved network performance and user experience can lead to higher customer satisfaction and retention.

8. Support for IoT and Dense Environments: 5G is expected to support a massive number of connected devices, including IoT applications. DAS can help manage this density by providing robust and reliable connectivity, ensuring that all devices can communicate effectively without overwhelming the network.

9. Public Safety and Emergency Services: DAS can be critical for ensuring that public safety and emergency services have reliable communication, especially in large buildings and complex environments where traditional signals might fail.

In summary, Distributed Antenna Systems are vital for the successful deployment and operation of 5G networks. They address many of the challenges associated with 5G, such as coverage, capacity, signal quality, and support for high-frequency bands, making them an essential component of modern wireless infrastructure.

Purpose and Scope of the Guide

The “Ultimate Guide to Choose the Right 5G DAS Antennas” is designed to provide comprehensive information and practical advice for selecting the most suitable Distributed Antenna System (DAS) antennas for 5G networks. The purpose and scope of this guide include:

1. Understanding 5G Technology:

– Explain the fundamentals of 5G technology, including its benefits over previous generations.

– Describe the specific requirements and challenges associated with 5G deployment.

2. Introduction to DAS (Distributed Antenna Systems):

– Define DAS and its role in enhancing wireless coverage and capacity.

– Discuss the importance of DAS in the context of 5G networks.

3. Types of DAS Antennas:

– Provide an overview of different types of DAS antennas, such as omnidirectional, directional, and panel antennas.

– Explain the specific use cases and advantages of each type.

4. Key Factors to Consider When Choosing 5G DAS Antennas:

– Coverage Area: Assess the size and shape of the area that needs coverage.

– Frequency Bands: Ensure compatibility with the required 5G frequency bands.

– Gain and Radiation Patterns: Understand how these factors affect signal strength and coverage.

– Installation Environment: Consider indoor vs. outdoor environments and potential obstacles.

– Aesthetic and Design Considerations: Evaluate the visual impact of antenna installations.

– Future Proofing: Plan for scalability and future network upgrades.

5. Performance Metrics and Specifications:

– Detail the important performance metrics such as gain, beamwidth, and VSWR (Voltage Standing Wave Ratio).

– Explain how to interpret these specifications to make informed decisions.

6. Regulatory and Compliance Considerations:

– Highlight the importance of adhering to local regulations and industry standards.

– Discuss relevant certifications and compliance requirements.

7. Case Studies and Real-World Examples:

– Provide examples of successful 5G DAS antenna deployments.

– Share lessons learned and best practices from these case studies.

8. Vendor and Product Selection:

– Offer guidance on evaluating and choosing vendors.

– Discuss the importance of product warranties, support, and after-sales service.

9. Installation and Maintenance:

– Provide tips for the proper installation of 5G DAS antennas.

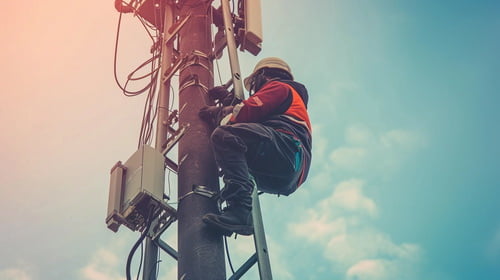

– Discuss maintenance practices to ensure optimal performance over time.

10. Troubleshooting Common Issues:

– Identify common problems that may arise with 5G DAS antennas.

– Offer solutions and troubleshooting steps to resolve these issues.

By covering these topics, the guide aims to equip readers with the knowledge and tools necessary to make informed decisions when selecting 5G DAS antennas, ensuring effective deployment and optimal performance of their 5G networks.

Chapter 1: Understanding DAS and 5G Technology

What is DAS?

Distributed Antenna Systems (DAS) are network solutions designed to enhance wireless coverage and capacity in specific areas where traditional macrocell networks may be insufficient. DAS involves the use of multiple, strategically placed antennas connected to a common source to provide seamless wireless service within a particular area, such as a building, stadium, airport, or urban environment.

Key Components of DAS

1. Head-End Equipment: This includes the base station or signal source, which may come from a carrier’s network or an on-site base station.

2. Distribution System: This comprises the cabling (often fiber optic or coaxial) and other infrastructure that connects the head-end equipment to the remote antennas.

3. Remote Antennas: These are the antennas placed throughout the coverage area to distribute the wireless signal. They can be mounted on walls, ceilings, or other structures.

Types

1. Active DAS: Uses fiber optic cables and electronic equipment to amplify and distribute signals. It is suitable for large areas and high-capacity requirements.

2. Passive DAS: Relies on coaxial cables and passive components like splitters and couplers to distribute signals. It is typically used for smaller areas.

3. Hybrid DAS: Combines elements of both active and passive DAS to optimize performance and cost.

Benefits

1. Improved Coverage: DAS can eliminate dead zones and provide uniform coverage in challenging environments.

2. Enhanced Capacity: It can support a high number of users and devices, making it ideal for high-density areas.

3. Scalability: DAS can be easily expanded to accommodate growing demand.

4. Carrier Flexibility: DAS can support multiple carriers and technologies (e.g., 4G, 5G, Wi-Fi) simultaneously.

5. Better Quality of Service: By providing consistent and reliable signal strength, DAS improves the overall user experience.

Applications

Commercial Buildings: Ensures reliable wireless connectivity for employees and visitors.

Hospitals: Provides critical communication capabilities for healthcare providers.

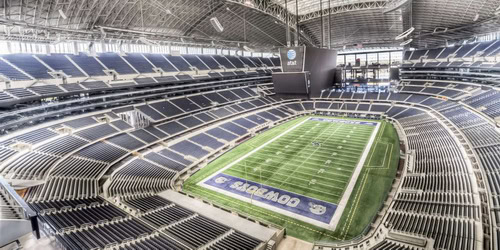

Stadiums and Arenas: Supports large crowds with high data demands.

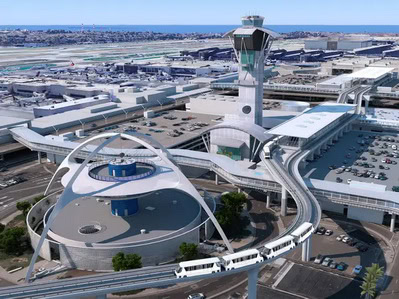

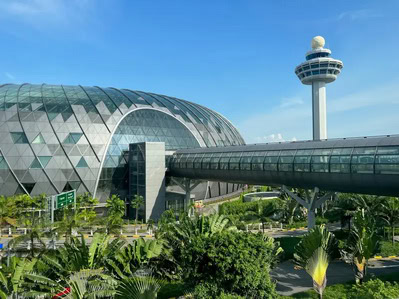

Transportation Hubs: Enhances connectivity in airports, train stations, and subways.

Urban Areas: Fills coverage gaps and boosts capacity in densely populated areas.

In summary, DAS is a versatile and effective solution for improving wireless coverage and capacity in various environments, ensuring that users have reliable and high-quality connectivity.

Introduction to 5G Technology

5G, or the fifth generation of mobile networks, represents a significant leap forward from its predecessor, 4G LTE (Long-Term Evolution). This new generation of mobile technology is designed to meet the ever-growing demand for faster and more reliable wireless communication. 5G aims to provide enhanced mobile broadband, ultra-reliable low-latency communication, and massive machine-type communication, making it a cornerstone for future innovations such as smart cities, autonomous vehicles, and the Internet of Things (IoT).

Key Features of 5G

1. Enhanced Mobile Broadband (eMBB):

Higher Data Rates: 5G promises peak data rates of up to 20 Gbps, significantly higher than 4G.

Increased Capacity: It can support a higher number of devices per unit area, crucial for densely populated urban areas.

2. Ultra-Reliable Low-Latency Communication (URLLC):

Low Latency: 5G offers latency as low as 1 millisecond, enabling real-time applications like autonomous driving and remote surgery.

High Reliability: Designed for mission-critical applications that require constant and reliable communication.

3. Massive Machine-Type Communication (mMTC):

IoT Enablement: 5G can connect a vast number of IoT devices, supporting up to a million devices per square kilometer.

Energy Efficiency: Optimized for low power consumption, making it suitable for battery-operated IoT devices.

4. Network Slicing:

Customized Networks: Allows operators to create multiple virtual networks within a single physical 5G network, each tailored to specific requirements and use cases.

5. Improved Spectral Efficiency:

Better Use of Spectrum: Advanced technologies like Massive MIMO (Multiple Input Multiple Output) and beamforming improve the efficient use of the available spectrum.

6. Enhanced Security:

Stronger Encryption: 5G incorporates advanced encryption methods to enhance data security and privacy.

Differences Between 4G and 5G

1. Speed and Capacity:

4G: Maximum data rates of up to 1 Gbps.

5G: Peak data rates of up to 20 Gbps, with the capability to support more simultaneous connections.

2. Latency:

4G: Typical latency ranges from 30 to 50 milliseconds.

5G: Latency as low as 1 millisecond, enabling real-time applications.

3. Spectrum Usage:

4G: Primarily uses frequencies below 3 GHz.

5G: Utilizes a broader range of frequencies, including sub-6 GHz and millimeter-wave (24 GHz and above), providing more bandwidth and faster speeds.

4. Network Architecture:

4G: Based on a monolithic core network.

5G: Employs a more flexible, service-based architecture with network slicing capabilities.

5. Device Density:

4G: Can support about 2,000 devices per square kilometer.

5G: Designed to connect up to a million devices per square kilometer, essential for IoT applications.

6. Energy Efficiency:

4G: Less optimized for low power consumption.

5G: More energy-efficient, with features designed to extend battery life for IoT devices.

7. Reliability:

4G: Suitable for general mobile communication needs.

5G: Offers ultra-reliable communication, crucial for applications where failure is not an option, such as remote surgery and industrial automation.

In summary, 5G technology brings a multitude of advancements over 4G, making it a pivotal enabler for future technological innovations and applications. Its enhanced speed, capacity, low latency, and ability to support a massive number of devices will transform how we interact with technology and each other.

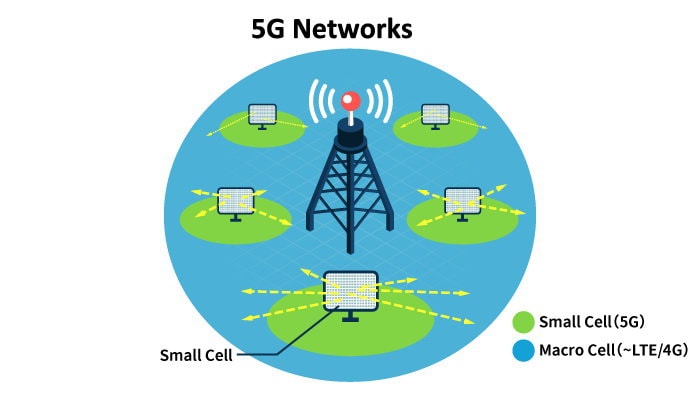

How DAS Supports 5G Networks

Distributed Antenna Systems (DAS) play a crucial role in supporting 5G networks by addressing some of the key challenges associated with this advanced technology. Here’s how DAS contributes to enhanced capacity and coverage, as well as low latency and high-speed connectivity in 5G networks:

Enhanced Capacity and Coverage

1. Signal Distribution:

DAS involves a network of spatially separated antenna nodes connected to a common source. This setup helps distribute the 5G signal more evenly across a given area, ensuring that users experience consistent service quality.

2. In-Building Solutions:

One of the significant challenges of 5G is providing reliable coverage inside buildings, where signals can be weakened by walls and other obstacles. DAS can be installed within buildings to amplify the 5G signal, ensuring strong and consistent connectivity indoors.

3. Scalability:

DAS can be scaled to cover large areas such as stadiums, airports, and shopping malls, where a high number of users might be concentrated. This helps in managing the increased data traffic and ensures that all users have access to the network without significant drops in performance.

4. Interference Management:

By using multiple low-power antennas rather than a single high-power antenna, DAS can reduce interference and improve signal quality. This is particularly important in dense urban environments where signal interference can degrade performance.

Low Latency and High-Speed Connectivity

1. Proximity to Users:

DAS antennas are typically placed closer to end-users compared to traditional macro cell towers. This proximity helps in reducing the distance the signal has to travel, thereby reducing latency and improving the speed of data transmission.

2. Optimized Network Performance:

By providing a more uniform distribution of the signal, DAS can help maintain high data rates and low latency, which are critical for applications that rely on real-time data transfer, such as autonomous vehicles, augmented reality (AR), and virtual reality (VR).

3. Load Balancing:

DAS can help distribute the network load more evenly across multiple antennas, preventing any single point from becoming a bottleneck. This load balancing ensures that the network can handle high-speed data transfer efficiently, maintaining the low latency that 5G promises.

4. Support for mmWave Frequencies:

 5G networks often use millimeter-wave (mmWave) frequencies to achieve high data rates. However, mmWave signals have limited range and are easily obstructed. DAS can help extend the reach of mmWave signals by strategically placing antennas to ensure continuous coverage, thus supporting high-speed connectivity.

Conclusion

In summary, Distributed Antenna Systems are integral to the effective deployment and operation of 5G networks. By enhancing capacity and coverage, and ensuring low latency and high-speed connectivity, DAS helps realize the full potential of 5G technology, providing reliable and high-quality service to users in various environments.

Chapter 2: Factors to Consider When Choosing 5G DAS Antennas

Coverage Requirements

Designing a 5G Distributed Antenna System (DAS) requires careful consideration of several key factors to ensure optimal coverage, signal strength, and quality. Below are the primary coverage requirements:

1. Area and Range

Coverage Area: The first step is to determine the total area that needs to be covered. This could be an indoor environment (like an office building, shopping mall, stadium, or airport) or an outdoor environment (such as a campus, city block, or rural area).

Range: The range of each individual antenna within the DAS is crucial. Typically, 5G frequencies (especially in the mmWave band) have a shorter range compared to 4G. Therefore, more antennas may be required to cover the same area.

Density: In high-density areas, more antennas will be needed to handle the large number of users and devices. This includes urban areas, event venues, and business districts.

Obstructions: Consider physical obstructions (walls, buildings, trees) that can impede signal propagation. 5G signals, particularly in the higher frequency bands, are more susceptible to obstructions.

2. Signal Strength and Quality

Signal Strength (RSSI): The Received Signal Strength Indicator (RSSI) should be strong enough to provide reliable connectivity. Typically, an RSSI of -70 dBm or better is desired for good 5G performance.

Signal-to-Noise Ratio (SNR): A high SNR is crucial for maintaining signal quality. An SNR of 20 dB or higher is generally considered good for 5G.

Throughput: Ensure that the system can handle the required data rates. 5G aims to provide very high throughput, often in the range of gigabits per second.

Latency: 5G is designed to offer low latency, often below 10 milliseconds. The DAS should support this low-latency requirement.

Interference Management: Minimize interference from other wireless systems and ensure that the DAS antennas are placed to avoid self-interference.

Frequency Bands: 5G operates in multiple frequency bands, including low-band (sub-1 GHz), mid-band (1-6 GHz), and high-band (mmWave, above 24 GHz). Each band has different propagation characteristics and will affect the placement and number of antennas.

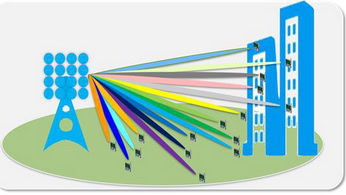

Beamforming and MIMO: Utilize advanced technologies like beamforming and Multiple Input Multiple Output (MIMO) to enhance signal strength and quality. These technologies can help focus the signal towards the user and improve overall performance.

Power Levels: Ensure that the power levels of the antennas are appropriately set to cover the desired area without causing excessive interference.

Backhaul Capacity: Ensure that the backhaul network supporting the DAS has sufficient capacity to handle the high data rates and low latency requirements of 5G.

Additional Considerations

Regulatory Compliance: Ensure that the DAS complies with local regulations and standards for electromagnetic radiation and safety.

Scalability: Design the system to be scalable, allowing for future expansion as the number of 5G users and devices increases.

Maintenance and Monitoring: Implement monitoring systems to continuously assess the performance of the DAS and perform maintenance as needed.

Conclusion

Meeting the coverage requirements for a 5G DAS antenna system involves a careful balance of area and range considerations, along with ensuring strong and high-quality signal performance. Proper planning, advanced technologies, and ongoing monitoring are key to achieving optimal 5G coverage.

Frequency Bands

Distributed Antenna Systems (DAS) are a network of spatially separated antenna nodes connected to a common source that provides wireless service within a geographic area or structure. When it comes to 5G DAS antennas, they are designed to operate in multiple frequency bands to support the various spectrum allocations for 5G services. Here are the primary frequency bands used in 5G DAS systems:

1. Low-Band (Sub-1 GHz):

600 MHz: Used in some regions for extended coverage and better penetration through buildings.

700 MHz: Commonly used for 4G LTE and now being refarmed for 5G.

800 MHz: Also used in some regions for 4G LTE and 5G.

2. Mid-Band (1-6 GHz):

1.8 GHz, 1.9 GHz, 2.1 GHz: These bands are often used for existing 4G LTE services and are being refarmed for 5G.

2.5 GHz: Used by some carriers for 5G due to its balance of coverage and capacity.

3.5 GHz (C-Band): One of the most important bands for 5G, offering a good balance between coverage and capacity.

4.9 GHz: Used in some regions for public safety and other specialized applications.

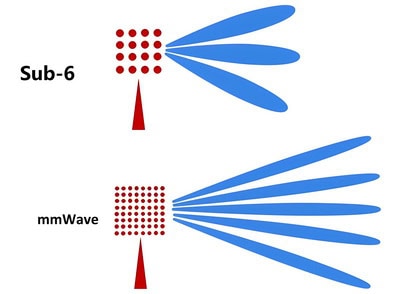

3. High-Band (Millimeter Wave, 24-100 GHz):

24 GHz, 26 GHz, 28 GHz: These bands provide very high data rates and capacity but have limited range and penetration.

37 GHz, 39 GHz: Additional mmWave bands that offer high capacity for dense urban environments.

60 GHz: Used for very short-range, high-capacity applications.

4. Unlicensed Bands:

5 GHz: Sometimes used for unlicensed 5G applications.

6 GHz: Recently opened up for unlicensed use, providing additional spectrum for 5G.

5. Specialized Bands:

3.7-4.2 GHz (CBRS in the U.S.): Citizens Broadband Radio Service, used for shared spectrum access.

Each of these frequency bands has its own characteristics in terms of coverage, capacity, and penetration, and they are often used in combination to provide comprehensive 5G service. Low-band frequencies offer broader coverage and better indoor penetration, while mid-band frequencies provide a balance of coverage and capacity. High-band frequencies (mmWave) offer the highest data rates and capacity but are best suited for dense urban areas due to their limited range and penetration capabilities.

Gain and Beamwidth

A Distributed Antenna System (DAS) is an infrastructure that enhances wireless coverage by distributing the signal through multiple antennas. In the context of 5G, DAS can be crucial for providing consistent and high-quality coverage, especially in dense urban environments or inside buildings.

Gain of 5G DAS Antennas

Gain is a measure of how well an antenna can direct or concentrate radio frequency energy in a specific direction compared to an isotropic radiator (an idealized antenna that radiates equally in all directions).

 For 5G DAS antennas, the gain typically varies depending on the specific design and application. It can range from around 2 dBi to 10 dBi or more.

Low-Gain Antennas (2-5 dBi): These are used for broader coverage areas and are typically omnidirectional or have a wide beamwidth.

Medium-Gain Antennas (5-8 dBi): These provide a balance between coverage area and directionality.

High-Gain Antennas (8-10+ dBi): These are more directional and are used to cover specific areas or to extend the range in a particular direction.

Beamwidth of 5G DAS Antennas

Beamwidth refers to the angular width of the main lobe of the antenna radiation pattern, usually measured at the half-power (-3 dB) points.

The beamwidth of 5G DAS antennas can also vary widely:

Omni-directional Antennas: These have a 360-degree horizontal beamwidth and are used to provide uniform coverage in all directions.

Panel Antennas: These have narrower beamwidths, which can range from 30 to 90 degrees or even narrower, depending on the application.

Sector Antennas: These are commonly used in DAS and can have beamwidths like 60, 90, or 120 degrees, providing a compromise between coverage area and directivity.

Conclusion

The gain and beamwidth of 5G DAS antennas are crucial parameters that must be matched to the specific requirements of the deployment environment. Understanding these parameters helps in designing a DAS that provides optimal coverage, capacity, and performance for 5G networks.

Polarization and Radiation Patterns

Distributed Antenna Systems (DAS) are used to enhance wireless coverage, particularly in environments where traditional macrocell coverage is insufficient, such as large buildings, stadiums, and urban canyons. With the advent of 5G, DAS systems are evolving to support the new requirements of higher frequencies, increased data rates, and more complex signal propagation characteristics.

Polarization

Polarization refers to the orientation of the electric field vector of the electromagnetic wave. For 5G DAS antennas, polarization is a crucial parameter because it affects signal propagation, penetration through obstacles, and the ability to mitigate interference. The common types of polarization used in 5G DAS antennas include:

1. Vertical Polarization: The electric field is oriented vertically. This is traditional and commonly used in many wireless communication systems.

2. Horizontal Polarization: The electric field is oriented horizontally.

3. Dual Polarization: Combines both vertical and horizontal polarizations. This can improve signal robustness and capacity by utilizing multiple-input multiple-output (MIMO) techniques.

4. Dual Slant Polarization: Involves transmitting signals at 45 degrees and -45 degrees relative to the horizontal plane.

In 5G DAS, dual polarization is particularly advantageous because it supports MIMO, which is a key technology for enhancing data throughput and reliability.

Radiation Patterns

The radiation pattern of an antenna describes how it radiates energy into space. For 5G DAS antennas, the radiation pattern is designed to provide optimal coverage and capacity within the target environment. The main types of radiation patterns include:

1. Omnidirectional Pattern: Radiates equally in all horizontal directions. This is useful for providing uniform coverage in open areas or large rooms.

2. Directional Pattern: Focuses energy in a specific direction. This can be used to cover long corridors, specific sections of a building, or to reduce interference by limiting radiation in unwanted directions.

3. Sectorized Pattern: Divides the coverage area into sectors, each served by a different antenna or antenna array. This is common in stadiums or large venues where different areas need targeted coverage.

5G DAS antennas often employ advanced techniques like beamforming, which dynamically adjusts the radiation pattern to focus energy toward users or areas with higher demand. This is essential for maximizing efficiency and capacity in dense environments.

In summary, the polarization and radiation patterns of 5G DAS antennas are critical for achieving the desired coverage, capacity, and performance in various deployment scenarios. The use of dual polarization, advanced beamforming, and careful consideration of the environment are key factors in the design and implementation of effective 5G DAS solutions.

Low PIM Specifications and Power levels

Low PIM is critical for maintaining signal integrity and minimizing interference in 5G networks. PIM is typically measured in dBc (decibels relative to the carrier), and lower values indicate better performance. For 5G DAS applications, the following PIM specifications are generally desirable:

Importance of Low PIM Value for 5G DAS Systems

1. Signal Integrity: Passive Intermodulation (PIM) can cause significant signal distortion and interference. In 5G networks, which require high data rates and low latency, maintaining signal integrity is crucial. Low PIM values help ensure clear signal transmission and reception.

2. Network Performance: High PIM levels can degrade the performance of the Distributed Antenna System (DAS) by introducing noise and interference, leading to dropped calls, reduced data throughput, and poor user experience. Low PIM antennas help in maintaining optimal network performance.

3. Capacity and Coverage: 5G networks are designed to handle a large number of devices and high data volumes. Low PIM antennas help in maximizing the capacity and coverage of the DAS by minimizing interference and ensuring efficient signal propagation.

4. Regulatory Compliance: Regulatory bodies may have stringent requirements for PIM levels in network components. Using low PIM antennas helps in complying with these regulations and avoiding potential fines or sanctions.

Key Factors and Components Impacting Low PIM Value

1. Antenna Design: The design of the antenna itself plays a crucial role in determining its PIM performance. Factors such as the type of materials used, the physical structure, and the manufacturing process can all impact PIM levels.

2. Materials: The use of high-quality, low-PIM materials such as low-PIM connectors, cables, and mounting hardware can significantly reduce PIM. Materials that are less prone to oxidation and corrosion are preferred.

3. Connector Quality: Connectors are common sources of PIM. Using precision-engineered, low-PIM connectors and ensuring proper torque and alignment during installation can help reduce PIM.

4. Installation Practices: Proper installation techniques are essential to minimize PIM. This includes avoiding sharp bends in cables, ensuring tight and secure connections, and using appropriate mounting hardware.

5. Environmental Factors: Environmental conditions such as temperature, humidity, and physical stress can affect PIM levels. Antennas designed to withstand harsh environmental conditions without degrading in performance are preferred.

6. Testing and Certification: Regular testing and certification of antennas for PIM performance ensure that they meet the required specifications. This includes factory testing as well as field testing after installation.

PIM Levels and Power Levels

PIM Levels

-150 dBc or lower: This is considered excellent and is often required for high-performance 5G networks.

-140 dBc: This is a common specification for many high-quality DAS components.

-130 dBc: This might be acceptable in some less critical applications but is not ideal for high-density or high-capacity 5G environments.

Power Levels

The power handling capability of omni ceiling antennas is another crucial factor. In 5G DAS, the power levels can vary, but typical specifications include:

Maximum Input Power

2W to 50W: This range covers most DAS applications. Higher power handling is typically needed in larger or more complex installations.

10W to 20W: Common for many indoor DAS setups, balancing performance and safety.

Conclusion

Low PIM specifications are critical for the efficient operation of 5G DAS systems. By focusing on high-quality materials, precise manufacturing, and proper installation practices, it is possible to achieve low PIM values that enhance signal integrity, network performance, and user experience. Regular testing and adherence to industry standards further ensure that these systems meet the demanding requirements of modern 5G networks.

Antenna Connector Types

Distributed Antenna Systems (DAS) are critical for enhancing coverage and capacity in 5G networks, especially in indoor environments and densely populated areas. The antennas used in DAS for 5G networks typically require robust and reliable connectors to ensure optimal performance. Here are some common connector types used for DAS antennas in 5G networks:

1. N-Type Connectors:

Frequency Range: Up to 11 GHz.

Usage: Widely used in DAS applications due to their reliability and relatively low cost. They are suitable for both indoor and outdoor installations.

Characteristics: Larger in size, providing good power handling and low loss.

2. 4.3-10 Connector:

Frequency Range: Up to 6 GHz.

Usage: Increasingly popular in 5G deployments due to their compact size and excellent performance. They are designed to handle high frequencies and are more compact than N-Type connectors.

Characteristics: Provide low passive intermodulation (PIM) and are easier to install, making them suitable for dense antenna installations.

3. 7/16 DIN Connectors:

Frequency Range: Up to 7.5 GHz.

Usage: Commonly used in macro cell sites and some DAS applications, particularly where high power handling is required.

Characteristics: Known for their durability and ability to handle high power, but are larger and heavier compared to newer connector types like the 4.3-10.

When selecting connectors for DAS antennas in 5G networks, it is crucial to consider factors such as frequency range, power handling, size constraints, and ease of installation. The 4.3-10 connector is particularly notable for its growing adoption in 5G due to its balance of performance and compact size.

Mounting Types

Distributed Antenna Systems (DAS) are critical for enhancing the coverage and capacity of 5G networks. The mounting types for DAS in 5G networks can vary based on the deployment environment, the specific requirements of the network, and the physical infrastructure available. Here are some common mounting types for DAS in 5G networks:

1. Indoor DAS (iDAS):

Ceiling-Mounted Antennas: These are commonly used in indoor environments such as office buildings, shopping malls, and airports. Ceiling-mounted antennas are discreet and can be installed in drop ceilings or directly mounted to the ceiling surface.

Wall-Mounted Antennas: In situations where ceiling mounting is not feasible, wall-mounted antennas can be used. These are often installed in hallways, corridors, and other areas where ceiling access is limited.

Above Ceiling (Plenum) Antennas: These antennas are installed above the ceiling tiles in the plenum space. They are hidden from view and can provide good coverage without being intrusive.

2. Outdoor DAS (oDAS):

Pole-Mounted Antennas: These are commonly mounted on utility poles, streetlights, or dedicated poles. Pole-mounted antennas are used to provide coverage in outdoor urban and suburban areas.

Building-Mounted Antennas: Antennas can be mounted on the exterior walls or rooftops of buildings. This is often used in urban environments where there are many tall buildings.

Tower-Mounted Antennas: In some cases, DAS antennas can be mounted on existing or new telecommunications towers, especially in rural or less densely populated areas.

3. Hybrid DAS:

Combination of Indoor and Outdoor Mounting:** Some DAS deployments may require a combination of indoor and outdoor mounting types to achieve seamless coverage. For example, a campus environment may use indoor DAS for buildings and outdoor DAS for open areas.

4. Specialized Mounting Types:

Concealed Antennas: In environments where aesthetics are important, antennas can be concealed within architectural elements such as clock towers, flagpoles, or custom enclosures.

Camouflaged Antennas: These antennas are designed to blend in with their surroundings, such as being disguised as trees or other natural elements, to minimize visual impact.

Each mounting type has its own set of advantages and considerations, including coverage area, aesthetic impact, ease of installation, and maintenance requirements. The choice of mounting type will depend on the specific needs of the 5G network and the characteristics of the deployment environment.

Installation Environment

When deploying Distributed Antenna Systems (DAS) for 5G networks, the installation environment significantly impacts the design, installation, and performance of the system. Two primary deployment environments to consider are urban and rural areas, each presenting unique challenges and requirements. Additionally, the building materials and structures in these environments play a crucial role in the deployment process.

Urban Deployment

Characteristics

1. High User Density: Urban areas have a high concentration of users, necessitating robust and high-capacity DAS installations to manage the increased demand for data.

2. Dense Infrastructure: The presence of numerous buildings, skyscrapers, and other infrastructure can cause signal obstruction and multipath interference.

3. Regulatory Constraints: Urban deployments often face stringent regulatory requirements and zoning laws that can impact antenna placement and installation procedures.

Challenges

1. Signal Interference: The dense environment can lead to significant signal interference from other electronic devices and networks.

2. Physical Space: Limited space for installing equipment and antennas due to crowded rooftops and building facades.

3. Aesthetic Concerns: Maintaining the visual appeal of the urban landscape can restrict the types and placement of antennas.

Solutions

1. Small Cells and Microcells: Deploying small cells and microcells to enhance coverage and capacity in high-density areas.

2. Advanced Beamforming: Utilizing beamforming technology to direct signals precisely and reduce interference.

3. Indoor DAS: Installing indoor DAS in large buildings, malls, and stadiums to ensure adequate indoor coverage.

Rural Deployment

Characteristics

1. Low User Density: Rural areas typically have fewer users spread over larger areas, requiring different strategies for coverage.

2. Sparse Infrastructure: Fewer buildings and obstacles but more open space, which can simplify some aspects of deployment.

3. Topographical Variations: The presence of hills, valleys, and other natural features can impact signal propagation.

Challenges

1. Coverage Area: Ensuring wide-area coverage with fewer base stations due to the lower population density.

2. Backhaul Connectivity: Limited availability of high-speed backhaul connections, which are essential for 5G networks.

3. Power Supply: Ensuring reliable power supply to remote DAS installations.

Solutions

1. High-Gain Antennas: Using high-gain antennas to extend the coverage range of each base station.

2.Satellite Backhaul: Employing satellite or microwave links for backhaul connectivity in areas where fiber is not available.

3.Renewable Energy: Utilizing solar or wind power solutions to provide reliable power to remote installations.

Building Materials and Structures

Impact on DAS Deployment

1. Signal Penetration: Different building materials have varying levels of signal attenuation. For example, concrete and metal structures significantly reduce signal penetration, while glass and wood have less impact.

2. Antenna Placement: The internal layout and structure of buildings influence the placement of antennas and other equipment to ensure optimal coverage.

3. Cabling and Conduits: The design and materials of a building affect the ease of running cables and installing conduits for the DAS.

Considerations

1. Material Attenuation: Conducting a thorough site survey to understand the materials used in building construction and their impact on signal propagation.

2. Strategic Placement: Placing antennas in locations that minimize signal obstruction and maximize coverage, such as near windows or in central areas.

3. Building Codes: Adhering to local building codes and regulations when installing DAS equipment, especially in older buildings with historical significance.

Conclusion

Deploying DAS for 5G networks requires careful consideration of the environment, whether urban or rural, and the specific characteristics of the buildings involved. Urban deployments focus on managing high user density and interference, while rural deployments prioritize wide-area coverage and reliable backhaul. Understanding the impact of building materials and structures is crucial for optimizing signal propagation and ensuring effective coverage. By addressing these factors, network providers can deliver reliable and high-performance 5G connectivity to users in diverse environments.

Regulatory and Compliance Issues

Distributed Antenna Systems (DAS) are critical components in the deployment of 5G networks, enhancing coverage and capacity by distributing signals inside buildings and challenging environments. However, implementing DAS for 5G networks involves navigating various regulatory and compliance issues, which can be broadly categorized into local and international standards, as well as licensing requirements.

Local and International Standards

1. 3GPP Standards

The 3rd Generation Partnership Project (3GPP) sets global standards for 5G networks, including radio access, core network, and service capabilities. DAS systems must comply with 3GPP standards to ensure interoperability and performance consistency.

2. ITU Regulations

The International Telecommunication Union (ITU) provides a framework for global telecommunication standards, including frequency allocation and spectrum management. Compliance with ITU regulations ensures that DAS systems do not interfere with other services and operate within designated frequency bands.

3. National Standards Bodies

Each country has its own regulatory body responsible for telecommunications standards. For example:

FCC (Federal Communications Commission) in the USA

Ofcom (Office of Communications) in the UK

ACMA (Australian Communications and Media Authority) in Australia

These bodies may have specific requirements for DAS installations, including technical specifications, safety standards, and environmental considerations.

4. Safety and Health Standards

Compliance with safety and health standards is crucial to ensure that DAS installations do not pose risks to humans. This includes adherence to:

Electromagnetic Field (EMF) Exposure Limits: Guidelines set by organizations like the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

Electrical Safety Standards: National Electrical Code (NEC) in the USA or equivalent standards in other countries.

Licensing Requirements

1. Spectrum Licensing

Operating a DAS for 5G networks requires access to specific frequency bands. Spectrum licenses are typically auctioned or allocated by national regulatory authorities. Key considerations include:

Type of License: Exclusive, shared, or unlicensed spectrum.

License Duration: Time period for which the spectrum can be used.

Geographical Coverage: Specific areas where the DAS can operate.

2. Building and Zoning Permits

Installing DAS often involves physical infrastructure changes, which may require building and zoning permits from local authorities. This includes:

Building Codes Compliance: Ensuring that installations meet structural and safety regulations.

Zoning Laws: Adhering to local zoning laws that may restrict the placement of antennas and related equipment.

3. Operational Licenses

In some jurisdictions, operators may need additional licenses to run telecommunications equipment. This includes:

Network Operator License: Authorization to provide telecommunications services.

Equipment Certification: Ensuring that all equipment used in the DAS meets national and international standards.

4. Environmental and Public Safety Regulations

Compliance with environmental regulations is essential to mitigate the impact of DAS installations. This includes:

Environmental Impact Assessments (EIA): Evaluating the potential environmental effects of the installation.

Public Safety Regulations: Ensuring that the deployment does not pose risks to public safety, such as structural integrity or interference with emergency services.

Conclusion

Deploying a Distributed Antenna System for 5G networks involves a complex landscape of regulatory and compliance issues. Adherence to local and international standards ensures interoperability and safety, while obtaining the necessary licenses and permits is crucial for legal operation. Stakeholders must stay informed about evolving regulations and engage with regulatory bodies to ensure compliance throughout the deployment process.

Chapter 3: Types of 5G DAS Antennas

Omni Ceiling Antennas

Features and Advantages

1. Omni-directional Coverage:

Feature: Omni ceiling antennas provide 360-degree coverage, ensuring a uniform signal distribution in all directions.

Advantage: This is ideal for environments where users are spread out in different directions, such as office spaces, shopping malls, and airports.

2. Compact and Aesthetic Design:

Feature: These antennas are typically designed to be compact and visually unobtrusive, blending seamlessly with the ceiling.

Advantage: This makes them suitable for indoor environments where aesthetics are important, such as hotels and corporate offices.

3. Low Gain and Efficiency:

Feature: Omni ceiling antennas are designed to offer low gain and efficiency, which enhances signal strength and quality.

Advantage: This ensures reliable and consistent 5G connectivity, improving the user experience.

4. Wide Frequency Range:

Feature: They support a wide frequency range, often covering sub-6 GHz bands used in 5G networks.

Advantage: This makes them versatile and compatible with various 5G frequencies, ensuring future-proofing as network standards evolve.

5. Easy Installation:

Feature: Designed for easy and quick installation, often with standardized mounting options.

Advantage: Reduces deployment time and labor costs, making it easier to upgrade or expand network coverage.

6. Low PIM (Passive Intermodulation):

Feature: Many omni ceiling antennas are engineered to minimize passive intermodulation.

Advantage: This results in clearer signals and higher data throughput, which is critical for maintaining high-performance 5G networks.

7. MIMO Support:

Feature: Some omni ceiling antennas support Multiple Input Multiple Output (MIMO) technology.

Advantage: Enhances data rates and network capacity, which is essential for meeting the high bandwidth demands of 5G applications.

Use Cases in the DAS System of 5G

1. Commercial Buildings:

Use Case: Providing seamless 5G coverage in office buildings, conference centers, and hotels.

Benefit: Ensures that employees, guests, and visitors have reliable high-speed internet access for communication, streaming, and other applications.

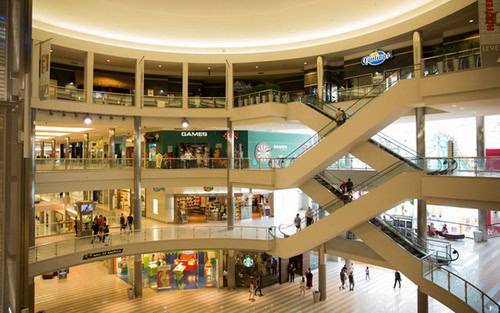

2. Shopping Malls and Retail Spaces:

Use Case: Enhancing the shopping experience by providing robust 5G connectivity throughout large retail environments.

Benefit : Supports mobile payments, augmented reality shopping experiences, and real-time inventory management.

3. Healthcare Facilities:

Use Case: Ensuring reliable 5G connectivity in hospitals and clinics for telemedicine, real-time patient monitoring, and data transfer.

Benefit: Improves patient care and operational efficiency by enabling advanced medical applications and communications.

4. Educational Institutions:

Use Case: Providing high-speed internet access in schools, colleges, and universities.

Benefit: Supports e-learning, virtual classrooms, and research activities, enhancing the educational experience.

5. Transportation Hubs:

Use Case: Ensuring consistent 5G coverage in airports, train stations, and bus terminals.

Benefit: Enhances passenger experience with fast internet access for streaming, navigation, and communication while on the move.

6. Residential Complexes:

Use Case: Deploying 5G coverage in high-density residential areas and apartment buildings.

Benefit: Provides residents with high-speed internet access for streaming, gaming, and smart home applications.

7. Event Venues:

Use Case: Ensuring reliable 5G connectivity in stadiums, concert halls, and convention centers.

Benefit: Enhances the experience for attendees with seamless streaming, social media sharing, and real-time event updates.

In summary, omni ceiling antennas play a crucial role in the deployment of Distributed Antenna Systems (DAS) for 5G networks, offering extensive coverage, high performance, and flexibility for various indoor environments. Their features and advantages make them an essential component for ensuring reliable and high-speed 5G connectivity in diverse use cases.

Panel Antennas

Distributed Antenna Systems (DAS) are critical for enhancing cellular coverage and capacity, especially in challenging environments like large buildings, stadiums, and urban areas. Panel antennas are a crucial component of DAS, particularly in 5G networks, where they help ensure high-speed, low-latency connectivity. Below, we explore the differences between indoor and outdoor panel antennas, their features and advantages, and their use cases in 5G DAS systems.

Indoor Panel Antennas

Design: Typically more aesthetically pleasing and compact to blend into indoor environments.

Frequency Range: Can cover a broader range of frequencies, including low-band (e.g.600 MHz to 960MHz) and mid-band( (e.g., 1710-2700MHz and 3300-4000MHz) for wider coverage and better penetration, as well as mid-band and high-band frequencies.

Installation: Easier to install due to less stringent weatherproofing requirements. Can be mounted on walls or ceilings.

Coverage: Designed to provide coverage in enclosed spaces, ensuring signal penetration through walls and floors.

Outdoor Panel Antennas

Design: Built to withstand harsh weather conditions, including rain, wind, and temperature extremes. Typically larger and more robust.

Frequency Range: Can cover a broader range of frequencies, including low-band (e.g.600 MHz to 960MHz) and mid-band( (e.g., 1710-2700MHz and 3300-4000MHz) for wider coverage and better penetration, as well as mid-band and high-band frequencies.

Installation: Requires more rigorous mounting solutions to ensure stability and durability in outdoor environments.

Coverage: Designed for wide-area coverage, often used to blanket large outdoor spaces or to provide a bridge between outdoor and indoor networks.

Features and Advantages

Features

Low Gain: Both indoor and outdoor panel antennas offer low gain, which enhances signal strength and extends coverage.

MIMO Support: Multiple Input Multiple Output (MIMO) technology is often supported, which is essential for achieving the high data rates required by 5G.

Polarization: Dual-polarized antennas help improve signal quality and reliability by reducing the impact of multi-path interference.

Advantages

Enhanced Coverage: Panel antennas provide improved coverage, especially in areas with weak signals or high user density.

Better Capacity: By supporting advanced features like MIMO and beamforming, panel antennas help increase network capacity, accommodating more users and higher data rates.

Scalability: DAS with panel antennas can be easily scaled to cover large and complex environments.

Flexibility: They can be tailored to specific needs, whether it’s indoor environments like offices and malls or outdoor areas like campuses and stadiums.

Use Cases

Indoor Use Cases

Commercial Buildings: Ensuring strong and reliable 5G coverage in office buildings, enhancing productivity and supporting IoT applications.

Shopping Malls: Providing seamless connectivity for shoppers and enabling advanced services like augmented reality shopping experiences.

Hospitals: Enhancing communication for medical staff and supporting telemedicine applications.

Universities: Facilitating high-speed internet access for students and staff, and supporting smart campus initiatives.

Outdoor Use Cases

Stadiums and Arenas: Ensuring that large numbers of users can access high-speed 5G services during events, supporting applications like live streaming and real-time stats.

Urban Areas: Enhancing coverage in dense urban environments where buildings can obstruct signals, ensuring reliable connectivity for residents and businesses.

Transportation Hubs: Providing robust 5G coverage in airports, train stations, and bus terminals to support both passengers and operational needs.

Smart Cities: Supporting a wide range of smart city applications, from traffic management to public safety, by ensuring comprehensive 5G coverage.

In conclusion, panel antennas are a vital component of DAS in 5G networks, offering tailored solutions for both indoor and outdoor environments. Their advanced features and numerous advantages make them indispensable for providing the high-speed, reliable connectivity that modern applications and services demand.

Log Periodic Antennas

Log Periodic Antennas (LPAs) are a type of directional antenna known for their wide bandwidth and consistent gain across a broad frequency range. These features make them particularly suitable for Distributed Antenna Systems (DAS) in 5G networks.

Features and Advantages

1. Wide Frequency Range

Feature: LPAs can operate over a broad spectrum of frequencies, which is essential for 5G networks that utilize multiple frequency bands.

Advantage: This wide range allows a single antenna to support various 5G bands, simplifying the network design and reducing the need for multiple antennas.

2. Consistent Gain:

Feature: LPAs offer relatively uniform gain across their operating frequency range.

Advantage: Consistent gain ensures reliable signal strength and quality across different frequencies, which is crucial for maintaining high data rates and low latency in 5G networks.

3. Directional Radiation Pattern:

Feature: LPAs have a directional radiation pattern, focusing the signal in a specific direction.

Advantage: This directionality improves signal coverage and reduces interference, enhancing the overall performance of the DAS.

4. Compact and Lightweight:

Feature: LPAs are typically compact and lightweight compared to other wideband antennas.

Advantage: Their size and weight make them easier to install and integrate into existing infrastructure, particularly in urban environments where space is at a premium.

5. Scalability:

Feature: LPAs can be designed to cover a wide range of frequencies, making them scalable.

Advantage: This scalability is beneficial for future-proofing the network, as they can accommodate new frequency bands as they become available.

6. Cost-Effective:

Feature: The design and manufacturing process of LPAs is relatively straightforward.

Advantage: This simplicity translates into lower costs, making them a cost-effective solution for large-scale deployments in 5G DAS.

Use Cases in the DAS System of 5G

1. Indoor Coverage:

Application: LPAs can be used in indoor DAS to provide consistent and reliable 5G coverage in large buildings, shopping malls, airports, and stadiums.

Benefit: Ensures seamless connectivity and high data throughput for users in indoor environments.

2. Outdoor Urban Coverage:

Application: In urban areas, LPAs can be deployed on rooftops and street furniture to enhance 5G coverage and capacity.

Benefit: Improves signal penetration and reduces dead zones in densely populated areas.

3. Rural and Suburban Coverage:

Application: LPAs can be used in DAS to extend 5G coverage to rural and suburban areas where traditional macro cells might be less effective.

Benefit: Provides high-speed internet access to underserved areas, bridging the digital divide.

4. Enterprise Networks:

Application: Enterprises can use LPAs in their private DAS to ensure robust 5G connectivity throughout their campuses, including office buildings, manufacturing plants, and warehouses.

Benefit: Enhances operational efficiency and supports IoT applications within the enterprise.

5. Transportation Hubs:

Application: LPAs can be deployed in transportation hubs such as train stations, bus terminals, and airports to provide continuous 5G coverage.

Benefit: Ensures that travelers have access to high-speed internet and can use bandwidth-intensive applications without interruption.

6. Public Safety Networks:

Application: Public safety agencies can use LPAs in their DAS to ensure reliable 5G communication for first responders in emergency situations.

Benefit: Enhances the effectiveness of emergency response operations by providing robust and reliable communication channels.

7. Smart Cities:

Application: LPAs can be part of the DAS infrastructure in smart cities to support a wide range of applications, from smart lighting and traffic management to public Wi-Fi and surveillance systems.

Benefit: Facilitates the implementation of smart city initiatives by providing the necessary connectivity backbone.

In conclusion, Log Periodic Antennas offer a range of features and advantages that make them well-suited for use in the DAS of 5G networks. Their wide frequency range, consistent gain, and directional radiation pattern, combined with their compact size and cost-effectiveness, make them a versatile solution for enhancing 5G coverage and capacity in various environments.

Specialty 5G Antennas

5G networks are revolutionizing telecommunications with their high-speed, low-latency capabilities, and the deployment of 5G requires specialized antennas to handle the unique demands of this technology. Here’s an overview of the specialty antennas used in Distributed Antenna Systems (DAS) for 5G networks, focusing on mmWave antennas and small cell antennas.

mmWave Antennas

1. Characteristics:

Frequency Range: Operates in the millimeter wave spectrum, typically between 24 GHz and 100 GHz.

Bandwidth: Offers very high bandwidth, essential for achieving the high data rates promised by 5G.

Beamforming: Utilizes advanced beamforming techniques to direct signals precisely, enhancing signal strength and reducing interference.

Size: Generally smaller due to the shorter wavelength of mmWave frequencies, allowing for more compact designs.

2. Applications:

Urban Areas: Ideal for densely populated urban environments where high capacity and high data rates are required.

Indoor Coverage: Used in venues like stadiums, shopping malls, and airports to provide robust indoor coverage.

Fixed Wireless Access: Provides high-speed internet to homes and businesses as an alternative to traditional wired connections.

3. Challenges:

Propagation: mmWave signals have limited range and poor penetration through obstacles like walls and buildings.

Environmental Sensitivity: More susceptible to attenuation from rain, foliage, and other environmental factors.

Small Cell Antennas

1. Characteristics:

Frequency Range: Operates in both sub-6 GHz and mmWave frequencies.

Power: Lower power compared to macro cell antennas, designed for smaller coverage areas.

Size: Compact and can be easily deployed on street furniture, building walls, and utility poles.

Integration: Often integrated with radio units to form a compact, all-in-one solution.

2. Applications:

Dense Urban Areas: Enhances network capacity and coverage in high-traffic areas.

Infill Coverage: Fills coverage gaps between macro cells, ensuring seamless connectivity.

Enterprise Solutions: Provides dedicated coverage for businesses, campuses, and industrial sites.

3. Deployment Considerations:

Backhaul: Requires robust backhaul connections, often fiber or high-capacity wireless links.

Power Supply: Needs reliable power sources, which can be a challenge in some deployment scenarios.

Regulatory Approvals: Must comply with local regulations regarding installation on public and private property.

Conclusion

The deployment of 5G networks relies heavily on specialized antennas, particularly mmWave antennas and small cell antennas, to meet the high-speed, low-latency requirements of modern communication. These antennas, when integrated into a well-designed DAS, can provide comprehensive coverage and capacity, ensuring a seamless and robust 5G experience for users. The ongoing advancements in antenna technology and deployment strategies will continue to play a crucial role in the successful rollout and operation of 5G networks globally.

Chapter 4: Case Studies and Real-World Applications

Commercial Buildings

High-Rise Offices

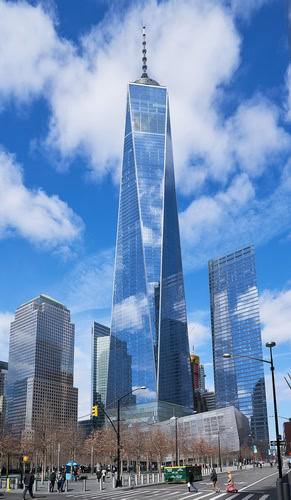

Case Study: One World Trade Center, New York City

One World Trade Center, a symbol of resilience and innovation, is one of the tallest buildings in the Western Hemisphere. To ensure seamless connectivity for its tenants and visitors, the building integrated a 5G Distributed Antenna System (DAS).

Challenges

Structural Complexity: The high-rise structure and dense materials like steel and concrete posed significant challenges for signal penetration.

High User Density: The building houses numerous businesses, leading to high demand for reliable and high-speed internet connectivity.

Security and Maintenance: Being a high-profile building, maintaining security while installing and maintaining the system was critical.

Solution

Comprehensive Site Survey: Detailed planning and site surveys were conducted to understand the signal propagation characteristics within the building.

Hybrid DAS Deployment: A combination of fiber and coaxial cables ensured robust signal distribution across all floors.

Small Cells Integration: Small cells were strategically placed to handle high user density areas, such as conference rooms and common areas.

Security Protocols: Advanced security measures were implemented to ensure the integrity of the network during and after installation.

Outcome

Enhanced Connectivity: Tenants and visitors experienced improved mobile network performance, with faster download and upload speeds.

Increased Tenant Satisfaction: Reliable 5G connectivity became a key selling point, attracting high-profile tenants.

Operational Efficiency: Businesses within the building benefited from improved communication and operational efficiency.

Shopping Malls

Case Study: Mall of America, Bloomington, Minnesota

The Mall of America, one of the largest shopping malls in the United States, attracts millions of visitors annually. To enhance the shopping experience and support modern retail operations, the mall implemented a 5G DAS.

Challenges

Large Area Coverage: Covering the massive area of the mall, including retail spaces, entertainment zones, and parking areas, required a meticulous deployment strategy.

Varied Building Materials: Different sections of the mall used various building materials, affecting signal propagation.

High Foot Traffic: The mall experiences high foot traffic, especially during holidays and special events, necessitating a reliable and high-capacity network.

Solution

Zonal Approach: The mall was divided into zones, with each zone receiving a tailored DAS solution to address specific connectivity challenges.

Advanced Antenna Systems: High-gain antennas and repeaters were used to ensure consistent signal strength throughout the mall.

Public Safety Integration: The DAS also supported public safety communications, ensuring that emergency services had reliable connectivity.

IoT Integration: The 5G network supported IoT applications, such as smart lighting, digital signage, and security systems.

Outcome

Improved Shopper Experience: Visitors enjoyed seamless connectivity, enhancing their shopping experience with features like mobile payments and augmented reality applications.

Increased Sales: Retailers benefited from improved customer engagement and operational efficiencies, leading to increased sales.

Enhanced Security: The integration of public safety communications and IoT applications improved overall security within the mall.

Conclusion

The implementation of 5G DAS in high-rise offices and shopping malls demonstrates the transformative potential of advanced connectivity solutions. These case studies highlight the importance of tailored deployment strategies, advanced technologies, and integration with existing systems to achieve optimal outcomes. As 5G technology continues to evolve, its applications in commercial buildings are expected to expand, driving innovation and enhancing user experiences.

Public Venues

1. Stadiums and Arenas

Case Study: AT&T Stadium, Arlington, Texas

AT&T Stadium, home to the Dallas Cowboys, is a prime example of a public venue that has successfully implemented a 5G Distributed Antenna System (DAS) to enhance connectivity for thousands of fans.

Implementation

5G DAS Deployment: Partnering with AT&T, the stadium installed a comprehensive 5G DAS to ensure robust coverage throughout the venue. This included the installation of multiple antennas and small cells strategically placed to handle high data traffic.

Capacity Management: The system was designed to manage peak loads during events, ensuring that up to 100,000 attendees could simultaneously access high-speed internet without experiencing delays or connectivity issues.

Benefits

Enhanced Fan Experience: Fans can stream live videos, share experiences on social media, and access real-time stats and replays without interruption.

Operational Efficiency: Stadium operations, including security, ticketing, and concessions, benefit from the improved connectivity, leading to smoother and more efficient event management.

Revenue Generation: Enhanced connectivity opens up new revenue streams through targeted advertising, mobile concessions, and in-app purchases during events.

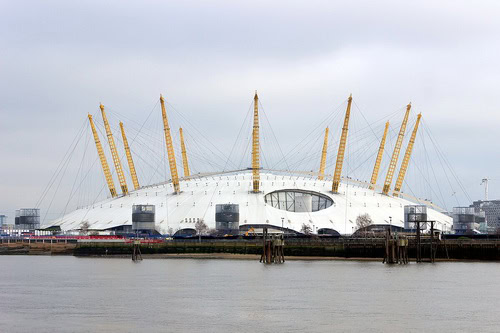

Case Study: O2 Arena, London, UK

The O2 Arena, one of the busiest music and entertainment venues in the world, has integrated 5G DAS to support its high-density environment.

Implementation

Comprehensive Coverage: The arena partnered with a leading telecom provider to deploy a 5G DAS network that covers the entire venue, including seating areas, concourses, and backstage areas.

High-Capacity Nodes: High-capacity nodes were installed to handle the intense data demands of concerts and events, where attendees frequently use their mobile devices for streaming and social media.

Benefits

Seamless Connectivity: Attendees experience seamless connectivity, allowing them to engage with interactive event features and share their experiences in real-time.

Enhanced Services: The venue can offer enhanced services such as augmented reality (AR) experiences, real-time event information, and mobile ticketing, improving overall customer satisfaction.

Data-Driven Insights: The 5G network provides valuable data insights into attendee behavior, enabling the venue to tailor services and marketing efforts more effectively.

2. Airports and Transportation Hubs

Case Study: Changi Airport, Singapore

Changi Airport, renowned for its innovation and passenger experience, has implemented a 5G DAS to support its operations and enhance passenger connectivity.

Implementation

5G Infrastructure: The airport collaborated with local telecom providers to deploy a 5G DAS network covering terminals, lounges, and other key areas.

IoT Integration: The 5G network supports various Internet of Things (IoT) applications, including smart baggage handling, real-time tracking of assets, and predictive maintenance of airport facilities.

Benefits

Improved Passenger Experience: Passengers benefit from high-speed internet access, enabling them to stay connected, work remotely, and access entertainment while waiting for their flights.

Operational Efficiency: The 5G network enhances operational efficiency through real-time data collection and analytics, leading to better resource management and quicker response times to issues.

Future-Proofing: The 5G infrastructure positions Changi Airport as a future-ready hub, capable of integrating emerging technologies such as autonomous vehicles and advanced robotics.

Case Study: Los Angeles International Airport (LAX), USA

LAX, one of the busiest airports in the world, has adopted 5G DAS to manage the high volume of passengers and ensure efficient operations.

Implementation

Network Deployment: A comprehensive 5G DAS network was deployed across all terminals, parking structures, and common areas, ensuring consistent coverage.

Enhanced Connectivity: High-density antennas and small cells were installed to manage the high data traffic, particularly during peak travel times.

Benefits

Seamless Passenger Connectivity: Travelers experience uninterrupted high-speed internet, allowing them to stay connected and access travel-related information effortlessly.

Operational Improvements: The 5G network supports advanced applications such as biometric boarding, automated check-ins, and real-time flight updates, streamlining airport operations.

Enhanced Security: Improved connectivity allows for better coordination among security personnel and real-time monitoring of security systems, enhancing overall safety.

Conclusion

The implementation of 5G DAS in public venues such as stadiums, arenas, airports, and transportation hubs demonstrates significant improvements in connectivity, operational efficiency, and customer experience. These case studies highlight the transformative potential of 5G technology in enhancing the functionality and appeal of large public spaces.

Industrial and Healthcare Facilities

5G Distributed Antenna Systems (DAS) are revolutionizing various sectors by providing enhanced connectivity, low latency, and high bandwidth. Below are detailed case studies and real-world applications in factories, warehouses, hospitals, and medical centers:

Factories and Warehouses

Case Study: Smart Manufacturing Facility

Location: Germany

Industry: Automotive Manufacturing

Objective: Implement a 5G DAS to enhance production efficiency and enable real-time data analytics.

Implementation

5G DAS Installation: A comprehensive 5G DAS was installed across the entire facility, including production lines, assembly areas, and storage zones.

IoT Integration: Connected IoT devices were deployed to monitor machinery, track inventory, and manage logistics.

Robotics and Automation: 5G-enabled robots and automated guided vehicles (AGVs) were used to streamline operations.

Outcomes

Increased Productivity: Real-time data analytics allowed for predictive maintenance, reducing downtime by 30%.

Enhanced Safety: Improved communication between machines and human operators reduced workplace accidents by 20%.

Operational Efficiency: Automated processes led to a 25% increase in production speed.

Case Study: Smart Warehouse

Location: United States

Industry: E-commerce

Objective: Optimize warehouse operations using 5G DAS to handle increased order volumes.

Implementation

5G DAS Deployment: A robust 5G network was established throughout the warehouse to ensure seamless connectivity.

Automated Inventory Management: 5G-enabled drones and robots were used for real-time inventory tracking and management.

Augmented Reality (AR): AR glasses connected via 5G assisted workers in locating items and navigating the warehouse efficiently.

Outcomes

Reduced Order Fulfillment Time: Order processing time decreased by 40% due to efficient inventory management.

Improved Accuracy: Inventory accuracy improved by 35%, minimizing errors in order fulfillment.

Cost Savings: Labor costs were reduced by 25% due to automation and efficient resource utilization.

Hospitals and Medical Centers

Case Study: Smart Hospital

Location: South Korea

Industry: Healthcare

Objective: Utilize 5G DAS to enhance patient care and streamline hospital operations.

Implementation

5G DAS Integration: A 5G DAS was installed throughout the hospital, including patient rooms, operating theaters, and administrative areas.

Telemedicine: High-speed 5G connectivity enabled remote consultations and real-time video conferencing with specialists.

Connected Medical Devices: 5G-enabled devices were used for continuous patient monitoring, providing real-time data to healthcare professionals.

Outcomes

Improved Patient Care: Real-time monitoring and remote consultations reduced hospital readmission rates by 15%.

Operational Efficiency: Streamlined communication and data sharing improved overall hospital efficiency by 20%.

Enhanced Patient Experience: Patients reported a 25% increase in satisfaction due to quicker response times and improved care.

Case Study: Advanced Medical Research Center

Location: United Kingdom

Industry: Medical Research

Objective: Leverage 5G DAS to support advanced medical research and data-intensive applications.

Implementation

5G DAS Deployment: A high-capacity 5G network was established to support research activities and data transfer.

Big Data Analytics: 5G-enabled devices facilitated the collection and analysis of large datasets for medical research.

Virtual Reality (VR): VR simulations connected via 5G were used for training medical professionals and conducting virtual experiments.

Outcomes

Accelerated Research: Data processing and analysis times were reduced by 50%, accelerating the pace of medical research.

Enhanced Training: VR simulations improved the training of medical professionals, resulting in a 30% increase in skill proficiency.

Collaboration: Improved connectivity facilitated international collaboration, leading to a 20% increase in research publications.

Conclusion

The deployment of 5G DAS in factories, warehouses, hospitals, and medical centers has led to significant improvements in productivity, efficiency, and overall operational performance. These case studies highlight the transformative potential of 5G DAS in various sectors, paving the way for smarter and more connected industrial and healthcare facilities.

Residential Complexes

1. Apartment Buildings

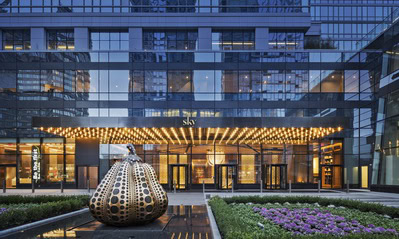

Case Study: The Sky Residences, New York City

The Sky Residences is a luxury high-rise apartment building in New York City, offering premium amenities and state-of-the-art facilities. With over 500 units, the management faced challenges in providing consistent and high-speed wireless connectivity to all residents, especially in common areas and underground parking.

Implementation

To address these issues, the management decided to implement a Distributed Antenna System (DAS) to enhance 5G coverage throughout the building. The project involved:

Site Survey and Planning: A comprehensive survey was conducted to identify dead zones and areas with weak signals.

Installation: Small cell antennas were strategically placed in common areas, hallways, and parking garages.

Integration: The DAS was integrated with existing infrastructure to ensure seamless connectivity without disrupting the building’s aesthetics.

Results

Improved Connectivity: Residents experienced significantly better 5G coverage and faster internet speeds.

Increased Property Value: Enhanced connectivity contributed to higher rental and property values.

Resident Satisfaction: Surveys indicated a marked improvement in resident satisfaction regarding wireless services.

Key Takeaways

Strategic Placement: Proper planning and strategic placement of antennas are crucial to maximize coverage.

Integration: Seamless integration with existing infrastructure minimizes disruption and maintains building aesthetics.

Resident Engagement: Regular feedback from residents helps in fine-tuning the system for optimal performance.

2. Gated Communities

Case Study: Green Valley Estates, California

Green Valley Estates is a large gated community in California, home to over 1,000 families. The community spans several acres, including residential units, parks, recreational facilities, and a clubhouse. The management aimed to provide robust 5G connectivity to support smart home devices, security systems, and residents’ daily internet usage.

Implementation

The community management partnered with a telecom provider to deploy a 5G DAS network. The key steps included:

Needs Assessment: Understanding the specific needs of the community, including high-speed internet for smart home devices and comprehensive coverage for outdoor areas.

Design and Deployment: Designing a DAS network that covers both indoor and outdoor areas, including homes, parks, and communal facilities.

Testing and Optimization: Conducting thorough testing to ensure coverage and performance, followed by continuous optimization based on user feedback.

Results

Enhanced Smart Home Integration: Residents could seamlessly integrate smart home devices, enhancing convenience and security.

Improved Security: Enhanced connectivity supported advanced security systems, including CCTV and remote monitoring.

Community Engagement: The community reported higher satisfaction levels and increased engagement with communal activities facilitated by better connectivity.

Key Takeaways

Comprehensive Coverage: Ensuring both indoor and outdoor areas are covered is essential for gated communities.

Smart Home Support: Robust 5G connectivity supports the growing demand for smart home technologies.

Continuous Optimization: Ongoing testing and optimization are necessary to maintain high performance and address any connectivity issues.

Conclusion

Implementing 5G DAS in residential complexes, whether in high-rise apartment buildings or sprawling gated communities, significantly enhances connectivity, supporting modern living standards and smart technologies. These real-world applications demonstrate the importance of strategic planning, seamless integration, and continuous optimization to achieve the best results.

Chapter 5: Installation and Maintenance

Planning and Design

Designing a Distributed Antenna System (DAS) for 5G networks involves several critical steps to ensure optimal coverage, capacity, and performance. Below is a detailed guide on the planning and design process, divided into two main sections: Site Surveys and Needs Assessment, and Network Design and Layout.

1. Site Surveys and Needs Assessment

A. Initial Site Survey

Objective: Understand the physical and RF environment.

Activities:

Walkthrough: Conduct a physical walkthrough of the site to identify potential challenges like thick walls, metal structures, and other obstructions.

Identify Key Areas: Determine high-traffic areas, dead zones, and areas requiring enhanced coverage.

Photographic Documentation: Take photos of key locations and potential antenna mounting points.

B. RF Survey

Objective: Measure existing signal levels and identify interference sources.

Tools: Spectrum analyzers, signal strength meters, and RF survey software.

Activities:

Signal Mapping: Create a heatmap of current signal strength and quality.

Interference Detection: Identify sources of interference that could affect the DAS performance.

Frequency Analysis: Determine which frequencies are in use and identify potential channels for the DAS.

C. Needs Assessment

Objective: Understand the specific requirements and constraints of the deployment.

Stakeholder Meetings: Engage with building owners, IT staff, and end-users to gather requirements.

Capacity Planning: Estimate the number of users and devices, peak usage times, and data throughput needs.

Coverage Requirements: Define the areas that need coverage, including indoor and outdoor spaces.

Future-Proofing: Consider future expansion and technology upgrades.

D. Regulatory and Compliance

Objective: Ensure compliance with local regulations and standards.

Activities:

Regulatory Research: Identify and understand relevant regulations and standards.

Permits and Approvals: Obtain necessary permits and approvals from local authorities.

2. Network Design and Layout

A. System Architecture

Objective: Define the overall architecture of the DAS.

Components:

Head-End Unit (HEU): Centralized unit that interfaces with the base station.

Remote Units (RUs): Distributed units that amplify and distribute the signal.

Antennas: Various types (e.g., omni-directional, directional) to cover different areas.

Cabling: Fiber optic or coaxial cables to connect the HEU and RUs.

B. Coverage Planning

Objective: Ensure comprehensive coverage throughout the site.

Activities:

Antenna Placement: Strategically place antennas to cover all required areas, minimizing overlap and interference.

Propagation Modeling: Use software tools to model RF propagation and optimize antenna placement.

Signal Strength Targets: Set target signal strength levels for different areas.

C. Capacity Planning

Objective: Ensure the system can handle the expected user load.

Activities:

Bandwidth Allocation: Allocate sufficient bandwidth to meet user demand.

Load Balancing: Distribute users and devices across multiple RUs to avoid congestion.

Redundancy and Resilience: Design for redundancy to ensure continuous operation in case of component failure.

D. Integration with 5G Core Network

Objective: Seamlessly integrate the DAS with the existing 5G core network.

Activities:

Backhaul Connectivity: Ensure reliable and high-capacity backhaul connections from the HEU to the core network.

Synchronization: Ensure proper synchronization between the DAS and the core network to avoid timing issues.

Network Management: Integrate the DAS with network management systems for monitoring and control.

E. Testing and Optimization

Objective: Validate the design and optimize performance.

Activities

Initial Testing: Perform initial tests to verify signal strength, coverage, and capacity.

Optimization: Adjust antenna placements, power levels, and configurations based on test results.

Final Validation: Conduct comprehensive testing to ensure the system meets all requirements.

F. Documentation and Training

Objective: Provide thorough documentation and training for ongoing operation and maintenance.

Activities

Documentation: Create detailed documentation, including system diagrams, configuration settings, and maintenance procedures.

Training: Train the IT staff and maintenance personnel on system operation, troubleshooting, and maintenance.

By following these steps, you can design and deploy a robust DAS system that meets the specific needs of a 5G network, ensuring optimal coverage, capacity, and performance for users.

Installation Best Practices

Distributed Antenna Systems (DAS) are critical for enhancing cellular coverage, especially for 5G networks, which require precise and efficient installations. Here are some best practices for mounting, positioning, cabling, and connections:

Mounting and Positioning

1. Site Survey and Planning:

Conduct a thorough site survey to understand the building layout, materials, and existing infrastructure.

Use tools like RF site survey software to map signal strength and identify coverage gaps.

2. Optimal Antenna Placement:

Position antennas to cover high-traffic areas such as lobbies, conference rooms, and hallways.

Avoid placing antennas near large metal objects or structures that can cause signal reflection and interference.

Ensure antennas are mounted at a height that maximizes coverage while minimizing obstructions.

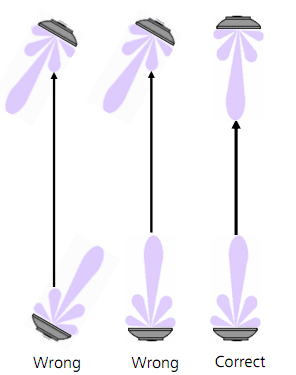

3. Antenna Orientation:

Align antennas according to the manufacturer’s specifications to ensure optimal signal propagation.

Use directional antennas to focus coverage in specific areas and omnidirectional antennas for broader coverage.

4. Mounting Hardware:

Use appropriate mounting brackets and hardware to securely attach antennas to walls, ceilings, or poles.

 Ensure that mounting hardware is compatible with the antenna type and the surface it is being mounted on.

5. Environmental Considerations:

Ensure that all equipment is rated for the environmental conditions of the installation site (e.g., temperature, humidity, exposure to elements).

Use weatherproof enclosures for outdoor installations.

Cabling and Connections

1. Cable Selection:

Use high-quality, low-PIM coaxial cables (e.g., RG141 ) to minimize signal degradation.

Ensure that the cable type matches the frequency range and power levels of the DAS system.

2. Cable Routing:

 Plan cable routes to minimize length and avoid sharp bends, which can cause signal loss.

 Keep cables away from electrical wiring and other sources of electromagnetic interference (EMI).

3. Connector Quality:

Use high-quality connectors that match the cable type and ensure a secure, low-loss connection.

Avoid using adapters or connectors that can introduce additional signal loss or points of failure.

4. Termination and Testing:

Properly terminate cables using appropriate tools and techniques to ensure reliable connections.

Test each cable segment for continuity, signal loss, and reflection using a network analyzer or similar tool.

5. Labeling and Documentation:

Clearly label all cables, connectors, and equipment for easy identification and troubleshooting.

Maintain detailed documentation of the installation, including cable routes, antenna locations, and test results.

6. Power and Grounding:

 Ensure proper grounding of all DAS components to protect against electrical surges and ensure safety.

Use power supplies and backup systems that meet the power requirements of the DAS equipment.

7. Signal Splitters and Amplifiers:

Use signal splitters and amplifiers as needed to distribute the signal evenly and boost weak signals.

Ensure that splitters and amplifiers are compatible with the DAS system and do not introduce significant signal loss or noise.

By adhering to these best practices, you can ensure a reliable and efficient DAS installation that enhances 5G network coverage and performance. Regular maintenance and periodic testing are also recommended to keep the system operating at its best.

Testing and Optimization

Distributed Antenna Systems (DAS) play a crucial role in enhancing the coverage and capacity of 5G networks. Proper testing and optimization of DAS are essential to ensure optimal performance. Below are the key aspects to consider:

Signal Testing and Calibration

1. Initial Site Survey

Objective: Assess the current signal strength and identify areas with weak coverage.

Tools: Spectrum analyzers, signal generators, and mobile devices with network testing apps.

Procedure: Conduct a walk-through survey to map existing signal levels and interference sources.

2. Installation Verification

Objective: Ensure that all components (antennas, cables, amplifiers) are correctly installed.

Tools: Visual inspection tools, cable testers, and antenna alignment tools.

Procedure: Verify physical connections, proper grounding, and correct antenna orientation.

3. Signal Calibration

Objective: Fine-tune the system for optimal performance.

Tools: Network analyzers, power meters, and signal generators.

Procedure:

Power Level Adjustment: Adjust the power levels of amplifiers and repeaters to ensure uniform coverage.

Frequency Calibration: Ensure that the DAS system operates within the designated frequency bands for 5G.

Antenna Alignment: Optimize the orientation and placement of antennas for maximum coverage and minimal interference.

4. Performance Testing

Objective: Evaluate the performance of the DAS system under various conditions.

Tools: Mobile devices with network testing apps, throughput testers, and latency measurement tools.

Procedure:

Throughput Testing: Measure data rates to ensure they meet the expected 5G performance levels.

Latency Testing: Test the round-trip time to ensure it meets low-latency requirements.

Hand-off Testing: Verify seamless hand-offs between DAS nodes and macro cells.

Troubleshooting Common Issues

1. Signal Interference

Symptoms: Poor signal quality, dropped connections, and reduced data rates.

Troubleshooting Steps:

Identify Interference Sources: Use spectrum analyzers to identify and locate interference sources.

Mitigate Interference: Implement filters, change frequencies, or physically relocate interfering devices.

2. Power Imbalance

Symptoms: Uneven coverage, with some areas having weak signals.

Troubleshooting Steps:

Check Amplifiers: Ensure that all amplifiers are functioning correctly and set to appropriate power levels.

Balance Power Levels: Adjust the power levels of the DAS nodes for uniform coverage.

3. Cable and Connector Issues

Symptoms: Signal loss, poor connectivity, and intermittent issues.

Troubleshooting Steps:

Inspect Cables and Connectors: Look for physical damage, loose connections, and signs of wear.

Test Continuity: Use cable testers to check for continuity and signal loss.

4. Antenna Problems

Symptoms: Dead zones, weak signals in specific areas.

Troubleshooting Steps:

Check Antenna Placement: Ensure antennas are correctly placed and oriented.

Test Antenna Functionality: Use network analyzers to test the performance of individual antennas.

5. Network Configuration Issues

Symptoms: Inconsistent performance, connectivity issues.

Troubleshooting Steps

Review Configuration Settings: Ensure that the DAS system is correctly configured to work with the 5G core network.

Update Firmware: Ensure that all DAS components are running the latest firmware.

Conclusion

Testing and optimizing a DAS system for 5G networks requires a systematic approach to ensure robust performance. By conducting thorough signal testing and calibration, and addressing common issues through effective troubleshooting, you can achieve optimal coverage and capacity for 5G deployments. Regular maintenance and updates are also essential to keep the DAS system performing at its best.

Ongoing Maintenance

Maintaining a Distributed Antenna System (DAS) for 5G networks is crucial to ensure optimal performance, reliability, and longevity. Here are some key aspects of ongoing maintenance:

Routine Inspections and Upgrades

1. Regular Site Surveys:

Conduct periodic site surveys to assess the physical condition of antennas, cables, and other hardware.

Check for any signs of wear, corrosion, or physical damage.

2. Performance Monitoring:

Utilize network monitoring tools to continuously track the performance of the DAS.

Monitor key performance indicators (KPIs) such as signal strength, data throughput, and latency.

3. Firmware and Software Updates:

Keep all DAS components up to date with the latest firmware and software versions.

Implement security patches and updates to protect against vulnerabilities.

4. System Calibration:

Regularly calibrate the system to ensure that it is operating within the specified parameters.

Adjust signal levels and configurations as needed to maintain optimal performance.

5. Capacity Upgrades:

Assess the need for capacity upgrades based on user demand and network traffic patterns.

Plan and execute upgrades to support increased data rates and user density.

Ensuring Longevity and Performance

1. Preventive Maintenance:

Implement a preventive maintenance schedule to address potential issues before they become critical.

Clean and inspect equipment to prevent dust and debris from affecting performance.

2. Environmental Controls:

Ensure that equipment is housed in environments with proper temperature and humidity controls.

Use protective enclosures to shield equipment from environmental hazards.

3. Backup Power Systems:

Maintain and test backup power systems, such as uninterruptible power supplies (UPS) and generators.

Ensure that power redundancy is in place to prevent downtime during power outages.

4. Documentation and Record Keeping:

Keep detailed records of all maintenance activities, inspections, and upgrades.

Use documentation to track the lifespan of components and plan for future replacements.

5. Training and Knowledge Sharing:

Provide ongoing training for maintenance personnel to keep them updated on the latest technologies and best practices.

Encourage knowledge sharing among team members to improve overall maintenance efficiency.

6. Vendor Support and Partnerships:

Maintain strong relationships with equipment vendors and service providers.

Leverage vendor support for troubleshooting, repairs, and obtaining replacement parts.

7. Compliance and Standards:

Ensure that the DAS complies with all relevant industry standards and regulations.

Stay informed about changes in regulatory requirements and adjust maintenance practices accordingly.

By implementing these maintenance strategies, you can ensure that your DAS system for 5G networks remains reliable, performs optimally, and has a long operational life.

Chapter 6: Advances in 5G DAS Antenna Technology

Innovations in Antenna Design

The deployment of 5G networks has necessitated significant advancements in antenna design to meet the new performance requirements. Two of the most impactful innovations in this space are Smart Antennas and MIMO (Multiple Input Multiple Output) Technologies. Here’s a closer look at how these innovations are shaping 5G Distributed Antenna Systems (DAS):

Smart Antennas

1. Beamforming

Adaptive Beamforming: Smart antennas use adaptive beamforming to dynamically steer the antenna beam towards the user. This enhances signal strength and quality while reducing interference.

Massive Beamforming: Leveraging large arrays of antennas, massive beamforming can focus signals more precisely, which is crucial for 5G’s high-frequency millimeter-wave bands.

2. Spatial Filtering

Interference Mitigation: By selectively filtering out unwanted signals, smart antennas can improve the signal-to-noise ratio, enhancing overall network performance.

Spatial Diversity: Utilizing multiple antennas to receive the same signal from different paths, spatial diversity helps in mitigating multipath fading, thus improving reliability.

3. Dynamic Reconfiguration

Real-Time Adaptation: Smart antennas can adapt their configuration in real-time based on user movement and environmental changes, ensuring consistent service quality.

Network Slicing: They facilitate network slicing by dynamically allocating resources to different types of services (e.g., IoT, enhanced mobile broadband) based on demand.

MIMO (Multiple Input Multiple Output) Technologies

1. Massive MIMO

Increased Capacity: Massive MIMO involves using a large number of antennas at the base station to serve multiple users simultaneously. This dramatically increases network capacity and spectral efficiency.

Enhanced Throughput: By transmitting multiple data streams simultaneously, massive MIMO significantly boosts data throughput, which is essential for 5G’s high-speed requirements.

2. Spatial Multiplexing

Parallel Data Streams: Spatial multiplexing allows multiple data streams to be transmitted over the same frequency channel, effectively multiplying the data rate without requiring additional bandwidth.

Improved Spectral Efficiency: This technique enhances spectral efficiency, which is critical for managing the limited spectrum resources available for 5G.

3. Diversity Techniques

Transmit Diversity: By sending the same signal from multiple antennas, transmit diversity improves signal robustness and reduces the probability of signal fading.

Receive Diversity: Multiple antennas at the receiver end can combine signals to improve reception quality, enhancing overall network reliability.

Integration in 5G DAS Networks

1. Enhanced Coverage

Indoor and Outdoor Solutions: Smart antennas and MIMO technologies are integrated into DAS to provide seamless coverage in both indoor and outdoor environments, addressing the challenges of signal penetration and propagation.

Small Cells and Repeaters: These technologies are also used in small cells and repeaters within DAS to extend coverage and capacity in densely populated areas.

2. Improved User Experience

Higher Data Rates: With the combination of beamforming, spatial multiplexing, and massive MIMO, users experience significantly higher data rates and lower latency, essential for applications like augmented reality (AR) and virtual reality (VR).

Consistent Connectivity: Dynamic reconfiguration and adaptive beamforming ensure that users maintain consistent connectivity even in high-mobility scenarios, such as in vehicles or crowded urban areas.

Challenges and Future Directions

1. Complexity and Cost

Design and Deployment: The complexity of designing and deploying smart antennas and massive MIMO systems can be high, requiring sophisticated algorithms and hardware.

Cost Considerations: The initial cost of implementing these advanced systems can be significant, though the long-term benefits often justify the investment.

2. Standardization and Interoperability

Industry Standards: Ensuring that smart antennas and MIMO technologies comply with industry standards is crucial for interoperability and seamless integration into existing networks.

Vendor Collaboration: Collaboration between different vendors and stakeholders is essential to address compatibility and standardization issues.

Conclusion

Innovations in smart antennas and MIMO technologies are at the forefront of 5G DAS network development, driving improvements in coverage, capacity, and user experience. While challenges remain, ongoing research and development efforts are likely to yield even more advanced solutions, paving the way for the full realization of 5G’s potential.

Integration with Emerging Technologies

The advent of 5G Distributed Antenna Systems (DAS) opens up a plethora of opportunities for integrating emerging technologies, particularly the Internet of Things (IoT) and Edge Computing. Here’s how these technologies can be synergistically integrated:

1. Internet of Things (IoT) Applications

a. Enhanced Connectivity:

5G DAS networks provide the high-speed, low-latency, and high-capacity connectivity that IoT devices require. This is particularly important for applications such as smart cities, industrial automation, healthcare, and autonomous vehicles.

b. Scalability:

With 5G DAS, the network can support a massive number of connected devices, which is essential for IoT ecosystems where thousands of sensors and devices might be deployed in a single environment.

c. Real-time Data Processing:

The low latency of 5G DAS networks enables real-time data collection and processing from IoT devices. This is crucial for applications that require immediate responses, such as autonomous driving, remote surgery, and real-time monitoring systems.

d. Energy Efficiency:

5G networks are designed to be more energy-efficient, which is beneficial for IoT devices that often operate on batteries. Efficient power usage extends the operational life of these devices.

e. Enhanced Security:

5G DAS networks incorporate advanced security features that can help protect IoT devices and the data they generate from cyber threats.

2. Edge Computing

a. Reduced Latency:

Edge computing brings data processing closer to the source of data generation. When integrated with 5G DAS, this reduces the latency even further, enabling faster decision-making processes for critical applications.

b. Bandwidth Optimization:

By processing data at the edge, the amount of data that needs to be transmitted over the network is reduced, freeing up bandwidth and improving overall network performance. This is particularly useful in environments with high data volumes, such as smart factories or connected healthcare systems.

c. Enhanced Reliability:

Edge computing can provide localized processing capabilities, ensuring that even if the central cloud experiences downtime, critical applications can continue to function. This is especially important for mission-critical IoT applications.

d. Data Privacy:

With edge computing, sensitive data can be processed locally rather than being transmitted to a central cloud, enhancing data privacy and security. This is crucial for applications in healthcare, finance, and other sectors where data sensitivity is paramount.

e. Contextual Awareness:

Edge computing can leverage local data to provide context-aware services. For example, in a smart city, edge nodes can process data from local sensors to provide real-time traffic management, environmental monitoring, and public safety services.

Practical Integration Strategies

a. Network Architecture Design:

Design the 5G DAS network to include edge nodes strategically placed to handle the data processing needs of IoT devices. These nodes should be capable of handling the specific requirements of the applications they support.

b. Collaborative Protocols:

Develop protocols that enable seamless collaboration between the 5G DAS network, IoT devices, and edge computing nodes. This includes data sharing, processing delegation, and resource management protocols.

c. Security Frameworks:

Implement robust security frameworks that cover the entire ecosystem, from IoT devices to edge nodes and the central cloud. This includes encryption, authentication, and anomaly detection mechanisms.

d. Performance Monitoring:

Continuously monitor the performance of the integrated system to ensure that it meets the required service levels. Use advanced analytics and machine learning to predict and mitigate potential issues.

e. Standardization and Interoperability:

Adopt industry standards to ensure interoperability between different devices and systems. This is crucial for creating a cohesive ecosystem where devices from different manufacturers can work together seamlessly.

Conclusion

The integration of IoT applications and edge computing with 5G DAS networks represents a significant leap forward in creating intelligent, responsive, and efficient systems. By leveraging the strengths of these technologies, we can develop advanced applications that were previously not feasible, driving innovation across various sectors.

Future Trends and Predictions

The development and deployment of 5G Distributed Antenna Systems (DAS) are expected to bring about significant changes and advancements in wireless communication. Here are some future trends and predictions for 5G DAS networks:

1. Increased Adoption in Urban Areas: As cities become more densely populated, the demand for high-speed, reliable connectivity will grow. 5G DAS networks will be crucial in providing seamless coverage in urban environments, including high-rise buildings, stadiums, and shopping malls.

2. Enhanced Network Capacity and Speed: 5G DAS will significantly increase network capacity and data speeds, supporting the growing number of connected devices and the demand for high-bandwidth applications such as video streaming, virtual reality, and augmented reality.

3. Integration with IoT: The Internet of Things (IoT) is expected to expand rapidly, with billions of devices connected to the internet. 5G DAS will play a critical role in supporting the connectivity and communication needs of these IoT devices, enabling smart cities, smart homes, and industrial automation.

4. Improved Energy Efficiency: Advances in technology and design will lead to more energy-efficient 5G DAS networks. This will help reduce the environmental impact of expanding network infrastructure and lower operational costs for service providers.

5. Private 5G Networks: There will be an increasing demand for private 5G networks, particularly in industries such as manufacturing, logistics, healthcare, and education. 5G DAS will be integral in deploying these private networks, providing secure and reliable connectivity tailored to specific organizational needs.

6. Edge Computing Integration: The integration of edge computing with 5G DAS networks will become more prevalent. This will enable real-time data processing and analytics closer to the source, reducing latency and improving the performance of applications such as autonomous vehicles, telemedicine, and industrial automation.

7. Advanced Network Management and Automation: The use of artificial intelligence (AI) and machine learning (ML) for network management and optimization will become more common. These technologies will help in predicting network issues, optimizing resource allocation, and ensuring efficient operation of 5G DAS networks.

8. Enhanced Security Features: As 5G networks become more critical to various sectors, the focus on security will intensify. 5G DAS networks will incorporate advanced security measures to protect against cyber threats and ensure the integrity and confidentiality of data.

9. Expansion into Rural Areas: While initial 5G DAS deployments will focus on urban areas, there will be a gradual expansion into rural and underserved regions. This will help bridge the digital divide and provide high-speed connectivity to remote communities.

10. Collaboration with Satellite Networks: The integration of 5G DAS with satellite networks will enhance coverage in areas where traditional terrestrial networks are not feasible. This collaboration will provide global connectivity, supporting applications such as maritime communication, remote sensing, and disaster recovery.

11. Regulatory and Standardization Developments: As 5G technology evolves, there will be ongoing developments in regulations and standards. These will shape the deployment and operation of 5G DAS networks, ensuring interoperability, safety, and compliance with international guidelines.

Overall, the future of 5G DAS networks looks promising, with numerous advancements and innovations on the horizon. These developments will not only enhance connectivity and communication but also drive economic growth and improve the quality of life for people around the world.

Conclusion

Final Considerations for Choosing 5G DAS Antennas

Choosing the right Distributed Antenna System (DAS) antennas for a 5G network is crucial for ensuring optimal performance, coverage, and user experience. Here are some final considerations to keep in mind:

1. Frequency Bands:

Ensure the antenna supports the specific frequency bands used by your 5G network (e.g., sub-6 GHz, mmWave).

Check for multi-band support if your network operates across multiple frequency bands.

2. Coverage Area:

Determine the size and layout of the area that needs coverage.

Choose antennas with the appropriate gain and radiation pattern to match the coverage requirements (e.g., omni-directional for wide coverage, directional for focused coverage).

3. Capacity Requirements:

Assess the number of users and the expected data traffic in the coverage area.

Select antennas that can handle the anticipated load and provide the necessary throughput.

4. Antenna Type:

Decide between indoor and outdoor antennas based on the deployment environment.

Consider the form factor and mounting options (e.g., ceiling-mount, wall-mount, pole-mount) that best suit the installation site.

5. MIMO Support:

Ensure the antennas support Multiple Input Multiple Output (MIMO) technology, which is essential for achieving high data rates and reliability in 5G networks.

6. Interference Management:

Evaluate the potential for interference from other wireless systems and select antennas with appropriate isolation and filtering capabilities.

Consider using beamforming antennas to minimize interference and improve signal quality.

7. Antenna Gain:

Higher gain antennas can provide better coverage and signal strength but may have a narrower beamwidth.

Balance gain and beamwidth to match the specific coverage needs and avoid coverage gaps.

8. Environmental Considerations:

For outdoor deployments, ensure the antennas are weatherproof and can withstand harsh environmental conditions (e.g., rain, wind, temperature extremes).

 Check for compliance with relevant standards and certifications (e.g., IP rating for ingress protection).

9. Scalability and Future-Proofing:

Choose antennas that can easily integrate with future upgrades and expansions of the network.

Consider antennas that support upcoming 5G features and enhancements to avoid the need for frequent replacements.

10. Cost and Budget:

Balance the performance and features of the antennas with your budget constraints.

Factor in the total cost of ownership, including installation, maintenance, and potential future upgrades.

11. Vendor Support and Warranty:

Select antennas from reputable vendors who offer robust technical support and warranty services.

Consider the availability of spare parts and the vendor’s track record for reliability and customer service.

12. Compliance and Regulations:

Ensure the antennas comply with local regulatory requirements and standards for 5G deployments.

Check for any specific certifications needed for operation in your region.

By carefully considering these factors, you can select the right 5G DAS antennas that will provide reliable, high-performance coverage and meet the specific needs of your deployment.

Resources for Further Learning and Assistance

Books and Publications

1. “5G NR: The Next Generation Wireless Access Technology” by Erik Dahlman, Stefan Parkvall, and Johan Skold

A comprehensive guide to 5G technology, covering all aspects from the fundamentals to advanced concepts.

2. “Fundamentals of 5G Mobile Networks” by Jonathan Rodriguez

Provides an in-depth look at the principles and technologies underpinning 5G networks, including DAS.

3. IEEE Xplore Digital Library

Access a wealth of research papers, articles, and standards related to 5G and DAS.

Online Courses and Tutorials

1. Coursera – “5G Technology”

 A series of courses offered by leading universities and institutions covering various aspects of 5G technology.

2. edX – “5G: Next Generation Networks”

Courses and certifications offered by top universities to understand the technical and business aspects of 5G.

3. Udemy – “5G for Absolute Beginners”

A beginner-friendly course to understand the basics of 5G technology.

Industry Websites and Forums

1. 3GPP (3rd Generation Partnership Project)

The official site for the global standards body that develops protocols for mobile telephony. It’s a great resource for technical specifications and updates.

2. GSMA (GSM Association)

Provides resources, research papers, and industry insights into mobile communications, including 5G.

3. RF Wireless World

Offers tutorials, articles, and resources on RF and wireless technologies, including 5G and DAS.

4. Reddit – r/5GTechnology

A community-driven forum where you can ask questions, share knowledge, and stay updated with the latest in 5G technology.

Manufacturer Resources

1. CommScope

Offers white papers, technical guides, and case studies on DAS and 5G antenna solutions.

2. Corning Optical Communications

 Provides detailed resources and support for their DAS and 5G products.

3. Nokia Networks

Offers comprehensive guides, white papers, and technical support for their 5G solutions.

4. Sanny Telecom

A professional antenna manufacturer of 4G/5G low PIM DAS antennas from China.

Conferences and Webinars

1. Mobile World Congress (MWC)

One of the largest conferences focusing on mobile technology, including 5G and DAS.

2. IEEE International Conference on Communications (ICC)

 A premier conference for researchers and practitioners in the fields of communications and networking.

3. Webinars by Telecom Industry Leaders

Many companies like Ericsson, Huawei, and Qualcomm frequently host webinars on 5G topics.

Professional Organizations

1. IEEE Communications Society

Membership provides access to a vast array of resources, including journals, conferences, and networking opportunities.

2. Small Cell Forum

Focuses on accelerating small cell adoption to drive the wide-scale deployment of 5G networks.

Technical Support and Consultation

1. Technical Support from Manufacturers

Many antenna and equipment manufacturers offer technical support and consultation services to help you choose and deploy the right DAS solutions.

2. Professional Consultants

Hiring a consultant with expertise in 5G and DAS can provide tailored advice and solutions specific to your needs.

Software Tools

1. iBwave Design

A software tool for designing and planning in-building wireless networks, including DAS.

2. Ekahau Site Survey

 Useful for planning and optimizing wireless network deployments.

By leveraging these resources, you can gain a thorough understanding of 5G DAS antennas and make informed decisions for your specific needs.

Appendices

Frequently Asked Questions (FAQs)

1. What is a 5G DAS Antenna?

A 5G Distributed Antenna System (DAS) antenna is a component of a network that enhances wireless coverage and capacity, specifically designed to support 5G technology.

2. Why is choosing the right 5G DAS antenna important?

Selecting the appropriate antenna ensures optimal coverage, capacity, and performance of the 5G network, meeting specific needs and environmental conditions.

3. What are the different types of 5G DAS antennas available?

Types include omnidirectional, directional, panel, yagi, and small cell antennas, each suited for different applications and environments.

4. How do I determine the coverage area for a 5G DAS antenna?

Coverage area depends on factors such as antenna type, placement, power, and environmental obstructions. Site surveys and propagation modeling can help determine this.

5. What frequency bands do 5G DAS antennas support?

5G DAS antennas support various frequency bands, commonly including low-band (600 MHz to 1 GHz), mid-band (1 GHz to 6 GHz), and high-band (millimeter-wave, 24 GHz and above).

6. What is the difference between indoor and outdoor 5G DAS antennas?

Indoor antennas are designed for environments like buildings and tunnels, focusing on aesthetics and low power, while outdoor antennas are built to withstand weather conditions and cover larger areas.

7. How does antenna gain affect 5G DAS performance?

Antenna gain measures how well an antenna converts input power into radio waves in a specific direction, impacting the range and quality of the signal.

8. What are the key considerations for antenna placement in a 5G DAS?

Key considerations include height, distance from obstructions, orientation, and proximity to users, ensuring optimal signal strength and coverage.

9. How does the environment impact 5G DAS antenna performance?

Physical obstructions, materials, and interference sources can affect signal propagation, requiring careful planning and possibly more antennas to ensure coverage.

10. What is MIMO, and why is it important for 5G DAS antennas?

MIMO (Multiple Input Multiple Output) uses multiple antennas to transmit and receive more data simultaneously, enhancing capacity and performance, crucial for 5G networks.

11. Can 5G DAS antennas be used for both 4G and 5G networks?

Yes, many 5G DAS antennas are designed to be backward compatible with 4G LTE, allowing for a smoother transition and co-existence.

12. What are the power requirements for 5G DAS antennas?

Power requirements vary based on antenna type and application, with considerations for power supply, backup, and energy efficiency.

13. How do I handle interference issues with 5G DAS antennas?

Interference can be managed through careful frequency planning, proper antenna placement, and using filters and shielding techniques.

14. What is beamforming, and how does it relate to 5G DAS antennas?

Beamforming is a technology that directs signals towards specific users rather than broadcasting in all directions, improving efficiency and performance.

15. How do I ensure my 5G DAS antenna system is future-proof?

Choose antennas that support a wide range of frequencies and technologies, and consider modular systems that can be easily upgraded.

16. What are the installation requirements for 5G DAS antennas?

Requirements include mounting hardware, cabling, power sources, and compliance with local regulations and standards.

17. How do I maintain and troubleshoot 5G DAS antennas?

Regular inspections, monitoring signal strength, and using diagnostic tools can help maintain performance and address issues promptly.

18. What are the cost considerations for 5G DAS antennas?

Costs include the initial purchase, installation, maintenance, and potential upgrades, balanced against the benefits of improved coverage and capacity.

19. How do I choose between different manufacturers and models of 5G DAS antennas?

Consider factors such as performance specifications, compatibility, reliability, customer reviews, and support services.

20. What are the regulatory and compliance considerations for 5G DAS antennas?

Ensure antennas meet local and international regulations, including safety standards, frequency usage, and emissions guidelines.

These FAQs address a broad range of concerns and considerations, providing a comprehensive guide for selecting the right 5G DAS antennas.

References and Further Reading

Books

1. “5G NR: The Next Generation Wireless Access Technology” by Erik Dahlman, Stefan Parkvall, and Johan Skold

This book provides a comprehensive overview of 5G New Radio (NR) technology, including the principles and specifications that underpin 5G networks.

2. “Distributed Antenna Systems: Open Architecture for Future Wireless Communications” by Yan Zhang, Jijun Luo, and Honglin Hu

This book covers the fundamentals and advancements in Distributed Antenna Systems, offering insights into their architecture and applications in modern wireless communications.

Research Papers and Articles:

1. “A Survey on 5G: The Next Generation of Mobile Communication” by Akhil Gupta and Rakesh Kumar Jha

This paper provides an extensive survey of 5G technology, including its architecture, key features, and the role of DAS in enhancing network performance.

– [Link to Paper](https://ieeexplore.ieee.org/document/7807172)

2. “Design and Deployment Considerations for 5G Small Cell Networks” by Harpreet S. Dhillon and Jeffrey G. Andrews

– This article discusses the design and deployment strategies for 5G small cell networks, which are closely related to DAS implementations.

– [Link to Paper](https://ieeexplore.ieee.org/document/7876858)

Standards and Technical Reports

1. 3GPP Technical Specifications

– The 3rd Generation Partnership Project (3GPP) provides a series of technical specifications and reports that define the standards for 5G networks, including aspects relevant to DAS.

– [3GPP Specifications](https://www.3gpp.org/specifications)

2. “5G Americas White Papers”

– 5G Americas publishes white papers that offer insights into various aspects of 5G technology, including deployment strategies and the role of DAS.

– [5G Americas White Papers](https://www.5gamericas.org/white-papers/)

Industry Reports

1. “5G Technology Market – Global Forecast to 2026” by MarketsandMarkets

– This market research report provides an analysis of the 5G technology market, including trends, growth factors, and the adoption of DAS in 5G networks.

– [MarketsandMarkets Report](https://www.marketsandmarkets.com/Market-Reports/5g-technology-market-202955795.html)

2. “Global Distributed Antenna System (DAS) Market Report” by Grand View Research

– This report offers an in-depth analysis of the DAS market, including key players, market trends, and the impact of 5G technology.

– [Grand View Research Report](https://www.grandviewresearch.com/industry-analysis/distributed-antenna-system-das-market)

Online Resources

1. 5G.co.uk

– A comprehensive resource for news, articles, and guides related to 5G technology, including DAS.

– [5G.co.uk](https://5g.co.uk/)

2. RF Wireless World

– This website offers tutorials, articles, and resources on RF and wireless technologies, including DAS and 5G.

– [RF Wireless World](https://www.rfwireless-world.com/)

3. CommScope Blog

– CommScope provides a blog with articles and insights on DAS, 5G, and other wireless communication technologies.

– [CommScope Blog](https://www.commscope.com/blog/)

These resources should provide you with a solid foundation and deeper understanding of the factors to consider when choosing the right 5G DAS antennas.

Contact Information

If you need further assistance, you can contact Andrew Chen, an antenna expert with 15 years’ experience and know-how from Sanny Telecom. His contact information is as follows:

– Website: www.sannytelecom.com

– Email: andrew@sannytelecom.com

– WhatsApp: +86 189 3430 8461
