The use of 5G mmWave antennas is crucial for the success of the fifth generation of mobile networks, especially in the millimeter-wave spectrum (30 GHz to 300 GHz). This frequency band offers a large amount of bandwidth to meet the increasing need for data, but it also comes with its own set of obstacles, like shorter distances and vulnerability to obstacles. To overcome these obstacles and make the most of the mmWave spectrum, different types of antennas and technologies are being created and used. In this article, we will discuss top 7 types of 5G mmWave antennas.

Phased Array Antennas

Phased array antennas consist of multiple antenna elements, each with its own phase shifter, which allows the direction of the beam to be electronically controlled. This capability is crucial for mmWave frequencies because it enables dynamic beamforming. Dynamic beamforming means that the beam can be directed towards the intended user and can adjust in real-time to changes in the environment and movement. Phased arrays can support multiple beams simultaneously, which provides flexibility and improved coverage for mmWave networks.

In addition to enabling dynamic beamforming, phased array antennas also offer several other advantages for mmWave networks. First, they can provide higher gain compared to traditional antennas, which helps to overcome the higher path loss at mmWave frequencies. This increased gain allows for longer range and better coverage.

Second, phased arrays can support beamsteering, which means that the beam can be directed towards the intended user, while simultaneously nulling out interference from other directions. This helps to improve the signal quality and capacity of the network.

Third, phased arrays can be used for spatial multiplexing, which means that multiple data streams can be transmitted and received simultaneously using different antenna elements. This increases the data rate and capacity of the network.

Overall, phased array antennas are a critical technology for mmWave networks, as they enable dynamic beamforming, provide higher gain, support beamsteering, and allow for spatial multiplexing. These capabilities help to overcome the challenges of mmWave frequencies and enable the deployment of high-speed, high-capacity wireless networks.

Beamforming Antennas

Beamforming is particularly important in 5G mmWave communications due to the challenges posed by these high-frequency signals. Beamforming is used to focus the signal in a specific direction, which increases the signal strength and range. By doing so, beamforming helps overcome the propagation challenges of mmWave frequencies. Beamforming can be used in both the base station and the user equipment, allowing for optimization of the communication link.

Patch Antennas

Patch antennas are compact and low-profile, which makes them suitable for integration into smartphones and other small devices. They can be designed to operate at mmWave frequencies and can support beamforming and MIMO technologies. Patch antennas can be arrayed to form larger antenna systems capable of more sophisticated beamforming and spatial multiplexing, which increases the system’s capacity and coverage.

Patch antennas are also relatively easy to manufacture and can be printed on a variety of substrates, such as printed circuit boards (PCBs) or flexible materials. This makes them cost-effective and versatile for various applications.

Furthermore, patch antennas have a directional radiation pattern, which means they can focus their energy in a specific direction. This makes them suitable for point-to-point communication or for reducing interference in crowded environments.

Overall, patch antennas offer a combination of compact size, low profile, high performance, and cost-effectiveness, making them an ideal choice for many wireless communication systems.

Reflectarray Antennas

Reflectarrays are made up of a planar surface with multiple tiny elements that can be controlled to reflect incoming signals in a specific direction. By adjusting the phase of the signal at each element, a reflectarray can concentrate and steer the beam in a similar way to a phased array antenna, but often at a lower cost and complexity. Reflectarrays are applicable in 5G millimeter-wave (mmWave) base stations and fixed wireless access points.

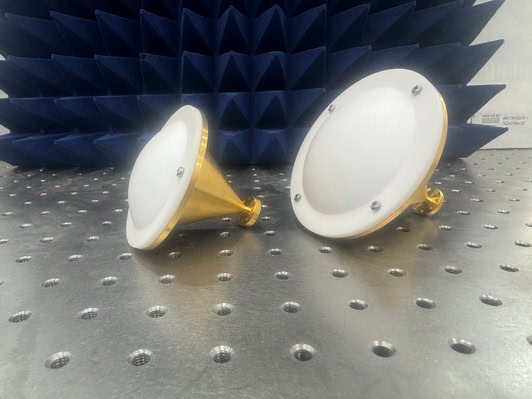

Lens Antennas

Lens antennas are antennas that use a dielectric lens to focus and direct mmWave signals. They provide a high-gain solution that can enhance the range and efficiency of mmWave communications. Lens antennas can be designed to be electronically steerable, providing beamforming capabilities without the need for multiple antenna elements and phase shifters. This can potentially reduce cost and complexity.

Dipole Antennas

Dipole antennas are basic but efficient and can be created for mmWave frequencies. They can support beamforming and MIMO technologies when arranged in an array. Magneto-electric dipole antennas combine electric and magnetic dipole elements, providing wideband performance and favorable radiation characteristics, making them appropriate for 5G mmWave applications.

Slot Antennas

Slot antennas are a type of antenna that is created by cutting a slot in a conducting surface or cavity. They are commonly used in high-frequency applications, such as mmWave frequencies. Slot antennas are especially advantageous for integrated designs where space is limited.

One of the major advantages of slot antennas is their ability to be used in arrays. By combining multiple slot antennas, beamforming and spatial diversity can be achieved. This means that the antennas can focus their radiation pattern in a specific direction or provide multiple independent radiation patterns.

Another advantage of slot antennas is their ability to be easily integrated into other structures. They can be embedded into walls, ceilings, or other surfaces, making them inconspicuous and aesthetically pleasing. This makes them particularly useful for applications where the antenna needs to be hidden or integrated into a small form factor device.

In summary, slot antennas are efficient at mmWave frequencies, can be used in arrays for beamforming and spatial diversity, and are advantageous for integrated designs where space is limited.

Overall, each of these antennas has its own benefits and uses in the realm of 5G mmWave communication. The selection of an antenna depends on specific needs like frequency band, coverage area, device size, and cost factors. As 5G networks grow and develop, inventive antenna designs and technologies will continue to be vital in fully utilizing mmWave spectrum.
