Mounting brackets are essential components in the installation of various types of equipment, offering support and stability. The choice of the right mounting bracket depends on the specific requirements of the installation, such as the type of surface to which the equipment will be mounted, the environment (indoor or outdoor), and the weight and dimensions of the equipment itself. Here’s a closer look at the 10 different types of mounting brackets you’ve listed.

Adjustable Mounting Options

When it comes to flexibility in antenna installation, several adjustable mounting solutions are available to accommodate unique positioning needs:

• J-arm mounts: These offer rotation and tilt adjustments, making them ideal for directing dishes or antennas precisely where needed.
• Eave mounts with adjustable arms: Designed for installation under roof eaves, these mounts allow you to change both the height and the angle of your setup for optimal alignment.
• Pole mounts with pivot features: These enable you to easily adjust the orientation of the mounted device, ensuring a perfect signal with minimal effort.
• Multi-angle roof or wall mounts: Engineered to fit both horizontal and pitched surfaces, these options let you fine-tune the angle during installation for maximum versatility.

Such adjustable mounts are invaluable for installations where fine-tuning is necessary to maximize performance or to accommodate structural challenges.

L-Brackets

L-brackets are typically made of metal, such as steel or aluminum, and feature a 90-degree angle shape. One side of the bracket is longer than the other, allowing it to be attached to a surface, such as a wall or post, while the shorter side provides support for the item being mounted.

One of the main advantages of L-brackets is their simplicity. They are easy to install and require minimal tools and hardware. Typically, they are attached to a surface using screws or nails, and the item being mounted is then secured to the bracket using additional screws or bolts.

L-brackets are commonly used for shelving installations. They can be attached to a wall or other vertical surface, and then a shelf is placed on top of the bracket. The longer side of the bracket provides support for the shelf, preventing it from tipping or sagging under the weight of items placed on it.

Another common use for L-brackets is for mounting antennas. The bracket can be attached to a wall or post, and then the antenna is secured to the bracket. The solid support provided by the bracket helps keep the antenna stable and properly aligned.

In addition to shelving and antennas, L-brackets can be used for a variety of other applications. They are often used in construction and carpentry projects, such as building frames or reinforcing joints. They can also be used to mount signs, hang artwork, or secure furniture to a wall for added stability.

Overall, L-brackets are a versatile and practical solution for mounting and support needs. Their simple design and ease of installation make them a popular choice for both DIY enthusiasts and professional contractors.

Benefits of Three-Leg Mounts

Some mounting brackets, particularly those designed in a “Y” configuration, use a third leg to provide additional stability and load support. The extra leg acts as a brace, distributing weight and forces more evenly. This design greatly reduces the risk of swaying or tipping—especially important when mounting heavier antennas or dishes, or when installations are exposed to high winds, as on rooftops or tall masts.

For example, when installing a satellite dish or a large directional antenna, a traditional two-leg bracket may be sufficient for lighter loads or protected areas. However, adding a third leg bolsters the entire structure, minimizing movement and making the mount less susceptible to vibration or loosening over time. This is particularly valuable in outdoor or elevated settings where environmental factors can put extra strain on mounting hardware.

Three-leg mounts can also accommodate a wider range of equipment and varying installation surfaces. Whether securing a satellite dish, a Yagi antenna, or a Wi-Fi sector antenna, the reinforced triangular structure provides confidence that everything remains steady—even under load or shifting weather conditions.

In summary, brackets with a third leg are favored for their:

• Enhanced stability and lower risk of tipping
• Greater resistance to wind and vibration
• Versatility for mounting larger or heavier devices
• Improved long-term durability for outdoor use

U-Bolts

U-bolts are commonly made of steel or stainless steel, providing strength and durability in various weather conditions. They are available in different sizes and shapes to accommodate different pole diameters and applications.

The U-shape of the bolt allows it to wrap around the pole or cylindrical object, while the threaded ends extend outward. The nuts are then screwed onto the threaded ends, creating a secure and tight fit. The ability to adjust the tightness of the nuts makes U-bolts versatile and suitable for different installation requirements.

U-bolts are widely used in construction, automotive, and marine industries. They are commonly used to secure pipes, cables, or other equipment to poles, beams, or posts. In addition to antennas, they can be used to mount signs, lights, or other fixtures to poles or cylindrical objects.

When installing U-bolts, it is important to ensure that they are properly tightened to provide a secure fit. Over-tightening can damage the pole or object being secured, while under-tightening can result in a loose and unstable installation.

Overall, U-bolts are a reliable and adjustable solution for securing items to poles or cylindrical objects. With their strength, durability, and versatility, they are a popular choice for outdoor installations that require a secure and adjustable fit.

J-Poles

The J-pole is typically made of steel or stainless steel and consists of a long vertical section, a shorter horizontal section, and a mounting bracket. The vertical section acts as the antenna mast, while the horizontal section serves as the antenna element. The mounting bracket attaches to a wall, roof, or other structure, providing a secure base for the J-pole.

One of the main advantages of using a J-pole for antenna installations is its ease of installation. With only a few simple steps, the J-pole can be securely mounted, and the antenna can be attached to the horizontal section. This makes it a popular choice for DIY antenna projects.

Another benefit of the J-pole is its versatility. It can be used with a wide range of antenna types, including VHF and UHF antennas. Additionally, it can be used for both transmitting and receiving signals, making it suitable for amateur radio operators, CB radio users, and television viewers.

The J-pole’s design also helps improve antenna performance. By elevating the antenna away from the mounting surface, the J-pole helps reduce signal interference caused by the mounting structure. This can result in better signal reception and transmission.

Overall, the J-pole is a reliable and effective mounting solution for antenna installations. Its simple design, ease of installation, and improved performance make it a popular choice for both amateur and professional antenna users.

Chimney Mounts

Chimney mounts are specially designed mounts that are used to attach equipment to a chimney. These mounts are specifically designed to take into consideration the unique challenges of attaching equipment to a chimney, such as the need for a secure mounting point without damaging the structure of the chimney.

Chimney mounts typically consist of metal straps that wrap around the chimney and provide a secure mounting point for the equipment. These straps are designed to be adjustable, allowing them to fit chimneys of various sizes. The straps are typically made of metal, such as steel or aluminum, to provide strength and durability.

There are several types of chimney mounts available, including “Y” and “Z” style side mounts, each offering different support configurations. “Y” style mounts often feature a third leg for additional stability, making them ideal for heavier or larger installations. These mounts are commonly supplied with two heavy-duty galvanized or stainless steel straps, typically ranging from 12 to 18 feet in length, ensuring a snug and secure fit for a variety of chimney sizes and shapes.

Some chimney mounts are specifically designed to accommodate a range of foot-plates, antennas, and satellite dishes, offering flexibility for different installation needs. For specialized applications, such as mounting panel antennas used for 3GPP bands, dual cross-polarization support may be included.

By choosing the appropriate style and strap length, chimney mounts can provide a reliable and non-damaging solution for securely attaching equipment to chimneys, whether for TV antennas, satellite dishes, or other devices.

One common use for chimney mounts is attaching TV antennas to chimneys. TV antennas need to be mounted high up to receive a clear signal, and the chimney provides a convenient and sturdy mounting point. Chimney mounts allow TV antennas to be securely attached to the chimney without damaging the structure.

Another common use for chimney mounts is attaching satellite dishes to chimneys. Satellite dishes need to be positioned in a specific way to receive signals from satellites, and the chimney mount allows the dish to be positioned correctly. Again, the chimney mount provides a secure attachment point without damaging the chimney.

Overall, chimney mounts are a convenient and effective solution for attaching equipment to chimneys. They provide a secure mounting point without damaging the chimney’s structure, making them suitable for a variety of applications, such as TV antennas and satellite dishes.

Non-Penetrating Roof Mounts

Non-penetrating roof mounts are specialized mounting solutions designed for situations where drilling into the roof structure is not desirable or allowed. These mounts use a weighted base, often created by adding concrete blocks or similar materials, to provide stability without making holes in the roofing material.

These mounts are particularly useful for installing antennas and satellite dishes on flat roofs, as they minimize the risk of leaks or structural damage. Non-penetrating mounts are typically constructed from durable materials like galvanized steel to withstand outdoor elements and offer long-lasting support.

A major benefit of non-penetrating roof mounts is their versatility. They are engineered to accommodate a variety of equipment types, including antennas, foot-plates, and satellite dishes from leading manufacturers such as DIRECTV, Dish Network, and Winegard. The adjustable design of many non-penetrating mounts makes it easy to fit different sizes and configurations, making them suitable for both residential and commercial installations.

Overall, non-penetrating roof mounts provide an effective, secure, and roof-friendly way to install equipment, especially in scenarios where preserving the roof’s integrity is a top priority.

Y and Z-Type Side Chimney Mounts

Y-type and Z-type side chimney mounts are specialized brackets designed to secure antennas or equipment to the side of a chimney. These mounts offer additional flexibility when a standard chimney mount isn’t ideal—such as when there’s limited surface area or when you want to keep the installation as low-profile as possible.

Each Y or Z-type mount typically includes two heavy-duty galvanized steel straps, each about 18 feet long. These extra-long straps wrap around the chimney, providing a strong, stable hold while distributing pressure evenly to help prevent damage to the chimney structure. The mounts themselves are shaped to fit securely against the side of the chimney and provide a solid attachment point for your equipment.

This combination makes Y and Z-type side chimney mounts a reliable option for mounting antennas, dishes, or similar devices, especially in situations where standard mounts just won’t do the trick.

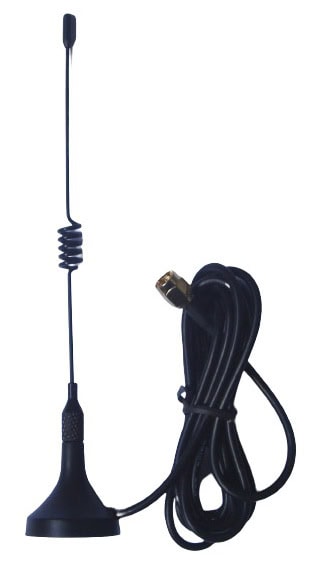

Magnetic Mounts

Magnetic mounts are popular for a variety of applications, including:

1. Vehicle Mounts: Magnetic mounts are commonly used to attach smartphones, GPS devices, or tablets to the dashboard or windshield of a car. They provide a secure hold while allowing for easy removal when needed.

2. Camera Mounts: Photographers and videographers often use magnetic mounts to attach cameras or action cameras to metal surfaces. This allows for unique angles and perspectives without the need for bulky tripods or other mounting equipment.

3. Tool Mounts: Magnetic mounts are useful for organizing and storing tools in workshops or garages. By attaching magnetic strips or holders to metal walls or cabinets, tools can be easily accessed and kept in order.

4. Signage and Display Mounts: Magnetic mounts are commonly used to attach signs, banners, or displays to metal surfaces. This is especially useful for temporary or promotional signage that needs to be easily installed and removed.

5. Industrial and Construction Applications: Magnetic mounts are often used in industrial settings to attach equipment, sensors, or lights to metal surfaces. They provide a quick and secure method for mounting without the need for drilling or permanent installation.

When choosing a magnetic mount, it is important to consider the strength of the magnet, the weight and size of the equipment being mounted, and the type of surface it will be attached to. It is also crucial to ensure that the magnetic mount will not interfere with any electronic or sensitive equipment.

Wall Mounts

Some wall mounts are designed to be fixed, meaning they keep the equipment in a stationary position. These are great for TVs or monitors that will always be viewed from the same spot.

Tilting wall mounts allow you to adjust the angle of the equipment up or down. This can be helpful if you need to mount a TV or monitor higher up on the wall, but still want to be able to tilt it down for better viewing.

Full-motion wall mounts are the most versatile option. They allow you to adjust the equipment in multiple directions, including up and down, side to side, and even pull it away from the wall. This is great for mounting a TV in a corner or if you want to be able to adjust the viewing angle from different spots in the room.

When choosing a wall mount, you’ll want to consider the weight and size of the equipment you’re mounting. Most wall mounts have weight and size limits, so be sure to check these specifications before purchasing. You’ll also want to make sure the wall mount is compatible with the VESA pattern on the back of your TV or monitor. The VESA pattern is the measurement between the mounting holes on the back of the equipment, and it needs to match up with the wall mount. Most wall mounts will list the VESA pattern they are compatible with in the product description.

Overall, wall mounts are a great way to save space and create a clean, organized look in your home or office. Whether you’re mounting a TV, monitor, or smaller equipment, there is a wall mount out there to fit your needs.

Ceiling Mounts

Ceiling mounts offer a range of benefits for various applications. Here are some advantages of using ceiling mounts:

1. Space-saving: By mounting projectors, speakers, or security cameras on the ceiling, you can free up floor space and keep the area clutter-free. This is especially important in commercial or educational settings where space optimization is essential.

2. Improved visibility: Ceiling mounts allow projectors to be positioned at an optimal height and angle, ensuring clear and unobstructed visibility for everyone in the room. This is particularly useful in classrooms, conference rooms, or auditoriums where presentations or lectures are conducted.

3. Enhanced sound quality: Mounting speakers on the ceiling can help distribute sound evenly throughout the room, providing better audio quality and ensuring that everyone can hear clearly. This is beneficial in venues such as restaurants, bars, or conference halls.

4. Security and surveillance: Ceiling mounts for security cameras provide a better vantage point, allowing for comprehensive coverage of the area. Mounting cameras on the ceiling can also help deter theft or vandalism, as they are less accessible and harder to tamper with.

5. Adjustable positioning: Ceiling mounts often come with adjustable features such as tilt, swivel, or rotation, allowing you to fine-tune the position of your projector, speaker, or camera for the best performance and coverage.

6. Neat and professional appearance: Ceiling mounts provide a clean and organized look, as cables can be hidden within the ceiling or routed discreetly. This ensures a professional and aesthetically pleasing setup.

7. Flexibility: Ceiling mounts are usually compatible with a wide range of projector, speaker, or camera models, making them versatile and adaptable to different devices and setups.

8. Safety: Ceiling mounts are designed to securely hold heavy and expensive equipment in place, reducing the risk of accidents or damage caused by accidental falls or bumps.

Overall, ceiling mounts offer a practical and efficient solution for mounting projectors, speakers, and security cameras in various environments. They help optimize space, improve visibility and sound quality, provide better security and surveillance, and create a professional and organized appearance.

Pole Mounts

Pole mounts are typically made of durable materials such as steel or stainless steel to withstand harsh weather conditions. They are designed to securely hold equipment in place, preventing it from moving or falling off the pole.

Pole mounts come in various sizes and designs to accommodate different pole diameters and equipment types. Some pole mounts have adjustable arms or brackets, allowing for flexibility in positioning the equipment at the desired angle or direction.

To install a pole mount, the mount is typically wrapped around the pole and tightened using bolts or screws. The equipment is then attached to the mount using the provided brackets or screws. Some pole mounts also include features like cable management systems to keep cables organized and protected from the elements.

Overall, pole mounts are essential for outdoor installations where equipment needs to be securely mounted to poles or masts. They provide a reliable and durable solution for attaching items like cameras, lighting, and antennas, ensuring they stay in place and function properly.

‘Y’ Style Boxed Pole/Wall Mounts vs. Other Mount Types

When it comes to specialty mounts, ‘Y’ style boxed pole or wall mounts stand out thanks to their unique design and enhanced stability. Unlike standard mounts, the ‘Y’ style features a third supporting leg, which provides extra reinforcement—particularly useful when securing heavier equipment or dealing with windy outdoor environments. This additional support helps prevent wobbling and ensures the mounted device remains firmly in place over time.

In comparison, other common mounts, such as basic wall brackets or straight pole mounts, typically rely on two points of contact. While sufficient for many standard applications, they may not offer the same level of security, especially in scenarios where additional structural strength is beneficial.

Additionally, some side chimney mounts—often called ‘Y’ or ‘Z’ type—are equipped with long, galvanized straps (up to 18 feet) for wrapping around chimneys or large posts. These extended straps allow for flexible installation options and effective distribution of weight without the need for drilling into masonry, reducing the risk of structural damage to your home or building.

In summary, ‘Y’ style boxed pole or wall mounts are a great choice when maximum support and stability are required, making them ideal for antennas, larger satellite dishes, or installations exposed to environmental challenges.

Flush Mounts

Flush mounts are commonly used for recessed lighting fixtures. They are installed directly into the ceiling or wall, with the fixture sitting flush against the surface. This creates a clean, seamless look that blends in with the surrounding architecture.

Similarly, flush mount speakers are installed directly into the ceiling or wall, with the speaker grille sitting flush against the surface. This creates a discreet, unobtrusive appearance that is ideal for home theaters, multi-room audio systems, and other audio installations where visual impact is a concern.

In addition to lights and speakers, flush mounts can also be used for other equipment, such as cameras, sensors, and access control devices. By mounting these devices flush with the surface, they are less likely to be noticed or tampered with, which is important for security-focused installations.

Overall, flush mounts provide a clean, sleek appearance that minimizes visual impact. Whether it’s for lights, speakers, or other equipment, flush mounts are a popular choice for installations that require a low-profile, aesthetically pleasing solution.

Corner Mounts

Corner mounts are specifically designed to fit into the corners of a room, providing a secure and stable platform for mounting security cameras or speakers. These mounts are a great solution for utilizing the often wasted corner space in a room, allowing for strategic placement and maximizing the coverage area of your surveillance system.

One of the primary benefits of corner mounts is their ability to enhance the aesthetics of a room. By mounting your security cameras or speakers in the corners, you can keep them out of the way and minimize their visual impact on the space. This is particularly useful in areas where you want to maintain a clean and uncluttered appearance, such as in a living room or office.

In addition to improving the look of a room, corner mounts also offer a number of practical advantages. By placing your security cameras in the corners, you can achieve a wider field of view and better coverage of the area you want to monitor. This is especially useful in large rooms or areas with multiple entry points, as it allows you to keep an eye on more of the space with fewer cameras.

Similarly, corner mounts for speakers can help to optimize the sound quality in a room. By positioning the speakers in the corners, you can take advantage of the natural acoustics created by the walls, resulting in a fuller and more immersive audio experience. This is particularly beneficial in home theater setups or rooms where you want to enjoy high-quality sound.

Overall, corner mounts are a versatile and practical solution for mounting security cameras and speakers. They make use of otherwise wasted space, improve the aesthetics of a room, and enhance the coverage or sound quality of your surveillance system or audio setup. Whether you want to keep an eye on your property or enjoy immersive audio, corner mounts are a valuable accessory to consider.

To summarize, choosing the correct mounting bracket requires taking into account the installation’s specific requirements, such as environmental conditions, equipment weight, and mounting surface. Making the right choice guarantees the equipment’s stability and safety, while also enhancing the overall appearance and functionality of the installation.
