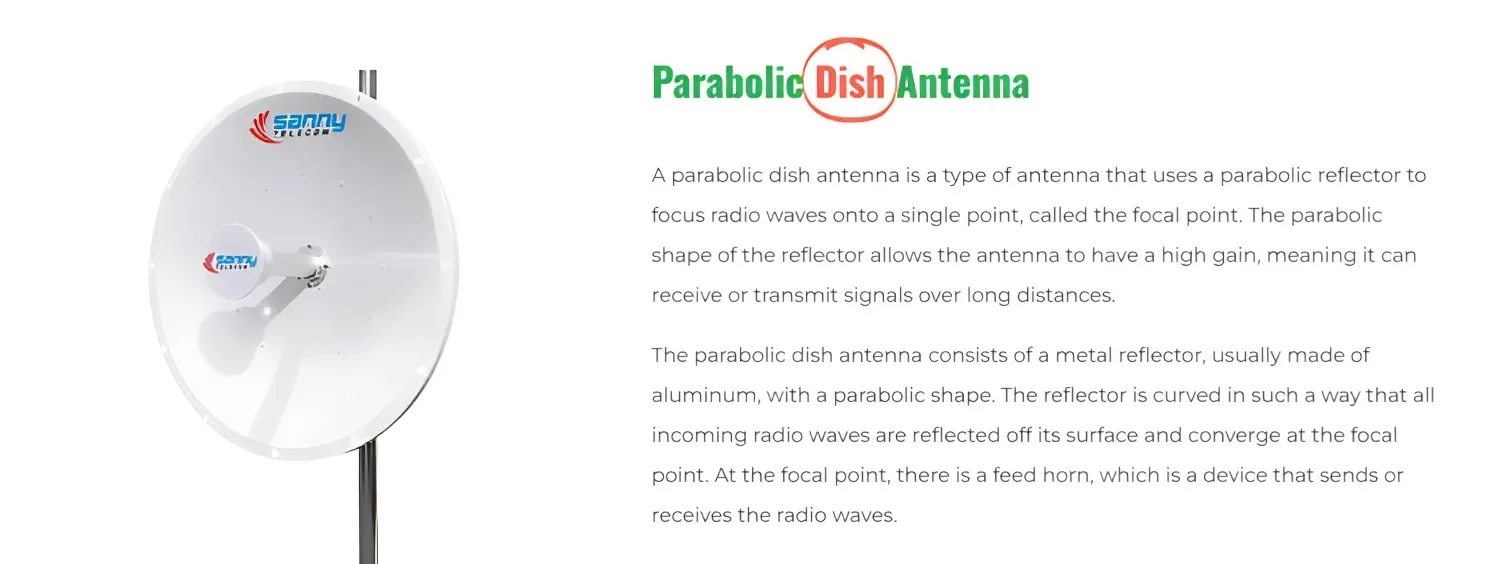

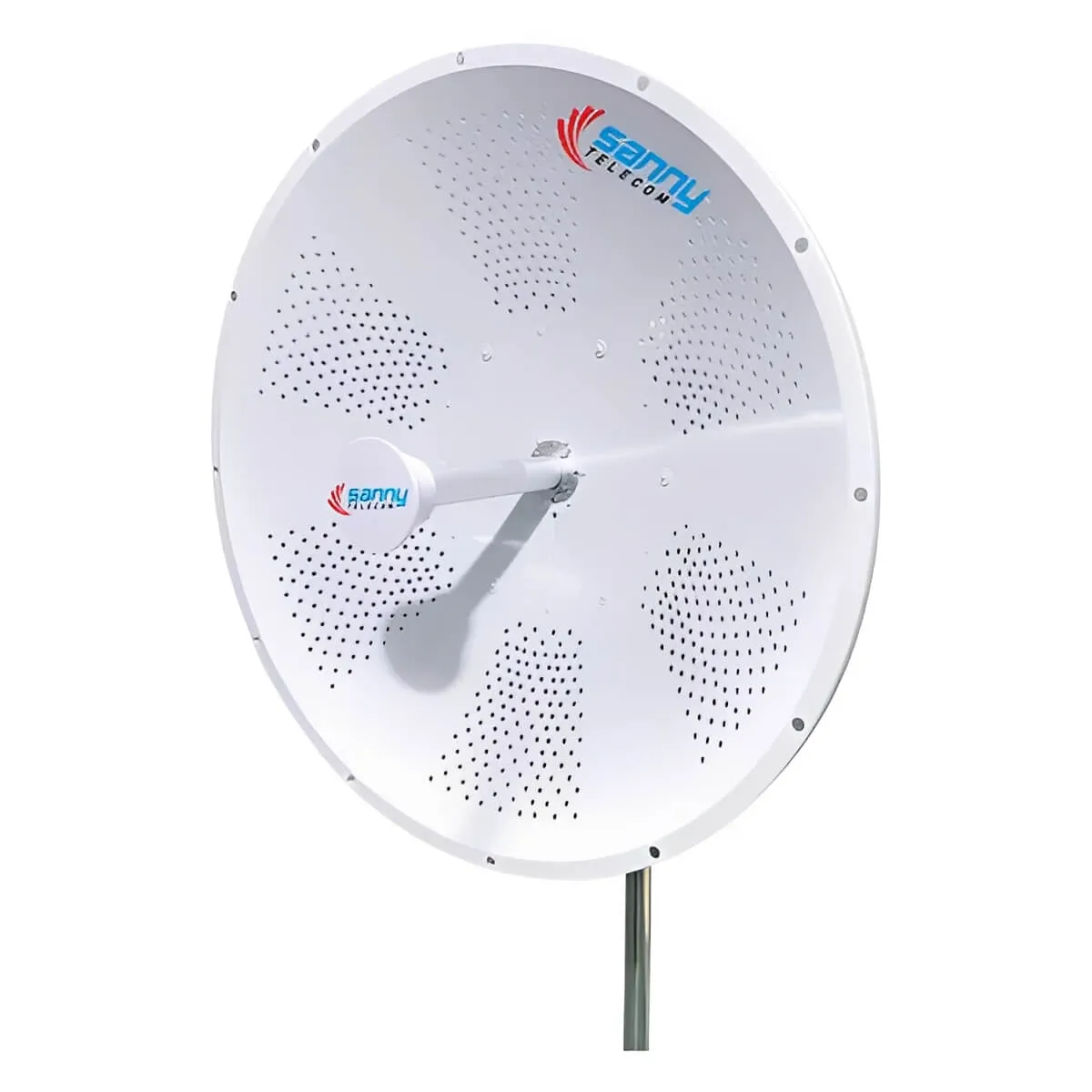

A parabolic dish antenna is a type of antenna that uses a parabolic reflector to direct radio waves. It is commonly used for point-to-point connections and backhaul networks.

It works by reflecting incoming radio waves to a focal point where the receiver is located, or by focusing transmitted waves from the focal point into a narrow beam.

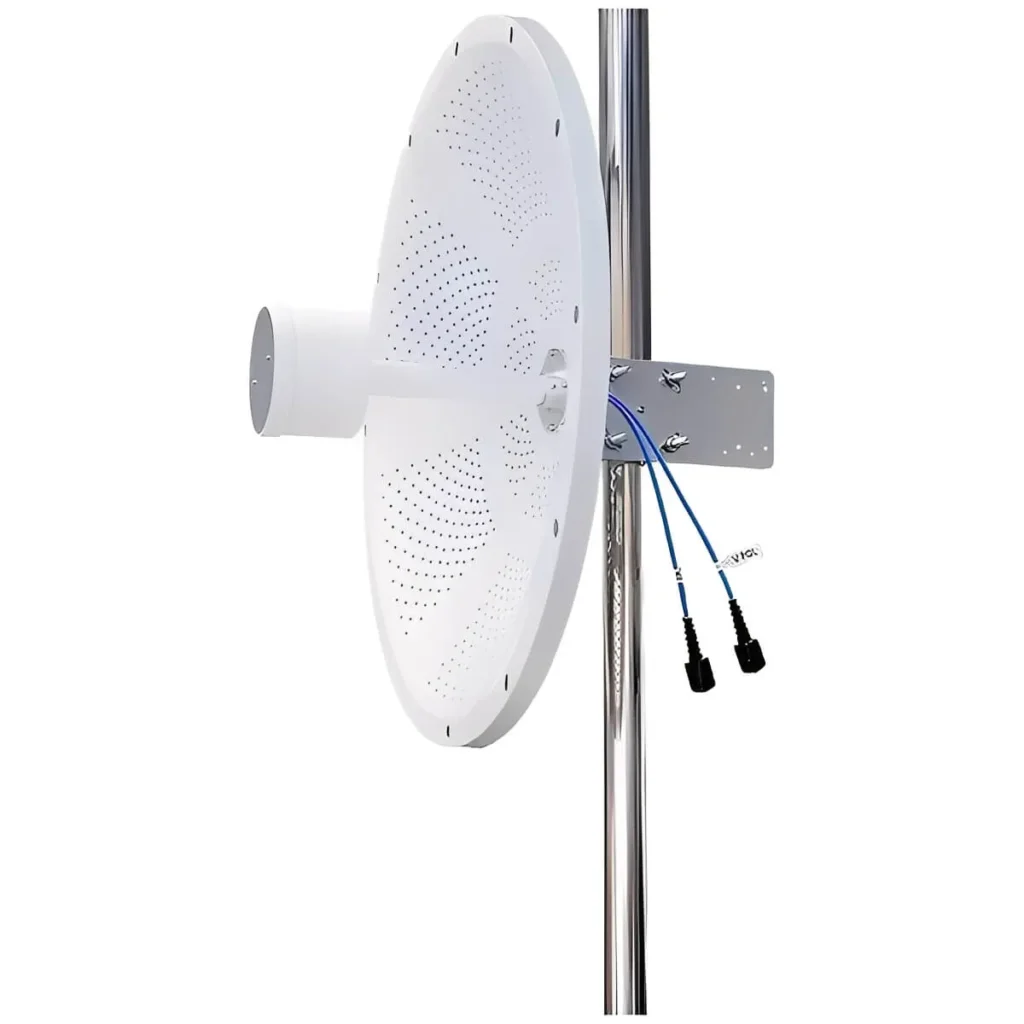

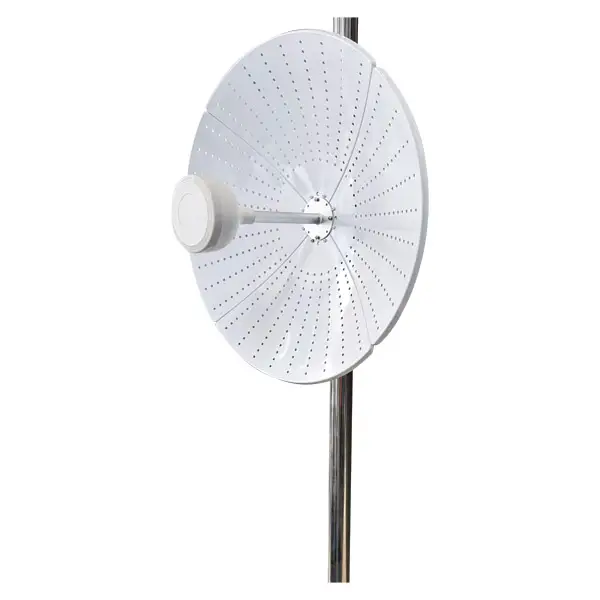

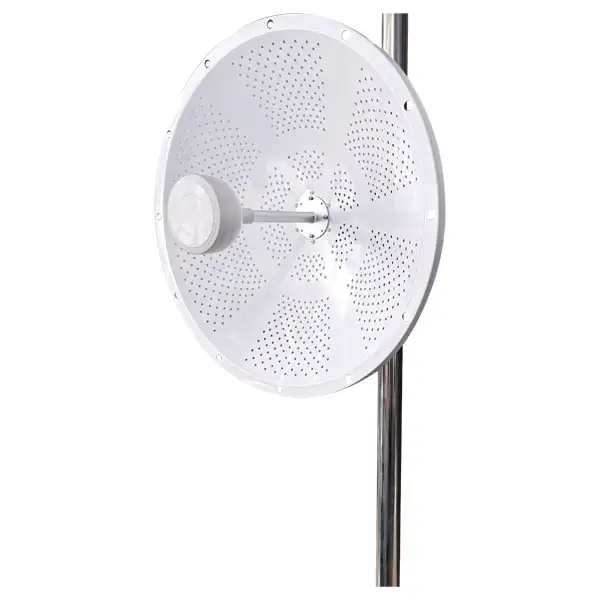

The main components include the parabolic reflector (dish), feedhorn, and mounting bracket.

The parabolic reflector focuses incoming parallel radio waves onto a single point, increasing signal strength and directionality.

The feedhorn is the component located at the focal point of the parabolic dish that collects or transmits radio waves.

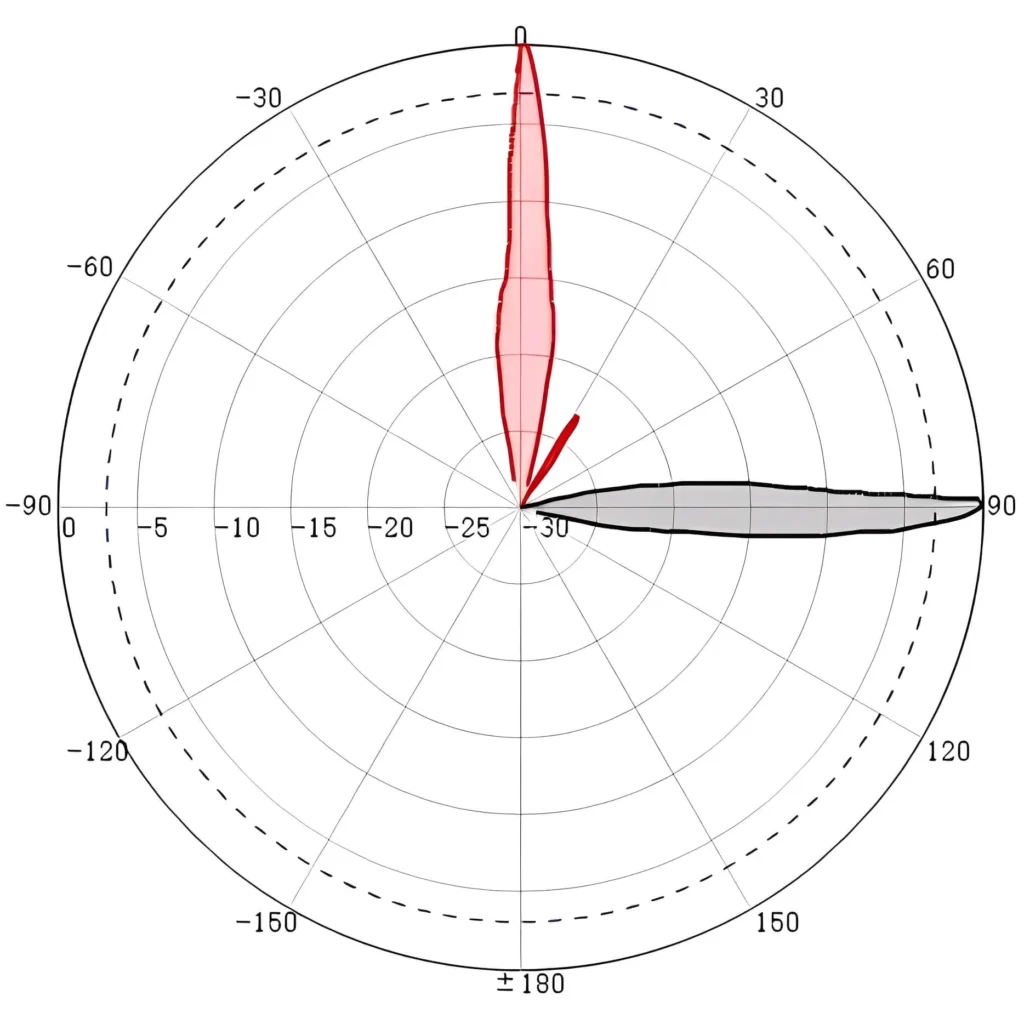

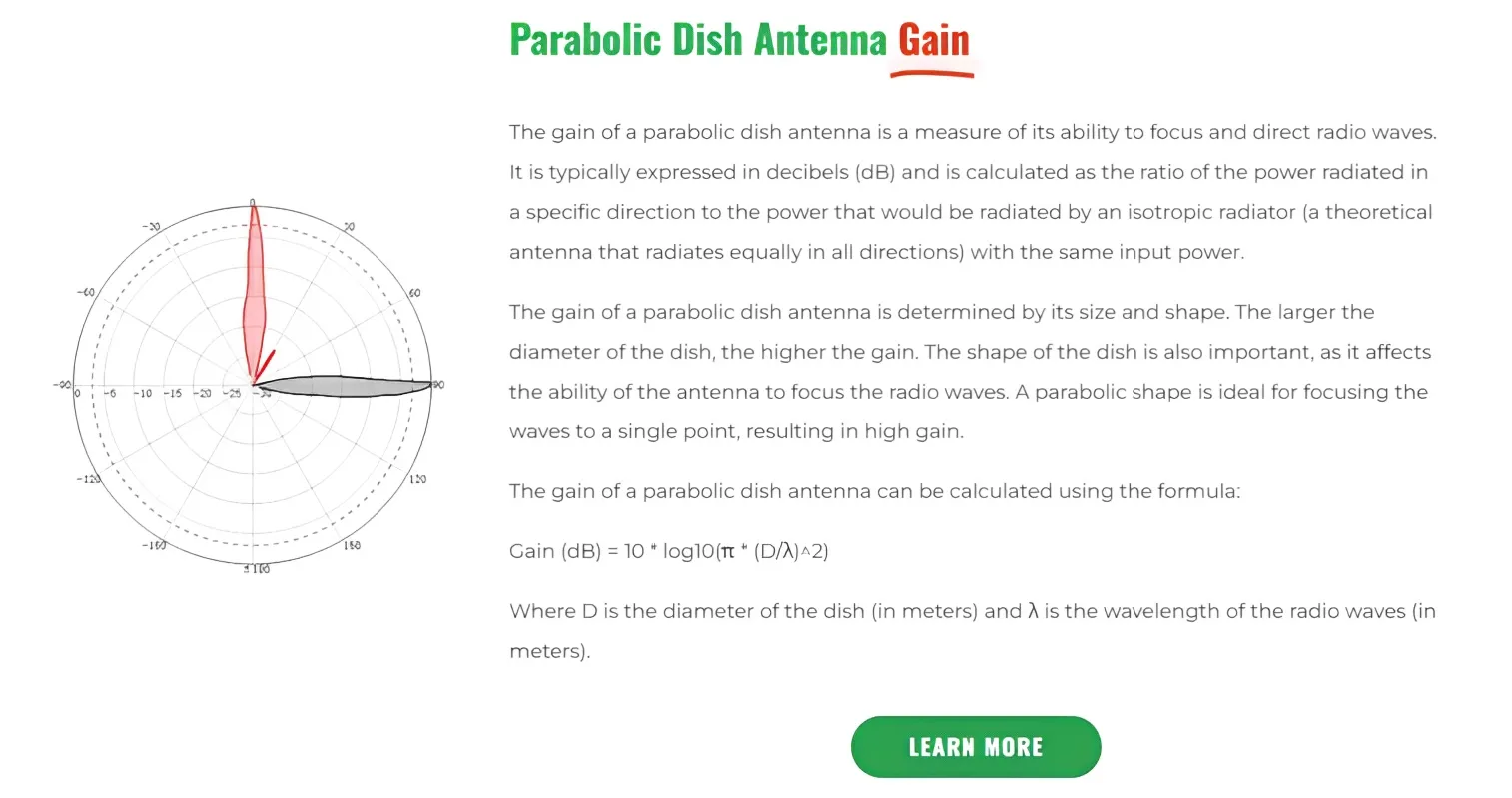

 Gain refers to the ability of the antenna to focus energy in a particular direction, which increases signal strength.

The gain can range from 20 dBi to over 42 dBi, depending on the size and operating frequency.

Larger dish reflectors generally have higher gain and better resolution, but they are also more difficult to install and align.

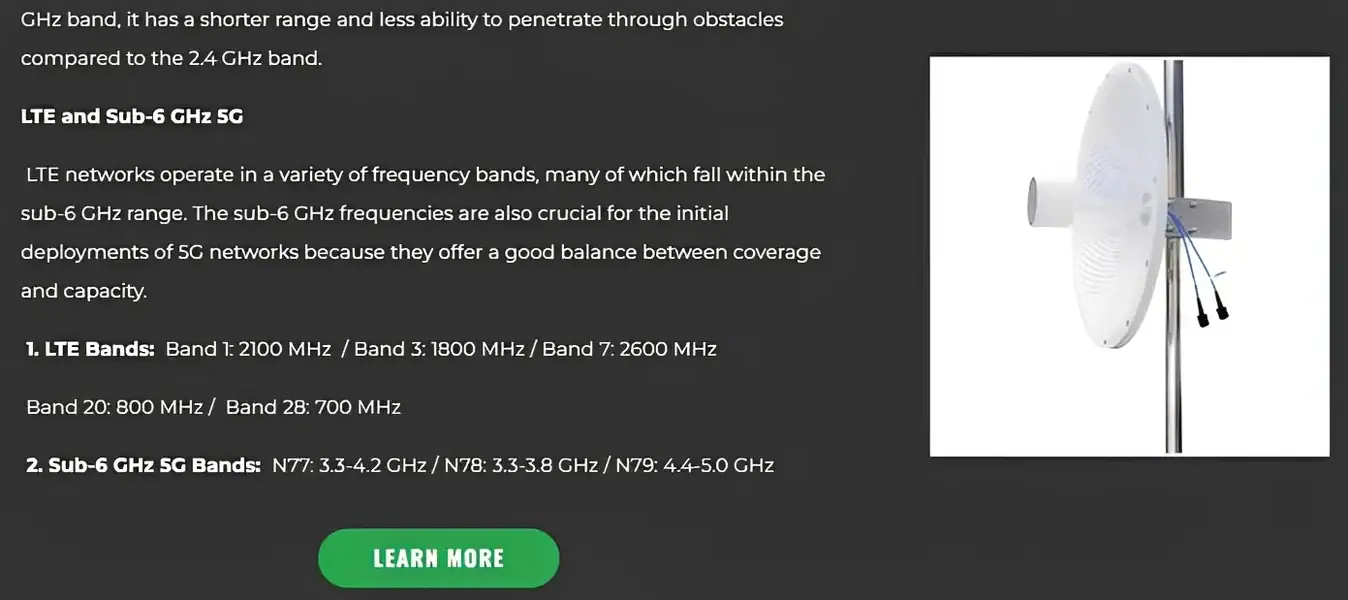

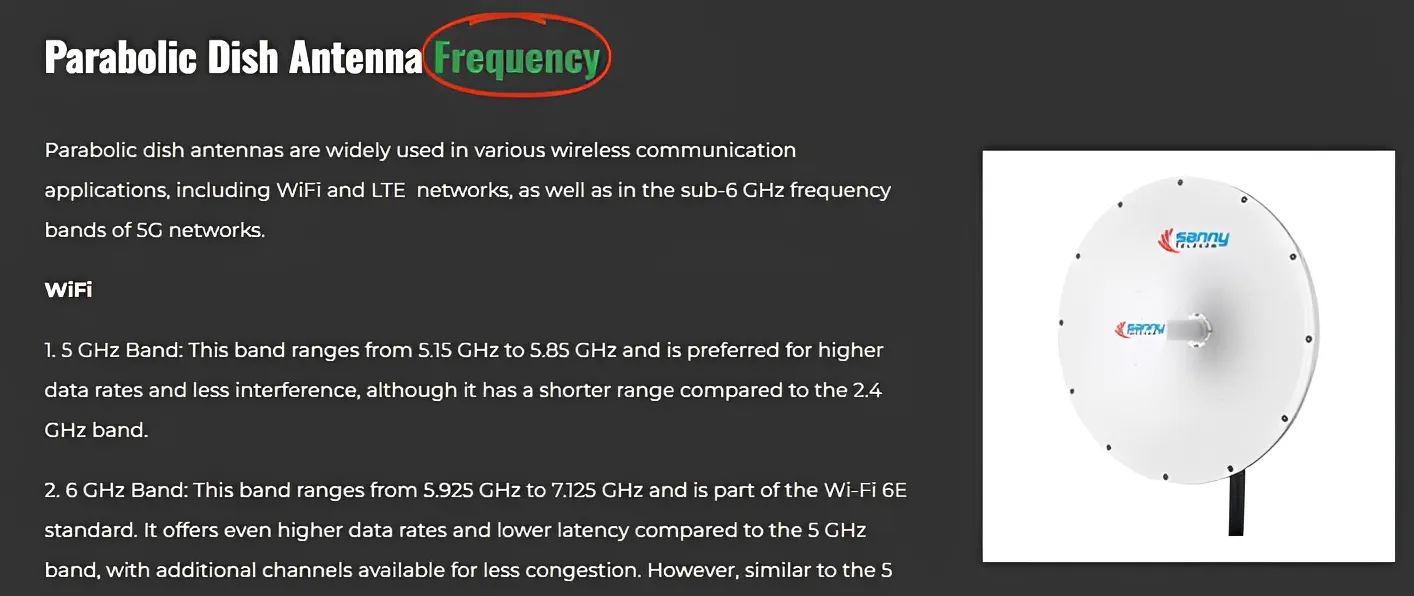

Parabolic dish antennas typically operate at Sub-6 GHz and 6GHz frequencies for WiFi and 5G Mid-band, such as 1710-4000MHz, 2.4-2.5GHz and 5.15-5.85GHz, etc.

 Common applications include point-to-point links and wireless backhauls.

Alignment involves adjusting the dish to point accurately at the desired satellite or signal source, often using a signal meter for precision.

The range of parabolic dish antennas can vary depending on various factors such as the size of the dish, the frequency being used, the power of the transmitter, and the quality of the equipment. However, in general, parabolic dish antennas can have a range of several kilometers to tens of kilometers.

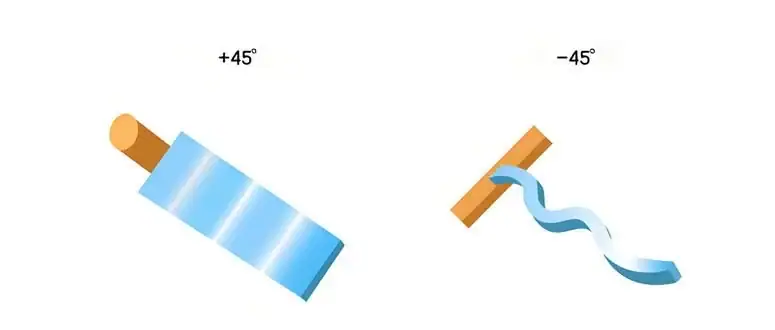

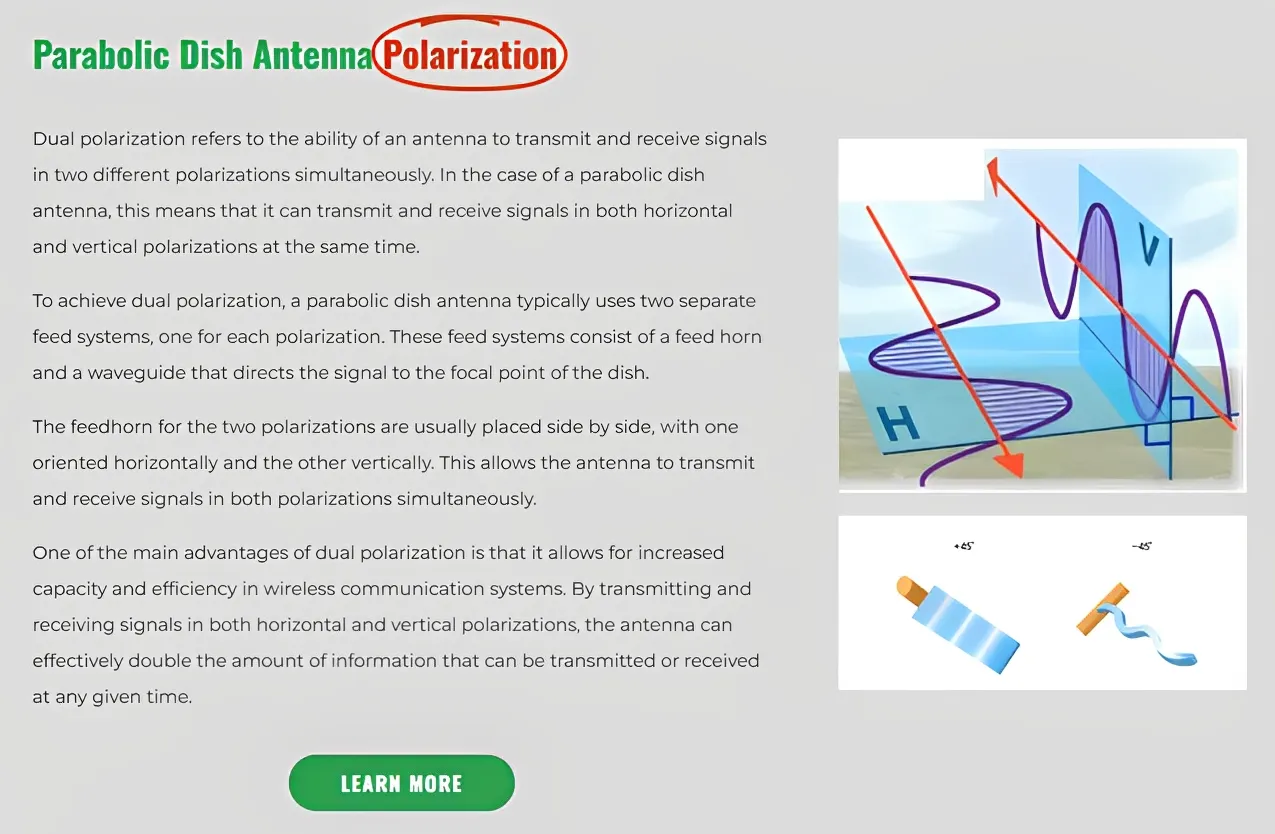

The polarization of a parabolic dish antenna can be either horizontal or vertical, depending on how the feedhorn is oriented.

Yes, they can be used for both transmitting and receiving signals.

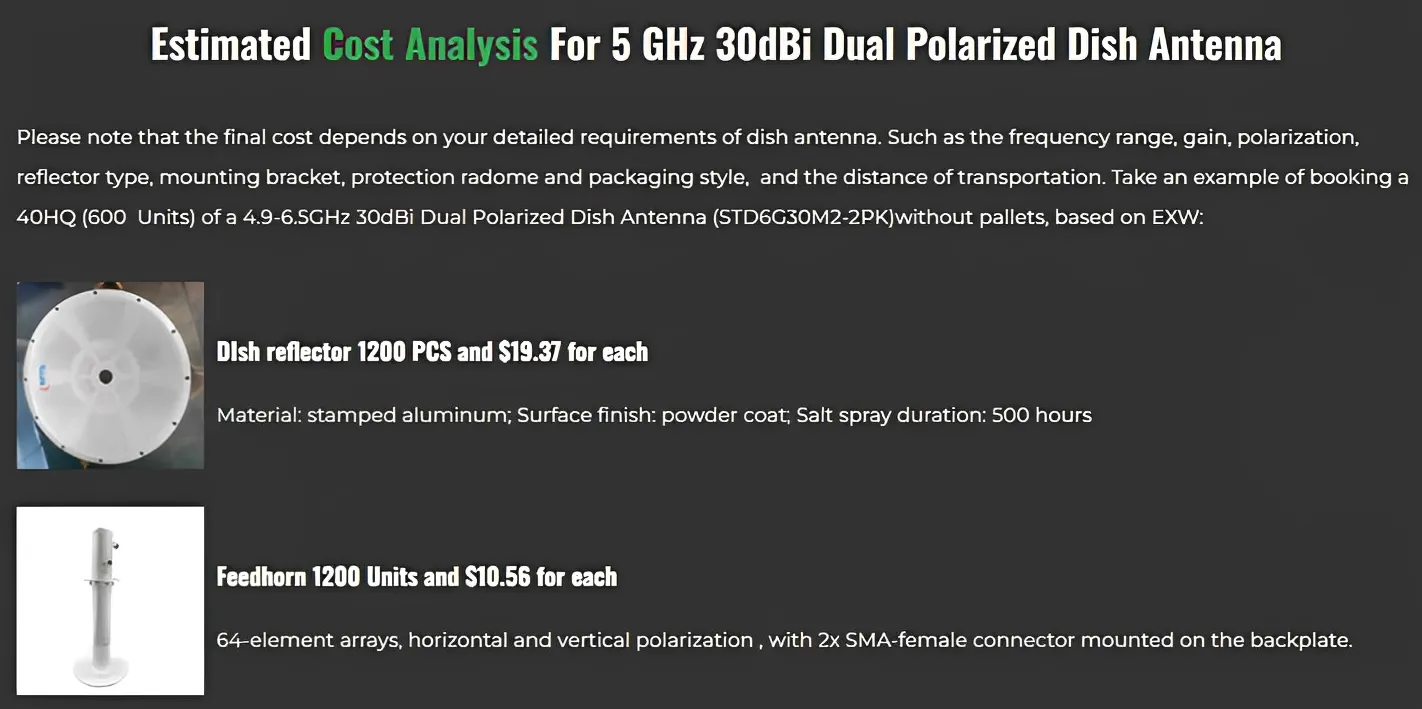

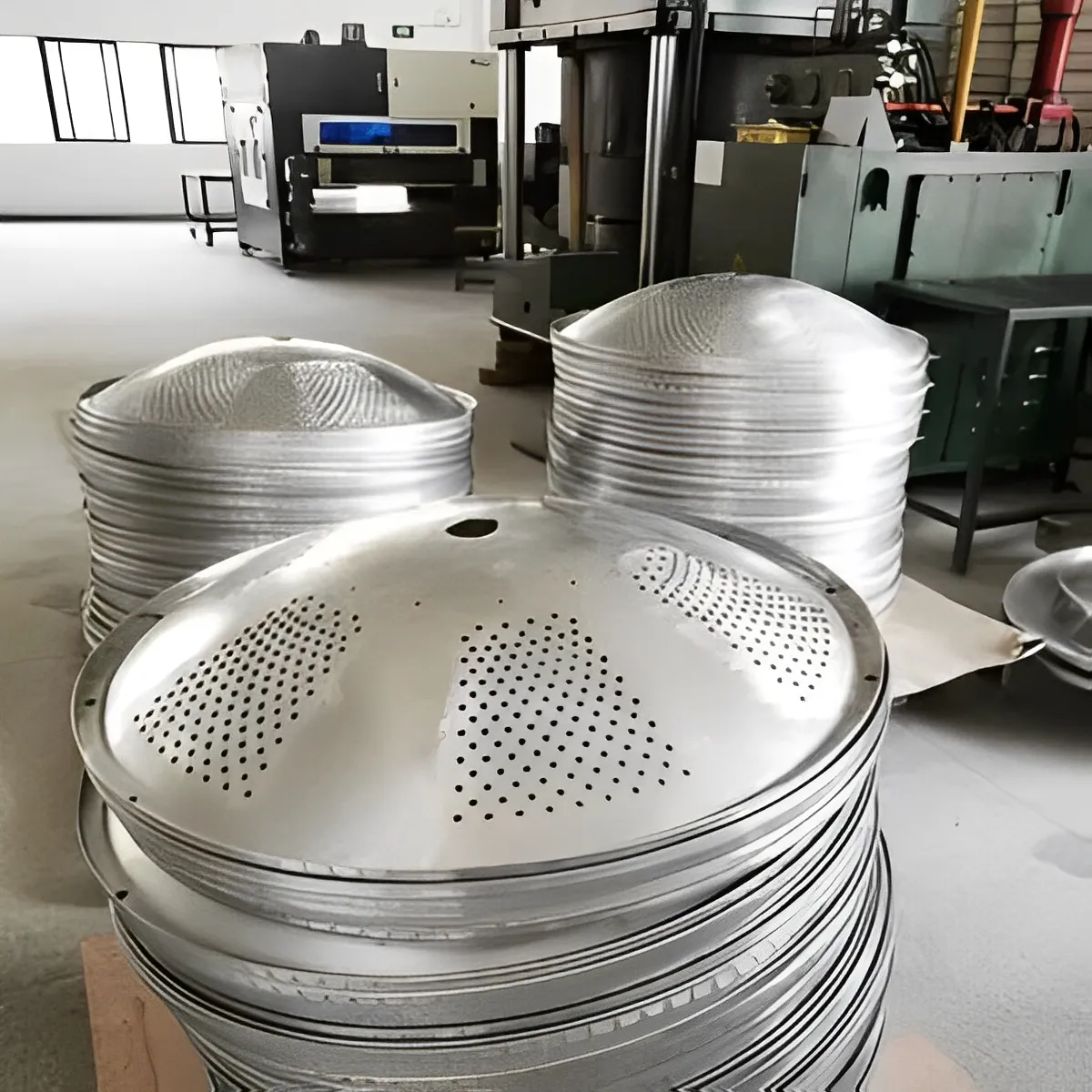

Common materials include aluminum, steel, and composite materials, often with a reflective coating.

Yes, but you need to use an adapter with mounting holes for the radio which can be attached to the dish reflector directly.

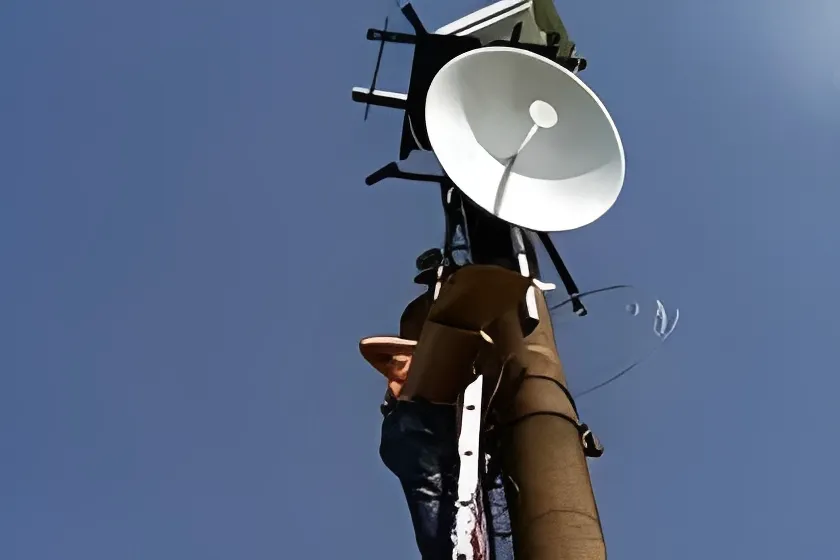

Installing a parabolic dish antenna requires careful planning and consideration of several factors such as the location, line of sight, mounting options, and cable routing. It is important to ensure that the dish is properly aligned and aimed at the desired satellite or point of communication for optimal signal reception and transmission.

Severe weather conditions like rain, snow, and wind can affect signal quality and the physical alignment of the dish.

Regular maintenance includes checking alignment, cleaning the dish surface, and inspecting for physical damage.

 Advantages include high gain, narrow beamwidth, and the ability to focus on distant signals, making them ideal for long-range communication and high-resolution applications.
