In the quest for optimal wireless communication and signal transmission, understanding and perfecting antenna radiation patterns is paramount. The anechoic chamber, a specialized environment designed to eliminate reflections and external noises, provides the ideal setting for such meticulous testing. This article delves into the step-by-step process of testing antenna radiation patterns in an anechoic chamber, highlighting the significance of each phase and the critical considerations to ensure accurate and reliable results.

What are the Antenna Radiation Patterns?

Antenna radiation patterns describe how an antenna radiates energy into space or receives energy from space. These patterns are typically represented graphically in two or three dimensions and are crucial for understanding the performance and behavior of an antenna in different directions. Here are some key aspects and types of antenna radiation patterns:

Key Aspects of Radiation Patterns

1. Main Lobe: The region in the radiation pattern where the antenna radiates or receives the most power. This is typically the direction in which the antenna is intended to operate.

2. Side Lobes: These are smaller lobes around the main lobe where the antenna radiates or receives energy. Side lobes are usually undesirable because they can cause interference and reduce the antenna’s efficiency.

3. Back Lobe: The lobe that is opposite the main lobe. It represents the radiation in the opposite direction of the main beam and is usually minimized in directional antennas.

4. Beamwidth: The angular width of the main lobe, usually measured between the points where the power drops to half its maximum value (3 dB points). Beamwidth is an important parameter for understanding the directivity of the antenna.

5. Nulls: Points in the radiation pattern where the radiation intensity is zero or minimal. These are directions in which the antenna does not radiate or receive energy.

Types of Radiation Patterns

1. Isotropic Pattern: An idealized pattern where the antenna radiates equally in all directions. An isotropic antenna is a theoretical construct used as a reference for measuring the gain of real antennas.

2. Omnidirectional Pattern: A real-world pattern where the antenna radiates equally in all horizontal directions. Vertical radiation may vary. Common examples include whip antennas and dipole antennas in the horizontal plane.

3. Directional Pattern: The antenna radiates more power in specific directions. These patterns are used to focus energy in a particular direction, which can increase range and reduce interference. Examples include Yagi-Uda antennas, parabolic dish antennas, and horn antennas.

4. Dipole Pattern: Typically has a figure-eight shape in the plane perpendicular to the dipole. Dipole antennas are common and have a relatively simple radiation pattern.

5. Cardioid Pattern: Resembles a heart shape and is often used in microphone and antenna arrays to achieve directionality with minimal back lobe radiation.

Visualization

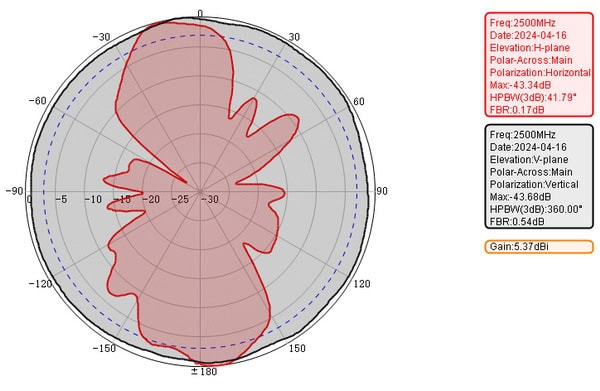

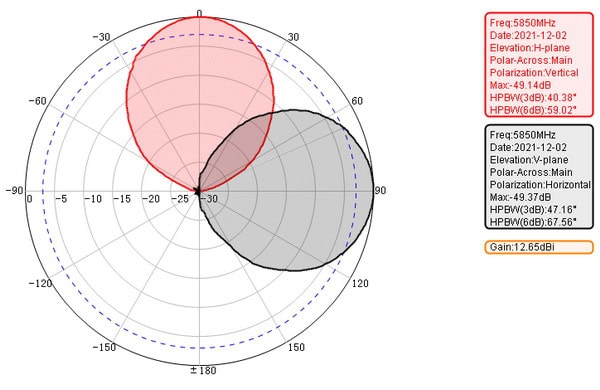

– Polar Plot: A common way to represent radiation patterns, showing the relative strength of the radiation at various angles in a 2D plane.

– 3D Plot: Provides a more comprehensive view of the radiation pattern in three dimensions, showing how the antenna radiates in all directions.

Applications

– Communication Systems: Understanding radiation patterns helps in designing antennas for specific communication needs, such as satellite communication, broadcasting, and cellular networks.

– Radar Systems: Directional antennas with narrow beamwidths are used to focus energy on specific targets.

– Wireless Networks: Omnidirectional antennas are often used in Wi-Fi routers to provide coverage in all directions.

Understanding and analyzing antenna radiation patterns is essential for optimizing antenna performance and ensuring effective communication in various applications.

The Role of the Electromagnetic Anechoic Chamber

An electromagnetic anechoic chamber is a specialized facility designed to absorb reflections of electromagnetic waves, providing an environment that simulates free space conditions. These chambers are crucial in various fields, particularly in the testing and development of electronic devices and systems. Here are some key roles and applications of electromagnetic anechoic chambers:

1. Electromagnetic Compatibility (EMC) Testing:

– Radiated Emissions Testing: Ensures that electronic devices do not emit electromagnetic interference (EMI) that could affect other devices.

– Radiated Immunity Testing: Assesses a device’s ability to operate correctly when exposed to electromagnetic interference from external sources.

2. Antenna Testing:

– Antenna Performance: Evaluates parameters such as gain, radiation pattern, and efficiency in a controlled, reflection-free environment.

– Antenna Calibration: Provides a controlled setting for precise calibration of antennas.

3. Radar and Communication Systems:

– Radar Cross-Section (RCS) Measurements: Measures the detectability of objects (such as aircraft or ships) by radar systems.

– Communication System Testing: Tests the performance of communication devices and systems, ensuring they operate correctly without interference.

4. Wireless Device Testing:

– Mobile Phones and Wi-Fi Devices: Evaluates the performance of wireless communication devices, including signal strength, data transfer rates, and overall reliability.

– IoT Devices: Tests Internet of Things (IoT) devices to ensure they function correctly in various electromagnetic environments.

5. Material Testing:

– Absorptive Materials: Tests materials designed to absorb electromagnetic waves, such as those used in stealth technology or EMC shielding.

– Reflective Materials: Evaluates materials intended to reflect electromagnetic waves, useful in applications like satellite dishes or radar reflectors.

6. Research and Development:

– New Technologies: Provides a controlled environment for the development and testing of new electromagnetic technologies and devices.

– Prototyping: Allows for the testing of prototypes in a controlled setting before mass production.

7. Automotive and Aerospace Industries:

– Vehicle Testing: Ensures that vehicles’ electronic systems do not interfere with each other and comply with regulatory standards.

– Aerospace Testing: Tests the electromagnetic compatibility and performance of aerospace components and systems.

8. Medical Device Testing:

– Implantable Devices: Ensures that medical implants, such as pacemakers, do not malfunction due to external electromagnetic interference.

– Diagnostic Equipment: Tests medical diagnostic equipment to ensure accurate operation in various electromagnetic environments.

In summary, electromagnetic anechoic chambers play a vital role in ensuring the reliability, performance, and compliance of electronic devices and systems across a wide range of industries. They provide a controlled environment that mimics free space, allowing for precise measurement and testing of electromagnetic properties without interference from external sources.

Preparation and Setup

1. Selecting the Appropriate Antenna:

– Before testing, it’s crucial to choose the right antenna for the specific application. This involves considering factors such as frequency range, polarization, and intended use. Different antennas have unique radiation patterns, and understanding these characteristics is fundamental to the testing process.

2. Calibrating the Equipment:

– Calibration is a critical step to ensure that all measurement instruments are accurate. This involves setting up reference antennas with known radiation patterns and using them to calibrate the measurement system. This step helps in identifying any discrepancies and ensuring the reliability of the results.

3. Positioning the Antenna:

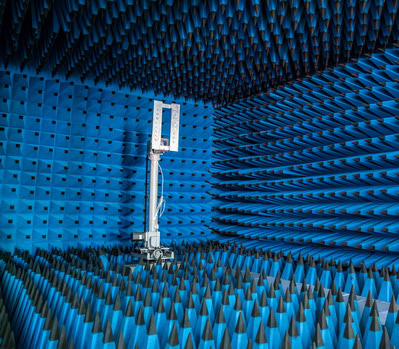

– The antenna under test (AUT) is placed on a rotatable platform, known as a positioner, within the anechoic chamber. The positioner allows for precise control over the antenna’s orientation, enabling measurements at various angles. Proper alignment and positioning are crucial to obtaining accurate radiation patterns.

Measurement Process

1. Conducting the Measurements:

– The measurement process involves rotating the antenna and capturing data at different angles. This is typically done in both azimuth (horizontal) and elevation (vertical) planes. The data collected includes parameters such as gain, directivity, and beamwidth, which are essential for characterizing the antenna’s performance.

2. Using Network Analyzers and Spectrum Analyzers:

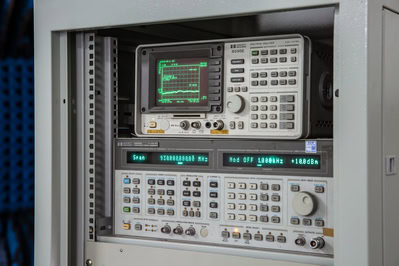

– Network analyzers and spectrum analyzers are commonly used to measure the antenna’s response. Network analyzers measure parameters like return loss and impedance, while spectrum analyzers help in identifying the frequency components of the emitted signal. These instruments provide valuable insights into the antenna’s efficiency and performance.

3. Data Analysis and Interpretation:

– Once the measurements are complete, the data is analyzed to generate radiation patterns. This involves plotting the measured values on polar or Cartesian coordinates to visualize the antenna’s performance. Advanced software tools are often used to facilitate this process, providing detailed insights into the antenna’s behavior across different frequencies and angles.

Key Considerations

1. Environmental Factors:

– While the anechoic chamber is designed to eliminate external interferences, it’s essential to consider factors such as temperature and humidity, as they can impact the measurements. Maintaining a controlled environment ensures the accuracy and reliability of the results.

2. Antenna Mounting and Support Structures:

– The materials used for mounting and supporting the antenna can affect the measurements. Non-conductive and low-reflective materials are preferred to minimize any interference with the antenna’s radiation pattern. Properly designed support structures ensure that the antenna is securely positioned without affecting its performance.

3. Frequency Range and Bandwidth:

– Different antennas operate at various frequency ranges, and it’s crucial to ensure that the measurement system is capable of accurately capturing data across the entire bandwidth. This involves using appropriate filters and calibration techniques to cover the desired frequency range.

Advanced Techniques

1. Near-Field to Far-Field Transformation:

– In some cases, it may not be feasible to measure the antenna’s radiation pattern directly in the far-field region. Near-field to far-field transformation techniques can be used to extrapolate the far-field pattern from near-field measurements. This involves complex mathematical algorithms and precise measurements to ensure accurate results.

2. 3D Radiation Pattern Measurements:

– Advanced testing setups allow for 3D radiation pattern measurements, providing a comprehensive view of the antenna’s performance in all directions. This involves capturing data at multiple planes and combining them to generate a 3D representation of the radiation pattern.

3. Active Testing of Antennas:

– Active testing involves evaluating the performance of an antenna when it is part of a complete system, including the transmitter and receiver. This type of testing focuses on parameters like Effective Isotropic Radiated Power (EIRP), Total Radiated Power (TRP), and Total Isotropic Sensitivity (TIS).

Effective Isotropic Radiated Power (EIRP) Measurement

– EIRP is a critical parameter in active antenna testing, representing the power radiated by the antenna in the direction of maximum gain. It is measured by considering the transmitter power and the antenna gain. Accurate EIRP measurements are crucial for ensuring compliance with regulatory standards and optimizing system performance.

Total Radiated Power (TRP) Measurement

– TRP measures the total power radiated by the antenna in all directions. This parameter is important for understanding the overall efficiency of the antenna system. TRP measurements are typically performed in an anechoic chamber to eliminate external interferences and reflections.

Total Isotropic Sensitivity (TIS) Measurement

– TIS is a measure of the sensitivity of a receiver when connected to the antenna. It indicates the minimum signal level that the receiver can detect from all directions. TIS measurements are essential for evaluating the performance of the antenna-receiver system in real-world scenarios, where signals may come from various directions.

4. Over-the-Air (OTA) Testing:

– OTA testing is a comprehensive approach to active antenna testing, evaluating the performance of wireless devices in a controlled environment. OTA tests measure parameters like EIRP, TRP, and TIS, as well as other metrics such as data throughput and latency. These tests are typically conducted in anechoic chambers or specialized OTA test facilities.

5. Modulated Signal Testing:

– In active testing, it is essential to evaluate the antenna’s performance with modulated signals that mimic real-world communication scenarios. This involves testing the antenna with various modulation schemes and signal conditions to ensure reliable performance under different operating conditions.

Summary

Testing antenna radiation patterns in an anechoic chamber is a meticulous process that requires careful preparation, precise measurements, and detailed analysis. By eliminating external interferences and providing a controlled environment, the anechoic chamber ensures accurate and reliable results.

Understanding the antenna’s radiation pattern is crucial for optimizing its performance in real-world applications, and the insights gained from these tests play a vital role in the design and development of advanced communication systems. Through careful calibration, precise measurements, and advanced analysis techniques, engineers can unlock the full potential of antennas, paving the way for more efficient and reliable wireless communication.
