In today’s digital landscape, having a stable and dependable WiFi connection is essential. Whether you’re streaming your favorite shows, engaging in video calls, or simply browsing the internet, the quality of your WiFi can greatly affect your overall experience. One significant factor that impacts this quality is the type of WiFi antenna you use. Choosing between external and internal WiFi antennas can play a critical role in determining your signal strength, range, and overall connectivity. In this article, we will explore the key differences between external and internal WiFi antennas, examining their respective benefits and drawbacks to help you make an informed choice.

Understanding WiFi Antennas

Definition of WiFi Antennas

WiFi antennas are devices that transmit and receive radio frequency signals, enabling wireless communication between devices such as routers, computers, smartphones, and other WiFi-enabled gadgets. They play a crucial role in establishing and maintaining wireless networks by converting electrical signals into radio waves and vice versa.

Brief Introduction

WiFi antennas come in various shapes, sizes, and types, each designed for specific applications and environments. They can be classified into two main categories: **omni-directional antennas**, which radiate signals in all directions, and **directional antennas**, which focus the signal in a specific direction to enhance range and performance.

The effectiveness of a WiFi antenna is determined by factors such as gain, frequency range, and polarization. Higher gain antennas can provide longer range and better signal quality but may require precise alignment. Understanding the characteristics and applications of different WiFi antennas is essential for optimizing wireless network performance and ensuring reliable connectivity in homes, offices, and public spaces.

Operating Frequency

WiFi antennas typically operate within specific frequency bands, primarily **2.4 GHz**, **5 GHz**, and more recently, **6 GHz**.

– 2.4 GHz Band: This frequency band is widely used for WiFi communications and offers a longer range, making it suitable for covering large areas. However, it is also more prone to interference from other devices, such as microwaves and Bluetooth devices, which can affect performance.

– 5 GHz Band: This frequency band provides faster data rates and less interference due to fewer devices operating in this range. However, it has a shorter range compared to the 2.4 GHz band and is less effective at penetrating walls and obstacles.

– 6 GHz Band: Introduced with WiFi 6E and WiFi 7, the 6 GHz band offers additional spectrum for WiFi communication, allowing for even higher data rates and reduced congestion. This band provides wider channels, which can significantly enhance performance in dense environments. However, like the 5 GHz band, it has a shorter range and may have difficulty penetrating obstacles.

Some modern WiFi systems also support **dual-band** or **tri-band** configurations, allowing devices to utilize multiple frequency bands simultaneously for improved performance and flexibility. Understanding the operating frequency of WiFi antennas is essential for optimizing wireless network performance and ensuring reliable connectivity in homes, offices, and public spaces.

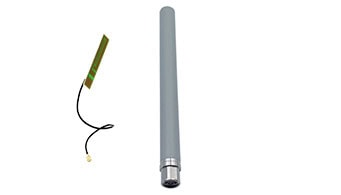

What are Internal WiFi Antennas?

Internal WiFi antennas are antennas that are built into devices such as routers, laptops, smartphones, and other wireless communication devices. Unlike external antennas, which can be attached or detached from the device, internal antennas are embedded within the device’s casing or structure.

Here are some key points about internal WiFi antennas:

1. Design and Space Efficiency: Internal antennas are designed to save space and maintain a sleek appearance. This is particularly important for portable devices like smartphones and laptops, where external antennas could be cumbersome.

2. Types: Internal antennas can come in various forms, including printed circuit board (PCB) antennas, chip antennas, and embedded antennas. Each type has its own advantages in terms of size, performance, and manufacturing complexity.

3. Performance: While internal antennas can be less powerful than some high-gain external antennas, advancements in technology have allowed for the development of internal antennas that provide good performance for most typical use cases. However, their performance can be influenced by the device’s design, materials, and placement within the device.

4. Applications: Internal WiFi antennas are commonly used in consumer electronics, such as tablets, smart TVs, and IoT devices, as well as in enterprise equipment like access points and network switches.

5. Limitations: One limitation of internal antennas is that they can be affected by the device’s casing, which may attenuate the signal. Additionally, internal antennas may not provide the same range or coverage as external antennas, especially in challenging environments.

Overall, internal WiFi antennas are a crucial component of modern wireless communication devices, enabling them to connect to WiFi networks efficiently while maintaining a compact form factor.

Internal WiFi Antenna Types

WiFi antennas play a crucial role in wireless communication, enabling devices to connect to local networks and the internet. Internal WiFi antennas are integrated within devices such as laptops, smartphones, tablets, and routers, providing a compact solution for wireless connectivity without the need for external components.

There are several types of internal WiFi antennas, each designed to optimize performance based on specific use cases and device form factors. Common types include:

1. PCB Antennas: Printed circuit board antennas are designed directly onto the circuit board of a device. They are cost-effective and can be customized for various frequency bands.

2. Chip Antennas: These are small, surface-mounted antennas that offer a compact design for space-constrained devices. They provide decent performance and are commonly used in smartphones and IoT devices.

3. Diversity Antennas: These antennas help mitigate the effects of multipath fading by using multiple antennas to receive signals. This is particularly useful in environments with obstacles that can disrupt WiFi signals.

4. Dipole Antennas: These are simple antennas that can be found in some internal configurations. They are effective in providing a balanced radiation pattern and are often used in devices requiring good omni-directional coverage.

Understanding the types of internal WiFi antennas and their applications is essential for optimizing wireless performance in various devices. As technology continues to evolve, so do the designs and capabilities of these antennas, leading to faster and more reliable wireless communication.

What are External WiFi Antennas?

External WiFi antennas are devices designed to enhance the wireless signal strength and range of a WiFi network. Unlike internal antennas that are built into routers, access points, or network adapters, external antennas can be added or replaced to improve connectivity. Here are some key features and benefits of external WiFi antennas:

1. Improved Range: External antennas can significantly extend the coverage area of a WiFi network, allowing users to connect to the network from farther distances.

2. Better Signal Quality: They can help reduce dead spots and improve signal strength in areas where the internal antennas may struggle to provide adequate coverage.

3. Directional vs. Omni-directional: External antennas come in different types, including directional antennas (which focus the signal in a specific direction) and omni-directional antennas (which broadcast the signal in all directions). This allows users to choose the type that best suits their needs.

4. Adjustability: Many external antennas are adjustable or rotatable, allowing users to position them for optimal signal reception.

5. Compatibility: External antennas can often be used with a variety of devices, including routers, access points, and WiFi adapters, provided they have the necessary connectors.

6. Installation: They can be mounted on walls, ceilings, or placed on desks, making them versatile for different environments.

7. Enhanced Performance: By upgrading to a higher-gain external antenna, users can achieve better performance, particularly in challenging environments or larger spaces.

Overall, external WiFi antennas are a practical solution for improving wireless connectivity in homes, offices, and other settings where WiFi coverage is essential.

External WiFi Antenna Types

In today’s digital age, a strong and reliable internet connection is essential for both personal and professional use. External WiFi antennas play a crucial role in enhancing the performance of wireless networks by improving signal strength and extending coverage areas. These antennas are designed to be mounted outside of devices like routers or access points, allowing them to capture and transmit WiFi signals more effectively. Common types of external WiFi Antennas include:

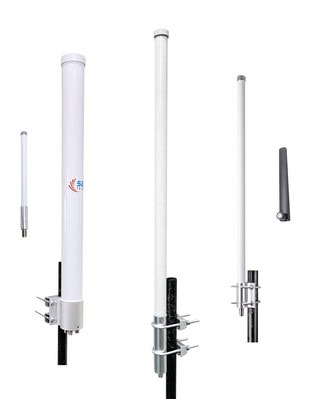

1. Omni-directional Antennas: These antennas radiate signals in all directions, making them ideal for providing coverage in a wide area. They are commonly used in home networks and public WiFi hotspots. Their design allows for a 360-degree coverage pattern, ensuring that devices can connect from various angles.

2. Panel Antennas: Panel antennas are a type of directional antenna that is flat and typically mounted on walls or poles. They feature a rectangular shape and are designed to focus the WiFi signal in a specific direction while maintaining a relatively wide coverage area. This makes them effective for targeting specific zones, such as conference rooms or outdoor areas. Panel antennas can be used in both indoor and outdoor settings and are often employed in enterprise environments to provide robust coverage.

3. Parabolic Dish Antennas: These antennas use a parabolic reflector to focus the WiFi signal into a narrow beam, which significantly enhances range and performance over long distances. They are particularly effective for point-to-point connections, such as linking two buildings or connecting to a remote access point.

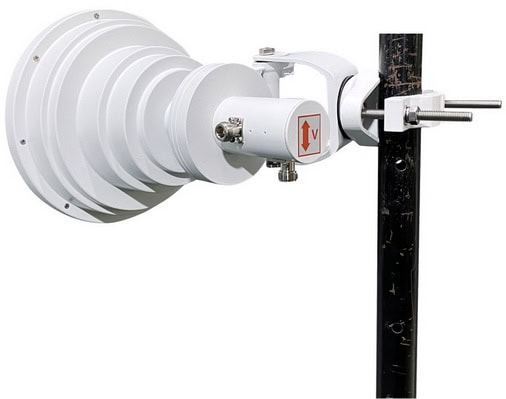

4. Symmetrical Horn Antennas: Symmetrical horn antennas are designed to provide a controlled radiation pattern and are often used in specialized applications. They can effectively direct the WiFi signal while minimizing interference from surrounding areas. Their unique shape helps in achieving a balance between gain and beamwidth.

5. Sector Antennas: These antennas are designed to cover a specific sector or angle, typically ranging from 60 to 120 degrees. They are commonly used in cellular networks and large WiFi deployments to provide coverage to specific areas while minimizing overlap with adjacent sectors. Sector antennas are ideal for use in environments where multiple access points are deployed.

Choosing the right type of external WiFi antenna depends on your specific needs, such as the size of the area you want to cover, the obstacles in the environment, and the devices you are using. By understanding the different types of antennas available, you can optimize your wireless network for better performance and connectivity.

How to Choose the Internal and External WiFi Antenna?

When it comes to how to choose the right WiFi antennas, both internal and external options have their own advantages and disadvantages. Here’s a breakdown of each type, including their mounting considerations:

Internal WiFi Antennas

Advantages

1. Compact Design: Internal antennas are built into devices (like routers, laptops, and smartphones), making them more compact and aesthetically pleasing.

2. Protection from Damage: Being housed within the device, they are less susceptible to physical damage or environmental factors.

3. Ease of Use: No additional setup is required since they are integrated into the device.

4. Cost-Effective: Generally, devices with internal antennas are less expensive due to reduced manufacturing and material costs.

Disadvantages

1. Limited Range: Internal antennas often have a shorter range and may not perform as well in larger spaces or through obstacles.

2. Signal Interference: They can be affected by the surrounding components of the device, leading to potential interference and reduced performance.

3. Difficult Upgrades: Upgrading internal antennas is often not feasible without replacing the entire device.

Mounting

– Internal antennas do not require separate mounting since they are integrated into the device. They are typically positioned to optimize signal transmission within the device’s casing.

External WiFi Antennas

Advantages

1. Enhanced Range and Performance: External antennas generally provide better signal strength and range, making them suitable for larger areas or more complex environments.

2. Flexibility: They can be adjusted or repositioned to improve signal reception and transmission.

3. Upgradability: External antennas can often be replaced or upgraded to improve performance without needing to replace the entire device.

4. Variety of Types: There are various types of external antennas (e.g., directional, omni-directional) that can be chosen based on specific needs.

Disadvantages

1. Physical Vulnerability: External antennas are more susceptible to physical damage and environmental conditions (e.g., weather).

2. Aesthetic Concerns: They can be bulky and may not blend well with the surrounding environment.

3. Installation Complexity: Setting up external antennas may require additional tools and knowledge, especially for mounting and positioning.

Mounting

– External antennas can be mounted in various ways:

– Wall Mounting: Using brackets to secure the antenna to a wall.

– Pole Mounting: Attaching the antenna to a pole for elevated positioning.

– Magnetic Mounting: Utilizing magnets to secure the antenna to metal surfaces.

– Tripod Mounting: Using a tripod for temporary or portable setups.

Choosing between internal and external WiFi antennas depends on your specific needs, such as range, performance, aesthetics, and the environment in which you operate your devices. Internal antennas are suitable for compact devices with minimal requirements, while external antennas are better for applications needing extended range and performance flexibility.

Conclusion

Both internal and external WiFi antennas offer distinct advantages and serve different purposes. Internal antennas are compact and convenient, making them ideal for everyday use in smaller environments. On the other hand, if you need improved signal strength, broader coverage, and greater flexibility, external antennas may be the more suitable option. By recognizing the differences between these two types of antennas and evaluating your specific requirements, you can make an informed choice to ensure a reliable and strong WiFi connection.
