Indoor/ Outdoor DAS Antennas

DAS (Distributed Antenna System) antennas are an essential component of 5G networks, both indoors and outdoors. These antennas are designed to enhance the coverage and capacity of wireless networks by distributing the signal from a central source to multiple antennas throughout a building or outdoor area. In the case of 5G, DAS antennas play a crucial role in delivering the high-speed and low-latency connectivity that this technology promises.

Indoor DAS antennas are installed inside buildings to provide reliable and consistent 5G coverage throughout the premises. These antennas are typically mounted on ceilings or walls and are connected to a central DAS controller. The controller receives the 5G signal from the network and distributes it to the antennas, ensuring that every corner of the building receives a strong and stable signal.

Outdoor DAS antennas, on the other hand, are used to extend 5G coverage to outdoor areas such as stadiums, campuses, and urban environments. These antennas are typically mounted on poles, streetlights, or rooftops and are connected to the DAS controller. They help to overcome the challenges of outdoor environments, such as signal interference and obstacles, by providing a strong and reliable 5G signal to users in the vicinity.

get a quote

learn more

DAS Antennas Frequency

5G DAS antennas play a crucial role in the deployment of 5G networks, addressing the challenges of coverage and capacity in various environments. By leveraging a range of frequency bands and advanced technologies, 5G DAS systems provide enhanced connectivity, supporting the growing demand for high-speed wireless communication in our increasingly connected world.

– Low-Band (Sub-1 GHz): These frequencies provide broad coverage and better penetration through walls and other obstacles. Common bands include 600 MHz and 700 MHz.

– Mid-Band (1-6 GHz): These frequencies offer a balance between coverage and capacity, making them ideal for urban and suburban areas. Common bands include 2.6 GHz, 3.5 GHz, and 4.9 GHz.

– High-Band (mmWave, 24-40 GHz): These frequencies provide extremely high data rates and capacity but have limited range and penetration capabilities. Common bands include 24 GHz, 28 GHz, and 39 GHz.

get a quote

learn more

DAS Antennas Gain

Gain is a measure of how well an antenna converts input power into radio waves in a specific direction. It is usually expressed in dBi (decibels over isotropic), which compares the antenna’s performance to an ideal isotropic radiator that uniformly distributes energy in all directions.Typical gain values for DAS antennas include:

– Ceiling-Mounted Antennas: Generally have lower gain, typically between 2 dBi and 5 dBi, because their energy is spread out in all directions.

– Panel Antennas: Can have higher gain, often ranging from 5 dBi to 8 dBi or more, as they focus the signal in a specific direction.

get a quote

learn more

DAS Antennas Polarization

Polarization refers to the orientation of the electric field of the RF signal. DAS antennas can be designed with different polarization schemes to meet specific requirements:

Vertical Polarization: The electric field is oriented vertically. Common in many traditional communication systems.

Horizontal Polarization: The electric field is oriented horizontally. Often used to reduce interference with vertically polarized signals.

Dual Polarization: The antenna supports both vertical and horizontal or +/- 45 slant polarizations, often with separate ports for each. This is useful for MIMO (Multiple Input Multiple Output) systems, improving signal robustness and capacity.

get a quote

learn more

Table Of Contents For This Page

It is not easy to introduce all aspects of Panel antennas, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.

Applications

Hot Products

Cost Analysis

Duration Estimation

Basic Knowledge

Common Pitfalls

Self-Nomination

FAQs

General Applications For DAS Antennas

DAS is a critical technology for enhancing wireless coverage and capacity in challenging environments. Its ability to provide reliable service in both indoor and outdoor settings makes it indispensable for modern communication networks. Here are some common applications of DAS antennas: Indoor Coverage, Public Venues, Transportation, Urban Area, Emergency Services and smart cities etc.

get a quote

learn more

General Hot Selling DAS Antennas

Distributed Antenna Systems (DAS) are critical for enhancing wireless coverage in buildings, stadiums, airports, and other large venues. Selecting the right DAS antenna is crucial for ensuring optimal performance. Here’s a step-by-step guide to help you make the right choice:

1. Understand Your Requirements

– Coverage Area: Determine the size and layout of the area that requires coverage.

– Frequency Bands: Identify the frequency bands used by the carriers (e.g., LTE, 5G, Wi-Fi ).

2. Types of DAS Antennas – Ceiling-Mounted Antennas: Typically used in office spaces and public buildings for unobtrusive installation.

– Panel Antennas: Suited for both indoor and outdoor environments where coverage needs to be directed towards a specific area.

3. Indoor vs. Outdoor Use – Indoor Antennas: Designed to blend with indoor aesthetics and comply with building codes.

– Outdoor Antennas: Weather-resistant and robust to withstand environmental factors.

4. Antenna Gain – Low-Gain : Provide broad coverage with less focus, suitable for small areas.

– High-Gain : Offer focused, long-range coverage, better for large or complex environments.

5. Antenna Polarization – Vertical Polarization: Common for most applications.

– Horizontal or Dual Polarization: Can improve performance in environments with reflective surfaces or high user density.

6. Low PIM (Passive Intermodulation) – Ensure the antenna has low PIM to minimize interference and improve signal quality, especially in environments with high user density.

7. Mounting Types – Consider the mounting options available (e.g., wall-mounted, ceiling-mounted, pole-mounted) to ensure easy installation and optimal placement.

Model: STOC66G3B-P43

617-6000MHz Low PIM SISO Ceiling Mount Antenna

The model supports a broad range of frequencies, often from 600 MHz to 6 GHz, covering various 5G bands as well as legacy 2G, 3G, and 4G LTE bands.

The low PIM rating of -153 dBc can minimize the signal interference and ensuring high-quality communication. It can also reduces intermodulation distortion, leading to clearer and more reliable signal transmission.

get an instant quote

Model: STOC66G3AM2-P43

617-6000MHz Low PIM Dual Polarized Ceiling Antenna

The model supports a broad range of frequencies, often from 600 MHz to 6 GHz, covering various 5G bands as well as legacy 2G, 3G, and 4G LTE bands. By using MIMO technology, it can enhance the capacity and performance of the DAS network.

The low PIM rating of -153 dBc can minimize the signal interference and ensuring high-quality communication. It can also reduces intermodulation distortion, leading to clearer and more reliable signal transmission.

get an instant quote

Model: STP74G8ID-P43

698-4000MHz Low PIM SISO Indoor Panel Antenna

The model supports a broad range of frequencies, often from 700 MHz to 4 GHz, covering various 5G bands as well as legacy 2G, 3G, and 4G LTE bands.

The low PIM rating of -153 dBc can minimize the signal interference and ensuring high-quality communication. It can also reduces intermodulation distortion, leading to clearer and more reliable signal transmission.

get an instant quote

Model: STP74G8OD-P43

698-4000MHz Low PIM SISO Outdoor Panel Antenna

The model supports a broad range of frequencies, often from 700 MHz to 4 GHz, covering various 5G bands as well as legacy 2G, 3G, and 4G LTE bands.

The low PIM rating of -150 dBc can minimize the signal interference and ensuring high-quality communication. It can also reduces intermodulation distortion, leading to clearer and more reliable signal transmission.

get an instant quote

Model: STP74G8M2ID-P43

698-4000MHz Low PIM Dual Polarized Indoor Panel Antenna

The model supports a broad range of frequencies, often from 700 MHz to 4 GHz, covering various 5G bands as well as legacy 2G, 3G, and 4G LTE bands. By using MIMO technology, it can enhance the capacity and performance of the DAS network.

The low PIM rating of -153 dBc can minimize the signal interference and ensuring high-quality communication. It can also reduces intermodulation distortion, leading to clearer and more reliable signal transmission.

get an instant quote

Model: STP74G8M2OD-P43

698-4000MHz Low PIM Dual Polarized Outdoor Panel Antenna

The model supports a broad range of frequencies, often from 700 MHz to 4 GHz, covering various 5G bands as well as legacy 2G, 3G, and 4G LTE bands. By using MIMO technology, it can enhance the capacity and performance of the DAS network.

The low PIM rating of -153 dBc can minimize the signal interference and ensuring high-quality communication. It can also reduces intermodulation distortion, leading to clearer and more reliable signal transmission.

get an instant quote

Estimated Cost Analysis For 5G 8dBi Dual Polarized Panel Antenna

Please note that the final cost depends on your detailed requirements of DAS antennas. Such as the frequency range, gain, polarization, connector type, mounting options, plastic radome/array/backplate raw material, product finish, IP rating, and the distance of transportation. Take an example of booking a 20GP (1400 PCS) of a 698-4000MHz 8dBi Dual Polarized Panel Antenna, based on EXW:

Antenna Radome 1400 PCS and $4.23 for each $10,000

UV-ABS, Top cover and bottom base, White, 308x190x82mm

$10,000

Antenna arrays 1400 Units and $25.35 for each $10,000

Four bands, 617-960/1710-2700/3300-4000/4900-6000MHz, dual slant polarization, 2x4.3-10-female

$10,000

Reflector/Backplate 1400 PCS and $4.93 for each $10,000

Size: 306x187mm, Material: 1.5mm 5052 aluminum alloy, Surface finish: Wire Brush

$10,000

Labor cost 1400 PCS and $8.45 for each $10,000

It includes the welding of feeding network & connector, PIM and VSWR tuning, and assembly

$10,000

Mounting bracket 1400 Units and $1.13 for each $10,000

Material: Steel, including U bolts and clamps with nuts and washers, Finish: Dacromet

$10,000

Product box and packaging foams 1400 Units and US$3.52 for each $4,300

Product box: 34x22x11.5cm, 3 layers, K=A; Multiple carton :115.5x47.5x34mm, 5 layers, K=A, with protection foams

$4,300

Towing & customs clearance fee and US$915.00 for each bill $4,300

From our factory in Nanhai, Foshan to Yantian port of Shenzhen, one 20GP

$4,300

Ocean freight of one 20GP and US$3,300 for each $4,300

Shipping from Shenzhen, China to San Francisco, USA. The pricing was based on July 12th.2024.

$4,300

get a quote

learn more

The Process Flow & Duration Estimation

Please note that the final lead-time depends on the customized service you require, electrical & mechanical specifications , the raw material types, product surface finish types, and packaging, etc. Take an example of customizing a 617-6000MHz 8dBi dual slant panel antenna:

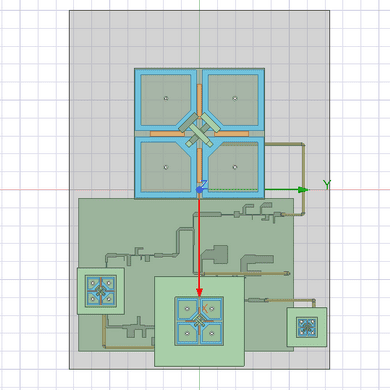

Step 1: HFSS Simulation Test (40-60 days based on dual polarization )

HFSS (High Frequency Structure Simulator) is a powerful electromagnetic simulation software used for antenna design. It allows engineers to analyze and optimize antenna performance by simulating electromagnetic fields and predicting radiation patterns of frequency range, gain, polarization, S11, half-power beamwidth and other important parameters.

To simulate the performance of 5G antennas with multiple bands and dual polarization, it currently takes 8 hours to complete the testing. This includes simulating the four band arrays, the four bands combiner, the reflector, and the radome. Unfortunately, even if the engineer does not need to test, the HFSS can only run three times.

Step 2: Optimized design and generate CAD drawings (2 days )

To ensure that the HFSS design is thoroughly verified and optimized, we will take the necessary steps to review all parameters and performance metrics. Once the design is confirmed, we will proceed with generating the CAD drawing for the prototype and sample. This process, including verification, optimization, and CAD drawing generation, will be completed within two working days.

Step 3: Prepare the material for the prototypes (5-7 days)

On average, it takes PCB suppliers 5-7 working days to prepare and manufacture the antenna array materials, such as FR4 or F4B. This time frame includes the domestic shipping time as well.

Step 4: Prototype testing (1-2 days)

The antenna prototype is tested in an anechoic chamber to measure and analyze the electromagnetic radiation pattern. Engineer can accurately measure and analyze the antenna’s performance, identify any design flaws, and optimize the antenna’s radiation characteristics for specific applications.

Step 5: Shipping to the USA(4-5 days)

Normally, we will arrange the shipment by DHL since it’s the fastest channel for prorotypes. There is no big difference on the freight cost compared with FedEx/UPS.

We can also use a special channel if it’s not urgent and the packaging size is big. The import tariff and customs clearance can be included. This can save you a lot of money.

Step 6: Trial order without making any new tooling/mold (12-18 days)

Once the prototypes are received and tested in a real-world conditions and get approved. It’s suggested to place a small quantity trial order. This way, any potential problems or defects can be identified and resolved before moving forward with mass production.

Step 7: Mass production (15-25 days)

Once the trial order has been successfully completed without any issues, we can proceed with mass production of the new antenna product. What we need to do next is to reduce the cost without compromise on the product quality and performance. It’s included but not limited to optimizing the product performance & structure, improving production efficiency, and source new suppliers, etc.

Want to know how to compress lead-time of mass production?

Compressing lead times for mass production of Panel antenna is crucial for businesses looking to meet customer demands and stay competitive in the market. By implementing strategies such as optimizing production processes, streamlining supply chain management, and utilizing advanced manufacturing technologies, companies can significantly reduce the time it takes to produce panel antennas and improve overall operational efficiency.

get a quote

The Basic Knowledge About DAS Antennas

We have crafted the following articles to provide you with a comprehensive understanding of the functionality, operation, and applications of DAS antennas. These articles includes but are not limited to the panel antenna operating frequency, gain, polarization, low PIM, mounting options, antenna type selections and applications, etc.

Product Tutorial

Ultimate Guide to Choose the Right 5G DAS Antennas

learn more »

Andrew Chen 3 Jun 2024

FAQ

What is A 5G DAS Antenna?

learn more »

Andrew Chen 31 May 2024

FAQ

What is 5G?

learn more »

Andrew Chen 21 Mar 2024

Product Tutorial

Top 4 Applications of Low PIM Antennas

learn more »

Andrew Chen 11 Mar 2024

FAQ

What is a Low PIM Antenna?

learn more »

Andrew Chen 11 Mar 2024

FAQ

What is a DAS Antenna?

learn more »

Andrew Chen 10 Mar 2024

get a quote

learn more

The Common Pitfalls When Purchasing from China

When purchasing DAS antennas from China, there are several common pitfalls that buyers should be aware of. These pitfalls include poor quality control, misleading specifications, and lack of technical support, etc.

One of the main reasons these pitfalls occur is due to the large number of suppliers in China. With so many options available, it can be difficult to find a reliable and trustworthy supplier. Some suppliers may not have the necessary experience or expertise to produce high-quality antennas, leading to poor performance and durability issues. Many Chinese manufacturers prioritize quantity over quality, leading to a higher likelihood of receiving a defective or subpar product. This can result in antennas that do not perform as expected or have a short lifespan.

Another reason for these pitfalls is misleading specifications. Some Chinese manufacturers may exaggerate the performance capabilities of their antennas in order to attract buyers. However, when the antennas are tested in real-world conditions, they may not meet the stated specifications.

Additionally, there is often a lack of technical support when purchasing Panel antennas from China. This can be problematic if the buyer encounters any issues with the antennas or requires assistance with installation or troubleshooting. Without proper technical support, the buyer may be left to figure things out on their own or seek help from third-party sources.

Communication can also be a challenge when purchasing from China. Language barriers and cultural differences can make it difficult to effectively communicate with suppliers. This can result in misunderstandings, miscommunications, and delays in the purchasing process.

In conclusion, the common pitfalls when purchasing DAS antennas from China include poor quality control, misleading specifications, lack of technical support and communication issues. These pitfalls occur due to the large number of suppliers, the prioritization of quantity over quality, exaggerated claims by manufacturers, lack of experience or expertise, inadequate technical support, and communication challenges. Buyers should be cautious and conduct thorough research before making a purchase to avoid falling into these pitfalls.

get a quote

learn more

A Brief Self-Nomination, Why Choose Sanny Telecom?

We are the best choice because we offer top-notch quality and exceptional service. With years of experience in the industry, we have developed a reputation for delivering excellent results and exceeding our clients’ expectations. Our team of experts is highly skilled and knowledgeable, ensuring that we can handle any project with ease. We are committed to providing personalized attention to each client, understanding their unique needs and delivering tailored solutions. Our dedication to customer satisfaction is unmatched, and we go above and beyond to ensure that our clients are happy with our work. Choose us for unparalleled quality and service.

There are several reasons why you should choose us:

1. Quality: We are committed to providing high-quality products and services. Our team consists of experienced professionals who are dedicated to delivering the best results.

2. Expertise: We have a deep understanding of our industry and the specific needs of our customers. We stay up-to-date with the latest trends and technologies to ensure we can offer the most innovative solutions.

3. Customer service: We prioritize our customers and strive to provide excellent customer service. We are responsive to inquiries, listen to feedback, and work closely with our clients to meet their needs.

4. Trust and reliability: We have a strong reputation for being trustworthy and reliable. Our customers trust us to deliver on our promises and to consistently provide exceptional products and services.

5. Long-term partnerships: We believe in building long-term relationships with our customers. We are not just interested in making a quick sale; we want to be a trusted partner that our customers can rely on for years to come.

In summary, we offer quality, expertise, excellent customer service, trust and reliability, and long-term partnerships.

get a quote

learn more

The FAQs About DAS Antennas

Below, you will find a list of 20 frequently asked questions along with their concise answers. We have spent 15 years supplying antennas and serving customers worldwide, which has allowed us to accumulate a wealth of knowledge and experience. If you have any additional questions, please feel free to reach out to us directly.

1. What is a Distributed Antenna System (DAS)?

A DAS is a network of spatially separated antenna nodes connected to a common source that provides wireless service within a specific area or building.

2. Why is DAS important?

DAS enhances cellular coverage and capacity in areas where traditional macrocell networks are insufficient, such as large buildings, stadiums, and underground facilities.

3. How does a DAS work?

A DAS works by distributing the signal from a central source to multiple antennas placed throughout the coverage area, ensuring consistent and reliable wireless communication.

4. What types of DAS are there?

The main types of DAS are Passive DAS, Active DAS, and Hybrid DAS.

5.What is the difference between Passive and Active DAS?

Passive DAS uses passive components like coaxial cables and splitters, while Active DAS uses powered components like fiber optics and amplifiers to distribute the signal.

6. What are the main components of a DAS?

The main components include a signal source, antennas, cabling (fiber or coaxial), and amplifiers/repeaters.

7. What is the typical range of a DAS antenna?

The range can vary, but typically DAS antennas cover areas from a few hundred square feet to several thousand square feet.

8. Can DAS be used for both indoor and outdoor applications?

Yes, DAS can be designed for both indoor and outdoor environments to improve coverage and capacity.

9. What frequencies do DAS antennas support?

DAS antennas can support a wide range of frequencies, including VHF, UHF, cellular bands (700 MHz to 2600 MHz), 3300 MHz t0 3800MHz and 4900 MHz t0 6000MHz.

10. How is DAS different from small cells?

DAS uses multiple antennas distributed throughout an area, while small cells are individual, low-power base stations that provide localized coverage.

11. Can DAS support multiple carriers?

Yes, DAS can be designed to support multiple carriers and frequencies, allowing for multi-operator use.

12.What is the difference between a DAS and a repeater?

A DAS distributes signals through multiple antennas, while a repeater amplifies and retransmits signals to extend coverage.

13. Can DAS support 5G networks?

Yes, DAS can be designed to support 5G frequencies and technologies, ensuring future-proof connectivity.

14. How does DAS handle handoffs between antennas?

DAS systems are designed to ensure seamless handoffs between antennas, maintaining uninterrupted communication.

15. What is the impact of building materials on DAS performance?

Building materials like concrete and metal can attenuate signals, requiring careful planning and placement of antennas.

16. Can DAS be used in combination with Wi-Fi?

Yes, DAS can complement Wi-Fi networks to provide comprehensive wireless coverage.

17. What are the environmental considerations for DAS antennas?

Environmental considerations include temperature, humidity, and potential exposure to elements, which can affect antenna performance.

18. How do you handle DAS signal distribution in multi-story buildings?

Signal distribution in multi-story buildings requires careful planning of vertical and horizontal antenna placement.

19. Can DAS be used in vehicles or mobile applications?

Yes, DAS can be designed for mobile applications to ensure consistent coverage in vehicles and other moving platforms.

20. What are the future trends in DAS technology?

Future trends include integration with 5G, enhanced support for IoT devices, and increased use of AI for network optimization.

get a quote

learn more

Available Model Options

Model	Frequency (MHz)	Gain (dBi)	Polarization	VSWR	PIM,Third Order,2x20W	Connector	Dimensions (mm)	Datasheet
STO433G3	433	3	Vertical	≤2.0	/	N-female	Φ20×600	Download
STO500G3	470-510	3	Vertical	≤2.0	/	N-female	Φ20×600	Download
STO8G3	860-870	3	Vertical	≤1.5	/	N-female	Φ20×350	Download
STO8G5	860-870	5	Vertical	≤1.5	/	N-female	Φ20×600	Download
STO9G3	900-930	3	Vertical	≤1.5	/	N-female	Φ20×350	Download
STO9G5	900-930	5	Vertical	≤1.5	/	N-female	Φ20×600	Download
STO400G8	400-430	8	Vertical	≤1.5	/	N-female	Φ52×2800	Download
STO450G8	450-470	8	Vertical	≤1.5	/	N-female	Φ52×2600	Download
STO8G11	824-896	11	Vertical	≤1.5	/	N-female	Φ52×2600	Download
STO9G6	824-960	6	Vertical	≤1.5	/	N-female	Φ20×600	Download
STO9G6-PRO	824-960	6	Vertical	≤1.5	/	N-female	Φ32×600	Download
STO9G11	870-960	11	Vertical	≤1.5	/	N-female	Φ52×2600	Download
STO0727G4-PRO	698-2700	4	Vertical	≤1.8	/	N-female	190x66x66	Download
STO0740G4-PRO	698-4000	4	Vertical	≤1.8	/	N-female	190x66x66	Download
STB0727G7	698-2700	4/7	Vertical	≤1.8	/	SMA-male with pigtail	Φ20×890	Download
STO0727G10-PRO	698-2700	5/10	Vertical	≤1.8	/	N-female	Φ32×900	Download
STOC0727G3-P43	698-2700	2.5/5	Linear	≤1.8	< -153dBc	N-female	Φ203×105	Download
STOC0727G3M2-P43	698-2700	3.5/5	2xLinear	≤1.8	< -153dBc	2xN-female	Φ218×40	Download
STOC74G3B-P43	698-4000	1.5/7.0	Linear	≤1.8	< -153dBc	4.3-10-female	Φ266×18	Download
STOC74G3AM2-P43	698-4000	1.5/7.0	2xLinear	≤1.8	< -153dBc	2×4.3-10-female	Φ266×18	Download
STOC36G3-P43	380-6000	2/4	Linear	≤2.0	< -153dBc	N-female	Φ298×152	Download
STOC66G3A-P43	617-6000	1.8/5.5	Linear	≤1.8	< -153dBc	4.3-10-female	Φ225×150	Download
STOC66G3B-P43	617-6000	1.5/7	Linear	≤1.8	< -153dBc	4.3-10-female	Φ220×18	Download
STOC66G3AM2-P43	617-6000	1.5/7	2xLinear	≤1.8	< -153dBc	2×4.3-10-female	Φ220×18	Download
STOC66G3AM4-P43	617-6000	2/5.5	4xLinear	≤1.8	< -153dBc	4×4.3-10-female	Φ360×240	Download
STP0727G8ID-P43	698-2700	5/8	Vertical	≤1.8	< -153 dBc	N-female	165x155x50	Download
STP0727G8OD-P43	698-2700	5/8	Vertical	≤1.8	< -153 dBc	N-female	165x155x50	Download
STP0327G8ID-P33	380-2700	3/8	Vertical	≤1.8	< -140 dBc	N-female	308x190x65	Download
STP74G8ID-P43	698-4000	5/8.5	Vertical	≤1.8	< -153 dBc	4.3-10-female	200x180x62	Download
STP74G8OD-P43	698-4000	5/8.5	Vertical	≤1.8	< -153 dBc	4.3-10-female	200x180x62	Download
STP74G8M2ID-P43	698-4000	6.0/7.5	±45°	≤1.8	< -153 dBc	2×4.3-10-female	308x190x82	Download
STP74G8M2OD-P43	698-4000	6.0/7.5	±45°	≤1.8	< -153 dBc	2×4.3-10-female	308x190x82	Download
STP74G8M4ID-P43	698-4000	6.5/11	2x ±45°	≤1.8	< -153 dBc	4×4.3-10-female	308x420x82	Download
STP74G8M4OD-P43	698-4000	6.5/11	2x ±45°	≤1.8	< -153 dBc	4×4.3-10-female	308x420x82	Download
STP66G8M4ID-P43	617-6000	6.5/11	2x ±45°	≤1.8	< -153 dBc	4×4.3-10-female	308x420x82	Download
STP66G8M4OD-P43	617-6000	6.5/11	2x ±45°	≤1.8	< -153 dBc	4×4.3-10-female	308x420x82	Download

Back to the page navigation

Back to Top

Custom Stereo Foldable Headphone

Indoor/ Outdoor DAS Antennas

DAS Antennas Frequency

DAS Antennas Gain

DAS Antennas Polarization

Table Of Contents For This Page

Applications

Hot Products

Cost Analysis

Duration Estimation

Basic Knowledge

Common Pitfalls

Self-Nomination

FAQs

General Applications For DAS Antennas

General Hot Selling DAS Antennas

617-6000MHz Low PIM SISO Ceiling Mount Antenna

617-6000MHz Low PIM Dual Polarized Ceiling Antenna

698-4000MHz Low PIM SISO Indoor Panel Antenna

698-4000MHz Low PIM SISO Outdoor Panel Antenna

698-4000MHz Low PIM Dual Polarized Indoor Panel Antenna

698-4000MHz Low PIM Dual Polarized Outdoor Panel Antenna

Estimated Cost Analysis For 5G 8dBi Dual Polarized Panel Antenna

The Process Flow & Duration Estimation

Step 1: HFSS Simulation Test (40-60 days based on dual polarization )

Step 2: Optimized design and generate CAD drawings (2 days )

Step 3: Prepare the material for the prototypes (5-7 days)

Step 4: Prototype testing (1-2 days)

Step 5: Shipping to the USA(4-5 days)

Step 6: Trial order without making any new tooling/mold (12-18 days)

Step 7: Mass production (15-25 days)

Want to know how to compress lead-time of mass production?

The Basic Knowledge About DAS Antennas

The Common Pitfalls When Purchasing from China

A Brief Self-Nomination​, Why Choose Sanny Telecom?

The FAQs About DAS Antennas

1. What is a Distributed Antenna System (DAS)?

2. Why is DAS important?

3. How does a DAS work?

4. What types of DAS are there?

5.What is the difference between Passive and Active DAS?

6. What are the main components of a DAS?

7. What is the typical range of a DAS antenna?

8. Can DAS be used for both indoor and outdoor applications?

9. What frequencies do DAS antennas support?

10. How is DAS different from small cells?

11. Can DAS support multiple carriers?

12.What is the difference between a DAS and a repeater?

13. Can DAS support 5G networks?

14. How does DAS handle handoffs between antennas?

15. What is the impact of building materials on DAS performance?

16. Can DAS be used in combination with Wi-Fi?

17. What are the environmental considerations for DAS antennas?

18. How do you handle DAS signal distribution in multi-story buildings?

19. Can DAS be used in vehicles or mobile applications?

20. What are the future trends in DAS technology?

Available Model Options

Company

Products

Contact Us

Ask For A Quick Quote

Request A Quote for Your Antenna Projects!

Request a Free Quote

A Brief Self-Nomination, Why Choose Sanny Telecom?
